Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Product Specification HON-SR28-PRT, HON-SR28-BT Wi-Fi Dual-band 1*1 11a/b/g/n/ac + Bluetooth Combo Module Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Introduction It has dual-band Wi-Fi and Bluetooth functionalities. It is based on NXP 88W8987 chipset, a highly-integrated IEEE 802.11a/b/g/n/ac MAC/Baseband/RF WLAN and Bluetooth Baseband/RF single chip. It can achieve up to a speed of 433.3Mbps with single stream 802.11ac WLAN connection. It is a perfect solution for a combination of Wi-Fi and BT technologies. Product Specifications Mechanical/Electrical Dimensions (L*W*H): 15 x 13 x 2.15 mm Antenna port: 2 Antenna port Host system interfaces: SDIO3.0 interfaces for WLAN HS‐UART and PCM interfaces for BT Environmental Operating Temperature ‐30°C to 85° Storage Temperature ‐40°C to 125 Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Radio Specifications 2.4GHz WLAN Frequency range 2412 MHz – 2462 MHz IEEE 802.11b, 802.11g, 802.11n-HT20, 802.11n-HT40 Modulation DSSS/OFDM Channel spacing 5MHz Typical Value 802.11b: 17dBm ± 2dB 802.11g: 15dBm ± 2dB 802.11n: 14dBm ± 2dB Antenna Type PCB Antenna Antenna Gain 4.90dBi Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com 5GHz WLAN Frequency range 802.11a/n-HT20/ac-VHT20: 5180~5320MHz, 5500~5700MHz, 5745~5825MHz 802.11n-HT40/ac-VHT40: 5190~5310MHz, 5510~5670MHz, 5755~5795MHz 802.11ac-VHT80: 5210MHz, 5290MHz, 5530MHz, 5610MHz, 5775MHz IEEE 802.11a,802.11n HT20, 802.11n HT40, 802.11ac-VHT20, 802.11ac-VHT40, 802.11ac-VHT80 Modulation OFDM Channel spacing 20MHz, 40MHz, 80MHz Typical Value 802.11a: 15dBm ± 2dB 802.11n: 14dBm ± 2dB 802.11ac: 13dBm ± 2dB Antenna Type PCB Antenna Antenna Gain 2.80dBi Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Bluetooth (BLE only) Frequency range 2402 MHz – 2480 MHz Modulation GFSK Number of channels 40 Channel spacing 2MHz Antenna Type FPC Antenna Antenna Gain 4.20dBi Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This module has been tested and found to comply with Part15C, Section 15.247 and Part 15E, Section 15.407 requirements for Modular Approval. The module is tested for standalone mobile RF exposure use condition. (1) The antenna must be installed such that 20 cm is maintained between the antenna and users, (2) The transmitter module may not be co-located with any other transmitter or antenna. In the event that these conditions cannot be met (for example certain laptop configurations or co- location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. The following antennas have been certified for use with this module. Only antennas of the same type with equal or lower gain may also be used with this module. Other types of antennas and/or higher gain antennas may require the additional authorization for operation. Antenna Specification list below: Antenna Type Frequency Bands (MHz) Antenna Gain (dBi) FPC 2400 ~ 2483.5 2.4 Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com When the module is installed in the host device, the FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily re-moved. If not, a second label must be placed on the outside of the final device that contains the following text: “Contains FCC ID: HD5-HONSR28PRT”. The FCC ID can be used only when all FCC compliance requirements are met. This transmitter is tested in a standalone mobile RF exposure condition and any co-located or simultaneous transmission with other transmitter(s) class II permissive change re-evaluation or new certification. Important Note In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for reevaluating the end product (including the transmitter) and obtaining a separate FCC authorization. Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The host integrator must follow the integration instructions provided in this document and ensure that the composite-system end product complies with the requirements by a technical assessment or evaluation to the rules and to KDB Publication 996369…

Text truncated - open the document above for the full version.

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 08‐23‐2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing and Part 2.911(d)(5)(ii) Filing FCC ID: HD5‐HONSR28PRT 1. Honeywell International Inc (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2. Honeywell International Inc (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Applicant signature: Applicant printed name: Cindy Jiang

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 06‐26‐2023 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: HD5‐HONSR28PRT Honeywell International Inc (“the applicant”) certifies that, as of the date of the filing of the application, we designate ourselves as the U.S. agent for service of process. Designated U.S. Agent Information: FRN: 0017363995 Name: Honeywell International Inc Address: 9680 Old Bailes Rd. Fort Mill, SC 29707 United States Contact Person: Cindy Jiang Tel.: (704) 627‐6011 Email: [email protected] Sincerely, Honeywell International Inc Cindy Jiang, Global Regulatory Compliance Manager [Applicant signature]

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Cover Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: HD5‐HONSR28PRT Please be notified that we, the undersigned, Honeywell International Inc declares that the product which bears the above FCC ID is also compliant with the FCC requirements for Supplier’s Declaration of Conformity(SDoC). And the SDoC procedure shall be carried out prior to marketing the device in the US. Sincerely, _________________ Name: Cindy Jiang Title: Global Regulatory Compliance Manager Email: [email protected] Date: 2023‐06‐26

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: HD5‐HONSR28PRT Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________ Name: Cindy Jiang Title: Global Regulatory Compliance Manager Email: [email protected] Date: 2023‐06‐26

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Declaration of Authorization We Name: Honeywell International Inc Address: 9680 Old Bailes Rd. Fort Mill, SC 29707 United States Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: Wireless Module FCC ID: HD5‐HONSR28PRT Model No.: HON‐SR28‐PRT, HON‐SR28‐BT Sincerely, Name: Cindy Jiang Title: Global Regulatory Compliance Manager Email: [email protected] Date: 2023‐06‐26

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Request for Modular/Limited Modular Approval Date: June 28, 2023 Subject: Manufacturer’s Declaration for ☒ - Modular Approval ☐ - Split Modular Approval ☐ - Limited Modular Approval ☐ - Limited Split Modular Approval FCC ID: HD5-HONSR28PRT 8 Basic Requirements – FCC Part 15.212(a)(1) For Items Marked “NO(*)”, the Limited Module Description Must be Filled Out on the Following Pages Modular Approval Requirement Requirement Met 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with FCC limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. The physical crystal and tuning capacitors may be located external to the shielded radio elements. 15.212(a)(1)(i) ☒ - YES ☐ - NO(*) Details: <The module contains a metal shield which covers all RF components and circuitry. The shield is located on the top of the board next to antenna connector> 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with FCC requirements under conditions of excessive data rates or over-modulation. 15.212(a)(1)(ii) ☒ - YES ☐ - NO(*) Details: <Data to the modulation circuit is buffered as described in the operational description provided with the application> 3. The modular transmitter must have its own power supply regulation on the module. This is intended to ensure that the module will comply with FCC requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. 15.212(a)(1)(iii) ☒ - YES ☐ - NO(*) Details: <The module contains its own power supply regulation. Please refer to schematic filed with this application> 4. The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b), 15.204(c), 15.212(a), and 2.929(b). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph 15.212(b). 15.212(a)(1)(iv) ☒ - YES ☐ - NO(*) Details: <The module connects to its antenna using an IPEX connector which is considered a non-standard connector. A list of antennas tested and approved with this device may be found in user manual provided with the application> 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). 15.212(a)(1)(v) ☒ - YES ☐ - NO(*) Details: <The module was tested stand-alone as shown in test setup photographs filed with this application> 070920-02b Modular Approval Requirement Requirement Met 6. The modular transmitter must be labeled with its own FCC ID number, or use an electron display (see KDB Publication 784748). If using a permanently affixed label with its own FCC ID number, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: ZMOFM101GL12” or “Contains FCC ID: ZMOFM101GL12” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. 15.212(a)(1)(vi) ☒ - YES ☐ - NO(*) Details: <There is a label on the module as shown in the labeling exhibit filed with this application. Host specific labeling instructions are shown in the installation manual .filed with this application.> 7. The modular transmitter must c…

Text truncated - open the document above for the full version.

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Non-SDR (Software Defined Radio) Cover Letter Date: June 26, 2023 Refer to KDB 442812 D01 SDR apps Guide v02r03. The following six questions can be used for determining if a radio can elect to be, or must be an SDR. 1. Can the RF parameters of the device be altered through software? Yes - go to 2. No, not an SDR Reply: Ye s 2. Can third parties not permitted by the Commission through specific filings modify, configure, or load different software, or make configuration settings to operate the device or host hardware radio frequency parameters (frequency range, modulation type, maximum output power or other radio parameters) in any other way than granted (or expected to be granted)? Yes, must be an SDR. No - go to 3. Reply: No 3. Is the device capable of operating in any other in any other way than granted, or will be, granted? Yes, - go to 4. No - go to 5. Reply: No 4. Is this a Part 15 client Device as defined in Section 15.202 (as opposed to a master device)? Yes, qualifies as a part 15 client devices - go to 5. Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com No, must be an SDR. 5. Does the manufacturer elect SDR? Yes, elects to be an SDR. No, Not an SDR Reply: No Final Conclusion: This product shall be approval as a Non-SDR which is declared by the applicant. Sign by: ________________ Name: Cindy Jiang Title: Global Regulatory Compliance Manager Email: [email protected] Date: 2023‐06‐26 FCC ID: HD5‐HONSR28PRT

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Cover Letter We Name: Honeywell International Inc Address: 9680 Old Bailes Rd. Fort Mill, SC 29707 United States Declare that: Product: Wireless Module Model No.: HON‐SR28‐PRT, HON‐SR28‐BT The difference of two models is as follows. 1, The hardware is the same. 2, HON‐SR28‐PRT support Bluetooth & Wi‐Fi, HON‐SR28‐BT support Bluetooth. HON‐SR28‐BT disable Wi‐Fi function via the software. Sincerely, ______________ Name: Cindy Jiang Title: Global Regulatory Compliance Manager Email: [email protected] Date: 2023‐06‐26

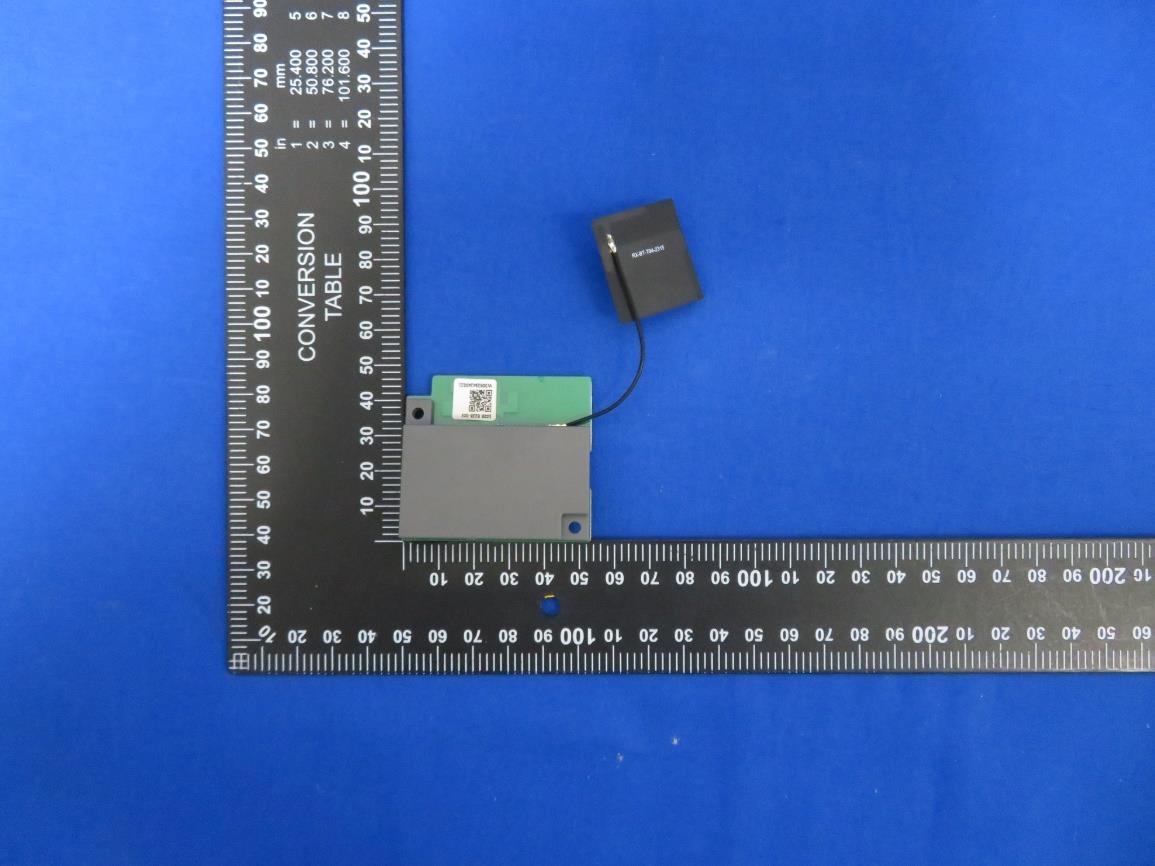

Report No.: 2305RSU049-UE 1 of 3 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2305RSU049-UE 2 of 3 (3) EUT Photo (4) EUT Photo Report No.: 2305RSU049-UE 3 of 3 (5) EUT Photo

42.00 mm 36.00 mm Wireless Module/无线模组/無綫模組 Model/型号/型號: HON-SR28-BT FCC ID: HD5-HONSR28PRT IC: 1693B-HONSR28PRT Made in China/中国制造/中國製造

NOTES 1. MATERIAL: XXXXXXX 2. TOP SURFACE TO BE FREE OF NICKS, SCRATCHES AND OTHER SURFACE BLEMISHES. 4. TOLERANCE FOR THICKNESS ±0.05MM, ALL OTHERS ±.254mm. 5. PART WILL COMPLY WITH APPLICABLE RESTRICTION OF THE USE OF CERTAIN OF HAZARDOUS SUBSTANCES DIRECTIVE(S) AS INDICATED IN HAND HELD DOCUMENT NUMBER 500007391. SUPPLIER WILL PROVIDE A MATERIAL DECLARATION DETAILING MATERIAL COMPOSITION BY % OF TOTAL CONTENT FOR EACH HOMOGENEOUS MATERIAL WITH FIRST ARTICLE INSPECTION REPORT. 6. LABEL TO MEET UL REQUIREMENTS FOR MARKING AND LABELING SYSTEMS, AND TO BE UL RECOGNIZED. PLACE UL RECOGNIZED LABEL INFORMATION ON EACH SMALLEST PACKAGING CONTAINER. THE PACKAGE LABELING TO INCLUDE: UL LOGO, COMPANY TRADE MARK, UL DESIGNATION, PER UL STANDARD REQUIREMENTS. A RELEASEXXXXXXXX 2020-XX-XX B C D 3012-5495-001 Eden Mar.29/23 3012-5495-001 LABEL_PRODUCT_WIFI BT SCALE 1:1 Material No.: 3012-5495-100 3. DIECUT LABEL: XXXXXXXX-100 BACKGROUND: BLACK 底色颜色：黑色 42.00 mm 36.00 mm Wireless Module/无线模组/無綫模組 Model/型号/型號: HON-SR28-PRT FCC ID: HD5-HONSR28PRT IC: 1693B-HONSR28PRT Made in China/中国制造/中國製造 NOTES 1. MATERIAL: XXXXXXX 2. TOP SURFACE TO BE FREE OF NICKS, SCRATCHES AND OTHER SURFACE BLEMISHES. 4. TOLERANCE FOR THICKNESS ±0.05MM, ALL OTHERS ±.254mm. 5. PART WILL COMPLY WITH APPLICABLE RESTRICTION OF THE USE OF CERTAIN OF HAZARDOUS SUBSTANCES DIRECTIVE(S) AS INDICATED IN HAND HELD DOCUMENT NUMBER 500007391. SUPPLIER WILL PROVIDE A MATERIAL DECLARATION DETAILING MATERIAL COMPOSITION BY % OF TOTAL CONTENT FOR EACH HOMOGENEOUS MATERIAL WITH FIRST ARTICLE INSPECTION REPORT. 6. LABEL TO MEET UL REQUIREMENTS FOR MARKING AND LABELING SYSTEMS, AND TO BE UL RECOGNIZED. PLACE UL RECOGNIZED LABEL INFORMATION ON EACH SMALLEST PACKAGING CONTAINER. THE PACKAGE LABELING TO INCLUDE: UL LOGO, COMPANY TRADE MARK, UL DESIGNATION, PER UL STANDARD REQUIREMENTS. A RELEASEXXXXXXXX 2020-XX-XX B C D 3012-5496-001 Eden 3012-5496 -001 LABEL_PRODUCT_ BT 3. DIECUT LABEL: XXXXXXXX-100 BACKGROUND: BLACK 42.00 mm 36.00 mm SCALE 1:1 Material No.: 3012-5495-100 底色颜色：黑色 Apr.12/23 Wireless Module/无线模组/無綫模組 Model/型号/型號: HON-SR28-BT FCC ID: HD5-HONSR28PRT IC: 1693B-HONSR28PRT Made in China/中国制造/中國製造

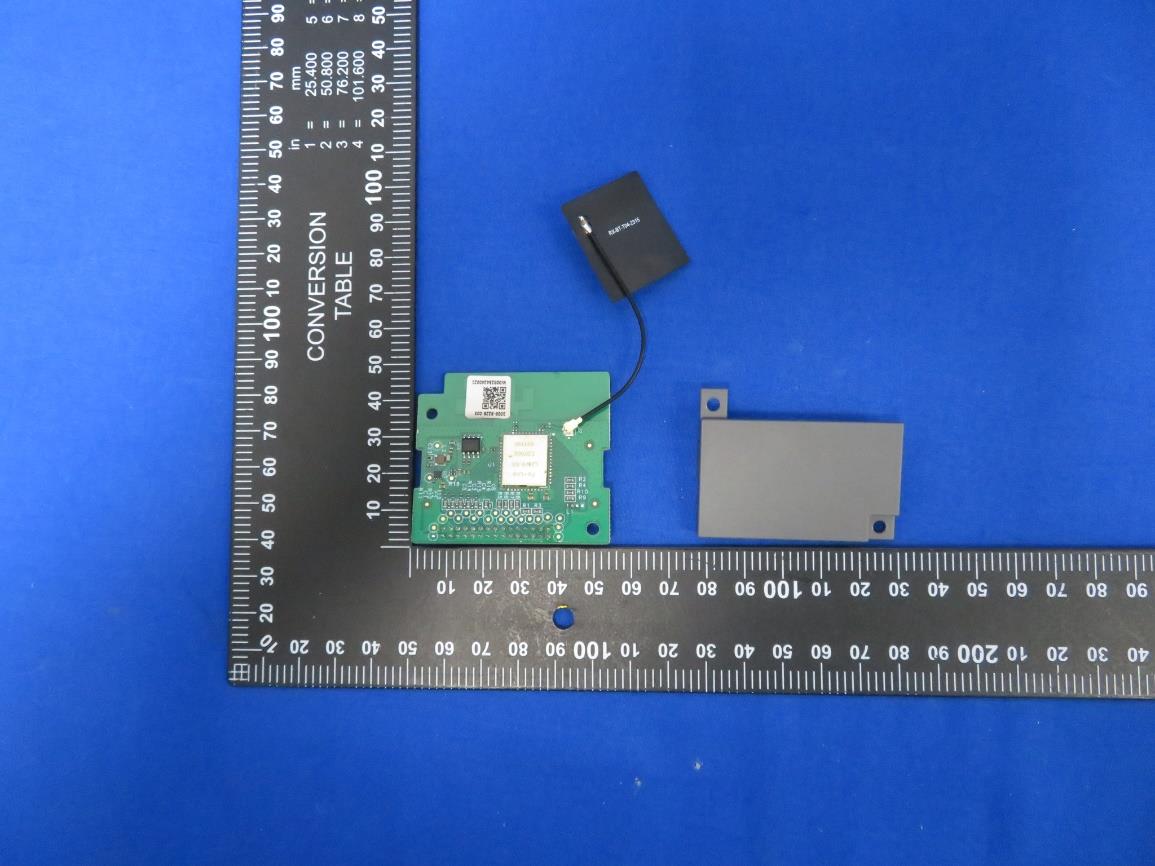

Report No.: 2305RSU049-UE 1 of 1 Internal Photograph (1) EUT Photo (2) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2305RSU049-U6 Phone: +86-512-66308358 Report Version: V02 Web: www.mrt-cert.com Issue Date: 2023-08-24 Template Version:0.0 1 of 8 RF Exposure Evaluation Declaration FCC ID: HD5-HONSR28PRT Applicant: Honeywell International Inc Honeywell Safety and Productivity Solutions Product: Wireless Module Model No.: HON-SR28-PRT, HON-SR28-BT Brand Name: Honeywell FCC Rule Part(s): FCC Part 2.1091 Result: Complies Received Date: 2023-08-04 Test Date: 2023-08-16 Reviewed By: Jame Yuan Approved By: Robin Wu The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2305RSU049-U6 2 of 10 Revision History Report No. Version Description Issue Date Note 2305RSU049-U6 V01 Initial Report 2023-08-19 Invalid 2305RSU049-U6 V02 Add simultaneous transmission description 2023-08-24 Valid Report No.: 2305RSU049-U6 3 of 10 CONTENTS Description Page 1. General Information ................................................................................................................................ 4 1.1. Applicant ........................................................................................................................................ 4 1.2. Manufacturer ................................................................................................................................. 4 1.3. Testing Facility ............................................................................................................................... 4 1.4. Product Information ....................................................................................................................... 5 1.5. Antenna Details ............................................................................................................................. 5 1.6. Device Classification ..................................................................................................................... 5 2. RF Exposure Evaluation ............................................................................................. 错误!未定义书签。 2.1. Test Limits ......................................................................................................... 错误!未定义书签。 2.2. Test Result ......................................................................................................... 错误!未定义书签。 Appendix A - EUT Photograph ........................................................................................... 错误!未定义书签。 Report No.: 2305RSU049-U6 4 of 10 1. General Information 1.1. Applicant Honeywell International Inc Honeywell Safety and Productivity Solutions 9680 Old Bailes Rd. Fort Mill, SC 29707 United States 1.2. Manufacturer Honeywell International Inc Honeywell Safety and Productivity Solutions 9680 Old Bailes Rd. Fort Mill, SC 29707 United States 1.3. Testing Facility Test Site – MRT Suzhou Laboratory Laboratory Location (Suzhou - Wuzhong) D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Laboratory Location (Suzhou - SIP) 4b Building, Liando U Valley, No.200 Xingpu Rd., Shengpu Town, Suzhou Industrial Park, China Laboratory Accreditations A2LA: 3628.01 CNAS: L10551 FCC: CN1166 ISED: CN0001 VCCI: R-20025 G-20034 C-20020 T-20020 R-20141 G-20134 C-20103 T-20104 Test Site – MRT Shenzhen Laboratory Laboratory Location (Shenzhen) 1G, Building A, Junxiangda Building, Zhongshanyuan Road West, Nanshan District, Shenzhen, China Laboratory Accreditations A2LA: 3628.02 CNAS: L10551 FCC: CN1284 ISED: CN0105 Test Site – MRT Taiwan Laboratory Laboratory Location (Taiwan) No. 38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Laboratory Accreditations TAF: L3261-190725 FCC: 291082, TW3261 ISED: TW3261 Report No.: 2305RSU049-U6 5 of 10 1.4. Product Information Product Name Wireless Module Model No. HON-SR28-PRT, HON-SR28-BT Wi-Fi Specification 802.11a/b/g/n/ac Bluetooth Specification BLE only Note 1: The information of EUT was provided by the manufacturer, and the accuracy of the information shall be the responsibility of the manufacturer. Note 2: HON-SR28-PRT and HON-SR28-BT are identical in hardware. The only difference is HON-SR28-BT disable Wi-Fi via software. 1.5. Antenna Details Antenna Type Frequency Range (MHz) Antenna Gain (dBi) Wi-Fi Antenna PCB Antenna 2400 ~ 2480 4.9 5150 ~ 5250 2.2 5250 ~ 5350 2.2 5470 ~ 5725 2.8 5725 ~ 5850 2.7 Bluetooth Antenna FPC Antenna 2400 ~ 2480 4.2 1.6. Device Classification According to the user manual, the antenna of this device is at least 20cm away from the body of the user, this device is classified as a Mobile Device. So, the RF exposure evaluation requirements of § 2.1091 for mobile device exposure conditions subject to MPE limits. Report No.: 2305RSU049-U6 6 of 10 2. RF Exposure Evaluation 2.1. Test Limits According to FCC §1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b) Limits For Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 0.3-3.0 614 1.63 *(100) ≤6 3.0-30 1842/f 4.89/f *(900/f 2 ) <6 30-300 61.4 0.163 1.0 <6 300-1,500 -- -- f/300 <6 1,500-100,000 -- -- 5 <6 (B) Limits for General Population/ Uncontrolled Exposures 0.3-1.34 614 1.63 *(100) <30 1.34-30 824/f 2.19/f *(180/f 2 ) <30 30-300 27.5 0.073 0.2 <30 300-1,500 -- -- f/1500 <30 1,500-100,000 -- -- 1.0 <30 f= frequency in MHz. * = Plane-wave equivalent power density. Report No.: 2305RSU049-U6 7 of 10 2.1. MPE Exemptions For single RF sources (i.e., any …

Text truncated - open the document above for the full version.

KUNSHAN INNOWAVE COMMUNICATION TECHNOLOGY CO., LTD. www.innowave.cn WiFi Antenna Test Report Engineer: Zhao ding sheng Date: 2023-06-12 •Test Setup •Return Loss •Radiation Pattern •Gain, Efficiency Test Setup •Test Equipment: E5071C/E5063A •S parameters were measured by Keysight 2-Port VNA connecting with 2 coaxial cables, which would be calibrated before the test. DUT setup in an anechoic chamber X Z Y O WiFi Antenna Radiation Pattern 2.4GHz2.45GHz2.5GHz 5.15GHz5.35GHz5.85GHz Gain, Efficiency Efficiency Freq. Efficiency(dB)Gain(dBi)Efficiency(%) 2400-3.3 3.3 47.1 2410-3.2 3.4 48.2 2420-3.1 3.6 49.1 2430-2.7 4.1 53.2 2440-2.6 4.1 54.9 2450-2.6 4.0 54.6 2460-2.5 4.4 56.5 2470-2.6 4.7 55.0 2480-2.5 4.9 56.0 2490-2.6 5.2 54.4 2500-2.5 5.5 56.5 Freq. Efficiency(dB)Gain(dBi)Efficiency(%) 5150-4.2 1.2 38.1 5200-3.6 1.6 44.0 5250-3.6 2.2 43.3 5300-3.9 1.0 40.9 5350-3.8 0.6 41.8 5400-3.4 1.6 46.2 5450-3.3 0.9 46.3 5500-3.3 1.6 46.4 5550-3.5 1.4 44.3 5600-3.6 1.9 43.5 5650-3.7 2.6 42.7 5700-3.8 2.8 41.9 5750-3.6 2.7 43.3 5800-3.9 1.3 41.0 5850-4.2 0.9 38.4 Thanks

MRT Technology (Shenzhen) Co., Ltd Report No.: 2305RSU049-U5 Phone: +86-755-26928918 Report Version: V02 Web: www.mrt-cert.com Issue Date: 2023-08-25 Template Version:0.0 1 of 25 DFS MEASUREMENT REPORT FCC ID: HD5-HONSR28PRT Applicant: Honeywell International Inc Honeywell Safety and Productivity Solutions Product: Wireless Module Model No.: HON-SR28-PRT, HON-SR28-BT Brand Name: Honeywell FCC Classification: Unlicensed National Information Infrastructure (NII) FCC Rule Part(s): Part 15 Subpart E - 15.407 Section (h)(2) Result: Complies Received Date: 2023-08-04 Test Date: 2023-08-11 Reviewed By: Jame Yuan Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 905462. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Shenzhen) Co., Ltd. Report No.: 2305RSU049-U5 2 of 25 Revision History Report No. Version Description Issue Date Note 2305RSU049-U5 V01 Initial Report 2023-08-19 Invalid 2305RSU049-U5 V02 Update Bluetooth version 2023-08-25 Valid Report No.: 2305RSU049-U5 3 of 25 CONTENTS Description Page 1. General Information ................................................................................................................................... 4 1.1. Applicant ....................................................................................................................................... 4 1.2. Manufacturer .............................................................................…
