HD5-HWB11HWB11AC-PRTM WiFi/BT MODULE

Honeywell Confidential and Proprietary USER MANUAL HWB11AC-PRT, WIFI & BT Module O R P O R A T E G R A P H I C S A ND C O M M U N I C A T I O N S Administrative Style Sheet Guide  Graphic Design Institute 12345 Main Street • Suite 100 Revision 1 MODEL NO: HWB11AC-PRT 802.11a/b/g/n/ac + BT 5.0 System on Module Table of Contents 1. Introduction ..................................................................... 1 2. Block Diagram ................................................................. 3 3. Technical Specifications .................................................. 4 Recommended Operating Condition ............................................... 4 4. Footprint, Front & Back view ........................................... 5 5. Pin Configurations of Module .......................................... 6 6. Wireless Specifications ................................................... 7 WLAN .............................................................................................. 7 BLUETOOTH .................................................................................. 7 WLAN Radio Specifications ............................................................ 8 IEEE Specifications ......................................................................... 8 Wi-Fi 2.4 GHz Power Table (FCC/IC) ............................................. 8 Wi-Fi 5 GHz Power Table (FCC/IC) ................................................ 9 Wi-Fi 2.4 GHz Power Table (ETSI) ................................................. 9 Wi-Fi 5 GHz Power Table (ETSI) .................................................. 10 BT & BLE 2.4GHz (ETSI & FCC/IC).............................................. 10 BLUETOOTH Radio Characteristics ............................................. 11 7. Antenna Type & Specifications ..................................... 12 8. RF Layout & Design Guidelines .................................... 14 RF Layout & Design Guidelines .................................................... 14 9. Agency Approvals ......................................................... 15 10. Labelling Guidelines for Products .................................. 16 1 FCC ID: HD5-HWB11 IC: 1693B-HWB11 Model Name: HWB11AC-PRT 1. Introduction This document specifies the details for a WiFi 802.11a/b/g/n/ac with BT5.0 module called with Honeywell Part No. 50180228-001 RFSOM WBT, SOM MODULE, WIFI 802.11AC BT 5.0 - NA 50180227-001 RFSOM WBT, SOM MODULE, WIFI 802.11AC BT 5.0 - ROW This HWB11AC-PRT module is a Wi-Fi/BT system on module which will be placed inside the Honeywell products like printers, barcode scanners, RFID readers etc. To enable wireless connectivity. This module includes MAC & physical layer of 802.11a/b/g/n/ac and the Bluetooth modem. This module operates on 5.0V DC Power supply with internal on-board regulation to generate 3.3v for powering ON all the circuits. The entire RF circuits is enclosed in RF shield of dimension 25mm X 25mm. The module uses internal power amplifier and LNA for 2.4GHz frequency band and an external front end chip for 5GHz frequency band. All filters and diplexers are included in the module to ensure maximum power flatness and optimum VSWR. The module has one antenna chain for 1X1 output. The module supports range of data rates from 1Mbps in 802.11b mode to MCS9 in 802.11ac mode. This chipset also supports concurrent operation of Bluetooth (Version5.0) for wireless connectivity during browsing or other device applications. Along with both standard and high speed (HS) Bluetooth data rates, Bluetooth low energy modes are also supported. Hardware WAPI acceleration engine, AES, TKIP, WPA and WPA2 are supported to provide the latest security requirement on your network. The Device communicates with HOST using SDIO interface for WIFI and UART interface for BLUETOOTH. Chapter 1 2 HWB11AC-PRT – System on Module Features • IEEE 802.11 a/b/g/n/ac WLAN • Bluetooth 5.0 + HS • Bluetooth-WLAN coexistence • WiFi Wake on Wireless (WoW) • 20/40 MHz bandwidth at 2.4GHz • 20/40/80 MHz bandwidth at 5GHz • Internal PA/LNA • Module Size: 80 mm x 37 mm x 18mm, (LxWxH) Board • 802.11d/e/h/i/k/r • Low Current consumption in IEEE PS and Deep Sleep • WiFi Security methods: OPEN, WEP, WPA2-PSK, WPA2-1X PEAP-MSCHAPV2, PEAP-TLS, EAP-TTLS) 3 2. Block Diagram HWB11AC-PRT module is designed based on Qualcomm QCA6174A chipset solution. It supports generic SDIO, UART interface to connect the WLAN/BT to the host processor. A simplified block diagram of the HWB11AC-PRT module is depicted in above picture. Chapter 2 4 3. Technical Specifications Recommended Operating Condition Operating Temperature: -20° to 60°C Humidity Max 95% (Non-condensing, relative humidity) Storage Temperature: - 30° to +70°C Power Supply: +5.0V DC, 0.5A I/O Voltage levels 3.3v for Digital IOs, 1.8v for SDIO stream Current Consumption Tx output power @ 19 dBm on 11b 1M (single stream): 420mA (typ) Tx output power @ 15 dBm on 11n MCS0_HT20 (single stream-5g): 470mA (typ) Chapter 3 5 4. Footprint, Front & Back view Bottom View of HWB11AC-PRT Module Top View of HWB11AC-PRT Module Chapter 4 6 5. Pin Configurations of Module S No PINOUT Signal Type 1 GND Ground 2 GND Ground 3 BT_UART_CTS_3V3 Input/Output 4 1.8V Dig I/O PS Input/Output 5 BT_UART_RTS_3V3 Input/Output 6 BT_HOST_WAKE_3V3 Input/Output 7 BT_UART_TX_3V3 Input/Output 8 EEPROM_SDA Input/Output 9 BT_UART_RX_3V3 Input/Output 10 EEPROM_SCL Input/Output 11 BT_EN_3V3 Input/Output 12 WIFI_WAKE_ON_3V3 Input/Output 13 GND Ground 14 WL_EN_3V3 Input/Output 15 GND Ground 16 SDIO_CLK Input/Output 17 GND Ground 18 SDIO_D3 Input/Output 19 GND Ground 20 SDIO_D2 Input/Output 21 GND Ground 22 SDIO_D1 Input/Output 23 GND Ground 24 SDIO_D0 Input/Output 25 GND Ground 26 SDIO_CMD Input/Output 27 5.0v DC Power Supply 5.0v DC Power Supply 28 5.0v DC Power Supply 5.0v DC Power Supply 29 GND Ground 30 GND Ground Chapter 5 7 6. Wireless Specifications WLAN The HWB11AC-PRT module complies with the following features and …

Text truncated - open the document above for the full version.

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Date : June 29, 2021 Authorization to Act as Agent On our behalf, I/We appoint Mr. Raghavendra Kulkarni of TUV Rheinland India Ltd. 27/B, 2 nd cross road, Electronic City, Phase 1 Hosur Road Bangalore – 560 100. INDIA to act as my/our agent in the preparation/signing of this application for equipment certification for the following FCC ID: HD5-HWB11 & IC: 1693B-HWB11. I/We certify that the submitted documents properly describe the device or system for which equipment certification is sought. I/We also certify that each unit manufactured, imported or marketed, as defined in FCC’s regulations, will have affixed to it a label identical to that submitted for approval with this application. Agency Agreement Expiration Date: 30 Sep 2021 Sincerely, Jesautheen Barakath Ali [email protected] Quality Engineer - Compliance Honeywell International Inc SPS (Safety and Productivity Solutions) Office:+1-803-835-8275

Safety and Productivity Solutions 9680 Old Bailes Road Fort Mill, SC 29707 USA www.honeywell.com www.honeywellaidc.com Date : June 29, 2021 Federal Communications Commission Authorization and Evaluation division Subject: Statement of Conformity for the product HWB11AC-PRT Module with FCC ID: HD5-HWB11 HWB11AC-PRT Module complies with Part 15 of FCC rules. We declare that: 1. HWB11AC-PRT software and associated drivers will not initiate any transmission on DFS frequency without initiation by master. 2. HWB11AC-PRT adopts passive scanning without any beacons and does not support peer-to-peer modes Sincerely, Jesautheen Barakath Ali [email protected] Quality Engineer - Compliance Honeywell International Inc SPS (Safety and Productivity Solutions) Office:+1-803-835-8275

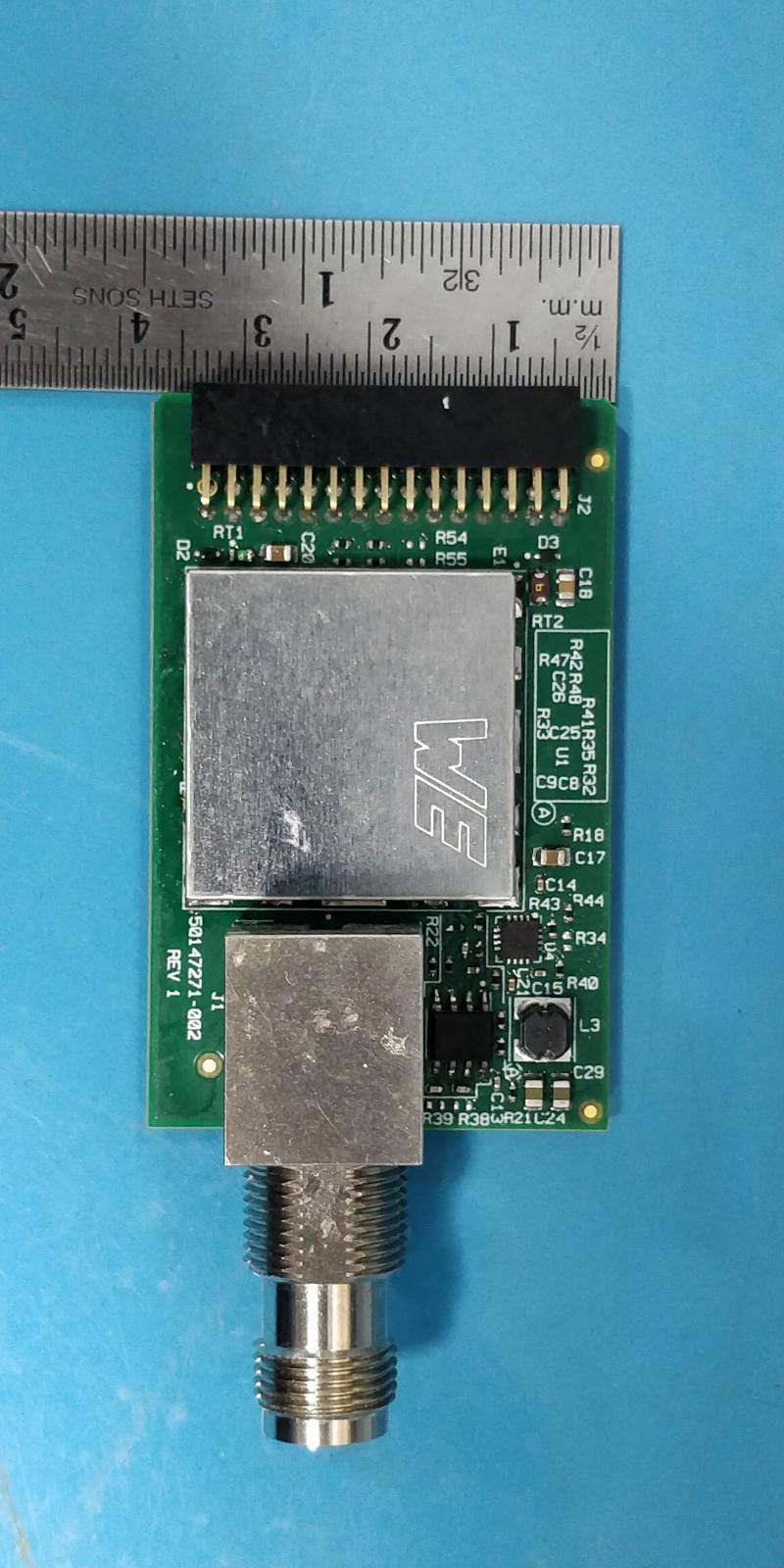

Produ k te Products www.tuv.com EUT External Photos ReferenceTest Report No: ULR-TC568821300000033F/34F/35F Seite 1 von 1 Page 1 of 1 Photo 1: PCB Dimensional View Photo 2: PCB Dimensional View

Revision:1.0 Page 1 of 1 HONEYWELL INTERNATIONAL INC SAFETY AND PROUDCTIVITY SOLUTIONS 9680 Old Bailes Road, Fort Mill, SC 29707, USA Labelling Information FCC ID: HD5-HWB11 IC: 1693B-HWB11 Model Name: HWB11AC-PRT Picture below shows the label location on HWB11AC-PRT MODULE and the label information. Picture 1: Sample picture for Labelling Picture 2: Label Drawing 1.0: Details: 1.1 The permanent Label is affixed on HWB11AC-PRT WIFI & BT Module same as above pictures. 1.2 The Material for Label is non-conductive and non-tearable, with below Key features. • High Temperature resistance (up to 300°C) • ANSI Grade “A” barcode readability • High Solvent resistance • Anti-yellowing property • No edge-liftying. • The Font size is readable and legible. Below are the details of the Font. Font: ARIAL (Font size:4 pt.)

Produ k te Products www.tuv.com EUT Internal Photos ReferenceTest Report No: ULR-TC568821300000033F/34F/35F Seite 1 von 1 Page 1 of 1 Photo 1: EUT Front view Photo 2: EUT back view

Produkte Products Seite 1 von 2 Page 1 of 2 1 Safety Human Exposure 1.1 Radio Frequency Exposure Compliance 1.1.1 Electromagnetic Fields RESULT: Pass Test Specification Test standard : CFR47 FCC Part 2: Section 2.1091 CFR47 FCC Part 1: Section 1.1310 FCC KDB Publication 447498 v06, section 7 RSS-102 Issue 5 March 2015, section 2.5.2  FCC requirements FCC requirement: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20cm normally can be maintained between the user and the device. MPE Calculation Method according to KDB 447498 v06 Power Density: S (mW/cm 2 ) = PG/4πR 2 or EIRP/4πR 2 Where: S = power density (mW/cm 2 ) P = power input to the antenna (mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (cm) From the peak RF output power, the minimum mobile separation distance, d=20 cm, as well as the antenna gain, the RF power density can be calculated as below: S (mW/cm 2 ) = PG/4πR 2 Produkte Products Seite 2 von 2 Page 2 of 2 a) EUT RF Exposure Evaluation standalone operations Test Mode Maximum Time- average conducted Power (dBm) Tune up Value in (dB) Antenna Gain (dBi) Measured e.i.r.p S (mW/cm 2 ) = PG/4πR 2 Limit (mW/cm 2 ) (dBm) (mW) BLE 8.49 2.35 1.0 11.84 15.28 0.0030 1.0 BDR/EDR 5.08 2.35 1.0 8.43 6.97 0.0014 1.0 2.4GHz Wi-Fi 18.82 2.35 1.0 22.17 164.82 0.0328 1.0 5GHz Wi-Fi 12.8 3.37 1.0 17.17 52.12 0.0104 1.0 Only worst-case listed above b) EUT RF Exposure Evaluation simultaneous transmission operations Not supported.  IC requirements: The EUT shall comply with the requirement of RSS-102 section 2.5.2. Exemption from Routine Evaluation Limits – RF Exposure Evaluation RF exposure evaluation is required if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm, except when the device operates as follows: at or above 300 MHz and below 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10 -2 ƒ 0.6834 W (adjusted for tune-up tolerance), where ƒ is in MHz;  RF exposure evaluation exempted power for 2.4GHz bands: 2.670 W  RF exposure evaluation exempted power for NII bands: 4.52 W The lowest frequency used for exempted power calculation, and the strictest threshold power obtained. a) EUT RF Exposure Evaluation standalone operations: Test Mode Maximum Time- average conducted Power (dBm) Tune up Value in (dB) Antenna Gain (dBi) Measured e.i.r.p Verdict (dBm) (W) BLE 8.49 2.35 1.0 11.84 0.0153 Compliant BDR/EDR 5.08 2.35 1.0 8.43 0.0070 2.4GHz Wi-Fi 18.82 2.35 1.0 22.17 0.1648 5GHz Wi-Fi 12.8 3.37 1.0 17.17 0.0521 Only worst-case listed above. b) EUT RF Exposure Evaluation simultaneous transmission operations Not supported for simultaneous mode. The e.i.r.p. are less than the RF exposure evaluation exempted power. So RF exposure evaluation is not required. “RF Radiation Exposure Statement Caution: This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons.”

Prüfbericht – Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: ULR- TC568821300000035F Auftrags-Nr.: Order no.: 166554137 0010 Seite 1 von 64 Page 1 of 64 Kunden-Referenz-Nr.: Client reference no.: NA Auftragsdatum: Order date: 2021-05-18 Auftraggeber: Client: 1.HONEYWELL INTERNATIONAL INC,Honeywell Safety and Productivity Solutions 9680 OLD BAILES RD, FORT MILL, SC 29707, USA 2.M/S Venture Corporation Limited | 4, Jalan Kempas 5/2 (Block D) | Tampoi, 81200 Johor Bahru | DID +60 7231 2391 | Main +60 7237 7201 | Fax +60 7236 4146 | Prüfgegenstand: Test item: HWB11AC-PRTM Product Type Wi-Fi BT Module Bezeichnung: Identification: HWB11AC-PRT Auftrags-Inhalt: Order content: Testing and issue of Test Report and Grant Certificate Prüfgrundlage: Test specification: FCC Part 15 Subpart C 15.247, 15.207 RSS 247 Issue 2 and RSS GEN Issue 5 Wareneingangsdatum: Date of sample receipt: 2021-05-20 Prüfmuster-Nr & Serien-Nr.: Test sample no & serial no.: A003068621-001 2021061001 Prüfzeitraum: Testing period: 2021-05-21 - 2021-06-08 Ort der Prüfung: Place of testing: Wireless laboratory, Bangalore Prüflaboratorium: Testing laboratory: TÜV Rheinland (India) Pvt.Ltd., 27/B, 2nd Cross, Electronic City Phase1 Bangalore -560 100, India FCC Test site registration number: 496599 ISED Test site registration number: 3466E-1 Prüfergebnis*: Test result*: Pass geprüft von: tested by: genehmigt von: authorized by: Datum: Date: 2021-06-11 Ausstellatum: Issue date: 2021-07-12 Stellung / Position: Likhithesh M D Engineer Stellung / Position: Mahammadgouse Kaladagi Assistant Manager Sonstiges / Other: FCC ID: HD5-HWB11 IC: 1693B-HWB11 Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TÜV Rheinland (India) Pvt. Ltd, Plot No.27/B, 2nd Cross, Electronic city, Industrial Area, Phase I, Hosur Road Bangalore-560 100, India Mail: [email protected] ∙ Web: www.ind.tuv.com Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: ULR-TC568821300000035F Seite 2 von 64 Page 2 of 64 TEST SUMMARY Test Item Applicable Standard Result FCC ISED Maximum conducted (Peak) output power FCC 15.247(b)(1) RSS 247 Issue 2, Section 5.4 (b) Pass Maximum Power Spectral Density FCC 15.247(e) RSS 247 Issue 2, Section 5.2 (b) NA DTS Bandwidth FCC 15.247(a)(iii) RSS 247 Issue 2, Section 5.1 (b) Pass Channel Frequency Seperation 15.247(a)(1) RSS 247 Issue 2, Section 5.1 (b) Pass Number of Hopping Channels 15.247(a)(iii) RSS 247 Issue 2, Section 5.1 (d) Pass Time of Occupancy(Dwell Time) 15.247(a)(iii) RSS 247 Issue 2, Section 5.1 (d) Pass Emissions in non-restricted frequency bands FCC 15.247(d) RSS 247 Issue 2, Section 5.5 Pass Spurious Radiated Emissions and Restricted Bands of Operation FCC 15.209 / FCC 15.205 RSS-Gen Issue 5, Section 8.9 /8.10 Pass Conducted Emissions on a.c power Lines FCC 15.207 RSS-Gen Issue 5, Section 8.8 Pass Product Category: Electronics Testing Test Discipline: EMC Test Facility Compliance statement for Part 15.203: “THE ANTENNA WITH A SPECIAL CONNECTOR (RP-TNC) USED, WITH NO POSSIBILITY OF REPLACEMENT WITH A NON- APPROVED ANTENNA BY THE END-USER. THEREFORE, THE EUT IS CONSIDERED TO COMPLY WITH THIS PROVISION.” Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: ULR-TC568821300000035F Seite 3 von 64 Page 3 of 64 REVISION HISTORY OF THIS REPORT Report Number Version Description Issue date ULR-TC568821300000035F 01 Initial issue of report 2021-07-01 ULR-TC568821300000035F 02 Reviewer comments updated 2021-07-09 ULR-TC568821300000035F 03 Reviewer comments updated 2021-07-12 Produkte Products www.tuv.com Prüfbericht - Nr.: Test Report No.: ULR-TC568821300000035F Seite 4 von 64 Page 4 of 64 Table of Contents 1 GENERAL REMARKS ........................................................................................................................................... 5 1.1 Attachments .................................................................................................................................................. 5 2 TEST SITES .......................................................................................................................................................... 6 2.1 Testing Facilities............................................................................................................................................ 6 2.2 List of Test and Measurement Instruments ................................................................................................... 6 3 GENERAL PRODUCT INFORMATION ................................................................................................................. 7 3.1 Product Function and Intended Use.............................................................................................................. 7 3.1 Ratings and System Details of Equipment under Test ................................................................................. 7 3.2 Measurement Uncertainty: ...............................................................................................................…

Text truncated - open the document above for the full version.

Produkte Products www.tuv.com Setup Photos ReferenceTest Report No: ULR-TC568821300000033F/34F/35F Seite 1 von 7 Page 1 of 7 Frequency range :9KHz–30MHz Polarization : Parallel Frequency range :9KHz–30MHz Polarization : Perpendicular Produkte Products www.tuv.com Setup Photos ReferenceTest Report No: ULR-TC568821300000033F/34F/35F Seite 2 von 7 Page 2 of 7 Frequency range :30MHz–200MHz Polarization : Vertical Frequency range : 30MHz–200MHz Polarization : Horizontal Produkte Products www.tuv.com Setup Photos ReferenceTest Report No: ULR-TC568821300000033F/34F/35F Seite 3 von 7 Page 3 of 7 Frequency range :200MHz–1GHz Polarization : Vertical Frequency range :200MHz–1GHz Polarization : Horizontal Produkte Products www.tuv.com Setup Photos ReferenceTest Report No: ULR-TC568821300000033F/34F/35F Seite 4 von 7 Page 4 of 7 Frequency range :1GHz-10GHz Polarization : Vertical Frequency range :1GHz-10GHz Polarization : Horizontal Produkte Products www.tuv.com Setup Photos ReferenceTest Report No: ULR-TC568821300000033F/34F/35F Seite 5 von 7 Page 5 of 7 Test Setup Photo Conducted Test Setup Photo Produkte Products www.tuv.com Setup Photos ReferenceTest Report No: ULR-TC568821300000033F/34F/35F Seite 6 von 7 Page 6 of 7 DFS Test Setup Photo Carrier board used for configuration Produkte Products www.tuv.com Setup Photos ReferenceTest Report No: ULR-TC568821300000033F/34F/35F Seite 7 von 7 Page 7 of 7 Conducted AC Power Lines test setup photo
