Dolphin 60s with Windows ® Embedded Handheld 6.5 User’s Guide Preliminary Draft 6/19/13, Not for Release Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of HII. HII shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of HII. Web Address: www.honeywellaidc.com Trademarks Dolphin is a trademark or registered trademark of Hand Held Products, Inc. in the United States and/or other countries. Microsoft, Windows, Windows Mobile, Windows Phone, Windows Embedded Handheld, Windows CE, Windows 98 Second Edition, Windows NT, Windows 2000, Windows ME, Windows XP, Windows 7, Windows Vista, ActiveSync, Outlook, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation. The Bluetooth trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to Honeywell. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are the property of their respective owners. Patents For patent information, please refer to www.honeywellaidc.com/patents. ©2013 Honeywell International Inc. All rights reserved. Preliminary Draft 6/19/13, Not for Release Table of Contents iii Chapter 1 - Dolphin 60s Terminal Agency Information Label Locations ....................................................................................................................1-1 Model Number, Serial Number and IMEI Labels............................................................1-1 LED Safety ...........................................................................................................................1-1 LED Safety Statement....................................................................................................1-1 UL and C-UL Statement.......................................................................................................1-2 Approvals by Country...........................................................................................................1-2 R&TTE Compliance Statement—802.11b/g/n, Bluetooth, and/or GSM...............................1-2 FCC Requirements ..............................................................................................................1-3 Dolphin RF Terminal—802.11b/g/n, Bluetooth, and/or GSM .........................................1-3 Canadian Compliance..........................................................................................................1-3 Conformité à la règlementation canadienne ..................................................................1-4 RF Exposure Information (SAR) ..........................................................................................1-4 IC Radiation Exposure Statement........................................................................................1-4 CE SAR Compliance............................................................................................................1-5 CE Country Codes ...............................................................................................................1-5 For European Community Users .........................................................................................1-5 Waste Electrical and Electronic Equipment Information ......................................................1-5 China RoHS .........................................................................................................................1-6 Pacemakers, Hearing Aids and Other Electrically Powered Devices ..................................1-6 Hearing Aid Compatibility (HAC)..........................................................................................1-6 Microwaves ..........................................................................................................................1-7 Chapter 2 - Getting Started Out of the Box ......................................................................................................................2-1 Initial Setup for Dolphin 60s Terminals ................................................................................2-1 Using the USB Charge/Communication Cable (Model 60s-USB ADAPTERKIT) ..........2-2 The Home Screen ................................................................................................................2-4 Title Bar..........................................................................................................................2-4 Icons in the Title Bar ......................................................................................................2-4 Horizontal Scroll .............................................................................................................2-7 Tile Bar...........................................................................................................................2-7 Virtual Keyboard.............................................................................................................2-7 The Start Menu ....................................................................................................................2-9 Navigating the Start Menu..............................................................................................2-9 Pop-Up Menus ...........................................................................................................…

Text truncated - open the document above for the full version.

Honeywell International Inc Honeywell Scanning and Mobility 9680 Old Bailes Road Fort Mill, SC 29707 USA Date: May 22, 2013 Statement We, Honeywell International Inc, state that the label of our device, FCC ID: HD560SLU, will be put inside the battery compartment. The label is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Michael Robinson [email protected]

Honeywell International Inc Honeywell Scanning and Mobility 9680 Old Bailes Road Fort Mill, SC 29707 USA Date: May 22, 2013 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: HD560SLU To Whom It May Concern: We, Honeywell International Inc, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Michael Robinson [email protected]

Honeywell International Inc Honeywell Scanning and Mobility 9680 Old Bailes Road Fort Mill, SC 29707 USA Date: May 22, 2013 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: HD560SLU Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below:  Schematics  Block Diagram  Parts List  Operation Description  Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ________________________ Michael Robinson [email protected]

Honeywell International Inc Honeywell Scanning and Mobility 9680 Old Bailes Road Fort Mill, SC 29707 USA Date: May 22, 2013 Power of Attorney To whom it may concern, Please be notified that I, Michael Robinson, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: HD560SLU If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Michael Robinson [email protected]

Honeywell International Inc Honeywell Scanning and Mobility 9680 Old Bailes Road Fort Mill, SC 29707 USA Date: May 22, 2013 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : HD560SL0 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test Setup Photos  User Manual The application contains technical information, which Honeywell International Inc deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Michael Robinson [email protected]

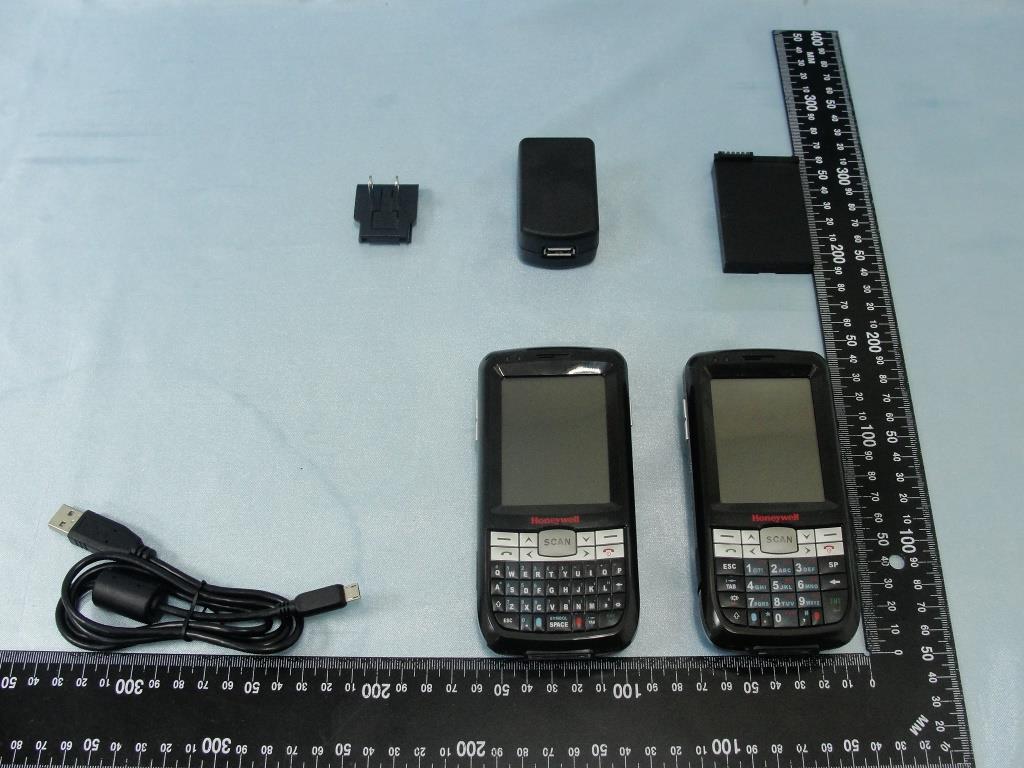

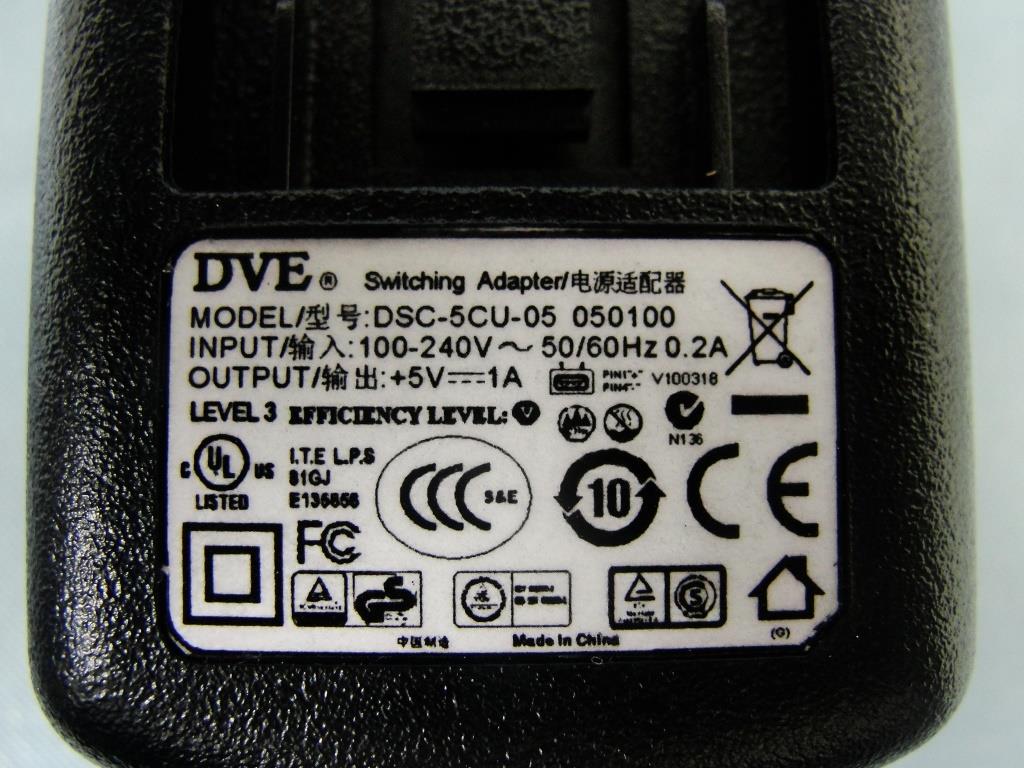

Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 1 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 720510 1. External Photograph of EUT Sample 1 Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 2 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 720510 Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 3 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 720510 Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 4 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 720510 Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 5 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 720510 Sample 2 Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 6 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 720510 Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 7 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 720510 Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 8 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 720510 Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 9 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 Specification of Accessory AC Adapter Brand Name DVE Model Name DSC-5CU-05 050100 Battery Brand Name Honeywell Model Name 70e-BTEC USB Cable Brand Name David Electronics Model Name AA761300 LCD Panel Brand Name Truly Model Name TFT2P2324-V2-E Camera Brand Name Truly Model Name CM7018-B500SA-E WWAN Module Brand Name Cinterion Wireless Modules Model Name PHS8-US WLAN Module Brand Name JORJIN Model Name WG7311-0A Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 10 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 720510 Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 11 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 720510 AC Adapter Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 12 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 720510 Battery

Back of the EUT Battery Compartment

Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 13 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 3. Internal Photograph of EUT Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 14 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 15 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 16 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 17 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 18 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 19 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 20 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 21 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 22 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 Sample 1 Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 23 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 720510 Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 24 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 Sample 2 Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 25 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 720510 Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 26 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 WWAN Module Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 27 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 WLAN Module Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 28 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 WWAN Main Antenna Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 29 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 30 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 WWAN Aux. Antenna Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 31 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. 17, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 720510 Photographs of EUT Report No.: EP341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 32 of 34 TEL : 886-3-327-3456 Report Issued Date : Jun. …

Text truncated - open the document above for the full version.

Photographs of EUT Report No.: 341620 Brand Name: Honeywell / Model Name: 60sLU / Marketing Name: Dolphin 60s SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : May 23, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD560SLU IC : 1693B-60S1 EUT Length: 13.6 cm EUT Width: 6.5 cm Antenna Length Width WWAN Main Antenna <Tx / Rx> 5.1 cm 1.0 cm WWAN Aux. Antenna <Rx> 1.7 cm 1.6 cm WLAN & Bluetooth Antenna <Tx / Rx> 1.7 cm 0.6 cm GPS Antenna <Rx> 1.0 cm 0.4 cm The shortest distance between the Tx antennas WWAN Antenna <Tx / Rx> to WLAN & Bluetooth Antenna <Tx / Rx> 9.1 cm WLAN & Bluetooth Antenna <Tx / Rx> 10.6 cm 5.4 cm GPS Antenna <Rx> 12.1 cm 1.3 cm WWAN Aux. Antenna <Rx> WWAN Main Antenna <Tx / Rx> 0.9 cm

SPORTON INTERNATIONAL INC. Page Number : 1 of 46 TEL : 886-3-327-3456 Report Issued Date : Jun. 20, 2013 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : HD560SLU FCC SAR Test Report Report No. : FA341620 FCC SAR Test Report APPLICANT : Honeywell International Inc EQUIPMENT : Dolphin 60s BRAND NAME : Honeywell MODEL NAME : 60sLU MARKETING NAME : Dolphin 60s FCC ID : HD560SLU STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Apr. 25, 2013. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 46 TEL : 886-3-327-3456 Report Issued Date : Jun. 20, 2013 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : HD560SLU FCC SAR Test Report Report No. : FA341620 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 6 3.2 Maximum RF output power among production units .............................................................................................. 7 3.3 Applied Standard .................................................................................................................................................... 8 3.4 Device Category and SAR Limits ........................................................................................................................... 8 3.5 Test Conditions ....................................................................................................................................................... 8 4. Specific Absorption Rate (SAR) ................................................................................................................................... 9 4.1 Introduction ............................................................................................................................................................ 9 4.2 SAR Definition ........................................................................................................................................................ 9 5. SAR Measurement System ..........................................................................................................................................10 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) .......................................................................................................................12 5.3 Robot ....................................................................................................................................................................12 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................13 5.6 Device Holder........................................................................................................................................................14 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................18 7. SAR System Verification .............................................................................................................................................20 7.1 Purpose of System Performance check ................................................................................................................20 7.2 System Setup ......................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/4/24 System Check_Head_835MHz_130424 DUT: D835V2-SN:499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_130424 Medium parameters used: f = 835 MHz; σ = 0.904 mho/m; ε r = 39.876; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(6.2, 6.2, 6.2); Calibrated: 2012/9/28; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1446 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.98 mW/g Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 59.270 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.798 mW/g SAR(1 g) = 2.53 mW/g; SAR(10 g) = 1.63 mW/g Maximum value of SAR (measured) = 2.96 mW/g 0 dB = 2.96 mW/g = 9.43 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/4/24 System Check_Body_835MHz_130424 DUT: D835V2-SN:499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_130424 Medium parameters used: f = 835 MHz; σ = 0.958 mho/m; ε r = 53.02; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(6.16, 6.16, 6.16); Calibrated: 2012/9/28; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1446 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.79 mW/g Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5m m Reference Value = 55.779 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.528 mW/g SAR(1 g) = 2.37 mW/g; SAR(10 g) = 1.53 mW/g Maximum value of SAR (measured) = 2.78 mW/g 0 dB = 2.78 mW/g = 8.88 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/4/23 System Check_Head_1900MHz_130423 DUT: D1900V2-SN:5d041 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_130423 Medium parameters used: f = 1900 MHz; σ = 1.438 mho/m; ε r = 39.21; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(5.05, 5.05, 5.05); Calibrated: 2012/9/28; - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2012/8/27 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1478 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6477) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12.3 mW/g Configuration/Pin=…
