HD56500BPPDA

Dolphin ® 6500 Mobile Computer with Windows ® CE 5.0 User’s Guide D ra f t 1 / 1 3 / 10 Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other infor- mation contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. The information in this publication does not rep- resent a commitment on the part of HII. HII shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of HII. Web Address: www.honeywellaidc.com Trademarks Dolphin, Dolphin RF, HomeBase, eBase, Mobile Base, and QuadCharger are trademarks or registered trademarks of Hand Held Products, Inc. or Honeywell International Inc. Microsoft, Windows, Windows Mobile, Windows CE, Windows NT, Windows 2000, Windows ME, Windows XP, ActiveSync, Outlook, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are the property of their respective owners. Patents Refer to the product packaging for a list of patents. Other Trademarks The Bluetooth trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to Honeywell International Inc. ©2010 Honeywell International Inc. All rights reserved. iii Chapter 1 - Agency Approvals Label Locations ....................................................................................................................1-1 Safety & RF Approvals by Country: .....................................................................................1-2 Dolphin RF Terminal—802.11b/g and/or Bluetooth .............................................................1-3 Chapter 2 - Getting Started Out of the Box ......................................................................................................................2-1 LED Indicators................................................................................................................2-2 Desktop ................................................................................................................................2-3 Command Bar Icons ............................................................................................................2-3 Chapter 3 - Terminal Hardware Overview Standard Terminal Configurations .......................................................................................3-1 Front Panel Features ...........................................................................................................3-2 Display Backlight..................................................................................................................3-3 Screen Backlight - Battery/External Power ....................................................................3-3 Keyboard Backlight ..............................................................................................................3-3 Using Screen Protectors ......................................................................................................3-3 Back Panel Features............................................................................................................3-8 Installing Memory Cards ................................................................................................3-9 Left Side Panel Features .....................................................................................................3-9 Right Side Panel Features .................................................................................................3-10 Top Panel Features ...........................................................................................................3-10 Bottom Panel Features ......................................................................................................3-10 Dolphin Peripherals/Accessories for the Dolphin 6500 ......................................................3-11 USB Communication Cable for the Dolphin 6500 ..............................................................3-12 Battery Power ....................................................................................................................3-12 Resetting the Terminal .......................................................................................................3-15 Soft Reset (Warm Boot) ...............................................................................................3-15 Hard Reset (Cold Boot)................................................................................................3-15 Suspend Mode ...................................................................................................................3-16 Changing the Memory Allocation .......................................................................................3-16 Care and Cleaning of the Dolphin Terminal .......................................................................3-16 Chapter 4 - Using the Keypad Overview ..............................................................................................................................4-1 Navigation Keys ...................................................................................................................4-1 Basic Keys ...........................................................................................................................4-2 Alpha/Numeric Modes..........................................................................................................4-2 Alpha Indicators on the Number Keys..........…

Text truncated - open the document above for the full version.

FCC ID : FCC ID:HD56500BP Attestation Statment Honeywell international Inc. FCC ID:HD56500BP Date: February 10, 2010 15.247(a)(1) The hopping sequence must be pseudorandom all channels are used eually on average The receiver input bandwidth is approximately equall to the transmit bandwidth The receiver hops in sequence with the transmitted signal. 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 When the transmitter is presented with a continuous data (or information) 15.247(h) The system does not coordinate its channel selection/hopping sequence with other Frequency hopping systems for the express purpose of avoiding the simultaneous Occupancy of individual hopping frequencies by multiple transmitters. Sincerely Jin Mo Yang, Engineering manager [email protected] TEL:82-31-631-8037 FAX:82-31-631-8039

700 Visions Drive P.O. Box 208 Skaneateles Falls, NY 13153-0208 ***Hand Held Products is now a wholly-owned subsidiary of Honeywell International Inc.** Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 January, 10, 2010 TO WHOM IT MAY CONCERN; Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Hand Held Products (wholly-owned subsidiary of Honeywell International Inc) requests confidentiality for the following products: FCC ID Number Product Title/Model HD56500BP Dophin 6500 (BT only) For the product stated above, we request that the following information be held confidential: 1) Electrical Schematics of the Circuitry 2) Block Diagram 3) Operational Description 4) Tune-up Procedure No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Hand Held Products (wholly-owned subsidiary of Honeywell International Inc.) trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Michael Robinson Compliance Manager Phone: 315 555 6387 Email: [email protected]

700 Visions Drive P.O. Box 208 Skaneateles Falls, NY 13153-0208 USA ***Hand Held Products is now a wholly-owned subsidiary of Honeywell International Inc.** Letter of Authorization J anuary 10, 2010 To whom it may concern: Mr. Jin-Mo Yang, in his position as employee and agent of ESTECH Co. (1015 World Meridian Venture Center-II, 4426-5, Gasan-dong, Geumcheon-gu Seol, Korea 1530759), is hereby authorized to act on behalf of Hand Held Products, Inc. (a wholly-owned subsidiary of Honeywell International Inc.) by signing documents and submitting applications and reports summarizing his testing of the Dolphin 6500 (Bluetooth only) (“Submissions”) as required by the FCC and other applicable regulatory entities. The authority set forth in this letter is granted by and subject to the terms of the Limited Evaluation License Agreement between Hand Held Products, Inc. and ESTECH Co., effective January 10, 2010 (the “Agreement”). Any and all acts carried out by ESTECH Co. on this company’s behalf in accordance with the Agreement shall have the same effect as acts of this company. Subject to the terms of the Agreement, unless notified to the contrary in writing, this authorization is valid until the date that is ninety (90) days from the date of this letter or the date all required Submissions are completed, whichever is earlier, provided however that in any event, this authorization shall not be effective after April 10, 2010. Sincerely, Mike Robinson Compliance Manager 315.554.6387 [email protected]

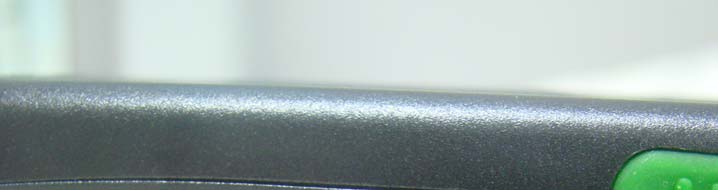

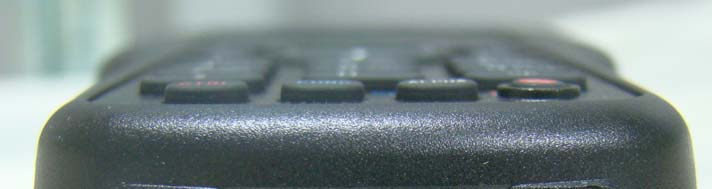

1. FRONT 2. REAR 3. PORT

INTERNAL PHOTO 1. MAIN 1.1 Front 1.2 Rear 2. Keypad 2.1 Front 2.2 Rear 3. LCD 3.1 Front 3.2 Rear 4. Scanner 4.1 Front 4.2 Rear 5. Sub Board 5.1 Front 5.2 Rear 6. Antenna 6.1 Front 6.2 RF module BT Ant 7. Adapter 7.1 Front 7.2 Label

Approval Code : 9930SB0504T01 2009. 10 . 30 2009. 10 . 30 APPROVAL SHEET D6500 PAGE : 2 / 8 RDA001A00 MOBINUS CO., LTD. A4(210×297) CONTENTS -- 1. Revision History 2. General Application 3. Technical Specification 3.1 Electrical Specification 3.2 Mechanical Specification 4. Measurement Data 4.1 VSWR & Smith Chart 4.2 Test Result (3D Efficiency) 4.3 Radiation Pattern 5. Reliability Specification 6. Packing Specification 7. Drawing Part Division Mechanical Part Electrical Part Approval 10 / 26 10 / 26 10 / 26 Part Name SB0504T0A Model Name D6500 APPROVAL SHEET D6500 PAGE : 3 / 8 RDA001A00 MOBINUS CO., LTD. A4(210×297) 1. Revision History NO. Before After Reason Date 1 V1.0 V1.1 Antenna Pattern 변경 Antenna Color 변경( Black → Blue ) 09.10.26 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 APPROVAL SHEET D6500 PAGE : 4 / 8 RDA001A00 MOBINUS CO., LTD. A4(210×297) 2. General Application This document specifies the chip antenna for the mobile communication terminal. Model Number SB0504T0A Application Bluetooth 3. Technical Specification 3.1 Electrical Specification No Item Specification Remarks 1 Frequency Range 2.4GHz ~ 2.835GHz 2 VSWR 2:1 3 Impedance 50 Ω 4 3D Efficiency Board:55%, Set:50% 5 Polarization Linear 6 Radiation Pattern Omni directional 3.2 Mechanical Specification No Item Specification Remarks 1 Dimension 13.5 * 11.5 * 2 (H) ㎜ 2 Operating Temperature -30°C ~ +80°C 3 Operating Humidity 10% ~ 90% 4 Weight 0.5g 5 Connector Type Manual solder APPROVAL SHEET D6500 PAGE : 5 / 8 RDA001A00 MOBINUS CO., LTD. A4(210×297) 4. Measurement Data 4.1 VSWR & Smith Chart Fig 2. VSWR & Smith Chart APPROVAL SHEET D6500 PAGE : 6 / 8 RDA001A00 MOBINUS CO., LTD. A4(210×297) 4.2 Test Result (3D Efficiency) 4.3 Radiation Pattern Fig 3. Radiation Pattern Efficiency (%) Efficiency (dB) UHRG(dB) Peak Gain Radiation 53% -2.71 -6.0 0.85 APPROVAL SHEET D6500 PAGE : 7 / 8 RDA001A00 MOBINUS CO., LTD. A4(210×297) 5. Reliability Specification No Item Conditions and Method 1 Temperature Shock  Perform 10 cycles as follow  High Temp.: 30min, +85C  Low Temp.: 30min, -40C  Repeat : 10 times  Stabilize at room temperature for measurement 2 Dry Heat Test  Dwell in +85C chamber for 72 hours  Stabilize at room temperature for measurement 3 Low Temperature Test  Dwell in -40C chamber for 72 hours  Stabilize at room temperature for measurement 4 Humidity Test  Dwell in test chamber at +50C and 95% RH for 24 hours  Stabilize at room temperature for measurement 5 Drop Test  Conditions  Drop height: 1.5 m  Drop angle: 45 ̊/ 90 ̊  Drop cycle : Each 5 times  Weight : 150 g 6 Salt Spray Test  After exposing to 5% sodium atmosphere at +35 ̊ C for 72 hours and washing pure water, test within 2 hours 6. Packing Specification Item Quantity Materials Remarks Tray 100EA P.S/PET APPROVAL SHEET D6500 PAGE : 8 / 8 RDA001A00 MOBINUS CO., LTD. A4(210×297) 7. Drawing

RF Exposure Measurement 1. Introduction The maximum Gain measured in Fully Anechoic Chamber is 2.63 dBi or 1.832 (numeric). 2. Classification MODE: GFSK(FHSS) 3. RF Exposure Limit Magnetic Field Strength(A/m) Power Density (mW/cm 2 ) Average Time (minutes) 1.63 * (100) 6 4.89/f * (900/f 2 ) 6 0.1631.06 -f/3006 -56 Magnetic Field Strength(A/m) Power Density (mW/cm 2 ) Average Time (minutes) 1.63 * (100) 30 2.19/f * (180/f 2 ) 30 0.0730.230 -F/150030 -1.030 F = Frequency in MHz * = Plane-wave equivalent power density Because this deivce is transmitting the high power signal, it is regarded specially as a dangerous band for its heating harmfulness to the human body. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, Page 1 of 3 The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user's manual. So, this product is classified as the Mobile Device. According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency(RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) - Class A 300 - 1500 27.5 - 0.3 - 3.0614 (B) Limits for General Population/Uncontrolled Exposure LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) (A) Limits for Occupational/Controlled Exposures Frequency Range (MHz) Electric Field Strength (V/m) 3.0 - 301842/f 30 - 300 - - 1500 - 100,000 61.4 1500 - 100,000- Frequency Range (MHz) Electric Field Strength (V/m) 0.3 - 1.34614 1.34 - 30824/f 30 - 300 300 - 1500 4. Friis Formula Friis transmission formula : P d = (P out *G) / (4*π*r 2 ) The maximum Gain measured in Fully Anechoic Chamber is 2.63dBi or 1.832 (numeric). P out = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 MODE: GFSK Page 2 of 3 The software provided by Manufacturer enabled the EUT to transmit with max power at lowest, middle and highest channel individually. Pd is the limit of MPE, 1mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 5. Test Results 5.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.63 dBi or 1.832 (numeric). 5.2 Output Power into Antenna & RF Exposure value at distance 20cm: MODE: FHSS Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 02402.000.4590.0001671.0 392441.000.5500.0002001.0 782480.000.4580.0001671.0 Page 3 of 3 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human beign under normal use condition.

A Ref 87 dBμVAtt 0 dB * 10 MHz/Start 2.31 GHzStop 2.41 GHz * RBW 1 MHz 3DB * VBW 10 Hz SWT 25 s 1 PK VIEW PRN -10 0 10 20 30 40 50 60 70 80 1 Marker 1 [T1 ] 56.72 dBμV 2.402000000 GHz 2 Marker 2 [T1 ] 11.09 dBμV 2.390000000 GHz A Ref 87 dBμVAtt 0 dB * 10 MHz/Start 2.31 GHzStop 2.41 GHz * * RBW 1 MHz VBW 1 MHz SWT 2.5 ms 3DB 1 PK VIEW PRN -10 0 10 20 30 40 50 60 70 80 1 Marker 1 [T1 ] 70.37 dBμ V 2.402000000 GHz 2 Marker 2 [T1 ] 22.97 dBμ V 2.390000000 GHz A Ref 87 dBμVAtt 0 dB * 10 MHz/Start 2.31 GHzStop 2.41 GHz * RBW 1 MHz 3DB * VBW 1 MHz SWT 2.5 ms 1 PK VIEW PRN -10 0 10 20 30 40 50 60 70 80 1 Marker 1 [T1 ] 67.83 dBμ V 2.402000000 GHz 2 Marker 2 [T1 ] 24.18 dBμ V 2.388600000 GHz A Ref 87 dBμVAtt 0 dB * 10 MHz/Start 2.31 GHzStop 2.41 GHz * RBW 1 MHz * VBW 10 Hz SWT 25 s 3DB 1 PK VIEW PRN -10 0 10 20 30 40 50 60 70 80 1 Marker 1 [T1 ] 54.87 dBμ V 2.402000000 GHz 2 Marker 2 [T1 ] 9.86 dBμ V 2.388600000 GHz A Ref 87 dBμVAtt 0 dB * 2.5 MHz/Start 2.475 GHzStop 2.5 GHz * RBW 1 MHz 3DB * VBW 1 MHz SWT 2.5 ms 1 PK VIEW PRN -10 0 10 20 30 40 50 60 70 80 1 Marker 1 [T1 ] 64.36 dBμ V 2.479950000 GHz 2 Marker 2 [T1 ] 26.30 dBμ V 2.483500000 GHz A Ref 87 dBμVAtt 0 dB * 2.5 MHz/Start 2.475 GHzStop 2.5 GHz RBW 1 MHz * 3DB * VBW 10 Hz SWT 6.4 s 1 PK VIEW PRN -10 0 10 20 30 40 50 60 70 80 1 Marker 1 [T1 ] 51.91 dBμV 2.479950000 GHz 2 Marker 2 [T1 ] 18.30 dBμV 2.483500000 GHz A Ref 87 dBμVAtt 0 dB * 2.5 MHz/Start 2.475 GHzStop 2.5 GHz * RBW 1 MHz * VBW 1 MHz SWT 2.5 ms 3DB 1 PK VIEW PRN -10 0 10 20 30 40 50 60 70 80 1 Marker 1 [T1 ] 62.22 dBμ V 2.479950000 GHz 2 Marker 2 [T1 ] 24.64 dBμ V 2.483500000 GHz A Ref 87 dBμVAtt 0 dB * 2.5 MHz/Start 2.475 GHzStop 2.5 GHz * RBW 1 MHz 3DB * VBW 10 Hz SWT 6.4 s 1 PK VIEW PRN -10 0 10 20 30 40 50 60 70 80 1 Marker 1 [T1 ] 50.68 dBμV 2.479950000 GHz 2 Marker 2 [T1 ] 16.89 dBμV 2.483500000 GHz TDF Ref 87 dBμV A 10 MHz/Start 2.31 GHzStop 2.41 GHz * RBW 1 MHz Att 0 dB * * VBW 1 MHz SWT 2.5 ms 3DB 1 PK VIEW PRN -10 0 10 20 30 40 50 60 70 80 1 Marker 1 [T1 ] 69.12 dBμ V 2.402000000 GHz 2 Marker 2 [T1 ] 24.20 dBμ V 2.389000000 GHz TDF Ref 87 dBμV A 10 MHz/Start 2.31 GHzStop 2.41 GHz * RBW 1 MHz Att 0 dB * 3DB * VBW 10 Hz SWT 25 s 1 AP VIEW PRN -10 0 10 20 30 40 50 60 70 80 1 Marker 1 [T1 ] 54.80 dBμV 2.402000000 GHz 2 Marker 2 [T1 ] 11.39 dBμV 2.389000000 GHz TDF Ref 87 dBμV A 10 MHz/Start 2.31 GHzStop 2.41 GHz * RBW 1 MHz 3DB * VBW 10 Hz SWT 25 sAtt 0 dB * 1 PK MAXH * PRN -10 0 10 20 30 40 50 60 70 80 1 Marker 1 [T1 ] 52.61 dBμV 2.402000000 GHz 2 Marker 2 [T1 ] 11.14 dBμV 2.389400000 GHz TDF Ref 87 dBμVAtt 10 dB A 10 MHz/Start 2.31 GHzStop 2.41 GHz * RBW 1 MHz SWT 2.5 ms * VBW 1 MHz 3DB 1 PK MAXH PRN -10 0 10 20 30 40 50 60 70 80 1 Marker 1 [T1 ] 65.62 dBμ V 2.402000000 GHz 2 Marker 2 [T1 ] 34.02 dBμ V 2.389400000 GHz A Att 0 dB * Ref 87 dBμV Start 2.475 GHzStop 2.5 GHz2.5 MHz/ * RBW 1 MHz 1 PK MAXH 3DB * VBW 10 Hz SWT 6.4 s 2 AP VIEW PRN -10 0 10 20 30 40 50 60 70 80 1 Marker 1 [T1 ] 48.90 dBμV 2.480000000 GHz 2 Marker 2 [T1 ] 15.67 dBμV 2.483850000 GHz A Att 0 dB * Ref 87 dBμV Start 2.475 GHzStop 2.5 GHz2.5 MHz/ * RBW 1 MHz SWT 2.5 ms * VBW 1 MHz 1 PK MAXH 3DB PRN -10 0 10 20 30 40 50 60 70 80 1 Marker 1 [T1 ] 61.21 dBμ V 2.480000000 GHz 2 Marker 2 [T1 ] 26.08 dBμ V 2.483850000 GHz
