HD570EL00Enterprise Digital Assistant (EDA)

Dolphin™ 70e Black with Windows ® Embedded Handheld 6.5 User’s Guide Preliminary Draft 5/26/13, Not for Release Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of HII. HII shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of HII. Web Address: www.honeywellaidc.com Trademarks Dolphin is a trademark or registered trademark of Hand Held Products, Inc. in the United States and/or other countries. Microsoft, Windows, Windows Mobile, Windows Phone, Windows Embedded Handheld, Windows CE, Windows 98 Second Edition, Windows NT, Windows 2000, Windows ME, Windows XP, Windows 7, Windows Vista, ActiveSync, Outlook, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation. The Bluetooth trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to Honeywell. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are the property of their respective owners. Patents For patent information, please refer to www.honeywellaidc.com/patents. ©2013 Honeywell International Inc. All rights reserved. Preliminary Draft 5/26/13, Not for Release Table of Contents iii Chapter 1 - Dolphin 70e Black Terminal Agency Information Label Locations ....................................................................................................................1-1 Model Number, Serial Number and IMEI Labels............................................................1-1 LED Safety ...........................................................................................................................1-1 LED Safety Statement....................................................................................................1-1 UL and C-UL Statement.......................................................................................................1-2 Approvals by Country...........................................................................................................1-2 R&TTE Compliance Statement—802.11a/b/g/n, Bluetooth, and/or GSM............................1-2 FCC Requirements ..............................................................................................................1-3 Dolphin RF Terminal—802.11a/b/g/n, Bluetooth, and/or GSM ......................................1-3 Canadian Compliance..........................................................................................................1-3 Conformité à la règlementation canadienne ..................................................................1-4 RF Exposure Information (SAR) ..........................................................................................1-4 For European Community Users .........................................................................................1-5 Waste Electrical and Electronic Equipment Information ......................................................1-5 China RoHS .........................................................................................................................1-5 Pacemakers, Hearing Aids and Other Electrically Powered Devices ..................................1-6 Hearing Aid Compatibility (HAC)..........................................................................................1-6 Microwaves ..........................................................................................................................1-6 Chapter 2 - Getting Started Out of the Box ......................................................................................................................2-1 Initial Setup for Dolphin 70e Black Terminals ......................................................................2-1 Using the USB Charge/Communication Cable (Model 70e-USB ADAPTERKIT) ..........2-2 The Home Screen ................................................................................................................2-4 Title Bar..........................................................................................................................2-4 Icons in the Title Bar ......................................................................................................2-5 Horizontal Scroll .............................................................................................................2-7 Tile Bar...........................................................................................................................2-7 Virtual Keyboard.............................................................................................................2-8 The Start Menu ....................................................................................................................2-9 Navigating the Start Menu..............................................................................................2-9 Pop-Up Menus .....................................................................................................................2-9 File Explorer .......................................................................................................................2-10 File Provisioning on the Dolphin 70e Black........................................................................2-11 Search....................................................................................................…

Text truncated - open the document above for the full version.

Honeywell International Inc Honeywell Scanning and Mobility 9680 Old Bailes Road Fort Mill, SC 29707 USA April/17/2013 To Whom It May Concern: Subject: Appropriateness of Pre-Production Sample for Certification Testing We, Honeywell International Inc, located at 9680 Old Bailes Road, Fort Mill SC 29707 USA, confirm that the pre-production sample(s) provided for certification testing of our Dolphin 70e Black models, 70eLGN, 70eLG0, 70eL00 with related FCC ID: HD570ELGN & IC ID: 1693B-70E1 and FCC ID: HD570ELG0 & IC ID: 1693B-70E2 and FCC ID: HD570EL00 & IC ID: 1693B-70E3 fully represents the final version of the models as it will be released to the market, in all relevant parts, Sincerely, Michael Robinson Compliance Manager, Scanning Systems

Honeywell International Inc Honeywell Scanning and Mobility 9680 Old Bailes Road Fort Mill, SC 29707 USA April/17/2013 To Whom It May Concern: Subject: Attestation of Product Portion Equality We, Honeywell International Inc, located at 9680 Old Bailes Road, Fort Mill SC 29707 USA, confirm that our Enterprise Digital Assistant (EDA) Dolphin 70e Black (models 70eLGN, 70eLG0, 70eL00) with related FCC ID: HD570ELGN & IC ID: 1693B-70E1 and FCC ID: HD570ELG0 & IC ID: 1693B-70E2 and FCC ID: HD570EL00 & IC ID: 1693B- 70E3, contains electrically identical Bluetooth and WLAN (2.4 and 5GHz) modules. The FCC part 15 / IC RSS-210 conducted test results from test of the Bluetooth and WLAN portions of the model 70eLGN are thus representative for those portions of the model variants 70eLG0 and 70eL00. Sincerely, Michael Robinson Compliance Manager, Scanning Systems

Honeywell International Inc Honeywell Scanning and Mobility 9680 Old Bailes Road Fort Mill, SC 29707 USA April/17/2013 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: HD570EL00 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request the exhibits listed hereafter and accompanying above identified application be kept confidential permanently. Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ________________________ Michael Robinson

Honeywell International Inc Honeywell Scanning and Mobility 9680 Old Bailes Road Fort Mill, SC 29707 USA April, 17, 2013 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 RE : Certification Application FCC ID : HD570EL00 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days from the date of grant:  External Photos  Internal Photos  Test Setup Photos  User Manual The application contains technical information, which Honeywell International Inc deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. We are informed and understand that we have to arrange cancellation of the short term confidentiality classification per written and timely request to the involved TCB, if a product release to the market is intended prior to the above specified short term confidentiality release date. We understand that the above listed exhibits will be automatically disclosed to the public at the specified short term confidentiality release date if not prolonged by the involved TCB upon our timely request (total of 180 days from date of grant is possible). Sincerely, Michael Robinson Compliance Manager, Scanning systems Tel: 315-554-6387 FAX: 315.554.6393 Email:[email protected]

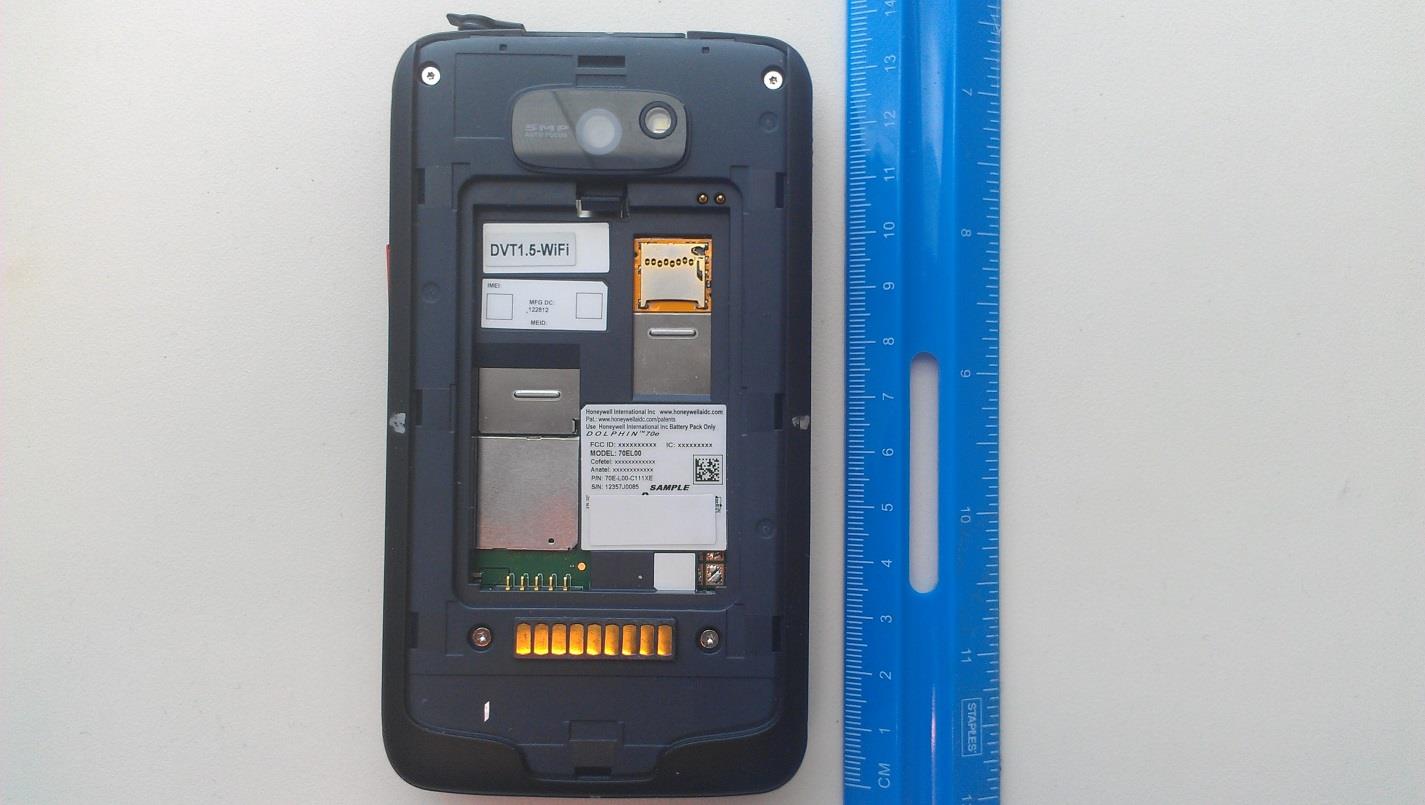

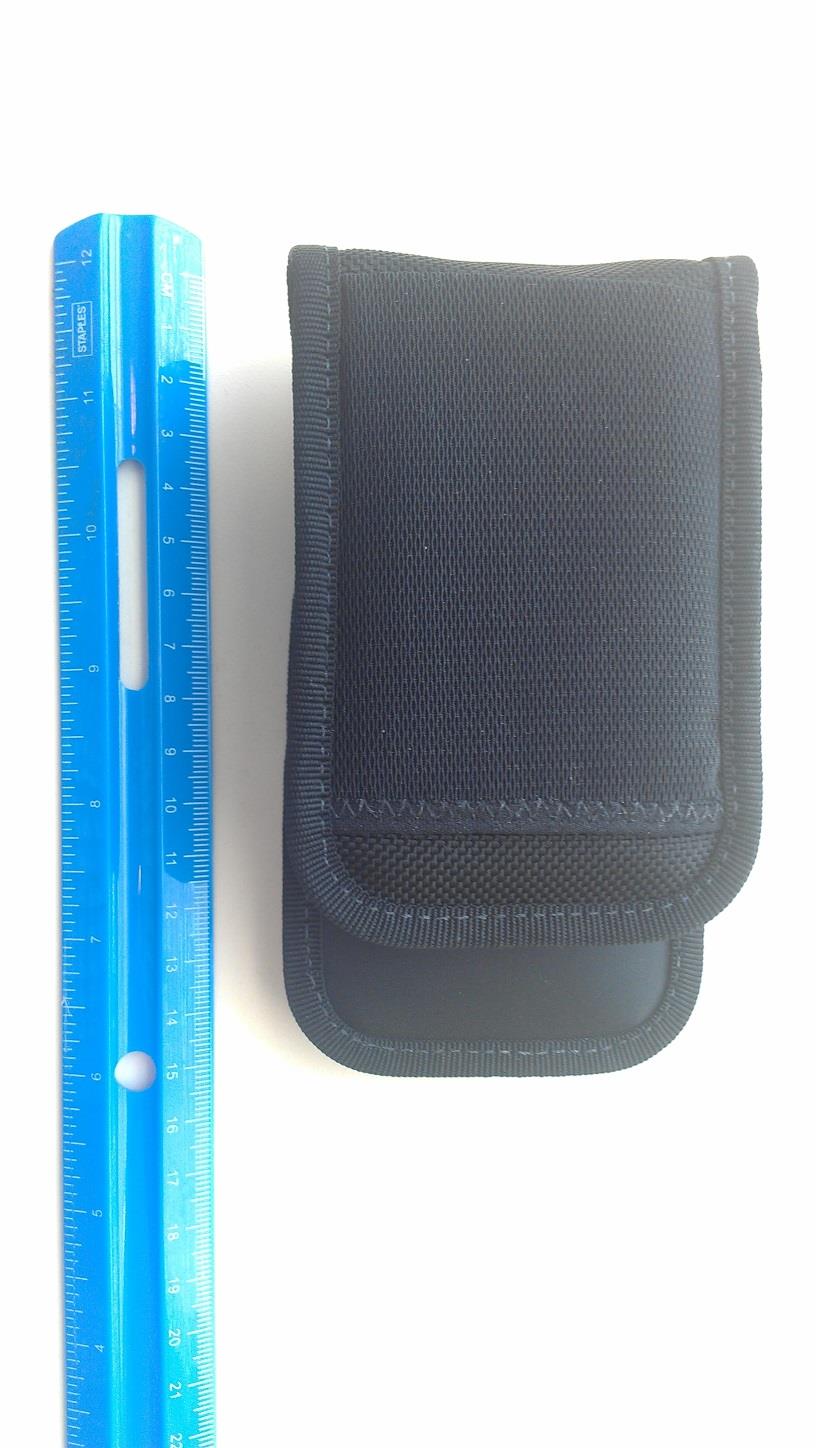

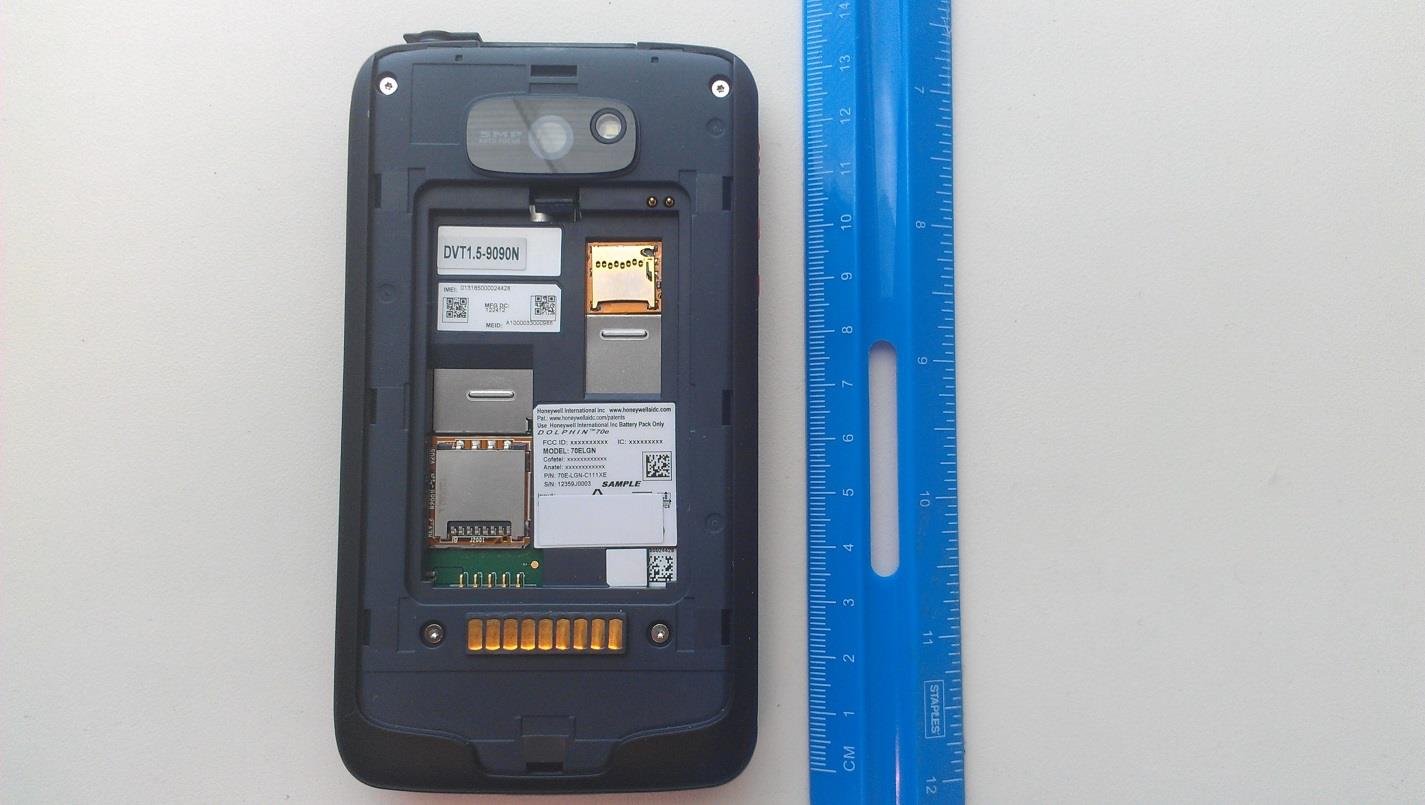

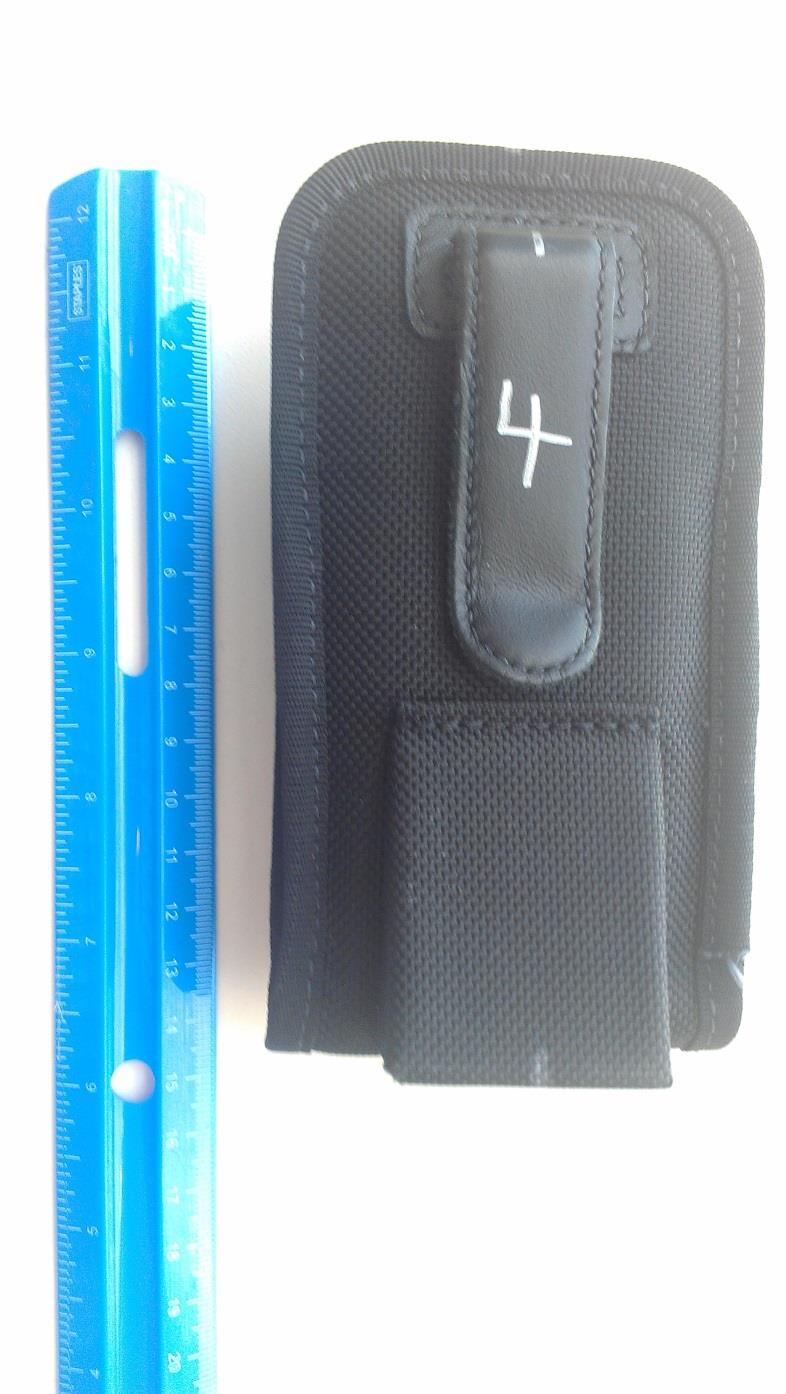

External Pictures: Models: Honeywell 70eLGN/ 70eLG0/ 70eL00 Dolphin 70e Black Enterprise Digital Assistant FCC ID: HD570ELGN/ HD570ELG0/ HD570EL00 IC ID: 1693B-70E1/ 1693B-70E2/ 1693B-70E2 Front View: Side View: Side View: Top View: Bottom View: Back Cover: EUT With Thick Back Cover: EUT With Thin Back Cover: Battery Options: Thick Battery: Thin Battery Option: Labels: 70eL00 70eLG0 70eLGN Holster-1

THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY AND CONFIDENTIAL MATERIAL OF HONEYWELL INTERNATIONAL INC AND SHALL NOT BE REPRODUCED, OR COPIED, OR USED AS A BASIS FOR MANUFACTURE OR SALE OF EQUIPMENT OR DEVICES WITHOUT WRITTEN PERMISSION. c REV#REV DESCRIPTION DESIGNED BY DATE ARTWORK LEVEL TITLE: A DRAWING NO: REV SCALE DO NOT SCALE SHEET 1 OF 1 DRAWING NO. DATE RELEASE LABEL,DOLPHIN BLACK , AGENCY PRINT ON DEMAND C 09/26/12 D.FLETCHER 03/20/12 A CC# 2012-912 MATERIAL # TWO “A” Format Artwork Template No. 500030434, REV A NOTES REQUIRED FOR LABEL MANUFACTURER: 1. ROHS COMPLIANT RIBBONS. SEE ENVIRONMENTAL SPECIFICATION DOCUMENT #500007391 2. MATERIAL/ PROCESS: THERMAL TRANSFER USING UL APPROVED RIBBON & MATERIAL CONSTRUCTION ON .051MM THICK WHITE POLYESTER BACKED WITH PRESSURE SENSITIVE ADHESIVE. SIZE: 25.4MM X 25.4 MM. ALL PRINTING BLACK 3. SERIAL NUMBER: REF. L3-GLBL-MKT-1366 2D DATA MATRIX 7 DOT EW (10 CHARACTER MAX) OF SERIAL NUMBER AS DESCRIBED IN CHART BELOW. Table 1. Serial Number Format Year Day of Year Location Sequential Number 0 5 1 2 3 0 1 2 3 4 Table 2. Serial Number Fields Fields Range Description Year 01 to 99 01 = 2001 Day of Year 001 to 365 001 = January 1 Location 0-9, A, B, C, D, F See Table 3 Table 3 FoxCon Location CharacterOutsource Partner Info J Products Used Dolphin Black 50110651 50110651 50110651-001, -004, -005, -006 3 50110651-003 WLAN, BT 3 50110651-002 WLAN, BT, GSM/CDMA (SL9090) ADD HEBREW 01/21/13 B 2013-27 50110651-002 THREE ADD BLACK, REV 02/12/13 C 2013-552 N21909 Input: 5V 1A 0682 Honeywell International Inc www.honeywellaidc.com Pat.: www.honeywellaidc.com/patents Use Honeywell International Inc Battery Pack Only 0682 N21909 Input: 5V 1A FCC ID: HD570ELG0 IC: 1693B-70E2 MODEL: 70eLG0 Cofetel: xxxxxxxxxxxx Anatel: xxxxxxxxxxxx P/N: S/N: REV: D L P H I 70e N TM O Honeywell International Inc www.honeywellaidc.com Pat.: www.honeywellaidc.com/patents Use Honeywell International Inc Battery Pack Only FCC ID: HD570EL00 IC: 1693B-70E3 MODEL: 70eL00 Cofetel: xxxxxxxxxxxx Anatel: xxxxxxxxxxxx P/N: S/N: REV: D L P H I 70e N TM O , J שלבסוללהרקתשתמש Honeywell International Inc שלבסוללהרקתשתמש Honeywell International Inc 3 50110651-005 BT WLAN GSM, GPS (SL8092) EU BANDS 3 50110651-006 BT WLAN GSM, GPS (SL8092) with NFC N21909 MODEL: 70eLWN Honeywell International Inc www.honeywellaidc.com Pat.: www.honeywellaidc.com/patents Cofetel: xxxxxxxxxxxx Anatel: xxxxxxxxxxxx Use Honeywell International Inc Battery Pack Only P/N: Input: 5V 1A 0682 D L P H I 70e N TM O D L P H I 70e N TM O 50110651-004 WLAN,BT,NFC 3 50110651-001 WLAN, BT, GSM/CDMA(SL9090) /NFC Honeywell International Inc www.honeywellaidc.com Pat.: www.honeywellaidc.com/patents Use Honeywell International Inc Battery Pack Only FCC ID: HD570ELGN IC: 1693B-70E1 Cofetel: xxxxxxxxxxxx Anatel: xxxxxxxxxxxx MODEL: 70eLGN N21909 P/N: S/N: REV: Input: 5V 1A 0682 D L P H I 70e N TM O OBSOLETE BLACK BLACK BLACK N21909 MODEL: 70eLW0 Honeywell International Inc www.honeywellaidc.com Pat.: www.honeywellaidc.com/patents Cofetel: xxxxxxxxxxxx Anatel: xxxxxxxxxxxx Use Honeywell International Inc Battery Pack Only P/N: S/N: REV: Input: 5V 1A 0682 BLACK BLACK S/N: REV: BT Sale into Costa Rica can happen with a new sku and if the keep out area of the certification stamp is off the label as shown. Per Mandana, the cert must also be placed on the packaging.

Internal Pictures: Models: Honeywell 70eLGN/ 70eLG0/ 70eL00 Dolphin 70e Black Enterprise Digital Assistant FCC ID: HD570ELGN/ HD570ELG0/ HD570EL00 IC ID: 1693B-70E1/ 1693B-70E2/ 1693B-70E2 Back Cover Removed: Module Info: Main Board: Main Board with Shield Cans removed: Main Board- back section: NFC Module: GSM/CDMA Main and Diversity Antennas BT/WLAN Antenna NFC Antenna

FCC Listed #: A2LA Accredited IC Recognized # 3462B-1 CETECOM Inc. 411 Dixon Landing Road  Milpit as, CA 95035  U.S.A. P hone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: info@ cetecomusa.com  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 V5.2 2013-02-15 © Copyright by CETECOM SAR Test Report FOR: Manufacturer: Honeywell International Inc. Model Name: 70eL00 FCC ID: HD570EL00 IC ID: 1693B-70E3 Test Report #: SAR_Honey-095-12001_eL00_FCC_IC Date of Report: 2013-05-20 Test Report #: SAR_HONEY-095-12001_eL00_FCC_IC FCC ID: HD570EL00 Date of Report: 2013-05-20 IC ID: 1693B-70E3 Page 2 of 30 V5.1 2013-01-09 This report shall not be reproduced except in full without the written approval of: CETECOM Inc.  SAR  411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. TABLE OF CONTENTS 1. Assessment.................................................................................................................................. 4 2. Administrative Data .................................................................................................................. 5 2.1. Identification of the Testing Laboratory Issuing the SAR Test Report...................... 5 2.2. Identification of the Client............................................................................................... 5 2.3. Identification of the Manufacturer ................................................................................. 5 3. Equipment under Test (EUT)................................................................................................... 6 3.1. General Specification of the Equipment under Test..................................................... 6 3.2. Technical Specification of Supported Radios ................................................................ 7 3.3. Identification of the Equipment Under Test (EUT) ...................................................... 8 3.4. Identification of Accessory equipment ........................................................................... 8 3.5. Maximum SAR values ..................................................................................................... 9 4. Subject of Investigation........................................................................................................... 10 4.1. The IEEE Standard C95.1 , FCC Exposure Criteria, and IC Exposure Crite ria.... 10 4.2. SAR Limit ....................................................................................................................... 10 5. Measure ment Procedure ......................................................................................................... 11 5.1. General Require ments ................................................................................................... 11 5.2. Body-worn and Other Configurations ......................................................................... 11 5.3. Procedure for assessing the peak spatial-average SAR .............................................. 12 5.4. Determination of the largest peak spatial-average SAR............................................. 14 6. The Measure ment System....................................................................................................... 15 6.1. Robot system specification............................................................................................. 15 6.2. Isotropic E-Field Probe for Dosimetric Measurements.............................................. 16 6.3. Data Acquisition Electronics ......................................................................................... 16 Test Report #: SAR_HONEY-095-12001_eL00_FCC_IC FCC ID: HD570EL00 Date of Report: 2013-05-20 IC ID: 1693B-70E3 Page 3 of 30 V5.1 2013-01-09 This report shall not be reproduced except in full without the written approval of: CETECOM Inc.  SAR  411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. 6.4. Phantoms ......................................................................................................................... 16 6.5. Inte rpolation and Extrapolation schemes .................................................................... 16 7. Uncertainty Assessment .......................................................................................................... 17 7.1. Measure ment Uncertainty B udget................................................................................ 17 8. Test results summary .............................................................................................................. 18 8.1. Conducted Average Output Powe r............................................................................... 18 8.2. Stand-Alone SAR Evaluation Exclusion ...................................................................... 20 8.3. Test Positions and Configurations ................................................................................ 21 8.4. SAR Results for Head .................................................................................................... 23 8.5. SAR Results for Body-Worn ......................................................................................... 25 8.6. Dipole verification .......................................................................................................... 28 9. Report History ......................................................................................................................... 30 Test Report #: SAR_HONEY-095-12001_eL00_FCC_IC FCC ID: HD570EL00 Date of Report: 2013-05-20 IC ID: 1693B-70E3 Page 4 of 30 V5.1 2013-01-09 This report shall not be reproduced except in full without the written approval of: CETECOM Inc.  SAR  411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. 1. Assessment The following device was evaluated against the limits for general population uncontrolled exposure specified in FCC 2.1093 and RSS 102, Issue 4 according to measurement procedures specified i…

Text truncated - open the document above for the full version.

FCC ID: HD570EL00 IC ID: 1693B-70E3 SAR Test Report - Appendi x A - Plots Page 1 of 74 Plot 1 Date/Time: 1/31/2013 4:36:49 PM Test Laboratory: Cetecom Inc., SAR 3 Lab DUT: Honeywell D70E - SL9090; Type: phone; Serial: 12359J003C Communication System: 802.11 bgn 100% Duty Cycle; Frequency: 2437 MHz Medium: HSL2450_ Batch 110615-2 Medium parameters used: f = 2437 MHz; σ = 1.745 mho/m; ε r = 38.202; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) Procedure Notes: Test Technician: John ; Air Temperature: 23.3C; Medium Temperature:23C ; Comments: ; DASY Configuration:  Probe: ES3DV3 - SN3260; ConvF(4.73, 4.73, 4.73); Calibrated: 9/25/2012;  Sensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0  Electronics: DAE4 Sn1265; Calibrated: 5/13/2011  Phantom: SAM Front; Type: QD000P40CD; Serial: TP-1637  DASY52 52.8.1(838); Right-Hand-Side ELGN 01-31-13/Touch Position/Area Scan (121x81x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 5.056 V/m; Power Drift = 0.10 dB Fast SAR: SAR(1 g) = 0.037 mW/g; SAR(10 g) = 0.021 mW/g Maximum value of SAR (interpolated) = 0.0470 mW/g 0 dB = 0.0470 mW/g = -26.56 dB mW/g FCC ID: HD570EL00 IC ID: 1693B-70E3 SAR Test Report - Appendi x A - Plots Page 2 of 74 Plot 2 Date/Time: 1/31/2013 4:51:52 PM Test Laboratory: Cetecom Inc., SAR 3 Lab DUT: Honeywell D70E - SL9090; Type: phone; Serial: 12359J003C Communication System: 802.11 bgn 100% Duty Cycle; Frequency: 2437 MHz Medium: HSL2450_ Batch 110615-2 Medium parameters used: f = 2437 MHz; σ = 1.745 mho/m; ε r = 38.202; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) Procedure Notes: Test Technician: John ; Air Temperature: 23.3C ; Medium Temperature: 23C; Comments: ; DASY Configuration:  Probe: ES3DV3 - SN3260; ConvF(4.73, 4.73, 4.73); Calibrated: 9/25/2012;  Sensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0  Electronics: DAE4 Sn1265; Calibrated: 5/13/2011  Phantom: SAM Front; Type: QD000P40CD; Serial: TP-1637  DASY52 52.8.1(838); Right-Hand-Side ELGN 01-31-13/Tilt Position/Area Scan (121x81x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 4.659 V/m; Power Drift = 0.20 dB Fast SAR: SAR(1 g) = 0.037 mW/g; SAR(10 g) = 0.021 mW/g Maximum value of SAR (interpolated) = 0.0452 mW/g 0 dB = 0.0452 mW/g = -26.89 dB mW/g FCC ID: HD570EL00 IC ID: 1693B-70E3 SAR Test Report - Appendi x A - Plots Page 3 of 74 Plot 3 Date/Time: 2/1/2013 9:58:23 AM Test Laboratory: Cetecom Inc., SAR 3 Lab DUT: Honeywell D70E-SL9090; Type: Phone; Serial: 12359J003C Communication System: 802.11 bgn 100% Duty Cycle; Frequency: 2437 MHz Medium: HSL2450_ Batch 110615-2 Medium parameters used: f = 2437 MHz; σ = 1.745 mho/m; ε r = 38.202; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) Procedure Notes: Test Technician: John ; Air Temperature: 24C; Medium Temperature: 21.5C ; Comments: ; DASY Configuration:  Probe: ES3DV3 - SN3260; ConvF(4.73, 4.73, 4.73); Calibrated: 9/25/2012;  Sensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0  Electronics: DAE4 Sn1265; Calibrated: 5/13/2011  Phantom: SAM Front; Type: QD000P40CD; Serial: TP-1637  DASY52 52.8.1(838); Left-Hand-Si de ELGN 02-01-13/Touch Position/Area Scan (121x81x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 4.888 V/m; Power Drift = -0.18 dB Fast SAR: SAR(1 g) = 0.067 mW/g; SAR(10 g) = 0.034 mW/g Maximum value of SAR (interpolated) = 0.0877 mW/g 0 dB = 0.0877 mW/g = -21.14 dB mW/g FCC ID: HD570EL00 IC ID: 1693B-70E3 SAR Test Report - Appendi x A - Plots Page 4 of 74 Plot 4 Date/Time: 2/1/2013 10:13:08 AM Test Laboratory: Cetecom Inc., SAR 3 Lab DUT: Honeywell D70E-SL9090; Type: Phone; Serial: 12359J003C Communication System: 802.11 bgn 100% Duty Cycle; Frequency: 2437 MHz Medium: HSL2450_ Batch 110615-2 Medium parameters used: f = 2437 MHz; σ = 1.745 mho/m; ε r = 38.202; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) Procedure Notes: Test Technician: John ; Air Temperature: 23.5C; Medium Temperature: 21.5C ; Comments: ; DASY Configuration:  Probe: ES3DV3 - SN3260; ConvF(4.73, 4.73, 4.73); Calibrated: 9/25/2012;  Sensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0  Electronics: DAE4 Sn1265; Calibrated: 5/13/2011  Phantom: SAM Front; Type: QD000P40CD; Serial: TP-1637  DASY52 52.8.1(838); Left-Hand-Si de ELGN 02-01-13/Tilt Position/Area Scan (121x81x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 4.832 V/m; Power Drift = -0.05 dB Fast SAR: SAR(1 g) = 0.062 mW/g; SAR(10 g) = 0.033 mW/g Maximum value of SAR (interpolated) = 0.0783 mW/g 0 dB = 0.0783 mW/g = -22.13 dB mW/g FCC ID: HD570EL00 IC ID: 1693B-70E3 SAR Test Report - Appendi x A - Plots Page 5 of 74 Plot 5 Date/Time: 2/1/2013 10:29:59 AM Test Laboratory: Cetecom Inc., SAR 3 Lab DUT: Honeywell D70E-SL9090; Type: Phone; Serial: 12359J003C Communication System: 802.11 bgn 100% Duty Cycle; Frequency: 2412 MHz Medium: HSL2450_ Batch 110615-2 Medium parameters used: f = 2412 MHz; σ = 1.713 mho/m; ε r = 38.264; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) Procedure Notes: Test Technician: John ; Air Temperature: 23.7C; Medium Temperature: 21.5C ; Comments: ; DASY Configuration:  Probe: ES3DV3 - SN3260; ConvF(4.73, 4.73, 4.73); Calibrated: 9/25/2012;  Sensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0  Electronics: DAE4 Sn1265; Calibrated: 5/13/2011  Phantom: SAM Front; Type: QD000P40CD; Serial: TP-1637  DASY52 52.8.1(838); Left-Hand-Si de ELGN 02-01-13/Touch Position_worst case 2412MHz/Area Scan (121x81x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 4.285 V/m; Power Drift = -0.17 dB Fast SAR: SAR(1 g) = 0.055 mW/g; SAR(10 g) = 0.028 mW/g Maximum value of SAR (interpolated) = 0.0709 mW/g 0 dB = 0.0709 mW/g = -22.99 dB mW/g FCC ID: HD570EL00 IC ID: 1693B-70E3 SAR Test Report - Appendi …

Text truncated - open the document above for the full version.

FCC ID: HD570EL00 IC ID: 1693B-70E3 SAR Test Report - Appendi x C - Misc Page 1 of 8 Tissue Parameters Recipe for liquids above 1-3 GHz: Water 52-75% DGBE 25-48% Salt <1.0% Recipe for liquids 5-6 GHz: Water 60-80% Esters, Emulsifiers, Inhibitors 20-40% Sodium Chloride 0-1.5% SAR measurements were made within 24 hours of the measurement of liquid parameters. Relative permittivity and conductivity are within ±5% of the target. FCC ID: HD570EL00 IC ID: 1693B-70E3 SAR Test Report - Appendi x C - Misc Page 2 of 8 2450 MHz Head Liquid Date Temp (°C) Frequency (MHz) Relative Permativity Conductivity (S/m) 241238.26451.7125 243738.20171.7454 244238.20531.7497 245038.18761.7575 246238.15591.7684 1/31201323.3 1.66 1.71 1.76 1.81 1.86 1.91 24102460 Conductivity (S /m) Frequency (MHz) Conductivity Target Liquid V alue 5% Liquid Tolerance -5% Liquid Tolerance 1/312013 36.7 37.2 37.7 38.2 38.7 39.2 39.7 40.2 40.7 41.2 24102460 Relative Permittivity Frequency (MHz) Permittivity Target Liquid V alue 5% Liquid Tolerance -5% Liquid Tolerance 1/312013 FCC ID: HD570EL00 IC ID: 1693B-70E3 SAR Test Report - Appendi x C - Misc Page 3 of 8 2450 MHz Body Liquid Date Temp (°C) Frequency (MHz) Relative Permativity Conductivity (S/m) 241252.82021.976 243752.59561.9801 244252.53431.9847 245052.44672.0041 246252.3592.0347 241251.47631.8699 243751.32661.8869 244251.27551.8937 245051.24451.9038 246251.18331.9232 2013/02/0420.2 2013/04/1823.3 1.8 1.85 1.9 1.95 2 2.05 24102460 Conductivity (S /m) Frequency (MHz) Conductivity Target Liquid V alue 5% Liquid Tolerance -5% Liquid Tolerance 2013/02/04 2013/04/18 49.5 50.5 51.5 52.5 53.5 54.5 55.5 24102460 Relative Permittivity Frequency (MHz) Permittivity Target Liquid V alue 5% Liquid Tolerance -5% Liquid Tolerance 2013/02/04 2013/04/18 FCC ID: HD570EL00 IC ID: 1693B-70E3 SAR Test Report - Appendi x C - Misc Page 4 of 8 5000 MHz Head Liquid Date Temp (°C) Frequency (MHz) Relative Permativity Conductivity (S/m) 518036.39274.4846 520036.37634.505 524036.2824.5524 526036.29344.5667 530036.21414.6041 552035.96794.8146 558035.84264.8764 570035.69365.0031 574535.64475.0549 580035.57285.1126 580535.56595.118 518036.94534.6433 520036.86994.6683 524036.90884.7009 526036.91264.707 530036.64914.7533 552036.36534.9356 558036.35965.0626 570036.18625.1499 574536.13795.1859 580036.00985.2422 580536.00065.2457 518036.5084.5519 520036.40734.5654 524036.3334.6529 526036.41414.6585 530036.25984.666 552035.91194.8795 558035.97774.9818 570035.79985.0913 574535.59445.1388 580035.67495.2063 580535.6625.1998 2013/02/0420.9 2013/01/3120.8 2013/02/0121.6 4.2 4.4 4.6 4.8 5 5.2 5.4 5.6 500055006000 Conductivity (S /m) Frequency (MHz) Conductivity Target Liquid Value 5% Liquid Tolerance -5% Liquid Tolerance 2013/01/31 2013/02/01 2013/02/04 33 34 35 36 37 38 500055006000 Relative Permittivity Frequency (MHz) Permittivity Target Liquid Value 5% Liquid Tolerance -5% Liquid Tolerance 2013/01/31 2013/02/01 2013/02/04 FCC ID: HD570EL00 IC ID: 1693B-70E3 SAR Test Report - Appendi x C - Misc Page 5 of 8 5000 MHz Body Liquid Date Temp (°C) Frequency (MHz) Relative Permativity Conductivity (S/m) 518048.32445.1067 520048.32985.1366 524048.24155.1698 526048.20685.1987 530048.15415.263 552047.88325.5275 558047.73015.6072 570047.57365.774 574547.58565.8358 580047.44855.9088 580547.43635.913 518048.76525.2327 520048.48395.241 524048.56545.3738 526048.63185.3905 530048.31375.3744 552047.92135.6947 558048.17055.8141 570047.86315.9157 574547.5196.0534 580047.72696.1009 580547.66626.0916 2013/02/1123.7 2013/04/1621.1 4.7 4.9 5.1 5.3 5.5 5.7 5.9 6.1 6.3 500055006000 Conductivity (S /m) Frequency (MHz) Conductivity Target Liquid V alue 5% Liquid Tolerance -5% Liquid Tolerance 2013/02/11 2013/04/16 45.4 46.4 47.4 4…

Text truncated - open the document above for the full version.
