HD570ELGNEnterprise Digital Assistant (EDA)

Dolphin™ 70e Black with Windows ® Embedded Handheld 6.5 User’s Guide Preliminary Draft 5/26/13, Not for Release Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of HII. HII shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of HII. Web Address: www.honeywellaidc.com Trademarks Dolphin is a trademark or registered trademark of Hand Held Products, Inc. in the United States and/or other countries. Microsoft, Windows, Windows Mobile, Windows Phone, Windows Embedded Handheld, Windows CE, Windows 98 Second Edition, Windows NT, Windows 2000, Windows ME, Windows XP, Windows 7, Windows Vista, ActiveSync, Outlook, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation. The Bluetooth trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to Honeywell. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are the property of their respective owners. Patents For patent information, please refer to www.honeywellaidc.com/patents. ©2013 Honeywell International Inc. All rights reserved. Preliminary Draft 5/26/13, Not for Release Table of Contents iii Chapter 1 - Dolphin 70e Black Terminal Agency Information Label Locations ....................................................................................................................1-1 Model Number, Serial Number and IMEI Labels............................................................1-1 LED Safety ...........................................................................................................................1-1 LED Safety Statement....................................................................................................1-1 UL and C-UL Statement.......................................................................................................1-2 Approvals by Country...........................................................................................................1-2 R&TTE Compliance Statement—802.11a/b/g/n, Bluetooth, and/or GSM............................1-2 FCC Requirements ..............................................................................................................1-3 Dolphin RF Terminal—802.11a/b/g/n, Bluetooth, and/or GSM ......................................1-3 Canadian Compliance..........................................................................................................1-3 Conformité à la règlementation canadienne ..................................................................1-4 RF Exposure Information (SAR) ..........................................................................................1-4 For European Community Users .........................................................................................1-5 Waste Electrical and Electronic Equipment Information ......................................................1-5 China RoHS .........................................................................................................................1-5 Pacemakers, Hearing Aids and Other Electrically Powered Devices ..................................1-6 Hearing Aid Compatibility (HAC)..........................................................................................1-6 Microwaves ..........................................................................................................................1-6 Chapter 2 - Getting Started Out of the Box ......................................................................................................................2-1 Initial Setup for Dolphin 70e Black Terminals ......................................................................2-1 Using the USB Charge/Communication Cable (Model 70e-USB ADAPTERKIT) ..........2-2 The Home Screen ................................................................................................................2-4 Title Bar..........................................................................................................................2-4 Icons in the Title Bar ......................................................................................................2-5 Horizontal Scroll .............................................................................................................2-7 Tile Bar...........................................................................................................................2-7 Virtual Keyboard.............................................................................................................2-8 The Start Menu ....................................................................................................................2-9 Navigating the Start Menu..............................................................................................2-9 Pop-Up Menus .....................................................................................................................2-9 File Explorer .......................................................................................................................2-10 File Provisioning on the Dolphin 70e Black........................................................................2-11 Search....................................................................................................…

Text truncated - open the document above for the full version.

Honeywell International Inc Honeywell Scanning and Mobility 9680 Old Bailes Road Fort Mill, SC 29707 USA April/17/2013 To Whom It May Concern: Subject: Appropriateness of Pre-Production Sample for Certification Testing We, Honeywell International Inc, located at 9680 Old Bailes Road, Fort Mill SC 29707 USA, confirm that the pre-production sample(s) provided for certification testing of our Dolphin 70e Black models, 70E1, 70E2, 70E3 with related FCC ID: HD570ELGN & IC ID: 1693B-70E1 and FCC ID: HD570ELG0 & IC ID: 1693B-70E2 and FCC ID: HD570EL00 & IC ID: 1693B-70E3 fully represents the final version of the models as it will be released to the market, in all relevant parts, Sincerely, Michael Robinson Compliance Manager, Scanning Systems

Honeywell International Inc Honeywell Scanning and Mobility 9680 Old Bailes Road Fort Mill, SC 29707 USA April/17/2013 To Whom It May Concern: Subject: Statement of Compliance for Clients in non-associated Mode We, Honeywell International Inc, located at 9680 Old Bailes Road, Fort Mill SC 29707 USA, confirm that our Enterprise Digital Assistant (EDA) Dolphin 70e Black (models 70E1, 70E2, 70E3) with related FCC ID: HD570ELGN & IC ID: 1693B-70E1 and FCC ID: HD570ELG0 & IC ID: 1693B-70E2 and FCC ID: HD570EL00 & IC ID: 1693B-70E3, does not contain client SW or associated drivers which can initiate any transmission on DFS frequency bands 5.25 – 5.35 and 5.45 – 5.725 GHz without initiation by a master device. This includes restriction on transmissions for beacons and support for ad-hoc peer-to-peer modes. The relevant mechanism to the described behavior is hard-coded in the WLAN chip and can thus not be changed. Sincerely, Michael Robinson Compliance Manager, Scanning Systems

Honeywell International Inc Honeywell Scanning and Mobility 9680 Old Bailes Road Fort Mill, SC 29707 USA April/17/2013 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: HD570ELGN Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request the exhibits listed hereafter and accompanying above identified application be kept confidential permanently. Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ________________________ Michael Robinson

Honeywell International Inc Honeywell Scanning and Mobility 9680 Old Bailes Road Fort Mill, SC 29707 USA April, 17, 2013 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 RE : Certification Application FCC ID : HD570ELGN To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days from the date of grant:  External Photos  Internal Photos  Test Setup Photos  User Manual The application contains technical information, which Honeywell International Inc deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. We are informed and understand that we have to arrange cancellation of the short term confidentiality classification per written and timely request to the involved TCB, if a product release to the market is intended prior to the above specified short term confidentiality release date. We understand that the above listed exhibits will be automatically disclosed to the public at the specified short term confidentiality release date if not prolonged by the involved TCB upon our timely request (total of 180 days from date of grant is possible). Sincerely, Michael Robinson Compliance Manager, Scanning systems Tel: 315-554-6387 FAX: 315.554.6393 Email:[email protected]

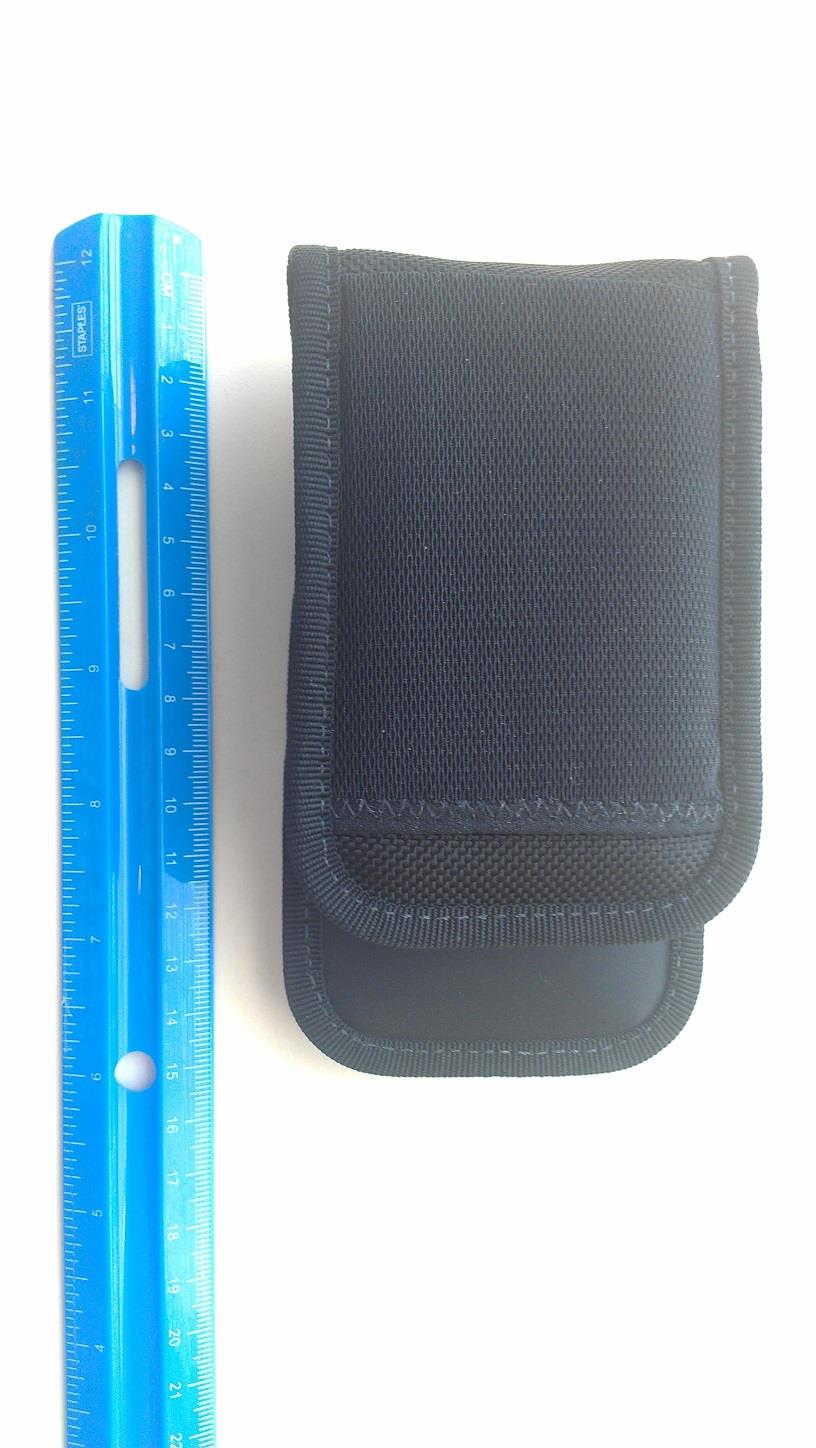

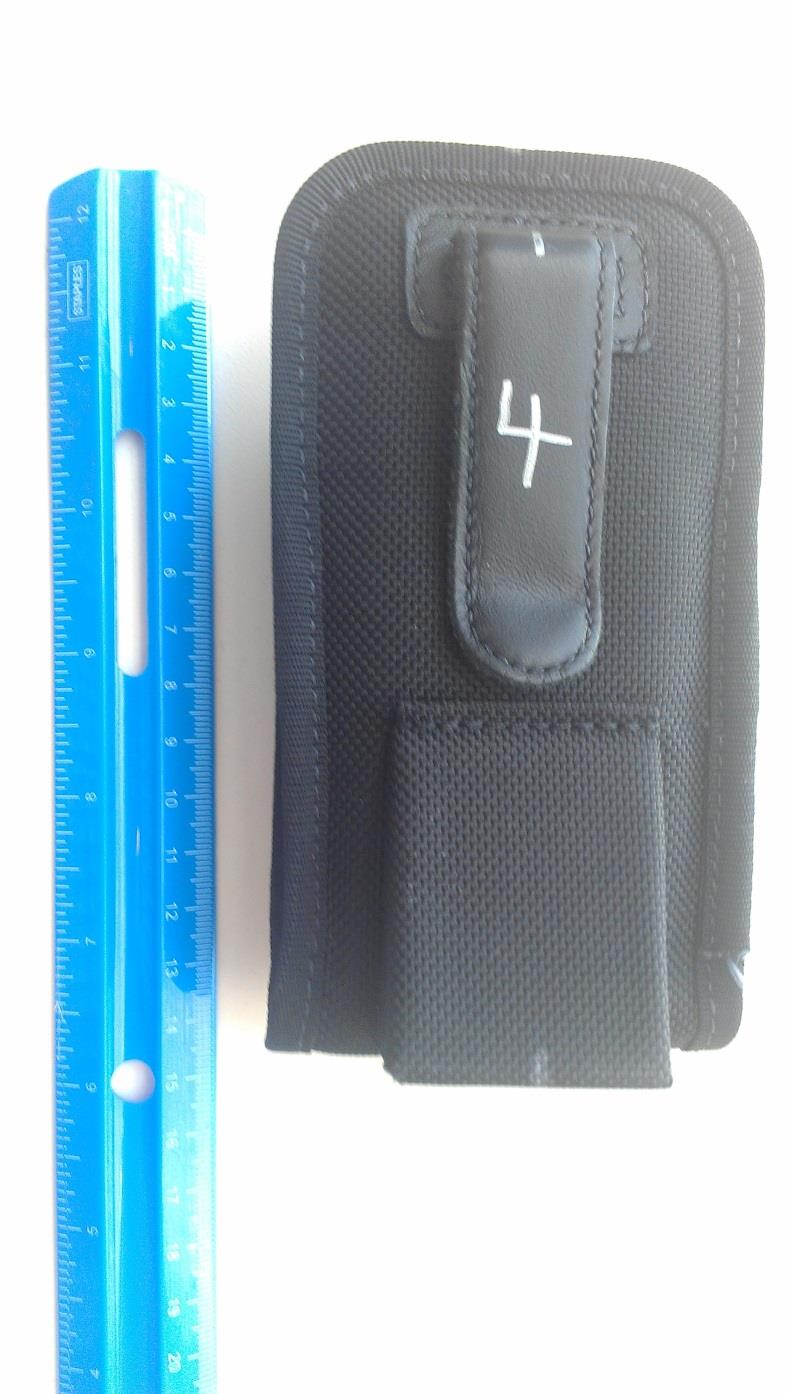

External Pictures: Models: Honeywell 70eLGN/ 70eLG0/ 70eL00 Dolphin 70e Black Enterprise Digital Assistant FCC ID: HD570ELGN/ HD570ELG0/ HD570EL00 IC ID: 1693B-70E1/ 1693B-70E2/ 1693B-70E2 Front View: Side View: Side View: Top View: Bottom View: Back Cover: EUT With Thick Back Cover: EUT With Thin Back Cover: Battery Options: Thick Battery: Thin Battery Option: Labels: 70eL00 70eLG0 70eLGN Holster-1

THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY AND CONFIDENTIAL MATERIAL OF HONEYWELL INTERNATIONAL INC AND SHALL NOT BE REPRODUCED, OR COPIED, OR USED AS A BASIS FOR MANUFACTURE OR SALE OF EQUIPMENT OR DEVICES WITHOUT WRITTEN PERMISSION. c REV#REV DESCRIPTION DESIGNED BY DATE ARTWORK LEVEL TITLE: A DRAWING NO: REV SCALE DO NOT SCALE SHEET 1 OF 1 DRAWING NO. DATE RELEASE LABEL,DOLPHIN BLACK , AGENCY PRINT ON DEMAND C 09/26/12 D.FLETCHER 03/20/12 A CC# 2012-912 MATERIAL # TWO “A” Format Artwork Template No. 500030434, REV A NOTES REQUIRED FOR LABEL MANUFACTURER: 1. ROHS COMPLIANT RIBBONS. SEE ENVIRONMENTAL SPECIFICATION DOCUMENT #500007391 2. MATERIAL/ PROCESS: THERMAL TRANSFER USING UL APPROVED RIBBON & MATERIAL CONSTRUCTION ON .051MM THICK WHITE POLYESTER BACKED WITH PRESSURE SENSITIVE ADHESIVE. SIZE: 25.4MM X 25.4 MM. ALL PRINTING BLACK 3. SERIAL NUMBER: REF. L3-GLBL-MKT-1366 2D DATA MATRIX 7 DOT EW (10 CHARACTER MAX) OF SERIAL NUMBER AS DESCRIBED IN CHART BELOW. Table 1. Serial Number Format Year Day of Year Location Sequential Number 0 5 1 2 3 0 1 2 3 4 Table 2. Serial Number Fields Fields Range Description Year 01 to 99 01 = 2001 Day of Year 001 to 365 001 = January 1 Location 0-9, A, B, C, D, F See Table 3 Table 3 FoxCon Location CharacterOutsource Partner Info J Products Used Dolphin Black 50110651 50110651 50110651-001, -004, -005, -006 3 50110651-003 WLAN, BT 3 50110651-002 WLAN, BT, GSM/CDMA (SL9090) ADD HEBREW 01/21/13 B 2013-27 50110651-002 THREE ADD BLACK, REV 02/12/13 C 2013-552 N21909 Input: 5V 1A 0682 Honeywell International Inc www.honeywellaidc.com Pat.: www.honeywellaidc.com/patents Use Honeywell International Inc Battery Pack Only 0682 N21909 Input: 5V 1A FCC ID: HD570ELG0 IC: 1693B-70E2 MODEL: 70eLG0 Cofetel: xxxxxxxxxxxx Anatel: xxxxxxxxxxxx P/N: S/N: REV: D L P H I 70e N TM O Honeywell International Inc www.honeywellaidc.com Pat.: www.honeywellaidc.com/patents Use Honeywell International Inc Battery Pack Only FCC ID: HD570EL00 IC: 1693B-70E3 MODEL: 70eL00 Cofetel: xxxxxxxxxxxx Anatel: xxxxxxxxxxxx P/N: S/N: REV: D L P H I 70e N TM O , J שלבסוללהרקתשתמש Honeywell International Inc שלבסוללהרקתשתמש Honeywell International Inc 3 50110651-005 BT WLAN GSM, GPS (SL8092) EU BANDS 3 50110651-006 BT WLAN GSM, GPS (SL8092) with NFC N21909 MODEL: 70eLWN Honeywell International Inc www.honeywellaidc.com Pat.: www.honeywellaidc.com/patents Cofetel: xxxxxxxxxxxx Anatel: xxxxxxxxxxxx Use Honeywell International Inc Battery Pack Only P/N: Input: 5V 1A 0682 D L P H I 70e N TM O D L P H I 70e N TM O 50110651-004 WLAN,BT,NFC 3 50110651-001 WLAN, BT, GSM/CDMA(SL9090) /NFC Honeywell International Inc www.honeywellaidc.com Pat.: www.honeywellaidc.com/patents Use Honeywell International Inc Battery Pack Only FCC ID: HD570ELGN IC: 1693B-70E1 Cofetel: xxxxxxxxxxxx Anatel: xxxxxxxxxxxx MODEL: 70eLGN N21909 P/N: S/N: REV: Input: 5V 1A 0682 D L P H I 70e N TM O OBSOLETE BLACK BLACK BLACK N21909 MODEL: 70eLW0 Honeywell International Inc www.honeywellaidc.com Pat.: www.honeywellaidc.com/patents Cofetel: xxxxxxxxxxxx Anatel: xxxxxxxxxxxx Use Honeywell International Inc Battery Pack Only P/N: S/N: REV: Input: 5V 1A 0682 BLACK BLACK S/N: REV: BT Sale into Costa Rica can happen with a new sku and if the keep out area of the certification stamp is off the label as shown. Per Mandana, the cert must also be placed on the packaging.

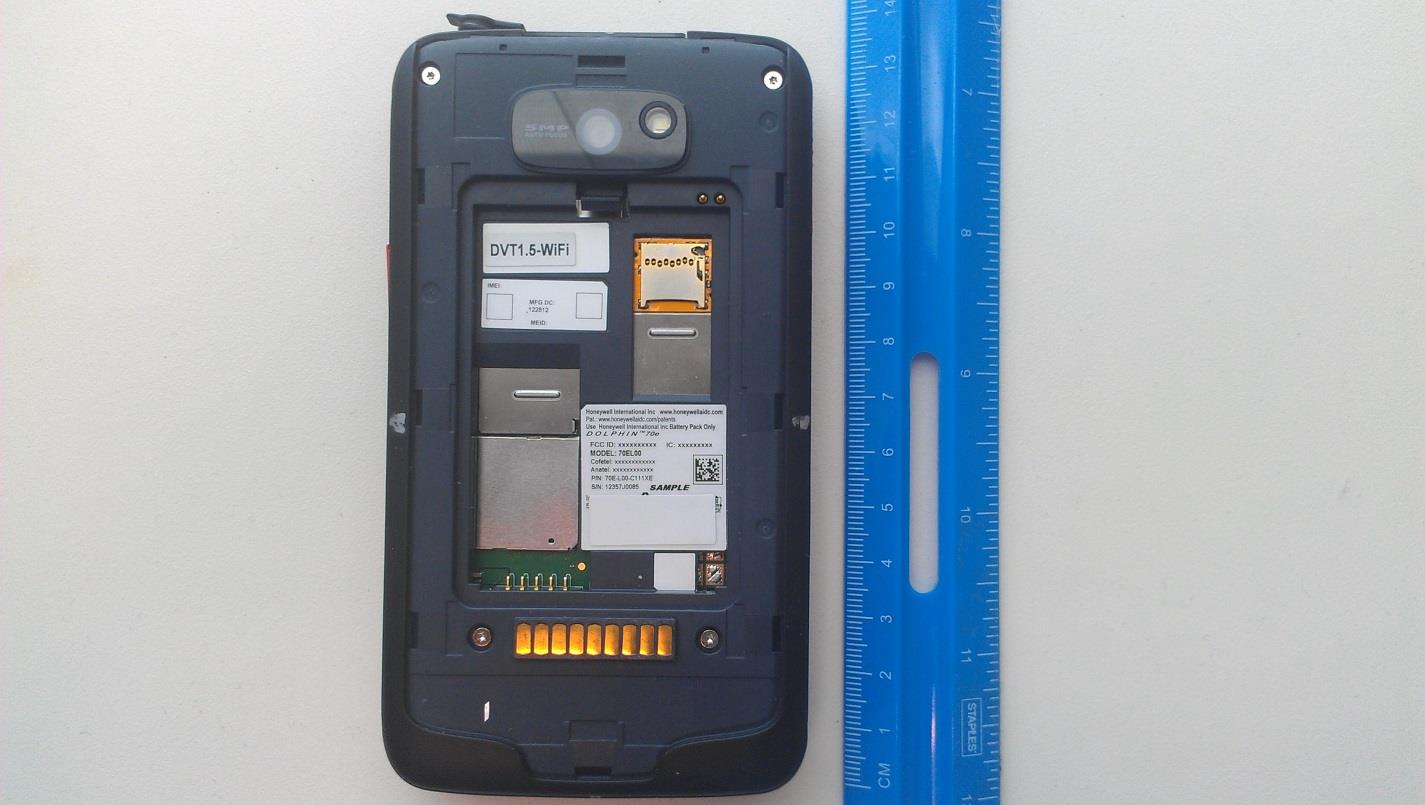

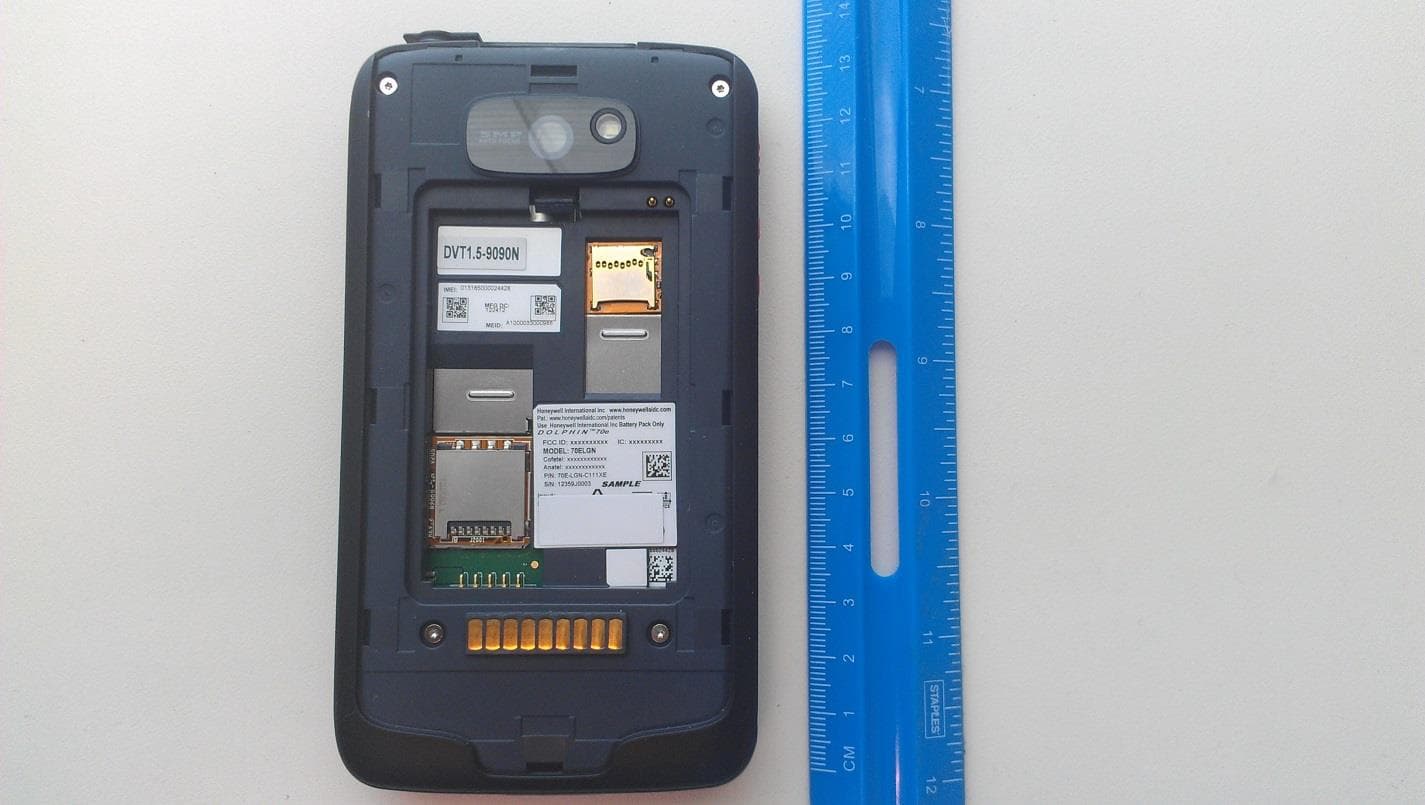

Internal Pictures: Models: Honeywell 70eLGN/ 70eLG0/ 70eL00 Dolphin 70e Black Enterprise Digital Assistant FCC ID: HD570ELGN/ HD570ELG0/ HD570EL00 IC ID: 1693B-70E1/ 1693B-70E2/ 1693B-70E2 Back Cover Removed: Module Info: Main Board: Main Board with Shield Cans removed: Main Board- back section: NFC Module: GSM/CDMA Main and Diversity Antennas BT/WLAN Antenna NFC Antenna

FCC Listed #: A2LA Accredited IC Recognized # 3462B-1 CETECOM Inc. 411 Dixon Landing Road  Milpit as, CA 95035  U.S.A. P hone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: info@ cetecomusa.com  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 V5.2 2013-02-15 © Copyright by CETECOM SAR Test Report FOR: Manufacturer: Honeywell International Inc. Model Name: 70eLGN FCC ID: HD570ELGN IC ID: 1693B-70E1 Test Report #: SAR_Honey-095-12001_eLGN_FCC_IC Date of Report: 2013-05-20 Test Report #: SAR_HONEY-095-12001_eLGN_FCC_ IC FCC ID: HD570ELGN Date of Report: 2013-05-20 IC ID: 1693B-70E1 Page 2 of 45 V5.1 2013-01-09 This report shall not be reproduced except in full without the written approval of: CETECOM Inc.  SAR  411 Dixon Landing Road  M ilpitas, CA 95035  U.S.A. TABLE OF CONTENTS 1. Assessment.................................................................................................................................. 4 2. Administrative Data .................................................................................................................. 5 2.1. Identification of the Testing Laboratory Issuing the SAR Test Report...................... 5 2.2. Identification of the Client............................................................................................... 5 2.3. Identification of the Manufacturer ................................................................................. 5 3. Equipment under Test (EUT)................................................................................................... 6 3.1. General Specification of the Equipment under Test..................................................... 6 3.2. Technical Specification of Supported Radios ................................................................ 7 3.3. Identification of the Equipment Under Test (EUT) ...................................................... 8 3.4. Identification of Accessory equipment ........................................................................... 8 3.5. Maximum SAR values ..................................................................................................... 9 4. Subject of Investigation........................................................................................................... 10 4.1. The IEEE Standard C95.1 , FCC Exposure Criteria, and IC Exposure Crite ria.... 10 4.2. SAR Limit ....................................................................................................................... 10 5. Measure ment Procedure ......................................................................................................... 11 5.1. General Require ments ................................................................................................... 11 5.2. Body-worn and Other Configurations ......................................................................... 11 5.3. Procedure for assessing the peak spatial-average SAR .............................................. 12 5.4. Determination of the largest peak spatial-average SAR............................................. 14 6. The Measure ment System....................................................................................................... 15 6.1. Robot system specification............................................................................................. 15 6.2. Isotropic E-Field Probe for Dosimetric Measurements.............................................. 16 6.3. Data Acquisition Electronics ......................................................................................... 16 Test Report #: SAR_HONEY-095-12001_eLGN_FCC_ IC FCC ID: HD570ELGN Date of Report: 2013-05-20 IC ID: 1693B-70E1 Page 3 of 45 V5.1 2013-01-09 This report shall not be reproduced except in full without the written approval of: CETECOM Inc.  SAR  411 Dixon Landing Road  M ilpitas, CA 95035  U.S.A. 6.4. Phantoms ......................................................................................................................... 16 6.5. Inte rpolation and Extrapolation schemes .................................................................... 16 7. Uncertainty Assessment .......................................................................................................... 17 7.1. Measure ment Uncertainty B udget................................................................................ 17 8. Test results summary .............................................................................................................. 18 8.1. Conducted Average Output Powe r............................................................................... 18 8.2. Stand-Alone SAR Evaluation Exclusion ...................................................................... 24 8.3. Test Positions and Configurations ................................................................................ 25 8.4. SAR Results for Head .................................................................................................... 27 8.5. SAR Results for Body-Worn ......................................................................................... 32 8.6. Simultaneous Transmission SAR Evaluation Consideration..................................... 41 8.7. Dipole verification .......................................................................................................... 42 9. Report History ......................................................................................................................... 45 Test Report #: SAR_HONEY-095-12001_eLGN_FCC_ IC FCC ID: HD570ELGN Date of Report: 2013-05-20 IC ID: 1693B-70E1 Page 4 of 45 V5.1 2013-01-09 This report shall not be reproduced except in full without the written approval of: CETECOM Inc.  SAR  411 Dixon Landing Road  M ilpitas, CA 95035  U.S.A. 1. Assessment The following device was evaluated against the limits for general population uncontro…

Text truncated - open the document above for the full version.

FCC ID: HD570ELGN IC ID: 1693B-70E1 SAR Test Report - Appendi x A - Plots Page 1 of 154 Plot 1 Date/Time: 1/22/2013 11:51:51 AM Test Laboratory: Cetecom Inc., SAR 3 Lab DUT: Honeywell D70E - SL9090; Type: phone; Serial: 12359J003B Communication System: GSM-FDD (TDMA, GMSK); Frequency: 836.6 MHz Medium: HSL900_Batch 100922-1 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.92 mho/m; ε r = 40.86; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) Procedure Notes: Test Technician: Kathy; Air Temperature: 21.3C; Medium Temperature: 20.5C DASY Configuration:  Probe: ES3DV3 - SN3261; ConvF(6.04, 6.04, 6.04); Calibrated: 8/17/2012;  Sensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0  Electronics: DAE4 Sn1266; Calibrated: 5/30/2011  Phantom: SAM Front; Type: QD000P40CD; Serial: TP-1637  DASY52 52.8.1(838); Right-Hand-Side/Right Touch Position_ELGN_836.6MHz/Are a Scan (11x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.273 mW/g Right-Hand-Side/Right Touch Position_ELGN_836.6MHz/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.778 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.315 mW/g SAR(1 g) = 0.256 mW/g; SAR(10 g) = 0.197 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.279 mW/g 0 dB = 0.273 mW/g = -11.28 dB mW/g FCC ID: HD570ELGN IC ID: 1693B-70E1 SAR Test Report - Appendi x A - Plots Page 2 of 154 Plot 2 Date/Time: 1/22/2013 12:19:09 PM Test Laboratory: Cetecom Inc., SAR 3 Lab DUT: Honeywell D70E - SL9090; Type: phone; Serial: 12359J003B Communication System: GSM-FDD (TDMA, GMSK); Frequency: 836.6 MHz Medium: HSL900_Batch 100922-1 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.92 mho/m; ε r = 40.86; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) Procedure Notes: Test Technician: Kathy; Air Temperature: 22.0C; Medium Temperature: 20.5C DASY Configuration:  Probe: ES3DV3 - SN3261; ConvF(6.04, 6.04, 6.04); Calibrated: 8/17/2012;  Sensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0  Electronics: DAE4 Sn1266; Calibrated: 5/30/2011  Phantom: SAM Front; Type: QD000P40CD; Serial: TP-1637  DASY52 52.8.1(838); Right-Hand-Side/Right Tilt Position_ELGN_836.6MHz/Are a Scan (11x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.197 mW/g Right-Hand-Side/Right Tilt Position_ELGN_836.6MHz/ Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.494 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 0.225 mW/g SAR(1 g) = 0.181 mW/g; SAR(10 g) = 0.140 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.198 mW/g 0 dB = 0.197 mW/g = -14.10 dB mW/g FCC ID: HD570ELGN IC ID: 1693B-70E1 SAR Test Report - Appendi x A - Plots Page 3 of 154 Plot 3 Date/Time: 1/22/2013 10:17:54 AM Test Laboratory: Cetecom Inc., SAR 3 Lab DUT: Honeywell D70E - SL9090; Type: phone; Serial: 12359J003B Communication System: GSM-FDD (TDMA, GMSK); Frequency: 836.6 MHz Medium: HSL900_Batch 100922-1 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.92 mho/m; ε r = 40.86; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) Procedure Notes: Test Technician: Kathy; Air Temperature: 21.2C; Medium Temperature: 20.5C; Comments: ; DASY Configuration:  Probe: ES3DV3 - SN3261; ConvF(6.04, 6.04, 6.04); Calibrated: 8/17/2012;  Sensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0  Electronics: DAE4 Sn1266; Calibrated: 5/30/2011  Phantom: SAM Front; Type: QD000P40CD; Serial: TP-1637  DASY52 52.8.1(838); Left-Hand-Si de/ Left Touch Position_ELGN_836.6MHz/ Area Scan (11x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.263 mW/g Left-Hand-Si de/ Left Touch Position_ELGN_836.6MHz/ Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.421 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.303 mW/g SAR(1 g) = 0.250 mW/g; SAR(10 g) = 0.196 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.272 mW/g 0 dB = 0.263 mW/g = -11.61 dB mW/g FCC ID: HD570ELGN IC ID: 1693B-70E1 SAR Test Report - Appendi x A - Plots Page 4 of 154 Plot 4 Date/Time: 1/22/2013 11:02:43 AM Test Laboratory: Cetecom Inc., SAR 3 Lab DUT: Honeywell D70E - SL9090; Type: phone; Serial: 12359J003B Communication System: GSM-FDD (TDMA, GMSK); Frequency: 836.6 MHz Medium: HSL900_Batch 100922-1 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.92 mho/m; ε r = 40.86; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) Procedure Notes: Test Technician: Kathy; Air Temperature: 21.1C; Medium Temperature: 20.5C Comments: ; DASY Configuration:  Probe: ES3DV3 - SN3261; ConvF(6.04, 6.04, 6.04); Calibrated: 8/17/2012;  Sensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0  Electronics: DAE4 Sn1266; Calibrated: 5/30/2011  Phantom: SAM Front; Type: QD000P40CD; Serial: TP-1637  DASY52 52.8.1(838); Left-Hand-Si de/ Left Tilt Position_ELGN_836.6MHz/Are a Scan (11x7x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.190 mW/g Left-Hand-Si de/ Left Tilt Position_ELGN_836.6MHz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.902 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.228 mW/g SAR(1 g) = 0.187 mW/g; SAR(10 g) = 0.145 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.203 mW/g 0 dB =…

Text truncated - open the document above for the full version.

FCC ID: HD570ELGN IC ID: 1693B-70E1 SAR Test Report - Appendi x C - Misc Page 1 of 14 Tissue Parameters Recipe for liquids below 1 GHz: Water 35-58% Sugar 40-60% Salt 0-6% Hydroxyethyl-cellulose <0.3% Preventol-D7 0.1-0.7% Recipe for liquids above 1-3 GHz: Water 52-75% DGBE 25-48% Salt <1.0% Recipe for liquids 5-6 GHz: Water 60-80% Esters, Emulsifiers, Inhibitors 20-40% Sodium Chloride 0-1.5% SAR measurements were made within 24 hours of the measurement of liquid parameters. Relative permittivity and conductivity are within ±5% of the target. FCC ID: HD570ELGN IC ID: 1693B-70E1 SAR Test Report - Appendi x C - Misc Page 2 of 14 850 MHz Head Liquid Date Temp (°C) Frequency (MHz) Relative Permativity Conductivity (S/m) 82441.02410.9076 82940.96050.9131 83440.89970.9175 83940.8240.9221 84440.76120.9274 84940.6880.9325 82441.78240.8949 82541.78950.8978 82641.74860.8983 82741.72530.9003 83541.60890.9145 83641.59740.916 83741.58550.9183 84641.5150.9349 84741.50960.9365 84841.50680.9384 84941.50470.9398 2013/01/2220.5 2013/01/2421.7 0.84 0.89 0.94 820840 Conductivity (S /m) Frequency (MHz) Conductivity Target Liquid V alue 5% Liquid Tolerance -5% Liquid Tolerance 2013/01/22 2013/01/24 39 40 41 42 43 44 820840 Relative Permittivity Frequency (MHz) Permittivity Target Liquid V alue 5% Liquid Tolerance -5% Liquid Tolerance 2013/01/22 2013/01/24 FCC ID: HD570ELGN IC ID: 1693B-70E1 SAR Test Report - Appendi x C - Misc Page 3 of 14 850 MHz Body Liquid Date Temp (°C) Frequency (MHz) Relative Permativity Conductivity (S/m) 82454.21860.9606 82554.18010.9614 82654.17930.9637 82754.16140.9656 83554.08390.982 83654.05160.9834 83754.04220.9851 84654.01021.0029 84754.01011.0044 84854.01521.0061 84954.00821.0076 82454.17940.9645 82554.19650.9632 82654.14590.9662 82754.1440.9673 83554.05080.9771 83654.04590.9785 83754.02930.9798 84653.93180.9908 84753.92320.9921 84853.91480.993 84953.90120.9941 82453.19180.9477 82553.19750.9477 82653.1720.9497 82753.15510.9511 83553.10290.9606 83653.06610.961 83753.05410.9623 84652.96870.9722 84752.94770.9737 84852.94370.9748 84952.9360.976 82453.8880.964 82553.86090.9661 82653.86880.9666 82753.86450.9675 83553.77180.9763 83653.76730.9772 83753.75350.9785 84653.66540.989 84753.66190.9896 84853.64930.9905 84953.64450.9917 2013/02/0721 2013/01/1520 2013/01/2321 2013/02/0620.8 0.9 0.92 0.94 0.96 0.98 1 1.02 1.04 820830840850 Conductivity (S /m) Frequency (MHz) Conductivity Target Liquid Value 5% Liquid Tolerance -5% Liquid Tolerance 2013/01/15 2013/01/23 2013/02/06 2013/02/07 51 52 53 54 55 56 57 58 59 820830840850 Relative Permittivity Frequency (MHz) Permittivity Target Liquid Value 5% Liquid Tolerance -5% Liquid Tolerance 2013/01/15 2013/01/23 2013/02/06 2013/02/07 FCC ID: HD570ELGN IC ID: 1693B-70E1 SAR Test Report - Appendi x C - Misc Page 4 of 14 850 MHz Body Liquid Continued Date Temp (°C) Frequency (MHz) Relative Permativity Conductivity (S/m) 82453.19840.9599 82553.13180.9598 82653.16350.9634 82753.15230.965 83553.02860.9804 83653.01420.9828 83753.0150.9845 84652.96241.0013 84752.96191.0032 84852.95791.0046 84952.95751.0062 2013/04/0521.2 0.9 0.92 0.94 0.96 0.98 1 1.02 1.04 820830840850 Conductivity (S /m) Frequency (MHz) Conductivity Target Liquid Value 5% Liquid Tolerance -5% Liquid Tolerance 2013/04/05 51 52 53 54 55 56 57 58 59 820830840850 Relative Permittivity Frequency (MHz) Permittivity Target Liquid Value 5% Liquid Tolerance -5% Liquid Tolerance 2013/04/05 FCC ID: HD570ELGN IC ID: 1693B-70E1 SAR Test Report - Appendi x C - Misc Page 5 of 14 1900 MHz Head Liquid Date TempFrequencyRelative Conductivity 185038.82371.4066 185138.80941.4079 18…

Text truncated - open the document above for the full version.
