Hand Held Products, Inc. FCC ID.: HD5760002 700 Visions Drive P.O. Box 208 Skaneateles Falls, NY, 13153-0208 USA Tel : +1 704-998-3922 Federal Communications Commission Sep. 29 , 2006 Authorization and Evaluation Division ATTESTATION FCC ID: HD5760002 Product: Industrial PDA Model: DOLPHIN 7600 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ----------------------------------------------- George Smith / Engineer . Hand Held Products, Inc.

RF_160, Issue 01 Declaration of Authorization We Name: Hand Held Products, Inc. Address: 700 Visions Drive P.O. Box 208 Skaneateles Falls, NY, 13153-0208 USA City: .................................................................. . Country: U.S.A ........................................................................... . Declare that: Name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan R.O.C. is authorized to apply for Certification of the following product(s): Product description: Industrial PDA ..................... . Type designation: DOLPHIN 7600 ........................ . Trademark: HHP on our behalf. Date: ...... 2006/9/29 ............... .. City: ...... ........................ .. Name: ...... George Smith ............... Signature: ... ............

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 26, 2006 RE: Hand Held Products FCC ID: HD5760002 I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) Please review page 3.2 in the Manual. This device is designed to support voice communications with a built-in microphone. This implies to me that it is capable of either face- held or ear-held positions. The RF Pout quoted on Form 731 is above 150mW, and consequently above the “Low Threshold” limit shown in the TCB Exclusions List. Therefore, SAR testing in either face-held or ear-held positioning shall be required. 2.) Please note that distinctions between SAR levels in 802.11b or 802.11g mode are irrelevant. However, distinctions between head and body SAR levels are appropriate. Please be sure both body and head SAR are shown in the Manual. 3.) Section 8 of the Manual appears to imply that the end user may be able to add any WiFi transceiver. How is it assured that only specific types of WiFi radios are installed into this product? Kindly list the radios which are approved for use with this device. 4.) I note the “zero-config WiFi” feature is disabled on this device. That implies to me that you may be using your own software. How do you insure that end users can set this device to only operate on the 11 channels allowed for 2.45GHz WiFi in North America? Please note that any operation which allows users to select country or region is insufficient to guarantee compliance with 15.15(b). 5.) Can this device be set up for peer-to-peer operations? If so, then is it possible for this device to link with another device set to channel 13? 6.) Please refer to your Test Report, Section 3. How did you determine the maximum power across all data rates in each of Mode 1 or Mode 2? 7.) I note that you are using a VBW for band edge measurements considerably greater than 10Hz. This implies to me that the test software was not capable of a true “CW” mode, and was instead pulsing. Can you kindly provide details about the transmitter duty cycle observed? Additionally, this duty cycle may influence the results of SAR report. Was the duty cycle of the transmitter accounted for during SAR testing? William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. z Page 2 October 26, 2006 Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

2F, No.345, Xinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. TEL:+886-2-8792-6808 FAX:+886-2-8792-6628 Email:[email protected] http://www.quietek.com ATCB004189 | HD5760002 | 1693B Comments reply 1) Please review page 3.2 in the Manual. This device is designed to support voice communications with a built-in microphone. This implies to me that it is capable of either face-held or ear-held positions. The RF Pout quoted on Form 731 is above 150mW, and consequently above the “Low Threshold” limit shown in the TCB Exclusions List. Therefore, SAR testing in either face-held or ear-held positioning shall be required. Reply: Voice communications are not supported in this device. The previously user manual is mistyping, we have correct it. 2) 2.) Please note that distinctions between SAR levels in 802.11b or 802.11g mode are irrelevant. However, distinctions between head and body SAR levels are appropriate. Please be sure both body and head SAR are shown in the Manual. Reply: Voice communications are not supported in this device. The previously user manual is mistyping, we have correct it. 3) Section 8 of the Manual appears to imply that the end user may be able to add any WiFi transceiver. How is it assured that only specific types of WiFi radios are installed into this product? Kindly list the radios which are approved for use with this device. Reply: Only one WiFi chipset will be used with this device. 4) I note the “zero-config WiFi” feature is disabled on this device. That implies to me that you may be using your own software. How do you insure that end users can set this device to only operate on the 11 channels allowed for 2.45GHz WiFi in North America? Please note that any operation which allows users to select country or region is insufficient to guarantee compliance with 15.15(b). Reply: No changes are permitted which will allow operations on any channels other than 1-11. 5) Can this device be set up for peer-to-peer operations? If so, then is it possible for this device to link with another device set to channel 13? Reply: No changes are permitted which will allow operations on any channels other than 1-11. 2F, No.345, Xinhu 2nd Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. TEL:+886-2-8792-6808 FAX:+886-2-8792-6628 Email:[email protected] http://www.quietek.com 6) Please refer to your Test Report, Section 3. How did you determine the maximum power across all data rates in each of Mode 1 or Mode 2? Reply: We configure that the EUT transmits in the middle channel (2427MHz) and at different data rates. Then we observe the power variation at different data rates and choose the maximum one as the test condition. As a additional information: test data rate in 802.11b=11Mbps and 802.11g=54Mbps. 7) I note that you are using a VBW for band edge measurements considerably greater than 10Hz. This implies to me that the test software was not capable of a true “CW” mode, and was instead pulsing. Can you kindly provide details about the transmitter duty cycle observed? Additionally, this duty cycle may influence the results of SAR report. Was the duty cycle of the transmitter accounted for during SAR testing? Reply: The SAR test report is revised and the duty cycle plots are shown on P.22 and P.23. During SAR testing, we use the maximum power as in FCC Part 15 testing.

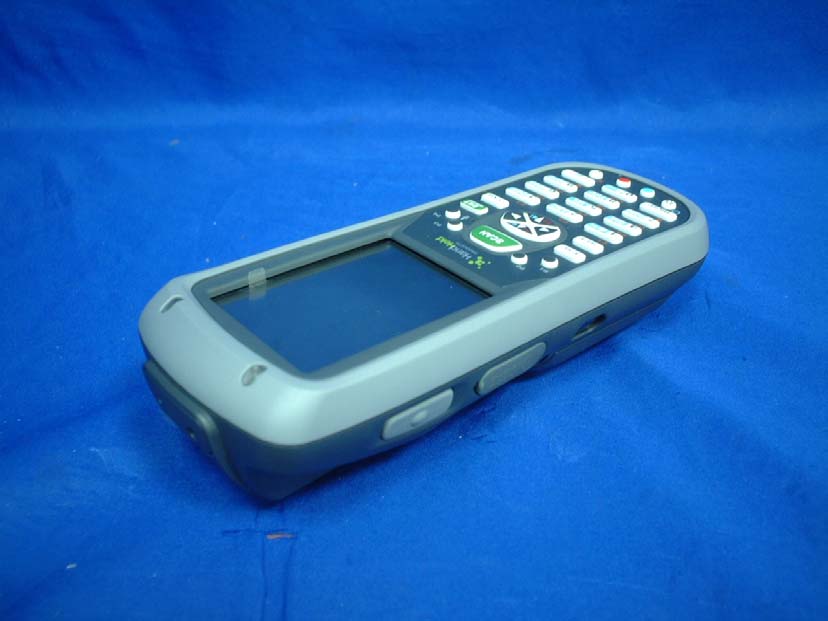

Report No.: 064L048-RF-US-P05V01 Page : 1 of 7 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Report No.: 064L048-RF-US-P05V01 Page : 1 of 7 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 064L048-RF-US-P05V01 Page : 2 of 7 Version:1.0 (3) EUT Photo

Hand Held Products, Inc. FCC ID.: HD5760002 700 Visions Drive P.O. Box 208 Skaneateles Falls, NY, 13153-0208 USA Tel : +1 704-998-3922 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 064L048-RF-US-P05V01 Page : 2 of 7 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 064L048-RF-US-P05V01 Page : 3 of 7 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 064L048-RF-US-P05V01 Page : 4 of 7 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 064L048-RF-US-P05V01 Page : 5 of 7 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 064L048-RF-US-P05V01 Page : 6 of 7 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 064L048-RF-US-P05V01 Page : 7 of 7 Version:1.0 (13) EUT Photo

Report No. 064L048-RF-US-P05V01 Page: 6 of 65 Version:1.0 1.2. Operational Description The EUT is a Industrial PDA with 11 channels. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps. The device of RF carrier is DBPSK, DQPSK and CCK (IEEE 802.11b) or eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps. The device of RF carrier is OFDM (IEEE 802.11g). The device adapts direct sequence spread spectrum modulation. The antenna provides diversity function to improve the receiving function. This Industrial PDA, compliant with IEEE 802.11b and IEEE 802.11g, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the Industrial PDA Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g network.

Report No： 064L048-HP-US-P09V01 Page: 1 of 22 Version:1.0 SAR Test Report Product Name：Industrial PDA Model No. ：DOLPHIN 7600 Applicant ： Hand Held Products, Inc. Address ： 700 Visions Drive P.O. Box 208 Skaneateles Falls, NY, 13153-0208 USA Date of Receipt ：2006/04/03 Issued Date ：2006/10/20 Report No. ：064L048-HP-US-P09V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 064L048-HP-US-P09V01 Page: 2 of 22 Version:1.0 Test Report Certification Issued Date: 2006/10/20 Report No.:064L048-HP-US-P09V01 Product Name ： Industrial PDA Applicant ： Hand Held Products, Inc. Address ： 700 Visions Drive P.O. Box 208 Skaneateles Falls, NY, 13153-0208 USA Manufacturer ： E-TEN Information Systems Co., Ltd. Model No. ： DOLPHIN 7600 Trade Name ： HHP Applicable Standard ： FCC Oet65 Supplement C June 2001 Test Result ： Max. SAR Measurement (1g) 802.11b: 0.234 W/kg 802.11g: 0.234 W/kg Application Type Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By ： (Eva Huang) Tested By ： (Shine Hsu) Approved By ： (George Chen) Report No： 064L048-HP-US-P09V01 Page: 3 of 22 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Test Environment ...........................................................................................................5 2. SAR Measurement System .................................................................. 6 2.1 ALSAS-10U System Description .................................................................................. 6 2.1.1 Applications ................................................................................................................ 6 2.1.2 Area Scans................................................................................................................... 6 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 7 2.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty......................................... 7 2.2 Isotropic E-Field Probe .................................................................................................. 7 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ................................................. 9 2.4 Daq-Paq (Analog to Digital Electronics) ..................................................................... 10 2.5 Axis Articulated Robot ................................................................................................ 10 2.6 ALSAS Universal Workstation.................................................................................... 11 2.7 Universal Device Positioner......................................................................................... 11 2.8 Phantom Types............................................................................................................. 11 2.8.1 APREL SAM Phantoms ........................................................................................... 12 2.8.2 APREL Laboratories Universal Phantom ................................................................. 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure ........................................................... 15 4.1 SAR System Validation................................................................................................ 15 4.1.1 Validation Dipoles..................................................................................................... 15 4.1.2 Validation Result ....................................................................................................... 15 4.2 SAR Measurement Procedure ...................................................................................... 16 Report No： 064L048-HP-US-P09V01 Page: 4 of 22 Version:1.0 5. SAR Exposure Limits ......................................................................... 17 6. Test Equipment List............................................................................ 18 7. Measurement Uncertainty .................................................................. 19 8. Test Results ......................................................................................... 20 8.1 SAR Test Results Summary ......................................................................................... 20 Appendix A. SAR System Validation Data........................................................................ 22 Appendix B. SAR measurement Data................................................................................ 22 Appendix C. Test Setup Photographs & EUT Photographs............................................... 22 Appendix D. Probe Calibration Data ................................................................................. 22 Appendix E. Dipole Calibration Data ................................................................................ 22 Report No： 064L048-HP-US-P09V01 Page: 5 of 22 Version:1.0 1. General Information 1.1 EUT Description Product Name Industrial PDA Trade Name HHP Model No. DOLPHIN 7600 …

Text truncated - open the document above for the full version.

Report No：064L048-HP-US-P09V01 Page: 30 of 34 Version:1.0 SAR Measurement Data ALSAS-10U VER 2.3.1APREL Laboratories SAR Test Report (802.11g with Bluetooth off) Report Date : 17-Aug-2006 Measurement Date : 17-Aug-2006 Product Data Device Name : E-TEN Type : PDA Model : Frequency : 2450.00 MHz Max. Transmit Pwr : 0 W Drift Time : 0 min(s) Length : 176 mm Width : 68.2 mm Depth : 45.3 mm Antenna Type : Internal Phantom Data Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Location : Center Tissue Data Type : BODY Serial No. : 325-B Frequency : 2450.00 MHz Last Calib. Date : 17-Aug-2006 Temperature : 22.90 °C Ambient Temp. : 23.30 °C Humidity : 54.00 RH% Epsilon : 51.34 F/m Sigma : 1.982 S/m Density : 1000.00 kg/cu. m Probe Data Name : Probe 264 Model : E020 Type : E-Field Triangle Serial No. : 264 Last Calib. Date : 21-Mar-2006 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 5.2 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Report No：064L048-HP-US-P09V01 Page: 31 of 34 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 22.90 °C Ambient Temp. : 23.30 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.061 W/kg Power Drift-Finish: 0.058 W/kg Power Drift (%) : -4.408 DUT Position : EUT Back Channel : 6 1 gram SAR value : 0.146 W/kg 10 gram SAR value : 0.104 W/kg Area Scan Peak SAR : 0.213 W/kg Zoom Scan Peak SAR : 0.400 W/kg Report No：064L048-HP-US-P09V01 Page: 32 of 34 Version:1.0 This is previous page plot (zoom in) Report No：064L048-HP-US-P09V01 Page: 33 of 34 Version:1.0 EUT 2450MHz SAR test Z-Axis plot (802.11b with Bluetooth on, Back, Channel 11) Report No：064L048-HP-US-P09V01 Page: 34 of 34 Version:1.0 EUT 2450MHz SAR test Z-Axis plot (802.11g with Bluetooth on, Back, Channel 6) Report No：064L048-HP-US-P09V01 Page: 1 of 4 Version:1.0 Test Setup Photographs EUT Back (EUT distance 15mm) EUT Front (EUT distance 15mm) Report No：064L048-HP-US-P09V01 Page: 2 of 4 Version:1.0 EUT Top (EUT distance 15mm) EUT Side (EUT distance 15mm) Note: The positions used in the measurements were according to IEEE 1528-2003. Report No：064L048-HP-US-P09V01 Page: 3 of 4 Version:1.0 EUT Photographs Report No：064L048-HP-US-P09V01 Page: 4 of 4 Version:1.0 Page: 1 of 21 Appendix - Probe Calibration Miniature Isotropic RF Probe M/N: ALS-E-020 S/N: 264 2450MHz Head Calibration page 2~11 2450MHz Body Calibration page 12~21 Page: 2 of 21 Page: 3 of 21 Page: 4 of 21 Page: 5 of 21 Page: 6 of 21 Page: 7 of 21 Page: 8 of 21 Page: 9 of 21 Page: 10 of 21 Page: 11 of 21 Page: 12 of 21 Page: 13 of 21 Page: 14 of 21 Page: 15 of 21 Page: 16 of 21 Page: 17 of 21 Page: 18 of 21 Page: 19 of 21 Page: 20 of 21 Page: 21 of 21 Appendix - Dipole Calibration Validation Dipole 2450MHz P/N: ALS-D-2450-S-2 S/N: QTK-319

Report No. 064L048-RF-US-P05V01 Page: 1 of 64 Version:1.0 Test Report Product Name Industrial PDA Model No. DOLPHIN 7600 FCC ID HD5760002 Applicant Hand Held Products, Inc. Address 700 Visions Drive P.O. Box 208 Skaneateles Falls, NY, 13153-0208 USA Date of Receipt April 03, 2006 Issued Date Sep. 27, 2006 Report No. 064L048-RF-US-P05V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 064L048-RF-US-P05V01 Page: 2 of 64 Version:1.0 Test Report Certification Issued Date: Sep. 27, 2006 Report No.: 064L048-RF-US-P05V01 Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name Industrial PDA Applicant Hand Held Products, Inc. Address 700 Visions Drive P.O. Box 208 Skaneateles Falls, NY, 13153-0208 USA Manufacturer E-TEN Information Systems Co., Ltd. Model No. DOLPHIN 7600 Rated Voltage AC 120V/60Hz Working Voltage AC 120V/60Hz Trade Name HHP Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2005 ANSI C63.4: 2003 Test Result Complied Documented By : ( Rita Huang ) Tested By : ( Tim Sung ) Approved By : ( George Chen ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 0914 Report No. 064L048-RF-US-P05V01 Page: 3 of 64 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Datails....................................................................................................................7 1.4. Configuration of Test System ........................................................................................................7 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................10 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................16 3.1. Test Equipment............................................................................................................................16 3.2. Test Setup ....................................................................................................................................16 3.3. Limits ..........................................................................................................................................16 3.4. Uncertainty ..................................................................................................................................16 3.5. Test Result of Peak Power Output...............................................................................................17 4. Radiated Emission .....................................................................................................................19 4.1. Test Equipment............................................................................................................................19 4.2. Test Setup ....................................................................................................................................20 4.3. Limits ..........................................................................................................................................20 4.4. Test Procedure .............................................................................................................................21 4.5. Uncertainty ..................................................................................................................................21 4.6. Test Result of Radiated Emission................................................................................................22 5. Band Edge ..................................................................................................................................30 Report No. 064L048-RF-US-P05V01 Page: 4 of 64 Version:1.0 5.1. Test Equipment............................................................................................................................30 5.2. Test Setup .......................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 064L048-RF-US-P05V01 Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 064L048-RF-US-P05V01 Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 064L048-RF-US-P05V01 Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
