HD57850LOEPortable Data Terminal with Bluetooth and WLAN

User’s Guide -9/19/06 Dolphin® 7850 Series Microsoft ® Windows ® 5.0 Disclaimer Hand Held Products, Inc. (“Hand Held Products”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult Hand Held Products to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of Hand Held Products. Hand Held Products shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of Hand Held Products. © 2006 Hand Held Products, Inc. All rights reserved. Web Address: www.handheld.com Trademarks Dolphin, Dolphin RF, HomeBase, Mobile Base, and QuadCharger are trademarks or registered trademarks of Hand Held Products, Inc. Microsoft, Windows, Windows Mobile, Windows CE, Windows NT, Windows 2000, Windows ME, Windows XP, ActiveSync, Outlook, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are the property of their respective owners. Dolphin® 7850 Series User’s Guide -9/ 19/06 Second Draft iii Chapter 1 - Agency Approvals Required Safety Labels........................................................................................................................1-1 Location ........................................................................................................................................1-1 Required Safety Labels .................................................................................................................1-1 Regulatory and Safety Approvals for all Dolphin Terminals .............................................................1-2 Laser Safety Label ........................................................................................................................1-2 FCC Compliance .................................................................................................................................1-3 Chapter 2 - Getting Started Using the Stylus...................................................................................................................................2-1 Today Screen .......................................................................................................................................2-2 Navigation Bar.....................................................................................................................................2-2 Selecting Programs ..............................................................................................................................2-3 Pop-Up Menus .....................................................................................................................................2-4 Finding and Organizing Information ...................................................................................................2-4 Chapter 3 - Hardware Overview Standard Terminal Configurations ......................................................................................................3-1 Configuration Options...................................................................................................................3-1 Dolphin 7850 Series Peripherals .........................................................................................................3-2 Dolphin 7850 Series Accessories ........................................................................................................3-2 Front Panel Features ............................................................................................................................3-3 Back Panel Features.............................................................................................................................3-4 Side Panel Features..............................................................................................................................3-5 Rubber Bumpers ..................................................................................................................................3-7 Bottom Panel Features.........................................................................................................................3-8 Mechanical Connector ..................................................................................................................3-8 Battery Power ......................................................................................................................................3-9 Main Battery Pack.........................................................................................................................3-9 Internal Backup Battery ..............................................................................................................3-10 Resetting the Terminal.......................................................................................................................3-13 Soft Reset (Warm Boot)..............................................................................................................3-13 Hard Reset (Cold Boot)...............................................................................................................3-13 Suspend Mode ...................................................................................................................................3-13 Dolphin 7850 Technical Specifications.............................................................................................3-…

Text truncated - open the document above for the full version.

InternationalTypeApprovals Authorization(PowerOfAttorney) CflISJlWlTM I Authorization(PowerofAttorney) We, HandHeldProducts,Inc. 700VisionsDrive,P.O.Box208 SkanealtelesFalls,NY13153,USA ,authorizethepresented CETECOMlocationsI offices CETECOM,Inc. 411DixonLandingRoad Milpitas,California95035 UnitedStatesof America CETECOMGmbH 1mTeelbruch122 45219Essen Germany CETECOMICTServicesGmbH UnterturkheimerStrasse6-10 D-66117Saarbrucken Germany toactasouragentandtoprocessandsignonourbehalfforallapprovalactivitiesin the countriesUSA,Canada, requestedbyacceptanceand/orPurchaseOrders. WegranttheaboveCETECOMlocationsIofficesduringtheprocessingofthisprojecttherightto subcontractfurtheragentsandtosenddocumentsandtestsamplestotheseagentsaslongas theyareboundbya Non-DisclosureAgreement(NDA).CETECOMis furthermorepermittedto senddocumentsandsamplestonationalauthorities,nationaltestlaboratoriesandothernational instancesnecessarilyrequiredfortheapprovalprocess. Thisauthorizationis applicableforthe product(s) Dolphin7850andit'svariants. -"I';-:n':!7?tint'?nnl';-nR.?A InternationalTypeApprovals Authorization(PowerOfAttorney) Name: Title: fSeKjlIS~e)t/(J CoroorateCounsel Company:HandHeldProducts.Inc. Address:700VisionsDrive.P.O.Box208 SkanealtelesFalls.NY13153.USA Email Phone ~dP/7L Signature Auaust24.2006 Date l:EJ!SlltfTM -"~~~~7?nfV' ?nnR..ruL?A ?

October 26 th , 2006 TO WHOM IT MAY CONCERN STATEMENTS FCC-ID : HD57850LPE (BT+WLAN) BLUETOOTH Solution In a Chip BGB203 : CETECOM INC. has a verbally confirmation from Philips [[email protected]] that the System in a chip was designed to comply to the Bluetooth Standard 1.2 specifications. This includes the compliance to the specifications of the receiver input bandwidth. He further stated - this chip does not use the feature of incorporation of intelligence regarding comliance to FCC 15.247(h). - the pseudo random hopping sequence is bulit in related to the Bluetooth Standard 1.2 specifications Sincerely, Michael Grings Project Engineer CETECOM INC. CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Phone: + 1 408 586 6200 Fax: + 1 408 586 6299 e-mail: [email protected] URL: www.cetecom.com

OK # Non-Conformity or Co mment Submitted Response Respondent / Date of Response X 1 The form 731 application lists FCC ID:HD5PDT7850 while the label lists FCC ID:HD57850LOE. The users manual also clearly lists two individual labels, one for WLAN FCC ID:H D57850LOE and WLAN+BT FCC ID: HD57850LPE. Please confirm which ID information is correct for this configuration under this application.. Confirmed two FCC ID’s will be required. ID’s will be: HD57850LPE (WLAN and BT) And HD57850LOE (WLAN only) Cetecom 10/17/06 X 2 Please confirm whether multiple F CC IDs are required. The present application is only for a single FCC ID. See above. Cetecom 10/17/06 X 3 Please confirm that the requested information for temporary confidentiality may be released for public inspection on 11/10/2006 Applicant requested to remove temporary confidentiality request. Cetecom 10/17/06 X 4 Please provide an updated temporar y confidentiality letter incorporating reference to DA04-1705 See above Cetecom 10/17/06 X 5 Please clarify maximization of portab le equipment; in acco rdance with ANSI C63.4, preliminary testing for portable equipment requires investigation in three orthogonal positions. Updated test reports provided. Cetecom 10/30/06 X 6 The test mode used for emissions testing is unclear. The operational description lists the use of 802.11b in the WLAN portion of this equipment, however the schematics make reference to 802.11b and g modes. Please clarify the operating mode tested for compliance and confirm whether 802.11g is employed for use in the equipment. Typo in schematics Cetecom 10/17/06 X 7 Please clarify test procedures used for compliance testing. Requirements under FCC part 15.employ the use of ANSI C63.4. Specific measurement procedures for 15.247 are DA00-705 and KDB 558074 Updated test reports provided Cetecom 10/31/06 Xx 8 Please clarify the test distance for emissions testing Confirmed 3m test distance. Cetecom 10/17/06 X 9 Please supply comliance statem ent for RF Exposure. Uploaded MPE calculations. Cetecom 10/30/06 X 10 Test setup photos show AC conducted testing - please confirm that equipment is not capable of operation while in charge mode. Updated test report provided. Cetecom 10/31/06 X 3a CKC CS confirms repeal of temporar y confidentiality, this item is to inform the applicant only permanent confidentiality will be applied at the time of filing. No response necessary to this item Note N/A For Bluetooth portion of equipment: X 11 Please confirm compliance with receive r input bandwidth in accordance with 15.247(a)(1) Information Provided. Cetecom 10/30/06 X 12 Please provide information regarding 15.247(a) pseudo random hop Information Provided. Cetecom 10/30/06 sequence. X 13 Please provide information regarding comliance to 15.247(h) incorporation of intelligence Information Provided. Cetecom 10/30/06 For WLAN portion of equipment X 14 Please clarify modes of modulation for 801.11 operation. 801.11b does not normally offer OFDM as listed on page 5 of test report Updated test report provided. Cetecom 10/30/06 RF Exposure X 15 An RF exposure statement required to be provided to the FCC as an exhibit. Please provide such a statem ent for upload. The peak EIRP of this equipment is higher than the low threshold for TCB review. This implies MPE calculations are required; SAR is optional. RF Exposure information provided. Cetecom 10/30/06 X 16 Please clarify “Mobile” RF exposure operating conditions. Users manual specifically lists user requirements for body worn configurations. User maintained RF exposure restricti ons are not acceptable compliance for portable configurations. If portable configuration is intended, please supply demonstration of compliance for portable configurations. NOTE: As a hand-held only device, the final FCC Grant will have restrictions to Mobile RF exposure conditions. Updated users manual provided. Cetecom 10/30/06

Photos ExternalPage FCC-ID : HD57850L0E IC-ID : 1693B-7850L0E Photos ExternalPage FCC-ID : HD57850L0E IC-ID : 1693B-7850L0E Photos ExternalPage FCC-ID : HD57850L0E IC-ID : 1693B-7850L0E Photos ExternalPage FCC-ID : HD57850L0E IC-ID : 1693B-7850L0E

Photos Internal FCC-ID : HD57850LPE IC-ID : 1693B-7850E Photos Internal FCC-ID : HD57850LPE IC-ID : 1693B-7850E Photos Internal FCC-ID : HD57850LPE IC-ID : 1693B-7850E Photos Internal FCC-ID : HD57850LPE IC-ID : 1693B-7850E Photos Internal FCC-ID : HD57850LPE IC-ID : 1693B-7850E

Photos Internal FCC-ID : HD57850LPE IC-ID : 1693B-7850E Photos Internal FCC-ID : HD57850LPE IC-ID : 1693B-7850E Photos Internal FCC-ID : HD57850LPE IC-ID : 1693B-7850E Photos Internal FCC-ID : HD57850LPE IC-ID : 1693B-7850E Photos Internal FCC-ID : HD57850LPE IC-ID : 1693B-7850E

HUMAN EXPOSURE STATEMENT A pplication : FCC-ID : HD57850LPE and HD57850L0E PREDICTION of MPE at given distance Calculations can be made to predict RF field strength and power density levels around typical RF sources using the general equations (3) and (4) on page 19 of the following FCC document: “OET Bulletin 65, Edition 97-01 - Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields”. These equations are generally accurate in the far field of an antenna but will over predict power density in the near field, where they could be used for making a “worst case” prediction. S = PG/4πR 2 (3) Where S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units e.g. mW) G = power gain of the antenna in the direction of interest relative to the isotropic radiator R = distance to the center of radiation of the antenna (appropriate units e.g. cm) or, S = EIRP/4πR 2 (4) Where EIRP = Equivalent Isotropically Radiated Power Limit: The table below is excerpted from Table 1B of 47 CFR 1.1310 titled “Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure” Frequency Range (MHz) Power Density (mW/cm 2 ) Averaging Time (minutes) 300 -1500 f/1500 30 1500 - 100000 1.0 30 Part 15 for 2400MHz to 2483.5MHz : 1 mW/cm 2 PREDICTION MPE FCC 15 WLAN + BT Maximum EIRP: EIRP WLAN(23.22 dBm (209.9mW )) + EIRP BT(-7.93dBm (0161mW)) = 210.061mW Calculated at distance of 20 cm Power density = 210.061 mW / (4 x pi x 20 2 )cm 2 = 0.0418 mW/cm 2 RESULT : Configuration complies with rules. Date: 2006-10-27 Name: Michael Grings Company: Cetecom Inc. Address: 411 Dixon Landing Rd, Milpitas, CA 95035, USA Phone: +1 408 586 6200 Email: [email protected]

Bluetooth Qualification Test Facility (BQTF) FCC listed# 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report FCC Part 15.247 for DSSS systems/ CANADA RSS-210 FOR: Portable Data Terminal with BT BGB203 and WLAN BGW200 MODEL #: 7850-L0E and 7850-LPE Hand Held Products, Inc. 700 Vision Drive Skaneateles Falls, NY 13153 U.S.A FCC ID: HD57850L0E and HD57850LPE IC ID: 1693B-7850E TEST REPORT #: EMC_INTRI_002_06002_15.247WLAN DATE: 2006-10-26 Test Report #: EMC_INTRI_002_06002_15.247WLAN 10/26/2006 Page 2 of 48 TABLE OF CONTENTS 1 Assessment_____________________________________________________________________ 3 2 Administrative Data _____________________________________________________________ 4 2.1 Identification of the Testing Laboratory Issuing the EMC Test Report _____________________________ 4 2.2 Identification of the Client __________________________________________________________________ 4 2.3 Identification of the Manufacturer ___________________________________________________________ 4 3 Equipment under Test (EUT) ______________________________________________________ 5 3.1 Specification of the Equipment under Test _____________________________________________________ 5 3.2 Identification of the Equipment Under Test (EUT) ______________________________________________ 5 3.3 Identification of Accessory equipment ________________________________________________________ 5 4 Subject Of Investigation __________________________________________________________ 6 5 Measurements (RADIATED) ______________________________________________________ 7 5.1 AC POWER LINE CONDUCTED EMISSIONS § 15.107/207_____________________________________ 7 5.1.1 LIMITS ________________________________________________________________________________ 7 5.1.2 RESULTS LISN (L1) _____________________________________________________________________ 8 5.1.3 RESULTS LISN (N)______________________________________________________________________ 9 5.2 MAXIMUM PEAK OUTPUT POWER § 15.247 (RADIATED) __________________________________ 10 5.2.1 LIMIT SUB CLAUSE § 15.247 (b) (1) (2) (3) (4)______________________________________________ 10 5.2.2 EIRP: ________________________________________________________________________________ 10 5.3 RESTRICTED BAND EDGE COMPLIANCE RADIATED §15.247/15.205 ________________________ 14 5.3.1 LIMITS _______________________________________________________________________________ 14 5.3.2 RESULTS (2412MHz) ___________________________________________________________________ 15 5.3.3 RESULTS (2480MHz) ___________________________________________________________________ 17 5.4 TRANSMITTER SPURIOUS EMISSIONS RADIATED § 15.247/15.205/15.209 ____________________ 19 5.4.1 LIMITS _______________________________________________________________________________ 19 5.4.2 RESULTS _____________________________________________________________________________ 20 5.5 RECEIVER SPURIOUS RADIATION § 15.209/RSS210 ________________________________________ 29 5.5.1 LIMITS _______________________________________________________________________________ 29 5.5.2 RESULTS _____________________________________________________________________________ 30 6 Measurements (CONDUCTED) ___________________________________________________ 34 6.1 MAXIMUM PEAK OUTPUT POWER § 15.247 (CONDUCTED) ________________________________ 34 6.1.1 LIMIT SUB CLAUSE § 15.247 (b) (1) ______________________________________________________ 34 6.1.2 RESULTS: ____________________________________________________________________________ 34 6.2 SPECTRUM BANDWIDTH OF DSSS SYSTEM §15.247(a) (2) _________________________________ 38 6.2.1 SUBCLAUSE §15.247(a) (2) ______________________________________________________________ 38 6.2.2 RESULTS: ____________________________________________________________________________ 38 6.3 POWER SPECTRAL DENSITY §15.247 (d) ________________________________________________ 42 6.3.1 LIMIT SUBCLAUSE §15.247(d) __________________________________________________________ 42 6.3.2 RESULTS: ____________________________________________________________________________ 42 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS ____________________________ 46 7 BLOCK DIAGRAMS ___________________________________________________________ 47 Test Report #: EMC_INTRI_002_06002_15.247WLAN 10/26/2006 Page 3 of 48 1 Assessment The following is in compliance with the applicable criteria specified in FCC rules Part 15.247 of the Code of Federal Regulations and in compliance with the applicable criteria specified in Industry Canada rules RSS210. Company Description Model # Hand Held Products, Inc. Portable Data Terminal with BT BGB0203 and WLAN BGW200 7850-L0E and 7850-LPE Michael Grings Project Engineer The test results of this test report relate exclusively to the test item specified in Identification of the Equipment under Test. The CETECOM Inc. USA does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc USA. Test Report #: EMC_INTRI_002_06002_15.247WLAN 10/26/2006 Page 4 of 48 2 Administrative Data 2.1 Identification of the Testing Laboratory Issuing the EMC Test Report Company Name: CETECOM Inc. Department: EMC Address: 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Telephone: +1 (408) 586 6200 Fax: +1 (408) 58…

Text truncated - open the document above for the full version.

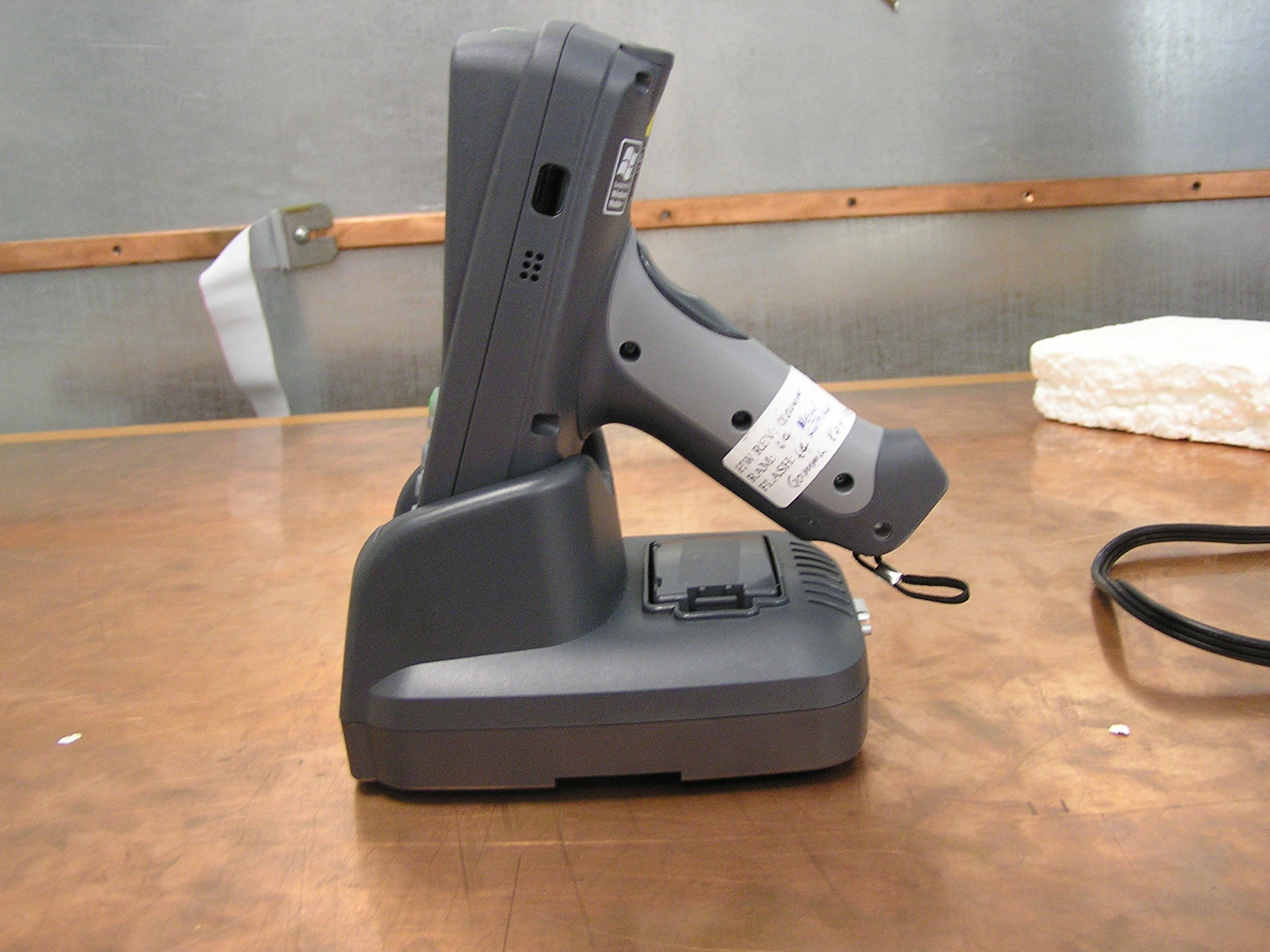

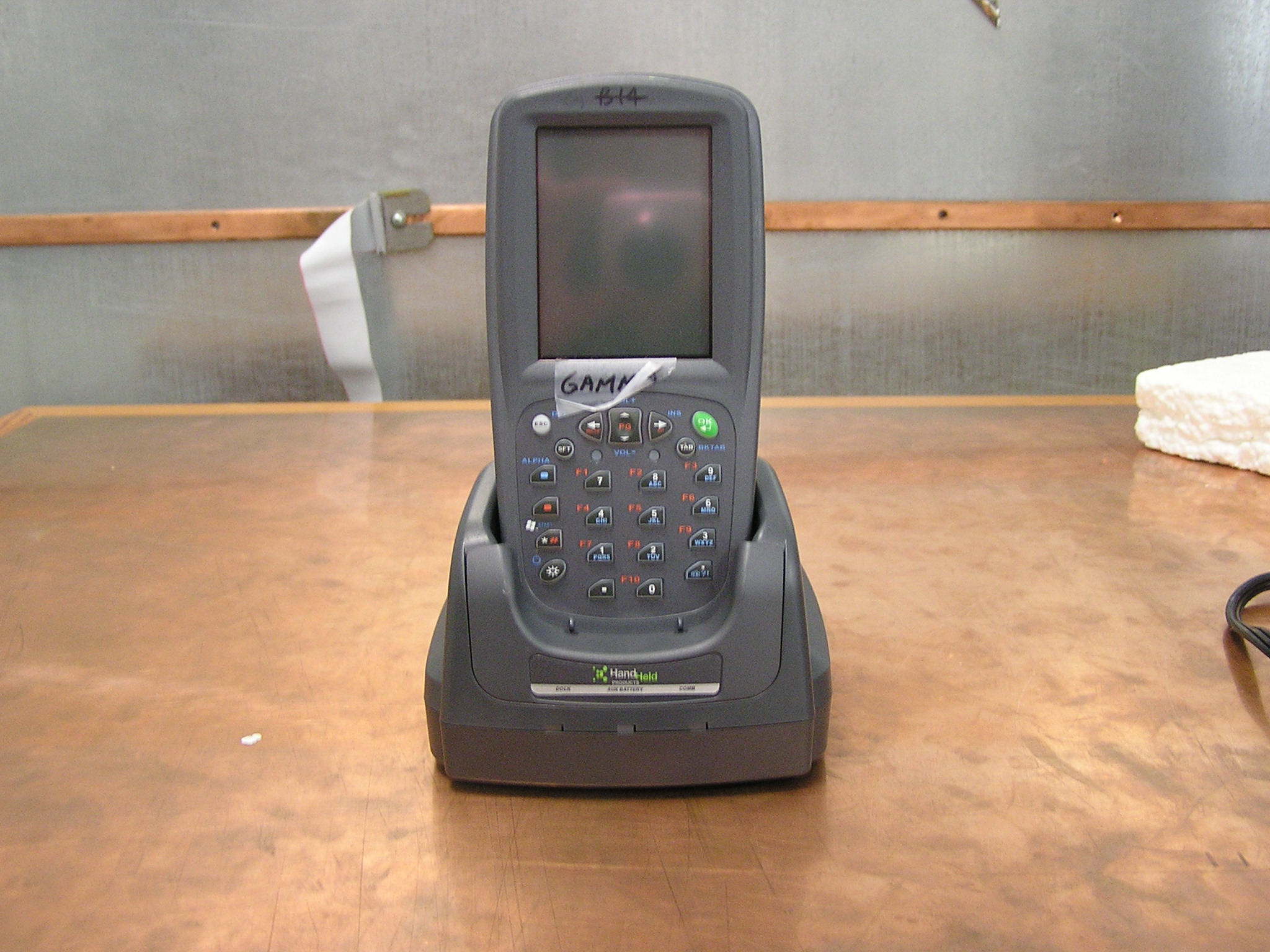

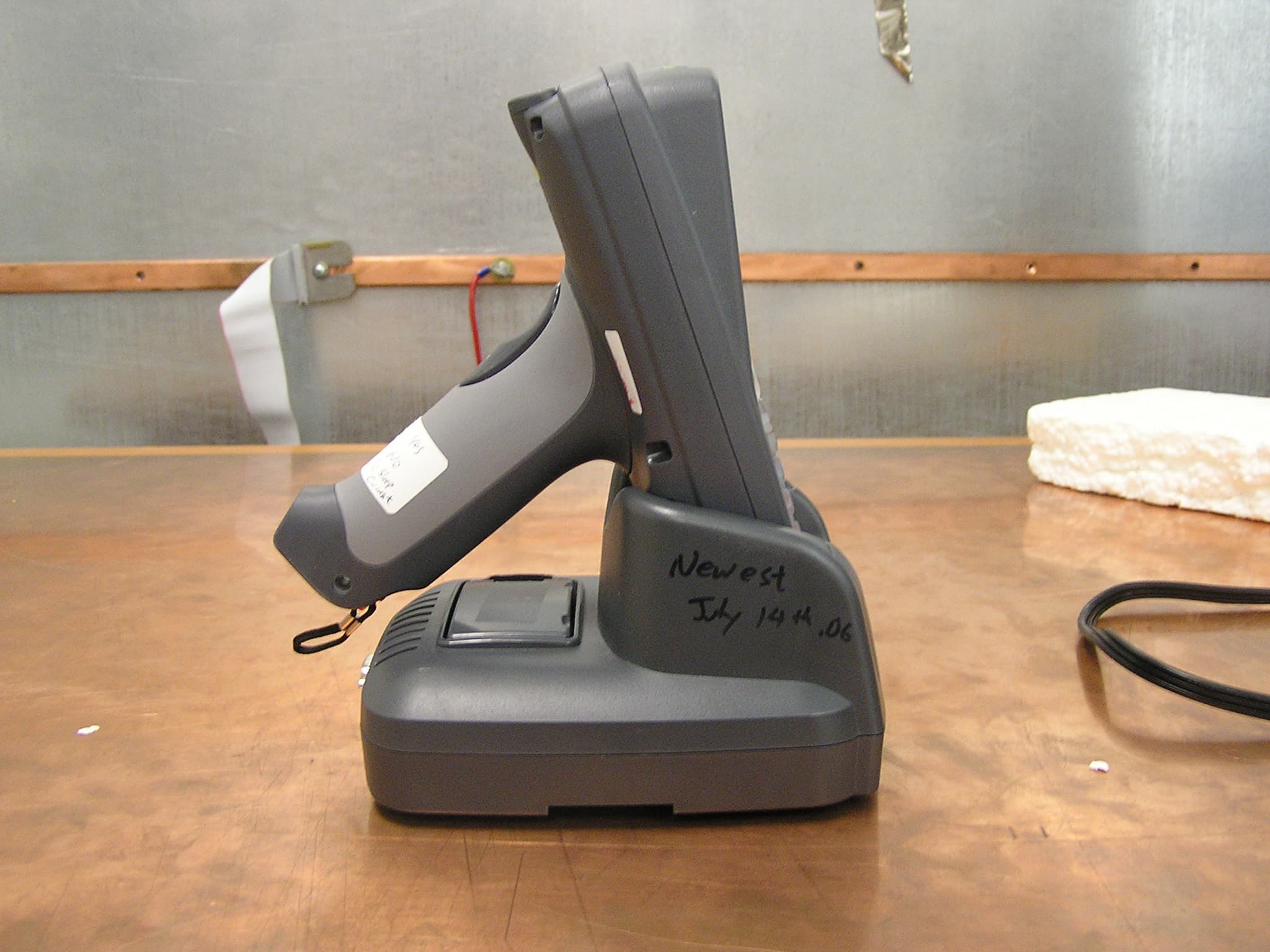

PAGE 1 OF 7 TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed# 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May © Copyright by CETECOM Test Setup Photos FCC Part 15.247 for FHSS systems/ CANADA RSS-210 FOR: Portable Data Terminal with BT BGB203 and WLAN BGW200 MODEL #: PDT7850 Hand Held Products, Inc. 700 Vision Drive Skaneateles Falls, NY 13153 U.S.A FCC ID: HD57850L0E IC ID: 1693B-7850L0E TEST REPORT #: EMC_INTRI_002_06002_15.247BT EMC_INTRI_002_06002_15.247WLAN DATE: 2006-09-01 PAGE 2 OF 7 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. Table of Contents 1 ASSESSMENT .................................................................................................................................... 3 2 TEST SETUP PHOTOS ..................................................................................................................... 4 PAGE 3 OF 7 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. 1 Assessment The following is in compliance with the applicable criteria specified in FCC rules Part 15.247 of the Code of Federal Regulations and in compliance with the applicable criteria specified in Industry Canada rules RSS210. Company Description Model # Hand Held Products, Inc. Portable Data Terminal with BT BGB0203 and WLAN BGW200 PTD7850 PAGE 4 OF 7 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. 2 TEST SETUP PHOTOS RADIATED EMISSIONS PAGE 5 OF 7 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. RADIATED EMISSIONS PAGE 6 OF 7 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. CONDUCTED EMISSIONS PAGE 7 OF 7 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. Frequency Stability
