HD5950007Hand held computer including GSM 1900 and 802.11

Corporate Headquarters Hand Held Products, Inc. 700 Visions Drive PO Box 208 ;kaneateles Falls, NY 13153-0208 USA ~rade your image. 5-685-8945 5-685-0049 Date: 4/14/04 BABT 34 Molesey Road Walton on Thames Surrey KT124RQ ReRequest of Confidentiality Pursuant to Sections 0.457(d)(1 )(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Products: 09500-05 (or 9500BWO-xxx-xxx), 09500-07 (or 9500LWO-xxx-xxx), and 09500-08 (or 9500BWP-xxx-xxx) Schematics, Technical Description, Bill of Materials, Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule O.457(d)(1 Xii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, HHPBrazil Rio de Janei HHP Charlotte, NC Phone: +1800-782-4263 (Nonh Ametko Only! + 1704-998-3834 c' 'Co .'BusllNI"s Bf' " ". . e: +1!80D-782 ".c~~o , ""; +1315-685 HHP FrGnce 1 Phone:+33(O)14610411 HHPLGrJn~ Phone: + 1 Z3.*7~.. HHP Alia Phone:+852251 HHPJapan Ph~+81352J; HHPEurope Phone: +31 (0) 40 242448( HHPUK PhQne+44(O)J.~!~4005! ~ 5016-3459 . ~M Naveen Velagapudi" , Compliance Engineer HandHeld Products, Inc. Ph: 315 685 2931 Fax: 315685 1210 Eamil; [email protected]

Corporate Headquarters Hand Held Produds, Inc. 700 Visions Drive PO Box 208 Skaneateles Falls, NY 13153-0208 USA + 1 800-782-4263 (NotttI_Q Only) + 1 315-685-8945 Fax; + 1 315-685-0049 Upgrade your image. www.hhp.com DATE: March 10, 2004 BABT 34 Molesey Road Walton on Thames Surrey KT124RO Dear Sir or Madam: We, Hand Held Products, Inc (d/b/a HHP), 700 Visions Drive, PO Box 208, Skaneateles Falls, NY 13153- 0208, USA, hereby authorize TOv Product Service limited, Segensworth Road, Fareham, Hampshire, United Kingdom, PO15 5RH, to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. I further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C. Section 862. Products involved are 09500-05(or 9500BWO-xxx-xxx), 09500-07(or 95OOLWO-xxx-xxx), D9500-O8(or 9500BWP-xxx-xxx), and D9500-09(or 95OOLWP-xxx-xxx), where x is any alphanumeric number(a to z and 0 to 9) This authorization expires on May 31, 2004. Sincerely. NoN~ Naveen Velagapudi Compliance Engineer Phone: 3156852931 Fax: 3156854393 E mail: velaaaoudinl'mhho.com HHP CIICIrlo- NC Phone: + 1 800-782-4263 --0t0Ij} + 1 704-998-3834 HHP 8ushne/rs Basin, NY Phone: +1-800-782-4263 --(ktiy) +1315-685-8945 HHP FrIJIICe Phone: +33 (0) 1 46104111 HHP Latm Ame.x. Phone: + 1 239-263-7600 HHP8I8ZB Rio de Janeiro Phone:+55(21) 2494-7060 SaoPauio Phone:+55(11) 5016-3459 HHP Asle Phone: +8522511 3050 HHP JGPGn Phone: +81 352127392 HHPEu,... Phone:+31 (0)402424486 HHP UK Phone +44 (0) 1925 240055

Information and Communication Mobile Name Ulrich Oehl Director R&D Department ICM WM RD ST Telephone +49 30 386 -36252 Fax +49 30 386 - E-mail [email protected] Your letter dated Our reference Date February 19th, 2004 HHP 7520 E Independence Blvd Suite 230 Charlotte, NC 28227 Division: Wireless Modules Leitung: Jose Costa e Silva Group Executive Management Information and Communication Mobile: Rudi Lamprecht, Group President Joe Kaeser Lothar Pauly Postal address: Siemens AG ICM WM RD D-13623 Berlin Office address: Siemensdamm 50 D-13629 Berlin Telephone +49 30 386 - 0 Siemens Aktiengesellschaft · Chairman of the Supervisory Board: Karl-Hermann Baumann · Managing Board: Heinrich v. Pierer, Chairman, President and Chief Executive Officer · Members: Thomas Ganswindt, Volker Jung, Klaus Kleinfeld, Edward G. Krubasik, Rudi Lamprecht, Heinz-Joachim Neubürger, Peter Pribilla, Jürgen Radomski, Erich R. Reinhardt, Uriel J. Sharef, Claus Weyrich, Klaus Wucherer Registered Offices: Berlin and München · Commercial Registries: Berlin-Charlottenburg, HRB 12300; München, HRB 6684 Page 1 of 1 . Release Authorization We, Siemens AG authorize Handheld Products, Inc d/b/a HHP and TUV PS (BABT) - UK Segensworth Road, Fareham, Hants PO15 5RH. United Kingdom to utilize any/all test results, generated by CETECOM in regards to the Siemens MC45 and MC46 module. This authorization is in effect for the testing certification process currently being undergone by Handheld Products, Inc d/b/a HHP for their D9500 /D9550/D9551 products and its different versions. Best regards, Siemens AG

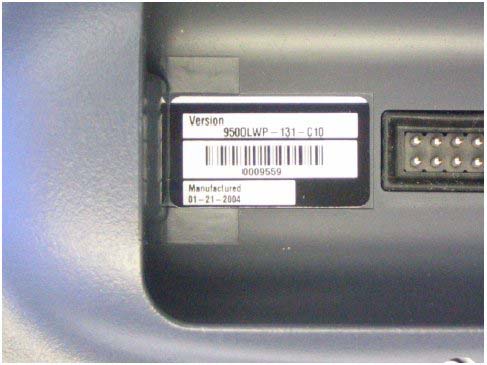

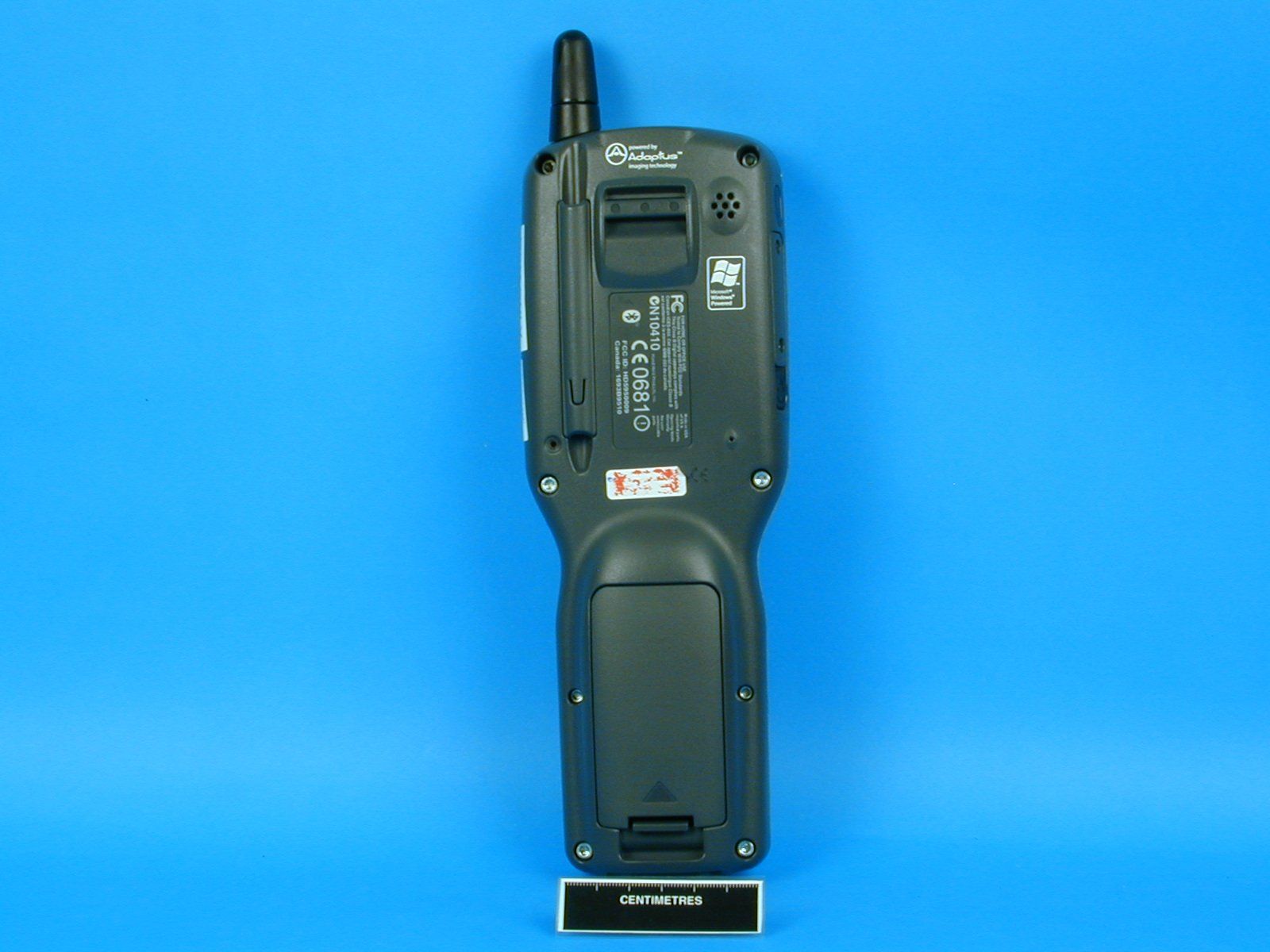

Hand Held Products D9500 External Photographs Front Rear With Battery Hand Held Products D9500 External Photographs Rear Without Battery Left Hand Side Right Hand Side Hand Held Products D9500 External Photographs Top Bottom Hand Held Products D9500 External Photographs Battery - Front Battery – Rear Hand Held Products D9500 External Photographs Product Label Position Serial Number Label Position

A P9500031ART07 RELEASE LABEL, 9500 802.11b AND GSM RADIO P9500031ART07 C THREE 04/29/03 D.FLETCHER04/28/03 Notes : 1. COLORS: PANTONE PROCESS WHITE: ALL OTHER GRAPHICS BACKGROUND: HHP BLUE GREY 246144 THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY AND CONFIDENTIALTHESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY AND CONFIDENTIAL MATERIAL OF HAND HELD PRODUCTS, INC. AND SHALL NOT BEMATERIAL OF HAND HELD PRODUCTS, INC. AND SHALL NOT BE REPRODUCED, OR COPIED, OR USED AS A BASIS FOR MANUFACTURE OR SALEREPRODUCED, OR COPIED, OR USED AS A BASIS FOR MANUFACTURE OR SALE OF EQUIPMENT OR DEVICES WITHOUT WRITTEN PERMISSION. c OF EQUIPMENT OR DEVICES WITHOUT WRITTEN PERMISSION. c REV#REV#REV DESCRIPTIONREV DESCRIPTION DESIGNED BY DESIGNED BY DATEDATE ARTWORK LEVEL ARTWORK LEVEL TITLE: TITLE: AA DRAWING NO: DRAWING NO: REVREV SCALESCALE DO NOT SCALEDO NOT SCALE SHEET SHEET 11 OF OF 11 DRAWING NO. DRAWING NO. DATE DATE ECN#ECN# P9500031-07 2. REFERENCE PRO-E DRAWING P9500031, REV A FOR DIE CUT AND MATERIAL SPECIFICATIONS N10410 Tested to Comply With FCC Standards This Class B Digital apparatus complies with FOR HOME OR OFFICE USE Canadian ICES-003. Cet appariel numerique de la Classe B est conforme a la norme NMB-003 du Canada. Hand Held Products, Inc. www.hhp.com Made in USA of US & imported parts. No user serviceable parts. Opening Voids Warranty. 0168 !! Canada: 1693B9507 FCC ID: HD5950007 SCALE 2X N10410 Tested to Comply With FCC Standards This Class B Digital apparatus complies with FOR HOME OR OFFICE USE Canadian ICES-003. Cet appariel numerique de la Classe B est conforme a la norme NMB-003 du Canada. Hand Held Products, Inc. www.hhp.com Made in USA of US & imported parts. No user serviceable parts. Opening Voids Warranty. 0168 !! Canada: 1693B9507 FCC ID: HD5950007 B REVISE FCC STATEMENT 06/23/03246561 C REVISED CANADA ID # 247042 08/27/03

REPORT ON Specific Absorption Rate Testing of The Hand Held Products Inc. D9500 Mobile Device Including Sub-equipped versions Report Number: WS611654 – 001 issue 2.00May 2004 TUV Product Service Ltd. Segensworth Road, Titchfield Fareham, Hampshire, United Kingdom, PO15 5RH Tel: +44(0)1329 443300, Fax: +44(0)1329 443331 www.tuvps.co.uk Report Number WS611654 – 001 issue 2.00Page 1 of 62 REPORT ON:Specific Absorption Rate Testing of The Hand Held Products Inc. D9500 Mobile Device Including Sub-equipped versions. Report No: WS611654 – 001 issue 2.00 PREPARED FOR:Hand Held Products Inc. 700 Visions Drive PO Box 208 Skaneateles Falls NY 13153-0208 U.S.A ATTESTATION:The wireless portable device described within this report has been shown to be capable of compliance for localised specific absorption rate (SAR) for General Population/Uncontrolled Exposure Limits as defined in the FCC standard Supplement C (Edition 01-01) to OET Bulletin 65 (Edition 97-01) of 1.6W/kg. The measurements shown in this report were made in accordance with the procedures specified in OET Bulletin 65 (Edition 97-01) and IEEE1528-2003. All reported testing was carried out on a sample of equipment to demonstrate compliance with the above standards. The sample tested was found to comply with the requirements in the applied rules. A. Miller SAR Test Engineer APPROVED BY: M J Hardy Deputy Wireless Group Leader DATED:05 th May 2004 DISTRIBUTION:Hand Held Products Inc.Copy No: 1 BABT Copy No.: 2 Copy No.: Note: The test results reported herein relate only to the item tested as identified above and on the Status Page. Report Number WS611654 – 001 issue 2.00Page 2 of 62 CONTENTS EXECUTIVE SUMMARY3 1.1Status4 1.2Summary5 1.3Test Result Summary6 TEST DETAILS11 2.1Test Equipment12 2.2Test Software12 2.3Dielectric Properties of Simulant Liquids13 2.4Test Conditions14 2.5Measurement Uncertainty15 2.6SAR Measuring System16 Probe and Amplifier Specification Probe Calibration SAR Measurement Procedure 2.7OET 65(c) and IEEE1528-2003 Test Positions31 SAM phantom head position Flat phantom position 2.8SAR Distributions (Area Scans – 2D)34 2.9Test Positional Photographs57 2.10Record Photographs59 2.11Copyright62 For copyright details see page 62 of 62. Report Number WS611654 – 001 issue 2.00Page 3 of 62 EXECUTIVE SUMMARY Specific Absorption Rate Testing of The Hand Held Products Inc. D9500 Mobile Device Including Sub-equipped versions PROJECT MANAGER: R. Bradbeer Report Number WS611654 – 001 issue 2.00Page 4 of 62 1.1STATUS MANUFACTURING DESCRIPTIONTri-Band Mobile Device STATUS OF TESTSpecific Absorption Rate Testing APPLICANTHand Held Products Inc. GSM POWER CLASSClass 4 (E-GSM 900) Class 1 (DCS 1800 & PCS 1900) GPRS CLASSClass B GPRS MULTI-SLOT CLASSClass 10 (2up/4dn/sum5) MANUFACTURERHand Held Products Inc. TYPE OR MODEL NUMBERD9500 HARDWARE VERSIONRev 2.0 RADIO LANSychip 802.11b WLAN Radio Module TYPEWLAN6060EB POWER+14.5dBm BLUETOOTH MODULESocket Communications/CSR Bluetooth Module TYPEBC01 POWER+2dBm SOFTWARE VERSIONBootloader – 5.07 Kernel – 5.07 Keyboard – 5.07 NUMBER OF SAMPLES4 BATTERY MANUFACTURERSanyo TYPE OR MODEL NUMBERUR18650F TEST SPECIFICATIONS: US Federal Government, Code of Federal Regulations, Title 47 Telecommunication, Chapter I Federal Communications Commission, part 2, section 1093. Federal Communications Commission (FCC) OET Bulletin 65c, Edition 01-01, Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields – Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions REFERENCES: IEEE 1528 – 2003 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques BABT REGISTRATION NUMBER:WS611654. RECEIPT OF TEST SAMPLES:15 th December 2003. START OF TEST:21 st January 2004. FINISH OF TEST:7 th May 2004. Report Number WS611654 – 001 issue 2.00Page 5 of 62 1.2SUMMARY This report replaces TUV Product Service Limited / BABT Report WS611654 – 001 Issue 1.00 dated 24 th March 2004. Unit 1 – a fully equipped HHP D9500 as supplied for Specific Absorption Rate (SAR) testing is a three radio device. It has a Tri-band Class 4 E-GSM 900MHz; Class 1 DCS 1800MHz and PCS 1900MHz radio, a Bluetooth Module and a 2.4GHz 802.11b Wireless Radio IMEI 350450.41.032594.07. The GSM module is designed to operate both within the primary and the extended GSM 900 bands. The testing was performed with batteries supplied by HHP and manufactured by Sanyo. The battery was fully charged before each measurement and there were no external connections. The sub-equipped versions supplied for SAR assessment were:- Unit 2 – a two radio device. It has a Tri-band Class 4 E-GSM 900MHz; Class 1 DCS 1800MHz and PCS 1900MHz radio and a 2.4GHz 802.11b Wireless Radio IMEI 35045.41.058974.07. Unit 3 – a two radio device. It has a Tri-band Class 4 E-GSM 900MHz; Class 1 DCS 1800MHz and PCS 1900MHz radio and a Bluetooth Module Unit 4 – a one radio device. It has a Tri-band Class 4 E-GSM 900MHz; Class 1 DCS 1800MHz and PCS 1900MHz radio IMEI 351113.20.085517.14. A single scan performed at the worst-case position and frequency as identified during the assessment of D9500 Unit 1 – the three radio sample. This report covers the PCS1900 head and body testing and WLAN Body testing only. The Bluetooth maximum output level was declared as 2dBm. The D9500 does support simultaneous transmission. The only co-transmission options are GSM & Bluetooth and WLAN & Bluetooth. Due to the low power of the Bluetooth radio no SAR testing was performed on this device whilst in co-transmission mode. For head SAR assessment testing was performed with the device in GSM mode only using a Specific Anthropomorphic Mannequin (SAM) phantom as specified in the CENELEC standard EN 50361. The phantom was filled with different simulant liquid appropriate to each fre…

Text truncated - open the document above for the full version.

Note: The test results relate only to the individual items which have been tested. This report shall not be reproduced in parts without the written approval of the testing laboratory Applicant:Siemens AG CETECOM - Certification and Testing in Communications GmbH Im Teelbruch 122 D-45219 Essen Germany Telephone: + 49 (0) 20 54 / 95 19 0 Fax: + 49 (0) 2054 / 95 19 20 T E S T R E P O R T No.: 2-20542043b/02 for GPRS/GSM 900/1800/1900 Module MC 45 + DSB 45 + Votronic Handset FCC ID: QIPMC45 TTI-P-G081/94 FCC Registration No. 99538 Test Report 2-20542043b/02, Page 2 of 65 20542043b_02.doc Table of contents 1. SUMMARY OF TEST RESULTS3 2. ADMINISTRATIVE DATA4 2.1. I DENTIFICATION OF THE TESTING LABORATORY 4 2.2. T EST LOCATION 4 2.3. O RGANIZATIONAL ITEMS 4 2.4. A PPLICANT ́ S DETAILS 4 2.5. M ANUFACTURER ́ S DETAILS 4 3. EQUIPMENT UNDER TEST (EUT)5 3.1. EUT: T YPE , S/N ETC . AND SHORT DESCRIPTIONS USED IN THIS TEST REPORT 5 3.2. A UXILIARY E QUIPMENT (AE): T YPE , S/N ETC . AND SHORT DESCRIPTIONS 5 3.3. EUT SET - UPS 6 3.4. EUT OPERATING MODES 6 4. TEST SET-UPS7 4.1. T EST S ET - UP 1 FOR C ONDUCTED MEASUREMENTS 7 4.2. T EST S ET - UP 2 FOR R ADIATED MEASUREMENTS 8 4.3. P ARAMETER SETTINGS ON MOBILE PHONE AND CMU9 5. MEASUREMENTS10 5.1. C ALIBRATION OF ANECHOIC CHAMBER 10 5.2. RF POWER OUTPUT § 2.1046 CONDUCTED 11 5.3. RF POWER OUTPUT § 2.1046 RADIATED 12 5.4. O CCUPIED BANDWIDTH § 2.104913 5.5. S PURIOUS EMISSIONS AT ANTENNA TERMINALS § 2.105117 5.6. F IELD STRENGTH OF SPURIOUS RADIATION § 2.105326 5.7. F REQUENCY STABILITY / TEMPERATURE VARIATION § 2.105550 6. INSTRUMENTS AND ANCILLARY EQUIPMENT „CTC“53 6.1. S INGLE INSTRUMENTS 53 6.2. T EST SYSTEMS 55 7. PHOTOGRAPHS56 7.1. E XTERNAL PHOTOS OF EUT56 7.2. I NTERNAL PHOTOS OF EUT57 7.3. P HOTOS OF TEST SET - UP 59 Test Report 2-20542043b/02, Page 4 of 65 20542043b_02.doc 2. Administrative Data 2.1. Identification of the testing laboratory Company name:CETECOM Certification and Testing in Communications GmbH Address:Im Teelbruch 122 D-45219 Essen - Kettwig Germany Laboratory accreditation:DAR-Registration No.: TTI-P-G081/94 FCC- Registration No.: 99538 Responsible for testing laboratory:Dipl.-Ing. W. Richter Deputies:Dieter Franke Dipl.-Ing. Karin Silberhorn Dipl.-Ing. Heiko Strehlow 2.2. Test location 2.2.1. Test laboratory “CTC” Company name:see chapter 2.1. Identification of the testing laboratory 2.3. Organizational items Reference No.:20542043 Order No.:-- Responsible for test report and project leader:Dipl.-Ing. V. Krueger Receipt of EUT:2002-07-17 Date(s) of test:2002-07-17 – 2002-08-01 Date of report:2002-08-19 Number of report pages:65 Number of diagram pages (annex):no diagrams --------------------------------------------------------------------------------------------------------------------------------------- Version of template: 4.05 2.4. Applicant ́s details Applicant ́s name:Siemens AG Address:Siemensdamm 50 13629 Berlin Germany Contact person:Mr. Hussein Halawi; Tel. +49 30 38630211 2.5. Manufacturer ́s details Manufacturer ́s name:please see Applicant ́s details Address:please see Applicant ́s details Test Report 2-20542043b/02, Page 5 of 65 20542043b_02.doc 3. Equipment under test (EUT) 3.1. EUT: Type, S/N etc. and short descriptions used in this test report short descrip- tion*) EUTType S/N serial number HW hardware status SW software status EUT A GPRS / GSM ModuleMC 4500499941137807 7 B 2.5SW: 34 EUT B Development support box DSB 45# 200B 1.1V 1.0 EUT C Handset VotronicHH-SI-30.3Sample 2V 1.1-- EUT D EUT E EUT F *) EUT short description is used to simplify the identification of the EUT in this test report. Additional Information for EUT A Frequency range:1850.2 – 1909.8 MHz Number of channels:300 Nominal power supply voltage:4,5 V (of module) Power supply range:3,3 – 4,5 V Temperature range:-30°C - +60°C Emission designator:300KGXW Antenna:… integral antenna: antenna connector: external antenna Max. stated nominal output power: conducted 30,0 ±2 dBm, radiated 30,0 ±2 dBm EIRP Max. measured output power:conducted 29,7 dBm, radiated 30,6 dBm EIRP 3.2. Auxiliary Equipment (AE): Type, S/N etc. and short descriptions AE short descrip- tion*) Auxiliary EquipmentType S/N serial number HW Hardware status SW software status AE 1 RS 232 cable 1for Com1 - Port--Length=1.81 meter-- AE 2 RS 232 cable 2for Com2 - Port--Length=1.81 meter-- AE 3 AC/DC AdapterMW 1000 GSSample 2Input: 230 V AC, 50 Hz, 28 W Output: 3-6V 9-12 V DC, 1000 mA, 12 VA -- AE 4 GSM Antenna900/ 1800 MHz# 10 dB Gain length=1 meter -- *) AE short description is used to simplify the identification of the auxiliary equipment in this test report. Test Report 2-20542043b/02, Page 6 of 65 20542043b_02.doc 3.3. EUT set-ups EUT set-up no.*) Combination of EUT and AERemarks set. 1EUT A + EUT B + EUT C + AE 1 + AE 2 + AE 3 Set-up for conducted measurements: MC 45 situated outside the DSB45 support-box com-1 cable and com-2 cable connected to DSB-Box but not terminated on the other side (open) set. 2EUT A + EUT B + EUT C + AE 1 + AE 2 + AE 3 + AE 4 Set-up for radiated measurements: MC 45 situated outside the DSB45 support-box com-1 cable and com-2 cable connected to DSB-Box but not terminated on the other side (open) set. 3---- *) EUT set-up no. is used to simplify the identification of the EUT set-up in this test report. 3.4. EUT operating modes EUT operating mode no.*) Description of operating modes Additional information op. 1 IDLE The mobile station is synchronized at the Broadcast Control Channel (BCCH) and listening to the Common Control Channel (CCCH), for details please see chapter: 4.3. Parameter settings on mobile phone and CMU. op. 2 TCH A communication link is established between the mobile station and the test simulator. The transmitter is operated at its maximum rated output power, for details please see chapter: 4.3. Parameter settings on mobile phone and CMU. *) EUT operating mode no. is used to simplify the test report. Test Report 2-20542043b/02, Page 7 of 65 20…

Text truncated - open the document above for the full version.

REPORT ON Limited FCC CFR 47: Parts 15 and 24 Testing in support of an Application for Grant of Equipment Authorisation Of a Handheld D9500 COMMERCIAL-IN-CONFIDENCE FCC ID: HD5595009 Report No OR611654/04 Issue 1 March 2004 COMMERCIAL-IN-CONFIDENCE TÜV Product Service Ltd, Segensworth Road, Fareham, Hampshire, PO15 5RH, United Kingdom Tel: +44 (0)1329 443300 Website: www.tuvps.co.uk Report No OR611654/04 Issue 1Page 1 of 29 REPORT ONLimited FCC CFR 47: Parts 15 and 24 Testing in support of an Application for Grant of Equipment Authorisation Of a Handheld D9500 FCC ID: HD5595009 Report No OR611654/04 Issue 1 March 2004 PREPARED FORHandheld Products 700 Visions Drive PO Box 208 Skaneateles Falls Ny 13153-0208 United States of America PREPARED BY V King Principal Engineer APPROVED BY J Adams EMC Signatory DATED25 th March 2004 DISTRIBUTIONHand Held ProductsCopy 1 BABTCopy 2 Copy No ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47: Parts 15 and 24. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineers; S HartleyA GuyG Lawler FCC ID: HD5595009 Report No OR611654/04 Issue 1Page 2 of 29 COMMERCIAL-IN-CONFIDENCE CONTENTS SectionPage No 1REPORT SUMMARY 1.1Status..................................................................................................................................4 1.2Introduction .........................................................................................................................5 1.3Brief Summary of Results (and Observations) ...................................................................7 1.4Opinions and Interpretations ..............................................................................................8 1.5Product information............................................................................................................9 2TEST DETAILS 2.1Spurious Radiated Emissions ............................................................................................11 2.2Maximum Peak Output Power............................................................................................14 2.3Radiated Emissions............................................................................................................17 3TEST EQUIPMENT USED 3.1Table of Test Equipment Used ...........................................................................................24 3.2Measurement Uncertainty ..................................................................................................25 4ACCREDITATION, DISCLAIMERS AND COPYRIGHT 4.1Accreditation, Disclaimers And Copyright.................................................................................27 APPENDICES ATitchfield FCC Site Compliance Letter ...............................................................................29 FCC ID: HD5595009 Report No OR611654/04 Issue 1Page 3 of 29 COMMERCIAL-IN-CONFIDENCE SECTION 1 REPORT SUMMARY Limited FCC CFR 47: Parts 15 and 24 Testing in support of an Application for Grant of Equipment Authorisation Of a Handheld D9500 FCC ID: HD5595009 Report No OR611654/04 Issue 1Page 4 of 29 COMMERCIAL-IN-CONFIDENCE 1.1STATUS EQUIPMENT UNDER TESTD9500 OBJECTIVETo undertake measurements to determine the Equipment Under Test's (EUT's) compliance with the specification. NAME AND ADDRESS OF CLIENTHandheld Products 700 Visions Drive PO Box 208 Skaneateles Falls NY 13153-0208 TYPE NUMBERD9500 PART NUMBERD9500-09 SERIAL NUMBER000001869 HARDWARE VERSIONRev. 2 DECLARED VARIANTSNone TEST SPECIFICATION / ISSUE / DATE FCC CFR 47: Part 15, Subpart B, August 2002, and Part 24, Subpart D, January 2001 NUMBER OF ITEMS TESTEDOne SECURITY CLASSIFICATION OF EUT Commercial In Confidence INCOMING RELEASEDeclaration of Build Status DATE22 nd March 2004 DISPOSALHeld pending disposal REFERENCE NUMBERNot Applicable DATENot Applicable ORDER NUMBERDO93486-00 DATE1 st September 2003 START OF TEST25 th February 2004 FINISH OF TEST26 th February 2004 RELATED DOCUMENTSANSI C63.4 2001. Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. FCC ID: HD5595009 Report No OR611654/04 Issue 1Page 5 of 29 COMMERCIAL-IN-CONFIDENCE 1.2INTRODUCTION The information contained within this report is intended to show limited verification of compliance of the Handheld D9500 to limited requirements of the FCC Specification Parts 15 and 24. Testing was carried out in support of an application for Grant of Equipment Authorisation in the name of Hand Held Products. FCC ID: HD5595009 Report No OR611654/04 Issue 1Page 6 of 29 COMMERCIAL-IN-CONFIDENCE 1.2.1DECLARATION OF BUILD STATUS MAIN EUT MANUFACTURING DESCRIPTIONMobile Computer MANUFACTURERHand Held Products Inc. COUNTRY OF ORIGINUSA TYPEDolphin 9500 PART NUMBERD9500-09 SERIAL NUMBER000001869 HARDWARE VERSIONRevision 2 FCC IDHD5950009 INDUSTRY CANADA ID1693B9509 RADIO MODULES INTEGRATEDGSM/GPRS 900/1800/1900, 802.11b, Bluetooth TECHNICAL DESCRIPTIONHand held computer with 3 radios BATTERY/POWER SUPPLY MANUFACTURING DESCRIPTIONRechargeable battery MANUFACTURERHand Held Products Inc. COUNTRY OF ORIGINUSA TYPELi-ion PART NUMBER20000591-01 VOLTAGE7.4V UK AGENTN/A RADIO MODULES MANUFACTURING DESCRIPTION GPRS/GSM Tri-Band Radio Module802.11b WLAN Radio ModuleBluetooth Radio Module MANUFACTURER Siemens AGSychipSocket Communications COUNTRY OF ORIGIN GermanyNot knownJapan TYPE MC45WLAN6060EBBC01 POWER 3.2 – 4.5V3.0 – 3.6V2.7 – 3.3V TRANSMITTER OPERATING RANGE 880-915 / 1710-1785 / 1850-19102412MHz to 2462MHz2402MHz to 2480MHz TRANSMITTER POWER 2W (GSM900) / 1W (GSM1800/1900)14.5dBm typical2bBm typical RECEIVER OPERATING RANGE 925-960 / 1805-1880 / 1930-19902414MHz to 2484MHz2402MHz to 2480MHz INTERMEDIATE FREQUENCIES Receiver: 0; Transmitt…
