HD59700LUPDOLPHIN 9700 MOBILE COMPUTER

Dolphin ® 9700 Mobile Computers with Windows Mobile ® 6.5 User’s Guide Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of HII. HII shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of HII. Web Address: www.honeywellaidc.com Trademarks Dolphin, Dolphin RF, HomeBase, Mobile Base, and QuadCharger are trademarks or registered trademarks of Hand Held Products, Inc. or Honeywell International Inc. Microsoft, Windows, Windows Mobile, Windows CE, Windows NT, Windows 2000, Windows ME, Windows XP, ActiveSync, Outlook, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are the property of their respective owners. Patents Please refer to the product packaging for a list of patents. Other Trademarks The Bluetooth trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to Honeywell. Declaration for the Specification FCC ID: HD59700LUP for 802.11 a/b/g +BT+GSM FCC ID: HD59700LOP for 802.11 a/b/g +BT IC ID: 1693B-9700LUP for 802.11 a/b/g +BT+GSM IC ID: 1693B-9700LOP for 802.11 a/b/g +BT ©2009 Honeywell International Inc. All rights reserved. iii Table of Contents Chapter 1 - Agency Information Label Locations ....................................................................................................................1-1 LED Safety Statement .........................................................................................................1-2 Infrared LED Safety Statement ............................................................................................1-2 UL and cUL Statement.........................................................................................................1-2 Approvals by Country...........................................................................................................1-2 R&TTE Compliance Statement—802.11a/b/g, Bluetooth, and/or GSM...............................1-3 Dolphin RF Terminal—802.11a/b/g, Bluetooth, and/or GSM ...............................................1-3 For European Community Users .........................................................................................1-4 Waste Electrical and Electronic Equipment Information ......................................................1-4 Chapter 2 - Getting Started Out of the Box ......................................................................................................................2-1 Today Screen.......................................................................................................................2-3 Navigation Bar .....................................................................................................................2-3 Command Bar ......................................................................................................................2-3 Icons in the Navigation Bar ..................................................................................................2-4 Pop-Up Menus .....................................................................................................................2-5 Chapter 3 - Hardware Overview Standard Configurations for the 9700 ............................................................................3-1 Peripherals for the 9700.......................................................................................................3-2 Accessories for the 9700 .....................................................................................................3-3 Front Panel: 9700 ................................................................................................................3-4 Front Panel Features for the 9700 .................................................................................3-5 Back Panel: 9700 ................................................................................................................3-6 Back Panel Features for the 9700..................................................................................3-7 Side Panels: 9700 ................................................................................................................3-8 Left Side .........................................................................................................................3-8 Right Side ......................................................................................................................3-8 Installing a Memory Card ...............................................................................................3-9 Installing a SIM Card ......................................................................................................3-9 Bottom Panel: 9700 ...........................................................................................................3-10 I/O Connector ...............................................................................................................3-10 Using the Touch Panel.......................................................................................................3-11 Installing a Screen Protector ........................................................................................3-11 Healthcare Housing ..................................…

Text truncated - open the document above for the full version.

Honeywell Scanning & Mobility 700 Visions Drive Skaneateles Falls, NY 13153 December, 03, 2009 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: HD59700LUP Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: Schem.pdf) Block Diagram (file: BlkDia.pdf) Parts List (file: PartsLst.pdf) Operation Description (file: OpDes.pdf) Tune Up Procedure (file: TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Michael Robinson

Honeywell Scanning & Mobility 700 Visions Drive Skaneateles Falls, NY 13153 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 December, 03, 2009 SUBJECT: FCC Application for FCC ID: HD59700LUP To Whom It May Concern: We, Honeywell International Inc, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Michael Robinson

Honeywell Scanning & Mobility 700 Visions Drive Skaneateles Falls, NY 13153 Letter of Authorization December, 03, 2009 To whom it may concern: Mr. Roy Wu, in his position as employee and agent of Sporton International Inc. Taiwan, 52.Hwa Ya 1 st rd. Hwa Ya Technology Park, Kwei –shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. is hereby authorized to act on behalf of Honeywell International Inc. by signing documents and submitting applications and reports related to Dolphin 9700 (“Submissions”) as required by the FCC and other applicable regulatory entities. The authority set forth in this letter is granted by and subject to the terms of the Limited Evaluation License Agreement between Honeywell International Inc., effective April,13, 2009 (the “Agreement”).Any and all acts carried out by Sporton International Inc. on this company’s behalf in accordance with the Agreement shall have the same effect as acts of this company. Subject to the terms of the Agreement, unless notified to the contrary in writing, this authorization is valid until the date that is ninety (90) days from the date of this letter or the date all required Submissions are completed, whichever is earlier, provided however that in any event, this authorization shall not be effective after March, 03, 2010 . This authorization is limited to the following product: FCC ID: HD59700LUP Sincerely, Mike Robinson

Honeywell Scanning & Mobility 700 Visions Drive Skaneateles Falls, NY 13153 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : HD59700LUP December, 30, 2009 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos (file: Dolphin 9700_ExtPho_Confidential.pdf)  Internal Photos (file: Dolphin 9700_IntPho_Confidential.pdf)  Test Setup Photos (file: Dolphin 9700_Tsup_Confidential.pdf)  User Manual (file: Dolphin 9700_UserMan_Confidential.pdf) The application contains technical information, which Honeywell International Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Michael Robinson

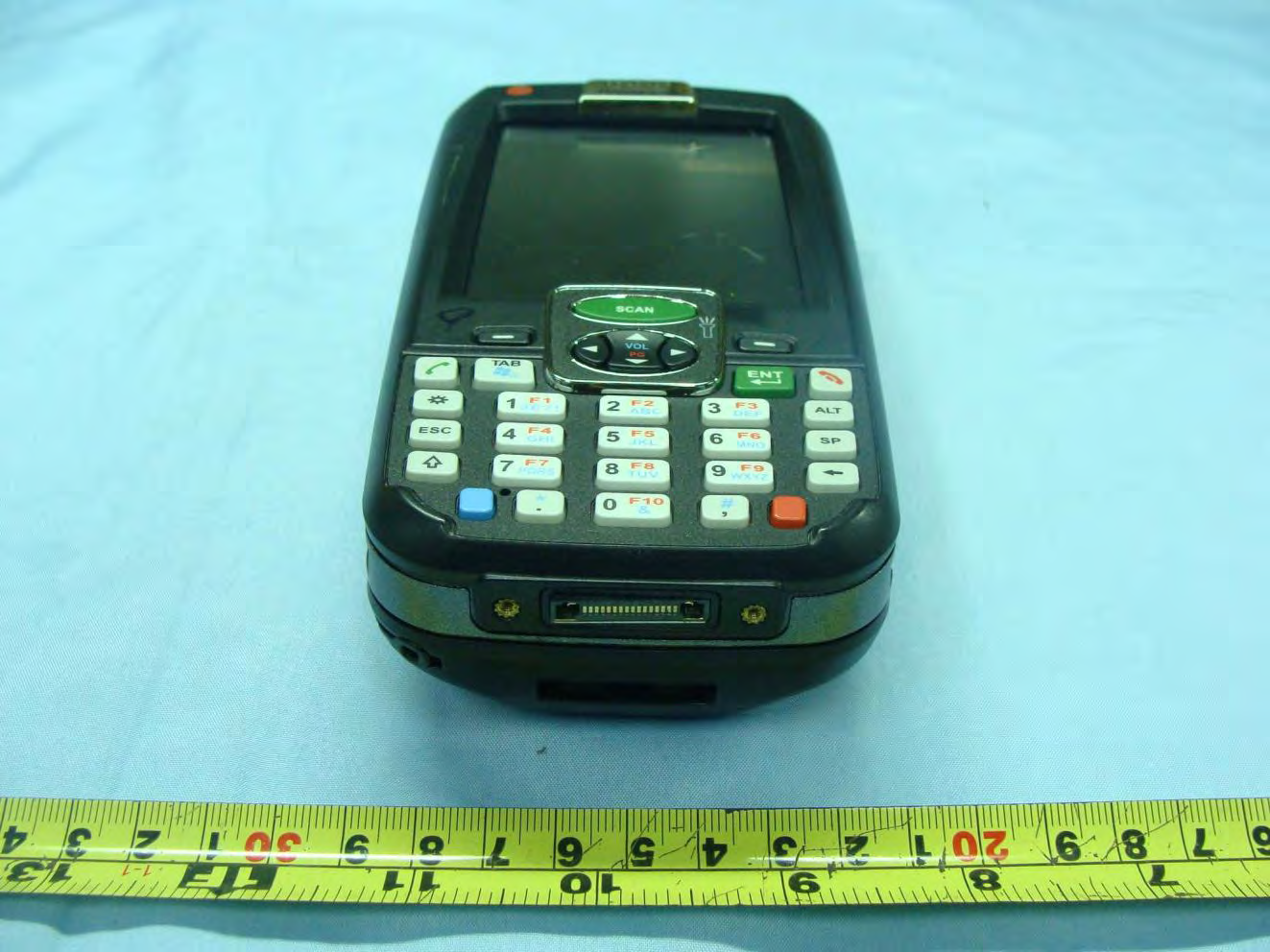

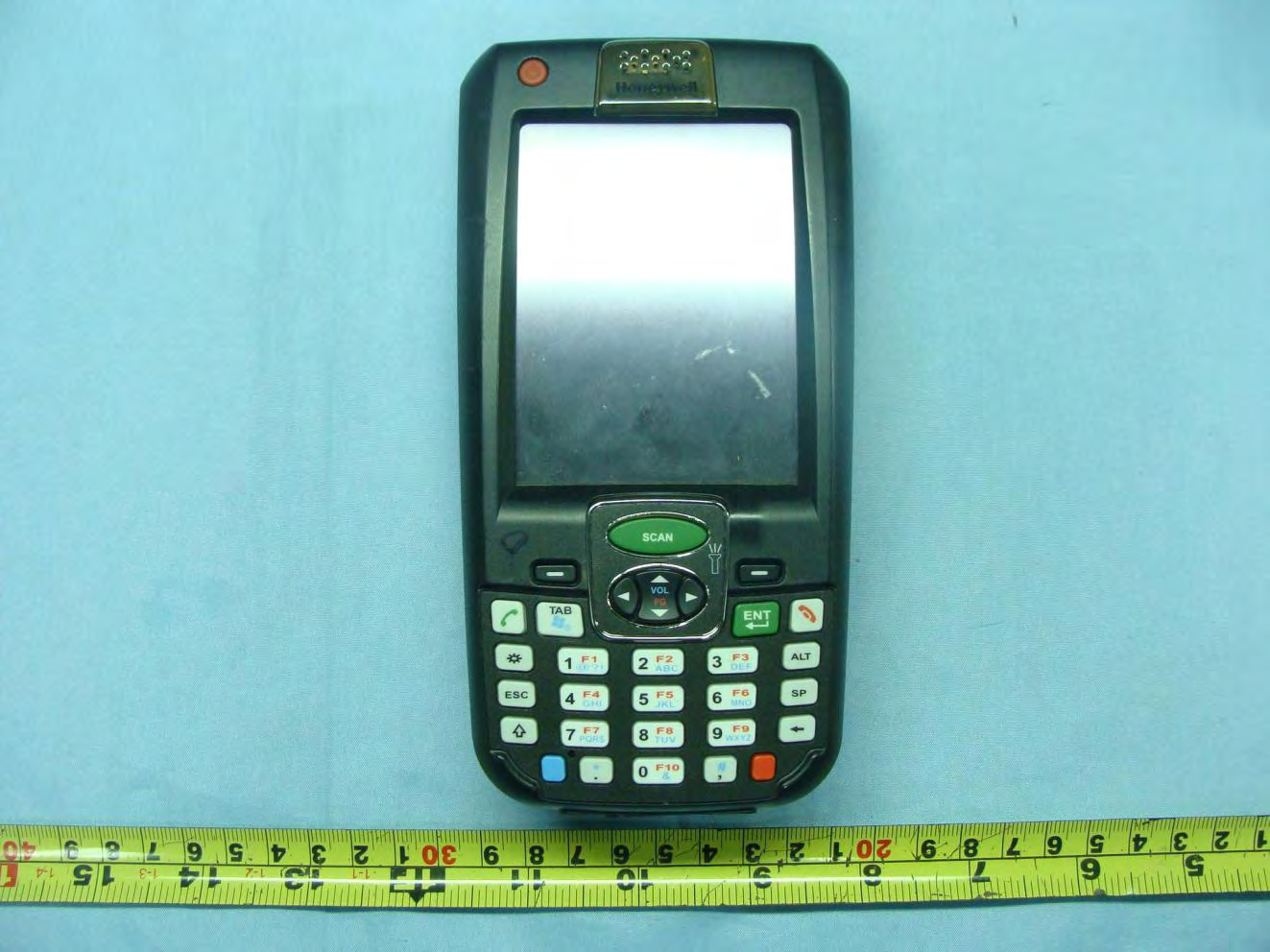

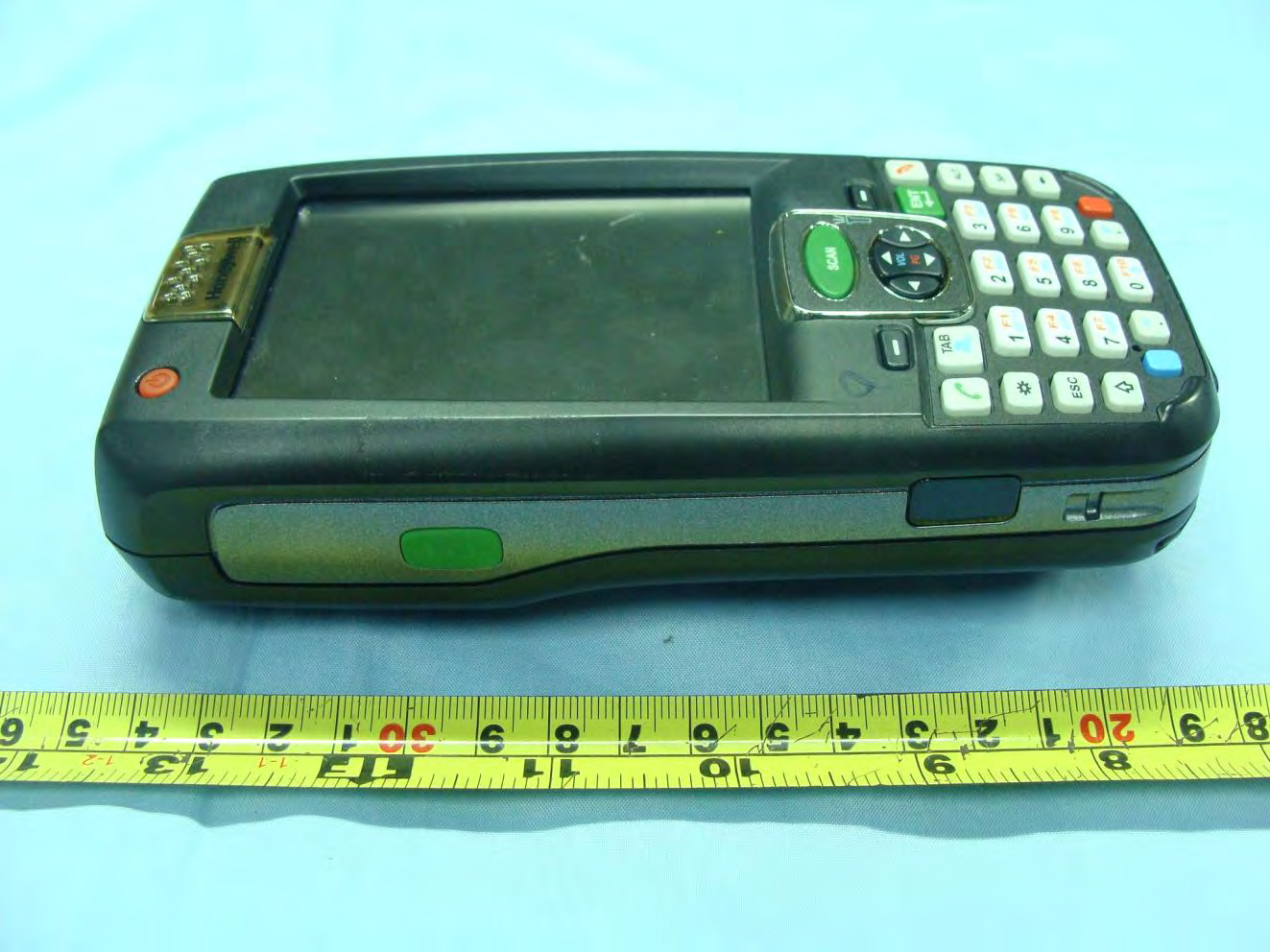

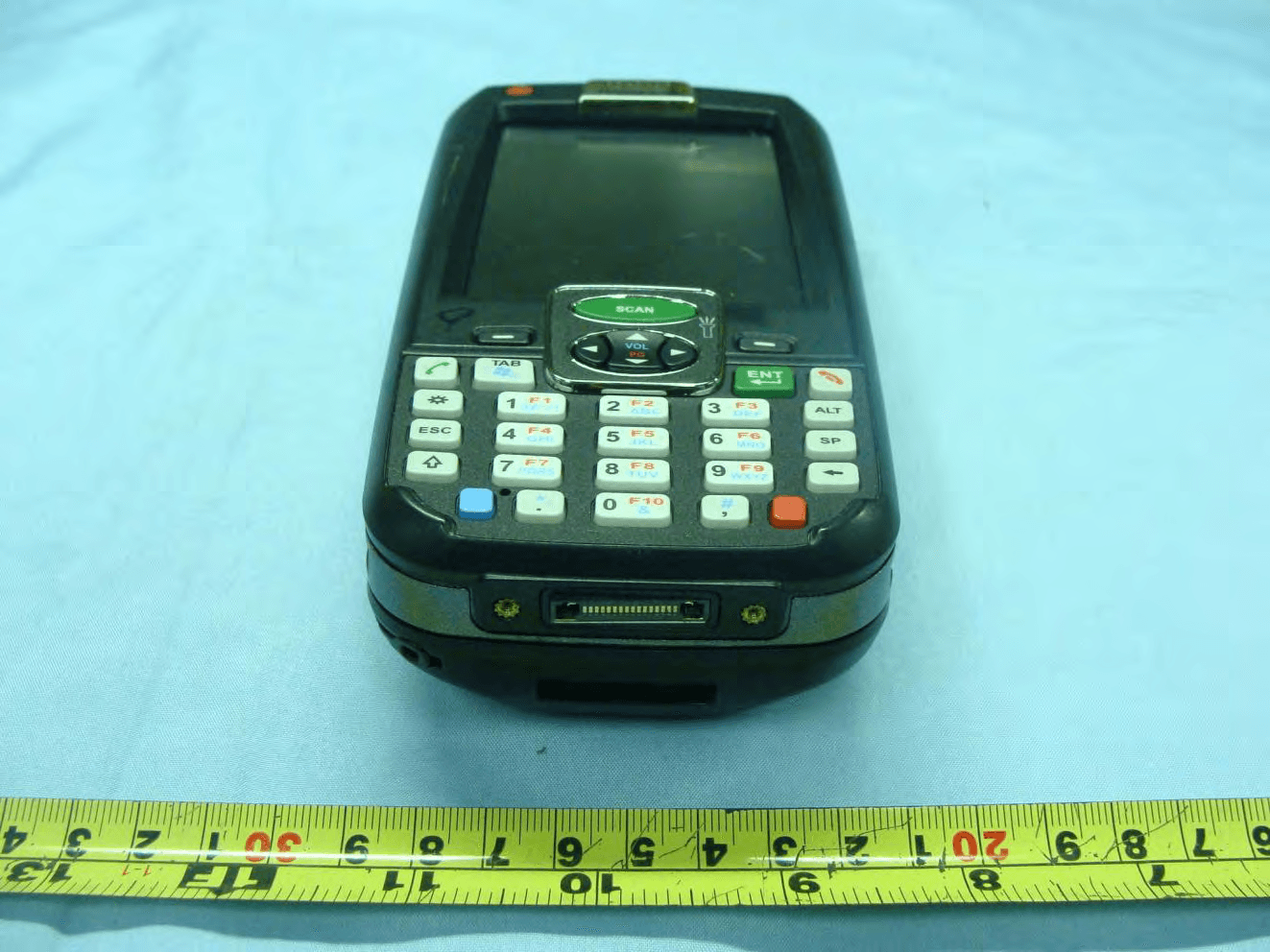

Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 1 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP 1. External Photograph of EUT EUT with Keypad 1 and Scanner 1 Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 2 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 3 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 4 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 5 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 6 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 7 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP EUT with Keypad 1 and Scanner 2 Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 8 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 9 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 10 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 11 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 12 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 13 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP EUT with Keypad 2 and Scanner 1 Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 14 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 15 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 16 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 17 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 18 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 19 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP EUT with Keypad 2 and Scanner 2 Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 20 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 21 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 22 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 23 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 24 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP 720510 Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 25 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP 2. Photograph of Accessory Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SP…

Text truncated - open the document above for the full version.

Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 33 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP 3. Internal Photograph of EUT Keypad 1 Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 34 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 35 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 36 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 37 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 38 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 39 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 40 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 41 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 42 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 43 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 44 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 45 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 46 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 47 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 48 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 49 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 50 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 51 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 52 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Scanner 1 Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 53 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Scanner 2 Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 54 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 55 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 56 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 57 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP Keypad 2 Photographs of EUT Report No.: EP9O3036 Model Name: Dolphin 9700 SPORTON INTERNATIONAL INC. Page Number : 58 of 86 TEL : 886-3-327-3456 Issued Date : Dec. 24, 2009 FAX : 886-3-328-49…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 35 TEL : 886-3-327-3456 Report Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP FCC SAR Test Report Report No. : FA9O3036B FCC SAR Test Report APPLICANT : Honeywell International Inc. EQUIPMENT : Dolphin 9700 Mobile computer BRAND NAME : Honeywell MODEL NAME : Dolphin 9700 FCC ID : HD59700LUP STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Oct. 29, 2009 and completely tested on Nov. 07, 2009. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 35 TEL : 886-3-327-3456 Report Issued Date : Dec. 24, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : HD59700LUP FCC SAR Test Report Report No. : FA9O3036B Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 7 3.3 Applied Standards ............................................................................................................................................ 8 3.4 Device Category and SAR Limits ..................................................................................................................... 8 3.5 Test Conditions ................................................................................................................................................. 8 3.5.1 Ambient Condition .................................................................................................................................. 8 3.5.2 Test Configuration ................................................................................................................................... 8 4. Specific Absorption Rate (SAR) ...............................................................................................................................10 4.1 Introduction ......................................................................................................................................................10 4.2 SAR Definition .................................................................................................................................................10 5. SAR Measurement System .......................................................................................................................................11 5.1 E-Field Probe...................................................................................................................................................12 5.1.1 E-Field Probe Specification ...................................................................................................................12 5.1.2 E-Field Probe Calibration .......................................................................................................................13 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................13 5.3 Robot ...............................................................................................................................................................13 5.4 Measurement Server .......................................................................................................................................14 5.5 Phantom ..........................................................................................................................................................15 5.6 Device Holder ..................................................................................................................................................16 5.7 Data Storage and Evaluation ...........................................................................................................................18 5.7.1 Data Storage .........…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/11/4 System Check_2450MHz_091104 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_091104 Medium parameters used: f = 2450 MHz; σ = 1.84 mho/m; ε r = 39.5; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.48, 4.48, 4.48); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 5.67 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.3 V/m; Power Drift = 0.012 dB Peak SAR (extrapolated) = 9.9 W/kg SAR(1 g) = 4.91 mW/g; SAR(10 g) = 2.33 mW/g Maximum value of SAR (measured) = 5.58 mW/g 0 dB = 5.58mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/11/7 System Check_5200MHz_091107 DUT: Dipole 5GHz Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: HSL_5G_091107 Medium parameters used: f = 5200 MHz; σ = 4.56 mho/m; ε r = 35.9; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV3 - SN3514; ConvF(4.78, 4.78, 4.78); Calibrated: 2009/1/21 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 15.4 mW/g Pin=100mW/Zoom Scan (8x8x8)/…

Text truncated - open the document above for the full version.
