HD5MX2702BBluetooth Bar Code Scanner Base Station

™ IMAGETEAM™ 2020/5620 Retail Cordless System System Manual Dr a f t 1 3 1 0 / 1 3 / 0 4 Disclaimer Hand Held Products, Inc. d/b/a HHP (“HHP”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HHP to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of HHP. HHP shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material. This document contains proprietary information which is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of HHP. © 2004 Hand Held Products, Inc. All rights reserved. Web Address: www.HHP.com Microsoft Pocket PC 2002, Windows, Windows NT, Windows 2000, Windows ME, Windows XP, ActiveSync, Outlook, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation. The Bluetooth trademarks are owned by Bluetooth SIG, Inc., U.S.A. Statement of Agency Compliance The IT2020/IT5620 system meets or exceeds the requirements of all applicable standards organizations for safe operation. However, as with any electrical equipment, the best way to ensure safe operation is to operate them according to the agency guidelines that follow. Please read these guidelines carefully before using your IT2020/IT5620 system. Regulatory and Safety Approvals for the IT2020/IT5620 FCC Class B Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio or television technician for help. ParameterSpecification USAFCC Part 15, Class B CanadaICES-003 European CommunityEN 55022 (CISPR 22) Class B EN60950 EN60825-1 EN55024:1998 If necessary, the user should consult the dealer or an experienced radio/ television technician for additional suggestions. The user may find the following booklet helpful: “Something About Interference.” This is available at FCC local regional offices. Hand Held Products, Inc. is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by Hand Held Products, Inc. The correction is the responsibility of the user. Use only shielded data cables with this system. In accordance with FCC 15.21, changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. To maintain compliance with FCC RF exposure guidelines for body-worn operation, do not use accessories that contain metallic components and ensure that the device is at least 15mm (0.6 inches) from the body. Canadian Compliance This Class B digital apparatus compiles with Canadian ICES-003. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. 3. To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shield- ing. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. CE Compliance The CE mark on the product indicates that the system has been tested to and conforms with the provisions noted within the 89/336/EEC Electromagnetic Compatibility Directive and the 73/23/EEC Low Voltage Directive. For CE-related inquiries, please contact: Hand Held Products, Inc. Nijverheidsweg 9 5627 BT Eindhoven The Netherlands ! HHP shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE marked and does not comply with the Low Voltage Directive. Regulatory Approvals for Bluetooth Radio Devices RF devices are designed to comply with the most current applicable standards on safe levels of RF energy developed by the Institute of Electrical and Electronics Engineers (IEEE) and the American National Standards Institute (ANSI) and have been recommended for adoption by the Federal Communications Commission (FCC). Bluetooth Radio Device R&TTE Compliance Statement The IT2020 and IT5620 are in conformity with all essential requirements of the R&TTE Directive (1999/5/EC). This equipment has been assessed to the following standards: This product is marked with in accord…

Text truncated - open the document above for the full version.

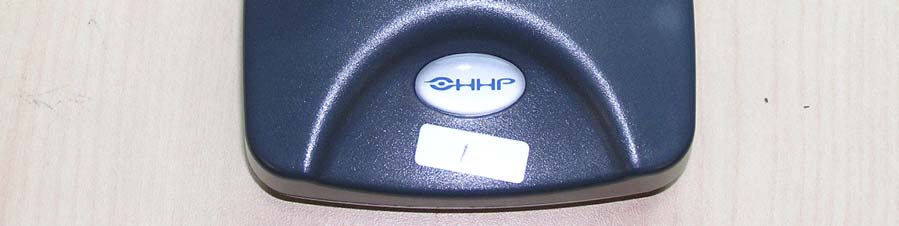

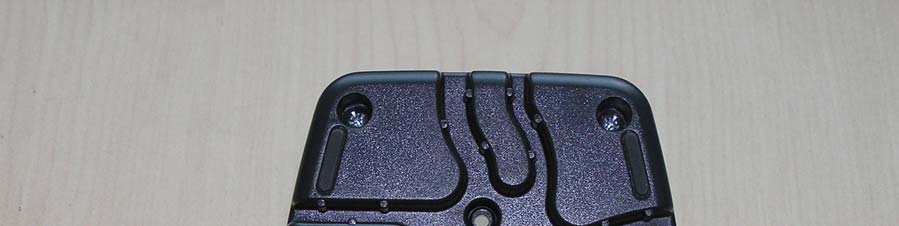

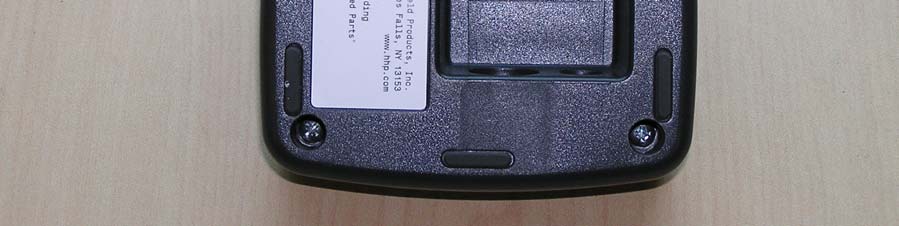

External Photos IT2020 EUT – Top view External Photos IT2020 EUT – Bottom view

FCC ID: HD5MX2702BCanada IC1693B - MX2702B Hand Held Products, Inc. Skaneateles Falls, NY 13153 www.hhp.com "Made in China" E153740 US and Foreign Patents Pending 0682 I.T.E. ACCESSORY 7D21 ' ' FCC ID: HD5MX2702BCanada IC1693B - MX2702B Hand Held Products, Inc. Skaneateles Falls, NY 13153 www.hhp.com "Made in China" E153740 US and Foreign Patents Pending 0682 I.T.E. ACCESSORY 7D21 IT2020

Internal Photos IT2020 EUT – Top view Internal Photos IT2020 EUT – Bottom view

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report Test report no.: EMC_706FCC15.247_2004_IT2020 FCC Part 15.247 for FHSS systems / CANADA RSS-210 Model: IT2020 FCC ID: HD5MX2702B IC: 1693B-MX2702B Test report no.: EMC_706FCC15.247_2004_IT2020 Issue date: 2004-10-28 Page 2 (50) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. USA does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc USA. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com Test report no.: EMC_706FCC15.247_2004_IT2020 Issue date: 2004-10-28 Page 3 (50) 1.3 Details of applicant Name : Hand Held Products, Inc. Street : 700 Vision Drive City / Zip Code : Skaneateles Falls, NY 13153 Country : U.S.A Contact : Naveen Velagapudi Telephone : +1 315 685 2931 Tele-fax : +1 315 685 1210 e-mail : [email protected] 1.4 Application details Date of receipt test item : 2004-08-16 Date of test : 2004-08-11/13/16, 2004-09-09/10 1.5 Test item Manufacturer : Applicant Marketing Name : IT2020 Model No. : IT2020 Description : BT Base for BT Scanner FCC-ID : HD5MX2702B IC ID : 1693B-MX2702B Additional information Test Sample for BT : s/n 000170 Frequency : 2402MHz – 2480MHz Type of modulation : GFSK Number of channels : 79 Antenna : Internal Power supply : Battery or Charger (AC Adaptor) Output power : -0.13dBm (0.97mW) max. conducted peak power 1.6 Test standards: FCC Part 15 §15.247 (DA00-705) / RSS 210 Note: All radiated measurements were made in all three orthogonal planes. The values reported are the maximum values. Test report no.: EMC_706FCC15.247_2004_IT2020 Issue date: 2004-10-28 Page 4 (50) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2004-10-28 EMC & Radio Lothar Schmidt (Manager) Date Section Name Signature Responsible for test report and project leader: 2004-10-28 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature Test report no.: EMC_706FCC15.247_2004_IT2020 Issue date: 2004-10-28 Page 5 (50) 2.2 Test report TEST REPORT Test report no.: EMC_706FCC15.247_2004_IT2020 Test report no.: EMC_706FCC15.247_2004_IT2020 Issue date: 2004-10-28 Page 6 (50) TEST REPORT REFERENCE LIST OF MEASUREMENTS PAGE CARRIER FREQUENCY SEPERATION §15.247(a) 7 NUMBER OF HOPPING CHANNELS §15.247(a) 8 TIME OF OCCUPANCY (DWELL TIME) §15.247(a) 9 SPECTRUM BANDWIDTH OF FHSS SYSTEM §15.247(a) 10 MAXIMUM PEAK OUTPUT POWER § 15.247 (b) (1) 14 BAND EDGE COMPLIANCE §15.247 (c) 22 EMISSION LIMITATIONS § 15.247 (c) (1) 26 CONDUCTED EMISSIONS § 15.107/207 41 RECEIVER SPURIOUS RADIATION § 15.209 43 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 48 BLOCK DIAGRAMS 49 Test report no.: EMC_706FCC15.247_2004_IT2020 Issue date: 2004-10-28 Page 7 (50) CARRIER FREQUENCY SEPERATION §15.247(a) Test report no.: EMC_706FCC15.247_2004_IT2020 Issue date: 2004-10-28 Page 8 (50) NUMBER OF HOPPING CHANNELS §15.247(a) The number of hopping channels is 79 Test report no.: EMC_706FCC15.247_2004_IT2020 Issue date: 2004-10-28 Page 9 (50) TIME OF OCCUPANCY (DWELL TIME) §15.247(a) DH1 – Packet EUT supports only DH1 Packet The system makes worst case 1600 hops per second or 1 time slot has a length of 625μs with 79 channels. A DH1 Packet need 1 time slot for transmitting and 1 time slot for receiving. Then the system makes worst case 800 hops per second with 79 channels. So you have each channel 10.13 times per second and so for 31.6 seconds you have 320.108 times of appearance. Each Tx-time per appearance is 177.56μs. So we have 320.108 * 177.56μs = 56.83ms per 31.6 seconds. Test report no.: EMC_706FCC15.247_2004_IT2020 Issue date: 2004-10-28 Page 10 (50) SPECTRUM BANDWIDTH OF FHSS SYSTEM §15.247(a) 20 dB bandwidth TEST CONDITIONS 20 dB BANDWIDTH (kHz) Frequency (MHz) 2402 2441 2480 T nom (23)°C V nom 821.64 821.64 821.64 RBW / VBW as provided in the "Measurement Guidelines’’ (DA 00-705, March 30, 2000) LIMIT SUBCLAUSE §15.247(a) (1) The maximum 20dB bandwidth shall be at maximum 1000 KHz Test report no.: EMC_706FCC15.247_2004_IT2020 Issue date: 2004-10-28 Page 11 (50) SPECTRUM BANDWIDTH OF FHSS SYSTEM §15.247(a) 20 dB bandwidth Lowest Channel: 2402MHz Test report no.: EMC_706FCC15.247_2004_IT2020 Issue date: 2004-10-28 Page 12 (50) SPECTRUM BANDWIDTH OF FHSS SYSTEM §15.247(a) 20 dB bandwidth Mid Channel: 2441MHz Test report no.: EMC_706FCC15.247_2004_IT2020 Issue date: 2004-10-28 Page 13 (50) SPECTRUM BANDWIDTH OF FHSS SYSTEM §15.247(a) 20 dB bandwidth Highest Channel: 2480MHz Test report no.: EMC_70…

Text truncated - open the document above for the full version.

Test setup Photos IT2020 & IT5620 Test setup – Radiated Emissions Test setup Photos IT2020 & IT5620 Test setup – Conducted Measurements NOTE: Both base and Scanner use same BT module. Sample used for conducted measurements is in Scanner housing as shown in above photo Test setup Photos IT2020 & IT5620 Test setup – AC Line Conducted Emissions
