HDT30100Toy Remote Control

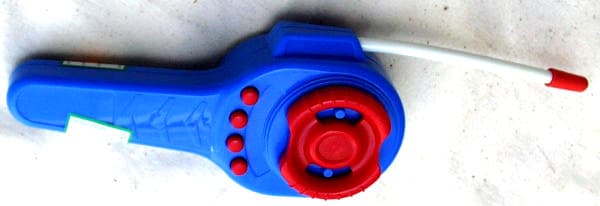

FCC ID: HDT30100 Front View of Device

FCC ID: HDT30100 Bottom View of Device

FCC ID: HDT30100 Front View of the Printed Wiring Board

FCC ID: HDT30100 Bottom View of the Printed Wiring Board

Date: 2000-05-24 TEST REPORT Page 1 of 8 No.: HM102598 Law Man KitKitty ChoyPatrick Wong Testing EngineerVerify byPatrick Wong for Managing Director APPLICANT: (CODE: KIY001) KIN YAT INDUSTRIAL COMPANY LIMITED. 7th Floor, Galaxy Factory Building, 25-27 Luk Hop Street, Sun Po Kong, Kowloon, Hong Kong DATE OF SAMPLES RECEIVED: 2000.05.12. DATE OF TESTING: 2000.05.22. DESCRIPTION OF SAMPLE(S): A sample of product said to be: Product:PLAY SET Manufacturer:KIN YAT INDUSTRIAL COMPANY LIMITED. Model Number:30100 Brand Name:TURBO TEC Rating: 9V d.c. ("6F22" size battery × 1) Origin:CHINA INVESTIGATIONS REQUESTED: Measurement to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiator. RESULT/ REMARK:Please see attached sheet(s). CONCLUSION: From the measurement data obtained, the tested sample was considered to have COMPLIED with the clause 15.227 of Federal Communications Commission Rules and Regulations Part 15. TEST EQUIPMENT AUDIT: Please see Appendix A Date: 2000-05-24 TEST REPORT Page 2 of 8 No.: HM102598 T E S T S U M M A R Y *** INTENTIONAL RADIATOR *** (1) Measurement of Emission of RF energy on the carrier frequency...........Satisfactory (2) Measurement of the out-of band emissions including harmonics............Satisfactory (3) Measurement of Emission Within Band Edges......................................Satisfactory (4) Measurement of Line-Conducted Voltage onto AC Power Line.............Not applicable T E S T D A T A Please refer to the attached result sheets. Date: 2000-05-24 TEST REPORT Page 3 of 8 No.: HM102598 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.227(26.96-27.28MHz) TEST CONDITION:Normal TEST DATE:2000.05.22. Emission of RF energy on the carrier frequency -- 27.144 MHz (PEAK VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB( μV)H-VdBdB(μV/m)μV/mμV/m 27.148.7V+18.567.22290.9100000.0 ================================================================== Emission of RF energy on the carrier frequency -- 27.144 MHz (AVERAGE VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB( μV)H-VdBdB(μV/m)μV/mμV/m 27.129.8V+18.548.3260.010000.0 ================================================================== ... to be continued Date: 2000-05-24 TEST REPORT Page 4 of 8 No.: HM102598 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.227(26.96-27.28MHz) TEST CONDITION:Normal TEST DATE:2000.05.22. The out-of-band emissions, including harmonics (25-1000 MHz) (CISPR VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB(mV)H-VdBdB(mV/m)mV/mmV/m ###54.3<1.0+12.9<13.9<5.0100.0 81.4<1.0+8.9<9.9<3.1100.0 108.6<1.0+12.2<13.2<4.6150.0 135.7<1.0+10.8<11.8<3.9150.0 162.9<1.0+9.5<10.5<3.3150.0 190.0<1.0+11.1<12.1<4.0150.0 217.2<1.0+12.2<13.2<4.6200.0 244.3<1.0+13.5<14.5<5.3200.0 271.4<1.0+16.0<17.0<7.1200.0 298.6<1.0+16.5<17.5<7.5200.0 325.7<1.0+16.6<17.6<7.6200.0 352.9<1.0+16.7<17.7<7.7200.0 380.0<1.0+17.4<18.4<8.3200.0 407.2<1.0+18.2<19.2<9.1200.0 434.3<1.0+19.5<20.5<10.6200.0 461.4<1.0+20.1<21.1<11.4200.0 488.6<1.0+20.3<21.3<11.6200.0 515.7<1.0+20.9<21.9<12.4200.0 542.9<1.0+22.1<23.1<14.3200.0 570.0<1.0+22.8<23.8<15.5200.0 597.2<1.0+23.3<24.3<16.4200.0 624.3<1.0+23.4<24.4<16.6200.0 ... to be continued Date: 2000-05-24 TEST REPORT Page 5 of 8 No.: HM102598 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. TEST REFERENCE:FCC Rules Part 15 Subpart Section 15.227(26.96-27.28MHz) TEST CONDITION:Normal TEST DATE:2000.05.22. The out-of-band emissions, including harmonics (25-1000 MHz) (CISPR VALUE) ================================================================== EmissionMeterPolarizationAntennaField Strength FCC Limit FrequencyReadingFactor(at 3m) MHzdB(mV)H-VdBdB(mV/m)mV/mmV/m ###651.5<1.0+23.6<24.6<17.0200.0 678.6<1.0+24.9<25.9<19.7200.0 705.7<1.0+25.1<26.1<20.2200.0 732.9<1.0+25.4<26.4<20.9200.0 760.0<1.0+26.4<27.4<23.4200.0 787.2<1.0+26.8<27.8<24.5200.0 814.3<1.0+26.7<27.7<24.3200.0 841.5<1.0+26.1<27.1<22.6200.0 868.6<1.0+26.8<27.8<24.5200.0 895.8<1.0+27.1<28.1<25.4200.0 922.9<1.0+27.5<28.5<26.6200.0 950.0<1.0+28.1<29.1<28.5200.0 977.2<1.0+28.2<29.2<28.8500.0 ================================================================== ====================SUMMARY=================== All data is within limits ============================================= Broad-band Antennas were used both polarizations of emissions were measured. polarizations at highest reading indicated as: H -- HorizontalV -- Vertical ============================================= Date: 2000-05-24 TEST REPORT Page 6 of 8 No.: HM102598 *** INTENTIONAL RADIATOR *** (2) Measurement of Emissions Within Band Edges. TEST REFERENCE: FCC Rules Part 15 section 15.227(26.96-27.28MHz) TEST CONDITION: Normal TEST DATE : 2000.05.22. RESULTS AND NOTES L: FCC Lower Band Edge ......................................................................-> 26.960MHz H: FCC Higher Band Edge .....................................................................-> 27.280MHz C: Unmodulated carrier at frequency .......................................................-> 27.144MHz D: No. of dB from unmodulated carrier ...................................................-> 45.10dB SPECTRUM ANALYZER SETTINGS Resolution bandwidth: 12.4KHz Frequency span: 10.0KHz/div No. of dB/div: 10.0dB/div FCC Limit Minimum No. of dB from unmodulated carrier required : 26.0dB ================SUMMARY================ All data is within limits ========================================= Date: 2000-05-24 TEST REPORT Page 7 of 8 No…
