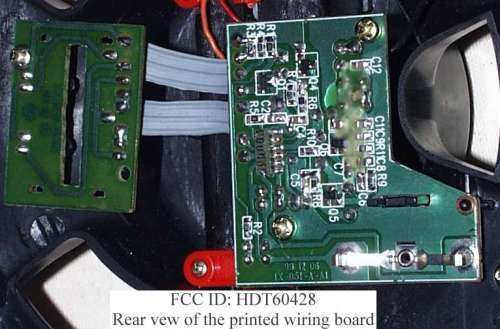

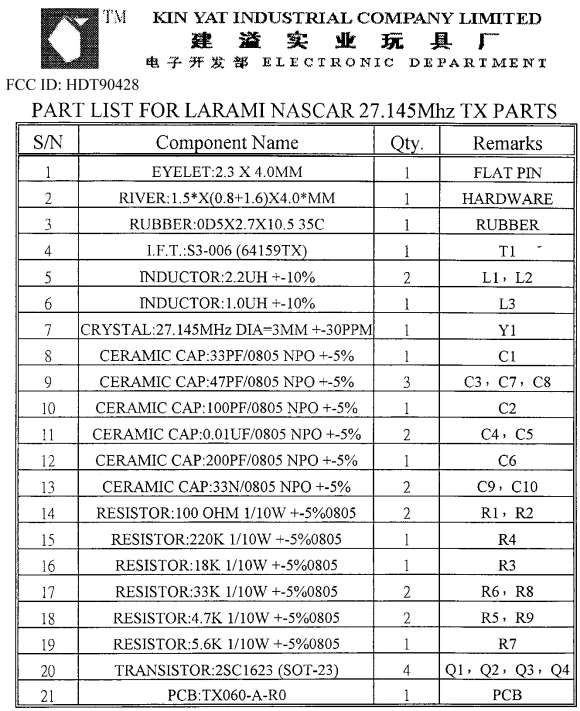

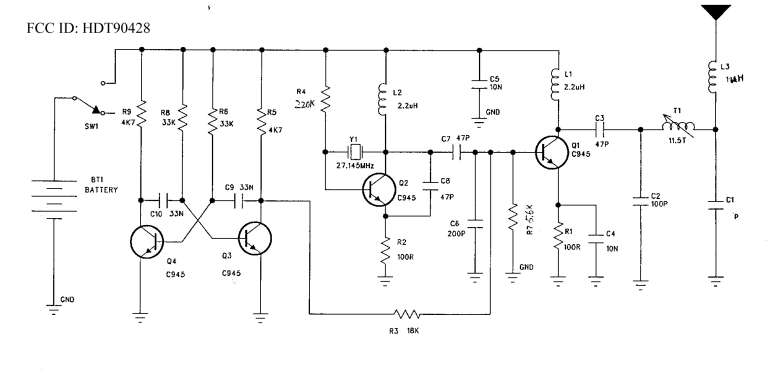

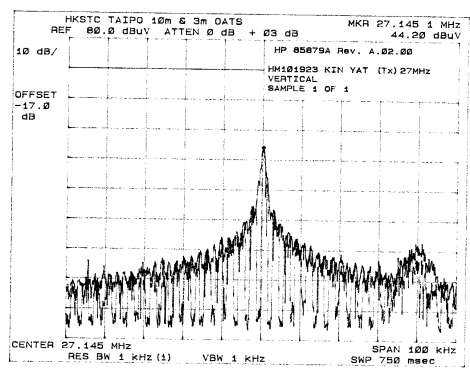

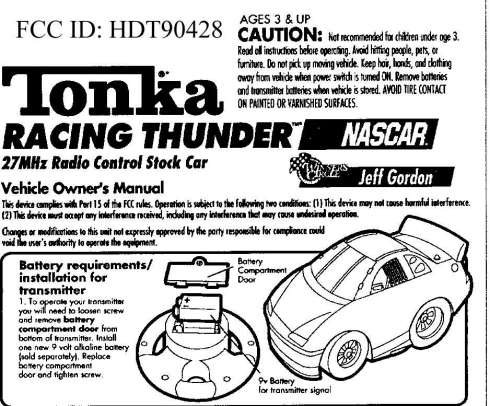

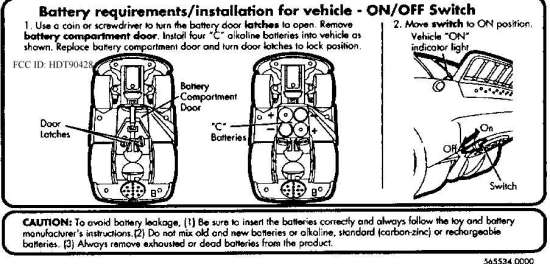

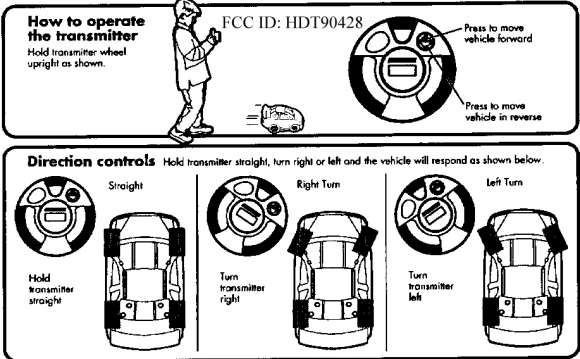

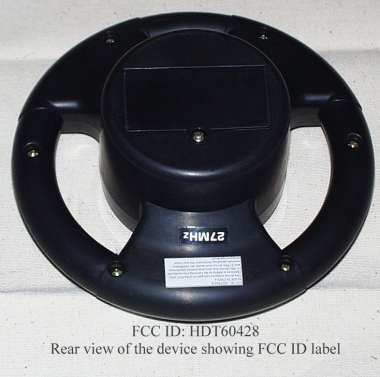

Date: 2000-01-10 TEST REPORT Page 1 of 7 No.: HM101923 Law Man KitKitty ChoyPatrick Wong Testing EngineerVerify byPatrick Wong for Managing Director APPLICANT: (CODE:KIY001) KIN YAT INDUSTRIAL CO., LTD. 7/F., Galaxy Factory Building, 25-27 Luk Hop Street, San Po Kong, Kowloon, Hong Kong. DATE OF SAMPLES RECEIVED: 1999.12.21. DATE OF TESTING: 1999.12.31. DESCRIPTION OF SAMPLE(S): A sample of product said to be: Product:NASCAR RACING THUNDER - JEFF GORDON Manufacturer:KIN YAT INDUSTRIAL CO., LTD. Model Number:90428 Brand Name:HASBRO Rating:9Vd.c. ("6F22" size battery × 1) Origin:CHINA INVESTIGATIONS REQUESTED: Measurement to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiator. RESULT/ REMARK : Please see attached sheet(s). CONCLUSION: From the measurement data obtained, the tested sample was considered to have COMPLIED with the clause 15.227 of Federal Communications Commission Rules and Regulations Part 15. TEST EQUIPMENT AUDIT: Please see Appendix A Date: 2000-01-10 TEST REPORT Page 2 of 7 No.: HM101923 T E S T S U M M A R Y *** INTENTIONAL RADIATOR *** (1) Measurement of Emission of RF energy on the carrier frequency.............Satisfactory (2) Measurement of the out-of band emissions including harmonics..............Satisfactory (3) Measurement of Emission Within Band Edges.........................................Satisfactory (4) Measurement of Line-Conducted Voltage onto AC Power Line...............Not applicable T E S T D A T A Please refer to the attached result sheets. Date: 2000-01-10 TEST REPORT Page 3 of 7 No.: HM101923 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference TEST REFERENCE: FCC Rules Part 15 Subpart Section 15.227(26.96-27.28MHz) TEST CONDITION: Normal TEST DATE: 1999.12.31. Emission of RF energy on the carrier frequency -- 27.145 MHz (PEAK VALUE) Emission Frequency Meter Reading PolarizationAntenna Factor Field Strength (at 3m) FCC Limit MHz dB( μ V) H-VdB dB( μ V/m) μ V/m μ V/m 27.145.3V+18.563.81548.8100000 Emission of RF energy on the carrier frequency -- 27.145 MHz (AVERAGE VALUE) Emission Frequency Meter Reading PolarizationAntenna Factor Field Strength (at 3m)FCC Limit MHz dB( μ V) H-VdB dB( μ V/m) μ V/m μ V/m 27.126.9V+18.545.4186.210000 ... to be continued Date: 2000-01-10 TEST REPORT Page 4 of 7 No.: HM101923 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. TEST REFERENCE: FCC Rules Part 15 Section 15.227 (26.96-27.28 MHz) TEST CONDITION : Normal TEST DATE : 1999.12.31 The out-of-band emissions, including harmonics (25-1000 MHz) (CISPR VALUE) Emission Frequency Meter Reading Polarizati on Antenna factor Field Strength (at 3m)FCC Limit MHz dB( μ V) H-VdB dB( μ V) μ V/m μ V/m 54.3<1.0+12.9<13.9<5.0100 81.4<1.0+8.9<9.9<3.1100 108.6<1.0+12.2<13.2<4.6150 135.7<1.0+10.8<11.8<3.9150 162.9<1.0+9.5<10.5<3.3150 190.0<1.0+11.1<12.1<4.0150 217.2<1.0+12.2<13.2<4.6200 244.3<1.0+13.5<14.5<5.3200 271.5<1.0+16.0<17.0<7.1200 298.6<1.0+16.5<17.5<7.5200 325.7<1.0+16.6<17.6<7.6200 352.9<1.0+16.7<17.7<7.7200 380.0<1.0+17.4<18.4<8.3200 407.2<1.0+18.2<19.2<9.1200 434.3<1.0+19.5<20.5<10.6200 461.5<1.0+20.1<21.1<11.4200 488.6<1.0+20.3<21.3<11.6200 515.8<1.0+20.9<21.9<12.4200 542.9<1.0+22.1<23.1<14.3200 570.0<1.0+22.8<23.8<15.5200 597.2<1.0+23.3<24.3<16.4200 624.3<1.0+23.4<24.4<16.6200 651.5<1.0+23.6<24.6<17.0200 678.6<1.0+24.9<25.9<19.7200 705.8<1.0+25.1<26.1<20.2200 732.9<1.0+25.4<26.4<20.9200 760.1<1.0+26.4<27.4<23.4200 787.2<1.0+26.8<27.8<24.5200 814.4<1.0+26.7<27.7<24.3200 ... to be continued Date: 2000-01-10 TEST REPORT Page 5 of 7 No.: HM101923 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. TEST REFERENCE: FCC Rules Part 15 Section 15.227 (26.96-27.28 MHz) TEST CONDITION : Normal TEST DATE : 1999.12.31 The out-of-band emissions, including harmonics (25-1000 MHz) (CISPR VALUE) Emission Frequency Meter Reading PolarizationAntenna factor Field Strength (at 3m)FCC Limit MHz dB( μ V) H-VdB dB( μ V) μ V/m μ V/m 841.5<1.0+26.1<27.1<22.6200 868.6<1.0+26.8<27.8<24.5200 895.8<1.0+27.1<28.1<25.4200 922.9<1.0+27.5<28.5<26.6200 950.1<1.0+28.1<29.1<28.5200 977.2<1.0+28.2<29.2<28.8500 ====================SUMMARY=================== All data is within limits ============================================= Broad-band Antennas were used both polarizations of emissions were measured. polarizations at highest reading indicated as: H -- HorizontalV -- Vertical ============================================= Date: 2000-01-10 TEST REPORT Page 6 of 7 No.: HM101923 *** INTENTIONAL RADIATOR *** (2) Measurement of Emissions Within Band Edges . TEST REFERENCE: FCC Rules Part 15 section 15.227(26.96-27.28MHz) TEST CONDITION: Normal TEST DATE : 1999.12.31. Please see exhibit of bandwidth RESULTS AND NOTES L: FCC Lower Band Edge..............................................................................-> 26.960MHz H: FCC Higher Band Edge.............................................................................-> 27.280MHz C: Unmodulated carrier at frequency...............................................................-> 27.145MHz D: No. of dB from unmodulated carrier...........................................................-> 44.20dB SPECTRUM ANALYZER SETTINGS Resolution bandwidth : 1.0KHz Frequency span: 10.0KHz/div No. of dB/div: 10.0dB/div FCC Limit Minimum No. of dB from unmodulated carrier required : 26.0dB ================SUMMARY================ All data is within limits ====================================== Date: 2000-01-10 TEST REPORT Page 7 of 7 No.: HM101923 NOTES FOR THE RADIATION MEASUREMENT (1) Test site facility: Open field test site located at Taipo (Hong Kong) with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC Rules. (2) Distance between the EUT and measuring antenna: 3 meters. (3) Measuring instrumentations: CISPR Quasi-peak type field strength meter (25 MHz - 1000 MHz). 6 dB bandwidth set at 120KHz. Also, peak leve…

Text truncated - open the document above for the full version.

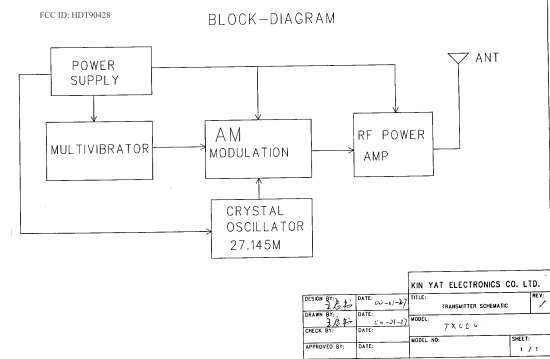

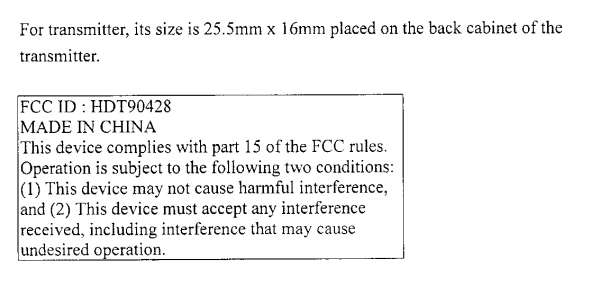

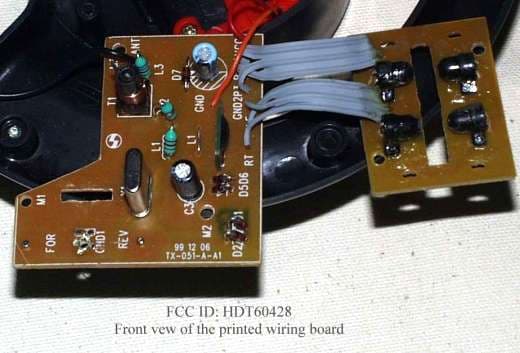

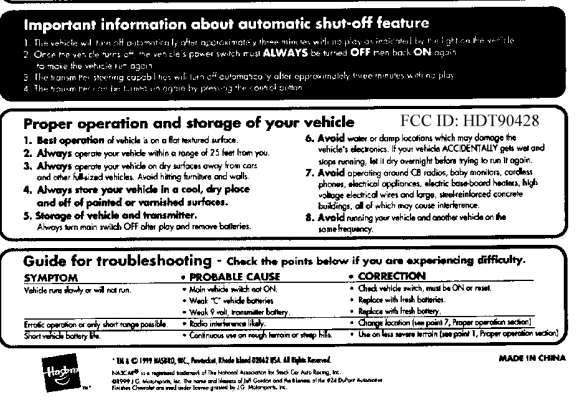

Test Report

Date: 2000-01-10 TEST REPORT Page A1 of A1 No.: HM101923 APPENDIX A TEST EQUIPMENT AUDIT Radiated Emission EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL. EM007SPECTRUM ANALYZERHEWLETT PACKARDHP85660B3144A2119211/06/99 EM008SPECTRUM ANALYZER DISPLAYHEWLETT PACKARDHP85662A3144A2051411/06/99 EM009QUASI PEAK ADAPTORHEWLETT PACKARDHP85650A3303A0170211/06/99 EM010RF PRESELECTORHEWLETT PACKARDHP85685A3221A0141011/06/99 EM011ATTENNUATOR/SWITCHHEWLETT PACKARDHP11713A2508A1059511/06/99 EM012PRE-AMPLIFIERHEWLETT PACKARDHP8449B3008A0026211/06/99 EM013CONTROLLER (COMPUTER), COLOR MONITOR, KEYBOARD & MOUSE FLOPPY DRIVE HEWLET T P ACKARD HEWLET T P ACKARD HEWLET T P ACKARD HP9000 HP A1097C HP9133L 6226A60314 3151J39517 2623A02468 CM EM017ANTENNAARA INC.LPB-2513/A1069TBD EM072SIGNAL GENERATORHEWLETT PACKARD8640B1948A1189230/03/98 EM083HKSTC OPEN AREA TEST SITEHKSTCN/AN/A25/02/99 EM145EMI TEST RECEIVERR & SESCS 30830245/02110/05/99 Re marks:- CMCorrective Maintenance N/ANot Applicable or Not Available TBDTo Be Determined
