HED2835WACCWireless LAN PC Card

Wireless LAN PC Card User Guide 3CRSHPW796 3CRWE154G72 Wireless LAN PC Card http://www.3com.com/ Published April 2003 DUA0079-6AAA03 DRAFT 3Com Corporation 5500 Great America Parkway, Santa Clara, California 95052-8145 Copyright © 2003, 3Com Corporation. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from 3Com Corporation. 3Com Corporation reserves the right to revise this documentation and to make changes in content from time to time without obligation on the part of 3Com Corporation to provide notification of such revision or change. 3Com Corporation provides this documentation without warranty, term, or condition of any kind, either implied or expressed, including, but not limited to, the implied warranties, terms or conditions of merchantability, satisfactory quality, and fitness for a particular purpose. 3Com may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time. If there is any software on removable media described in this documentation, it is furnished under a license agreement included with the product as a separate document, in the hard copy documentation, or on the removable media in a directory file named LICENSE.TXT or !LICENSE.TXT. If you are unable to locate a copy, please contact 3Com and a copy will be provided to you. UNITED STATES GOVERNMENT LEGEND If you are a United States government agency, then this documentation and the software described herein are provided to you subject to the following: All technical data and computer software are commercial in nature and developed solely at private expense. Software is delivered as “Commercial Computer Software” as defined in DFARS 252.227-7014 (June 1995) or as a “commercial item” as defined in FAR 2.101(a) and as such is provided with only such rights as are provided in 3Com’s standard commercial license for the Software. Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987), whichever is applicable. You agree not to remove or deface any portion of any legend provided on any licensed program or documentation contained in, or delivered to you in conjunction with, this User Guide. Unless otherwise indicated, 3Com registered trademarks are registered in the United States and may or may not be registered in other countries. 3Com and the 3Com logo are registered trademarks of 3Com Corporation. IEEE and 802 are registered trademarks of the Institute of Electrical and Electronics Engineers, Inc. Intel and Pentium are registered trademarks of Intel Corporation. Microsoft, MS-DOS, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Novell and NetWare are registered trademarks of Novell, Inc. UNIX is a registered trademark in the United States and other countries, licensed exclusively through X/Open Company, Ltd. Netscape Navigator is a registered trademark of Netscape Communications. JavaScript is a trademark of Sun Microsystems. All other company and product names may be trademarks of the respective companies with which they are associated. ENVIRONMENTAL STATEMENT It is the policy of 3Com Corporation to be environmentally-friendly in all operations. To uphold our policy, we are committed to: Establishing environmental performance standards that comply with national legislation and regulations. Conserving energy, materials and natural resources in all operations. Reducing the waste generated by all operations. Ensuring that all waste conforms to recognized environmental standards. Maximizing the recyclable and reusable content of all products. Ensuring that all products can be recycled, reused and disposed of safely. Ensuring that all products are labelled according to recognized environmental standards. Improving our environmental record on a continual basis. End of Life Statement 3Com processes allow for the recovery, reclamation and safe disposal of all end-of-life electronic components. Regulated Materials Statement 3Com products do not contain any hazardous or ozone-depleting material. Environmental Statement about the Documentation The documentation for this product is printed on paper that comes from sustainable, managed forests; it is fully biodegradable and recyclable, and is completely chlorine-free. The varnish is environmentally-friendly, and the inks are vegetable-based with a low heavy-metal content. Contents 1 Installing Your Wireless LAN PC Card and 3Com Wireless Card Manager 5 Installation CD 5 Windows XP, 2000, Me, and 98 SE 5 Confirming Device Installation 6 Installing 3Com Wireless Card Manager 6 Using Wireless Card Manager 6 Wireless LAN PC Card LED Indicators 6 2 Troubleshooting 7 Diagnosing Problems 7 Uninstalling the PC Card 7 Uninstalling Wireless Card Manager 8 Updating the Wireless LAN PC Card Driver 9 Windows XP and 2000 9 Windows Me and 98 SE 9 A Technical Support 11 Online Technical Services 11 World Wide Web Site 11 3Com Knowledgebase Web Services 11 3Com FTP Site 11 Support from Your Network Supplier 12 Support from 3Com 12 Returning Products for Repair 12 Regulatory Compliance Information 13 FCC Part 15 Notice (Applicable to use within the USA) 13 Unintentional Radiator 13 Manufacturer’s Declaration of Conformity 14 Industry Canada Notice (Applicable for use within Canada) 14 Avis de conformité à la réglementation d’Industrie Canada 14 Industry Canada (IC) Emissions Compliance Statement 15 Avis de conformité à la réglementation d’Industrie Canada 15 Safety Notice 15 European Community CE Notice 15 Contents 5 1 Installing Your Wireless LAN PC Card and 3Com Wireless Card Manager Installation CD The Installation CD contains: ■ Drivers for Windows XP, 2000, Millennium Edition (Windows Me), and 98 Second Edition (SE). ■ 3Com Wireless Card Manager ■ Warranty Information ■ This Wireless LAN…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 8, 2003 RE: Accton Technology Corporation FCC ID: HED2835WACC After a review of the submitted information, I have a few comments on the above referenced Application. General/EMC 1) The FRN Number provided with the application (FRN 0004281911) does not match Accton Technology Corporation. Please explain and/or please provide their correct FRN number. 2) Please provide photographs underneath the shield located on the bottom side of the board. 3) Please provide information regarding the RBW & VBW settings for PEAK radiated emissions > 1 GHz. 4) Because this device has been tested for SAR there are not any manual statements necessary regarding 2.5 cm. Please remove this information from the users manual (page 13 of 16). SAR Items 5) Although the device was tested with 0 cm separation for perpendicular to the phantom, this distance can cause loading of the antenna such that inaccurate readings are obtained. The FCC requests that this position typically be tested at 1.5 cm spacing. Note that you may include 0 separation distance if you wish, but the application should at least include the 1.5 cm spacing test for perpendicular to the phantom (see attached document). 6) Page 12 of 62 mentions validation at 900 MHz. Please explain. 7) Please correct the measurement uncertainty to include the expanded uncertainty as well. 8) Please comment of if the scan procedures given on page 13 for the system validation also apply to the general scan procedures for the test scans. 9) The test report does not appear to provide a description of the validation dipole used, other than including the calibration certificate. Please add this information to the report. Timothy R. Johnson Examining Engineer Direct Phone: 404-414-8071 mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Dear Timothy, Thanks for you kindly advise. As per your review comments, please see the explanation below: EMC 1) Sorry for carelessness mistake! We modified the 731 Form and have it attached for you review. 2) Please find the re-taken photo attached for your review as file named: Internal photo 2. 3) Please find the revised report on page 10 as per your requirement. 4) Please find the revised manual provided by our client for your review. SAR 5) We remeasured the 1.5 cm spacing test as per your requirement and added the test results to report. Please find the attachment for reviewing. 6) Sorry, it's a typo. We modified it as per your requirement. 7) Please see the SAR report showed on page 18, the uncertainty is 27.5%. 8) Please find the file attached as file named " Normal scan setting by default for evaluation test" as per your requirement. 9) We added the information on p.12 as per your requirement, please find the SAR report for your reference. I hope the supplementary satisfy all you requirement for reviewing this submission, if you have further question, please feel free to let me know. Thanks & Regards, Julia Chu -----Original Message----- From: Timothy R. Johnson [mailto:[email protected] ] Sent: Saturday, May 17, 2003 3:02 PM To: [email protected] Cc: [email protected] Subject: Review of Accton Technology Corporation, FCC ID: HED2835WACC To: [email protected] Subject: RE: Reply for Accton Technology Corporation, FCC ID: HED2835WACC Page 1 of 3In 6/3/2003Printed for "Timothy R. Johnson" <[email protected]> Elton, Attached are comments regarding review of this application. Thank You, Timothy R. Johnson, NARTE Certified EMC Engineer (No. EMC-002205-NE) Examining Engineer American TCB, Inc. 6731 Whittier Ave. McLean, VA 22101 email: [email protected] alternate email: [email protected] direct number: 404-414-8071 corporate phone: 703-847-4700 corporate fax: 703-847-6888 Your Global Partners in Quality ________________________________________________________________ Confidentiality Notice: All information or opinions expressed in this message and/or any attachments are those of the author and are not necessarily those of Intertek Testing Services or its associated companies. Intertek Testing Services accepts no responsibility for loss or damage arising from its use, including damage from virus. Any personal data contained in this e-mail is treated with the strictest confidence. If you have received this message in error, please notify us immediately and delete it from your system. Our privacy policy can be found at http://www.itslabtest.com/home/privacy.htm Please note that any direct business correspondence contained in this e-mail is subject to our business Terms & Conditions available upon request from the sender. 731 -revised.pdf Page 2 of 3In 6/3/2003Printed for "Timothy R. Johnson" <[email protected]> Installation guide14.pdf report-revised2.pdf Internal photo 2.doc Normal scan setting by default for evaluation test2.doc SAR report -6-2 revised.pdf Page 3 of 3In 6/3/2003Printed for "Timothy R. Johnson" <[email protected]>

Accton Technology Corporation No.1 Creation Rd. III, Science – based Industrial Park, Hsin Chu300, Taiwan, R.O.C. Tel: 886-3-5770270 Fax:886-3-5783839 FCC ID: HED2835WACC Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

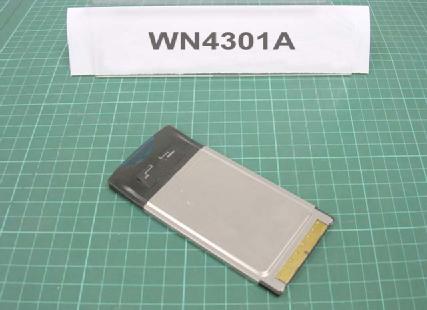

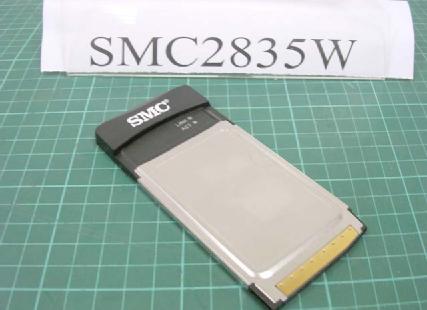

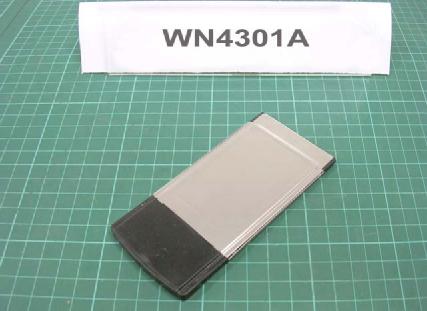

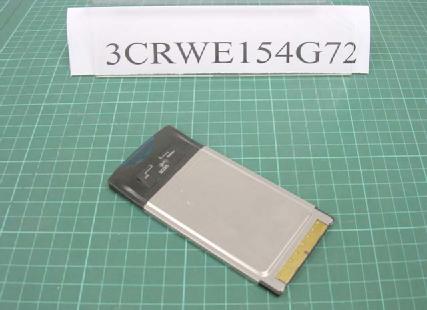

Photo 1: Outlook photo Photo 1-2: Outlook photo 3CRWE154G72 3CRWE154G72 Photo 2: Outlook for SMC2835W Photo 2-1: Outlook for SMC2835W SMC2835W SMC2835W Photo 3: Outlook for WN4301A Photo 3-1: Outlook for WN4301A WN4301A WN4301A

FCC ID Label Location

Photo 1: Inner view 3CRWE154G72 3CRWE154G72 Photo 2: Inner view 3CRWE154G72 3CRWE154G72 Photo 3: Inner view 3CRWE154G72 Photo 4: Inner view 3CRWE154G72 3CRWE154G72 Photo 5: Inner view 3CRWE154G72 3CRWE154G72

Photo 1: Internal photo 3CRWE154G72 3CRWE154G72 Photo 2: Internal photo 3CRWE154G72 3CRWE154G72 Photo 3: Internal photo 3CRWE154G72 3CRWE154G72

FCC ID: HED2835WACC Technical Description The transmitter of EUT is powered by host equipment. The antenna is printed integral antenna with MMCX connect. This device is a 2.4GHz 54Mbps Wireless Cardbus Adapter operates in 2.4GHz band, the maximum data rate could be 54Mbps. The other instruction, please have a look at the users manual. DSSS information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by DBPSK and DQPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps.

0597 ILAC MRA Specific Absorption Rate (SAR) Test Report for Accton Technology Corporation on the OfficeConnect Wireless 11g PC Card Model Number: 3CRWE154G72 Test Report: EME-030506 Date of Report: June 16, 2003 Date of test: June 13, 2003 Total No. of Pages Contained in this Report: 100 Accredited for testing to FCC Part 15 Tested by: Kevin Chen Reviewed by: Elton Chen Review Date: June 16, 2003 All services undertaken are subject to the following general policy: Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of Intertek Testing Services, Taiwan Ltd. Intertek Testing Services ETL SEMKO FCC ID. : HED2835WACC Report No.: EME-030506 Page 2 of 100 STATEMENT OF COMPLIANCE The Accton sample device, model # 3CRWE154G72 was evaluated in accordance with the requirements for compliance testing defined in FCC OET Bulletin 65, Supplement C (Edition 01-01). Testing was performed at the Intertek Testing Services facility in Hsinchu, Taiwan. For the evaluation, the dosimetric assessment system INDEXSAR SARA2 was used. The phantom employed was the box phantom of 2mm thick in one wall. The total uncertainty for the evaluation of the spatial peak SAR values averaged over a cube of 1g tissue mass had been assessed for this system to be ±27.5%. The device was tested at their maximum output power declared by the Accton In summary, the maximum spatial peak SAR value for the sample device averaged over 1g was found to be: Phantom Position SAR 1g , mW/g 2mm thick box phantom wall The EUT inserted into the left side of notebook PC, with EUT perpendicular to the phantom, 0 mm separation with 802.11b (DSSS Modulation). 1.282 mW/g. In conclusion, the tested Sample device was found to be in compliance with the requirements defined in OET Bulletin 65, Supplement C (Edition 01-01) for body configurations. Intertek Testing Services ETL SEMKO FCC ID. : HED2835WACC Report No.: EME-030506 Page 3 of 100 1.0 JOB DESCRIPTION 1.1 Client Information The 3CRWE154G72 has been tested at the request of: Company: Accton, Inc. No. 1 Creation Rd. III, Science-based Industrial Park Hsinchu 30077, Taiwan 1.2 Equipment under test (EUT) Product Descriptions: Equipment OfficeConnect Wireless 11g PC Card Trade Name Accton Model No: 3CRWE154G72 FCC ID HED2835WACC S/N No. Not Labeled Category Portable RF Exposure Uncontrolled Environment Frequency Band 2412 – 2462 MHz System DSSS, OFDM EUT Antenna Description Type PCB Printed Configuration permanently connected Dimensions 62.5 x 39mm Gain 1.5 dBi Use of Product : Wireless Data Communication Manufacturer: Accton Production is planned: [X] Yes, [ ] No EUT receive date: April 18, 2003 EUT received condition: Good operating condition prototype. Test start date: April 29, 2003 Test end date: June 13, 2003 Intertek Testing Services ETL SEMKO FCC ID. : HED2835WACC Report No.: EME-030506 Page 4 of 100 1.3 Test plan reference FCC Rule: Part 2.1093, FCC's OET Bulletin 65, Supplement C (Edition 01-01) 1.4 System test configuration 1.4.1 System block diagram & Support equipment Support Equipment Item # Equipment Model No. S/N 1 HP Laptop Computer XE 3 TW20705468 2 Dell Laptop Computer PP01L CN-06P83-48643-33V-0112 3 ASUS Laptop Computer M2400 33NP024328 1 Installed inside laptop with a PCMCIA Slot EUT Intertek Testing Services ETL SEMKO FCC ID. : HED2835WACC Report No.: EME-030506 Page 5 of 100 1.4.3 Test Condition During tests the worst-case data (max RF coupling) was determined with following conditions: Usage Operates with a portable computer Distance between antenna axis at the joint and the liquid surface: Laptop is touching the Phantom in all position Simulating human Head/ Body/Hand Body EUT Battery Device is powered from host computer through battery. Channel Frequency MHz Before SAR Test (dBm) After SAR Test (dBm) Low Channel - 1 2412 17.98 17.98 Mid Channel - 6 2437 19.41 19.40 802.11b Conducted output Power High Channel- 11 2462 18.43 18.44 Channel Frequency MHz Before SAR Test (dBm) After SAR Test (dBm) Low Channel - 1 2412 19.94 19.92 Mid Channel - 6 2437 20.33 20.31 802.11g Conducted output Power High Channel- 11 2462 20.02 20.00 The spatial peak SAR values were assessed for lowest, middle and highest operating channels, defined by the manufacturer. The conducted output power was measured before and after the test using an average power meter. Plug the EUT into Notebook and turn on the power, then run the test program “cTxRx 1.4.1” under Windows OS. The EUT was transmitted continuously during the test. After verifying the maximum output power, we found the maximum output power of 802.11b was occurred at 11Mbps data rate, and 802.11g was occurred at 12Mbps. Three typical hosts as listed in Section 1.4.1 above were subjected to the SAR testing. 802.11g (OFDM Modulation) was found the power exceeding 100 mW in one host and repeated on the other two hosts. All the test data were performed under the above transmission rate. Intertek Testing Services ETL SEMKO FCC ID. : HED2835WACC Report No.: EME-030506 Page 6 of 100 1.5 Modifications required for compliance Intertek Testing Services implemented no modifications. 1.6 Additions, deviations and exclusions from standards The phantom employed was the box phantom of 2mm thick in vertical wall. Intertek Testing Services ETL SEMKO FCC ID. : HED2835WACC Report No.: EME-030506 Page 7 of 100 2.0 SAR EVALUATION 2.1 SAR Limits The following FCC limits for SAR apply to devices operate in General Population/Uncontrolled Exposure environment: EXPOSURE (General Population/Uncontrolled Exposure environment) SAR (W/kg) Average over the whole body 0.08 Spatial Peak (1g) 1.60 Spatial Peak for hands, wrists, feet and ankles (10g) 4.00 Intertek Testing Services ETL SEMKO FCC ID. : HED2835WACC Re…

Text truncated - open the document above for the full version.

Intertek Testing Services ETL SEMKO FCC ID. : HED2835WACC Report No.: EME-030504 Page 1 of 33 EMC TEST REPORT Report No. : EME-030504 Model No. : 3CRWE154G72 Issued Date : April 29, 2003 Applicant : Accton Technology Corporation No. 1 Creation Rd. III, Science-based Industrial Park Hsinchu 30077, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 33 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of ITS Laboratory. The test result in this report only applies to the tested sample. Kaysi Chen Project Engineer Reviewed By Elton Chen Intertek Testing Services ETL SEMKO FCC ID. : HED2835WACC Report No.: EME-030504 Page 2 of 33 Table of Contents Summary of Tests.........................................................................................................3 1. General information..................................................................................................4 1.1 Identification of the EUT....................................................................................4 1.2 Additional information about the EUT................................................................4 1.3 Antenna description............................................................................................5 1.4 Peripherals equipment.........................................................................................5 2. Test specifications.....................................................................................................6 2.1 Test standard.......................................................................................................6 2.2 Operation mode...................................................................................................6 2.3 Test equipment....................................................................................................7 3. Minimum 6dB Bandwidth test..................................................................................8 3.1 Operating environment........................................................................................8 3.2 Test setup & procedure........................................................................................8 3.3 Measured data of Minimum 6dB Bandwidth test results......................................8 4. Maximum Output Power test....................................................................................9 4.1 Operating environment........................................................................................9 4.2 Test setup & procedure........................................................................................9 4.3 Measured data of Maximum Output Power test results........................................9 5. Radiated Emission test............................................................................................10 5.1 Operating environment......................................................................................10 5.2 Test setup & procedure......................................................................................10 5.3 Emission limits.................................................................................................11 5.4 Radiated spurious emission test data.................................................................12 5.4.1 Measurement results: frequencies equal to or less than 1 GHz........................12 5.4.2 Measurement results: frequency above 1GHz.................................................18 6. Power Spectrum Density test..................................................................................24 6.1 Operating environment......................................................................................24 6.2 Test setup & procedure......................................................................................24 6.3 Measured data of Power Spectrum Density test results......................................24 7. Emission on the band edge §FCC 15.247(C)...........................................................25 8. Power Line Conducted Emission test §FCC 15.207................................................26 8.1 Operating environment......................................................................................26 8.2 Test setup & procedure......................................................................................26 8.3 Power Line Conducted Emission test data.........................................................28 Intertek Testing Services ETL SEMKO FCC ID. : HED2835WACC Report No.: EME-030504 Page 3 of 33 Summary of Tests OfficeConnect Wireless 11g PC Card Model: 3CRWE154G72 FCC ID: HED2835WACC Test Reference Results Minimum 6dB Bandwidth test 15.247(a)(2) Complies Maximum Output Power test 15.247(b) Complies Radiated Spurious Emission test 15.205, 15.209 Complies Power Spectrum Density test 15.247(d) Complies Power Line Conducted Emission test 15.207 Complies Intertek Testing Services ETL SEMKO FCC ID. : HED2835WACC Report No.: EME-030504 Page 4 of 33 1. General information 1.1 Identification of the EUT Applicant : Accton Technology Corporation Product : OfficeConnect Wireless 11g PC Card Model No. : 3CRWE154G72 FCC ID. : HED2835WACC Frequency Range : 2412~2462 MHz Channel Number : 11 Channels Frequency of Each Channel : 2412MHz, 2417MHz, 2422MHz, 2427MHz, 2432MHz, 2437MHz, 2442MHz, 2447MHz, 2452MHz, 2457MHz, 2462MHz Type of Modulation : DSSS, OFDM Rated Power : 3.0V ~ 3.6V Power Cord : N/A Test Voltage : 120Vac, 60Hz Sample Received : April 18, 2003 Test Date(s) : April 21, 2003 to April 24, 2003 A FCC DoC report has been generated for the client. 1.2 Additional information about the EUT The EUT is another cutting edge introduction in 2.4GHz wireless communication for user’s lapt…

Text truncated - open the document above for the full version.

Photo 1: Conducted Test Set-up (front) Photo 2: Conducted Test Set-up (rear)

Intertek Testing Services ETL SEMKO Report No.: EME-030505 Page 1 of 31 Photo 1: Spurious Test Set-up (front) Photo 2: Spurious Test Set-up (rear)
