[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME : OfficeConnect Wireless 11g Access Point MODEL NO : 3CRWE454G72 TRADE NAME : 3Com IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO : RF920612H05 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION ManufacturerUSA Local Representative Company name: Accton Technology Corporation Company name: 3Com Corporation Address: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Address: 5500 Great America Parkway Santa Clara, CA 95052 Contact Person: Hsoang-Shen Chen Contact Person: Dan Lawless Title: Section Manager Title: Regulatory Manager Tel/Fax: Tel:886-3-5770270 Fax:886-3-5783839 Tel/Fax: Tel: (408) 326-5000 Fax: (408) 326-5001

http://www.3com.com/ Part No. DUA0045-4AAA01 Rev. 01 Published July 2003 OfficeConnect ® Wireless 11g Access Point User Guide 3CRWE454G72 3Com Corporation 5500 Great America Parkway Santa Clara, California 95052-8145 Copyright © 2003, 3Com Corporation. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from 3Com Corporation. 3Com Technologies reserves the right to revise this documentation and to make changes in content from time to time without obligation on the part of 3Com Technologies to provide notification of such revision or change. 3Com Corporation provides this documentation without warranty, term, or condition of any kind, either implied or expressed, including, but not limited to, the implied warranties, terms or conditions of merchantability, satisfactory quality, and fitness for a particular purpose. 3Com may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time. If there is any software on removable media described in this documentation, it is furnished under a license agreement included with the product as a separate document, in the hard copy documentation, or on the removable media in a directory file named LICENSE.TXT or !LICENSE.TXT. If you are unable to locate a copy, please contact 3Com and a copy will be provided to you. UNITED STATES GOVERNMENT LEGEND If you are a United States government agency, then this documentation and the software described herein are provided to you subject to the following: All technical data and computer software are commercial in nature and developed solely at private expense. Software is delivered as “Commercial Computer Software” as defined in DFARS 252.227-7014 (June 1995) or as a “commercial item” as defined in FAR 2.101(a) and as such is provided with only such rights as are provided in 3Com’s standard commercial license for the Software. Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987), whichever is applicable. You agree not to remove or deface any portion of any legend provided on any licensed program or documentation contained in, or delivered to you in conjunction with, this User Guide. Unless otherwise indicated, 3Com registered trademarks are registered in the United States and may or may not be registered in other countries. 3Com, OfficeConnect and the 3Com logo are registered trademarks of 3Com Corporation. Intel and Pentium are registered trademarks of Intel Corporation. Microsoft, MS-DOS, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Novell and NetWare are registered trademarks of Novell, Inc. UNIX is a registered trademark in the United States and other countries, licensed exclusively through X/Open Company, Ltd. Netscape Navigator is a registered trademark of Netscape Communications. JavaScript is a trademark of Sun Microsystems Wi-Fi and the Wi-Fi logo are trademarks of WECA (Wireless Ethernet Compatibility Alliance) IEEE and 802 are trademarks of the Institute of Electrical and Electronics Engineers, Inc. All other company and product names may be trademarks of the respective companies with which they are associated. ENVIRONMENTAL STATEMENT It is the policy of 3Com Corporation to be environmentally-friendly in all operations. To uphold our policy, we are committed to: Establishing environmental performance standards that comply with national legislation and regulations. Conserving energy, materials and natural resources in all operations. Reducing the waste generated by all operations. Ensuring that all waste conforms to recognized environmental standards. Maximizing the recyclable and reusable content of all products. Ensuring that all products can be recycled, reused and disposed of safely. Ensuring that all products are labelled according to recognized environmental standards. Improving our environmental record on a continual basis. End of Life Statement 3Com processes allow for the recovery, reclamation and safe disposal of all end-of-life electronic components. Regulated Materials Statement 3Com products do not contain any hazardous or ozone-depleting material. Environmental Statement about the Documentation The documentation for this product is printed on paper that comes from sustainable, managed forests; it is fully biodegradable and recyclable, and is completely chlorine-free. The varnish is environmentally-friendly, and the inks are vegetable-based with a low heavy-metal content. CONTENTS ABOUT THIS GUIDE Naming Convention7 Conventions8 Feedback about this User Guide8 Related Documentation9 Product Registration9 1INTRODUCING THE ACCESS POINT OfficeConnect Wireless 11g Access Point12 Access Point Advantages13 Package Contents13 Minimum System and Component Requirements14 Front Panel14 Rear Panel16 2HARDWARE INSTALLATION Introduction17 Safety Information17 Positioning the Access Point17 Using the Rubber Feet18 Wall Mounting18 Powering Up the Access Point19 Connecting the Access Point19 3RUNNING THE SETUP WIZARD Accessing the Wizard21 Password26 LAN Settings26 Wireless Settings28 Summary30 4ACCESS POINT CONFIGURATION Navigating Through the Access Point Configuration Pages31 Main Menu31 Option Tabs32 Welcome Screen32 Notice Board33 Password33 Wizard34 LAN Settings34 Unit Configuration34 DHCP Clients List38 Wireless Settings39 Configuration39 Encryption41 Configuring WPA Encryption41 Configuring WEP Encryption42 Connection Control44 Client List47 Profile48 System Tools50 Restart50 Configuration50 Upgrade51 Status and Logs53 Status54 Logs54 Support and Feedback54 5CLIENT BRIDGE MODE CONFIGURATION What is Client Bridge Mode?57 Switching to Client Bridge Mode57 Configuring Client Bridge Mode58 Welcome Menu58 LAN Settings59 Wireless Settings59 Configuration60 Encryption60 Restart63 Status and Logs6…

Text truncated - open the document above for the full version.

Accton Technology Corporation No.1 Creation Rd. III, Science – based Industrial Park, Hsin Chu300, Taiwan, R.O.C. Tel:886-3-5770270 Fax:886-3-5783839 FCC ID : Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ------------------------------------------------------ Hsoang-Shen Chen / Section Manager E-mail:[email protected]

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 15, 2003 RE: Accton Technology Corporation FCC ID: HED3CRWE454G72 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The users manual page 99 mentions that the device must utilize shielded interface cables. However, page 79 states the device may uses shielded or unshielded cables. Additionally, the testing configuration given in the test report page 8 does not clearly label the UTP cable as shielded or unshielded. Given the prevalence of unshielded UTP, please confirm if the device was tested with a shielded or unshielded UTP cable. If the device was tested and meets the requirements with an unshielded UTP cable, it would be best to remove the phrase "(for example, use only shielded interface cables when connecting to computer or peripheral devices)" from the manual. However if a shielded cable is required, please have the manufacturer confirm that the unit ships with a shielded cable and remove the reference to unshielded cables on page 79. 2) The calculation on note 1 on page 53 of the test report appears incorrect. 103.7 - 57.53 = 46.17. Please correct. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

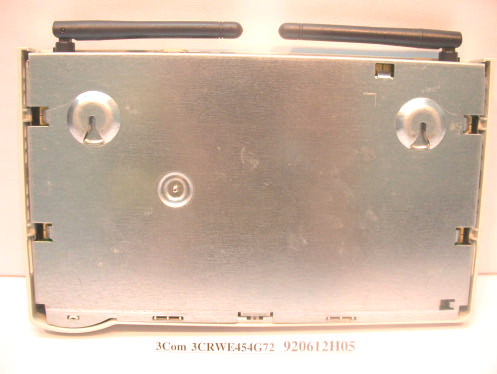

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

(Fig. 1) FCC ID: HED3CRWE454G72 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

100.0 8 0 . 0 IC:3857A-3CRWE454 FCC ID:HED3CRWE454G72 454G7-210-000-1.00 3CRWE454G72 3Com OfficeConnect Wireless 11g Access Point Sketch proposal for Sultan Unit Acceptances label. 12/06/03 3C0m Model: WL-525

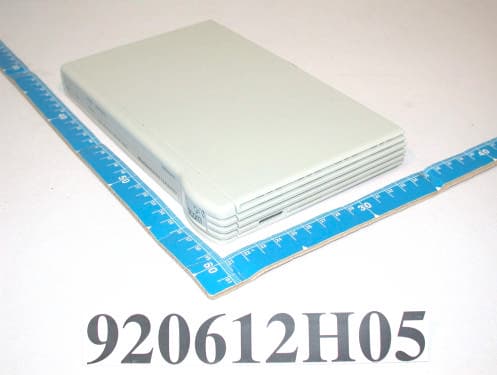

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

FCC ID: HED3CRWE454G72 ADT No. 920612H05 Operational Description This device is a OfficeConnect Wireless 11g Access Point which operates in the 2.4GHz band, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The transmitter of the EUT (OfficeConnect Wireless 11g Access Point) is powered by from host equipment. The antenna types used in this product is Integral dipole antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: HED3CRWE454G72 Report No.: RF920612H05 ADT No. 920612H05 1 RF EXPOSURE REPORT REPORT NO.: RF920612H05 MODEL NO.: 3CRWE454G72, WA4001A-32 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Lab Code: 200376-0 FCC ID: HED3CRWE454G72 Report No.: RF920612H05 ADT No. 920612H05 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: HED3CRWE454G72 Report No.: RF920612H05 ADT No. 920612H05 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: HED3CRWE454G72 Report No.: RF920612H05 ADT No. 920612H05 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 1.8Bi or 1.514 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For DSSS: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241259.4290.0178951.0 6243761.0940.0183961.0 11246263.6800.0191751.0 For OFDM: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241255.4630.0167001.0 6243759.4290.0178951.0 11246260.2560.0181441.0

FCC ID: HED3CRWE454G72 Report No.: RF920612H051Issued: Jun. 27, 2003 ADT No.: 920612H05 FCC TEST REPORT REPORT NO.: RF920612H05 MODEL NO.: 3CRWE454G72, WA4001A-32 RECEIVED: Jun. 12, 2003 TESTED: Jun. 19 to 26, 2003 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 62 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any government agencies. The test results in the report only apply to the tested sample. Lab Code: 200376-0 FCC ID: HED3CRWE454G72 Report No.: RF920612H052Issued: Jun. 27, 2003 ADT No.: 920612H05 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS............................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................7 3.4DESCRIPTION OF SUPPORT UNITS..................................................................8 4TEST TYPES AND RESULTS................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT.......................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..................................9 4.1.2TEST INSTRUMENTS.............................................................................................9 4.1.3TEST SETUP..........................................................................................................10 4.1.4EUT OPERATING CONDITIONS........................................................................11 4.1.5TEST RESULTS......................................................................................................12 4.2RADIATED EMISSION MEASUREMENT..........................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT......................................18 4.2.2TEST INSTRUMENTS...........................................................................................19 4.2.3TEST PROCEDURES...........................................................................................20 4.2.4TEST SETUP..........................................................................................................21 4.2.5EUT OPERATING CONDITIONS........................................................................21 4.2.6TEST RESULTS......................................................................................................22 4.2.7TEST RESULTS - DSSS.......................................................................................23 4.2.8TEST RESULTS -OFDM.......................................................................................26 4.36dB BANDWIDTH MEASUREMENT..................................................................29 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..............................................29 4.3.2TEST INSTRUMENTS...........................................................................................29 4.3.3TEST PROCEDURE..............................................................................................30 4.3.4TEST SETUP..........................................................................................................30 4.3.5EUT OPERATING CONDITIONS........................................................................30 4.3.6TEST RESULTS-DSSS.........................................................................................31 4.3.7TEST RESULTS-OFDM........................................................................................35 4.4MAXIMUM PEAK OUTPUT POWER..................................................................39 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............39 4.4.2TEST INSTRUMENTS...........................................................................................39 4.4.3TEST PROCEDURES...........................................................................................40 FCC ID: HED3CRWE454G72 Report No.: RF920612H053Issued: Jun. 27, 2003 ADT No.: 920612H05 4.4.4TEST SETUP..........................................................................................................40 4.4.5EUT OPERATING CONDITIONS........................................................................40 4.4.6TEST RESULTS-DSSS.........................................................................................41 4.4.7TEST RESULTS-OFDM........................................................................................41 4.5POWER SPECTRAL DENSITY MEASUREMENT...........................................42 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.......................42 4.5.2TEST INSTRUMENTS...........................................................................................42 4.5.3TEST PROCEDURE..............................................................................................43 4.5.4TEST SETUP..........................................................................................................43 4.5.5EUT OPERATING CONDITIONS........................................................................43 4.5.6TEST RESULTS-DSSS.........................................................................................44 4.5.7TEST RESULT…

Text truncated - open the document above for the full version.

FCC ID: HED3CRWE454G72 Report No.: RF920612H0531Issued: Jun. 27, 2003 ADT No.: 920612H05 4.3.6 TEST RESULTS-DSSS EUT OfficeConnect Wireless 11g Access Point MODEL 3CRWE454G72 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 27 deg. C, 56 %RH, 964 hPa TESTED BY Tony Chen CHANNEL CHANNEL FREQUENCY (MHz) 6 dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1241211.080.5PASS 6243711.520.5PASS 11246211.480.5PASS FCC ID: HED3CRWE454G72 Report No.: RF920612H0532Issued: Jun. 27, 2003 ADT No.: 920612H05 CH1 FCC ID: HED3CRWE454G72 Report No.: RF920612H0533Issued: Jun. 27, 2003 ADT No.: 920612H05 CH6 FCC ID: HED3CRWE454G72 Report No.: RF920612H0534Issued: Jun. 27, 2003 ADT No.: 920612H05 CH11 FCC ID: HED3CRWE454G72 Report No.: RF920612H0535Issued: Jun. 27, 2003 ADT No.: 920612H05 4.3.7 TEST RESULTS-OFDM EUT OfficeConnect Wireless 11g Access Point MODEL 3CRWE454G72 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 27 deg. C, 56 %RH, 964 hPa TESTED BY Tony Chen CHANNEL CHANNEL FREQUENCY (MHz) 6 dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1241216.440.5PASS 6243716.440.5PASS 11246216.440.5PASS FCC ID: HED3CRWE454G72 Report No.: RF920612H0536Issued: Jun. 27, 2003 ADT No.: 920612H05 CH1 FCC ID: HED3CRWE454G72 Report No.: RF920612H0537Issued: Jun. 27, 2003 ADT No.: 920612H05 CH6 FCC ID: HED3CRWE454G72 Report No.: RF920612H0538Issued: Jun. 27, 2003 ADT No.: 920612H05 CH11 FCC ID: HED3CRWE454G72 Report No.: RF920612H0539Issued: Jun. 27, 2003 ADT No.: 920612H05 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZER FSEK30100049Jul. 24, 2003 R&S SIGNAL GENERATOR SMP04100011May 28, 2004 TEKTRONIX OSCILLOSCOPE TDS 220B048470Mar. 05, 2004 NARDA DETECTOR 4503AFSCM99899NA NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: HED3CRWE454G72 Report No.: RF920612H0540Issued: Jun. 27, 2003 ADT No.: 920612H05 4.4.3 TEST PROCEDURES 1. A detector was used on the output port of the EUT. An oscilloscope was used to read the response of the detector. 2. Replaced the EUT by the signal generator. The center frequency of the S.G was adjusted to the center frequency of the measured channel. 3. Adjusted the power to have the same reading on oscilloscope. Record the power level. 4.4.4 TEST SETUP 4.4.5 EUT OPERATING CONDITIONS Same as Item 4.3.5 EUT os S.GOSCILLOSCOPE FCC ID: HED3CRWE454G72 Report No.: RF920612H0541Issued: Jun. 27, 2003 ADT No.: 920612H05 4.4.6 TEST RESULTS-DSSS EUT OfficeConnect Wireless 11g Access Point MODEL3CRWE454G72 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 27 deg. C, 56 %RH, 964 hPa TESTED BYTony Chen CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241217.7430PASS 6243717.8630PASS 11246218.0430PASS 4.4.7 TEST RESULTS-OFDM EUT OfficeConnect Wireless 11g Access Point MODEL 3CRWE454G72 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 27 deg. C, 56 %RH, 964 hPa TESTED BY Tony Chen CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241217.4430PASS 6243717.7430PASS 11246217.8030PASS FCC ID: HED3CRWE454G72 Report No.: RF920612H0542Issued: Jun. 27, 2003 ADT No.: 920612H05 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP1093.4495.30Dec. 19, 2003 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: HED3CRWE454G72 Report No.: RF920612H0543Issued: Jun. 27, 2003 ADT No.: 920612H05 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3 kHz RBW and 30 kHz VBW, set sweep time=span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3KHz for a full response of the mixer in the spectrum analyzer. 4.5.4 TEST SETUP 4.5.5 EUT OPERATING CONDITIONS Same as 4.3.5 EUTSPECTRUM ANALYZER FCC ID: HED3CRWE454G72 Report No.: RF920612H0544Issued: Jun. 27, 2003 ADT No.: 920612H05 4.5.6 TEST RESULTS-DSSS EUT OfficeConnect Wireless 11g Access Point MODEL3CRWE454G72 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 27 deg. C, 56 %RH, 964 hPa TESTED BYTony Chen CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-6.828PASS 62437-6.488PASS 112462-6.168PASS FCC ID: HED3CRWE454G72 Report No.: RF920612H0545Issued: Jun. 27, 2003 ADT No.: 920612H05 CH1 FCC ID: HED3CRWE454G72 Report No.: RF920612H0546Issued: Jun. 27, 2003 ADT No.: 920612H05 CH6 FCC ID: HED3CRWE454G72 Report No.: RF920612H0547Issued: Jun. 27, 2003 ADT No.: 920612H05 CH11 FCC ID: HED3CRWE454G72 Report No.: RF920612H0548Issued: Jun. 27, 2003 ADT No.: 920612H05 4.5.7 TEST RESULTS-OFDM EUT OfficeConnect Wireless 11g Access Point MODEL3CRWE454G72 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 27 deg. C, 56 %RH, 964 hPa TESTED BYTony Chen CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-14.808PASS 62437-14.418PASS 112462-14.418PASS FCC ID: HED3CRWE454G72 Report No.: RF920612H0549Issued: Jun. 27, 2003 ADT No.: 920612H05 CH1 FCC ID: HED3CRWE454G72 Report No.: RF920612H0550Issued: Jun. 27, 2003 ADT No.: 920612H05 CH6 FCC ID: HED3CRWE454G72 Report No.: RF920612H0551Issued: Jun. 27, 2003 ADT No.: 920612H05 CH11 FCC ID: HED3CRWE454G72 Report No.: RF920612H0552Iss…

Text truncated - open the document above for the full version.

FCC ID: HED3CRWE454G72 Report No.: RF920612H0560Issued: Jun. 27, 2003 ADT No.: 920612H05 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: HED3CRWE454G72 Report No.: RF920612H0561Issued: Jun. 27, 2003 ADT No.: 920612H05 RADIATED EMISSION TEST
