HED3CRWE53196OfficeConnect Wireless Cable/DSL Gateway

OfficeConnect ® Wireless Cable/DSL Gateway(3CR WE5 31 96) About This Guide: This Guide takes you through the basic steps necessary to install and configureyour OfficeConnect Wireless Cable/DSL Gateway, and establish a connectionfrom your computers to the Internet. Throughout this guide the OfficeConnectWireless Cable/DSL Gateway is simply referred to as the Gateway.Note: 3Com recommends that the Gateway is configured from a wired Ethernet computer during the initial set-up. Your package contains:  One OfficeConnect Wireless Cable/DSL Gateway  One power adapter for use with the Gateway  Four rubber feet  One Ethernet cable  One CD-ROM containing the Gateway Discovery program and the User Guide  This Installation Guide  One Support and Safety Information Sheet  One Warranty Flyer System Requirements Before starting, you must ensure the following:  You already have a cable or DSL broadband connection to the Internet, with a suitable modem, and that this connection works properly. The modem must have an Ethernet port for connection to your Gateway.  You have a computer that has an Ethernet connection available and is already correctly configured for communication with the Internet. Your computer must be able to connect to the Internet via the modem, and must have a Web browser installed.  There are no other DHCP server devices on your local network that are responsible for allocating IP addresses to your computers and other network- connected devices. Your Gateway will now perform this function by default.  You have a computer with a wireless 802.11b adapter card installed. If one or more of these conditions are not met, refer to the comprehensive Gateway User Guide provided on the accompanying CD-ROM for further guidance. INTRODUCTION ABOUT YOUR GATEWAY 2 1 3 4 OfficeConnect Wireless Cable/DSL Gateway 3CRWE52196 LAN Status Cable/DSL 5 WLAN Alert 7 8 9 4 Ethernet Cable/ DSL 6 6 LAN Safety Information WARNING: Please read the ‘Important Safety Information’ section in the Support and Safety Information sheet before you start.VORSICHT: Bitte lesen Sie den Abschnitt ‘Wichtige Sicherheitsinformationen’ sorgfältig durch, bevor Sie das Gerät einschalten.AVERTISSEMENT: Veuillez lire attentivement la section "Consignes importantes de sécurité" avant de mettre en route. When positioning your Gateway, ensure: The unit is centrally located to the wireless computers that will connectto the Gateway. A suitable location might be on top of a high shelf orsimilar furniture to optimise wireless connections to computers in bothhorizontal and vertical directions, allowing coverage throughout.  It is out of direct sunlight and away from sources of heat.  Cabling is away from power lines, fluorescent lighting fixtures, andsources of electrical noise such as radios, transmitters and broadbandamplifiers.  In order to meet FCC radiation exposure regulations the Gateway should belocated in a position that maintains a minimum distance of 20 cm (8 inches)from any personnel (refer to the User Guide for details).  Water or moisture cannot enter the case of the unit.  Air flow around the unit and through the vents in the side of the caseis not restricted. We recommend you provide a minimum of 25 mm (1 in.) clearance. Using the Rubber FeetUse the four self-adhesive rubber feet to prevent your Gateway frommoving around on your desk or when stacking with other flat topOfficeConnect units. Only stick the feet to the marked areas at eachcorner of the underside of your Gateway. 4 Wireless LAN (WLAN) Status LED (yellow) If the LED is on it indicates that wireless networking isenabled. If the LED is flashing, the link is OK and data isbeing transmitted or received. If the LED is off, theWireless LAN has been disabled in the Gateway, or thereis a problem (refer to the User Guide). 5 Cable/DSL Status LED green (100Mbps link) / yellow (10Mbps link)If the LED is on, the link between the Gateway and thecable or DSL modem is OK. If the LED is flashing, the linkis OK and data is being transmitted or received. If the LEDis off, nothing is connected, the modem is switched offor there is a problem (refer to the "Problem Solving"section). 6 Wireless Antennae The antennae on the product should be placed in a ‘V’position when initially installed. 7 Power Adapter socket Only use the power adapter that is supplied with thisGateway. Do not use any other adapter. 8 Ethernet Cable/DSL port The Ethernet Cable/DSL port is configured as MDI, forconnection to your modem with the supplied straight-through patch cable. The port will automatically adjustto the correct speed and duplex. 9 Four 10/100 LAN ports Using suitable RJ45 cable, you can connect yourGateway to a computer, or to any other piece ofequipment that has an Ethernet connection (forexample, a hub or a switch). The LAN ports areconfigured as MDIX, for connection to a computer witha straight through RJ-45 cable. 1 Alert LED (orange) Indicates a number of different conditions, as describedbelow.Off - The Gateway is operating normally. Flashing quickly - Indicates one of the following conditions:• The Gateway has just been started up and is running a self-test routine, or • The administrator has invoked the Reset to Factory Defaults command, or • The system software is in the process of being upgraded In each of these cases, wait until the Gateway hascompleted the current operation and the alert LED is Off.Flashing slowly - The Gateway has completed the Reset to Factory Defaults process, and is waiting for you to reset the unit. To do this, remove power, wait 10 secondsand then re-apply power. The Gateway will then enter the start-up sequence and resume normal operation.On for 2 seconds, and then off - The Gateway has detected and prevented a hacker from attacking yournetwork from the Internet.Continuously on - A fault has been detected with your Gateway during the start-up process. Refer to the mainUser Guide. 2 Power LED (green) Indicates that the Gateway is powered on. 3 F…

Text truncated - open the document above for the full version.

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME : OfficeConnect Wireless Cable/DSL Gateway MODEL NO : 3CRWE53196 TRADE NAME : 3Com IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO : RF920220H03 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION ManufacturerUSA Local Representative Company name: Accton Technology Corporation Company name: 3Com Corporation Address: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Address: 5500 Great America Parkway Santa Clara, CA 95052 Contact Person: Hsoang-Shen Chen Contact Person: Dan Lawless Title: Section Manager Title: Regulatory Manager Tel/Fax: Tel:886-3-5770270 Fax:886-3-5783839 Tel/Fax: Tel: (408) 326-5000 Fax: (408) 326-5001

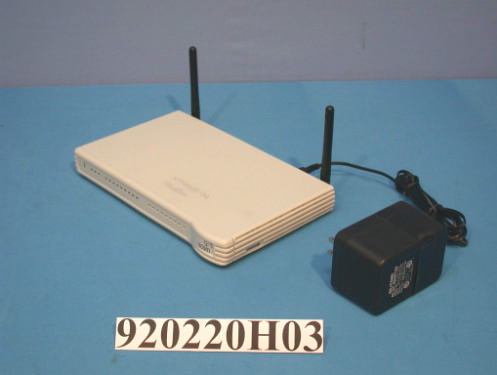

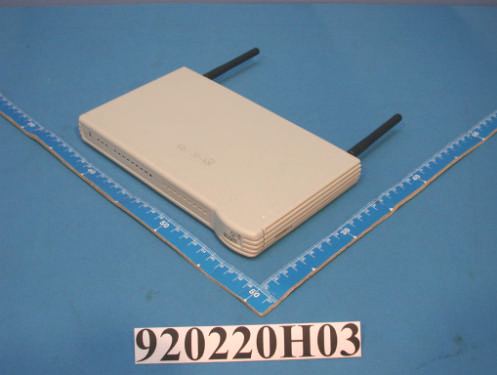

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

8 0 . 0 100.0

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Adapter Model No.: SLD81308 Page 7 Page 8 Page 9 Adapter Model No.: P48121000A040G Page 10 Page 11

FCC ID: HED3CRWE53196 Report No.: 920220H03 ADT No.: 920220H03 Operational Description The transmitter of the EUT (OfficeConnect Wireless Cable/DSL Gateway) is powered by Power Adapter. The antenna used in this product is External Dipole Antenna without connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by DBPSK and DQPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps.

FCC ID: HED3CRWE53196 ADT No.: 920220H03 RF EXPOSURE REPORT REPORT NO.: RF920220H03 MODEL NO.: 3CRWE53196 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Lab Code: 200376-0 FCC ID: HED3CRWE53196 ADT No.: 920220H03 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: HED3CRWE53196 ADT No.: 920220H03 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5 Climate Condition The temperature and related humidity: 20 deg. C and 63 % RH 6. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: HED3CRWE53196 ADT No.: 920220H03 7 Test Results 7.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 1.5dBi or 1.4 (numeric). 7.2 Output Power Into Antenna & RF Exposure value at distance 20cm: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241260.530.0171.0 6243765.920.0181.0 11246263.100.0181.0

FCC ID: HED3CRWE53196 Report No.: RF920220H03 1 Issued: Apr. 14, 2003 ADT No. 920220H03 FCC TEST REPORT REPORT NO.: RF920220H03 MODEL NO.: 3CRWE53196 RECEIVED: Feb. 20, 2003 TESTED: Feb. 20 to Apr. 10, 2003 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 57 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. Lab Code: 200376-0 FCC ID: HED3CRWE53196 Report No.: RF920220H03 2 Issued: Apr. 14, 2003 ADT No. 920220H03 Table of Contents 1 CERTIFICATION......................................................................................................4 2 SUMMARY OF TEST RESULTS..........................................................................5 3 GENERAL INFORMATION....................................................................................6 3.1 GENERAL DESCRIPTION OF EUT.....................................................................6 3.2 DESCRIPTION OF TEST MODES.......................................................................7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS..................................7 3.4 DESCRIPTION OF SUPPORT UNITS................................................................8 4 TEST TYPES AND RESULTS.............................................................................10 4.1 CONDUCTED EMISSION MEASUREMENT...................................................10 4.1.1 TEST INSTRUMENTS.............................................................................................10 4.1.2 TEST PROCEDURES...............................................................................................11 4.1.3 DEVIATION FROM TEST STANDARD....................................................................11 4.1.4 TEST SETUP...........................................................................................................12 4.1.5 EUT OPERATING CONDITIONS............................................................................13 4.1.6 TEST RESULTS.......................................................................................................14 4.2 RADIATED EMISSION MEASUREMENT.........................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................26 4.2.2 TEST INSTRUMENTS.............................................................................................27 4.2.3 TEST PROCEDURES..............................................................................................28 4.2.4 DEVIATION FROM TEST STANDARD...................................................................28 4.2.5 TEST SETUP...........................................................................................................29 4.2.6 EUT OPERATING CONDITIONS............................................................................29 4.2.7 TEST RESULTS.......................................................................................................30 4.3 6dB BANDWIDTH MEASUREMENT.................................................................35 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT....................................................35 4.3.2 TEST INSTRUMENTS.............................................................................................35 4.3.3 TEST PROCEDURE................................................................................................36 4.3.4 DEVIATION FROM TEST STANDARD...................................................................36 4.3.5 TEST SETUP...........................................................................................................36 4.3.6 EUT OPERATING CONDITIONS............................................................................36 4.3.7 TEST RESULTS.......................................................................................................37 4.4 MAXIMUM PEAK OUTPUT POWER.................................................................41 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......................41 4.4.2 INSTRUMENTS.......................................................................................................41 4.4.3 TEST PROCEDURES..............................................................................................42 4.4.4 DEVIATION FROM TEST STANDARD...................................................................42 4.4.5 TEST SETUP...........................................................................................................42 FCC ID: HED3CRWE53196 Report No.: RF920220H03 3 Issued: Apr. 14, 2003 ADT No. 920220H03 4.4.6 EUT OPERATING CONDITIONS............................................................................42 4.4.7 TEST RESULTS.......................................................................................................43 4.4.8 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..............................44 4.4.9 TEST INSTRUMENTS.............................................................................................44 4.4.10 TEST PROCEDURE................................................................................................45 4.4.11 DEVIATION FROM TEST STANDARD...................................................................45 4.4.12 TEST SETUP...........................................................................................................45 4.4.13 EUT OPERATING CONDITION...................................................................…

Text truncated - open the document above for the full version.

Report No.920220H03 ADT No.920220H03 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP1093.4495.30Dec. 19, 2003 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No.920220H03 ADT No.920220H03 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No.920220H03 ADT No.920220H03 TEST RESULTS The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No.920220H03 ADT No.920220H03 Ch1 Report No.920220H03 ADT No.920220H03 Ch11

FCC ID: HED3CRWE53196 Report No.: RF920220H03 55 Issued: Apr. 14, 2003 ADT No. 920220H03 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: HED3CRWE53196 Report No.: RF920220H03 56 Issued: Apr. 14, 2003 ADT No. 920220H03 RADIATED EMISSION TEST
