HED3CRWE554G72OfficeConnect Wireless 11g Cable/DSL Gateway

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME : OfficeConnect Wireless 11g Cable/DSL Gateway MODEL NO : 3CRWE554G72 TRADE NAME : 3Com IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO : RF920612H04 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION ManufacturerUSA Local Representative Company name: Accton Technology Corporation Company name: 3Com Corporation Address: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Address: 5500 Great America Parkway Santa Clara, CA 95052 Contact Person: Hsoang-Shen Chen Contact Person: Dan Lawless Title: Section Manager Title: Regulatory Manager Tel/Fax: Tel:886-3-5770270 Fax:886-3-5783839 Tel/Fax: Tel: (408) 326-5000 Fax: (408) 326-5001

http://www.3com.com/ Part No. DUA0055-4AAA01 Rev. 01 Published July 2003 OfficeConnect ® Wireless 11g Cable/DSL Gateway User Guide 3CRWE554G72 3Com Corporation 5500 Bayfront Plaza Santa Clara, California 95052-8145 Copyright © 2003, 3Com Corporation. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from 3Com Corporation. 3Com Corporation reserves the right to revise this documentation and to make changes in content from time to time without obligation on the part of 3Com Corporation to provide notification of such revision or change. 3Com Corporation provides this documentation without warranty, term, or condition of any kind, either implied or expressed, including, but not limited to, the implied warranties, terms or conditions of merchantability, satisfactory quality, and fitness for a particular purpose. 3Com may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time. If there is any software on removable media described in this documentation, it is furnished under a license agreement included with the product as a separate document, in the hard copy documentation, or on the removable media in a directory file named LICENSE.TXT or !LICENSE.TXT. If you are unable to locate a copy, please contact 3Com and a copy will be provided to you. UNITED STATES GOVERNMENT LEGEND If you are a United States government agency, then this documentation and the software described herein are provided to you subject to the following: All technical data and computer software are commercial in nature and developed solely at private expense. Software is delivered as “Commercial Computer Software” as defined in DFARS 252.227-7014 (June 1995) or as a “commercial item” as defined in FAR 2.101(a) and as such is provided with only such rights as are provided in 3Com’s standard commercial license for the Software. Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987), whichever is applicable. You agree not to remove or deface any portion of any legend provided on any licensed program or documentation contained in, or delivered to you in conjunction with, this User Guide. Unless otherwise indicated, 3Com registered trademarks are registered in the United States and may or may not be registered in other countries. 3Com, OfficeConnect and the 3Com logo are registered trademarks of 3Com Corporation. Intel and Pentium are registered trademarks of Intel Corporation. Microsoft, MS-DOS, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Novell and NetWare are registered trademarks of Novell, Inc. UNIX is a registered trademark in the United States and other countries, licensed exclusively through X/Open Company, Ltd. Netscape Navigator is a registered trademark of Netscape Communications. JavaScript is a trademark of Sun Microsystems Wi-Fi and the Wi-Fi logo are registered trademarks of the WI-Fi Alliance. IEEE and 802 are trademarks of the Institute of Electrical and Electronics Engineers, Inc. All other company and product names may be trademarks of the respective companies with which they are associated. ENVIRONMENTAL STATEMENT It is the policy of 3Com Corporation to be environmentally-friendly in all operations. To uphold our policy, we are committed to: Establishing environmental performance standards that comply with national legislation and regulations. Conserving energy, materials and natural resources in all operations. Reducing the waste generated by all operations. Ensuring that all waste conforms to recognized environmental standards. Maximizing the recyclable and reusable content of all products. Ensuring that all products can be recycled, reused and disposed of safely. Ensuring that all products are labelled according to recognized environmental standards. Improving our environmental record on a continual basis. End of Life Statement 3Com processes allow for the recovery, reclamation and safe disposal of all end-of-life electronic components. Regulated Materials Statement 3Com products do not contain any hazardous or ozone-depleting material. Environmental Statement about the Documentation The documentation for this product is printed on paper that comes from sustainable, managed forests; it is fully biodegradable and recyclable, and is completely chlorine-free. The varnish is environmentally-friendly, and the inks are vegetable-based with a low heavy-metal content. CONTENTS ABOUT THIS GUIDE Naming Convention7 Conventions8 Feedback about this User Guide8 Related Documentation9 Product Registration9 1INTRODUCING THE GATEWAY OfficeConnect Wireless 11g Cable/DSL Gateway11 Gateway Advantages13 Package Contents13 Minimum System and Component Requirements14 Front Panel14 Rear Panel16 2HARDWARE INSTALLATION Introduction19 Safety Information19 Positioning the Gateway19 Using the Rubber Feet20 Wall Mounting20 Before you Install your Gateway21 Powering Up the Gateway22 Connecting the Gateway22 3SETTING UP YOUR COMPUTERS Obtaining an IP Address Automatically25 Windows 200025 Windows XP27 Windows 95/98/ME27 Macintosh27 Disabling PPPoE and PPTP Client Software28 Disabling Web Proxy28 4RUNNING THE SETUP WIZARD Accessing the Wizard29 Password32 Time Zone32 WAN Settings33 LAN Settings38 DHCP38 Wireless Settings39 Summary40 5GATEWAY CONFIGURATION Navigating Through the Gateway Configuration Pages41 Main Menu41 Option Tabs42 Welcome Screen42 Notice Board42 Password43 Wizard44 LAN Settings44 Unit Configuration44 DHCP Clients List45 Wireless Settings47 Configuration47 Encryption49 Configuring WPA Encryption49 Configuring WEP Encryption50 Connection Control53 Client List55 Profile55 Internet Settings57 Connection to ISP58 Firewall63 Virtual Servers63 Special Applications65 PC Privileges67 URL Filter69 Security73 Syst…

Text truncated - open the document above for the full version.

Internet Settings61 ■Use this PC’s MAC address - This field is automatically filled in with the MAC address of the PC you are using to configure the Gateway. You should use this address only if you were previously using this computer to connect directly to your modem. ■Enter a new MAC address manually - Use this option if you want to specify a new MAC address. Enter the new MAC address. 5Check all settings and click Apply. PPP over Ethernet Figure 43 PPPoE Setup Screen To setup the Gateway for use with a PPP over Ethernet connection, use the following procedure: 1Select PPP over Ethernet in the IP Allocation Mode field. (Figure 43 ) 2Enter your Primary DNS Address and Secondary DNS address. Your ISP may provide you with primary and secondary DNS addresses. If they have been provided, enter the addresses in the appropriate text boxes. If not, leave 0.0.0.0 in the boxes. 3Enter the Host Name (optional). Some ISPs require a host name. If your ISP has this requirement, enter the host name in the Host Name text box. 4Enter your PPP over Ethernet user name in the PPPoE User Name text box. 5Enter a password in the PPPoE Password text box. 62CHAPTER 5: GATEWAY CONFIGURATION 6Enter your PPP over Ethernet service name in the PPPoE Service Name text box. Not all ISPs require a PPPoE service name. Only enter a service name if your ISP requires this. 7Select an idle time from the Maximum Idle Time drop-down list. This value will correspond to the amount of idle time (no Internet activity) that will pass before the Gateway automatically ends your PPP over Ethernet session. Since the Gateway contains its own PPPoE client, you no longer need to run PPPoE client software on your computer to access the Internet. PPTP Figure 44 PPTP Setup Screen To setup the Gateway for use with a PPTP connection, use the following procedure: 1Select PPTP (used by some European providers) in the IP Allocation Mode field. (Figure 44 ) 2Enter your PPTP server address in the PPTP Server Address text box (this is typically the address of your modem). 3Enter your PPTP user name in the PPTP User Name text box. 4Enter your password in the PPTP Password text box. Firewall63 5Enter your Primary DNS Address and Secondary DNS address. Your ISP may provide you with primary and secondary DNS addresses. If they have been provided, enter the addresses in the appropriate text boxes. If not, leave 0.0.0.0 in the boxes. 6Select an idle time from the Maximum Idle Time drop-down list. This value will correspond to the amount of idle time (no Internet activity) that will pass before the Gateway automatically ends your PPTP session. 7IP settings must be used when establishing a PPTP connection. Fill in the Initial IP Address and the Initial Subnet Mask fields if your ISP has provided you with these settings. Alternatively, if the PPTP server is located in your DSL modem, click Suggest to select an IP address on the same subnet as the PPTP server. FirewallOn the main frame of the Firewall setup screen is a menu with five tabs: Virtual Servers, Special Applications, PCs Privileges, URL Filter, and Security. Virtual ServersSelecting the Firewall option on the main menu displays the Virtual Servers setup screen. (Figure 45 ) Virtual DMZ Figure 45 Virtual Servers Screen 64CHAPTER 5: GATEWAY CONFIGURATION DMZ (De-Militarized Zone) Host is a computer without the protection of the firewall. This feature allows a single computer to be exposed to unrestricted 2-way communication from outside of your network. This feature should be used only if the Virtual Server or Special Applications options do not provide the level of access needed for certain applications. To configure one of your computers as a DMZ host, enter the last digit(s) of the IP address of the computer in the IP Address of DMZ Host text box, and then click Apply. Virtual Server Activating and configuring a virtual server allows one or more of the computers on your network to function as a public server. For example, one of your computers could be configured as an FTP server, allowing others outside of your office network to download files of your choosing. Or, if you have created a Web site, you can configure one of your computers as a Web server, so that others can view your Web site. To configure a virtual server: 1Click New on the right side of the screen to open the Virtual Server Settings dialogue box. (Figure 46 ) 2Enter the last digit(s) of the IP address of the computer in the Server IP Address text box. 3Select the Service from the pull-down list. (Figure 46 ) Figure 46 Virtual Servers Settings Screen Firewall65 Or select Custom to specify a suitable name for the service and then enter the port numbers required for that service. (Figure 47 ) Figure 47 Custom Setup Screen 4Click Add to save the settings. The port numbers are specified using a comma-separated list, with hyphens to denote port number ranges. So for example, entering 2, 3, 5-7 would cause ports 2, 3, 5, 6, and 7 to be activated. Special Applications Figure 48 Special Applications Screen Select Special Applications tab to display Authorized Application setup screen. (Figure 48 ) Some software applications require special or multiple connections to the Internet and these would normally be blocked by the firewall. For example Internet Telephony or Video conferences require multiple connections. So that these special applications can work properly and are not blocked, the firewall needs to be told about them. In each instance there will be a 66CHAPTER 5: GATEWAY CONFIGURATION trigger port and incoming port(s), where traffic on the trigger port tells the firewall to open the incoming ports. Each defined Special Application only supports a single computer user, and up to 10 Special Applications can be defined. Any incoming ports opened by a Special Application trigger will be closed after five minutes of inactivity. To configure special applications: 1Click New. 2Select the applications from the pull-down list. (Figure 49 ) …

Text truncated - open the document above for the full version.

Accton Technology Corporation No.1 Creation Rd. III, Science – based Industrial Park, Hsin Chu300, Taiwan, R.O.C. Tel:886-3-5770270 Fax:886-3-5783839 FCC ID : Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ------------------------------------------------------ Hsoang-Shen Chen / Section Manager E-mail:[email protected]

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 7, 2003 RE: Accton Technology Corporation FCC ID: HED3CRWE554G72 After a review of the submitted information, I have a few comments on the above referenced Application. 1) Please provide an additional photograph underneath the shield/copper tape located on the bottom of the board. 2) The users manual page 123 mentions that the device must utilize shielded interface cables. However, page 101 states the device may uses shielded or unshielded cables. Additionally, the testing configuration given in the test report page 9 does not clearly label the UTP cable as shielded or unshielded. Given the prevalence of unshielded UTP, please confirm if the device was tested with a shielded or unshielded UTP cable. If the device was tested and meets the requirements with an unshielded UTP cable, it would be best to remove the phrase "(for example, use only shielded interface cables when connecting to computer or peripheral devices)" from the manual. However if a shielded cable is required, please have the manufacturer confirm that the unit ships with a shielded cable and remove the reference to unshielded cables on page 79. 3) The calculation on note 1 on page 53 of the test report appears incorrect. 103.7 - 57.53 = 46.17. Please correct. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Subject: =?big5?B?pl6rSKFHIEZ3ZDogVXBkYXRlIHRvIFJldmlldyBvZiBBY2N0b24=?= Technology Corporation, FCC ID: HED3CRWE554G72 To: [email protected] Dear Timothy, For the case, item 1) - we upload the revised internal photo. item 2) - we upload the revised manual and revised report-2 Thanks! Best Regards, Amanda Chu ~~~~~~~~~~~~~~~~~~~~~~~~~ Certification Specialist ADT Corp. (Hsin Chu Office) TEL: 03-5935343 ext. 1737 FAX: 03-5935342 ~~~~~~~~~~~~~~~~~~~~~~~~~ Dear Timothy, For the case, item 1) - we will provide to you asap. item 2) - the correct cable is unshielded cable. The UTP cable which was described in th report is Unshielded Twist Pair Cable, if we showed "STP cable", that's mean Shielded Twist Pair. As no any informaion explains the cable type in the report, so caused the misunderstand. The revised manual will send to you asap. Sorry for the delay, If you have any further comments or questions, please do not hesitate to contact with me or Amanda, thanks a lot. Regards, ªL¤åÙy / Eric Lin

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: HED3CRWE554G72 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

100.0 8 0 . 0 IC:3857A-3CRWE554 FCC ID:HED3CRWE554G72 554G7-210-000-1.00 3CRWE554G72 3Com OfficeConnect Wireless 11g Cable/DSL Gateway Sketch proposal for Wizard Unit Acceptances label. 12/06/03 3C0m Model: WL-525

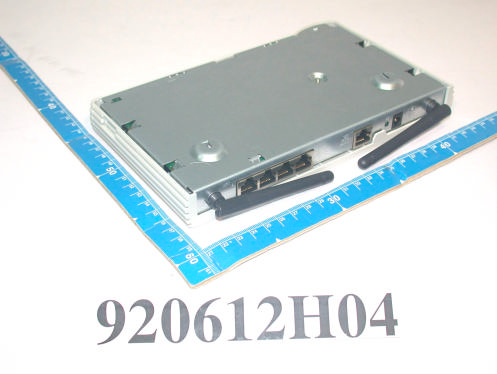

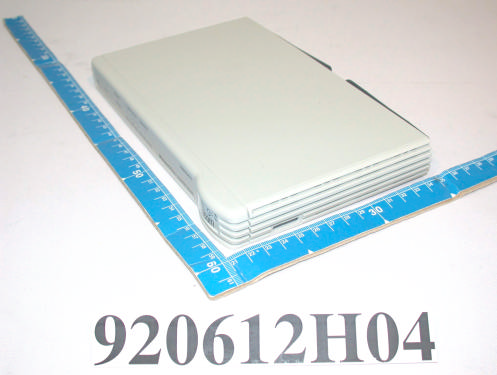

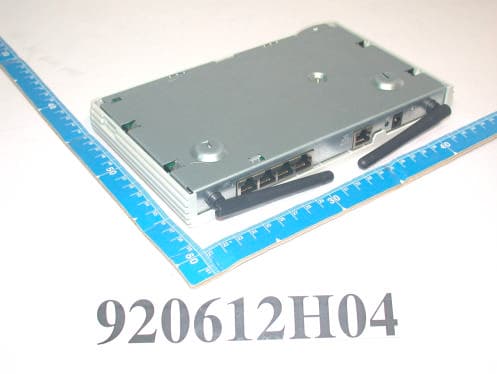

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9

FCC ID: HED3CRWE554G72 ADT No. 920612H04 Operational Description This device is a OfficeConnect Wireless 11g Cable/DSL Gateway which operates in the 2.4GHz band, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The transmitter of the EUT (OfficeConnect Wireless 11g Cable/DSL Gateway) is powered by from host equipment. The antenna types used in this product is Integral dipole antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: HED3CRWE554G72 Report No.: RF920612H04 ADT No. 920612H04 1 RF EXPOSURE REPORT REPORT NO.: RF920612H04 MODEL NO.: 3CRWE554G72, WG4005A-32 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Lab Code: 200376-0 FCC ID: HED3CRWE554G72 Report No.: RF920612H04 ADT No. 920612H04 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: HED3CRWE554G72 Report No.: RF920612H04 ADT No. 920612H04 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: HED3CRWE554G72 Report No.: RF920612H04 ADT No. 920612H04 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 1.8Bi or 1.514 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For DSSS: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241259.4290.0178951.0 6243761.0940.0183961.0 11246263.6800.0191751.0 For OFDM: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241255.4630.0167001.0 6243759.4290.0178951.0 11246260.2560.0181441.0

FCC ID: HED3CRWE554G72 Report No.: RF920612H041Issued: Jun. 27, 2003 ADT No.: 920612H04 FCC TEST REPORT REPORT NO.: RF920612H04 MODEL NO.: 3CRWE554G72, WG4005A-32 RECEIVED: Jun. 12, 2003 TESTED: Jun. 19 to 26, 2003 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 63 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any government agencies. The test results in the report only apply to the tested sample. Lab Code: 200376-0 FCC ID: HED3CRWE554G72 Report No.: RF920612H042Issued: Jun. 27, 2003 ADT No.: 920612H04 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS............................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................7 3.4DESCRIPTION OF SUPPORT UNITS..................................................................8 4TEST TYPES AND RESULTS..............................................................................10 4.1CONDUCTED EMISSION MEASUREMENT.....................................................10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT................................10 4.1.2TEST INSTRUMENTS...........................................................................................10 4.1.3TEST SETUP..........................................................................................................11 4.1.4EUT OPERATING CONDITIONS........................................................................12 4.1.5TEST RESULTS......................................................................................................13 4.2RADIATED EMISSION MEASUREMENT..........................................................19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT......................................19 4.2.2TEST INSTRUMENTS...........................................................................................20 4.2.3TEST PROCEDURES...........................................................................................21 4.2.4TEST SETUP..........................................................................................................22 4.2.5EUT OPERATING CONDITIONS........................................................................22 4.2.6TEST RESULTS......................................................................................................23 4.2.7TEST RESULTS - DSSS.......................................................................................24 4.2.8TEST RESULTS -OFDM.......................................................................................27 4.36dB BANDWIDTH MEASUREMENT..................................................................30 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..............................................30 4.3.2TEST INSTRUMENTS...........................................................................................30 4.3.3TEST PROCEDURE..............................................................................................31 4.3.4TEST SETUP..........................................................................................................31 4.3.5EUT OPERATING CONDITIONS........................................................................31 4.3.6TEST RESULTS-DSSS.........................................................................................32 4.3.7TEST RESULTS-OFDM........................................................................................36 4.4MAXIMUM PEAK OUTPUT POWER..................................................................40 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............40 4.4.2TEST INSTRUMENTS...........................................................................................40 4.4.3TEST PROCEDURES...........................................................................................41 FCC ID: HED3CRWE554G72 Report No.: RF920612H043Issued: Jun. 27, 2003 ADT No.: 920612H04 4.4.4TEST SETUP..........................................................................................................41 4.4.5EUT OPERATING CONDITIONS........................................................................41 4.4.6TEST RESULTS-DSSS.........................................................................................42 4.4.7TEST RESULTS-OFDM........................................................................................42 4.5POWER SPECTRAL DENSITY MEASUREMENT...........................................43 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.......................43 4.5.2TEST INSTRUMENTS...........................................................................................43 4.5.3TEST PROCEDURE..............................................................................................44 4.5.4TEST SETUP..........................................................................................................44 4.5.5EUT OPERATING CONDITIONS........................................................................44 4.5.6TEST RESULTS-DSSS.........................................................................................45 4.5.7TEST RESULTS-OF…

Text truncated - open the document above for the full version.

FCC ID: HED3CRWE554G72 Report No.: RF920612H0431Issued: Jun. 27, 2003 ADT No.: 920612H04 4.3.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator. The bandwidth of the fundamental frequency was measured by spectrum analyzer with 100 kHz RBW and 100 kHz VBW. The 6 dB bandwidth is defined as the total spectrum the power of which is higher than peak power minus 6 dB. 4.3.4 TEST SETUP For the actual test configuration, please refer to the related Item – Photographs of the Test Configuration. 4.3.5 EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER FCC ID: HED3CRWE554G72 Report No.: RF920612H0432Issued: Jun. 27, 2003 ADT No.: 920612H04 4.3.6 TEST RESULTS-DSSS EUT OfficeConnect Wireless 11g Cable/DSL Gateway MODEL 3CRWE554G72 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 27 deg. C, 56 %RH, 964 hPa TESTED BY Tony Chen CHANNEL CHANNEL FREQUENCY (MHz) 6 dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1241211.080.5PASS 6243711.520.5PASS 11246211.480.5PASS FCC ID: HED3CRWE554G72 Report No.: RF920612H0433Issued: Jun. 27, 2003 ADT No.: 920612H04 CH1 FCC ID: HED3CRWE554G72 Report No.: RF920612H0434Issued: Jun. 27, 2003 ADT No.: 920612H04 CH6 FCC ID: HED3CRWE554G72 Report No.: RF920612H0435Issued: Jun. 27, 2003 ADT No.: 920612H04 CH11 FCC ID: HED3CRWE554G72 Report No.: RF920612H0436Iss…

Text truncated - open the document above for the full version.
