HED3CRWE820096LAN Powered Wireless Access Point

Quick Start Guide Wireless LAN Access Point 8200/8500 3CRWE820096A 3CRWE850096A The 3Com Wireless LAN Access Point 8200 and Access Point 8500 offer enterprise network standard based security and complete centralized management, with flexible and expansive connectivity and scalability. They extend networks and boost productivity for centrally managed enterprises requiring scalable security solutions. NOTE: This product must be installed by a professional technician/installer. Caution: Do not connect a telephone cable into the Console port; doing so can cause serious damage to the access point. LEDs Reset button Console port Ethernet port Access Point 8500Access Point 8200 09-2292-00AB.fm Page 1 Wednesday, February 12, 2003 3:17 PM 1Before You Start  Make sure that you have the following items ready for the installation:  3Com Access Point 8200 or Access Point 8500  Standard detachable antennas (Access Point 8200 only)  3Com installation CD  Ethernet category 5 straight cables (8-wire)  For wall-mount installations you will need the following items: Mounting plate Mounting screws Plastic anchors for drywall mounting  3Com Integrated Power-over-Ethernet power supply and power cord  To use the Web configuration management system, you need a computer running one of the following operating systems and one of the following browsers:  Operating Systems : Windows 98, Windows ME, Windows NT 4.0 Service Pack 6, Windows 2000, or Windows XP.  Browsers : Netscape 6.0 or later or Internet Explorer 5.0 or later. (Internet Explorer 5.5 is available on the installation CD.) 2Prepare for Installation It is advisable to connect the power and check the Ethernet cables and LEDs before installing the unit in a hard-to-reach location. 1 Observe the following power requirements: The access point complies with the IEEE 802.3af power-over-Ethernet standard. It receives power over category 5 straight cable. Installation requires the use of either the 3Com power supply provided or IEEE 802.3af compliant power supply equipment (output power rated 48 V DC @ 200 mA minimum). Such equipment must be safety certified according to UL, CSA, IEC or other applicable national or international safety requirements for the country of use. All references to the power supply refer to equipment that meets these requirements. Because the power supply plug is the only means of disconnecting the access point from power, make sure the power outlet is accessible. The power supply can be located indoors at any point between the access point and the LAN access port where an accessible power outlet exists. 2 Decide where to place the access point.  Mounted on a wall on a stud (or other hard surface)  Mounted on to drywall  Placed on a flat surface The location should be elevated and centrally located relative to users on your network. 3 Record the access point MAC address in a safe place before the access point is installed in a hard-to-reach location. The MAC address is printed on the back of the access point housing. 4 Access Point 8200 only: Carefully unpack the standard detachable antennas. Screw the antennas on to the SMA connectors and hand-tighten them. After network startup, you may need to adjust the antennas to fine-tune coverage in your area. NOTE: Regulatory restrictions dictate that when the access point is operational a minimum body-to-antenna distance of 1 meter (3 feet) must be maintained. 09-2292-00AB.fm Page 2 Wednesday, February 12, 2003 3:17 PM The installation CD includes the User Guide, which contains more detailed information on planning, installing and configuring the device. Additional tools and utilities are provided to assist with the management of your network. See “Documentation and Software Utilities” on page 6 for instructions. 3Connect the Power The access point complies with the IEEE 802.3af power-over-Ethernet standard. It receives power over a standard category 5 straight (8-wire) Ethernet cable. There are two ways to supply power to the access point (refer to the illustration below):  Use the supplied 3Com Integrated Power-over-Ethernet power supply. In this case, you need to supply a second Ethernet cable to connect to the wired LAN.  Connect the access point directly to your own power-over-Ethernet hub or switch, which must also comply with the IEEE 802.3af standard. Using the Power Supply The power supply can be located at any point between the access point and the LAN access port, wherever a convenient power outlet exists. If you supply your own Ethernet cable for connecting power, be sure that it is standard category 5 straight-through (8-wire) cable that has not been altered in any way. Use of nonstandard cable could damage the access point. Refer to the illustration above, and follow these steps: 1 Connect one end of the Ethernet cable to the Ethernet port on the access point. 2 Connect the other end of the Ethernet cable to the port labeled To Access Point on the power supply. 3 Connect the power cord to the power supply and plug the cord into a power outlet. CAUTION: Do not handle the antenna tips, especially after they are connected to the access point, as this could lead to electrostatic discharge (ESD), which could damage the equipment. "To Access Point" "To Hub/Switch" Using the Power Supply Using A Power-over-Ethernet LAN Port 09-2292-00AB.fm Page 3 Wednesday, February 12, 2003 3:17 PM 4 To link the access point to your Ethernet network, plug one end of another Ethernet cable into the port labeled To Hub/Switch on the power supply, and plug the other end into a LAN port (on a hub or in a wall). Using a Power-Over-Ethernet LAN Port If your LAN equipment complies with the IEEE 802.3af power-over-Ethernet standard, you can connect the access point directly to a LAN port. For example, the illustration above right shows a connection through a 3Com Ethernet Power Supply to a 3Com SuperStack ® Switch. 4Check the LEDs When power is connected, the access point LEDs light. The illustrat…

Text truncated - open the document above for the full version.

0 3CRWE820096A Block Diagram P.8 Integrated Processor MPC8245 Oscillator 33MHz Ethernet DS83816 Mini PCI Slot 1 Mini PCI Slot 2 PCI Interface Crystal 25MHz Watch Dog & Reset & LED Controller With CPLD M4A3 32/32 33MHz Clock SDRAM 8MBytes SDRAM 8MBytes FLASH 8MBytes RESET Transformer PH163528 802.11B WN3101A RJ-45 Console Interface POE DAP425 Power Circuit LTC3701 RJ-11 11b Ethernet Power 11a 5.0V/ 0.;2A 3.3V/3A 2.0V/ 2A 5.0V/ 3A 36~57V P.2 P.2, 3, 4, 7 P.6 P.6 P.6 P.8 P.8 P.8 P.5 P.5 P.5 P.12 P.11 P.11 P.10 P.10

WN3101A Hardware block diagrams MAC/BBP Intersil ISL3873 IF I/Q Mod/Demod Intersil HFA3783 PA Intersil ISL3984 SRAM Flash Memory OSC 32KHz VCO IF LO OSC 44MHz VCO RF LO RF/IF Convertor LNA Intersil ISL3685 Wireless Mini PCI 124

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME : Wireless LAN Access Point 8200 MODEL NO : 3CRWE820096A TRADE NAME : 3Com IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO : RF920212H05 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION ManufacturerUSA Local Representative Company name: Accton Technology Corporation Company name: 3Com Corporation Address: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Address: 5500 Great America Parkway Santa Clara, CA 95052 Contact Person: Hsoang-Shen Chen Contact Person: Dan Lawless Title: Section Manager Title: Regulatory Manager Tel/Fax: Tel:886-3-5770270 Fax:886-3-5783839 Tel/Fax: Tel: (408) 326-5000 Fax: (408) 326-5001

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 February 26, 2003 RE: Accton Technology FCC ID: HED3CRWE820096 I have a few comments on this Application. 1.) This equipment appears to be designed for “Professional Installation” and uses standard SMA connectors for it’s antennas. Is the Applicant able to specifically identify the distribution channels that will keep this product away from the general consumer? It is appropriate to attest that distribution will not be via mail order or retail sales, but the question let unanswered is how this device will be distributed. 2.) This device will qualify as an RF category “Mobile” device with standard separation distance of 20cm. The Manual quotes a separation distance of 1meter. This is not appropriate for indoor use wall mounted devices. Please review and modify. 3.) The Manual does not contain language consistent with the requirements of 15.21. Please review. 4.) The Declaration of Conformity does not identify a US representative. Since I assume this is being built for 3Com, I believe a US representative should be available. Please review and correct. 5.) No Confidentiality Request letter was uploaded. The DofC appears to have been inadvertently uploaded twice. Please correct. 6.) The Block Diagram supplied is a system block diagram. What is also needed is a block diagram referring exclusively to the 802.11b radio. 7.) No Schematics were uploaded to AmericanTCB. The documents given were only board level layout drawings and are not acceptable. Please provide circuit diagrams of the device and the 802.11b radio. 8.) The Test Setup photographs show this device laying on it’s side during radiated emission testing. Since this device is intended for wall installation, it would be appropriate to test this in its normal vertical position. Please review your photographs and recheck your radiated emission tests. 9.) Please re-do spectral power density test with a minimum span of 1.5MHz 10.) Band Edge test on page 47 of your Test Report with equipment set to Ch 11 (2462MHz) shows a spurious emission at approximately 2520MHz. Measurements of this spur do not appear in this report. Please check your data. William H. Graff President and Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

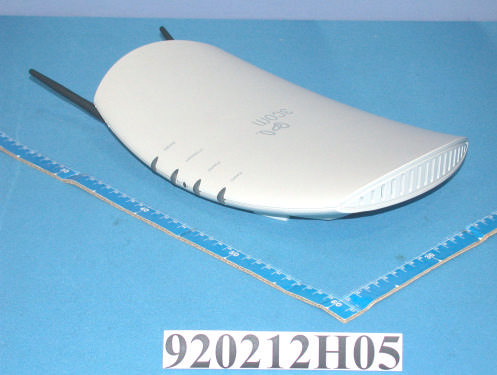

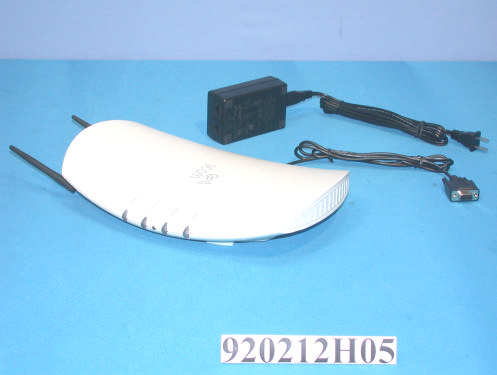

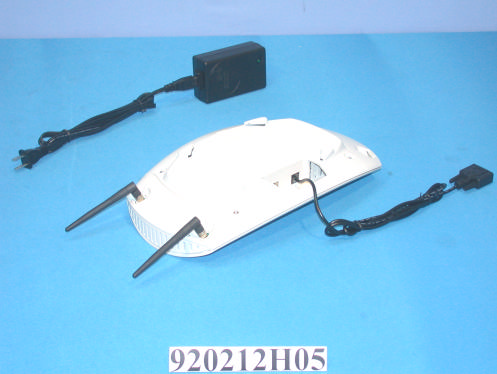

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: HED3CRWE820096 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

80.0 7 0 . 0 50.0 2 5 . 0

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18

FCC ID: HED3CRWE820096 Report No.: 920212H05 ADT No.: 920212H05 Operational Description The transmitter of the EUT (Wireless LAN Access Point 8200) is powered by POE (Power Over Ethernet) and connected with POE through RJ 45 port. The antenna used in this product is Detachable Antenna with standard SMA connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by DBPSK and DQPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps.

FCC ID: HED3CRWE820096 ADT No.: 920212H05 RF EXPOSURE REPORT REPORT NO.: RF920212H05 MODEL NO.: 3CRWE820096A ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: HED3CRWE820096 ADT No.: 920212H05 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20 cm away from the body of the user. Warning statement for keeping 20 cm separation distance and the prohibition of operating next to a person has been printed on the users manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: HED3CRWE820096 ADT No.: 920212H05 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: HED3CRWE820096 ADT No.: 920212H05 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1Bi or 1.26 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241230.91.76 6243730.21.74 11246228.21.68 The minimum allowable distance is very close to the enclosure of the antenna. So, the user has no need to worry about the harmfulness of radiation. But it is recommended to always keep, at least, 20 cm separation distance with the antenna.

AA BB CC DD EE 1 1 44MHZ_CW IF+ IF- T/R_SW# 44MHZ_REFLE_IF T/R_SW RXQ- TXQ- VREF ANTSEL#PA_PE RADIO_PESD_RF_IFPE2 IF_DET RXQ+ TXI+ SCLK_RF_IF LE_RFANTSEL RXI+ RX_RF_AGC TXI- RXI- TX_DET TX_IF_AGC CAL_EN RX_IF_AGC PE1 TXQ+ GRESETSDATA MEM_CTRL[5..0] LED3 MA[17..0]MD[15..0] SCLKLED2_OUTLED2LED1LED1_GRNN Title Size Document Number R e v Date: Sheet of WN3101A 01A MINIPCI C 16 Friday, December 06, 2002 0A Initial Release 2/1/02 REV Description Date Revision History Smart link Modem/Intersil 802.11 Combo Mini PCI Reference Board 0B ADD MCDR 01 2/28/02 3/1/02 Release P06: ISL3685 & ISL3984 P06: ISL3685 & ISL3984 ANTSEL# ANTSEL PE2PE1 T/R_SW# T/R_SW TX_DET PA_PE IF+ IF- 44MHZ_CW SD_RF_IF SCLK_RF_IF LE_RF RX_RF_AGC P02: MINI_PCI & ISL3874 SYNC SDATA_INA SDATA_OUT AC_RESET# BIT_CLK MONO_PHONE LED3 GRESET 44MHZ_REF VREF TXQ+ TXQ- TXI+ TXI- RXQ+ RXQ- RXI+ RXI- SCLK_RF_IF T/R_SWT/R_SW#RX_RF_AGC RX_IF_AGC TX_IF_AGC IF_DET TX_DET CAL_EN RADIO_PE LE_IF LE_RF PE1PE2 SD_RF_IF PA_PEANTSELANTSEL# MA[17..0] MD[15..0] MEM_CTRL[5..0] LED1_GRNN LED2_OUT LED2LED1 SCLK SDATA ID1BID0B RING TIP P04: MEMORY LED3MA[17..0]MEM_CTRL[5..0]GRESETSCLKSDATAMD[15..0]LED2LED1LED2_OUTLED1_GRNN P05: HFA3783 CAL_ENRADIO_PEPE2PE1IF_DETRX_IF_AGCTX_IF_AGCIF-IF+LE_IF44MHZ_REF44MHZ_CWRXI+RXI-RXQ+TXI+TXQ+RXQ-TXI-TXQ-VREFSCLK_RF_IFSD_RF_IF AA BB CC DD EE 1 1 3.3VPCI AD[31..0] MD15MD5 MA11MA12 CLK MD11 REQ MD4 MA10 MA8 PERR MD6 MA16 MEM_CTRL1 MD12MD1 MA17 MEM_CTRL2 MD7 MA14 MA6MA1 XTAL_IN MD0 XTAL_OUT MD13 MA15 MA3 SERR MD14MD9MD10 MA9MA2 MEM_CTRL0 MD8MD3 MA13 MA5 MD2 MA7MA4 IRDY MEM_CTRL3MEM_CTRL4MEM_CTRL5 AD1AD5 AD4 AD12 AD26 AD24 AD9AD16AD20 AD21 CBE0 AD19AD22 AD0 AD5AD14 CBE1 PAR AD31 AD7AD10 AD7 DEVSEL AD28 GNT AD13 AD22 PME AD8AD6AD4 AD8 AD15 AD11 CBE3 AD2 AD10 AD24 AD29 CBE[3..0] AD18AD16AD17 CBE1 AD31 TRDY AD30 AD25 AD3 FRAME AD21AD0AD29 AD18 AD27 AD2 AD17 AD27AD12AD9 AD11AD13 IDSEL AD15 CBE0 AD23 RESET AD20AD3AD26 STOP AD30AD14 CBE2 AD1AD19AD25 AD23AD28 CBE3 AD6 CBE2 INTA RXQ+SCLK_RF_IFTX_DETVREFTX_IF_AGCRX_RF_AGCRX_IF_AGC TXQ- RXI+ TXI- T/R_SW T/R_SW# RXI- TXI+ RXQ- MA[17..0]MD[15..0] TXQ+ PA_PEANTSEL#RADIO_PE SDATA_INA ANTSELLE_IF MONO_PHONE PE1CAL_ENSD_RF_IFPE2 BIT_CLK LE_RF SYNC LED1 LED2_OUT MEM_CTRL[5..0] 44MHZ_REF LED1_GRNN IF_DET GRESET SCLK SDATA ID1B AC_RESET# ID0B LED2 SDATA_OUT LED3 RING TIP VCCS VCCD +3.3V VCCS+3.3V +3.3V +3.3VAUX 3.3VPCI Title Size Document Number R e v Date: Sheet of WN3101A 01A MINIPCI C 26 Friday, December 06, 2002 MINI_PCI124 ANALOG/RF POWER PLANE DIGITAL POWER PLANE DIGITAL GROUND LOCATED CLOSE TO MAC AND SRAM R99 10K TP2 1 C14 0.1uF TP3 1 R84 47 R3 220K R83 0 (OMIT) L35335 R33-002 X1 TS32.768KHz12.50PF 1 1 2 2 CASE 3 R2 10M R10 19.1K C170.01uF <KEY> <KEY> P1 TIP 1 RING 2 8PMJ-3 3 8PMJ-1 4 8PMJ-6 5 8PMJ-2 6 8PMJ-7 7 8PMJ-4 8 8PMJ-8 9 8PMJ-5 10 LED1_GRNP 11 LED2_YELP 12 LED1_GRNN 13 LED2_YELN 14 CHSGND 15 RESERVED 16 INTB# 17 +5V 18 +3.3V 19 INTA# 20 RESERVED 21 RESERVED 22 GND 23 3.3VAUX 24 CLK 25 RST# 26 GND 27 +3.3V 28 REQ# 29 GNT# 30 +3.3V 31 GND 32 AD31 33 PME# 34 AD29 35 RESERVED 36 GND 37 AD30 38 AD27 39 +3.3V 40 AD25 41 AD28 42 RESERVED 43 AD26 44 CBE3# 45 AD24 46 AD23 47 IDSEL 48 GND 49 GND 50 AD21 51 AD22 52 AD19 53 AD20 54 GND 55 PAR 56 AD17 57 AD18 58 CBE2# 59 AD16 60 IRDY# 61 GND 62 +3.3V 63 FRAME# 64 CLKRUN# 65 TRDY# 66 SERR# 67 STOP# 68 GND 69 +3.3V 70 PERR# 71 DEVSEL# 72 CBE1# 73 GND 74 AD14 75 AD15 76 GND 77 AD13 78 AD12 79 AD11 80 AD10 81 GND 82 GND 83 AD9 84 AD8 85 CBE0# 86 AD7 87 +3.3V 88 +3.3V 89 AD6 90 AD5 91 AD4 92 RESERVED 93 AD2 94 AD3 95 AD0 96 +5V 97 RESERVED 98 AD1 99 RESERVED 100 GND 101 GND 102 AC_SYNC 103 M66EN 104 AC_SDATA_INA 105 AC_SDATA_OUT 106 AC_BIT_CLK 107 AC_SDATA_INB 108 AC_PRIMARY# 109 AC_RESET# 110 MOD_AUDIO_MON 111 RESERVED 112 AUDIO_GND 113 GND 114 SYS_AUDIO_OUT 115 SYS_AUDIO_IN 116 SYS_AUDIO_OUT GND 117 SYS_AUDIO_IN GND 118 AUDIO_GND 119 AUDIO_GND 120 N/C 121 MCPIACT# 122 VCC5A 123 3.3VAUX 124 TP6 1 TP7 1 + C9 10uF C81 0.1uF + C34 10uF R1 10K C3220pF R202 0 + C102 10uF TP8 1 R9 560 C6 10pF R5 0 R46 0 (OMIT) U1 ISL3874 VDD P6 VDD D4 VDD D7 VDD D9 VDD D11 VDD D14 VDD F13 VDD H13 VDD K16 VDD M15 VDD N5 VDD N4 VDD K4 VDD G3 VDD E4 VDDA M13 VDDA P12 VDDA R11 VDDA T8 VDDA R8 VDDA P9 GND B2 GND D5 GND D8 GND D10 GND D12 GND D13 GND E13 GND H14 GND J13 GND N14 GND N8 GND N6 GND R2 GND M4 GND K3 GND J4 GND G4 VSUB N10 VSUB P10 VSSA N13 VSSA T13 VSSA T11 VSSA N9 HAD0 L16 HAD1 L14 HAD2 K15 HAD3 K14 HAD4 J14 HAD5 J15 HAD6 G13 HAD7 H15 HAD8 G14 HAD9 G15 HAD10 G16 HAD11 F14 HAD12 F15 HAD13 F16 HAD14 E15 HAD15 E14 HAD16 C14 HAD17 C13 HAD18 A14 HAD19 C12 HAD20 A13 HAD21 A12 HAD22 B12 HAD23 B11 HAD24 A11 HAD25 C9 HAD26 B10 HAD27 B9 HAD28 A10 HAD29 C8 HAD30 A9 HAD31 A8 HCBE0 H16 HCBE1 E16 HCBE2 B14 HCBE3 C10 HINTA C6 HRST D6 HREQ B7 HGNT C7 HPME B8 HIRDY A15 HFRAME B15 HPCLK A7 HIDSEL C11 HPAR B13 ATRDY A16 HSERR B16 HSTOP C16 HPERR D16 HDEVSEL D15 GRESET L15 DBG0 A6 DBG1 B5 DBG2 (LED2) C5 DBG3 (CLKRUN#) A5 DBG4 (MPCIACT#) B6 TESTMODE C4 TCLKIN (CS) L4 PJ2 (MISO) R3 PJ6 (LED1) P4 PJ0 (SCLK) P5 PJ1 (SDATA) T1 COMPCAP1 R15 COMPRES1 T15 COMPRES2 P13 COMPCAP2 R13 CLKOUT A2 XTALIN J2 XTALOUT J1 BBP_CLK J16 NC P15 NC P14 NC N11 NC M14 NC C15 NC L13 NC M16 NC K13 MA1 F1 MA2 F3 MA3 E1 MA4 F2 MA5 D1 MA6 E2 MA7 F4 MA8 C1 MA9 D3 MA10 D2 MA11 B1 MA12 E3 MA13 C2 MA14 A1 MA15 B3 MA16 C3 MA17 B4 MA18 A3 MA19 A4 MD0 P2 MD1 R1 MD2 P3 MD3 N2 MD4 P1 MD5 N3 MD6 N1 MD7 M2 MD8 M3 MD9 M1 MD10 J3 MD11 H1 MD12 H2 MD13 H3 MD14 G1 MD15 H4 MOE L1 MWEL L2 MLBE L3 NVCS K1 RAMCS K2 MWEH_MA0 G2 VREF P11 IREF N12 TXQ+ R14 TXQ- T14 TXI+ R12 TXI- T12 RXQ+ R9 RXQ- T9 RXI+ R7 RXI- T7 PK1 (SYNTHCLK) R4 PL7 (TR_SW) T6 PL3 (TR_SW) P8 RX_IF_AGC T16 RX_RF_AGC P16 TX_IF_AGC R16 RX_IF_DET R10 TX_AGC_IN T10 PK7 (CAL_EN) P7 PJ7 (RADIO_PE) T3 PJ5 (LE_IF) T4 PK0 (LE_RF) R5 PJ4 (PE1) T2 PK4 (PE2) T5 PK2 (SYNTHDATA) N7 PK3 (PA_PE) R6 ANTSEL N16 ANTSEL N15 C310.1uF R14 19.1K R22 0 TP5 1 R30976 R32 12.1k L175335R 33-002 C15 0.1uF TP4 1 R8 0 (OMIT) R7 0 (OMIT) C40.1uF R28619 TP1 1 AA BB CC DD EE 1 1 MD0MD1MD5 MD0MD1MD…

Text truncated - open the document above for the full version.

FCC ID: HED3CRWE820096 Report No.: RF920212H051Issued: Feb. 19, 2003 ADT No. 920212H05 FCC TEST REPORT REPORT NO.: RF920212H05 MODEL NO.: 3CRWE820096A RECEIVED: Feb. 12, 2003 TESTED: Feb. 13 to 18, 2003 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 51 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: HED3CRWE820096 Report No.: RF920212H052Issued: Feb. 19, 2003 ADT No. 920212H05 Table of Contents 1CERTIFICATION......................................................................................................4 2SUMMARY OF TEST RESULTS...........................................................................5 3GENERAL INFORMATION....................................................................................6 3.1GENERAL DESCRIPTION OF EUT.....................................................................6 3.2DESCRIPTION OF TEST MODES.......................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..................................7 3.4DESCRIPTION OF SUPPORT UNITS.................................................................8 4TEST TYPES AND RESULTS.............................................................................10 4.1CONDUCTED EMISSION MEASUREMENT....................................................10 4.1.1TEST INSTRUMENTS.............................................................................................10 4.1.2TEST PROCEDURES..............................................................................................11 4.1.3DEVIATION FROM TEST STANDARD....................................................................11 4.1.4TEST SETUP...........................................................................................................12 4.1.5EUT OPERATING CONDITIONS............................................................................13 4.1.6TEST RESULTS.......................................................................................................14 4.2RADIATED EMISSION MEASUREMENT.........................................................20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT............................................20 4.2.2TEST INSTRUMENTS.............................................................................................21 4.2.3TEST PROCEDURES.............................................................................................22 4.2.4DEVIATION FROM TEST STANDARD...................................................................22 4.2.5TEST SETUP...........................................................................................................23 4.2.6EUT OPERATING CONDITIONS............................................................................23 4.2.7TEST RESULTS.......................................................................................................24 4.36dB BANDWIDTH MEASUREMENT.................................................................29 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT....................................................29 4.3.2TEST INSTRUMENTS.............................................................................................29 4.3.3TEST PROCEDURE................................................................................................30 4.3.4DEVIATION FROM TEST STANDARD...................................................................30 4.3.5TEST SETUP...........................................................................................................30 4.3.6EUT OPERATING CONDITIONS............................................................................30 4.3.7TEST RESULTS.......................................................................................................31 4.4MAXIMUM PEAK OUTPUT POWER.................................................................35 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......................35 4.4.2INSTRUMENTS........................................................................................................35 4.4.3TEST PROCEDURES.............................................................................................36 4.4.4DEVIATION FROM TEST STANDARD...................................................................36 4.4.5TEST SETUP...........................................................................................................36 FCC ID: HED3CRWE820096 Report No.: RF920212H053Issued: Feb. 19, 2003 ADT No. 920212H05 4.4.6EUT OPERATING CONDITIONS............................................................................36 4.4.7TEST RESULTS.......................................................................................................37 4.4.8LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...............................38 4.4.9TEST INSTRUMENTS.............................................................................................38 4.4.10TEST PROCEDURE................................................................................................39 4.4.11DEVIATION FROM TEST STANDARD...................................................................39 4.4.12TEST SETUP...........................................................................................................39 4.4.13EUT OPERATING CONDITION...............................................................................39 4.4.14TEST RESULTS..…

Text truncated - open the document above for the full version.

FCC ID: HED3CRWE820096 Report No.: RF920212H0549Issued: Feb. 19, 2003 ADT No. 920212H05 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: HED3CRWE820096 Report No.: RF920212H0550Issued: Feb. 19, 2003 ADT No. 920212H05 RADIATED EMISSION TEST
