HED3CRWE850075Wireless LAN Access Point 8500

Quick Start Guide Wireless LAN Access Point 8200/8500/8700 3CRWE820096A 3CRWE850075A 3CRWE870075A The 3Com Wireless LAN Access Point 8200 , Access Point 8500, and Access Point 8700 offer enterprise network standard based security and complete centralized management, with flexible and expansive connectivity and scalability. They extend networks and boost productivity for centrally managed enterprises requiring scalable security solutions. NOTE: This product must be installed by a professional technician/installer. Caution: Do not connect a telephone cable into the Console port; doing so can cause serious damage to the access point. LEDs Reset button Console port Ethernet port Access Point 8500Access Point 8200/8700 09-2292-00AC.fm Page 1 Tuesday, March 11, 2003 3:53 PM 1Before You Start  Make sure that you have the following items ready for the installation:  3Com Access Point 8200, Access Point 8500, or Access Point 8700  Standard detachable antennas (Access Point 8200 or Access Point 8700)  3Com installation CD  Ethernet category 5 straight cables (8-wire)  For wall-mount installations you will need the following items: Mounting plate Mounting screws Plastic anchors for drywall mounting  3Com Integrated Power-over-Ethernet power supply and power cord  To use the Web configuration management system, you need a computer running one of the following operating systems and one of the following browsers:  Operating Systems : Windows 98, Windows ME, Windows NT 4.0 (with the latest service pack), Windows 2000, or Windows XP.  Browsers : Internet Explorer 5.0 or later. (Internet Explorer 5.5 is available on the installation CD.) 2Prepare for Installation It is advisable to connect the power and check the Ethernet cables and LEDs before installing the unit in a hard-to-reach location. 1 Observe the following power requirements: The access point complies with the IEEE 802.3af power-over-Ethernet standard. It receives power over category 5 straight cable. Installation requires the use of either the 3Com power supply provided or IEEE 802.3af compliant power supply equipment (output power rated 48 V DC @ 350 mA maximum). Such equipment must be safety certified according to UL, CSA, IEC or other applicable national or international safety requirements for the country of use. All references to the power supply refer to equipment that meets these requirements. Because the power supply plug is the only means of disconnecting the access point from power, make sure the power outlet is accessible. The power supply can be located indoors at any point between the access point and the LAN access port where an accessible power outlet exists. 2 Decide where to place the access point.  Mounted on a wall on a stud (or other hard surface)  Mounted on to drywall  Placed on a flat surface The location should be elevated and centrally located relative to users on your network. Ceiling mounting is not recommended. 3 Record the access point MAC address in a safe place before the access point is installed in a hard-to-reach location. The MAC address is printed on the back of the access point housing. 4 Access Point 8200 or Access Point 8700: Carefully unpack the standard detachable antennas. Screw the antennas on to the SMA connectors and hand-tighten them. After network startup, you may need to adjust the antennas to fine-tune coverage in your area. NOTE: Regulatory restrictions dictate that when the access point is operational a minimum body-to-antenna distance of 1 meter (3 feet) must be maintained. 09-2292-00AC.fm Page 2 Tuesday, March 11, 2003 3:53 PM The installation CD includes the User Guide, which contains more detailed information on planning, installing and configuring the device. Additional tools and utilities are provided to assist with the management of your network. See “Documentation and Software Utilities” on page 7 for instructions. 3Connect the Power The access point complies with the IEEE 802.3af power-over-Ethernet standard. It receives power over a standard category 5 straight (8-wire) Ethernet cable. There are two ways to supply power to the access point (refer to the illustration below):  Use the supplied 3Com Integrated Power-over-Ethernet power supply. In this case, you need to supply a second Ethernet cable to connect to the wired LAN.  Connect the access point directly to your own power-over-Ethernet hub or switch, which must also comply with the IEEE 802.3af standard. Using the Power Supply The power supply can be located at any point between the access point and the LAN access port, wherever a convenient power outlet exists. If you supply your own Ethernet cable for connecting power, be sure that it is standard category 5 straight-through (8-wire) cable that has not been altered in any way. Use of nonstandard cable could damage the access point. Refer to the illustration above, and follow these steps: 1 Connect one end of the Ethernet cable to the Ethernet port on the access point. 2 Connect the other end of the Ethernet cable to the port labeled To Access Point on the power supply. 3 Connect the power cord to the power supply and plug the cord into a power outlet. CAUTION: Do not handle the antenna tips, especially after they are connected to the access point, as this could lead to electrostatic discharge (ESD), which could damage the equipment. "To Access Point" "To Hub/Switch" Using the Power Supply Using A Power-over-Ethernet LAN Port 09-2292-00AC.fm Page 3 Tuesday, March 11, 2003 3:53 PM 4 To link the access point to your Ethernet network, plug one end of another Ethernet cable into the port labeled To Hub/Switch on the power supply, and plug the other end into a LAN port (on a hub or in a wall). Using a Power-Over-Ethernet LAN Port If your LAN equipment complies with the IEEE 802.3af power-over-Ethernet standard, you can connect the access point directly to a LAN port. For example, the illustration above right shows a connection through a 3Com Ethernet Power Supply to a …

Text truncated - open the document above for the full version.

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME : Wireless LAN Access Point 8500 MODEL NO : 3CRWE850075A TRADE NAME : 3Com IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO : RF920222H01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION ManufacturerUSA Local Representative Company name: Accton Technology Corporation Company name: 3Com Corporation Address: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Address: 5500 Great America Parkway Santa Clara, CA 95052 Contact Person: Hsoang-Shen Chen Contact Person: Dan Lawless Title: Section Manager Title: Regulatory Manager Tel/Fax: Tel:886-3-5770270 Fax:886-3-5783839 Tel/Fax: Tel: (408) 326-5000 Fax: (408) 326-5001

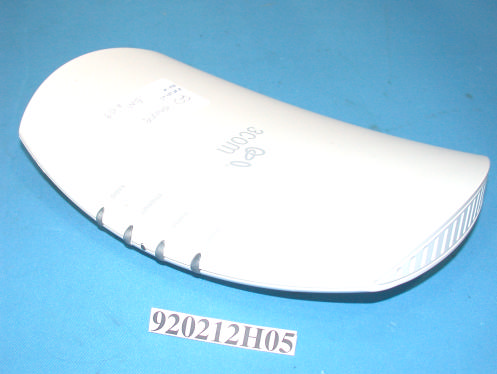

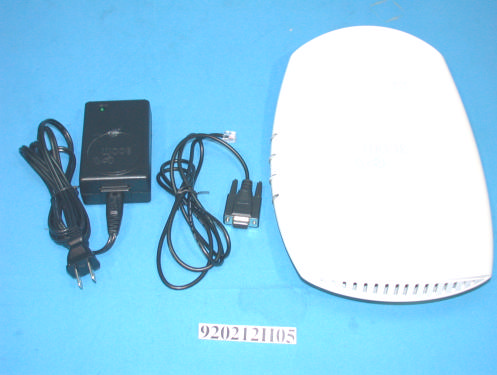

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

FORM# R0-04D00-13 V.02 : MFG Country (Arial Narrow, Point 5) Vendor ID (Arial Narrow, Point 5) MFG Factory (Label Here) Scale 1:1 NUMBER SERIAL 3CRWE850075A M/N: WL-450 XX MADE IN XXX XX 50.0 2 5 . 0 RR C US LR99150 geprufte Sicherheit .. .. Rheinland Product Safety TUV Usage restrictions apply, see documentation 0560 5mm FCC ID: IC: HED3CRWE850075 3857A-3CRWE850 Complies with RSS-210 85.5 7 5 . 5 R5x4

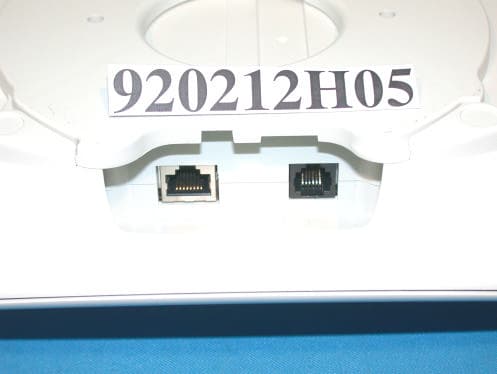

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12

FCC ID: HED3CRWE850075 Report No.920212H05A ADT No. 920222H01 Technical Description The transmitter of the EUT is powered by POE (Power Over Ethernet). The antenna is Detachable Antenna with MMCX connector. This device is a 5GHz Wireless LAN Access Point 8500 operates in both the 5GHz bands, the maximum data rate could be 108Mbps in turbo mode. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: HED3CRWE850075 Report No.: 920212H05A ADT No.: 920222H01 RF EXPOSURE REPORT REPORT NO.: RF920212H05A MODEL NO.: 3CRWE850075A ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. Lab Code: 200376-0 FCC ID: HED3CRWE850075 Report No.: 920212H05A ADT No.: 920222H01 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: HED3CRWE850075 Report No.: 920212H05A ADT No.: 920222H01 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5 Climate Condition The temperature and related humidity: 20 deg. C and 63 % RH 6. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: HED3CRWE850075 Report No.: 920212H05A ADT No.: 920222H01 7 Test Results 7.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 5dBi or 3.16(numeric). 7.2 Output Power Into Antenna & RF Exposure value at distance 20cm: Normal Mode : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 15180 43.85 0.0281.0 45240 42.76 0.0271.0 55260 200.91 0.1261.0 85320 70.31 0.0441.0 95745 218.78 0.1381.0 125805 96.83 0.0611.0 Turbo Mode : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 15210 48.75 0.0311.0 25250 42.95 0.0271.0 35290 74.30 0.0461.0 45760 93.54 0.0591.0 55800 86.90 0.0551.0

FCC ID: HED3CRWE850075 Report No.: RF920212H05A1Issued: Apr. 10, 2003 ADT No.: 920222H01 FCC TEST REPORT REPORT NO.: RF920212H05A MODEL NO.: 3CRWE850075A RECEIVED: Feb. 22, 2003 TESTED: Feb. 22 to Mar. 21, 2003 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 100 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. Lab Code: 200376-0 FCC ID: HED3CRWE850075 Report No.: RF920212H05A2Issued: Apr. 10, 2003 ADT No.: 920222H01 Table of Contents 1.CERTIFICATION............................................................................................................4 2.SUMMARY OF TEST RESULTS.....................................................................................5 3.GENERAL INFORMATION.............................................................................................6 3.1GENERAL DESCRIPTION OF EUT................................................................................6 3.2DESCRIPTION OF TEST MODES..................................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS....................................................7 3.4DESCRIPTION OF SUPPORT UNITS.............................................................................8 4.TEST TYPES AND RESULTS.......................................................................................10 4.1CONDUCTED EMISSION MEASUREMENT..................................................................10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.................................................10 4.1.2TEST INSTRUMENTS..................................................................................................10 4.1.3TEST PROCEDURES..................................................................................................11 4.1.4DEVIATION FROM TEST STANDARD..........................................................................11 4.1.5TEST SETUP...............................................................................................................12 4.1.6EUT OPERATING CONDITIONS..................................................................................12 4.1.7TEST RESULTS...........................................................................................................13 4.2RADIATED EMISSION MEASUREMENT......................................................................15 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.....................................................15 4.2.2LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS......................16 4.2.3TEST INSTRUMENTS..................................................................................................17 4.2.4TEST PROCEDURES..................................................................................................18 4.2.5DEVIATION FROM TEST STANDARD..........................................................................18 4.2.6TEST SETUP...............................................................................................................19 4.2.7EUT OPERATING CONDITIONS..................................................................................19 4.2.8TEST RESULTS...........................................................................................................20 4.2.9TEST RESULTS...........................................................................................................21 4.3PEAK TRANSMIT POWER MEASUREMENT................................................................32 4.3.1LIMITS OF PEAK TRANSMIT POWER MEASUREMENT...............................................32 4.3.2TEST INSTRUMENTS..................................................................................................32 4.3.3TEST PROCEDURE....................................................................................................33 4.3.4DEVIATION FROM TEST STANDARD..........................................................................33 4.3.5TEST SETUP...............................................................................................................33 4.3.6EUT OPERATING CONDITIONS..................................................................................33 4.3.7TEST RESULTS...........................................................................................................34 4.4PEAK POWER EXCURSION MEASUREMENT.............................................................58 4.4.1LIMITS OF PEAK POWER EXCURSION MEASUREMENT............................................58 4.4.2TEST INSTRUMENTS..................................................................................................58 4.4.3TEST PROCEDURE....................................................................................................59 4.4.4DEVIATION FROM TEST STANDARD..........................................................................59 4.4.5TEST SETUP...............................................................................................................59 4.4.6EUT OPERATING CONDITIONS..................................................................................59 FCC ID: HED3CRWE850075 Report No.: RF920212H05A3Issued: Apr. 10, 2003 ADT No.: 920222H01 4.4.7TEST RESULTS...........................................................................................................60 4.5PEAK POWER SPECTRAL DENSITY MEASUREMENT................................................73 4.5.1LIMIT…

Text truncated - open the document above for the full version.

FCC ID: HED3CRWE850075 Report No.: RF920212H05A36Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 4 FCC ID: HED3CRWE850075 Report No.: RF920212H05A37Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 5 FCC ID: HED3CRWE850075 Report No.: RF920212H05A38Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 8 FCC ID: HED3CRWE850075 Report No.: RF920212H05A39Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 9 FCC ID: HED3CRWE850075 Report No.: RF920212H05A40Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 12 FCC ID: HED3CRWE850075 Report No.: RF920212H05A41Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 1 FCC ID: HED3CRWE850075 Report No.: RF920212H05A42Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 4 FCC ID: HED3CRWE850075 Report No.: RF920212H05A43Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 5 FCC ID: HED3CRWE850075 Report No.: RF920212H05A44Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 8 FCC ID: HED3CRWE850075 Report No.: RF920212H05A45Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL9 FCC ID: HED3CRWE850075 Report No.: RF920212H05A46Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 12 FCC ID: HED3CRWE850075 Report No.: RF920212H05A47Issued: Apr. 10, 2003 ADT No.: 920222H01 EUT Wireless LAN Access Point 8500 MODEL 3CRWE850075A MODETurbo INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 19eg. C, 64RH, 976 hPa TESTED BY Hank Chung CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) 26dBc Occupied Bandwidth (MHz) PASS/FAIL 1521016.881756.52PASS 2525016.331753.64PASS 3529018.712453.16PASS 4576019.713055.44PASS 5580019.393053.16PASS NOTE: The 26dBc Occupied Bandwidth plot, please refer to the following pages. FCC ID: HED3CRWE850075 Report No.: RF920212H05A48Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 1 FCC ID: HED3CRWE850075 Report No.: RF920212H05A49Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 2 FCC ID: HED3CRWE850075 Report No.: RF920212H05A50Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 3 FCC ID: HED3CRWE850075 Report No.: RF920212H05A51Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 4 FCC ID: HED3CRWE850075 Report No.: RF920212H05A52Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 5 FCC ID: HED3CRWE850075 Report No.: RF920212H05A53Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 1

FCC ID: HED3CRWE850075 Report No.: RF920212H05A54Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 2 FCC ID: HED3CRWE850075 Report No.: RF920212H05A55Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 3 FCC ID: HED3CRWE850075 Report No.: RF920212H05A56Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 4 FCC ID: HED3CRWE850075 Report No.: RF920212H05A57Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 5 FCC ID: HED3CRWE850075 Report No.: RF920212H05A58Issued: Apr. 10, 2003 ADT No.: 920222H01 4.4 PEAK POWER EXCURSION MEASUREMENT 4.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT Frequency BandLimit 5.15 – 5.25 GHz13dB 5.25 – 5.35 GHz13dB 5.725 – 5.825 GHz13dB 4.4.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049July 24, 2003 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: HED3CRWE850075 Report No.: RF920212H05A59Issued: Apr. 10, 2003 ADT No.: 920222H01 4.4.3 TEST PROCEDURE 1. The transmitter output was connected to the spectrum analyzer. 2. Set the spectrum bandwidth span to view the entire spectrum. 3. Using peak detector and Max-hold function for Trace 1 (RB=1MHz, VB=3MHz) and 2 (RB=1MHz, VB=300KHz). 4. The largest difference between Trace 1 and Trace 2 in any 1MHz band on any frequency was recorded. 4.4.4 DEVIATION FROM TEST STANDARD No deviation 4.4.5 TEST SETUP 4.4.6 EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at specific channel frequencies individually. EUTSPECTRUM FCC ID: HED3CRWE850075 Report No.: RF920212H05A60Issued: Apr. 10, 2003 ADT No.: 920222H01 4.4.7 TEST RESULTS EUT Wireless LAN Access Point 8500 MODEL 3CRWE850075A MODE Normal INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 19eg. C, 64RH, 976 hPa TESTED BY Hank Chung CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER EXCURSION (dB) PEAK to AVERAGE EXCURSION LIMIT (dB) PASS/FAIL 151807.1113PASS 452408.1813PASS 552608.3813PASS 853208.3013PASS 957457.7413PASS 1258058.5013PASS FCC ID: HED3CRWE850075 Report No.: RF920212H05A61Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 1 FCC ID: HED3CRWE850075 Report No.: RF920212H05A62Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 4 FCC ID: HED3CRWE850075 Report No.: RF920212H05A63Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 5 FCC ID: HED3CRWE850075 Report No.: RF920212H05A64Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 8 FCC ID: HED3CRWE850075 Report No.: RF920212H05A65Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 9 FCC ID: HED3CRWE850075 Report No.: RF920212H05A66Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 12 FCC ID: HED3CRWE850075 Report No.: RF920212H05A67Issued: Apr. 10, 2003 ADT No.: 920222H01 EUT Wireless LAN Access Point 8500 MODEL 3CRWE850075A MODE Turbo INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 19eg. C, 64RH, 976 hPa TESTED BY Hank Chung CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER EXCURSION (dB) PEAK to AVERAGE EXCURSION LIMIT (dB) PASS/FAIL 152109.0413PASS 252508.6613PASS 352908.7113PASS 457609.3413PASS 558009.6513PASS FCC ID: HED3CRWE850075 Report No.: RF920212H05A68Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 1 FCC ID: HED3CRWE850075 Report No.: RF920212H05A69Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 2 FCC ID: HED3CRWE850075 Report No.: RF920212H05A70Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 3

FCC ID: HED3CRWE850075 Report No.: RF920212H05A71Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 4 FCC ID: HED3CRWE850075 Report No.: RF920212H05A72Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 5 FCC ID: HED3CRWE850075 Report No.: RF920212H05A73Issued: Apr. 10, 2003 ADT No.: 920222H01 4.5 PEAK POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF PEAK POWER SPECTRAL DENSITY MEASUREMENT Frequency BandLimit 5.15 – 5.25 GHz4dBm 5.25 – 5.35 GHz11dBm 5.725 – 5.825 GHz17dBm 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP1093.4495.30Dec. 19, 2003 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: HED3CRWE850075 Report No.: RF920212H05A74Issued: Apr. 10, 2003 ADT No.: 920222H01 4.5.3 TEST PROCEDURES 1. The transmitter output was connected to the spectrum analyzer. 2. Set RBW=1MHz, VBW=3MHz. The PPSD is the highest level found across the emission in any 1MHz band. 4.5.4 DEVIATION FROM TEST STANDARD No deviation 4.5.5 TEST SETUP 4.5.6 EUT OPERATING CONDITIONS Same as 5.3.6 EUTSPECTRUM ANALYZER FCC ID: HED3CRWE850075 Report No.: RF920212H05A75Issued: Apr. 10, 2003 ADT No.: 920222H01 4.5.7 TEST RESULTS EUT Wireless LAN Access Point 8500 MODEL 3CRWE85007 5A MODE Normal INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 19eg. C, 64RH, 976 hPa TESTED BY Hank Chung CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 1 MHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 151801.024PASS 452400.064PASS 552606.7211PASS 853202.9611PASS 957457.8317PASS 1258054.1617PASS FCC ID: HED3CRWE850075 Report No.: RF920212H05A76Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 1 FCC ID: HED3CRWE850075 Report No.: RF920212H05A77Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 4 FCC ID: HED3CRWE850075 Report No.: RF920212H05A78Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 5 FCC ID: HED3CRWE850075 Report No.: RF920212H05A79Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 8 FCC ID: HED3CRWE850075 Report No.: RF920212H05A80Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 9 FCC ID: HED3CRWE850075 Report No.: RF920212H05A81Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 12 FCC ID: HED3CRWE850075 Report No.: RF920212H05A82Issued: Apr. 10, 2003 ADT No.: 920222H01 EUT Wireless LAN Access Point 8500 MODEL 3CRWE850075A MODETurbo INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 19eg. C, 64RH, 976 hPa TESTED BY Hank Chung CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 1 MHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 15210-1.684PASS 25250-2.164PASS 35290-1.3611PASS 457600.8417PASS 558000.5917PASS FCC ID: HED3CRWE850075 Report No.: RF920212H05A83Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 1 FCC ID: HED3CRWE850075 Report No.: RF920212H05A84Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 2 FCC ID: HED3CRWE850075 Report No.: RF920212H05A85Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 3 FCC ID: HED3CRWE850075 Report No.: RF920212H05A86Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 4 FCC ID: HED3CRWE850075 Report No.: RF920212H05A87Issued: Apr. 10, 2003 ADT No.: 920222H01 CHANNEL 5 FCC ID: HED3CRWE850075 Report No.: RF920212H05A88Issued: Apr. 10, 2003 ADT No.: 920222H01 4.6 FREQUENCY STABILITY 4.6.1 LIMITS OF FREQUENCY STABILITY MEASUREMENT The frequency tolerance of the carrier signal shall be maintained within +/- 0.02% of the operating frequency over a temperature variation of –30 degrees to 50 degrees C at normal supply voltage, and for a variation in the primary supply voltage from 85% to 115% of the rated supply voltage at a temperature of 20 degrees C. 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049July 24, 2003 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE 1.The EUT was placed inside the environmental test chamber and powered by nominal AC voltage. 2. Turn the EUT on and couple its output to a spectrum analyzer. 3. Turn the EUT off and set the chamber to the highest temperature specified. 4. Allow sufficient time (approximately 30 min) for the temperature of the chamber to stabilize, turn the EUT on and measure the operating frequency after 2, 5, and 10 minutes. 5. Repeat step 2 and 3 with the temperature chamber set to the lowest temperature. 6. The test chamber was allowed to stabilize at +20 degree C for a minimum of 30 minutes. The supply voltage was then adjusted on the EUT from 85% to 115% and the frequency record. 4.6.4 DEVIATION FROM TEST STANDARD No deviation FCC ID: HED3CRWE850075 Report No.: RF920212H05A89Issued: Apr. 10, 2003 ADT No.: 920222H01 4.6.5 TEST SETUP 4.6.6 EUT OPERATING CONDITION Same as Item 4.1.6 Spectrum Analyzer AC Power Supply Temperature FCC ID: HED3CRWE850075 Report No.: RF920212H05A90Issued: Apr. …

Text truncated - open the document above for the full version.
