HED3CRWE870075Wireless LAN Access Point

Quick Start Guide Wireless LAN Access Point 8200/8500/8700 3CRWE820096A 3CRWE850075A 3CRWE870075A The 3Com Wireless LAN Access Point 8200 , Access Point 8500, and Access Point 8700 offer enterprise network standard based security and complete centralized management, with flexible and expansive connectivity and scalability. They extend networks and boost productivity for centrally managed enterprises requiring scalable security solutions. NOTE: This product must be installed by a professional technician/installer. Caution: Do not connect a telephone cable into the Console port; doing so can cause serious damage to the access point. LEDs Reset button Console port Ethernet port Access Point 8500Access Point 8200/8700 09-2292-00AC.fm Page 1 Tuesday, March 11, 2003 3:53 PM 1Before You Start  Make sure that you have the following items ready for the installation:  3Com Access Point 8200, Access Point 8500, or Access Point 8700  Standard detachable antennas (Access Point 8200 or Access Point 8700)  3Com installation CD  Ethernet category 5 straight cables (8-wire)  For wall-mount installations you will need the following items: Mounting plate Mounting screws Plastic anchors for drywall mounting  3Com Integrated Power-over-Ethernet power supply and power cord  To use the Web configuration management system, you need a computer running one of the following operating systems and one of the following browsers:  Operating Systems : Windows 98, Windows ME, Windows NT 4.0 (with the latest service pack), Windows 2000, or Windows XP.  Browsers : Internet Explorer 5.0 or later. (Internet Explorer 5.5 is available on the installation CD.) 2Prepare for Installation It is advisable to connect the power and check the Ethernet cables and LEDs before installing the unit in a hard-to-reach location. 1 Observe the following power requirements: The access point complies with the IEEE 802.3af power-over-Ethernet standard. It receives power over category 5 straight cable. Installation requires the use of either the 3Com power supply provided or IEEE 802.3af compliant power supply equipment (output power rated 48 V DC @ 350 mA maximum). Such equipment must be safety certified according to UL, CSA, IEC or other applicable national or international safety requirements for the country of use. All references to the power supply refer to equipment that meets these requirements. Because the power supply plug is the only means of disconnecting the access point from power, make sure the power outlet is accessible. The power supply can be located indoors at any point between the access point and the LAN access port where an accessible power outlet exists. 2 Decide where to place the access point.  Mounted on a wall on a stud (or other hard surface)  Mounted on to drywall  Placed on a flat surface The location should be elevated and centrally located relative to users on your network. Ceiling mounting is not recommended. 3 Record the access point MAC address in a safe place before the access point is installed in a hard-to-reach location. The MAC address is printed on the back of the access point housing. 4 Access Point 8200 or Access Point 8700: Carefully unpack the standard detachable antennas. Screw the antennas on to the SMA connectors and hand-tighten them. After network startup, you may need to adjust the antennas to fine-tune coverage in your area. NOTE: Regulatory restrictions dictate that when the access point is operational a minimum body-to-antenna distance of 1 meter (3 feet) must be maintained. 09-2292-00AC.fm Page 2 Tuesday, March 11, 2003 3:53 PM The installation CD includes the User Guide, which contains more detailed information on planning, installing and configuring the device. Additional tools and utilities are provided to assist with the management of your network. See “Documentation and Software Utilities” on page 7 for instructions. 3Connect the Power The access point complies with the IEEE 802.3af power-over-Ethernet standard. It receives power over a standard category 5 straight (8-wire) Ethernet cable. There are two ways to supply power to the access point (refer to the illustration below):  Use the supplied 3Com Integrated Power-over-Ethernet power supply. In this case, you need to supply a second Ethernet cable to connect to the wired LAN.  Connect the access point directly to your own power-over-Ethernet hub or switch, which must also comply with the IEEE 802.3af standard. Using the Power Supply The power supply can be located at any point between the access point and the LAN access port, wherever a convenient power outlet exists. If you supply your own Ethernet cable for connecting power, be sure that it is standard category 5 straight-through (8-wire) cable that has not been altered in any way. Use of nonstandard cable could damage the access point. Refer to the illustration above, and follow these steps: 1 Connect one end of the Ethernet cable to the Ethernet port on the access point. 2 Connect the other end of the Ethernet cable to the port labeled To Access Point on the power supply. 3 Connect the power cord to the power supply and plug the cord into a power outlet. CAUTION: Do not handle the antenna tips, especially after they are connected to the access point, as this could lead to electrostatic discharge (ESD), which could damage the equipment. "To Access Point" "To Hub/Switch" Using the Power Supply Using A Power-over-Ethernet LAN Port 09-2292-00AC.fm Page 3 Tuesday, March 11, 2003 3:53 PM 4 To link the access point to your Ethernet network, plug one end of another Ethernet cable into the port labeled To Hub/Switch on the power supply, and plug the other end into a LAN port (on a hub or in a wall). Using a Power-Over-Ethernet LAN Port If your LAN equipment complies with the IEEE 802.3af power-over-Ethernet standard, you can connect the access point directly to a LAN port. For example, the illustration above right shows a connection through a 3Com Ethernet Power Supply to a …

Text truncated - open the document above for the full version.

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME : Wireless LAN Access Point 8700 MODEL NO : 3CRWE870075A TRADE NAME : 3Com IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO : RF920225H01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION ManufacturerUSA Local Representative Company name: Accton Technology Corporation Company name: 3Com Corporation Address: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Address: 5500 Great America Parkway Santa Clara, CA 95052 Contact Person: Hsoang-Shen Chen Contact Person: Dan Lawless Title: Section Manager Title: Regulatory Manager Tel/Fax: Tel:886-3-5770270 Fax:886-3-5783839 Tel/Fax: Tel: (408) 326-5000 Fax: (408) 326-5001

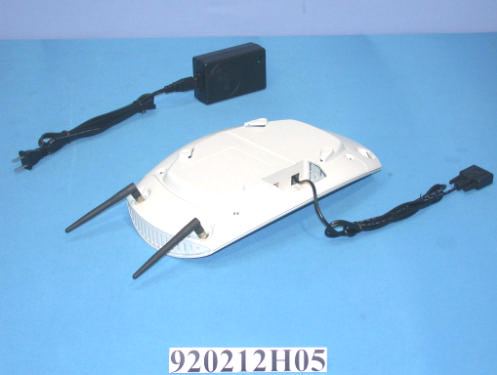

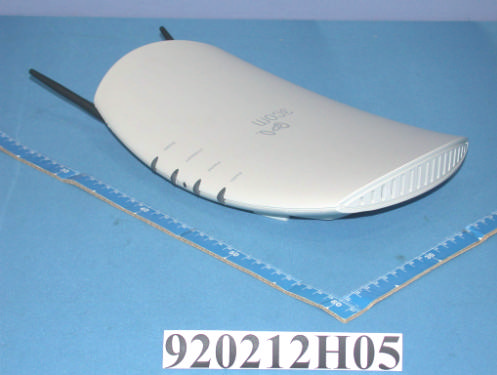

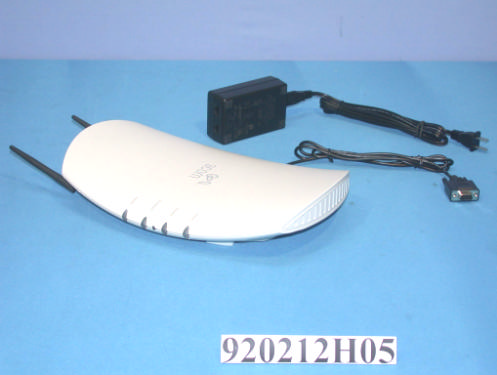

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

FORM# R0-04D00-13 V.02 : MFG Country (Arial Narrow, Point 5) Vendor ID (Arial Narrow, Point 5) MFG Factory (Label Here) Scale 1:1 NUMBER SERIAL 3CRWE850075A M/N: WL-450 XX MADE IN XXX XX 50.0 2 5 . 0 RR C US LR99150 geprufte Sicherheit .. .. Rheinland Product Safety TUV Usage restrictions apply, see documentation 0560 5mm FCC ID: IC: HED3CRWE850075 3857A-3CRWE850 Complies with RSS-210 85.5 7 5 . 5 R5x4

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19

FCC ID: HED3CRWE870075 Report No.920212H05B ADT No.920225H01 Technical Description The transmitter of the EUT is powered by host equipment. For 2.4GHz, the antenna is Detachable Antenna with standard SMA connector. For 5GHz, the antenna is detachable antenna with MMCX connector. This device is a 2.4GHz/5GHz Wireless LAN Access Point 8700 operates in both the 5GHz and 2.4GHz bands, the maximum data rate could be 108Mbps in turbo mode. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: HED3CRWE870075 Report No.: 920212H05B ADT No.: 920225H01 FCC TEST REPORT REPORT NO.: RF920212H05B MODEL NO.: 3CRWE870075A ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. Lab Code: 200376-0 FCC ID: HED3CRWE870075 Report No.: 920212H05B ADT No.: 920225H01 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: HED3CRWE870075 Report No.: 920212H05B ADT No.: 920225H01 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5 Climate Condition The temperature and related humidity: 20 deg. C and 63 % RH 6. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: HED3CRWE870075 Report No.: 920212H05B ADT No.: 920225H01 7 Test Results 7.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 5dBi or 3.16(numeric) for 5GHz and 1Bi or 1.26 (numeric) for 2.4GHz. 7.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 802.11b (2.4GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412 30.9 0.00771.0 62437 30.2 0.00761.0 112462 28.2 0.00711.0 For 802.11a (5GHz Band): Normal Mode : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 15180 43.85 0.0281.0 45240 42.76 0.0271.0 55260 200.91 0.1261.0 85320 70.31 0.0441.0 95745 218.78 0.1381.0 125805 96.83 0.0611.0 Turbo Mode : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 15210 48.75 0.0311.0 25250 42.95 0.0271.0 35290 74.30 0.0461.0 45760 93.54 0.0591.0 55800 86.90 0.0551.0

Report No.920212H05B ADT No.920225H01 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP1093.4495.30Dec. 19, 2003 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No.920212H05B ADT No.920225H01 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No.920212H05B ADT No.920225H01 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No.920212H05B ADT No.920225H01 4 Ch1 Report No.920212H05B ADT No.920225H01 5 Ch11 Report No.920212H05B ADT No.920225H01 6 TEST RESULTS – For 802.11a, Normal mode The spectrum plots are attached on the following 6 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No.920212H05B ADT No.920225H01 7 Ch1 Report No.920212H05B ADT No.920225H01 8 Ch4 Report No.920212H05B ADT No.920225H01 9 Ch5 Report No.920212H05B ADT No.920225H01 10 Ch8 Report No.920212H05B ADT No.920225H01 11 Ch9 Report No.920212H05B ADT No.920225H01 12 Ch12 Report No.920212H05B ADT No.920225H01 13 TEST RESULTS – For 802.11a, Turbo mode The spectrum plots are attached on the following 5 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No.920212H05B ADT No.920225H01 14 Ch1 Report No.920212H05B ADT No.920225H01 15 Ch3 Report No.920212H05B ADT No.920225H01 16 Ch4 Report No.920212H05B ADT No.920225H01 17 Ch5

FCC ID: HED3CRWE870075 Report No.: RF920212H05B 1 Issued: Apr. 15, 2003 ADT No.: 920225H01 FCC TEST REPORT REPORT NO.: RF920212H05B MODEL NO.: 3CRWE870075A RECEIVED: Feb. 25, 2003 TESTED: Feb. 25 to Mar. 21, 2003 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 140 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. Lab Code: 200376-0 FCC ID: HED3CRWE870075 Report No.: RF920212H05B 2 Issued: Apr. 15, 2003 ADT No.: 920225H01 Table of Contents 1. CERTIFICATION......................................................................................................5 2. SUMMARY OF TEST RESULTS..........................................................................6 3. GENERAL INFORMATION....................................................................................8 3.1 GENERAL DESCRIPTION OF EUT................................................................................8 3.2 DESCRIPTION OF TEST MODES..................................................................................9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS..................................................10 3.4 DESCRIPTION OF SUPPORT UNITS...........................................................................11 4. TEST TYPES AND RESULTS (FOR PART 802.11B)......................................13 4.1 CONDUCTED EMISSION MEASUREMENT.................................................................13 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT................................................13 4.1.2 TEST INSTRUMENTS.................................................................................................13 4.1.3 TEST PROCEDURES..................................................................................................14 4.1.4 DEVIATION FROM TEST STANDARD..........................................................................14 4.1.5 TEST SETUP..............................................................................................................15 4.1.6 EUT OPERATING CONDITIONS..................................................................................15 4.1.7 TEST RESULTS..........................................................................................................16 4.2 RADIATED EMISSION MEASUREMENT......................................................................22 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.....................................................22 4.2.2 TEST INSTRUMENTS.................................................................................................23 4.2.3 TEST PROCEDURES..................................................................................................24 4.2.4 DEVIATION FROM TEST STANDARD..........................................................................24 4.2.5 TEST SETUP..............................................................................................................25 4.2.6 EUT OPERATING CONDITIONS..................................................................................25 4.2.7 TEST RESULTS..........................................................................................................26 4.3 6dB BANDWIDTH MEASUREMENT.............................................................................30 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT............................................................30 4.3.2 TEST INSTRUMENTS.................................................................................................30 4.3.3 TEST PROCEDURE....................................................................................................31 4.3.4 DEVIATION FROM TEST STANDARD..........................................................................31 4.3.5 TEST SETUP..............................................................................................................31 4.3.6 EUT OPERATING CONDITIONS..................................................................................31 4.3.7 TEST RESULTS..........................................................................................................32 4.4 MAXIMUM PEAK OUTPUT POWER.............................................................................36 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.................................36 4.4.2 INSTRUMENTS...........................................................................................................36 4.4.3 TEST PROCEDURES..................................................................................................37 4.4.4 DEVIATION FROM TEST STANDARD..........................................................................37 4.4.5 TEST SETUP..............................................................................................................37 4.4.6 EUT OPERATING CONDITIONS..................................................................................37 FCC ID: HED3CRWE870075 Report No.: RF920212H05B 3 Issued: Apr. 15, 2003 ADT No.: 920225H01 4.4.7 TEST RESULTS..........................................................................................................38 4.5 POWER SPECTRAL DENSITY MEASUREMENT..........................................................39 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT........................................39 4.5.2 TEST INSTRUMENTS.................................................................................................39 4.5.3 …

Text truncated - open the document above for the full version.

FCC ID: HED3CRWE870075 Report No.: RF920212H05B 29 Issued: Apr. 15, 2003 ADT No.: 920225H01 EUT Wireless LAN Access Point 8700 MODEL 3CRWE870075A MODE Channel 11 FREQUENCY RANGE Above 1000 MHz INPUT POWER (SYSTEM) 120Vac, 60Hz DETECTOR FUNCTION Peak(PK) Average (AV) ENVIRONMENTAL CONDITIONS 35 deg. C, 60%RH, 974 hPa TESTED BY Tony Chen ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 2087.00 42.2 PK 74.00 -31.80 1.11 H 144 11.00 31.20 2 2329.00 41.2 PK 74.00 -32.80 1.51 H 164 8.90 32.20 3 *2462.00 101.5 PK 2.05 H 62 68.70 32.80 3 *2462.00 98.4 AV 2.05 H 62 65.70 31.20 4 2494.00 37.1 PK 74.00 -36.90 1.59 H 171 4.20 32.90 5 4175.00 44.0 PK 74.00 -30.00 2.47 H 165 7.00 37.00 6 4924.00 41.5 PK 74.00 -32.50 1.76 H 15 2.10 39.40 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1 2087.00 46.5 PK 74.00 -27.50 1.10 V 98 15.30 31.20 2 2329.00 41.5 PK 74.00 -32.50 1.05 V 88 9.30 32.20 3 *2462.00 97.3 PK 1.97 V 91 64.50 32.80 3 *2462.00 94.5 AV 1.97 V 91 61.80 31.20 4 2495.00 38.7 PK 74.00 -35.30 1.44 V 144 5.90 32.90 5 4175.00 50.8 PK 74.00 -23.20 1.00 V 50 13.80 37.00 6 4923.00 42.0 PK 74.00 -32.00 1.34 V 30 2.60 39.40 REMARKS: 1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247 6. “ * “ : Fundamental frequency FCC ID: HED3CRWE870075 Report No.: RF920212H05B 30 Issued: Apr. 15, 2003 ADT No.: 920225H01 4.3 6dB BANDWIDTH MEASUREMENT 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT The minimum of 6dB Bandwidth Measurement is 0.5 MHz. 4.3.2 TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP 1093.4495.30 Dec. 19, 2003 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: HED3CRWE870075 Report No.: RF920212H05B 31 Issued: Apr. 15, 2003 ADT No.: 920225H01 4.3.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator. The bandwidth of the fundamental frequency was measured by spectrum analyzer with 100kHz RBW and 100kHz VBW. The 6dB bandwidth is defined as the total spectrum the power of which is higher than peak power minus 6 dB. 4.3.4 DEVIATION FROM TEST STANDARD No deviation 4.3.5 TEST SETUP 4.3.6 EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER FCC ID: HED3CRWE870075 Report No.: RF920212H05B 32 Issued: Apr. 15, 2003 ADT No.: 920225H01 4.3.7 TEST RESULTS EUT Wireless LAN Access Point 8700 MODEL 3CRWE870075A INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 20deg. C, 60%RH, 974 hPa TEST BY Hank Chung CHANNEL CHANNEL FREQUENCY (MHz) 6 dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1 2412 11.04 0.5 PASS 6 2437 10.12 0.5 PASS 11 2462 10.00 0.5 PASS FCC ID: HED3CRWE870075 Report No.: RF920212H05B 33 Issued: Apr. 15, 2003 ADT No.: 920225H01 CH1 FCC ID: HED3CRWE870075 Report No.: RF920212H05B 34 Issued: Apr. 15, 2003 ADT No.: 920225H01 CH6 FCC ID: HED3CRWE870075 Report No.: RF920212H05B 35 Issued: Apr. 15, 2003 ADT No.: 920225H01 CH11 FCC ID: HED3CRWE870075 Report No.: RF920212H05B 36 Issued: Apr. 15, 2003 ADT No.: 920225H01 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until SINGLE CHANNEL POWER METER NRVS 100026 Mar. 06, 2004 PEAK POWER SENSOR NRV-Z32 100013 Mar. 06, 2004 NOTE: 1. The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2. The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: HED3CRWE870075 Report No.: RF920212H05B 37 Issued: Apr. 15, 2003 ADT No.: 920225H01 4.4.3 TEST PROCEDURES The transmitter output was connected to the peak power meter. 4.4.4 DEVIATION FROM TEST STANDARD No deviation 4.4.5 TEST SETUP 4.4.6 EUT OPERATING CONDITIONS Same as Item 4.3.6 EUT Peak Power Meter FCC ID: HED3CRWE870075 Report No.: RF920212H05B 38 Issued: Apr. 15, 2003 ADT No.: 920225H01 4.4.7 TEST RESULTS EUT Wireless LAN Access Point 8700 MODEL 3CRWE870075A INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 20deg.C, 60%RH, 974 hPa TEST BY Hank Chung CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1 2412 14.9 30 PASS 6 2437 14.8 30 PASS 11 2462 14.5 30 PASS FCC ID: HED3CRWE870075 Report No.: RF920212H05B 39 Issued: Apr. 15, 2003 ADT No.: 920225H01 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP 1093.4495.30 Dec. 19, 2003 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: HED3CRWE870075 Report No.: RF920212H05B 40 Issued: Apr. 15, 2003 ADT No.: 920225H01 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamenta…

Text truncated - open the document above for the full version.

FCC ID: HED3CRWE870075 Report No.: RF920212H05B 57 Issued: Apr. 15, 2003 ADT No.: 920225H01 5.2.3 TEST INSTRUMENTS DESCRIPTION & MANUFACTURER MODEL NO. SERIAL NO. CALIBRATED UNTIL HP Spectrum Analyzer 8590L 3829A02338 Sep. 10, 2003 *ADVANTEST Spectrum Analyzer R3271A 85060311 May 21, 2003 CHASE RF Pre_Amplifier CPA9232 1001 Mar. 02, 2004 *HP Pre_Amplifier 8449B 3008A01281 Jun. 12, 2003 *ROHDE & SCHWARZ Test Receiver ESCS 30 100027 May 23, 2003 *CHASE Broadband Antenna CBL6112B 2502 Jun. 28, 2003 *Schwarzbeck Horn_Antenna BBHA9120-D1 D123 Jul. 31, 2003 SCHWARZBECK Tunable Dipole Antenna UHAP 897 Mar. 07, 2005 SCHWARZBECK Tunable Dipole Antenna VHAP 880 Mar. 07, 2005 *RF Switches MP59B M50867 Jul. 26, 2003 *RF Cable(JETBAO) BELDN RG-214 Cable_OA_01 Jul. 26, 2003 *Software AS60P8 NA NA *EMCO Antenna Tower 2075-2 9712-2124 NA *EMCO Turn Table 2081-1.53 9712-2030 NA *CORCOM AC Filter MRI2030 107/108 NA Note: 1. The calibration interval of the above test instruments is 12 months (36 months for Tunable Dipole Antenna) and the calibrations are traceable to NML/ROC and NIST/USA. 2. * = These equipment are used for the final measurement. 3. The horn antenna and HP preamplifier (model: 8449B) are used only for the measurement of emission frequency above 1GHz if tested. 4. The test was performed in ADT Open Site No. A. 5. The VCCI Site Registration No. is R-782. 6. The FCC Site Registration No. is 91097. FCC ID: HED3CRWE870075 Report No.: RF920212H05B 58 Issued: Apr. 15, 2003 ADT No.: 920225H01 5.2.4 TEST PROCEDURES a. The EUT was placed on the top of a rotating table 0.8 meters above the ground at a 10 meter open area test site. The…

Text truncated - open the document above for the full version.
