HED7822GMNWiFi Module

Mini-Size, up to 300Mbps IEEE 802.11b/g/n, 2T2R • Comply with IEEE 802.11b/g/n standards. • High transfer data rate – up to 300Mbps. • Supports WMM wireless QoS feature. • Supports 64/128-bit WEP, WPA, WPA2 with IEEE 802.1x functions for high level of security. • Support the most popular operating system: Windows XP/Vista/7. • Supports WPS (WiFi Protected Setup) hardware button for easy connection. • Supports software AP function. • Supports USB 2.0/1.1 interface. • Portable and mini size design. • Green power saving. Specification Product 300N Wireless LAN USB Module Main Chip Realtek RTL8192CU Standard IEEE 802.11b/g/n Bus Type USB 2.0 Type A Frequency Band 2.4000~2.4835GHz (Industrial Scientific Medical Band) Data Rate 11b: 1/2/5.5/11Mbps 11g: 6/9/12/24/36/48/54Mbps 11n (20MHz): MCS0-15, up to 144Mbps 11n (40MHz): MCS0-15, up to 300Mbps Output Power 11n: 21dBm±1.5dBm 11g: 19dBm±1.5dBm 11b: 14.5dBm±1.5dBm Security WEP 64/128, WPA, WPA2, IEEE 802.1x Antenna Chip Antenna x 2 (2T2R) Drivers Windows XP/Vista/7 LED Link/Activity Dimension 9.5(H) x 19.2(W) x 56(D) mm Temperature Operating: 32~104°F (0~40°C) , Storage: -4~140°F (-20~60°C) Humidity Operating: 10~90% (Non-Condensing) Storage: Max. 95% (Non-Condensing) Certification 47 CFR FCC Part 15 Subpart B, Class B 47 CFR FCC Part 15 Subpart C & 15.247 Canada Standard ICES-003 Issue 5, Class B IC RSS-210 Annex 8 Feature EW-7822GMn 300N Wireless LAN USB Module FCC Statement: Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: HED7822GMN ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page No. : 22 Module Approval Request Letter Subject: Module Approval Date: 2012/11/29 FCC ID: HED7822GMN Dear Reviewer, We, Sporton International Inc., are authorized by Accton Technology Corporation to have their state-of-the-art WiFi Module approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip RTL8192CU. 3. The requirement of power supply regulation: The part number of the power regulator is CAT7103. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

Accton Technology Corporation Name of Equipment: WiFi Module Model Number: EW-7822GMn ============================================================= Label Sample

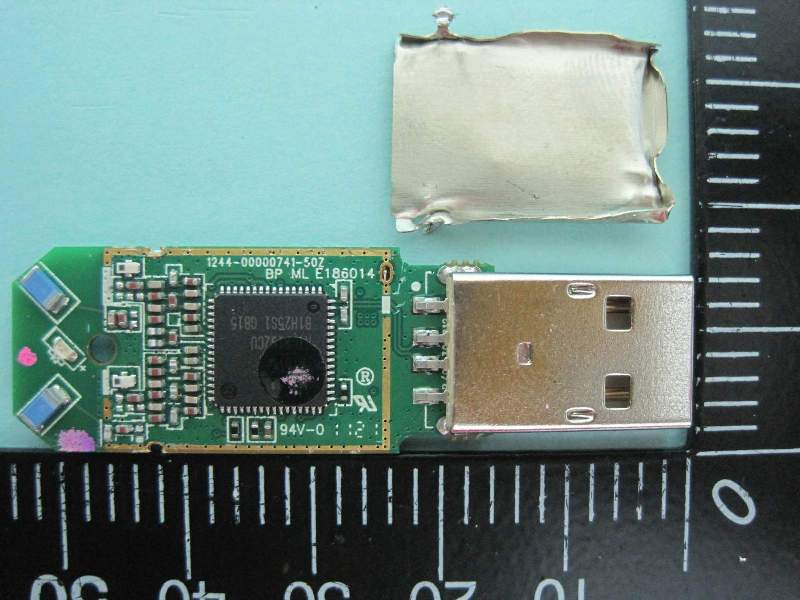

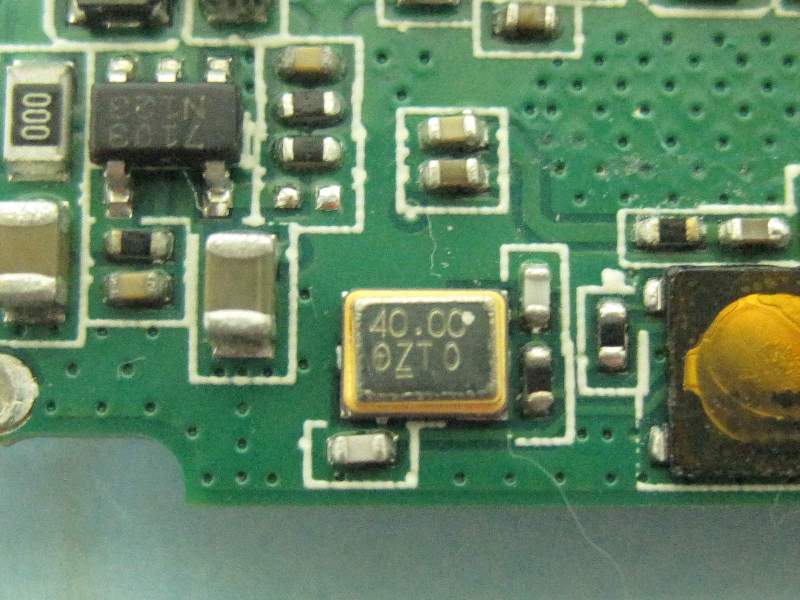

Report No.: EP2O0531 SPORTON International Inc. PAGE NUMBER : 1 OF 2 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 26, 2012 FAX : 886-2-2696-2255 Photographs of EUT Report No.: EP2O0531 SPORTON International Inc. PAGE NUMBER : 2 OF 2 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 26, 2012 FAX : 886-2-2696-2255

Report No.: FR2O0531 FCC ID: HED7822GMN Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR2O0531 FCC ID: HED7822GMN Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR2O0531 FCC ID: HED7822GMN Page No. : B3 of B3 1.3. Calculated Result and Limit Antenna Type : Chip Max Conducted Power for IEEE 802.11n 20MHz MCS8: 22.38 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 22.3768 172.8551 0.054530 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Accton Technology Corporation Applicant Address #1, Creation Rd. III, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. FCC ID HED7822GMN Manufacturer’s company Edimax Technology co., Ltd Manufacturer Address 6F., No.3, Wu-Chuan 3rd Road, Wu-Gu, New Taipei City 24891, Taiwan Product Name WiFi Module Brand Name Accton Model Name EW-7822GMn Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Oct. 05, 2012 Final Test Date Oct. 24, 2012 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v02 and KDB 662911 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR2O0531 Report Format Version: 01 Page No. : iof ii FCC ID: HED7822GMN Issued Date : Dec. 26, 2012 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................7 3.7. Table for Supporting Units ...................................................................................................................................................................7 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................8 3.9. Test Configurations .............................................................................................................................................................................9 4. TEST RESULT ................................................................................................................................................... 12 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................12 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................16 4.3. Power Spectral Density Measurement ..............................................................................................................................................19 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................28 4.5. Radiated Emissions Measurement ....................................................................................................................................................35 4.6. Band Edge Emissions Measurement .................................................................................................................................................53 4.7. Antenna Requirements .....................................................................................................................................................................78 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 79 6. TEST LOCATION.............................................................................................................................................. 81 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 82 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A7 APPENDIX B. MAXIMUM PERMISSIBLE EXPOSURE .......................................................................................... B1 ~ B3 Report No.: FR2O0531 Report Format Version…
