HEDBAP120802.11 abg AP

  Powered by Accton BAP120     User Guide                 !"#$%&'( BAP120      ! "  # i COMPLIANCES Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters (8 inches) between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Wireless 5 GHz Band Statements: As the Access Point can operate in the 5150-5250 MHz frequency band it is limited by the FCC, Industry Canada and some other countries to indoor use only so as to reduce the potential for harmful interference to co-channel Mobile Satellite systems. COMPLIANCES ii High power radars are allocated as primary users (meaning they have priority) of the 5250-5350 MHz and 5650-5850 MHz bands. These radars could cause interference and /or damage to the access point when used in Canada. The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met. Industry Canada - Class B This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus,” ICES-003 of Industry Canada. Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matérial brouilleur: “Appareils Numériques,” NMB-003 édictée par l’Industrie. Japan VCCI Class B Australia/New Zealand AS/NZS 4771 ACN 066 352010 COMPLIANCES iii EC Conformance Declaration Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/ EC). This equipment meets the following conformance standards: • EN 60950-1 (IEC 60950-1) - Product Safety • EN 301 893 - Technical requirements for 5 GHz radio equipment • EN 300 328 - Technical requirements for 2.4 GHz radio equipment • EN 301 489-1 / EN 301 489-17 - EMC requirements for radio equipment Countries of Operation & Conditions of Use in the European Community This device is intended to be operated in all countries of the European Community. Requirements for indoor vs. outdoor operation, license requirements and allowed channels of operation apply in some countries as described below: Note: The user must use the configuration utility provided with this product to ensure the channels of operation are in conformance with the spectrum usage rules for European Community countries as described below. • This device requires that the user or installer properly enter the current country of operation in the command line interface as described in the user guide, before operating this device. • This device will automatically limit the allowable channels determined by the current country of operation. Incorrectly entering the country of operation may result in illegal operation and may cause harmful interference to other systems. The user is obligated to ensure the device is operating according to the channel limitations, indoor/outdoor restrictions and license requirements for each European Community country as described in this document. • This device employs a radar detection feature required for European Community operation in the 5 GHz band. This feature is automatically enabled when the country of operation is correctly configured for any European Community country. The presence of nearby radar operation may result in temporary interruption of operation of this device. The radar detection feature will automatically restart operation on a channel free of radar. COMPLIANCES iv • The 5 GHz Turbo Mode feature is not allowed for operation in any European Community country. The current setting for this feature is found in the 5 GHz 802.11a Radio Settings Window as described in the user guide. • The 5 GHz radio's Auto Channel Select setting described in the user guide must always remain enabled to ensure that automatic 5 GHz channel selection complies with European requirements. The current setting for this feature is found in the 5 GHz 802.11a Radio Settings Window as described in the user gu…

Text truncated - open the document above for the full version.

Page No. : 5 Confidential Letter Date: 2006/5/8 Federal Communications Commission Authorization and Evaluation Division FCC ID：HEDBAP120 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description 4. BOM The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Accton Technology Corporation Applicant’s company address : No. 1 Creation Rd., III, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Signature : _________________________________ Job Title and Dept. : Alex Wen / Section Manager

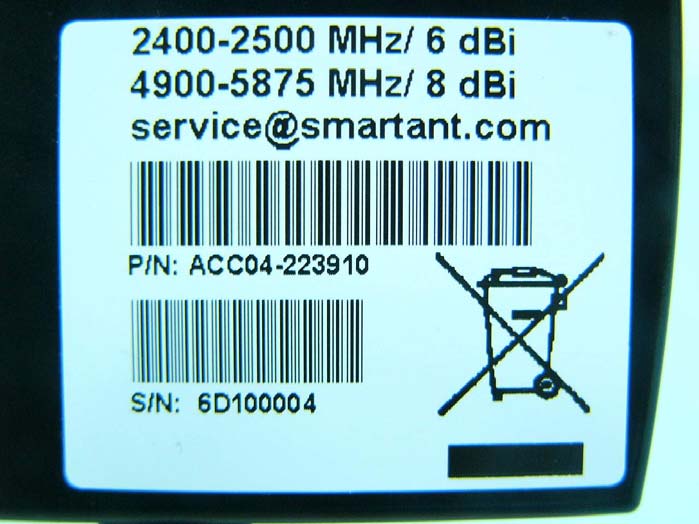

SPORTON International Inc. PAGE NUMBER : A1 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 Antenna 1 SPORTON International Inc. PAGE NUMBER : A5 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 Antenna 2 SPORTON International Inc. PAGE NUMBER : A7 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 Adapter SPORTON International Inc. PAGE NUMBER : A10 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A11 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 POE SPORTON International Inc. PAGE NUMBER : A12 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A13 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A14 OF A14 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A11 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A12 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 1, 2006 FAX : 886-2-2696-2255

Report No.: FR641005-AA FCC ID: HEDBAP120 Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR641005-AA FCC ID: HEDBAP120 Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR641005-AA FCC ID: HEDBAP120 Page No. : 3 of 3 1.3. Calculated Result and Limit Ant. 1 Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11a : 14.23dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5 3.1623 14.2300 26.4850 0.016671 1 Complies Ant. 2 Antenna Type : Patch Antenna Max Conducted Power for IEEE 802.11a: 12.41dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 8 6.3096 12.4100 17.4181 0.021875 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: RF-15.407-2006-2-17-d FCC RADIO TEST REPORT Applicant’s company Accton Technology Corporation Applicant Address No. 1 Creation Rd., III, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. FCC ID HEDBAP120 Manufacturer’s company Accton Technology Corporation Manufacturer Address No. 1 Creation Rd., III, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Product Name 802.11 abg AP Brand Name Nortel Model Name Business Access Point 120 a/b/g Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5350MHz Receive Date Apr. 14, 2006 Test Date Jun. 2, 2006 Submission Type Original Equipment Statement Test result included is only for the 802.11a (5150 ~ 5350MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart E. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Lab Code: 200079-0 Report No.: FR641005-AA Report Format Version: RF-15.407-2006-2-17-d Page No. : i of ii FCC ID: HEDBAP120 Issued Date : Jun. 12, 2006 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................3 3.4. Table for Carrier Frequencies .............................................................................................................................................................4 3.5. Table for Test Modes ...........................................................................................................................................................................4 3.6. Table for Testing Locations..................................................................................................................................................................5 3.7. Table for Supporting Units ...................................................................................................................................................................5 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................5 3.9. Test Configurations .............................................................................................................................................................................6 4. TEST RESULT ................................................................................................................................................... 11 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................11 4.2. 99% Occupied Bandwidth Measurement ........................................................................................................................................17 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................25 4.4. Power Spectral Density Measurement ..............................................................................................................................................34 4.5. Peak Excursion Measurement ...........................................................................................................................................................43 4.6. Radiated Emissions Measurement ....................................................................................................................................................52 4.7. Band Edge Emissions Measurement .................................................................................................................................................88 4.8. Frequency Stability Measurement ..................................................................................................................................................101 4.9. Antenna Requirements ...................................................................................................................................................................103 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................. 104 6. SPORTON COMPANY PROFILE ...................................................................................................................... 106 6.1. Test Location................................................................…

Text truncated - open the document above for the full version.

Report No.: FR641005-AA Report Format Version: RF-15.407-2006-2-17-d Page No. : 48 of 107 FCC ID: HEDBAP120 Issued Date : Jun. 12, 2006 Peak Excursion Plot on Configuration IEEE 802.11a Turbo / 5250 MHz Ref 20 dBmAtt 30 dB A * Center 5.25 GHzSpan 60 MHz6 MHz/ * RBW 1 MHz * VBW 300 kHz * 1 PK VIEW 3 SA VIEW SWT 300 ms * * -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] 5.29 dBm 5.255673077GHz 2 Marker 2 [T3 ] 1.12 dBm 5.242884615 GHz Date: 2.JUN.2006 14:42:00 Peak Excursion Plot on Configuration IEEE 802.11a Turbo / 5290 MHz Ref 20 dBmAtt 30 dB A * Center 5.29 GHzSpan 60 MHz6 MHz/ * RBW 1 MHz * VBW 300 kHz * 1 PK VIEW 3 SA VIEW SWT 300 ms * * -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] 5.40 dBm 5.295865385GHz 2 Marker 2 [T3 ] 1.29 dBm 5.297788462 GHz Date: 2.JUN.2006 14:41:09 Report No.: FR641005-AA Report Format Version: RF-15.407-2006-2-17-d Page No. : 49 of 107 FCC ID: HEDBAP120 Issued Date : Jun. 12, 2006 For Ant. 2 Peak Excursion Plot on Configuration IEEE 802.11a / 5180 MHz Ref 20 dBmAtt 30 dB * A 4 MHz/Center 5.18 GHzSpan 40 MHz * RBW 1 MHz SWT 300 ms 1 PK VIEW * VBW 300 kHz * * *3 SA VIEW -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] 4.79 dBm 5.184102564 GHz 2 Marker 2 [T3 ] -0.07 dBm 5.176666667GHz Date: 20.APR.2006 21:04:10 Peak Excursion Plot on Configuration IEEE 802.11a / 5260 MHz Ref 20 dBmAtt 30 dB * A 4 MHz/Center 5.26 GHzSpan 40 MHz * RBW 1 MHz SWT 300 ms *3 SA VIEW 1 PK VIEW * VBW 300 kHz * * -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] 5.11 dBm 5.263076923GHz 2 Marker 2 [T3 ] 0.30 dBm 5.265833333 GHz Date: 20.APR.2006 21:03:10 Report No.: FR641005-AA Report Format Version: RF-15.407-2006-2-17-d Page No. : 50 of 107 FCC ID: HEDBAP120 Issued Date : Jun. 12, 2006 Peak Excursion Plot on Configuration IEEE 802.11a / 5320 MHz Ref 20 dBmAtt 30 dB * A 4 MHz/Center 5.32 GHzSpan 40 MHz * RBW 1 MHz SWT 300 ms 1 PK VIEW * VBW 300 kHz * * *3 SA VIEW -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] 4.94 dBm 5.322884615 GHz 2 Marker 2 [T3 ] 1.08 dBm 5.313974359GHz Date: 20.APR.2006 21:00:22 Peak Excursion Plot on Configuration IEEE 802.11a Turbo / 5210 MHz Ref 20 dBmAtt 30 dB * A 6 MHz/Center 5.21 GHzSpan 60 MHz * RBW 1 MHz SWT 300 ms *3 SA VIEW 1 PK VIEW * VBW 300 kHz * * -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] 3.15 dBm 5.215865385GHz 2 Marker 2 [T3 ] -1.50 dBm 5.215769231 GHz Date: 20.APR.2006 21:05:13 Report No.: FR641005-AA Report Format Version: RF-15.407-2006-2-17-d Page No. : 51 of 107 FCC ID: HEDBAP120 Issued Date : Jun. 12, 2006 Peak Excursion Plot on Configuration IEEE 802.11a Turbo / 5250 MHz Ref 20 dBmAtt 30 dB * A 6 MHz/Center 5.25 GHzSpan 60 MHz * RBW 1 MHz SWT 300 ms *3 SA VIEW 1 PK VIEW * VBW 300 kHz * * -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] 3.80 dBm 5.255480769GHz 2 Marker 2 [T3 ] -0.70 dBm 5.241634615 GHz Date: 20.APR.2006 21:06:16 Peak Excursion Plot on Configuration IEEE 802.11a Turbo / 5290 MHz Ref 20 dBmAtt 30 dB * A 6 MHz/Center 5.29 GHzSpan 60 MHz * RBW 1 MHz SWT 300 ms 1 PK VIEW * VBW 300 kHz * * *3 SA VIEW -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] 3.65 dBm 5.295961538 GHz 2 Marker 2 [T3 ] -0.76 dBm 5.293365385GHz Date: 20.APR.2006 21:07:09 Report No.: FR641005-AA Report Format Version: RF-15.407-2006-2-17-d Page No. : 52 of 107 FCC ID: HEDBAP120 Issued Date : Jun. 12, 2006 4.6. Radiated Emissions Measurement 4.6.1. Limit For transmitters operating in the 5.15-5.35 GHz band: all emissions outside of the 5.15-5.35 GHz band shall not exceed an EIRP of -27 dBm/MHz (68.3dBuV/m at 3m). For transmitters operating in the 5.47-5.725 GHz band: In addition, In case the emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 4.6.2. Measuring Instruments and Setting Please refer to section 5 in this report. The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Attenuation Auto Start Frequency 1000 MHz Stop Frequency 10th carrier harmonic RB / VB (emission in restricted band) 1MHz / 1MHz for Peak, 1 MHz / 10Hz for Average RB / VB (other emission) 100KHz / 100KHz for peak Receiver Parameter Setting Attenuation Auto Start ~ Stop Frequency 9kHz~150kHz / RB 200Hz for QP Start ~ Stop Frequency 150kHz~30MHz / RB 9kHz for QP Start ~ Stop Frequency 30MHz~1000MHz / RB 120kHz for QP Report No.: FR641005-AA Report Format Version: RF-15.407-2006-2-17-d Page No. : 53 of 107 FCC ID: HEDBAP120 Issued Date : Jun. 12, 2006 4.6.3. Test Procedures 1. Configure the EUT according to ANSI C63.4. The EUT was placed on the top of the turntable 0.8 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emissions, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz VBW and RBW for peak reading. Then 1MHz RBW and 10Hz VBW for average reading in spectrum analyzer. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one …

Text truncated - open the document above for the full version.

Report No.: FR641005 FCC ID: HEDBAP120 Page No. : 1 of 14 Appendix B. Test Photos Report No.: FR641005 FCC ID: HEDBAP120 Page No. : 2 of 14 1. Photographs of Conducted Emissions Test Configuration Test mode: Adapter with Ant. 2 FRONT VIEW REAR VIEW Report No.: FR641005 FCC ID: HEDBAP120 Page No. : 3 of 14 SIDE VIEW Report No.: FR641005 FCC ID: HEDBAP120 Page No. : 4 of 14 Test mode: POE with Ant. 2 FRONT VIEW REAR VIEW Report No.: FR641005 FCC ID: HEDBAP120 Page No. : 5 of 14 SIDE VIEW Report No.: FR641005 FCC ID: HEDBAP120 Page No. : 6 of 14 2. Photographs of Radiated Emissions Test Configuration Below 30MHz FRONT VIEW REAR VIEW Report No.: FR641005 FCC ID: HEDBAP120 Page No. : 7 of 14 Test mode: Adapter with Ant. 1 Test Configuration: 30KHz~1GHz FRONT VIEW REAR VIEW Report No.: FR641005 FCC ID: HEDBAP120 Page No. : 8 of 14 Test Configuration: above 1GHz FRONT VIEW REAR VIEW Report No.: FR641005 FCC ID: HEDBAP120 Page No. : 9 of 14 Test mode: Adapter with Ant. 2 Test Configuration: 30KHz~1GHz FRONT VIEW REAR VIEW Report No.: FR641005 FCC ID: HEDBAP120 Page No. : 10 of 14 Test Configuration: above 1GHz FRONT VIEW REAR VIEW Report No.: FR641005 FCC ID: HEDBAP120 Page No. : 11 of 14 Test mode: POE with Ant. 1 Test Configuration: 30KHz~1GHz FRONT VIEW REAR VIEW Report No.: FR641005 FCC ID: HEDBAP120 Page No. : 12 of 14 Test Configuration: above 1GHz FRONT VIEW REAR VIEW Report No.: FR641005 FCC ID: HEDBAP120 Page No. : 13 of 14 Test mode: POE with Ant. 2 Test Configuration: 30KHz~1GHz FRONT VIEW REAR VIEW Report No.: FR641005 FCC ID: HEDBAP120 Page No. : 14 of 14 Test Configuration: above 1GHz FRONT VIEW REAR VIEW
