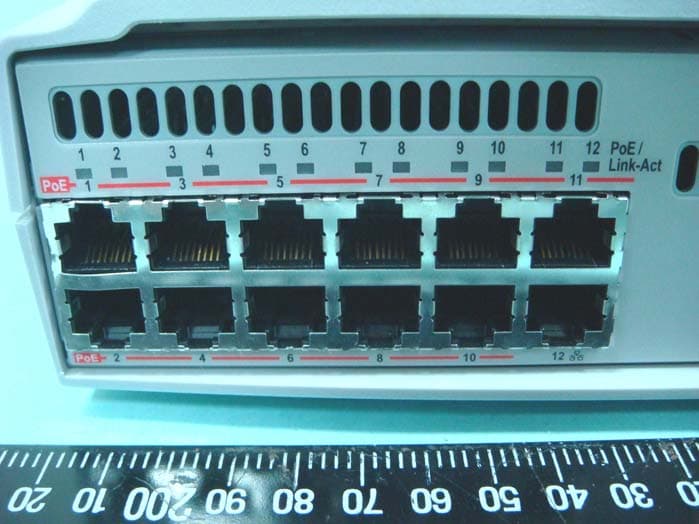

HEDBSG12BUSINESS SERVICE GATEWAY

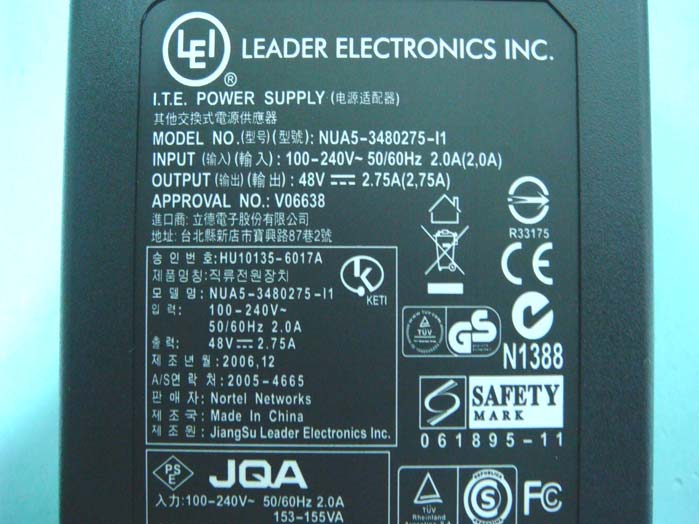

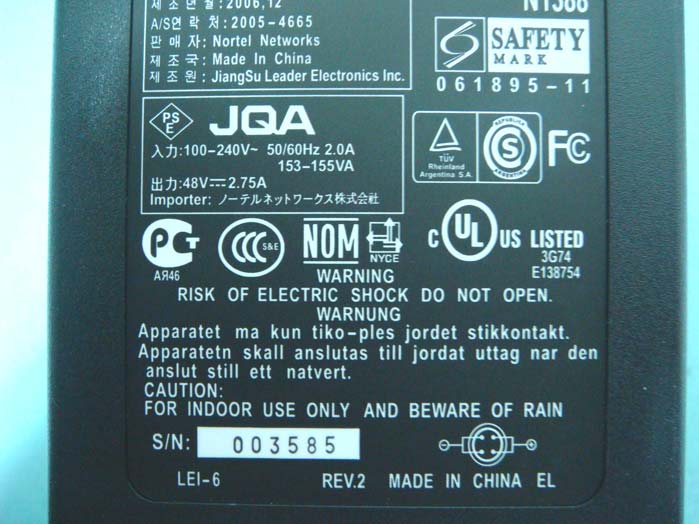

Tools and materials Installing the BSG unit For optional methods to install your BSG, see the BSG8ew and BSG12ew/aw/tw 1.0 Installation Guide (NN47928-302). Connecting wireless Connecting the Public Switched Telephone Network Configuring the initial system settings Optional installations Complete the following steps using the BSG Quick Start Wizard. Before you start, contact your Internet service provider (ISP) to obtain your user name, password, and encapsulation type information (Ethernet, PPPoE). BSG12aw BSG12aw Quick Installation Guide 1 4 6 7 8 12 10 13 14 15 16 17 18 19 5 2 3 Before you install the Business Services Gateway (BSG), ensure that you have the following package contents and materials: Package Contents ● BSG unit ● power supply and power cord ● two omni-directional antennas ● console cable assembly ● Quick Installation Guide ● four self-adhesive rubber feet ● Regulatory sheet ● Hazardous Substance table Additional Required Materials (not included) ●RJ-11 telephony cable (WAN connection) ●two to three additional RJ-11 telephony cables (if using analog devices) ● RJ-11 splitter (if only one analog line is available) You can download all documents referenced in this Quick Installation Guide at www.nortel.com Position the BSG on a desktop. Make sure you leave enough space around the unit for ventilation and access to the cables. Install the power supply next to the BSG. The power supply must be within 1.5 m (5 ft) of the BSG and within 1.5 m (5 ft) of the AC power outlet (wall outlet or universal power supply). Connect the 48V DC 4-pin DIN power supply connector into either of the power outlets at the back of your BSG. Plug one end of an RJ-11 telephone cable into the FXO analog line (RJ-11) port on the front of the BSG. Plug the other end of the cable into the telephone jack on the wall. Attach the omni-directional antennas to the wireless LAN antenna connectors on the back of the BSG. From a PC connected to the LAN, open a new Web browser, type http://192.168.1.1 into the address bar, and press Enter to start the Web user interface. In the Login window, enter your user name (nnadmin) and password (PlsChgMe!), and Click Login. In the navigation pane on the left, click Quick Start Wizard. Click the blue forward button to start the wizard. Click Next and enter information on each wizard page as required. On the Review Data page, click Continue. Congratulations! You have successfully configured the Nortel Business Services Gateway! Enter your ISP name, user name, and password, and confirm your password by entering it again. For more information about additional settings within the Quick Start Wizard, see the BSG8ew and BSG12ew/aw/tw 1.0 Configuration Guide (NN47928-500). Attach the four self-adhesive rubber feet to the bottom of the BSG by peeling off the paper backing and placing the feet on the unit. N0156580 NN47928-306 Standard 01.01 Caution: Risk of equipment damage To avoid damaging the equipment, you must connect the BSG to an outlet with a third-wire ground. Use the BSG with only the supplied BSG power supply and a three-wire power outlet. Plug one end of a standard Ethernet cable into one of the twelve LAN ports on the front of your BSG. Plug the other end of the Ethernet cable into your LAN device, such as a VoIP phone or PC. Ensure that the corresponding LAN port PoE/Link/Act LED lights up. The corresponding LED will come on only if the device connecting to that port is powered on. Connect one end of the AC power cord into the AC power supply. Plug the other end of the AC power cord into the AC power outlet (wall outlet or universal power supply). The System LED on the front panel lights up. Printed in Canada. Copyright © Nortel Networks Limited 2007. All Rights Reserved Connecting LAN devices (VoIP phones and PCs) Two power outlets Connecting the WAN 9 Plug one end of an RJ-11 telephone cable into the ADSL port on the front of the BSG. Plug the other end of the cable into the telephone jack on the wall. ADSL port Console port System LED FXO port FXS ports Connecting analog or fax devices 11 Plug one end of an RJ-11 telephone cable into either of the FXS analog telephone (RJ-11) ports on the front of the BSG. Plug the other end of the cable into the analog device. Attach feet here PoE/Link/Act LEDs LAN ports

Tools and materials Installing the BSG unit For optional methods to install your BSG, see the BSG8ew and BSG12ew/aw/tw 1.0 Installation Guide (NN47928-302). Configuring the initial system settings Complete the following steps using the BSG Quick Start Wizard. Before you start, contact your Internet service provider (ISP) to obtain your user name, password, and encapsulation type information (Ethernet, PPPoE). Connecting wireless Optional installations Connecting the Public Switched Telephone Network 10 12 Plug one end of an RJ-11 telephone cable into the FXO analog line (RJ-11) port on the front of the BSG. Plug the other end of the cable into the telephone jack on the wall. Attach the omni-directional antennas to the wireless LAN antenna connectors on the back of the BSG. BSG12ew BSG12ew Quick Installation Guide 1 4 6 7 8 13 14 15 16 17 18 19 5 2 3 Before you install the Business Services Gateway (BSG), ensure that you have the following package contents and materials: Package Contents ● BSG unit ● power supply and power cord ● two omni-directional antennas ● console cable assembly ● Quick Installation Guide ● four self-adhesive rubber feet ● Regulatory sheet ● Hazardous Substance table Additional Required Materials (not included) ● standard Ethernet cable (WAN connection) ● two to three RJ-11 telephony cables (if using analog devices) You can download all documents referenced in this Quick Installation Guide at www.nortel.com Position the BSG on a desktop. Make sure you leave enough space around the unit for ventilation and access to the cables. Install the power supply next to the BSG. The power supply must be within 1.5 m (5 ft) of the BSG and within 1.5 m (5 ft) of the AC power outlet (wall outlet or universal power supply). Connect the 48V DC 4-pin DIN power supply connector into either of the power outlets at the back of your BSG. From a PC connected to the LAN, open a new Web browser, type http://192.168.1.1 into the address bar, and press Enter to start the Web user interface. In the Login window, enter your user name (nnadmin) and password (PlsChgMe!), and click Login. In the navigation pane on the left, click Quick Start Wizard. Click the blue forward button to start the wizard. ClickNext and enter information on each wizard page as required. On the Review Data page, click Continue. Congratulations! You have successfully configured the Nortel Business Services Gateway! Enter your ISP name, user name, and password, and confirm your password by entering it again. For more information about additional settings within the Quick Start Wizard, see the BSG8ew and BSG12ew/aw/tw 1.0 Configuration Guide (NN47928-500). Attach the four self-adhesive rubber feet to the bottom of the BSG by peeling off the paper backing and placing the feet on the unit. N0153680 NN47928-304 Standard 01.01 Caution: Risk of equipment damage To avoid damaging the equipment, you must connect the BSG to an outlet with a third-wire ground. Use the BSG with only the supplied BSG power supply and a three-wire power outlet Plug one end of a standard Ethernet cable into one of the eleven LAN ports on the front of your BSG. Plug the other end of the Ethernet cable into your LAN device, such as a VoIP phone or PC. Ensure that the corresponding LAN port PoE/Link/Act LED lights up. The corresponding LED will come on only if the device connecting to that port is powered on. Connecting the WAN 9 WAN port Plug one end of the standard Ethernet cable into the WAN port (port 12) of the BSG. Plug the other end into the service provider’s cable modem or DSL modem. Connect one end of the AC power cord into the AC power supply. Plug the other end of the AC power cord into the AC power outlet (wall outlet or universal power supply).The System LED on the front panel lights up. Printed in Canada. Copyright © Nortel Networks Limited 2007. All Rights Reserved Connecting LAN devices (VoIP phones and PCs) Two power outlets Connecting analog or fax devices 11 Plug one end of an RJ-11 telephone cable into either of the FXS analog telephone (RJ-11) ports on the front of the BSG. Plug the other end of the cable into the analog device. Console port FXO port FXS ports Attach feet here PoE/Link/Act LEDs LAN ports System LED

Tools and materials Installing the BSG unit For optional methods to install your BSG, see the BSG8ew and BSG12ew/aw/tw 1.0 Installation Guide (NN47928-302). Configuring the initial system settings Connecting the Public Switched Telephone Network Complete the following steps using the BSG Quick Start Wizard. Before you start, contact your Internet service provider (ISP) to obtain your user name, password, and encapsulation type information (Ethernet, PPPoE). BSG12tw BSG12tw Quick Istallation Guide 1 4 6 7 8 12 13 14 15 16 17 18 19 5 2 3 Connecting wireless Optional installations 10 Attach the omni-directional antennas to the wireless LAN antenna connectors on the back of the BSG. Before you install the Business Services Gateway (BSG), ensure that you have the following package contents and materials: Package Contents ● BSG unit ●power supply and power cord ●two omni-directional antennas ●console cable assembly ●Quick Installation Guide ●four self-adhesive rubber feet ●Regulatory sheet ●Hazardous Substance table Additional Required Materials (not included) ●two to three RJ-11 telephony cables (if using analog devices) You can download all documents referenced in this Quick Installation Guide at www.nortel.com Position the BSG on a desktop. Make sure you leave enough space around the unit for ventilation and access to the cables. Install the power supply next to the BSG. The power supply must be within 1.5 m (5 ft) of the BSG and within 1.5 m (5 ft) of the AC power outlet (wall outlet or universal power supply). Connect the 48V DC 4-pin DIN power supply connector into either of the power outlets at the back of your BSG. Plug one end of an RJ-11 telephone cable into the FXO analog line (RJ-11) port on the front of the BSG. Plug the other end of the line into the telephone jack on the wall. From a PC connected to the LAN, open a new Web browser, type http://192.168.1.1 into the address bar, and press Enter to start the Web user interface. In the Login window, enter your user name (nnadmin) and password (PlsChgMe!), and click Login. In the navigation pane on the left, click Quick Start Wizard. Click the blue forward button to start the wizard. Click Next and enter information on each wizard page as required. On the Review Data page, click Continue. Congratulations! You have successfully configured the Nortel Business Services Gateway! Enter your ISP name, user name, and password, and confirm your password by entering it again. For more information about additional settings within the Quick Start Wizard, see the BSG8ew and BSG12ew/aw/tw 1.0 Configuration Guide (NN47928-500). Attach the four self-adhesive rubber feet to the bottom of the BSG by peeling off the paper backing and placing the feet on the unit. N0156581 NN47928-307 Standard 01.01 Caution: Risk of equipment damage To avoid damaging the equipment, you must connect the BSG to an outlet with a third-wire ground. Use the BSG with only the supplied BSG power supply and a three-wire power outlet. Plug one end of a standard Ethernet cable into one of the twelve LAN ports on the front of your BSG. Plug the other end of the Ethernet cable into your LAN device, such as a VoIP phone or PC. Ensure that the corresponding LAN port PoE/Link/Act LED lights up. The corresponding LED will come on only if the device connecting to that port is powered on. Connect one end of the AC power cord into the AC power supply. Plug the other end of the AC power cord into the AC power outlet (wall outlet or universal power supply).The System LED on the front panel lights up. Printed in Canada. Copyright © Nortel Networks Limited 2007. All Rights Reserved Connecting LAN devices (VoIP phones and PCs) Two power outlets Connecting the WAN 9 Plug the T1/E1 connection into either of the T1/E1 ports on the BSG. T1/E1 ports Attach feet here PoE/Link/Act LEDs LAN ports Connecting analog or fax devices 11 Plug one end of an RJ-11 telephone cable into either of the FXS analog telephone (RJ-11) ports on the front of the BSG. Plug the other end of the cable into the analog device. Console port FXO port FXS ports System LED

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. WARNING: To comply with FCC radio frequency (RF) exposture limits, install this device a minimum of 7.9 inches (20 cm) away from individuals. The following safety instructions cover the installation and use of the Product. Read carefully and retain for future reference. Installation WARNING: To avoid electrical shock hazard to personnel or equipment damage observe the following precautions when installing telephone equipment: 1. Never install telephone, LAN or WAN wiring during a lightning storm. 2. Never install telephone, LAN or WAN jacks in wet locations unless the jack is specifically designed for wet locations. 3. Never touch uninsulated telephone, LAN or WAN wires or terminals unless the line has been disconnected at the network interface. 4. Use caution when installing or modifying telephone, LAN or WAN lines. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. Use When using your equipment, basic safety precautions should always be followed to reduce risk of fire, electric shock and injury to persons, including the following: 1. Read and understand all instructions. 2. Follow the instructions marked on the product and in the User and Maintenance documentation. 3. Unplug this product (or host equipment) from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 4. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool. 5. Do not place this product on an unstable cart, stand or table. The product may fall, causing serious damage to the product. 6. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation unless proper ventilation is provided. 7. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by persons walking on it. 8. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. 9. Never spill liquid of any kind on the product. 10. To reduce the risk of electric shock do not disassemble this product, but have it sent to a qualified service person when some service or repair work is required. 11. Unplug this product (or host equipment) from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the power supply cord or plug is damaged or frayed. b) If the product has been exposed to rain, water or liquid has been spilled on the product, disconnect and allow the product to dry out to see if it still operates; but do not open up the product. c) If the product housing has been damaged. d) If the product exhibits a distinct change in performance. 12.CAUTION: To eliminate the possibility of accidental damage to cords, plugs, jacks, etc., do not use sharp instruments during the assembly procedures 13.WARNING: Ensure the correct connections are being made to the equipment. Incorrect connections may result in a shock or fire hazard. 14. Save these instructions. North American Regulations continued Important Safety Instructions Regulatory and Safety Information This Class A device complies with Part 68 and Part 15 of the FCC Rules and the requirements adopted by the ACTA. This device meets the applicable Industry Canada specifications including ICES-003 EMI requirements. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment. Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas. CAUTION: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate. Do not attempt to repair this equipment. If you experience trouble, write for warranty and repair information.: For warranty and repair service outside the USA or Canada, please contact your distributor. Canadian Notice The Industry Canada designation identifies certified equipment. This certification means that the equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). Industry Canada does not guarantee the equipment will operate to the user's satisfaction. This device has been designed to operate with an antenna having a maximum gain of [x] dBi. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. Federal Communications Commission (FCC) Notice FCC registration number: This telephone equipment complies with Part 68, Rules and Regulations, of the FCC for connection to the Public…
