HEDCAP2315A802.11b/g AP Cradle

WA6102-ZZ CAP2315A 802.11b/g AP Cradle Installation Guide Installation Guide Guide 802.11b/g AP Cradle IEEE 802.11b/g Wireless Access Point, with Cradle Charger for Wi-Fi Phone CAP2315A E072006-EK-R01 150xxxxxxxxxxxx i Compliances Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters (8 inches) between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. Japan VCCI Class B ii EC Conformance Declaration Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/EC). This equipment meets the following conformance standards: • EN 60950-1 (IEC 60950-1) - Product Safety • EN 300 328 - Technical requirements for 2.4 GHz radio equipment • EN 301 489-1, EN 301 489-17 - EMC requirements for radio equipment • EN 50385 - The Compliance of Radio Base Stations and Fixed Terminal Stations for Wireless Telecommunication Systems with the Basic Restrictions or the Reference Levels Related to Human Exposure to Radio Frequency Electromagnetic Fields (110 MHz - 40 GHz) This device is intended for use in the following European Community countries: Requirements for indoor vs. outdoor operation, license requirements and allowed channels of operation apply in some countries as described below: • In Italy the end-user must apply for a license from the national spectrum authority to operate this device outdoors. • In Belgium outdoor operation is only permitted using the 2.46 - 2.4835 GHz band: Channel 13. • In France outdoor operation is only permitted using the 2.4 - 2.454 GHz band: Channels 1 - 7. • Austria• Belgium• Denmark • Finland• France• Germany • Italy• Luxembourg• Netherlands • Norway• Spain• Sweden • Switzerland• United Kingdom• Portugal • Greece• Ireland• Iceland iii Contents Chapter 1: Introduction 1-1 Package Checklist 1-1 Hardware Description 1-2 Wi-Fi Phone Cradle 1-3 LED Indicators 1-3 Ethernet Port 1-3 Reset Button 1-4 Power Connector 1-4 Chapter 2: Hardware Installation 2-1 Access Point Configuration 2-2 Appendix A: Troubleshooting A-1 Diagnosing Access Point Indicators A-1 Appendix B: Cables and Pinouts B-1 Twisted-Pair Cable Assignments B-1 10/100BASE-TX Pin Assignments B-1 Straight-Through Wiring B-2 Crossover Wiring B-2 Appendix C: Specifications C-1 iv Contents 1-1 Chapter 1: Introduction The Cradle Access Point is an IEEE 802.11b/g (Wi-Fi) access point that provides a quality wireless Voice over Internet Protocol (VoIP) service for Wi-Fi phones, and high-speed data communications between a wired LAN and other 802.11b/g mobile devices. The access point also includes a cradle for charging a Wi-Fi phone. The access point software provides two “virtual” wireless interfaces that separate the Wi-Fi Phone traffic from the regular data traffic. Quality of Service (QoS) features ensure sustained high throughput for the voice traffic and channel hopping avoids radio interference, which helps maintain high-quality voice communications. The data wireless interface provides gateway functions, such as a DHCP server and Network Address Translation (NAT), that route data from wireless clients to the wired network. In addition, the access point offers full network management capabilities through an easy-to-use web interface. Package Checklist The Cradle Access Point package includes: • Cradle Access Point • One Category 5 network cable • One AC power adapter • This Installation Guide • Management Guide CD Inform your dealer if there are any incorrect, missing or damaged parts. If possible, retain the carton, including the original packing materials. Use them again to repack the product in case there is a need to return it. Introduction 1-2 Hardware Description Front Panel Back Panel W LA N LA N Ethernet LAN RJ-45 Port Power Socket Reset Button Hardware Description 1-3 Wi-Fi Phone Cradle The access point accepts a Wi-Fi Phone in its cradle for charging the battery. When the access point is powered on, just …

Text truncated - open the document above for the full version.

Helen Zhao Subject: FW: FW: Accton Technology Corporation, FCC ID: HEDCAP2315A, Assessment NO.: AN06T6021, Notice#1 8/9/2006 From: gina.lo [mailto:[email protected]] On Behalf Of application Sent: Tuesday, August 08, 2006 8:41 PM To: Helen Zhao Subject: Re:FW: Accton Technology Corporation, FCC ID: HEDCAP2315A, Assessment NO.: AN06T6021, Notice#1 Dear Helen: Please see my reply. thank you. Best Regards, Gina -----Original Message----- Sent: Friday, August 04, 2006 11:26 PM To: Helen Zhao Subject: Accton Technology Corporation, FCC ID: HEDCAP2315A, Assessment NO.: AN06T6021, Notice#1 Question #1: The schematic diagram and block diagram show RF chip AR2316/15, but the operational description and internal photos show AR2315 is actually used. Please update block diagram and schematic diagram. Ans: We updated block diagram and schematic diagram, please see the attachment. Question #2: Test report - radiated spurious emission test at 802.11b middle channel (2437MHz) @ 9750MHz, please explain where peak/AVG limit 90.62/73.85 dBuV/m come from, i.e. where shows field strength @ fundamental (2437MHz). Ans: We revised page 7 and page 47 of the test report, please see the attachment. Best Regards, Helen The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

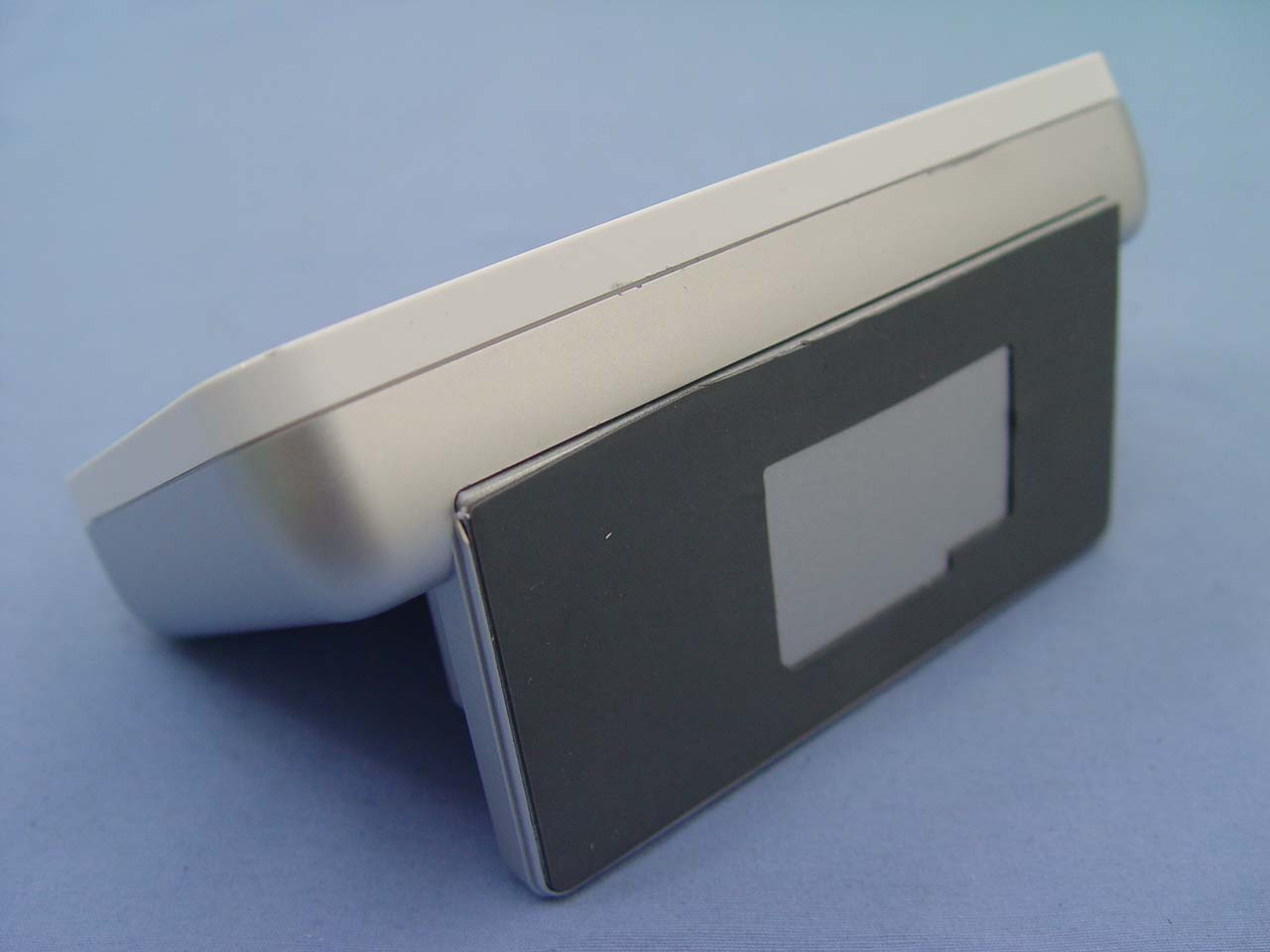

Compliance Certification Services Inc. Report No: 60323007 Date of Issue: May 9, 2006 Page 1 Total Page: 9 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60323007 Date of Issue: May 9, 2006 Page 2 Rev. 00 Compliance Certification Services Inc. Report No: 60323007 Date of Issue: May 9, 2006 Page 3 Rev.00

Compliance Certification Services Inc. Report No: 60323007 Date of Issue: May 9, 2006 Page 4 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60323007 Date of Issue: May 9, 2006 Page 5 Rev.00 Compliance Certification Services Inc. Report No: 60323007 Date of Issue: May 9, 2006 Page 6 Rev.00 Compliance Certification Services Inc. Report No: 60323007 Date of Issue: May 9, 2006 Page 7 Rev.00 Compliance Certification Services Inc. Report No: 60323007 Date of Issue: May 9, 2006 Page 8 Rev.00 Compliance Certification Services Inc. Report No: 60323007 Date of Issue: May 9, 2006 Page 9 Rev.00

SPECIFICATION FOR APPROVAL 承 認 書 龍呈國際科技有限公司 客戶承認印章 業 務 工 程 品 管 客 戶 智 邦 科 技 股 份 有 限 公 司 CUSTOMER 品 名 2.4G 2Dbi WI-FI Emb. Ant 137B Ipex L160mm SPECIES 料 號 FWP_16937B-I32 PART NO. 客 戶 料 號 120300014400E CUSTOMER PART NO. 龍呈國際科技有限公司 Long Cheng Tech. Int’l Co., Ltd. 新竹縣竹北市中和街62巷15弄3號3樓 3Floor, No.3, Alley 15, Lane 62, Chung Ho St., Chu-Pei City, Hsin Chu, Taiwan, R.O.C TEL: 03-5541117 FAX: 03-5541065 Lct 龍呈國際科技有限公司 Long Cheng Tech. Int’l Co., Ltd. 新竹縣竹北市中和街62巷15弄3號3樓 3Floor, No.3, Alley 15, Lane 62, Chung Ho St., TEL:+886-3-5541117 FAX:+886-3-5541065 Chu-Pei City, Hsin Chu, Taiwan, R.O.C Index item Content Page Remark 1 Coverpage 1 2 Index 2 3 Product Drawing 3 4 Mechanical Specifications 4 5 Electrical Specifications 5 6 Electrical Specifications Test 6-9 7 Material Specifications & MSDS (SGS Report) 10-34 7-1 Cable 10-22 7-2 RF connector 23-27 7-3 PVC Tube N/A 7-4 Lead Free - Solder Bar/ Wire N/A 7-5 Plastics N/A 7-6 Pin / Revit N/A 7-7 Brass Tube / PCB 28-31 7-8 Glue N/A 7-9 Solder Wire 32-34 Lct 電 氣 特 性 規 格 Electrical Specifications 頻 率 範 圍 (Frequency Range ) 2400MHZ - 2500MHZ 增 益 ( Gain ) 2Dbi(typical) 電 壓 駐 波 比 (VSWR) Return Loss Isolation Test Return Loss≦-10 VSWR ≦ 2 極 化 (Polarzation) Linear 半功率水平波束寬 (HPBW/Horizontal) 120° 半功率垂直波束寬 (HPBW/Vertical) 60°(typical) 最大功率 (Max. Power Rating) 2 W (CW) 阻抗匹配 (Impedance) 50 Ohms (typical) 機 械 特 性 規 格 Mechanical Specifications 接 頭 種 類 ( Connector Type ) M.H.F(20351-111R-37) 塑 膠 顏 色 ( Plastic Color ) N/A 同 軸 線 材 (Coaxial Cable Type) 1.37 同軸線材規格 (Coaxial Cable Spec.) See attached file 天 線 罩 材 質 (Radom Material) N/A 同軸線材顏色 (Coaxial Cable Color) Black 輻 射 材 料 (Radiator Material) PCB 工作溫度與溼度 ( Working Temperature & Humidity) -40°C - +80°C 90% @ 25°C 儲存溫度與溼度 ( Storage Temperature & Humidity) -40°C - +85°C 95% @ 25°C 重 量 (Weight) 2.5g (Max.) 2.4 GHz 3D-radiation pattern 2.4GHz 電 氣 特 性 測 試 Electrical Specifications Test 頻 率 範 圍 ( Frequency Range ) 測 試 使 用 儀 器 ( Test Instrument ) 電 壓 駐 波 比 測 試 (VSWR Te s t) 測 試 資 料 (Test Result) Advantest R3767CG Vector Network Measurememt 2.45 GHz 3D-radiation pattern 2.5 GHz 3D-radiation pattern Test Report Date : 2006/4/14 Tester: Miao Model / P/N : FWP_16937B-I32 Description 2.4G 2Dbi WI-FI Emb. Ant 137B Ipex L160mm Return Loss / Smith chart Test Without Antenna (Plastics) cover (Freq. range: 2.4GHz~2.5GHz) 2 GOLDEN BRIDGE ELECTECH INC. IDProduct NumberDescription 1Tek 80E04TDR Module 2Tek TDS8000BTDR Mainframe 38753DNetwork Analyzer Impedance: 50 ohm NOM Attenuation:0.1GHz0.5dB 0.4GHz1dB 0.8GHz1.5dB 1GHz1.6dB 1.5GHz2dB 1.9GHz2.3dB 2.4GHz2.6dB 2.45GHz2.7dB 3GHz2.9dB 5.2GHz4.0dB 5.8GHz4.3dB 6GHz4.3dB Humidity:65% Bundle Number: .Device Under Test(DUT) Information Report Title:11977 IllumineEngineer: Temperature: .Test Equipments QTY:6 PCS DUT Length:1 Meters Tested Pairs:1 Pair .Specification  No.2006-3 Feb/13 /’04 ᧚ᢱ⸽᣿ᦠ MATERIAL CERTIFICATE 㨫ߔ߹ߒ⸽᣿⥌ࠍ੐ࠆ޿ߡࠇࠊ૶߇᧚ᢱߩਅ⸥ߪߦᒰ␠⵾ຠ WE HEREBY CERTIFY THAT THE FOLLOWING MATERIALS ARE USED IN OUR PRODUCT. PRODUCTNAME㧦 MHF series micro coaxial connector PLUG P/N 20278-**1R-** , 20308-**1㧾-** , P/N 20351-**1R-37 ᧚ᢱ㧛MATERIAL ㇱຠ COMPONENT ᧚革ฬ MATERIAL ဳฬ CAT No. ࠞ࡯ࡔ᧚ᢱ MANUFACTURER UL94㔍Άᕈ UL94 FLAME CLASS UL㩖㨱㨼㩣No. UL FILE No. 1HOUSINGPBT3116 WINTECH POLYMER LTD. V㧙0 E 213445 PRODUCTNAME㧦 MHF series micro coaxial connector RECEP. P/N 20279-001E-01, P/N20314-001E-01 ᧚ᢱ㧛MATERIAL ㇱຠ COMPONENT ᧚革ฬ MATERIAL ဳฬ CAT No. ࠞ࡯ࡔ᧚ᢱ MANUFACTURER UL94㔍Άᕈ UL94 FLAME CLASS UL㩖㨱㨼㩣No. UL FILE No. 1HOUSINGLCPE130i POLYPLASTICS CO.,LTD. V㧙0 E 106764 PRODUCTNAME㧦 MHFΤ connectorP/N 20311-**1R-** , P/N 20312-**1R-** ᧚ᢱ㧛MATERIAL ㇱຠ COMPONENT ᧚革ฬ MATERIAL ဳฬ CAT No. ࠞ࡯ࡔ᧚ᢱ MANUFACTURER UL94㔍Άᕈ UL94 FLAME CLASS UL㩖㨱㨼㩣No. UL FILE No. 1HOUSINGLCPA430 POLYPLASTICS CO.,LTD. V㧙0 E 106764 ࠬࠢ࠶ࡍࠗࠕᩣᑼળ␠ I-PEX Co.,Ltd. APPROVALCHECK ORIGINATOR T.Harada Feb/13/’04 K.Ohbayashi Feb/13/’04 FORM REV.0 The content of this PDF file is in accordance with the original issued reports for reference only. This Test Report cannot be reproduced, except in full, without prior written permission of the Company SGS TAIWAN LIMITED NO. 136-1, Wu Kung Road, WuKu Industrial Zone, Taipei county, Taiwan. t(886-2) 22993939 f(886-2) 2299-3237www.sgs.com.tw Test Report Type of Product: Style/Item No : Sample Received : Testing Date : ================================================================================ = Test Result PART NAME NO.1: Test Item(s):UnitMethodMDL NO.1 Chromium VI (Cr+6)ppm As per US EPA 7196A and US EPA 3060A. 2N.D. Cadmium (Cd)ppm ICP-AES After As per EN 1122, Method B:2001 or other acid digestion. 2N.D. Mercury (Hg)ppm ICP-AES After As per US EPA 3052 or other acid digestion. 2N.D. Lead (Pb)ppm ICP-AES After As per US EPA 3050B or other acid digestion. 2N.D. The following merchandise was(were) submitted and identified by the client as : MHF CONNECTOR 20278-111R-XX NOTE˖(1) N.D. = Not detected.(<MDL) I-PEX JP CO., LTD. TAIWAN BRANCH (JAPAN) Page : 1 of 1 Report No : CE/2004/42496 Date : 2004/04/27 4F-4, NO.2, JIAN BA ROAD, CHUNG HO CITY, TAIPEI 235, TAIWAN, R.O.C. MIX GOLDEN COLORED METAL & BLACK PLASTIC 2004/04/22. 2004/04/22 TO 2004/04/27 Result (2) ppm = mg/kg (3) MDL= Method Detection Limit (4) " ---" = Not Applicable

Compliance Certification Services Inc. Report No.: 60323007-RP1 FCC ID: HEDCAP2315A Date of Issue: July 25, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 59 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 802.11b/g AP Cradle SMC Desktop Phone Cradle with 802.11g Access Point Trade Name / Model Accton / CAP2315A-FLF-ZZ SMC / SMCDPCR-AP Edge-Core / WA4101-Cradle Issued to Accton Technology Corporation No1. Creation 3rd., Science-based Industrial Park, Hsinchu 30077, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 60323007-RP1 FCC ID: HEDCAP2315A Date of Issue: July 25, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES .........................................................................................................................................9 5.2 EQUIPMENT........................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6 DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................16 7.3 A VERAGE POWER............................................................................................................................20 7.4 BAND EDGES MEASUREMENT ................................................................................................24 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................33 7.6 SPURIOUS EMISSIONS ................................................................................................................38 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................52 APPENDIX 1 RADIO FREQUENCY EXPOSURE ..............................................................................55 APPENDIX 2 PHOTOGRAPHS OF TEST SETUP ..............................................................................57 Compliance Certification Services Inc. Report No.: 60323007-RP1 FCC ID: HEDCAP2315A Date of Issue: July 25, 2006 Page 4 Rev. 00 2. EUT DESCRIPTION Product 802.11b/g AP Cradle SMC Desktop Phone Cradle with 802.11g Access Point Trade Name / Model Number Accton / CAP2315A-FLF-ZZ SMC / SMCDPCR-AP Edge-Core / WA4101-Cradle Model Discrepancy All the above models are identical except for the designation of product names, trade names and model numbers. Product name Trade nameModel number Accton CAP2315A-FLF-ZZ 802.11b/g AP Cradle Edge-Core WA4101-Cradle SMC Desktop Phone Cradle with 802.11g Access Point SMC SMCDPCR-AP Power Supply DVE Switching Adapter / DSA-10P-05 050100 I/P: 100-240VAC, 0.3A, 30VA O/P: +5V, 2A Frequency Range 2412 ~ 2462 MHz Transmit Power IEEE 802.11b: 22.92 dBm IEEE 802.11g: 20.54 dBm Modulation Technique IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: DSSS (CCK, DQPSK, DBPSK) + OFDM (QPSK, BPSK, 16-QAM, 64-QAM) Transmit Data Rate IEEE 802.11b: 11, 5.5, 2, 1 Mbps IEEE 802.11g: 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbps Number of Channels 11 Channels Antenna Specification PCB Antenna / Gain: 2 dBi Remark: 1. The sample selected for …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 60323007-RP1 FCC ID: HEDCAP2315A Date of Issue: July 25, 2006 Page 57 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. Report No.: 60323007-RP1 FCC ID: HEDCAP2315A Date of Issue: July 25, 2006 Page 58 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. Report No.: 60323007-RP1 FCC ID: HEDCAP2315A Date of Issue: July 25, 2006 Page 59 Rev. 00 Powerline Conducted Emissions Setup Photos
