www.edge-core.com Installation Guide Powered by Accton EAP2316A 2.4 GHz Wireless Access Point Installation Guide 2.4 GHz Wireless Access Point IEEE 802.11b/g Access Point with Integrated Diversity Antennas EAP2316A E072005-R01 i Compliances Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters (8 inches) between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Countries of Operation & Conditions of Use in the European Community This device is intended to be operated in all countries of the European Community. Requirements for indoor vs. outdoor operation, license requirements and allowed channels of operation apply in some countries as described below: Note:The user must use the configuration utility provided with this product to ensure the channels of operation are in conformance with the spectrum usage rules for European Community countries as described below. • This device requires that the user or installer properly enter the current country of operation in the command line interface as described in the user guide, before operating this device. ii • This device will automatically limit the allowable channels determined by the current country of operation. Incorrectly entering the country of operation may result in illegal operation and may cause harmful interference to other system. The user is obligated to ensure the device is operating according to the channel limitations, indoor/outdoor restrictions and license requirements for each European Community country as described in this document. • The 2.5 GHz Turbo Mode feature is not allowed for operation in any European Community country. The current setting for this feature is found in the 2.5 GHz 802.11g Radio Settings Window as described in the user guide. • This device may be operated indoors or outdoors in all countries of the European Community using the 2.4 GHz band: Channels 1 - 13, except where noted below. - In Italy the end-user must apply for a license from the national spectrum authority to operate this device outdoors. - In Belgium outdoor operation is only permitted using the 2.46 - 2.4835 GHz band: Channel 13. - In France outdoor operation is only permitted using the 2.4 - 2.454 GHz band: Channels 1 - 7. Declaration of Conformity in Languages of the European Community EnglishHereby, Edgecore, declares that this Radio LAN device is in com- pliance with the essential requirements and other relevant provi- sions of Directive 1999/5/EC. FinnishValmistaja Edgecore vakuuttaa täten että Radio LAN device tyyp- pinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. DutchHierbij verklaart Edgecore dat het toestel Radio LAN device in overeenstemming is met de essentiële eisen en de andere rele- vante bepalingen van richtlijn 1999/5/EG Bij deze Edgecore dat deze Radio LAN device voldoet aan de es- sentiële eisen en aan de overige relevante bepalingen van Rich- tlijn 1999/5/EC. FrenchPar la présente Edgecore déclare que l'appareil Radio LAN device est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE SwedishHärmed intygar Edgecore att denna Radio LAN device står I öve- rensstämmelse med de väsentliga egenskapskrav och övriga rel- evanta bestämmelser som framgår av direktiv 1999/5/EG. DanishUndertegnede Edgecore erklærer herved, at følgende udstyr Ra- dio LAN device overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF iii GermanHiermit erklärt Edgecore, dass sich dieser/diese/dieses Radio LAN device in Übereinstimmung mit den grundlegenden Anforderun- gen und den anderen relevanten Vorschriften der Richtlinie 1999/ 5/EG befindet". (BMWi) Hiermit erklärt Edgecore die Übereinstimmung des Gerätes Radio LAN device mit den grundlegenden Anforderungen und den an- deren relevanten Festlegungen der Richtlinie 1999/5/EG. (Wien) GreekΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Edgecore ∆ΗΛΩΝΕΙ ΟΤΙ Radio LAN device ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ ItalianCon la presente Edgecore dichiara che questo Radio LAN device è conforme ai requisiti essenziali ed alle altre disposizioni pert…

Text truncated - open the document above for the full version.

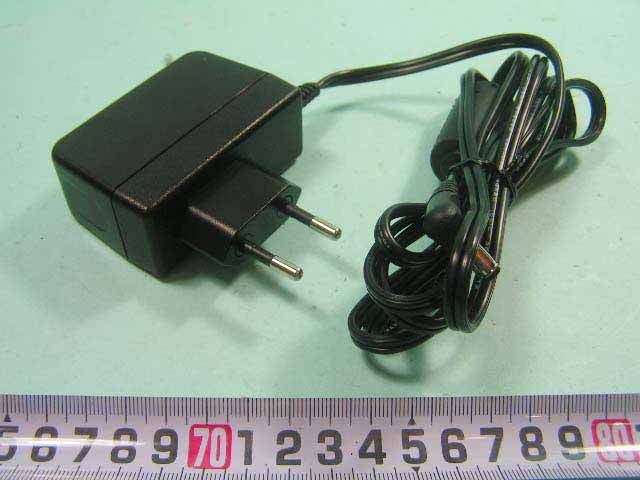

SPORTON International Inc. PAGE NUMBER : A1 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 9, 2005 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 9, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 9, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 9, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 9, 2005 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A6 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 9, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 9, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 9, 2005 FAX : 886-2-2696-2255

Description of Operation Date: 2005/8/22 EAP2316A is a WLAN AP with 11 channels (2412MHz~2462MHz, Space 5MHz). It allows you to connect to other WLAN device. General Operational Description: 1. Time base of the transmission frequency: For IF and RF frequency, Crystal is a clock reference. 2. Synthesizer: Synthesizer inside AR2316 Transceiver IC and operate frequency in 2.4GHz ISM Band. Internal voltage controlled oscillator (VCO) provides the desired LO signal base on the phase-locked loop (PLL) with a relatively wide tuning range for this application. 3. Transmission: AR2316 IC has DSSS (BPSK/QPSK/CCK) modulation function, it provides transmission data rate are 1, 2, 5.,11,12,18,24,36,48,54Mbps. Digital data signal will be converted to analog (TX IQ) signals through DAC in BBP IC, TX IQ pass through to low pass filter. TX I/Q signal use direct conversion (zero-IF) architecture converter to generate carrier frequency signal. Transceiver IC and external PA magnify output power. 4. Receiver: Reverse direction isolation of LNA suppresses unwanted radiation. Then 2.4GHz RF signal will be directly down to IF signal (RX IQ) and high frequency spurious emissions are suppressed by LPF. At last RX IQ signal will be demodulated digital data. 5. Base band Processing: Channel Selection: Channel selection is controlled by AR2316 IC. Data Modulation: DSSS (BPSK/QPSK/CCK) modulation type is controlled by AR2316 IC. Power Control Level: AR2316 IC has the power leveling loop table are calibrated by manufacturer, then uses closed-loop power control function to limit RF output power level. Power leveling step accuracy is 0.5dB. Transmit/Receive Switch: EAP2316A has Transmit/Receive Switch and Antenna switch Data Link Layer: Firmware implements the full IEEE 802.11b/g Wireless LAN MAC protocol. It supports BSS and IBSS operation under DCF, and operation under the optional Point Coordination Function (PCF). Lower level protocol functions such as RTS/CTS generation and acknowledgment, fragmentation and de-fragmentation, and automatic beacon monitoring are handled without host intervention. Active scanning is performed autonomously once initiated by host command. Host interface command and status handshakes allow concurrent operations from multi-threaded I/O drivers. 6. Interface: RJ-45 7. Power: Input 5Vdc from DC adapter or POE from RJ-45. This power is provided to regulator components to regulated DC power. Features of Equipment under Test Items Description Type of Modulation DSSS (CCK / DQPSK / DBPSK) OFDM (16QAM / 64QAM / DQPSK / DBPSK ) Number of Channels 11 Frequency Band 2400 MHz ~ 2483.5 MHz Carrier Frequency Range 2412 MHz ~ 2462 MHz Data Rate 1, 2, 5.5, 11 Mbps - DSSS 6, 12, 18, 24, 36, 48, 54 Mbps – OFDM 108 Mbps- OFDM - Turbo Mode Channel Bandwidth 5 MHz Max. Conducted Output Power DSSS : 17.84 dBm OFDM : 19.87 dBm 11g Turbo Mode : 18.56 dBm Communication Type Half-Duplex Testing Duty Cycle 100.00% Power Rating (DC/AC, Voltage) 5.00V DC from power adapter Adapter Information Brand: DVE, Model: DSA-0101F-05UP, Input: 100~240Vac 50/60Hz, Output: 5Vdc) Test Power Source 120.00V AC Temperature Range (Operating)0 ~55 °C Antenna Description No. Antenna Type Gain (dBi) 1 Integral Antenna 2.50

FCC ID: HEDEAP2316A Issued on Aug. 9, 2005 Report No.: FR570703 SPORTON International Inc. Page No. : 57 of 62 TEL : 886-2-2696-2468 Issued Date : Aug. 9, 2005 FAX : 886-2-2696-2255 5.8. RF Exposure 5.8.1. Limit For Maximum Permissible Exposure (MPE) This product can be classified as mobile device, so the 20cm separation distance warning is required. In this section, the power density at 20cm location is calculated to examine if it is lower than the limit. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm²) Averaging Time |E|²,|H|² or S ( minutes ) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 F = frequency in MHz *Plane-wave equivalent power density 5.8.2. MPE Calculation Method E (V/m) d GP××30 Power Density: Pd (mW/cm²) 377 2 E E Electric field (V/m) P Peak RF output power (mW) G EUT Antenna numeric gain (numeric) d Separation distance between radiator and human body (m) The formula can be changed to Pd 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=20cm, as well as the gain of the used antenna, the RF power density can be obtained. FCC ID: HEDEAP2316A Issued on Aug. 9, 2005 Report No.: FR570703 SPORTON International Inc. Page No. : 58 of 62 TEL : 886-2-2696-2468 Issued Date : Aug. 9, 2005 FAX : 886-2-2696-2255 5.8.3. Calculated Result and Limit ‚ Temperature: 26°C ‚ Relative Humidity: 64% ‚ Duty Cycle of the Equipment During the Test: 100.00% ‚ Test Engineer: Eason Lu Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) 2.5 1.7783 19.8700 97.0510 0.034352 1

FCC ID: HEDEAP2316A Issued on Aug. 9, 2005 Report No.: FR570703 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT CATEGORY : Mobile PRODUCT NAME : WLAN ENTERPRISE AP EAP2316A-38 FCC ID. : HEDEAP2316A FILING TYPE : Certification MODEL NAME : EAP2316A BRAND NAME : Edge-corE APPLICANT : Accton Technology Corporation No. 1 Creation Rd., III, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. MANUFACTURER : Same as applicant ISSUED BY : SPORTON INTERNATIONAL INC. 6F, No. 106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. Statements: Only the test result of 802.11b/g part is shown in this test report. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. Certificate or Test Report could not be used by the applicant to claim the product endorsement by NVLAP or any agency of U.S. government. The test equipment used to perform the test is calibrated and traceable to NML/ROC or NIST/USA. Lab Code: 200079-0 FCC ID: HEDEAP2316A Issued on Aug. 9, 2005 Report No.: FR570703 SPORTON International Inc. Page No. : i TEL : 886-2-2696-2468 Issued Date : Aug. 9, 2005 FAX : 886-2-2696-2255: Table of Contents HISTORY OF THIS TEST REPORT ............................................................................................................................ II CERTIFICATE OF COMPLIANCE.............................................................................................................................. III 1. GENERAL DESCRIPTION OF EQUIPMENT UNDER TEST.............................................................................. 1 1.1. Applicant .................................................................................................................................................................................................. 1 1.2. Manufacturer ............................................................................................................................................................................................ 1 1.3. Basic Description of Equipment under Test............................................................................................................................................. 1 1.4. Features of Equipment under Test .......................................................................................................................................................... 1 1.5. Antenna Description................................................................................................................................................................................. 2 1.6. Table for Carrier Frequencies .................................................................................................................................................................. 2 2. TEST CONFIGURATION OF THE EQUIPMENT UNDER TEST ........................................................................ 3 2.1. Connection Diagram of Conducted Test System..................................................................................................................................... 3 2.2. The Test Mode Description...................................................................................................................................................................... 4 2.3. Description of Test Supporting Units ....................................................................................................................................................... 4 3. GENERAL INFORMATION OF TEST ................................................................................................................. 5 3.1. Test Facility .............................................................................................................................................................................................. 5 3.2. Standards for Methods of Measurement.................................................................................................................................................. 5 3.3. DoC Statement ........................................................................................................................................................................................ 5 3.4. Frequency Range Investigated ................................................................................................................................................................ 5 3.5. Test Distance ........................................................................................................................................................................................... 5 3.6. Test Software ........................................................................................................................................................................................... 5 4. LIST OF MEASUREMENTS ................................................................................................................................ 6 4.1. Summary of the Test Results................................................................................................................................................................... 6 5. TEST RESULT ..................................................................................................................................................... 7 5.1. Test of 6dB Spectrum Bandwidth ............................................................................................................................................................ 7 5.2. Test of Maximum Peak Conducted Output Power................................................................................................................................. 13 5.3. Test of Peak Power Spectral Density ...........................…

Text truncated - open the document above for the full version.

FCC ID: HEDEAP2316A Issued on Aug. 9, 2005 Report No.: FR570703 SPORTON International Inc. Page No. : 36 of 62 TEL : 886-2-2696-2468 Issued Date : Aug. 9, 2005 FAX : 886-2-2696-2255 5.5.8. Photographs of Conducted Emission Test Configuration FRONT VIEW REAR VIEW FCC ID: HEDEAP2316A Issued on Aug. 9, 2005 Report No.: FR570703 SPORTON International Inc. Page No. : 55 of 62 TEL : 886-2-2696-2468 Issued Date : Aug. 9, 2005 FAX : 886-2-2696-2255 5.6.12. Photographs of Radiated Emission Test Configuration FRONT VIEW REAR VIEW
