HEDIP200EXTIronPoint 200

Foundry IronPoint 200 Installation Guide 2100 Gold Street P.O. Box 649100 San Jose, CA 95164-9100 Tel 408.586.1700 Fax 408.586.1900 www.foundrynetworks.com April 2004 Copyright © 2003 Foundry Networks, Inc. All rights reserved. No part of this work may be reproduced in any form or by any means – graphic, electronic or mechanical, including photocopying, recording, taping or storage in an information retrieval system – without prior written permission of the copyright owner. The trademarks, logos and service marks ("Marks") displayed herein are the property of Foundry or other third parties. You are not permitted to use these Marks without the prior written consent of Foundry or such appropriate third party. Foundry Networks, BigIron, FastIron, IronView, JetCore, NetIron, ServerIron, TurboIron, IronWare, EdgeIron, IronPoint, the Iron family of marks and the Foundry Logo are trademarks or registered trademarks of Foundry Networks, Inc. in the United States and other countries. All other trademarks mentioned in this document are the property of their respective owners. April 2004© 2003 Foundry Networks, Inc.iii Compliances FCC - Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equip- ment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters (8 inches) between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Channel Use Statement: The equipment version marketed in US is restricted to usage of the channels 1- 11 only. Wireless 2.4 Ghz and 5 GHz Band Statements: As the IronPoint can operate in the 5150-5250 MHz frequency band it is limited by the FCC, Industry Canada and some other countries to indoor use only so as to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users (meaning they have priority) of the 5250-5350 MHz and 5650-5850 MHz bands. These radars could cause interference and/or damage to the IronPoint when used in Canada. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. Foundry IronPoint 200 Installation Guide iv© 2003 Foundry Networks, Inc.April 2004 Industry Canada - Class B This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus,” ICES-003 of Industry Canada. Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matérial brouilleur: “Appareils Numériques,” NMB-003 édictée par l’Industrie. Japan VCCI Class B EC Declaration of Conformity Contact Foundry Networks at: Foundry Networks, Inc. 2100 Gold Street P.O. Box 649100 San Jose, CA 95164-9100 Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/EC). This equipment meets the following conformance standards: • EN 60950 (IEC 60950) - Product Safety • EN 301 893 - Technical requirements for 5 GHz radio equipment • EN 300 328 - Technical requirements for 2.4 GHz radio equipment • EN 301 489-1 / EN 301 489-17 - EMC requirements for radio equipment Countries of Operation & Conditions of Use in the European Community This device is intended to be operated in all countries of the European Community. It is intended only for indoor use. License requirements and allowed channels of operation apply in some countries as described below: Note:The user must use the configuration utility provided with this product to ensure the channels of operation are in conformance with the spectrum usage rules for European Community countries as described below. • This device requires that the user or installer properly enter the current country of operation in the Command Line Interface (CLI) as described in the user guide, before operating this device. • This device will automatically limit the allowable channels determined by the current country of operation. Incorrectly entering the country of operation may result in illegal operation and may cause harmful interference to other system. The user is obligated to ensure the device is operating according to the channel limitations, indoor/outdoor res…

Text truncated - open the document above for the full version.

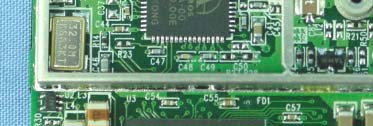

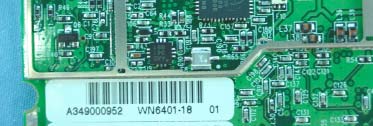

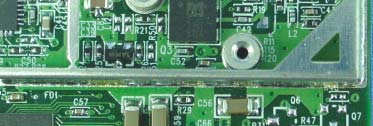

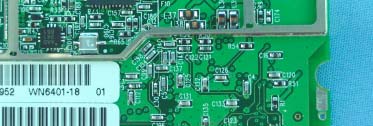

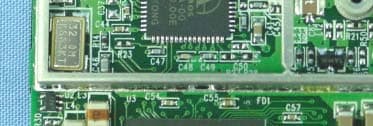

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: HEDIP200EXT LABEL LOCATION Label

IP200 IP200

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 POE Page 17 930301H02 Page 18 930301H02 930301H02 Page 19 930301H02 Page 20 Adapter Page 21 930301H02 Page 22 930301H02 930301H02 Page 23 930301H02 930301H02 Page 24 Antenna No. : R0322-046 930301H02 930301H02 Page 25 930301H02 930301H02 Page 26 930301H02 930301H02 Page 27 930301H02 930301H02 Page 28 Antenna No. : R0322-066 930301H02 930301H02 Page 29 930301H02 930301H02 Page 30 930301H02 930301H02 Page 31 Antenna No. : IP-OD24100W Page 32 Page 33 Antenna No. : IP-DP24200G Page 34 Page 35

FCC ID: HEDIP200EXT ADT No. 930301H02 Technical Description The transmitter of the EUT is powered by AC adapter or POE. The antennas are Dual-Band Omni-Directional Antenna with HRS U.FL-LP-066 connector (for 2.4GHz), MMCX R/A Plug connector (for 5GHz) and Omni-Directional Antenna (Air-Loaded Patch) and Directional patch Antenna with SMA - male connector (for 2.4GHz). This device is a IronPoint 200 operates in both the 5GHz and 2.4GHz bands, the maximum data rate could be 108Mbps in turbo mode. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: HEDIP200EXT ADT No.: RF920725H01G1 RF EXPOSURE REPORT REPORT NO.: RF920725H01G MODEL NO.: IP200 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. FCC ID: HEDIP200EXT ADT No.: RF920725H01G2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: HEDIP200EXT ADT No.: RF920725H01G3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: HEDIP200EXT ADT No.: RF920725H01G4 6 Test Results 6.1 Antenna Gain Antenna 1: The maximum Gain of the antenna is 1.5dBi. (for 2.4GHz) Antenna 1: The maximum Gain of the antenna is 4.5dBi. (for 5GHz) Antenna 2: The maximum Gain of the antenna is 3.0dBi. (for 2.3-2.5GHz) Antenna 3: The maximum Gain of the antenna is 9.0dBi. (for 2.3-2.5GHz) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Antenna 1 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241236.560.0111.0 6243767.610.0191.0 11246233.810.0101.0 Antenna 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241277.6250.03081.0 6243785.1140.03381.0 11246252.4810.02081.0 Antenna 3 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.6230.0501.0 6243767.6080.1071.0 11246231.6230.0501.0 FCC ID: HEDIP200EXT ADT No.: RF920725H01G5 For Part 802.11g: Antenna 1 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241241.980.0121.0 6243766.070.0191.0 11246239.900.0111.0 Antenna 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241250.1190.01991.0 62437125.8930.05001.0 11246251.2860.02031.0 Antenna 3 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241216.9820.02681.0 62437112.2020.17731.0 11246225.7040.04061.0 FCC ID: HEDIP200EXT ADT No.: RF920725H01G6 For 802.11a (5GHz Band): FOR FREQUENCY 5.15~5.35GHz Normal Mode : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1518032.580.0181.0 4524034.430.0191.0 5526097.720.0551.0 8532032.660.0181.0 Turbo Mode : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1521032.580.0181.0 2525035.730.0201.0 3529036.060.0201.0 FOR FREQUENCY 5.725~5.850GHz Normal Mode : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 95745120.230.0671.0 115785109.650.0611.0 135825125.890.0711.0 Turbo Mode : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 45760107.150.0601.0 55800102.330.0571.0

FCC ID: HEDIP200EXT Report No.: RF920725H01G1Issued: Mar. 29, 2004 FCC TEST REPORT REPORT NO.: RF920725H01G MODEL NO.: IP200 RECEIVED: Mar. 01, 2004 TESTED: Mar. 23 to 25, 2004 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 220 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The test results in the report only apply to the tested sample. 0536 ILAC MRA FCC ID: HEDIP200EXT Report No.: RF920725H01G2Issued: Mar. 29, 2004 Table of Contents 1.CERTIFICATION........................................................................................... 6 2.SUMMARY OF TEST RESULTS .................................................................. 7 3.GENERAL INFORMATION ......................................................................... 10 3.1GENERAL DESCRIPTION OF EUT..................................................................................... 10 3.2DESCRIPTION OF TEST MODES....................................................................................... 12 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................................... 13 3.4DESCRIPTION OF SUPPORT UNITS................................................................................. 14 4.TEST TYPES AND RESULTS (FOR PART 802.11B) ................................. 17 4.1CONDUCTED EMISSION MEASUREMENT....................................................................... 17 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT .................................................... 17 4.1.2TEST INSTRUMENTS ......................................................................................................... 17 4.1.3TEST PROCEDURES .......................................................................................................... 18 4.1.4DEVIATION FROM TEST STANDARD ................................................................................ 18 4.1.5TEST SETUP ....................................................................................................................... 19 4.1.6EUT OPERATING CONDITIONS......................................................................................... 19 4.1.7TEST RESULTS ................................................................................................................... 20 4.1.8TEST RESULTS ................................................................................................................... 22 4.2RADIATED EMISSION MEASUREMENT ............................................................................ 24 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ......................................................... 24 4.2.2TEST INSTRUMENTS ......................................................................................................... 25 4.2.3TEST PROCEDURES .......................................................................................................... 26 4.2.4DEVIATION FROM TEST STANDARD ................................................................................ 26 4.2.5TEST SETUP ....................................................................................................................... 27 4.2.6EUT OPERATING CONDITIONS......................................................................................... 27 4.2.7TEST RESULTS ................................................................................................................... 28 4.2.8TEST RESULTS (A) (ANTENNA 1)...................................................................................... 30 4.2.9TEST RESULTS (A) (ANTENNA 2)...................................................................................... 33 4.2.10 TEST RESULTS (A) (ANTENNA 3)...................................................................................... 36 4.2.11 TEST RESULTS (B) (ANTENNA 1)...................................................................................... 39 4.2.12 TEST RESULTS (B) (ANTENNA 2)...................................................................................... 42 4.2.13 TEST RESULTS (B) (ANTENNA 3)...................................................................................... 45 4.36dB BANDWIDTH MEASUREMENT ................................................................................... 48 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT ................................................................ 48 4.3.2TEST INSTRUMENTS ......................................................................................................... 48 4.3.3TEST PROCEDURE ............................................................................................................49 4.3.4DEVIATION FROM TEST STANDARD ................................................................................ 49 4.3.5TEST SETUP ....................................................................................................................... 49 4.3.6EUT OPERATING CONDITIONS......................................................................................... 49 4.3.7TEST RESULTS (A) ............................................................................................................. 50 FCC ID: HEDIP200EXT Report No.: RF920725H01G3Issued: Mar. 29, 2004 4.3.8TEST RESULTS (B) ............................................................................................................. 54 4.4MAXIMUM PEAK OUTPUT POWER ................................................................................... 58 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ................................... 58 4.4.2INSTRUMENTS.................…

Text truncated - open the document above for the full version.

FCC ID: HEDIP200EXT Report No.: RF920725H01G108Issued: Mar. 29, 2004 5. TEST TYPES AND RESULTS (FOR PART 802.11a) 5.1 CONDUCTED EMISSION MEASUREMENT 5.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT FREQUENCY OF EMISSION (MHz)CONDUCTED LIMIT (dBμV) Quasi-peakAverage 0.15-0.5 0.5-5 5-30 66 to 56 56 60 56 to 46 46 50 NOTE:1. The lower limit shall apply at the transition frequencies. 2. The limit decreases in line with the logarithm of the frequency in the range of 0.15 to 0.50 MHz. 3. All emanations from a class A/B digital device or system, including any network of conductors and apparatus connected thereto, shall not exceed the level of field strengths specified above. 5.1.2 TEST INSTRUMENTS DESCRIPTION & MANUFACTURER MODEL NO.SERIAL NO. CALIBRATED UNTIL ROHDE & SCHWARZ Test Receiver ESCS 30847124/029Dec. 04, 2004 ROHDE & SCHWARZ LISN (for EUT) ESHS-Z5848773/004Nov. 04, 2004 KYORITSU LISN (for peripheral)KNW-4078/1395/12Jul. 27, 2004 RF Cable (JETBAO)RG233/UCable_CA_01Jul. 03, 2004 Terminator(for KYORITSU)503Apr. 11, 2004 SoftwareCond-V2eNANA NOTE: 1. The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. The test was performed in ADT Shielded Room No. A. 3. The VCCI Con A Registration No. is C-817. FCC ID: HEDIP200EXT Report No.: RF920725H01G109Issued: Mar. 29, 2004 5.1.3 TEST PROCEDURES a. The EUT was placed 0.4 meters from the conducting wall of the shielded room with EUT being connected to the power mains through a line impedance stabilization network (LISN). Other support units were connected to the power mains through another LISN. The two LISNs provide 50 ohm/ 50uH of coupling impedance for the measuring instrument. b. Both lines of the power mains connected to the EUT were checked for maximum conducted interference. c. The frequency range from 150 kHz to 30 MHz was searched. Emission levels over 10dB under the prescribed limits could not be reported 5.1.4 DEVIATION FROM TEST STANDARD No deviation FCC ID: HEDIP200EXT Report No.: RF920725H01G110Issued: Mar. 29, 2004 5.1.5 TEST SETUP For the actual test configuration, please refer to the related item – Photographs of the Test Configuration. 5.1.6 EUT OPERATING CONDITIONS Same as 4.1.6. FCC ID: HEDIP200EXT Report No.: RF920725H01G111Issued: Mar. 29, 2004 5.1.7 TEST RESULTS EUT IronPoint 200 MODEL IP200 6dB BANDWIDTH 9 kHz INPUT POWER (SYSTEM) 120Vac, 60 Hz PHASE Line (L) ENVIRONMENTAL CONDITIONS 27deg. C, 69RH, 973 hPa TESTED BY Larry Peng TEST MODE802.11a, With Adapter Corr.Reading ValueEmission LevelLimitMargin Freq. Factor[dB (uV)][dB (uV)][dB (uV)](dB) No [MHz](dB)Q.P.AV.Q.P.AV.Q.P.AV.Q.P.AV. 10.1540.2051.05-51.25-65.7955.79-14.54- 20.1890.2034.06-34.26-64.0854.08-29.82- 30.3220.2029.45-29.65-59.6649.66-30.01- 40.6700.2420.65-20.89-56.0046.00-35.11- 510.8090.8536.25-37.10-60.0050.00-22.90- 616.4261.1345.60-46.73-60.0050.00-13.27- NOTES: (1) "*": Undetectable (2) Q.P. and AV. are abbreviations of quasi-peak and average. (3) "-": The Quasi-peak reading value also meets an average limit, thus measurement with the average detector is unnecessary. (4) The emission levels of other frequencies were very low against the limit. (5) Correction Factor = Insertion loss + Cable loss (6) Margin value = Emission level - Limit value FCC ID: HEDIP200EXT Report No.: RF920725H01G112Issued: Mar. 29, 2004 EUT IronPoint 200 MODEL IP200 6dB BANDWIDTH 9 kHz INPUT POWER (SYSTEM) 120Vac, 60 Hz PHASE Neutral (N) ENVIRONMENTAL CONDITIONS 27deg. C, 69RH, 973 hPa TESTED BY Larry Peng TEST MODE802.11a, With Adapter Corr.Reading ValueEmission LevelLimitMargin Freq. Factor[dB (uV)][dB (uV)][dB (uV)](dB) No [MHz](dB)Q.P.AV.Q.P.AV.Q.P.AV.Q.P.AV. 10.1580.2051.92-52.12-65.5855.58-13.46- 20.2010.2042.39-42.59-63.5853.58-20.99- 30.6700.2421.37-21.61-56.0046.00-34.39- 41.1700.3033.58-33.88-56.0046.00-22.12- 510.8320.7336.61-37.34-60.0050.00-22.66- 616.2340.9045.66-46.56-60.0050.00-13.44- NOTES: (1) "*": Undetectable (2) Q.P. and AV. are abbreviations of quasi-peak and average. (3) "-": The Quasi-peak reading value also meets an average limit, thus measurement with the average detector is unnecessary. (4) The emission levels of other frequencies were very low against the limit. (5) Correction Factor = Insertion loss + Cable loss (6) Margin value = Emission level - Limit value FCC ID: HEDIP200EXT Report No.: RF920725H01G113Issued: Mar. 29, 2004 EUT IronPoint 200 MODEL IP200 6dB BANDWIDTH 9 kHz INPUT POWER (SYSTEM) 120Vac, 60 Hz PHASE Line (L) ENVIRONMENTAL CONDITIONS 27deg. C, 69RH, 973 hPa TESTED BY Larry Peng TEST MODE802.11a, With POE Corr.Reading ValueEmission LevelLimitMargin Freq. Factor[dB (uV)][dB (uV)][dB (uV)](dB) No [MHz](dB)Q.P.AV.Q.P.AV.Q.P.AV.Q.P.AV. 10.1970.2039.93-40.13-63.7453.74-23.61- 20.4000.2036.84-37.04-57.8547.85-20.81- 30.6770.2540.03-40.28-56.0046.00-15.72- 41.0170.3042.40-42.70-56.0046.00-13.30- 51.3530.3038.48-38.78-56.0046.00-17.22- 69.6950.7831.63-32.41-60.0050.00-27.59- NOTES: (1) "*": Undetectable (2) Q.P. and AV. are abbreviations of quasi-peak and average. (3) "-": The Quasi-peak reading value also meets an average limit, thus measurement with the average detector is unnecessary. (4) The emission levels of other frequencies were very low against the limit. (5) Correction Factor = Insertion loss + Cable loss (6) Margin value = Emission level - Limit value FCC ID: HEDIP200EXT Report No.: RF920725H01G114Issued: Mar. 29, 2004 EUT IronPoint 200 MODEL IP200 6dB BANDWIDTH 9 kHz INPUT POWER (SYSTEM) 120Vac, 60 Hz PHASE Neutral (N) ENVIRONMENTAL CONDITIONS 27deg. C, 69RH, 973 hPa TESTED BY Larry Peng TEST MODE802.11a, With POE Corr.Reading ValueEmission LevelLimitMargin Freq. Factor[dB (uV)][dB (uV)][dB (uV)](dB) No [MHz](dB)Q.P.AV.Q.P.AV.Q.P.AV.Q.P.AV. 10.1930.2034.48-34.68-63.9153.91-29.23- 20.4000.2035.95-36.15-57.8547.85-21.70- 30.6770.2540.99-41.24-56.0046.00-14.76- 41.0170.3043.22-43.52-56.0046.00-12.48- 51.3570.3036.24-36.54-56.0046.00-19.46- 69.8370.6934.36-35.05-60.0…

Text truncated - open the document above for the full version.

Report No. RF920725H01G 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100037May. 06, 2004 High pass filter 2.4G WHK3.1/18G- 10SS SN4Jun. 12, 2004 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE 2.5GHz~13GHz: The transmitter output was connected to the spectrum analyzer via a low lose cable and a high pass filter. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. 13GHz~25GHz: The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. RF920725H01G 2 4. TEST SETUP 2.5GHz~13GHz: 13GHz~25GHz: 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER EUT SPECTRUM ANALYZER HIGH PASS FILTER Report No. RF920725H01G 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. RF920725H01G 4 Ch1 Report No. RF920725H01G 5 Ch11 Report No. RF920725H01G 6 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. RF920725H01G 7 Ch1 Report No. RF920725H01G 8 Ch11 Report No. RF920725H01G 9 FOR FREQUENCY 5.15~5.35GHz TEST RESULTS – For 802.11a, Normal mode The spectrum plots are attached on the following 1 page. It shows compliance with the requirement in part 15.407 (E),15.205 and 15.209. Report No. RF920725H01G 10 Ch1 Report No. RF920725H01G 11 TEST RESULTS – For 802.11a, Turbo The spectrum plots are attached on the following 1 page. It shows compliance with the requirement in part 15.407 (E),.15.205 and 15.209. Report No. RF920725H01G 12 Ch3 Report No. RF920725H01G 13 FOR FREQUENCY 5.725~5.850GHz TEST RESULTS – For 802.11a, Normal mode The spectrum plots are attached on the following 1 page. It shows compliance with the requirement in part 15.247(C),15.205 and 15.209. Report No. RF920725H01G 14 Ch9 Report No. RF920725H01G 15 TEST RESULTS – For 802.11a, Turbo The spectrum plots are attached on the following 1 page. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. RF920725H01G 16 Ch4

FCC ID: HEDIP200EXT Report No.: RF920725H01G215Issued: Mar. 29, 2004 6. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (With Adapter) FCC ID: HEDIP200EXT Report No.: RF920725H01G216Issued: Mar. 29, 2004 CONDUCTED EMISSION TEST (With POE) FCC ID: HEDIP200EXT Report No.: RF920725H01G217Issued: Mar. 29, 2004 RADIATED EMISSION TEST (ANTENNA 1) FCC ID: HEDIP200EXT Report No.: RF920725H01G218Issued: Mar. 29, 2004 RADIATED EMISSION TEST (ANTENNA 2) FCC ID: HEDIP200EXT Report No.: RF920725H01G219Issued: Mar. 29, 2004 RADIATED EMISSION TEST (ANTENNA 3)
