HEDOAP3211A802.11a outdoor CPE (Client)

SU-A-MB-12-EZ CPE for BreezeACCESS VL Quick Installation Guide 1 P/N: October 2006 This Quick Installation Guide is intended for experienced installers. For more information refer to the relevant sections in the BreezeAccess VL System Manual. ODU CPE Package Content Check that the package contains: • ODU CPE Outdoor Unit (with integral antenna) • A wall and pole mounting kit • Mains power cord (this item is packed separately from the IDU package). • This Quick Installation Guide Tilt Accessory Kit (Optional) Ordered separately. Additional Equipment and Tools Required for Installation • Ethernet cable for connecting to the user’s data equipment (crossed for connecting to a hub/switch, straight for connecting to a PC) • Indoor-to-outdoor Category 5E Ethernet cable. Use only Category 5E cables approved by the supplier. The length of the Indoor-to-Outdoor cable should not exceed 90 meters. The length of the Indoor-to-Outdoor cable, together with the length of the Ethernet cable connecting the CPE-IDU-1D to the data equipment, should not exceed 100 meters. • Two shielded RJ-45 connectors • Grounding cable with an appropriate termination. • Mains plug adapter or termination plug (if the power plug on the supplied AC power cord does not fit local power outlets). • Portable PC/Notebook and a straight Ethernet cable for configuring parameters using Telnet. TFTP server SW is required for downloading SW versions. OR portable PC/Notebook or Pocket PC/PDA and a straight Ethernet cable for configuring parameters using a web browser • Installation tools and materials, including appropriate means (e.g. a pole) for installing the outdoor unit (and antenna where applicable) and for sealing any outdoor connectors. • To connect directly to the ODU for configuration/performance monitoring: A special Y-cable and a Notebook or PDA with web browser. • Optional SU Alignment Unit (SAU) for easy alignment of the antenna. WARNING: ONLY experienced installation professionals who are familiar with local building and safety codes and, wherever applicable, are licensed by the appropriate government regulatory authorities should install outdoor units and antennas. Failure to do so may void the product warranty and may expose the end user or Service Provider to legal and financial liabilities. The manufacturer and its resellers or distributors are not liable for injury, damage or regulation violations associated with the installation of outdoor units or antennas. Equipment Location Guidelines The antenna should provide a direct, or near line of sight, with the Base Station antenna. The higher the placement of the antenna, the better the achievable link quality. The location of the ODU should enable easy access to the unit for installation and testing. ODU Installation Mount the ODU unit using the clamp, band and screws supplied with the unit. The unit’s antenna is polarized vertically in the direction of the RJ45 port. Install the unit with the connectors facing downwards as shown in the following image. ODU CPE for BreezeACCESS VL Quick Installation Guide 2 P/N: October 2006 1. Thread the provided metal band through the adaptor bracket and use the screws provided with the mounting kit to attach the adaptor bracket to the unit. 2. Connect a grounding cable between the Ground terminal of the ODU (marked ) and a good ground connection. 3. Align the unit using the LED display. Preparing the IDU-ODU Cable Use a crimp tool for RJ-45 connectors to prepare the wires. Insert them into the appropriate pins and use the tool to crimp the connector. Make sure to do the following: • Remove as small a length as possible of the external jacket. Verify that the external jacket is well inside the sealing cover when connected to the unit, to ensure good sealing. • Pull back the shield drain wire before inserting the cable into the RJ-45 connector, to ensure a good connection with the connector's shield after crimping. The following diagram shows the required wire pair pin-to-pin connections, including the color codes used in cables supplied by the manufacturer. Wire color Pin Blue 1 Blue/white 2 Orange 3 Orange/white 6 Brown 4 Brown/white 5 Green 7 Green/white 8 Connecting the IDU-ODU Cable 1. Remove the sealing cap of the ODU connector. 2. The sealing cap has a special groove allowing to insert an Ethernet cable with an already assembled RJ-45 connector through the cap. To expose the groove, lightly squeeze the cap. Carefully insert the cable with the assembled connector through the groove. 12345678 1 + 2 4 + 5 7 + 8 3 + 6 ODU CPE for BreezeACCESS VL Quick Installation Guide 3 P/N: October 2006 3. Connect the Ethernet cable to the ODU RJ-45 connector. 4. Put the sealing cap back in its place to ensure protection against moisture. Make sure that the small protrusion on the side of the cap fits inside the hole on the connector’s protective body. 5. Use appropriate sealing material to protect the connection against moisture and humidity. Use high quality sealing material such as Scotch® 130C Linerless Rubber Splicing Tape from 3M to ensure IP-67 compliant protection against dust and water. 6. Route the cable to the location selected for the indoor equipment. 7. Assemble an RJ-45 connector with a protective cover on the indoor end of the ODU cable. Refer to the pin assignment and color codes in standard cables described below. IDU Installation 1. The unit can be placed on a desktop or a shelf. Alternatively, it may be wall-mounted. The drilling template included with the unit can be used to simplify the wall installation process. 2. Connect the ODU cable to the RADIO port. 3. Connect the indoor unit to the AC mains using the power cord supplied with the unit. NOTE: The indoor unit should be connected to the power source only after it has been connected to the outdoor unit. The color codes of the power cord are: Brown Phase ~ Blue Neutral 0 Yellow/green Grounding 4. Use a crossed Ethernet cable to connect the ETHERNET port to a Hub/Switch. Us…

Text truncated - open the document above for the full version.

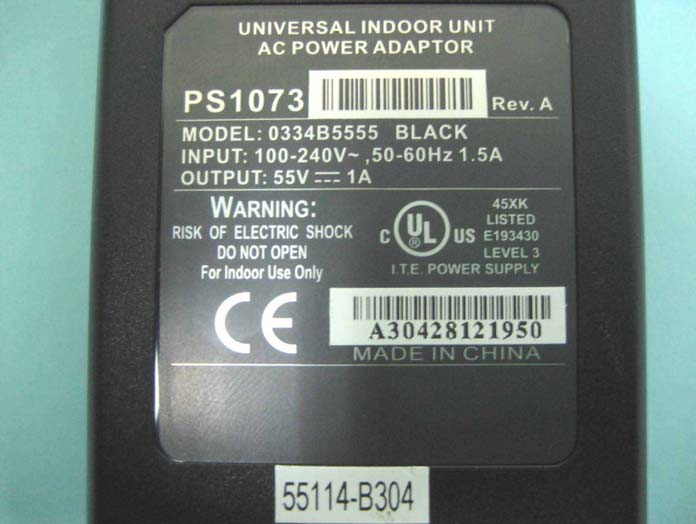

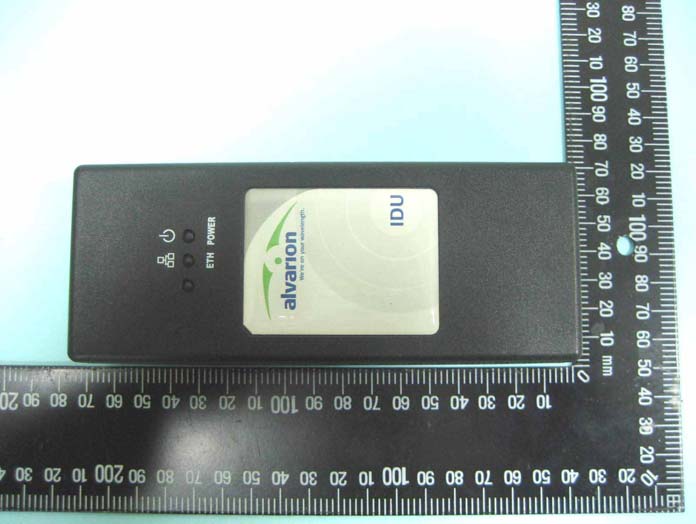

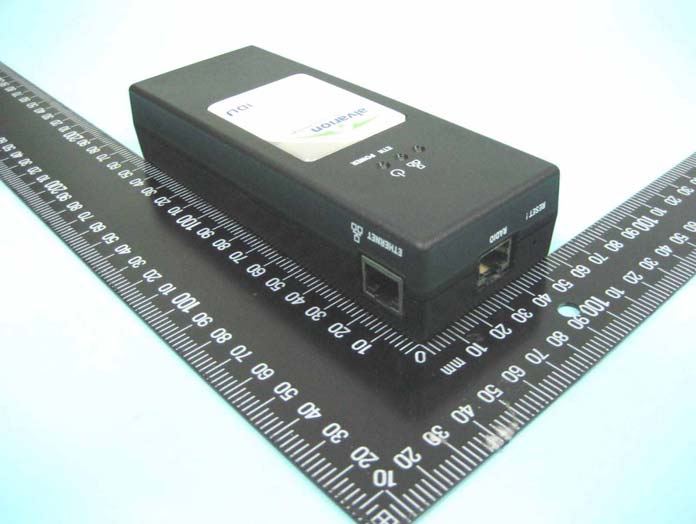

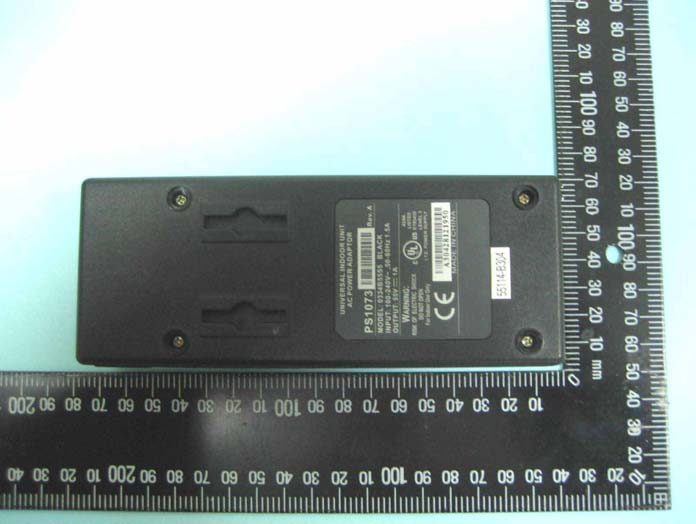

SPORTON International Inc. PAGE NUMBER : A1 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 08, 2007 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 08, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 08, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 08, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 08, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 08, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 08, 2007 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 23, 2007 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 23, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 23, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 23, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 23, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 23, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 23, 2007 FAX : 886-2-2696-2255

Report No.: FR711904AA FCC ID: HEDOAP3211A Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR711904AA FCC ID: HEDOAP3211A Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR711904AA FCC ID: HEDOAP3211A Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : Patch Antenna Max Conducted Power for IEEE 802.11a : 18.88 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 17 50.1187 18.8800 77.2681 0.770815 1 Complies
