HEDSK8178MSkype WiFi Phone

Wi-Fi Phone User Guide The whole world can talk for free. Skype.Com User Guide Guide Wi-Fi Phone IEEE 802.11b/g Wireless Phone with Skype Support i Compliances Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ï Reorient or relocate the receiving antenna ï Increase the separation between the equipment and receiver ï Connect the equipment into an outlet on a circuit different from that to which the receiver is connected ï Consult the dealer or an experienced radio/TV technician for help This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. Japan VCCI Class B ii EC Conformance Declaration Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/EC). This equipment meets the following conformance standards: ï EN 60950-1 (IEC 60950-1) - Product Safety ï EN 300 328 - Technical requirements for 2.4 GHz radio equipment ï EN 301 489-1, EN 301 489-17 - EMC requirements for radio equipment This device is intended for use in the following European Community countries: Requirements for indoor vs. outdoor operation, license requirements and allowed channels of operation apply in some countries as described below: ï In Italy the end-user must apply for a license from the national spectrum authority to operate this device outdoors. ï In Belgium outdoor operation is only permitted using the 2.46 - 2.4835 GHz band: Channel 13. ï In France outdoor operation is only permitted using the 2.4 - 2.454 GHz band: Channels 1 - 7. ï Austriaï Belgiumï Denmark ï Finlandï Franceï Germany ï Italyï Luxembourgï Netherlands ï Norwayï Spainï Sweden ï Switzerlandï United Kingdomï Portugal ï Greeceï Irelandï Iceland iii Contents Chapter 1: Introduction 1-1 Package Checklist 1-1 Hardware Description 1-2 AC Power Charger 1-3 Mini USB Cable 1-3 Chapter 2: Installing the Battery 2-1 Charging the Battery 2-2 Powering On the Phone 2-3 Chapter 3: Getting Started 3-1 First-Time Startup 3-1 Understanding the Phoneís LCD Display 3-3 The Main Menu 3-5 The Power Key Menu 3-6 Creating a New Skype Account 3-7 Setting Up Your Contacts 3-8 Making a Call 3-8 Chapter 4: Managing Contacts 4-1 Adding a Skype Contact 4-1 Adding a SkypeOut Contact 4-3 Searching for Contacts 4-4 The Contacts Options Menu 4-5 Blocking a Contact 4-6 Chapter 5: Making and Receiving Skype Calls 5-1 Skype-to-Skype Calls 5-1 Receiving Skype Calls 5-2 SkypeOut Calls 5-3 Dialing a Direct Call 5-4 Receiving SkypeIn Calls 5-5 Putting a Call on Hold 5-6 Muting the Microphone 5-7 Diverting a Call 5-8 iv Contents Sending Skype Voicemail 5-9 Listening to Skype Voicemail 5-10 Recording a Voicemail Greeting 5-11 History Lists 5-12 Chapter 6: Personal Skype Settings 6-1 Changing Your Skype Status 6-1 Setting Your Profile 6-2 Changing Your Password 6-3 Privacy Settings 6-4 Chapter 7: Wi-Fi Network Settings 7-1 Finding Wi-Fi Networks 7-1 Preferred Networks 7-2 Setting Access to Open Networks 7-3 Chapter 8: General Settings 8-1 Changing the Display Language 8-1 Changing Display Settings 8-2 Setting Alert Tones 8-3 Setting the Time and Date 8-4 Displaying Phone Settings 8-6 Clearing Phone Settings 8-7 Advanced Settings 8-8 Appendix A: Specifications A-1 1-1 Chapter 1: Introduction The VM1185T is a Wi-Fi (IEEE 802.11b/g) wireless phone that enables you to make Skype ™ calls without using a computer. The phone enables you to use your normal Skype account with complete mobility, allowing you to talk from any location where you have an Internet connection through a nearby access point. Package Checklist The VM1185T Wi-Fi Phone package includes these items: •One Wi-Fi Phone (VM1185T) • One Lithium-Ion battery •One headset •One mini USB cable •One AC power charger •Quick Start Guide •User Manual CD Inform your dealer if there are any incorrect, missing or damaged items. If possible, retain the carton, including the original packing materials. Use them to repack the product in case there is a need to return it. Introduction 1-2 Hardware Description Before preparing the Wi-Fi Phone for use, first become familiar with its main keys, buttons, and other hardware features. 1.LCD Display — Color software menu display. 2.Navigation Key — Four-direction software navigation key. Pressing the key down selects the current option. 3.Right Soft Key — Negative action key. Cancels or returns to previous menu. 4.End/Power Key …

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 16, 2007 RE: Accton Technology Corporation FCC ID: HEDSK8178M I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) The FCC in their guidance to TCBs for SAR review requests a tolerance of 5% or less for RF power measurement between the SAR report, the EMC report, and any additional documentation within the filing. If you would refer to the Manual, you will see the specified RF Pout (Appendix A) is assumed to be +16dBm max in 802.11b mode and +12dBm in 802.11g. This is very different from the +21.25dBm (133mW) quoted in the EMC report and the +20.7dBm quoted in the SAR report. The R&S FSP40 quoted in the EMC report has an absolute accuracy of 0.5dB (12%) according to the manufacturers specifications. Please explain in detail how there can be such a discrepancy between the manufacturer’s claimed power and what the EMC and SAR laboratory measured. In general, it is impossible to get accuracy better than the measurement instrumentation. Therefore, a spectrum analyzer makes a poor power meter when SAR is involved. 2.) FYI: I note the Anritsu RF power meter found in the SAR report is an instrument with sufficient video bandwidth and accuracy to properly measure broadband power for both 802.11b and 802.11g emissions from this device. May I suggest that RMS measurements (or average corrected to RMS) during the period of the data burst be used during testing of this device? The measured SAR values are very low relative to the RF power for a device this small. We might find that the spectrum analyzer is measuring absolute peak power with the RBW/VBW settings used, which may not be repeatable for any Class II PC performed on this product. 3.) FYI: EMC reports can never show a higher RF Pout than the SAR report. And Form 731 must show the highest measured RF power from the EMC report. 4.) Please note that for Canada there must be agreement between the CN number and the trade name shown on the device. Belkin and Accton cannot both share the same IC: number. For FCC work, it does not mater – only the FCC ID is important. Please refer to RSS-GEN for additional Canada labeling details. 5.) The contact person listed at the FCC website is Hsoang Shen Chen but the person listed on the Form 731 and signing all appropriate letters is James Chen. Please provide some form of documentation showing James Chen is permitted to act on behalf of Accton, and correct the contact person at FCC if necessary. 6.) The restricted bands for Canada are slightly different than FCC. Please make sure that all spurious emissions meet the Canada restricted band criteria. 7.) It is not appropriate for FCC work to have the AC conducted emissions test performed with the charger plugged into an extension cord or strip outlet in series with the LISN. Please see ANSI C63.4. 8.) Was this device tested for radiated emissions in three orthogonal planes? Was the earphone cord extended vertically above the EUT to see if radiated emissions were affected? Was radiated emissions also tested with the USB cable connected to a PC? William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. z Page 2 March 16, 2007 Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

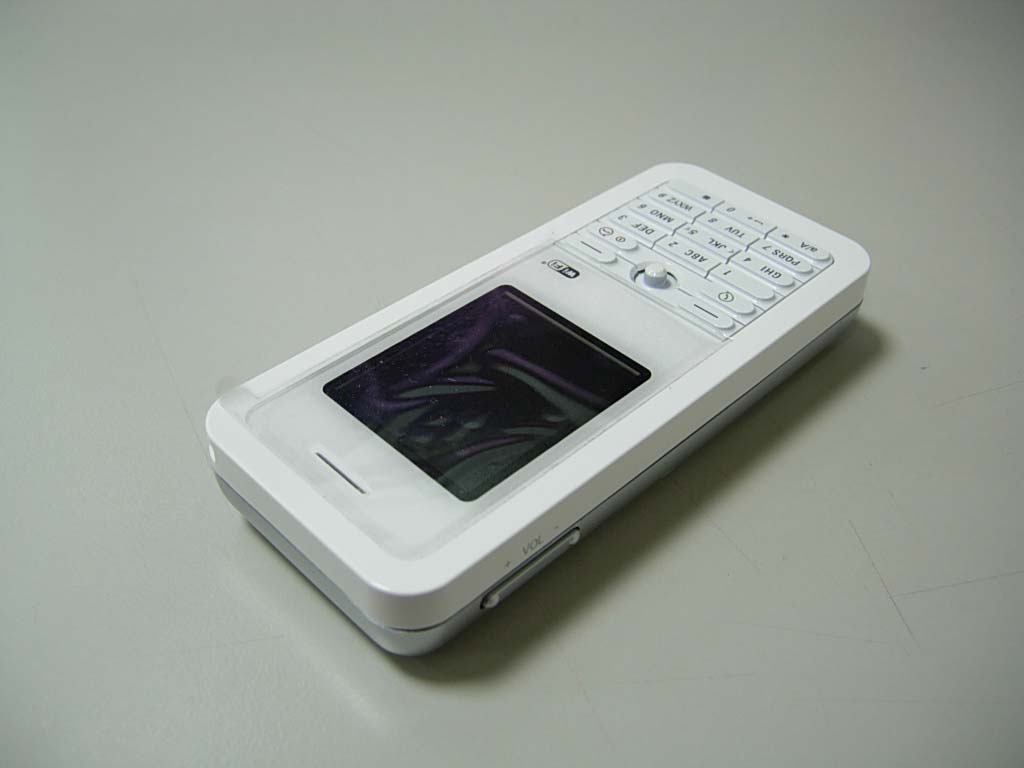

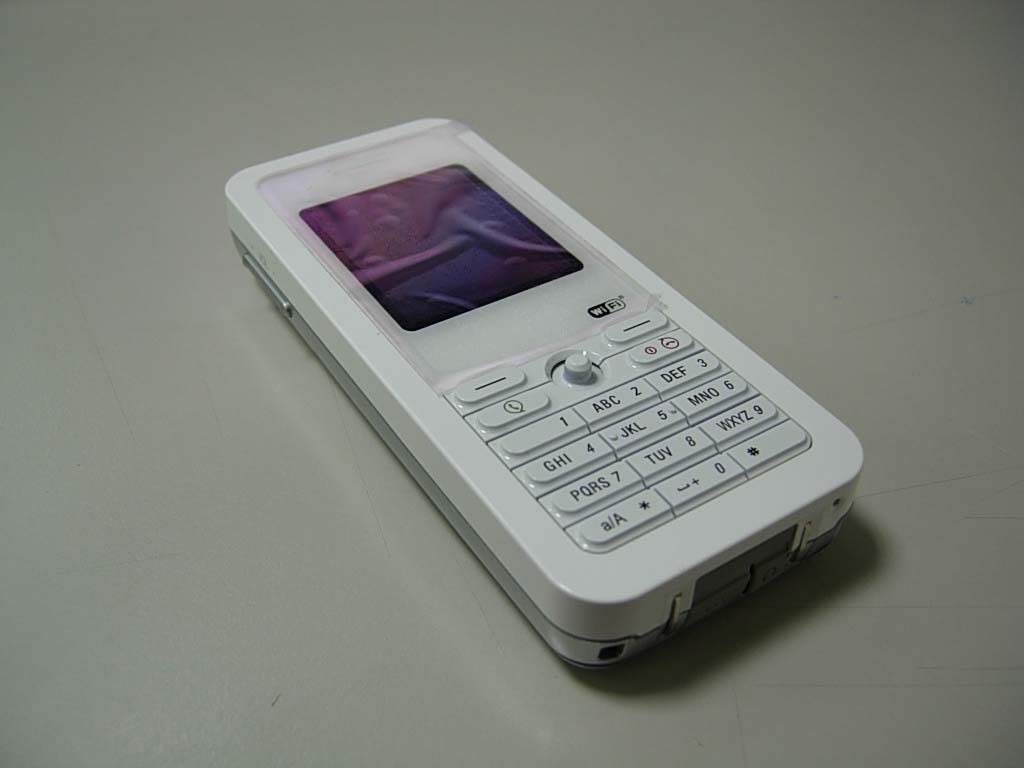

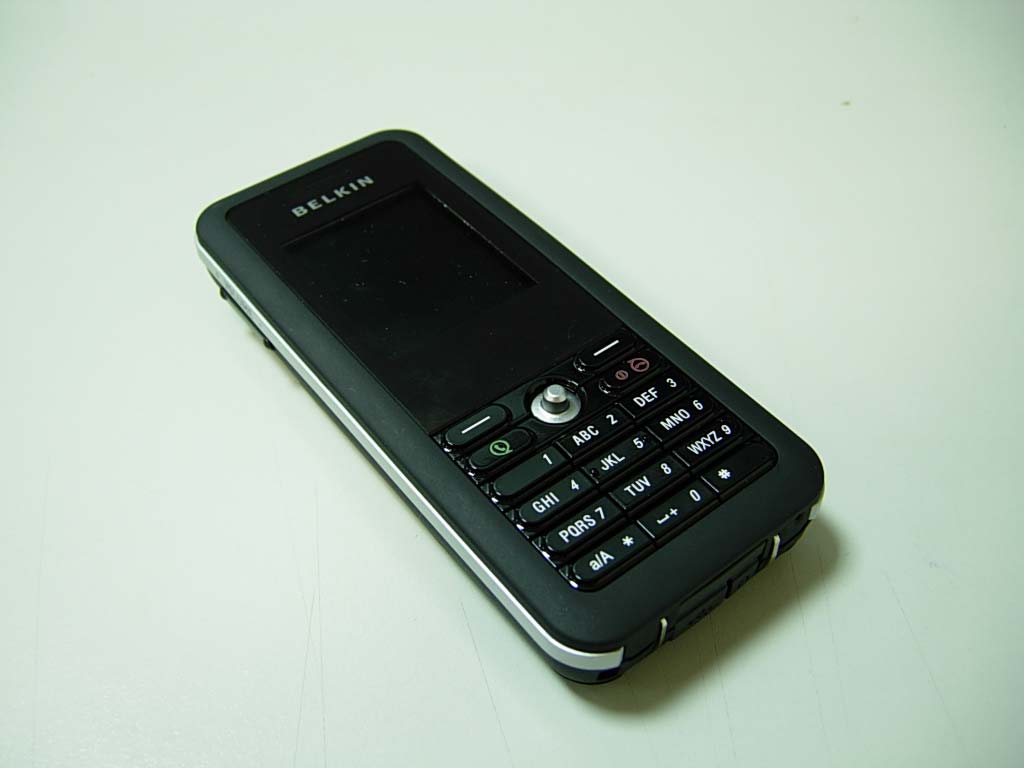

Report No.: 072L055-RFUSP05V01 Page : 1 of 18 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 072L055-RFUSP05V01 Page : 2 of 18 Version:1.0 (3) EUT Photo (4) EUT Photo

Accton Technology Corporation FCC ID.: HEDSK8178M 1 Creation 3rd Rd, Science-based Industrial Park, Hsinchu 300, Taiwan R.O.C.. Tel : 886-2-8791-8500 # 1060 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 072L055-RFUSP05V01 Page : 3 of 19 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 072L055-RFUSP05V01 Page : 4 of 19 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 072L055-RFUSP05V01 Page : 5 of 19 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 072L055-RFUSP05V01 Page : 6 of 19 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 072L055-RFUSP05V01 Page : 7 of 19 Version:1.0 (13) EUT Photo (14) EUT Photo Report No.: 072L055-RFUSP05V01 Page : 8 of 19 Version:1.0 (15) EUT Photo (16) EUT Photo Report No.: 072L055-RFUSP05V01 Page : 9 of 19 Version:1.0 (17) EUT Photo (18) EUT Photo Report No.: 072L055-RFUSP05V01 Page : 10 of 19 Version:1.0 (19) EUT Photo (20) EUT Photo Report No.: 072L055-RFUSP05V01 Page : 11 of 19 Version:1.0 (21) EUT Photo (22) EUT Photo Report No.: 072L055-RFUSP05V01 Page : 12 of 19 Version:1.0 (23) EUT Photo (24) EUT Photo Report No.: 072L055-RFUSP05V01 Page : 13 of 19 Version:1.0 (25) EUT Photo (26) EUT Photo Report No.: 072L055-RFUSP05V01 Page : 14 of 19 Version:1.0 (27) EUT Photo (28) EUT Photo Report No.: 072L055-RFUSP05V01 Page : 15 of 19 Version:1.0 (29) EUT Photo (30) EUT Photo Report No.: 072L055-RFUSP05V01 Page : 16 of 19 Version:1.0 (31) EUT Photo (32) EUT Photo Report No.: 072L055-RFUSP05V01 Page : 17 of 19 Version:1.0 (33) EUT Photo (34) EUT Photo Report No.: 072L055-RFUSP05V01 Page : 18 of 19 Version:1.0 (35) EUT Photo (36) EUT Photo Report No.: 072L055-RFUSP05V01 Page : 19 of 19 Version:1.0 (37) EUT Photo (38) EUT Photo

Report No. 072L055-RFUSP05V01 Page: 6 of 51 Version:1.0 1.2. Operational Description The EUT is a Skype WiFi Phone with a built-in 2.4GHz transceiver. It, 802.11b- and 802.11g-compliant, allows you to make VoIP calls wirelessly. It supports 11 channels in 2412-2462 MHz. The data rates are 1, 2, 5.5 and 11 Mbps in 802.11b, and 6, 9, 12, 18, 24, 36, 48 Mbps in 802.11g. The signals are modulated by DSSS in 802.11b and OFDM in 802.11g. The antenna is PIFA.

Report No：072L055-HPUSP09V01 Page: 1 of 23 Version:1.0 SAR Test Report Product Name ： Skype WiFi Phone Model No. ： SK8178M/F1PP000GN-SK FCC ID HEDSK8178M Applicant ： Accton Technology Corporation Address ： 4F.,No.16,Lane 77,Sing-ai Rd.,Neihu District, Taipei City 114,Taiwan,(R.O.C.) Date of Receipt：2007/02/06 Issued Date ：2007/02/15 Report No. ：072L055-HPUSP09V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：072L055-HPUSP09V01 Page: 2 of 23 Version:1.0 Test Report Certification Issued Date: 2007/02/15 Report No.:072L055-HPUSP09V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Product Name ： Skype WiFi Phone Applicant ： Accton Technology Corporation Address ： 4F.,No.16,Lane 77,Sing-ai Rd.,Neihu District, Taipei City 114,Taiwan,(R.O.C.) Manufacturer ： Accton Technology Corporation Model No. ： SK8178M/F1PP000GN-SK Trade Name ： ACCTON,Belkin Applicable Standard ： FCC Oet65 Supplement C June 2001 Test Result ： Max. SAR Measurement (1g) 802.11b: 0.214 W/kg 802.11g: 0.078 W/kg Application Type ： Certification Documented By ： ( Engineering Adm. Assistant / Joanne Lin ) Tested By ： (Senior Engineer/Shine Hsu) Approved By ： ( Vice President / George Chen ) Report No：072L055-HPUSP09V01 Page: 3 of 23 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Test Environment ...........................................................................................................5 2. SAR Measurement System .................................................................. 6 2.1 ALSAS-10U System Description .................................................................................. 6 2.1.1 Applications ................................................................................................................ 6 2.1.2 Area Scans................................................................................................................... 6 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 7 2.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty......................................... 7 2.2 Isotropic E-Field Probe .................................................................................................. 7 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ................................................. 9 2.4 Daq-Paq (Analog to Digital Electronics) ..................................................................... 10 2.5 Axis Articulated Robot ................................................................................................ 10 2.6 ALSAS Universal Workstation.................................................................................... 11 2.7 Universal Device Positioner......................................................................................... 11 2.8 Phantom Types............................................................................................................. 11 2.8.1 APREL SAM Phantoms ........................................................................................... 12 2.8.2 APREL Laboratories Universal Phantom ................................................................. 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 15 4. SAR Measurement Procedure ........................................................... 16 4.1 SAR System Validation................................................................................................ 16 4.1.1 Validation Dipoles..................................................................................................... 16 4.1.2 Validation Result ....................................................................................................... 16 4.2 SAR Measurement Procedure ...................................................................................... 17 5. SAR Exposure Limits ......................................................................... 18 6. Test Equipment List............................................................................ 19 7. Measurement Uncertainty .................................................................. 20 8. Test Results ......................................................................................... 21 Report No：072L055-HPUSP09V01 Page: 4 of 23 Version:1.0 8.1 SAR Test Results Summary ......................................................................................... 21 Appendix A. SAR System Validation Data........................................................................ 23 Appendix B. SAR measurement Data................................................................................ 23 Appendix C. Test Setup Photographs & EUT Photographs............................................... 23 Appendix D. Probe Calibration Data ................................................................................. 23 Appendix E. Dipole Calibration Data ................................................................................ 23 Report No：072L055-HPUSP09V01 Page: 5 of 23…

Text truncated - open the document above for the full version.

Report No：072L055-HPUSP09V01 Page: 61 of 64 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 20.80 °C Ambient Temp. : 21.30 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.047 W/kg Power Drift-Finish: 0.048 W/kg Power Drift (%) : 1.881 DUT Position : Touch Channel : 11 1 gram SAR value : 0.062 W/kg 10 gram SAR value : 0.045 W/kg Area Scan Peak SAR : 0.060 W/kg Zoom Scan Peak SAR : 0.180 W/kg Report No：072L055-HPUSP09V01 Page: 62 of 64 Version:1.0 This is previous page plot (zoom in) Report No：072L055-HPUSP09V01 Page: 63 of 64 Version:1.0 EUT 2450MHz SAR test Z-Axis plot (802.11b, Back, Channel 6) Report No：072L055-HPUSP09V01 Page: 64 of 64 Version:1.0 EUT 2450MHz SAR test Z-Axis plot (802.11g, Back, Channel 6) Report No：072L055-HPUSP09V01 Page: 1 of 5 Version:1.0 Test Setup Photographs Right Head (EUT Cheek) Left Head (EUT Cheek) Report No：072L055-HPUSP09V01 Page: 2 of 5 Version:1.0 Right Head (EUT Tilted) Left Head (EUT Tilted) Report No：072L055-HPUSP09V01 Page: 3 of 5 Version:1.0 EUT Photographs Report No：072L055-HPUSP09V01 Page: 4 of 5 Version:1.0 Report No：072L055-HPUSP09V01 Page: 5 of 5 Version:1.0 Page: 1 of 21 Appendix - Probe Calibration Miniature Isotropic RF Probe M/N: ALS-E-020 S/N: 264 2450MHz Head Calibration page 2~11 2450MHz Body Calibration page 12~21 Page: 2 of 21 Page: 3 of 21 Page: 4 of 21 Page: 5 of 21 Page: 6 of 21 Page: 7 of 21 Page: 8 of 21 Page: 9 of 21 Page: 10 of 21 Page: 11 of 21 Page: 12 of 21 Page: 13 of 21 Page: 14 of 21 Page: 15 of 21 Page: 16 of 21 Page: 17 of 21 Page: 18 of 21 Page: 19 of 21 Page: 20 of 21 Page: 21 of 21 Appendix - Dipole Calibration Validation Dipole 2450MHz P/N: ALS-D-2450-S-2 S/N: QTK-319

Report No：072L055-HPUSP09V01 Page: 1 of 4 Version:1.0 SAR System Validation Data ALSAS-10U VER 2.3.2 APREL Laboratories SAR Test Report Report Date : 09-Feb-2007 Measurement Date : 09-Feb-2007 Product Data Device Name : Dipole-2450 Type : Dipole Frequency : 2450.00 MHz Max. Transmit Pwr : 0.25 W Drift Time : 0 min(s) Length : 51.5 mm Width : 3.6 mm Depth : 30.4 mm Power Drift-Start : 7.060 W/kg Power Drift-Finish: 6.881 W/kg Power Drift (%) : -2.498 Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Location : Center Tissue Data Type : HEAD Serial No. : 325-H Frequency : 2450.00 MHz Last Calib. Date : 09-Feb-2007 Temperature : 20.80 °C Ambient Temp. : 21.30 °C Humidity : 53.00 RH% Epsilon : 38.32 F/m Sigma : 1.849 S/m Density : 1000.00 kg/cu. m Probe Data Name : Probe 264 Model : E020 Type : E-Field Triangle Serial No. : 264 Last Calib. Date : 21-Mar-2006 Frequency : 2450.00 MHz Duty Cycle Factor: 1 Conversion Factor: 5 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Report No：072L055-HPUSP09V01 Page: 2 of 4 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 20.80 °C Ambient Temp. : 21.20 °C Area Scan : 5x5x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Frequency : 2450 1 gram SAR value : 12.840 W/kg 10 gram SAR value : 5.809 W/kg Area Scan Peak SAR : 14.593 W/kg Zoom Scan Peak SAR : 27.323 W/kg Report No：072L055-HPUSP09V01 Page: 3 of 4 Version:1.0 This is previous page plot (zoom in) Report No：072L055-HPUSP09V01 Page: 4 of 4 Version:1.0

Report No. 072L055-RFUSP05V01 Page: 1 of 51 Version:1.0 Test Report Product Name Skype WiFi Phone Model No. SK8178M, F1PP000GN-SK FCC ID. HEDSK8178M Applicant Accton Technology Corporation Address 1 Creation 3rd Rd, Science-based Industrial Park, Hsinchu 300, Taiwan R.O.C. Date of Receipt Jan. 23, 2007 Issued Date March 14, 2007 Report No. 072L055-RFUSP05V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 072L055-RFUSP05V01 Page: 2 of 51 Version:1.0 Test Report Certification Issued Date: March 14, 2007 Report No.: 072L055-RFUSP05V01 Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name Skype WiFi Phone Applicant Accton Technology Corporation Address 1 Creation 3rd Rd, Science-based Industrial Park, Hsinchu 300, Taiwan R.O.C. Manufacturer Accton Technology Corporation Model No. SK8178M, F1PP000GN-SK Rated Voltage AC 120V/60Hz Working Voltage Battery 3.7V or AC 120V/60Hz or USB Charge DC 5V Trade Name ACCTON, Belkin Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2005 ANSI C63.4: 2003 Test Result Complied Documented By : ( Engineering Adm. Specialist / Rita Huang ) Tested By : (Engineer / Tim Sung) Approved By : ( President / Gene Chang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 0914 Report No. 072L055-RFUSP05V01 Page: 3 of 51 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Datails....................................................................................................................7 1.4. Configuration of Test System ........................................................................................................7 1.5. EUT Exercise Software .................................................................................................................7 1.6. Test Facility ...................................................................................................................................8 2. Conducted Emission....................................................................................................................9 2.1. Test Equipment..............................................................................................................................9 2.2. Test Setup ......................................................................................................................................9 2.3. Limits ............................................................................................................................................9 2.4. Test Procedure .............................................................................................................................10 2.5. Uncertainty ..................................................................................................................................10 2.6. Test Result of Conducted Emission.............................................................................................11 3. Peak Power Output ...................................................................................................................15 3.1. Test Equipment............................................................................................................................15 3.2. Test Setup ....................................................................................................................................15 3.3. Limits ..........................................................................................................................................15 3.4. Uncertainty ..................................................................................................................................15 3.5. Test Result of Peak Power Output...............................................................................................16 4. Radiated Emission .....................................................................................................................18 4.1. Test Equipment............................................................................................................................18 4.2. Test Setup ....................................................................................................................................18 4.3. Limits ..........................................................................................................................................19 4.4. Test Procedure .............................................................................................................................20 4.5. Uncertainty ..................................................................................................................................20 4.6. Test Result of Radiated Emission................................................................................................21 5. Band Edge ..................................................................................................................................29 5.1. Test Equipment............................................................................................................................29 5.2. Test Setup .........................…

Text truncated - open the document above for the full version.

Report No.: 072L055-RFUSP05V01 Page: 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 072L055-RFUSP05V01 Page: 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 072L055-RFUSP05V01 Page: 3 of 3 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
