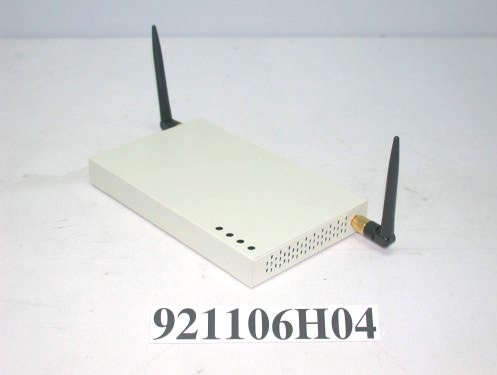

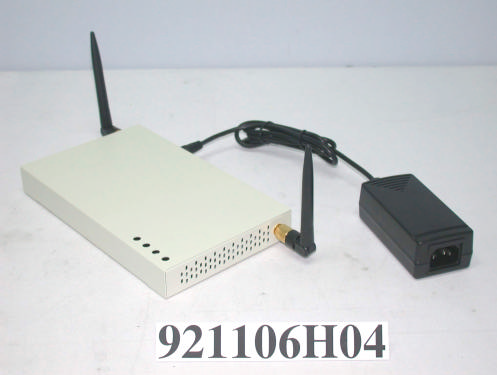

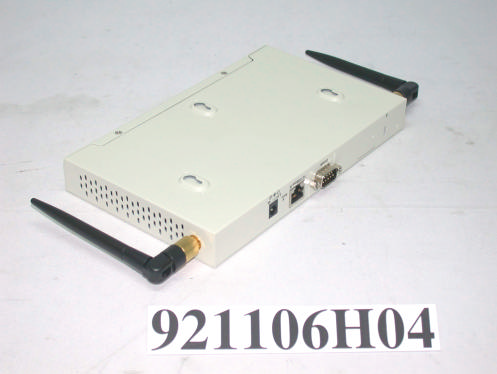

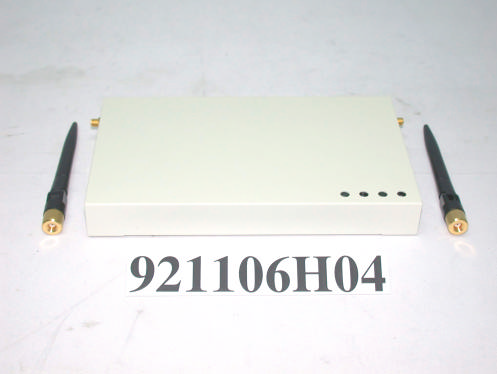

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

(Fig. 1) FCC ID: HEDSMC2552WG LABEL LOCATION Label

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14

FCC ID: HEDSMC2552WG ADT No. 920619H03D Operational Description This device is a EliteConnect TM 2.4GHz 802.11g Wireless Access Point which operates in the 2.4GHz band, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The transmitter of the EUT (EliteConnect TM 2.4GHz 802.11g Wireless Access Point) is powered by AC Adapter. The antenna types used in this product is Swivel dipole Antenna with RP-SMA plug connector. The other instruction, please have a look at the users manual.

FCC ID: HEDSMC2552WG ADT No.: 921106H04 1 RF EXPOSURE REPORT REPORT NO.: RF920619H03E MODEL NO.: SMC2552W-G ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Lab Code: 200376-0 FCC ID: HEDSMC2552WG ADT No.: 921106H04 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: HEDSMC2552WG ADT No.: 921106H04 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: HEDSMC2552WG ADT No.: 921106H04 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 2.71Bi or 1.87 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For DSSS: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241232.210.01201.0 6243755.720.02071.0 11246233.570.01251.0 For OFDM: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241252.480.01951.0 62437114.280.04241.0 11246243.650.01621.0

FCC ID: HEDSMC2552WG Report No.: RF920619H03E1Issued: De. 26, 2003 FCC TEST REPORT REPORT NO.: RF920619H03E MODEL NO.: SMC2552W-G RECEIVED: Jun. 19, 2003 TESTED: Jun. 19 to Jul. 10, 2003 and Oct. 03, 2003 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 67 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any government agencies. The test results in the report only apply to the tested sample. Lab Code: 200376-0 FCC ID: HEDSMC2552WG Report No.: RF920619H03E2Issued: De. 26, 2003 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS............................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................8 3.4DESCRIPTION OF SUPPORT UNITS..................................................................9 4TEST TYPES AND RESULTS..............................................................................13 4.1CONDUCTED EMISSION MEASUREMENT.....................................................13 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT................................13 4.1.2TEST INSTRUMENTS...........................................................................................13 4.1.3TEST SETUP..........................................................................................................14 4.1.4EUT OPERATING CONDITIONS........................................................................15 4.1.5TEST RESULTS......................................................................................................16 4.2RADIATED EMISSION MEASUREMENT..........................................................20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT......................................20 4.2.2TEST INSTRUMENTS...........................................................................................21 4.2.3TEST PROCEDURES...........................................................................................22 4.2.4TEST SETUP..........................................................................................................23 4.2.5EUT OPERATING CONDITIONS........................................................................23 4.2.6TEST RESULTS......................................................................................................24 4.2.7TEST RESULTS - DSSS.......................................................................................26 4.2.8TEST RESULTS -OFDM.......................................................................................29 4.36dB BANDWIDTH MEASUREMENT..................................................................32 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..............................................32 4.3.2TEST INSTRUMENTS...........................................................................................32 4.3.3TEST PROCEDURE..............................................................................................33 4.3.4TEST SETUP..........................................................................................................33 4.3.5EUT OPERATING CONDITIONS........................................................................33 4.3.6TEST RESULTS-DSSS.........................................................................................34 4.3.7TEST RESULTS-OFDM.........................................................................................38 4.4MAXIMUM PEAK OUTPUT POWER..................................................................42 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............42 4.4.2TEST INSTRUMENTS...........................................................................................42 4.4.3TEST PROCEDURES...........................................................................................43 FCC ID: HEDSMC2552WG Report No.: RF920619H03E3Issued: De. 26, 2003 4.4.4TEST SETUP..........................................................................................................43 4.4.5EUT OPERATING CONDITIONS........................................................................43 4.4.6TEST RESULTS-DSSS.........................................................................................44 4.4.7TEST RESULTS-OFDM.........................................................................................44 4.5POWER SPECTRAL DENSITY MEASUREMENT...........................................45 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.......................45 4.5.2TEST INSTRUMENTS...........................................................................................45 4.5.3TEST PROCEDURE..............................................................................................46 4.5.4TEST SETUP..........................................................................................................46 4.5.5EUT OPERATING CONDITIONS........................................................................46 4.5.6TEST RESULTS-DSSS.........................................................................................47 4.5.7TEST RESULTS-OFDM................................................…

Text truncated - open the document above for the full version.

Report No. RF920619H03E 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100037Aug. 01, 2004 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. RF920619H03E 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No. RF920619H03E 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. RF920619H03E 4 Ch1 Report No. RF920619H03E 5 Ch1 Report No. RF920619H03E 6 Ch11 Report No. RF920619H03E 7 Ch11 Report No. RF920619H03E 8 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. RF920619H03E 9 Ch1 Report No. RF920619H03E 10 Ch11

FCC ID: HEDSMC2552WG Report No.: RF920619H03E63Issued: De. 26, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (With Adapter) FCC ID: HEDSMC2552WG Report No.: RF920619H03E64Issued: De. 26, 2003 CONDUCTED EMISSION TEST (With POE) FCC ID: HEDSMC2552WG Report No.: RF920619H03E65Issued: De. 26, 2003 RADIATED EMISSION TEST (With Adapter) FCC ID: HEDSMC2552WG Report No.: RF920619H03E66Issued: De. 26, 2003 RADIATED EMISSION TEST (With POE)
