HEDSMC2555WEliteConnect 2.4GHz/5GHz Wireless Access Point

SMC2555W-AG 38 Tesla Irvine, CA 92618 Phone: (949) 679-8000 EliteConnect™ Universal 2.4GHz/5GHz Wireless Access Point User Guide The easy way to make all your network connections September 2003 Revision Number: R01, F2.0.5 Copyright Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to change specifications at any time without notice. Copyright © 2003 by SMC Networks, Inc. 38 Tesla Irvine, CA 92618 All rights reserved. Trademarks: SMC is a registered trademark; and EliteConnect are trademarks of SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of their respective holders. i LIMITED WARRANTY Limited Warranty Statement: SMC Networks, Inc. (“SMC”) warrants its products to be free from defects in workmanship and materials, under normal use and service, for the applicable warranty term. All SMC products carry a standard 90-day limited warranty from the date of purchase from SMC or its Authorized Reseller. SMC may, at its own discretion, repair or replace any product not operating as warranted with a similar or functionally equivalent product, during the applicable warranty term. SMC will endeavor to repair or replace any product returned under warranty within 30 days of receipt of the product. The standard limited warranty can be upgraded to a Limited Lifetime* warranty by registering new products within 30 days of purchase from SMC or its Authorized Reseller. Registration can be accomplished via the enclosed product registration card or online via the SMC Web site. Failure to register will not affect the standard limited warranty. The Limited Lifetime warranty covers a product during the Life of that Product, which is defined as the period of time during which the product is an “Active” SMC product. A product is considered to be “Active” while it is listed on the current SMC price list. As new technologies emerge, older technologies become obsolete and SMC will, at its discretion, replace an older product in its product line with one that incorporates these newer technologies. At that point, the obsolete product is discontinued and is no longer an “Active” SMC product. A list of discontinued products with their respective dates of discontinuance can be found at: http://www.smc.com/index.cfm?action=customer_service_warranty. All products that are replaced become the property of SMC. Replacement products may be either new or reconditioned. Any replaced or repaired product carries either a 30-day limited warranty or the remainder of the initial warranty, whichever is longer. SMC is not responsible for any custom software or firmware, configuration information, or memory data of Customer contained in, stored on, or integrated with any products returned to SMC pursuant to any warranty. Products returned to SMC should have any customer-installed accessory or add-on components, such as expansion modules, removed prior to returning the product for replacement. SMC is not responsible for these items if they are returned with the product. Customers must contact SMC for a Return Material Authorization number prior to returning any product to SMC. Proof of purchase may be required. Any product returned to SMC without a valid Return Material Authorization (RMA) number clearly marked on the outside of the package will be returned to customer at customer’s expense. For warranty claims within North America, please call our toll-free customer support number at (800) 762-4968. LIMITED WARRANTY ii Customers are responsible for all shipping charges from their facility to SMC. SMC is responsible for return shipping charges from SMC to customer. WARRANTIES EXCLUSIVE: IF AN SMC PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, CUSTOMER’S SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT OF THE PRODUCT IN QUESTION, AT SMC’S OPTION. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. SMC NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS. SMC SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD. LIMITATION OF LIABILITY: IN NO EVENT, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), SHALL SMC BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE, LOSS OF BUSINESS, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS PRODUCTS, EVEN IF SMC OR ITS AUTHORIZED RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE. NOTHING IN THIS WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS. * SMC will provide warranty service for one year following discontinuance from the active SMC price list. Under the limited lifetime warranty, internal and external power supplies, fans, and cables are covere…

Text truncated - open the document above for the full version.

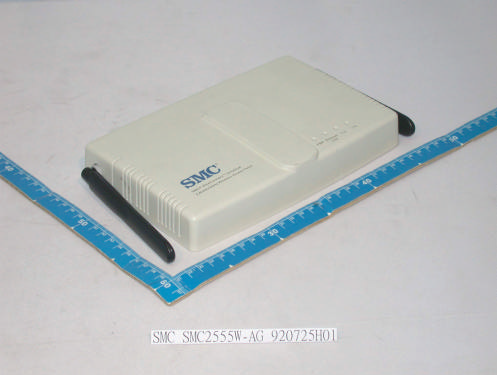

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

(Fig. 1) FCC ID: HEDSMC2555W FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

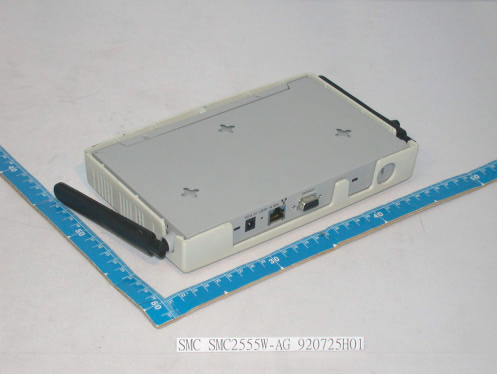

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9

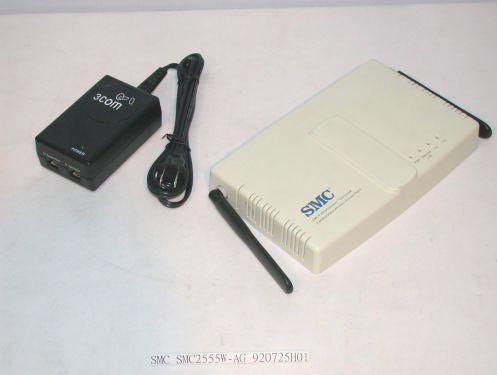

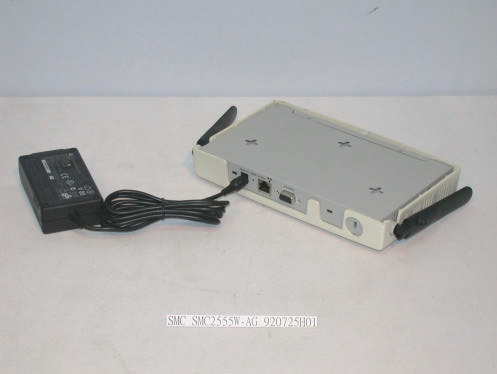

Page 10 Adapter Page 11 Page 12 Page 13 Page 14 Page 15 POE Page 16 Page 17 Page 18 Page 19 Antenna No. : R0322-046 Page 20 Page 21 Page 22 Page 23 Antenna No. : R0322-066 Page 24 Page 25

FCC ID: HEDSMC2555W ADT No. 920725H01 Technical Description The transmitter of the EUT is powered by host equipment. The antenna is Dual-Band Omni-Directional Antenna with HRS U.FL-LP-066 connector (for 2.4GHz) and MMCX R/A Plug connector (for 5GHz). This device is an EliteConnect Universal 2.4GHz/5GHz Wireless Access Point operates in both the 5GHz and 2.4GHz bands, the maximum data rate could be 108Mbps in turbo mode. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: HEDSMC2555W ADT No.: 920725H011 RF EXPOSURE REPORT REPORT NO.: RF920725H01 MODEL NO.: SMC2555W-AG ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. Lab Code: 200376-0 FCC ID: HEDSMC2555W ADT No.: 920725H012 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: HEDSMC2555W ADT No.: 920725H013 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: HEDSMC2555W ADT No.: 920725H014 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 1.5dBi or 1.41(numeric) 2.4GHz and 4.5dBi or 2.82(numeric) for 5GHz. 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241236.560.0111.0 6243735.310.0011.0 11246233.810.0101.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241241.980.0121.0 6243740.830.0141.0 11246239.900.0111.0 FCC ID: HEDSMC2555W ADT No.: 920725H015 For 802.11a (5GHz Band): Normal Mode : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1518032.580.0181.0 4524034.430.0191.0 5526032.730.0181.0 8532032.660.0181.0 9574535.650.0201.0 12580532.660.0181.0 Turbo Mode : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1521032.580.0181.0 2525035.730.0201.0 3529036.060.0201.0 4576034.910.0201.0 5580032.810.0181.0

FCC ID: HEDSMC2555W Report No.: RF920725H011Issued: Sep. 12, 2003 ADT No.: 920725H01 FCC TEST REPORT REPORT NO.: RF920725H01 MODEL NO.: SMC2555W-AG RECEIVED: Jul. 25, 2003 TESTED: Jul. 27 to 30, 2003 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 164 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any government agencies. The test results in the report only apply to the tested sample. Lab Code: 200376-0 FCC ID: HEDSMC2555W Report No.: RF920725H012Issued: Sep. 12, 2003 ADT No.: 920725H01 Table of Contents 1.CERTIFICATION............................................................................................................5 2.SUMMARY OF TEST RESULTS.....................................................................................6 3.GENERAL INFORMATION.............................................................................................8 3.1GENERAL DESCRIPTION OF EUT................................................................................8 3.2DESCRIPTION OF TEST MODES................................................................................10 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..................................................11 3.4DESCRIPTION OF SUPPORT UNITS...........................................................................12 4.TEST TYPES AND RESULTS (FOR PART 802.11B)......................................................15 4.1CONDUCTED EMISSION MEASUREMENT..................................................................15 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.................................................15 4.1.2TEST INSTRUMENTS..................................................................................................15 4.1.3TEST PROCEDURES..................................................................................................16 4.1.4DEVIATION FROM TEST STANDARD..........................................................................16 4.1.5TEST SETUP...............................................................................................................17 4.1.6EUT OPERATING CONDITIONS..................................................................................17 4.1.7TEST RESULTS...........................................................................................................18 4.1.8TEST RESULTS...........................................................................................................20 4.2RADIATED EMISSION MEASUREMENT......................................................................22 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.....................................................22 4.2.2TEST INSTRUMENTS..................................................................................................23 4.2.3TEST PROCEDURES..................................................................................................24 4.2.4DEVIATION FROM TEST STANDARD..........................................................................24 4.2.5TEST SETUP...............................................................................................................25 4.2.6EUT OPERATING CONDITIONS..................................................................................25 4.2.7TEST RESULTS...........................................................................................................26 4.36DB BANDWIDTH MEASUREMENT.............................................................................34 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT...........................................................34 4.3.2TEST INSTRUMENTS..................................................................................................34 4.3.3TEST PROCEDURE....................................................................................................35 4.3.4DEVIATION FROM TEST STANDARD..........................................................................35 4.3.5TEST SETUP...............................................................................................................35 4.3.6EUT OPERATING CONDITIONS..................................................................................35 4.3.7TEST RESULTS (A).....................................................................................................36 4.3.8TEST RESULTS (B).....................................................................................................40 4.4MAXIMUM PEAK OUTPUT POWER.............................................................................44 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.................................44 4.4.2INSTRUMENTS...........................................................................................................44 4.4.3TEST PROCEDURES..................................................................................................45 4.4.4TEST SETUP...............................................................................................................45 4.4.5EUT OPERATING CONDITIONS..................................................................................45 4.4.6TEST RESULTS (A).....................................................................................................46 FCC ID: HEDSMC2555W Report No.: RF920725H013Issued: Sep. 12, 2003 ADT No.: 920725H01 4.4.7TEST RESULTS (B).....................................................................................................46 4.5POWER SPECTRAL DENSITY MEASUREMENT.....................................…

Text truncated - open the document above for the full version.

FCC ID: HEDSMC2555W Report No.: RF920725H0151Issued: Sep. 12, 2003 ADT No.: 920725H01 CH6 FCC ID: HEDSMC2555W Report No.: RF920725H0152Issued: Sep. 12, 2003 ADT No.: 920725H01 CH11 FCC ID: HEDSMC2555W Report No.: RF920725H0153Issued: Sep. 12, 2003 ADT No.: 920725H01 4.5.8 TEST RESULTS(B) EUT EliteConnect Universal 2.4GHz/5GHz Wireless Access Point MODEL SMC2555W-AG INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 21deg. C, 58RH, 976 hPa TESTED BY Eric Lee CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 kHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-14.438PASS 62437-14.458PASS 112462-14.598PASS FCC ID: HEDSMC2555W Report No.: RF920725H0154Issued: Sep. 12, 2003 ADT No.: 920725H01 CH1 FCC ID: HEDSMC2555W Report No.: RF920725H0155Issued: Sep. 12, 2003 ADT No.: 920725H01 CH6 FCC ID: HEDSMC2555W Report No.: RF920725H0156Issued: Sep. 12, 2003 ADT No.: 920725H01 CH11 FCC ID: HEDSMC2555W Report No.: RF920725H0157Issued: Sep. 12, 2003 ADT No.: 920725H01 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP1093.4495.30Dec. 19, 2003 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. 4.6.4 DEVIATION FROM TEST STANDARD No deviation FCC ID: HEDSMC2555W Report No.: RF920725H0158Issued: Sep. 12, 2003 ADT No.: 920725H01 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 4.6.6 TEST RESULTS (A) The spectrum plots are attached on the following 2 pages. D1 line indicates the highest level, and D2 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE (1): The band edge emission plot on the following first page shows 47.87dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2 is 100.8dBuV/m, so the maximum field strength in restrict band is 100.8-47.87=52.93dBuV/m which is under 54 dBuV/m limit. NOTE (2): The band edge emission plot on the following second page shows 50.57 dB delta between carrier maximum power and local maximum emission in restrict band (2.496GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2 is 101.0dBuV/m, so the maximum field strength in restrict band is 101.0-50.57=50.43dBuV/m which is under 54 dBuV/m limit. FCC ID: HEDSMC2555W Report No.: RF920725H0159Issued: Sep. 12, 2003 ADT No.: 920725H01 FCC ID: HEDSMC2555W Report No.: RF920725H0160Issued: Sep. 12, 2003 ADT No.: 920725H01 FCC ID: HEDSMC2555W Report No.: RF920725H0161Issued: Sep. 12, 2003 ADT No.: 920725H01 4.6.7 TEST RESULTS (B) The spectrum plots are attached on the following 2 pages. D1 line indicates the highest level, and D2 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE (1): The band edge emission plot on the following first page shows 43.23dB delta between carrier maximum power and local maximum emission in restrict band (2.390GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2 is 93.8dBuV/m, so the maximum field strength in restrict band is 93.8-43.23=50.57dBuV/m which is under 54 dBuV/m limit. NOTE (2): The band edge emission plot on the following second page shows 44.45 dB delta between carrier maximum power and local maximum emission in restrict band (2.4836GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2 is 94.1dBuV/m, so the maximum field strength in restrict band is 94.1-44.45=49.65 dBuV/m which is under 54 dBuV/m limit. FCC ID: HEDSMC2555W Report No.: RF920725H0162Issued: Sep. 12, 2003 ADT No.: 920725H01 FCC ID: HEDSMC2555W Report No.: RF920725H0163Issued: Sep. 12, 2003 ADT No.: 920725H01 FCC ID: HEDSMC2555W Report No.: RF920725H0164Issued: Sep. 12, 2003 ADT No.: 920725H01 4.7 ANTENNA REQUIREMENT 4.7.1 STANDARD APPLICABLE For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (b), if transmitting antennas of directional gain greater than 6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. 4.7.2 ANTENNA CONNECTED CONSTRUCTION The antenna used in this product is Dual-Band Omni-Directional Antenna with HRS U.FL-LP-066 connector. The maximum Gain of the antenna is 1.5dBi. FCC ID: HEDSMC2555W Report No.: RF920725H0165Issued: Sep. 12, 2003 ADT No.: 920725H01 5. TEST TYPES AND RESULTS (FOR PART 802.11a) 5.1 CONDUCTED EMISSION MEASUREMENT 5.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT FREQUENCY OF EMISSION (MHz)CONDUCTED LIMIT (dBμV) Quasi-peakAverage 0.15-0.5 0.5-5 5-30 66 to 56 56 60 56 to 46 46 50 NOTE:1.The lower limit shall apply at the transition frequencies. 2.The limit decreases in line with the logarithm of the frequency in the range of 0.15 to 0.50 MHz. 3.All emanations from a class A/B digital device or system, including any network of conductors and apparatus connected thereto, shall not exceed the level of field strengths specified above. 5.1.2 TEST INSTRUMENTS DESCRIPTION & MANUFACTURER MODEL NO.SERIAL NO. CALIBRATED UNTIL ROHDE & SCHWARZ Test Receiver ESCS 30847124/029Nov. 17, 2003 ROHDE & SCHWARZ LISN (fo…

Text truncated - open the document above for the full version.

FCC ID: HEDSMC2555W Report No.: RF920725H0191Issued: Sep. 12, 2003 ADT No.: 920725H01 EUT EliteConnect Universal 2.4GHz/5GHz Wireless Access Point MODELSMC2555W-AG MODE Turbo Mode CHANNEL3 FREQUENCY RANGE 1000MHz~40000MHz DETECTOR FUNCTION Peak(PK) Average (AV) ENVIRONMENTAL CONDITIONS 28 deg. C, 56%RH, 976 hPa INPUT POWER (SYSTEM) 120Vac, 60Hz TESTED BY Eic Lee ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1#5088.0051.0 PK74.00-23.001.30 H6113.9037.00 1#5088.0044.6 AV54.00-9.401.30 H617.5037.00 2*5290.0095.1 PK1.58 H9958.0037.00 2*5290.0086.7 AV1.58 H9949.6037.00 3#5350.0051.2 PK74.00-22.801.33 H11914.1037.00 3#5350.0041.0 AV54.00-13.001.33 H1194.0037.00 4#5408.0050.4 PK74.00-23.601.54 H2613.4037.00 510580.0051.8 PK68.30-16.501.35 H266.0045.70 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1#5088.0056.0 PK74.00-18.001.11 V919.0037.00 1#5088.0049.6 AV54.00-4.401.11 V912.6037.00 2*5290.0098.9 PK1.00 V061.9037.00 2*5290.0091.2 AV1.00 V054.2037.00 3#5350.0057.0 PK74.00-17.001.05 V2420.0037.00 3#5350.0047.8 AV54.00-6.201.05 V2410.8037.00 4#5408.0059.4 PK74.00-14.601.05 V2422.3037.00 4#5408.0050.8 AV54.00-3.201.05 V2413.7037.00 510580.0055.1 PK68.30-13.201.52 V3299.4045.70 NOTE: 1. Emission level = Raw value - Correction Factor 2. Correction Factor = Pre-Amp. Factor - Ant. Factor - Cable loss (Pre-Amp. Factor = 0, when a Pre-Amplifier is not used for the test.) 3. Margin value = Emission level - Limit value 4. The other emission levels were very low against the limit. 5. “*” : Fundamental frequency 6. “# “ : The radiated frequency falling in the restricted band. FCC ID: HEDSMC2555W Report No.: RF920725H0192Issued: Sep. 12, 2003 ADT No.: 920725H01 EUT EliteConnect Universal 2.4GHz/5GHz Wireless Access Point MODEL SMC2555W-AG MODE Turbo Mode CHANNEL4 FREQUENCY RANGE 1000MHz~40000MHz DETECTOR FUNCTION Peak(PK) Average (AV) ENVIRONMENTAL CONDITIONS 28 deg. C, 56%RH, 976 hPa INPUT POWER (SYSTEM) 120Vac, 60Hz TESTED BYEic Lee ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1#5120.0051.4 PK74.00-22.601.41 H22214.4037.00 1#5120.0044.1 AV54.00-9.901.41 H2227.1037.00 2#5440.0049.4 PK74.00-24.601.02 H2412.3037.00 35715.0059.1 PK72.80-13.701.33 H621.6037.50 45725.0071.3 PK82.80-11.501.20 H24933.8037.50 5*5760.0095.7 PK1.22 H28958.1037.60 5*5760.0087.8 AV1.22 H28950.2037.50 6#11520.0058.0 PK74.00-16.001.29 H3566.7051.30 6#11520.0047.0 AV54.00-7.001.29 H356-4.3037.60 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1#5120.0055.6 PK74.00-18.401.36 V16018.5037.00 1#5120.0048.6 AV54.00-5.401.36 V16011.5037.00 2#5440.0057.0 PK74.00-17.001.39 V6519.9037.00 2#5440.0049.0 AV54.00-5.001.39 V6512.0037.00 35715.0066.2 PK72.80-6.601.25 V828.7037.50 45725.0076.4 PK82.80-6.401.55 V6838.9037.50 5*5760.00101.5 PK1.09 V663.9037.60 5*5760.0094.6 AV1.09 V657.0037.60 6#11520.0061.0 PK74.00-13.001.25 V249.7051.30 6#11520.0051.2 AV54.00-2.801.25 V24-0.1051.30 NOTE: 1. Emission level = Raw value - Correction Factor 2. Correction Factor = Pre-Amp. Factor - Ant. Factor - Cable loss (Pre-Amp. Factor = 0, when a Pre-Amplifier is not used for the test.) 3. Margin value = Emission level - Limit value 4. The other emission levels were very low against the limit. 5. “*” : Fundamental frequency 6. “# “ :The radiated frequency falling in the restricted band. FCC ID: HEDSMC2555W Report No.: RF920725H0193Issued: Sep. 12, 2003 ADT No.: 920725H01 EUT EliteConnect Universal 2.4GHz/5GHz Wireless Access Point MODEL SMC2555W-AG MODE Turbo Mode CHANNEL5 FREQUENCY RANGE 1000MHz~40000MHz DETECTOR FUNCTION Peak(PK) Average (AV) ENVIRONMENTAL CONDITIONS 28 deg. C, 56%RH, 976 hPa INPUT POWER (SYSTEM) 120Vac, 60Hz TESTED BYEic Lee ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1#5088.0048.6 PK74.00-25.401.05 H3411.6037.00 2#5440.0050.7 PK74.00-23.301.01 H26013.7037.00 3*5800.0096.4 PK1.33 H2658.7037.70 3*5800.0088.7 AV1.33 H2651.0037.00 45825.0070.0 PK82.80-12.801.55 H8732.3037.70 55835.0060.0 PK72.80-12.801.09 H6822.3037.70 6#11600.0056.8 PK74.00-17.201.05 H2585.8051.00 6#11600.0045.8 AV54.00-8.201.05 H258-5.2037.70 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1#5088.0057.2 PK74.00-16.801.57 V4520.1037.00 1#5088.0049.6 AV54.00-4.401.57 V4512.6037.00 2#5440.0060.4 PK74.00-13.601.03 V24723.4037.00 2#5440.0050.9 AV54.00-3.101.03 V24713.9037.00 3*5800.0099.8 PK1.25 V4762.1037.70 3*5800.0094.5 AV1.25 V4756.8037.70 45825.0075.2 PK82.80-7.601.04 V5537.5037.70 55835.0064.3 PK72.80-8.501.57 V22726.5037.70 6#11600.0058.8 PK74.00-15.201.63 V3257.8051.00 6#11600.0050.0 AV54.00-4.001.63 V325-1.0051.00 NOTE: 1. Emission level = Raw value - Correction Factor 2. Correction Factor = Pre-Amp. Factor - Ant. Factor - Cable loss (Pre-Amp. Factor = 0, when a Pre-Amplifier is not used for the test.) 3. Margin value = Emission level - Limit value 4. The other emission levels were very low against the limit. 5. “*” : Fundamental frequency 6. “# “ :The radiated frequency falling in the restricted band. FCC ID: HEDSMC2555W Report No.…
