HEDSMCWEBNDraft 11n Wireless Access Point /Ethernet Client

i User Manual: EZ Connect N Draft 11n Wireless Access Point/ Ethernet Client Model No: SMCWEB-N ii LIMITED WARRANTY Limited Warranty Statement: SMC Networks, Inc. (“SMC”) warrants its products to be free from defects in workmanship and materials, under normal use and service, for the applicable warranty term. All SMC products carry a standard 90-day limited warranty from the date of purchase from SMC or its Authorized Reseller. SMC may, at its own discretion, repair or replace any product not operating as warranted with a similar or functionally equivalent product, during the applicable warranty term. SMC will endeavor to repair or replace any product returned under warranty within 30 days of receipt of the product. The standard limited warranty can be upgraded to a Limited Lifetime* warranty by registering new products within 30 days of purchase from SMC or its Authorized Reseller. Registration can be accomplished via the enclosed product registration card or online via the SMC website. Failure to register will not affect the standard limited warranty. The Limited Lifetime warranty covers a product during the Life of that Product, which is defined as the period of time during which the product is an “Active” SMC product. A product is considered to be “Active” while it is listed on the current SMC price list. As new technologies emerge, older technologies become obsolete and SMC will, at its discretion, replace an older product in its product line with one that incorporates these newer technologies. At that point, the obsolete product is discontinued and is no longer an “Active” SMC product. A list of discontinued products with their respective dates of discontinuance can be found at: http://www.smc.com/index.cfm?action=customer_service_warranty. All products that are replaced become the property of SMC. Replacement products may be either new or reconditioned. Any replaced or repaired product carries either a 30-day limited warranty or the remainder of the initial warranty, whichever is longer. SMC is not responsible for any custom software or firmware, configuration information, or memory data of Customer contained in, stored on, or integrated with any products returned to SMC pursuant to any warranty. Products returned to SMC should have any customer-installed accessory or add-on components, such as expansion modules, removed prior to returning the product for replacement. SMC is not responsible for these items if they are returned with the product. Customers must contact SMC for a Return Material Authorization number prior to returning any product to SMC. Proof of purchase may be required. Any product returned to SMC without a valid Return Material Authorization (RMA) number clearly marked on the outside of the package will be returned to customer at customer’s expense. For warranty claims within North America, please call our toll-free customer support number at (800) 762-4968. Customers are responsible for all shipping charges from their facility to SMC. SMC is responsible for return shipping charges from SMC to customer. WARRANTIES EXCLUSIVE: IF AN SMC PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, CUSTOMER’S SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT OF THE PRODUCT IN QUESTION, AT SMC’S OPTION. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. SMC NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS. SMC SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD. LIMITATION OF LIABILITY: IN NO EVENT, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), SHALL SMC BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE, LOSS OF BUSINESS, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF iii ITS PRODUCTS, EVEN IF SMC OR ITS AUTHORIZED RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE. NOTHING IN THIS WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS. * SMC will provide warranty service for one year following discontinuance from the active SMC price list. Under the limited lifetime warranty, internal and external power supplies, fans, and cables are covered by a standard one-year warranty from date of purchase. SMC Networks, Inc. 20 Mason Irvine, CA 92618 Compliances iv Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and…

Text truncated - open the document above for the full version.

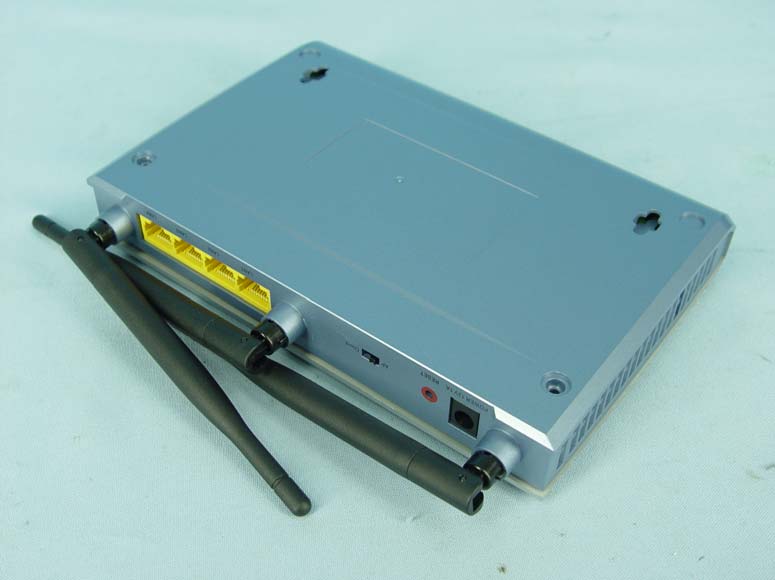

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID:HEDSMCWEBN Draft 11n Wireless Access Point/Ethernet ClientModel No: SMCWEB-N

FCC ID .: HEDSMCWEBN Label Location 8

Page 3 Page 4 Page 5 Page 6

FCC ID: HEDSMCWEBN Report No. RF960508L13 Operational Description This device is a Draft 11n Wireless Access Point /Ethernet Client, which operates in the 2.4GHz frequency spectrum with throughput of up to 300Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is dipole antenna with UFL connector. The other instruction, please have a look at the users manual.

FCC ID: HEDSMCWEBN Report No: SA960508L13 1 RF EXPOSURE REPORT REPORT NO.: SA960508L13 MODEL NO.: SMCWEB-N ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: HEDSMCWEBN Report No: SA960508L13 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: HEDSMCWEBN Report No: SA960508L13 3 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm-separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. FCC ID: HEDSMCWEBN Report No: SA960508L13 4 6 Test Results 6.1 Antenna Gain The Gain measured in Fully Anechoic Chamber are 4dBi or 2.51189 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 802.11b DSSS MODULATION: CHANNEL CHANNEL FREQUENCY (MHz) TOTAL OUTPUT POWER TO ANTENNA (mW) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 1 2412 60.534 0.030 1.0 6 2437 66.222 0.033 1.0 11 2462 59.566 0.030 1.0 For 802.11g OFDM MODULATION: PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1CHAIN 0CHAIN 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/CM2)) LIMIT OF POWER DENSITY (mW/CM2) 1 2412 36.983 38.194 15.6815.8275.177 18.76 0.038 1.0 6 2437 41.210 39.084 16.1515.9280.294 19.05 0.040 1.0 11 2462 39.084 41.020 15.9216.1380.104 19.04 0.040 1.0 DRAFT 802.11n (20MHz) OFDM MODULATION: PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1CHAIN 0CHAIN 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/CM2)) LIMIT OF POWER DENSITY (mW/CM2) 1 2412 34.277 38.459 15.3515.8572.736 18.62 0.036 1.0 6 2437 39.355 41.783 15.9516.2181.138 19.09 0.041 1.0 11 2462 37.411 39.084 15.7315.9276.495 18.84 0.038 1.0 FCC ID: HEDSMCWEBN Report No: SA960508L13 5 DRAFT 802.11n (40MHz) OFDM MODULATION: PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1CHAIN 0CHAIN 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/CM2)) LIMIT OF POWER DENSITY (mW/CM2) 1 2422 23.174 23.714 13.6513.7546.888 16.71 0.023 1.0 4 2437 23.388 24.099 13.6913.8247.487 16.77 0.024 1.0 7 2452 23.768 24.774 13.7613.9448.543 16.86 0.024 1.0

Report No.: RF960508L13 1 Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF960508L13 MODEL NO.: SMCWEB-N RECEIVED: May 08, 2007 TESTED: May 14 ~ May 18, 2007 ISSUED: May 22, 2007 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No.47, 14 th Ling, Chia Pau Tsuen, Linko Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 108 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF960508L13 2 Report Format Version 2.0.5 TABLE OF CONTENTS 1. CERTIFICATION ..................................................................................................4 2. SUMMARY OF TEST RESULTS..........................................................................5 2.1 MEASUREMENT UNCERTAINTY .......................................................................5 3. GENERAL INFORMATION ..................................................................................6 3.1 GENERAL DESCRIPTION OF EUT ....................................................................6 3.2 DESCRIPTION OF TEST MODES ......................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST.................................................. 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...................... 8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS....................................10 3.4 DESCRIPTION OF SUPPORT UNITS...............................................................10 4. TEST TYPES AND RESULTS............................................................................ 11 4.1 CONDUCTED EMISSION MEASUREMENT..................................................... 11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .................................. 11 4.1.2 TEST INSTRUMENTS ....................................................................................... 11 4.1.3 TEST PROCEDURES........................................................................................ 12 4.1.4 DEVIATION FROM TEST STANDARD .............................................................. 12 4.1.5 TEST SETUP ..................................................................................................... 13 4.1.6 EUT OPERATING CONDITIONS....................................................................... 13 4.1.7 TEST RESULTS................................................................................................. 14 4.2 RADIATED EMISSION MEASUREMENT..........................................................32 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ....................................... 32 4.2.2 TEST INSTRUMENTS ....................................................................................... 33 4.2.3 TEST PROCEDURES........................................................................................ 34 4.2.4 DEVIATION FROM TEST STANDARD .............................................................. 34 4.2.5 TEST SETUP ..................................................................................................... 35 4.2.6 EUT OPERATING CONDITIONS....................................................................... 35 4.2.7 TEST RESULTS................................................................................................. 36 4.3 6dB BANDWIDTH MEASUREMENT .................................................................51 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .............................................. 51 4.3.2 TEST INSTRUMENTS ....................................................................................... 51 4.3.3 TEST PROCEDURE .......................................................................................... 51 4.3.4 DEVIATION FROM TEST STANDARD .............................................................. 51 4.3.5 TEST SETUP ..................................................................................................... 52 4.3.6 EUT OPERATING CONDITIONS....................................................................... 52 4.3.7 TEST RESULTS................................................................................................. 53 4.4 MAXIMUM PEAK OUTPUT POWER .................................................................67 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ................. 67 4.4.2 INSTRUMENTS ................................................................................................. 67 4.4.3 TEST PROCEDURES........................................................................................ 67 4.4.4 DEVIATION FROM TEST STANDARD .............................................................. 67 4.4.5 TEST SETUP ..................................................................................................... 68 4.4.6 EUT OPERATING CONDITIONS....................................................................... 68 4.4.7 TEST RESULTS................................................................................................. 69 4.5 POWER SPECTRAL DENSITY MEASUREMENT ............................................71 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.......................... 71 4.5.2 TEST INSTRUMENTS ....................................................................................... 71 4.5.3 TEST PROCEDURE .......................................................................................... 71 4.5.4 DEVIATION FROM TEST STANDARD ...............................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
