HEDSMCWPCI-N3EZ Connect N 11n Wireless PCI Adapter

EZ Connect N Draft 11n Wireless USB2.0 Adapter EZ Connect™ N 11n Wireless PCI Adapter SMCWPCI-N3 REV: 1.0.0 FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” CE Mark Warning Countries of Operation & Conditions of Use in the European Community SMC contact for these products in Europe is: SMC Networks Spain, S.L. Edificio Conata II, Group CTSG Fructuos Gelabert 6-8 2o2a 08970 Sant Joan Despi, Barcolona,Spain This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: EN 55022:2006+A1:2007 Class B EN 55024:1998+A1: 2001+A2: 2003 IEC 61000-4-2: 2001 IEC 61000-4-3: 2006 IEC 61000-4-4: 2004 IEC 61000-4-5: 2005 IEC 61000-4-6: 2006 IEC 61000-4-8: 2001 IEC 61000-4-11: 2004 LVD: EN60950-1:2006/A11:2009 This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. National restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria None General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation None Only for indoor applications Note: Please don’t use the product outdoors in France. CONTENTS Package Contents .................................................................................................... 1 Chapter 1 Introduction ......................................................................................... 2 1.1 Overview of the product ................................................................................................... 2 1.2 Features ........................................................................................................................... 2 1.3 LED Status ....................................................................................................................... 3 Chapter 2 Installation Guide ................................................................................ 4 2.1 Hardware Installation ........................................................................................................ 4 2.2 Software Installation ......................................................................................................... 4 Chapter 3 Configuration for Windows XP ........................................................ 14 3.1 Current Status ................................................................................................................ 14 3.2 Profile Management ....................................................................................................... 17 3.3 Diagnostics ..................................................................................................................... 26 Chapter 4 Configuration for Windows Vista .................................................... 29 Chapter 5 Configuration for Windows 7 ..................................................…

Text truncated - open the document above for the full version.

Accton Technology Corporation International Headquarter: No. 1 Creation Rd. III, Science-based industrial Park, Hsinchu 30077, Taiwan, R.O.C. Tel: 886-3-5770270 Fax: 886-3-5770267 Attestation for FCC Declaration of Conformity FCC ID: HEDSMCWPCI-N3 Date:Dec 30, 2010 Please be notified that we, the undersigned, Accton Technology Corporation declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is EM-F991228 , with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Yours sincerely Name of authorized signer: Alex Wen Title of authorized signer: Product Dept. Manager Company Name: Accton Technology Corporation Tel: 886-03-5770270 Fax: 886-03-5786934 Web site: www.accton.com

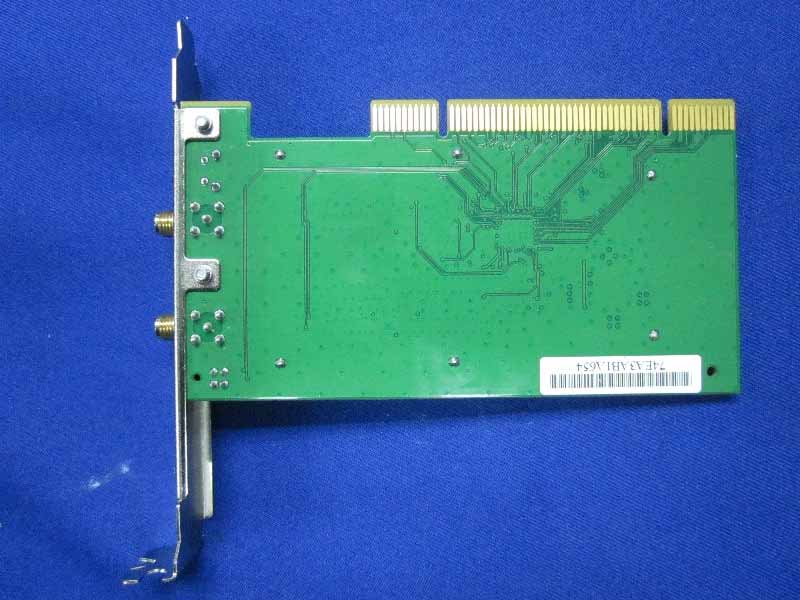

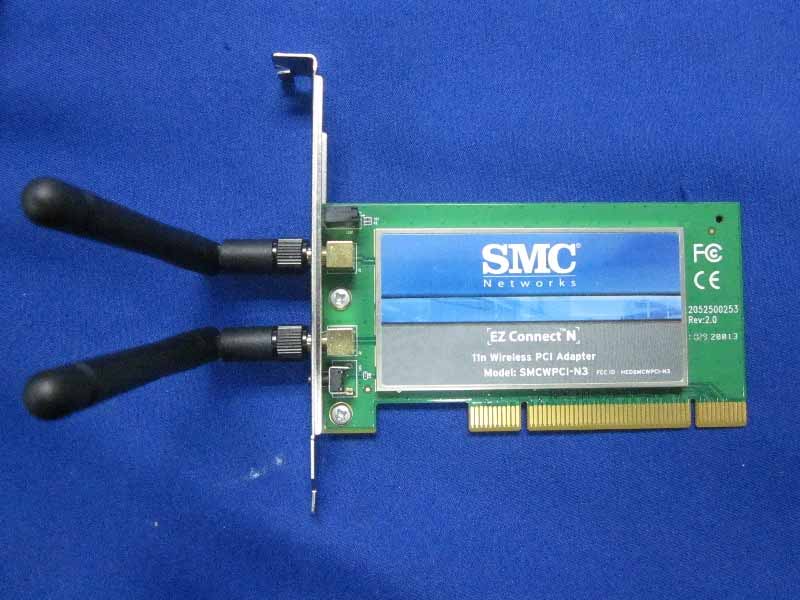

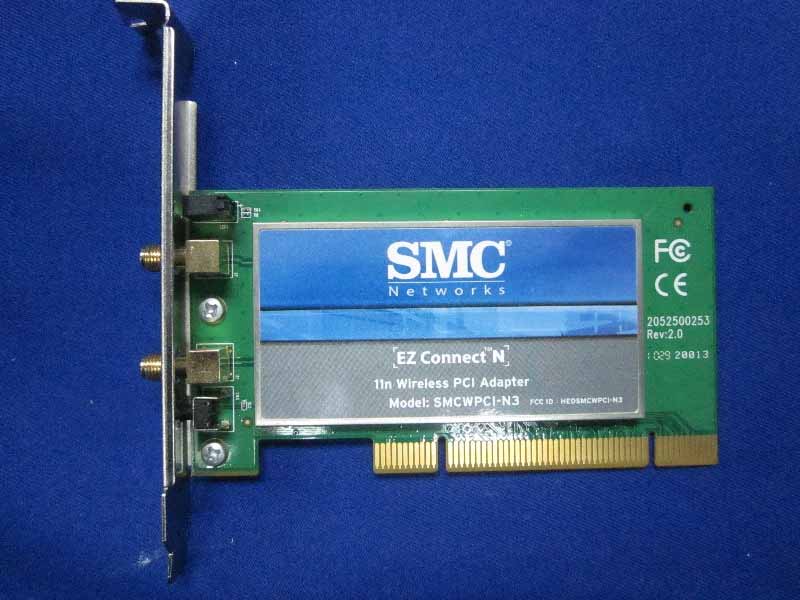

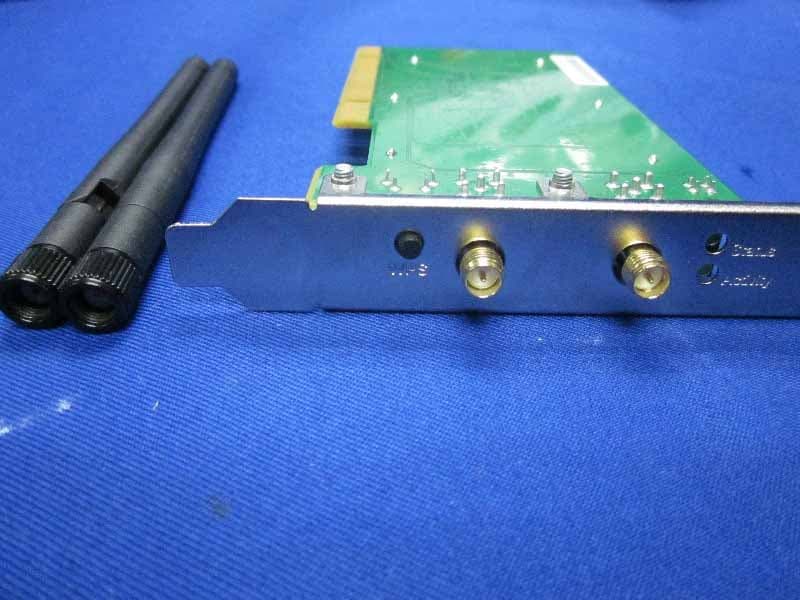

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:HEDSMCWPCI-N3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10342 14-1 14. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:HEDSMCWPCI-N3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10342 14-2 Figure 3 Inside of the EUT Figure 4 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:HEDSMCWPCI-N3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10342 14-3 Figure 5 Inside of the EUT

1 2 E D C C B A 1 2 3 4 5 6 7 8 9 E D 3 4 5 6 7 8 B A 9 料号： 设 计 审 核 颜 色 名 称 版 本 材 质 模 具 机型版本号 完成日期 logo 底色 文字 其它 记 录 与上一版的区别 SIZE : 83*41.3mm, 1R 文字转曲 11n Wir ele ss PCI Adap ter Model: SMCWPCI-N3 F CC IDHED SMCWPCI-N3 Label Location

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:HEDSMCWPCI-N3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10342 14-2 Figure 3 Inside of the EUT Figure 4 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:HEDSMCWPCI-N3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10342 14-3 Figure 5 Inside of the EUT

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:HEDSMCWPCI-N3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10342 11-2 11.MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 11.2.Estimation Result Mode CH Frequency (MHz) PK Output power (dBm) Output power (mW) Antenna Gain (dBi) Antenna Gain(linear) MPE (mW/ cm2 ) 11b 1 2412 19.67 92.6821.580.0292 6 2437 20.14 103.2821.580.0326 11 2462 20.45 110.9221.580.0350 11g 1 2412 20.78 119.6721.580.0378 6 2437 22.45 175.7921.580.0555 11 2462 21.45 139.6421.580.0441 11n HT20 1 2412 20.97 125.0321.580.0394 6 2437 22.85 192.7521.580.0608 11 2462 21.19 131.5221.580.0415 11n HT40 1 2422 24.18 261.8221.580.0826 4 2437 23.72 235.5021.580.0743 7 2452 23.76 237.6821.580.0750 Note: The estimation distance is 20cm

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:HEDSMCWPCI-N3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10342 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Accton Technology Corporation EZ Connect TM N 11n Wireless PCI Adapter Model No.: SMCWPCI-N3 FCC ID: HEDSMCWPCI-N3 Prepared for : Accton Technology Corporation No.1, Creation Rd. III, Science-bansed Industrial Park, Hsinchu, 30077, Taiwan, R.O.C Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ᧶ ACS-F10342 Date of Test ᧶ Dec.15~16, 2010 Date of Report ᧶ Dec.23, 2010 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:HEDSMCWPCI-N3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10342 TABLE OF CONTENTS Description Page 1.SUMMARY OF STANDARDS AND RESULTS .......................................................... 1-1 1.1.Description of Standards and Results .................................................................................. 1-1 2.GENERAL INFORMATION ......................................................................................... 2-1 2.1.Description of Device (EUT) ............................................................................................... 2-1 2.2.Test Information ................................................................................................................... 2-2 2.3.Date rate VS power ............................................................................... 䫭䇃ʽ᳾ᅮНкᅤDŽ 2.4.Tested Supporting System Details ....................................................................................... 2-3 2.5.Block diagram of connection between the EUT and simulators .......................................... 2-3 2.6.Test Facility ......................................................................................................................... 2-4 2.7.Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-5 3.POWER LINE CONDUCTED EMISSION TEST ....................................................... 3-1 3.1.Test Equipments ................................................................................................................... 3-1 3.2.Block Diagram of Test Setup ............................................................................................... 3-1 3.3.Power Line Conducted Emission Test Limits ...................................................................... 3-1 3.4.Configuration of EUT on Test ............................................................................................. 3-2 3.5.Operating Condition of EUT ................................................................................................ 3-2 3.6.Test Procedure ...................................................................................................................... 3-2 3.7.Power Line Conducted Emission Test Results .................................................................... 3-2 4.RADIATED EMISSION TEST ...................................................................................... 4-1 4.1.Test Equipment .................................................................................................................... 4-1 4.2.Block Diagram of Test Setup ............................................................................................... 4-1 4.3.Radiated Emission Limit ...................................................................................................... 4-2 4.4.EUT Configuration on Test .................................................................................................. 4-3 4.5.Operating Condition of EUT ................................................................................................ 4-3 4.6.Test Procedure ...................................................................................................................... 4-3 4.7.Radiated Emission Test Results ........................................................................................... 4-4 5.CONDUCTED SPURIOUS EMISSIONS...................................................................... 5-1 5.1.Test Equipment .................................................................................................................... 5-1 5.2.Limit ..................................................................................................................................... 5-1 5.3.Test Procedure ...................................................................................................................... 5-1 5.4.Test result ............................................................................................................................. 5-1 6.BAND EDGE COMPLIANCE TEST ............................................................................ 6-1 6.1.Test Equipment .................................................................................................................... 6-1 6.2.Limit ..................................................................................................................................... 6-1 6.3.Test Produce ......................................................................................................................... 6-1 6.4.Test Results .......................................................................................................................... 6-1 7.6dB Bandwidth Test ......................................................................................................... 7-1 7.1.Test Equipment .................................................................................................................... 7-1 7.2.Limit ..................................................................................................................................... 7-1 7.3.Test Procedure ......................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:HEDSMCWPCI-N3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10342 13-1 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:HEDSMCWPCI-N3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10342 13-2 13.2.Photos of Radiated Emission Test 30-1000MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:HEDSMCWPCI-N3 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F10342 13-3 Above 1000MHz
