HEDWA410160Wireless Enterprise Access Point

1 2 3 4 NoticeEnterasys Networks reserves the right to make changes in specifications and other information contained in this document and its web site without prior notice. The reader should in all cases consult Enterasys Networks to determine whether any such changes have been made.The hardware, firmware, or software described in this document is subject to change without notice.IN NO EVENT SHALL ENTERASYS NETWORKS BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS DOCUMENT, WEB SITE, OR THE INFORMATION CONTAINED IN THEM, EVEN IF ENTERASYS NETWORKS HAS BEEN ADVISED OF, KNEW OF, OR SHOULD HAVE KNOWN OF, THE POSSIBILITY OF SUCH DAMAGES.Enterasys Networks, Inc.50 Minuteman RoadAndover, MA 01810 2004 Enterasys Networks, Inc. All rights reserved. Part Number: 9033945 February 2004ENTERASYS, ENTERASYS NETWORKS, NETSIGHT, ROAMABOUT, and any logos associated therewith, are trademarks or registered trademarks of Enterasys Networks, Inc. in the United States and other countries.All other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies.FCC Communication Commission Interference StatementThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.FCC Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.If the RBT3K-AG or RBT3K-AG-G device is going to be operated in 5.15 ~ 5.25GHz frequency range, then it is restricted in indoor environment only.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.Enterasys Networks declares that the RBT3K-1G, RBT3K-AG, and RBT3K-AG-G (RoamAbout Access Point 3000) are limited in the 2.4 GHz band on channel 1-11 by specified firmware controlled in USA.Industry Canada (Canada) - Class B Computing Device:This Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.Europe - EC Declaration of ConformityThis device complies with Low Voltage Directive 73/23/EEC and EMC Directive 89/336/EEC.VCCI NoticeThis is a Class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual. SpecificationsFor the complete Access Point 3000 (part number RBT3K-1G, RBT3K-AG, and RBT3K-AG-G) specifications, refer to the RoamAbout Access Point 3000 Hardware Installation and Configuration Guide . Physical Size21.83 x 13.73 x 3.27 cm (8.60 x 5.40 x 1.29 in.)Weight0.80 kg (1.76 lbs)Power SupplyInput: 100-240 AC, 50-60 HzOutput: 5.1 VDC, 3APower consumption: 13.2 watts802.1af compliant: input voltage 48 VDC, 0.27A, 12.96 wattsTem pe ratu reOperating: 0 to 55 ° C (32 to 131 ° F) Storage: 0 to 70 ° C (32 to 158 ° F) Humidity15% to 95% (non-condensing)EMC Compliance (Class B)FCC Class B (US)ICES-003 (Canada)VCCI (Japan)RCR STD-33AEN55024, EN55022CISPR 22-96Radio Signal Certification SafetyCSA/NTRL (CSA 22.2 No. 950 & UL 60950)EN60950 (T Ü V/GS), IEC60950 (CB) LV D / E N 6 0 9 5 0Plenum Rated UL 2043StandardsIEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.11a, b, g Access Point 3000 Overview The Enterasys Networks Wireless Access Point 3000 is an IEEE 802.11a/b/g (RBT3K-AG & RBT3K-AG-G), or an IEEE 802.11b/g only (RBT3K-1G), access point that provides transparent, wireless high-speed data communications between the wired LAN and fixed, portable or mobile devices equipped with an 802.11a, 802.11b or 802.11g wireless adapter. This solution offers fast, reliable wireless connectivity with considerable cost savings over wired LANs (which include long-term maintenance overhead for cabling). Using 802.11a, 802.11b, and 802.11g technology, this access point can easily replace a 10 Mbps Ethernet connection and provide seamless integration into a 10/100 Mbps Ethernet LAN.In addition, the access point offers full network management capabilities through an easy to configure web interface, and a command line interface for initial configuration and troubleshooting. Installation Please read the Regulatory, FCC, and specification information before you install the RoamAbout Access Point 3000.To install the RoamAbout Access Point 3000, perform the following steps: 1. Select a site. Choose a proper place for the access point…

Text truncated - open the document above for the full version.

(Fig. 1) FCC ID: HEDWA410160 LABEL LOCATION Label

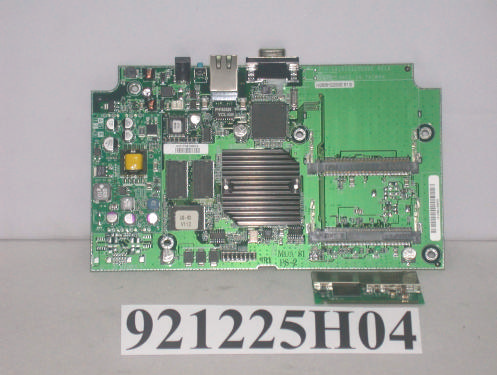

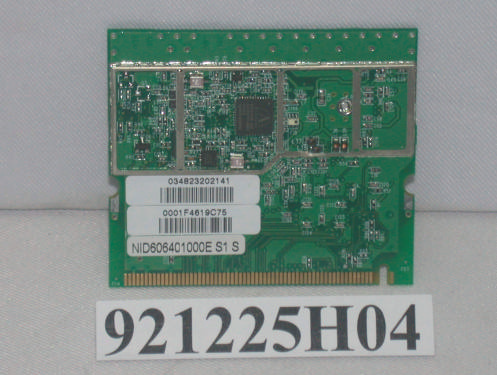

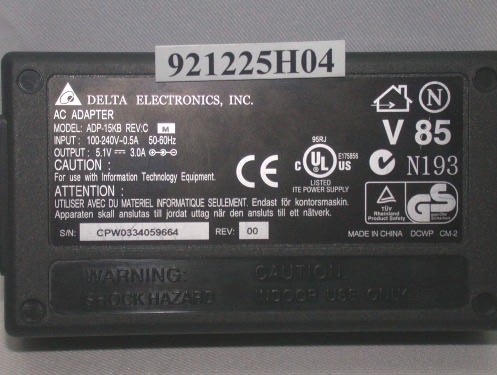

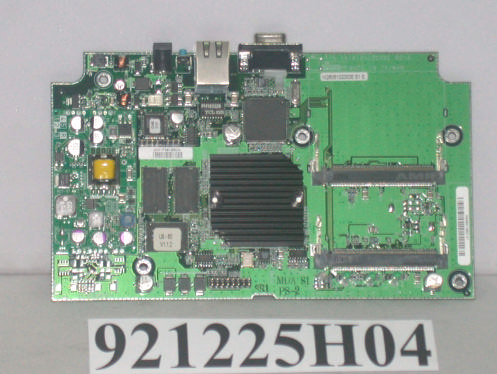

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Adapter Page 10 Page 11 POE Page 12

FCC ID: HEDWA410160 ADT No. 921225H04 Operational Description This device is a Wireless Enterprise Access Point which operates in the 2.4GHz band, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The transmitter of the EUT (Wireless Enterprise Access Point) is powered by AC Adapter. The antenna types used in this product is Dual-Band Omni-Directional Antenna with HRS U.FL-LP-066 connector. The other instruction, please have a look at the users manual.

FCC ID: HEDWA410160 ADT No.: 921225H041 RF EXPOSURE REPORT REPORT NO.: RF920725H01D MODEL NO.: RBT3K-1G ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: HEDWA410160 ADT No.: 921225H042 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: HEDWA410160 ADT No.: 921225H043 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: HEDWA410160 ADT No.: 921225H044 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.5dBi or 1.41(numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241236.560.0111.0 6243767.610.0191.0 11246233.810.0101.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241241.980.0121.0 6243766.070.0191.0 11246239.900.0111.0

FCC ID: HEDWA410160 Report No.: RF920725H01D1Issued: Dec. 31, 2003 FCC TEST REPORT REPORT NO.: RF920725H01D MODEL NO.: RBT3K-1G RECEIVED: Jul. 25, 2003 TESTED: Jul. 27 to Oct. 09, 2003 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 66 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: HEDWA410160 Report No.: RF920725H01D2Issued: Dec. 31, 2003 Table of Contents 1.CERTIFICATION............................................................................................................4 2.SUMMARY OF TEST RESULTS.....................................................................................5 3.GENERAL INFORMATION.............................................................................................6 3.1GENERAL DESCRIPTION OF EUT................................................................................6 3.2DESCRIPTION OF TEST MODES..................................................................................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS....................................................8 3.4DESCRIPTION OF SUPPORT UNITS.............................................................................9 4.TEST TYPES AND RESULTS.......................................................................................12 4.1CONDUCTED EMISSION MEASUREMENT..................................................................12 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.................................................12 4.1.2TEST INSTRUMENTS..................................................................................................12 4.1.3TEST PROCEDURES..................................................................................................13 4.1.4DEVIATION FROM TEST STANDARD..........................................................................13 4.1.5TEST SETUP...............................................................................................................14 4.1.6EUT OPERATING CONDITIONS..................................................................................14 4.1.7TEST RESULTS...........................................................................................................15 4.1.8TEST RESULTS...........................................................................................................17 4.2Radiated Emission Measurement..................................................................................19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.....................................................19 4.2.2TEST INSTRUMENTS..................................................................................................20 4.2.3TEST PROCEDURES..................................................................................................21 4.2.4DEVIATION FROM TEST STANDARD..........................................................................21 4.2.5TEST SETUP...............................................................................................................22 4.2.6EUT OPERATING CONDITIONS..................................................................................22 4.2.7TEST RESULTS...........................................................................................................23 4.36dB BANDWIDTH MEASUREMENT.............................................................................31 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT............................................................31 4.3.2TEST INSTRUMENTS..................................................................................................31 4.3.3TEST PROCEDURE....................................................................................................32 4.3.4DEVIATION FROM TEST STANDARD..........................................................................32 4.3.5TEST SETUP...............................................................................................................32 4.3.6EUT OPERATING CONDITIONS..................................................................................32 4.3.7TEST RESULTS (A).....................................................................................................33 4.3.8TEST RESULTS (B).....................................................................................................37 4.4MAXIMUM PEAK OUTPUT POWER.............................................................................41 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.................................41 4.4.2INSTRUMENTS...........................................................................................................41 4.4.3TEST PROCEDURES..................................................................................................42 4.4.4TEST SETUP...............................................................................................................42 4.4.5EUT OPERATING CONDITIONS..................................................................................42 4.4.6TEST RESULTS (A).....................................................................................................43 FCC ID: HEDWA410160 Report No.: RF920725H01D3Issued: Dec. 31, 2003 4.4.7TEST RESULTS (B).....................................................................................................43 4.5POWER SPECTRAL DENSITY MEASUREMENT.............................................…

Text truncated - open the document above for the full version.

FCC ID: HEDWA410160 Report No.: RF920725H01D1Issued: Dec. 31, 2003 FCC TEST REPORT REPORT NO.: RF920725H01D MODEL NO.: RBT3K-1G RECEIVED: Jul. 25, 2003 TESTED: Jul. 27 to Oct. 09, 2003 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 66 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: HEDWA410160 Report No.: RF920725H01D2Issued: Dec. 31, 2003 Table of Contents 1.CERTIFICATION............................................................................................................4 2.SUMMARY OF TEST RESULTS.....................................................................................5 3.GENERAL INFORMATION.............................................................................................6 3.1GENERAL DESCRIPTION OF EUT................................................................................6 3.2DESCRIPTION OF TEST MODES..................................................................................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS....................................................8 3.4DESCRIPTION OF SUPPORT UNITS.............................................................................9 4.TEST TYPES AND RESULTS.......................................................................................12 4.1CONDUCTED EMISSION MEASUREMENT..................................................................12 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.................................................12 4.1.2TEST INSTRUMENTS..................................................................................................12 4.1.3TEST PROCEDURES..................................................................................................13 4.1.4DEVIATION FROM TEST STANDARD..........................................................................13 4.1.5TEST SETUP...............................................................................................................14 4.1.6EUT OPERATING CONDITIONS..................................................................................14 4.1.7TEST RESULTS...........................................................................................................15 4.1.8TEST RESULTS...........................................................................................................17 4.2Radiated Emission Measurement..................................................................................19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.....................................................19 4.2.2TEST INSTRUMENTS..................................................................................................20 4.2.3TEST PROCEDURES..................................................................................................21 4.2.4DEVIATION FROM TEST STANDARD..........................................................................21 4.2.5TEST SETUP...............................................................................................................22 4.2.6EUT OPERATING CONDITIONS..................................................................................22 4.2.7TEST RESULTS...........................................................................................................23 4.36dB BANDWIDTH MEASUREMENT.............................................................................31 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT............................................................31 4.3.2TEST INSTRUMENTS..................................................................................................31 4.3.3TEST PROCEDURE....................................................................................................32 4.3.4DEVIATION FROM TEST STANDARD..........................................................................32 4.3.5TEST SETUP...............................................................................................................32 4.3.6EUT OPERATING CONDITIONS..................................................................................32 4.3.7TEST RESULTS (A).....................................................................................................33 4.3.8TEST RESULTS (B).....................................................................................................37 4.4MAXIMUM PEAK OUTPUT POWER.............................................................................41 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.................................41 4.4.2INSTRUMENTS...........................................................................................................41 4.4.3TEST PROCEDURES..................................................................................................42 4.4.4TEST SETUP...............................................................................................................42 4.4.5EUT OPERATING CONDITIONS..................................................................................42 4.4.6TEST RESULTS (A).....................................................................................................43 FCC ID: HEDWA410160 Report No.: RF920725H01D3Issued: Dec. 31, 2003 4.4.7TEST RESULTS (B).....................................................................................................43 4.5POWER SPECTRAL DENSITY MEASUREMENT.............................................…

Text truncated - open the document above for the full version.

FCC ID: HEDWA410160 Report No.: RF920725H01D62Issued: Dec. 31, 2003 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (With Adapter) FCC ID: HEDWA410160 Report No.: RF920725H01D63Issued: Dec. 31, 2003 CONDUCTED EMISSION TEST (With POE) FCC ID: HEDWA410160 Report No.: RF920725H01D64Issued: Dec. 31, 2003 RADIATED EMISSION TEST (With Adapter) FCC ID: HEDWA410160 Report No.: RF920725H01D65Issued: Dec. 31, 2003 RADIATED EMISSION TEST (With POE)
