HEDWA6101ACCWLAN Access Point 2220

[Final Draft—Nortel Confidential] Part No. 214853-A April 2003 4655 Great America Parkway Santa Clara, CA 95054 Using the Nortel Networks Wireless LAN Access Point 2220 AccessPointUG.book Page 1 Thursday, February 27, 2003 12:22 PM 2 214853-A [Final Draft—Nortel Confidential] Copyright Statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. Windows 98SE/2000/ME/XP are trademarks of Microsoft Corp. Pentium is trademark of Intel. Nortel Networks and the Nortel Networks logo are trademarks of Nortel Networks, Inc. All copyright reserved. Compliances Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful and, if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient the receiving antenna •Increase the separation between the equipment and receiver •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected •Consult the dealer or an experienced radio/TV technician for help FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices). Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION STATEMENT: FCC Radiation Exposure Statement FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters (8 inches) between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Industry Canada - Class B This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus,” ICES-003 of the Department of Communications. AccessPointUG.book Page 2 Thursday, February 27, 2003 12:22 PM 3 Using the Nortel Networks Wireless LAN Access Point 2220 [Final Draft—Nortel Confidential] Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques,” NMB-003 édictée par le ministère des Communications. AccessPointUG.book Page 3 Thursday, February 27, 2003 12:22 PM 4 214853-A [Final Draft—Nortel Confidential] AccessPointUG.book Page 4 Thursday, February 27, 2003 12:22 PM 5 Using the Nortel Networks Wireless LAN Access Point 2220 [Final Draft—Nortel Confidential] Contents Preface ......................................................13 Introduction.........................................................13 PackageChecklist .................................................13 HardwareDescription ..............................................13 EthernetCompatibility ...........................................13 RadioCharacteristics ...........................................14 PoweroverEthernet ............................................14 LEDIndicators.................................................14 SystemRequirements ..............................................16 Chapter 1 HardwareInstallation...........................................17 Chapter 2 SystemConfiguration..........................................19 SetupWizard ........................................................20 Channel.........................................................22 IPConfiguration ...................................................23 Security .........................................................24 64-Bit Manual Entry............................................25 128-Bit Manual Entry . . .........................................25 AdvancedSetup ..................................................26 System .............................................................26 Identification .....................................................26 TCP/IPSettings ..................................................27 Radius ..........................................................28 PPPoESettings ...................................................30 Authentication....................................................31 802.1x Setup.....................................................32 AccessPointUG.book Page 5 Thursday, February 27, 2003 12:22 PM 6Contents 214853-A [Final Draft—Nortel Confidential] Local MAC Authentication . . .........................................32 FilterControl .....................................................33 SNMP ..........................................................34 Administration ....................................................36 C…

Text truncated - open the document above for the full version.

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME : WLAN Access Point 2220 MODEL NO : WLAN Access Point 2220 TRADE NAME : NORTEL IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO : RF920217H02 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION ManufacturerUSA Local Representative Company name: Accton Technology Corporation Company name: Nortel Networks Address: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Address: 4655 Great America Parkway Santa Clara, California 95054 USA Contact Person: Hsoang-Shen Chen Contact Person: Vipin M. Naik Title: Section Manager Title: Engineering Manager Power Systems/ Compliance Tel/Fax: Tel:886-3-5770270 Fax:886-3-5783839 Tel/Fax: Tel: 408-495-4142 Fax: 408-495-5615

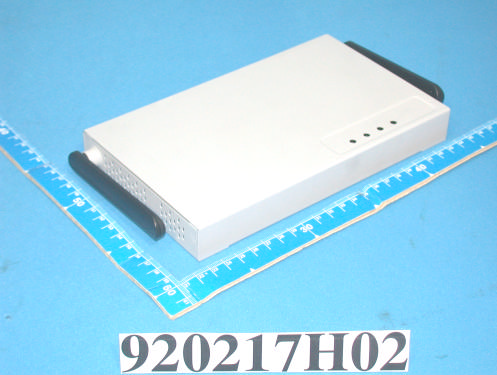

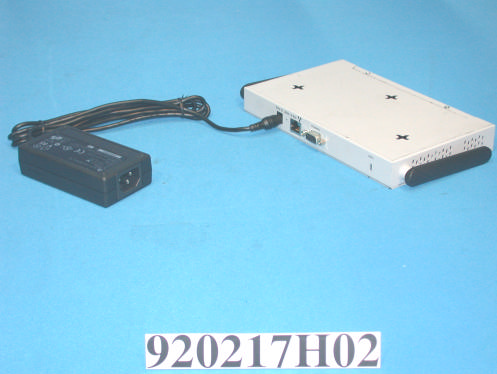

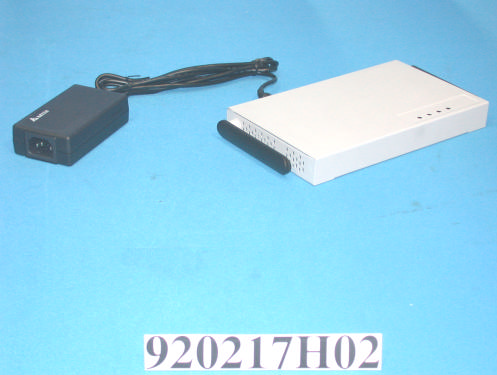

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

4 2 . 0 m m 60.0 mm Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

(Fig. 1) FCC ID: HEDWA6101ACC FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13

FCC ID: HEDWA6101ACC ADT No.920217H02 Technical Description The transmitter of the EUT is powered by host equipment. The antenna is Printed Integral antenna with UFL connector and MMCX connector. This device is a 2.4GHz/5GHz WLAN Access Point 2220 operates in both the 5GHz and 2.4GHz bands, the maximum data rate could be 108Mbps in turbo mode. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: HEDWA6101ACC ADT No.: 920217H02 FCC TEST REPORT REPORT NO.: RF920217H02 MODEL NO.: WLAN Access Point 2220 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: HEDWA6101ACC ADT No.: 920217H02 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. Classification The antenna of the product, under normal use condition, is at least 20 cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the users manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) FCC ID: HEDWA6101ACC ADT No.: 920217H02 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 6. Climate Condition The temperature and related humidity: 20 deg. C and 63 % RH FCC ID: HEDWA6101ACC ADT No.: 920217H02 7. Test Results 7.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 4.5dBi or 2.82(numeric) for 5GHz and 1dBi or 1.25(numeric) for 2.4GHz. 7.2 Output Power Into Antenna & RF Exposure Distance : For Part 802.11b: CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241231.191.76 6243732.511.79 11246228.911.69 For Part 802.11a: Normal Mode: CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1518047.863.28 4524049.093.32 5526094.844.61 8532033.342.74 9574580.544.25 12580578.164.19 Turbo Mode: CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1521034.992.8 2525044.463.16 3529034.202.77 4576083.754.34 5580060.263.68 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition.

FCC ID: HEDWA6101ACC Report No.: RF920217H021Issued: Mar. 17, 2003 ADT No.: 920217H02 FCC TEST REPORT REPORT NO.: RF920217H02 MODEL NO.: WLAN Access Point 2220 RECEIVED: Feb. 17, 2003 TESTED: Feb. 19 Mar. 12, 2003 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 145 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: HEDWA6101ACC Report No.: RF920217H022Issued: Mar. 17, 2003 ADT No.: 920217H02 Table of Contents 1.CERTIFICATION............................................................................................................5 2.SUMMARY OF TEST RESULTS.....................................................................................6 3.GENERAL INFORMATION.............................................................................................8 3.1GENERAL DESCRIPTION OF EUT................................................................................8 3.2DESCRIPTION OF TEST MODES................................................................................10 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..................................................11 3.4DESCRIPTION OF SUPPORT UNITS...........................................................................12 4.TEST TYPES AND RESULTS (For Part 802.11b)...........................................................15 4.1CONDUCTED EMISSION MEASUREMENT..................................................................15 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.................................................15 4.1.2TEST INSTRUMENTS..................................................................................................15 4.1.3TEST PROCEDURES..................................................................................................16 4.1.4DEVIATION FROM TEST STANDARD..........................................................................16 4.1.5TEST SETUP...............................................................................................................17 4.1.6EUT OPERATING CONDITIONS..................................................................................17 4.1.7TEST RESULTS...........................................................................................................18 4.2Radiated Emission Measurement..................................................................................24 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.....................................................24 4.2.2TEST INSTRUMENTS..................................................................................................25 4.2.3TEST PROCEDURES..................................................................................................26 4.2.4DEVIATION FROM TEST STANDARD..........................................................................26 4.2.5TEST SETUP...............................................................................................................27 4.2.6EUT OPERATING CONDITIONS..................................................................................27 4.2.7TEST RESULTS...........................................................................................................28 4.36dB BANDWIDTH MEASUREMENT.............................................................................33 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT............................................................33 4.3.2TEST INSTRUMENTS..................................................................................................33 4.3.3TEST PROCEDURE....................................................................................................34 4.3.4DEVIATION FROM TEST STANDARD..........................................................................34 4.3.5TEST SETUP...............................................................................................................34 4.3.6EUT OPERATING CONDITIONS..................................................................................34 4.3.7TEST RESULTS...........................................................................................................35 4.4MAXIMUM PEAK OUTPUT POWER.............................................................................39 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.................................39 4.4.2INSTRUMENTS...........................................................................................................39 4.4.3TEST PROCEDURES..................................................................................................40 4.4.4DEVIATION FROM TEST STANDARD..........................................................................40 4.4.5TEST SETUP...............................................................................................................40 4.4.6EUT OPERATING CONDITIONS..................................................................................40 4.4.7TEST RESULTS...........................................................................................................41 4.5POWER SPECTRAL DENSITY MEASUREMENT..........................................................42 FCC ID: HEDWA6101ACC Report No.: RF920217H023Issued: Mar. 17, 2003 ADT No.: 920217H02 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.........................................42 4.5.2TEST INSTRUMENTS........................................................................…

Text truncated - open the document above for the full version.

FCC ID: HEDWA6101ACC Report No.: RF920217H0261Issued: Mar. 17, 2003 ADT No.: 920217H02 5.2.4 TEST PROCEDURES a. The EUT was placed on the top of a rotating table 0.8 meters above the ground at a 10 meter open area test site. The table was rotated 360 degrees to determine the position of the highest radiation. b. The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. c. The antenna is a broadband antenna, and its height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the measurement. d. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters and the rotatable table was turned from 0 degrees to 360 degrees to find the maximum reading. e. The test-receiver system was set to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode. f. If the emission level of the EUT in peak mode was 10dB lower than the limit specified, then testing could be stopped and the peak values of the EUT would be reported. Otherwise the emissions that did not have 10dB margin would be re-tested one by one using peak, quasi-peak or average method as specified and then reported in a data sheet. NOTE: 1. The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is 120kHz for Peak detection (PK) and Quasi-peak detection (QP) at frequency below 1GHz. 2. The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is 1 MHz for Peak detection at frequency above 1GHz. 3. The resolution bandwidth of test receiver/spectrum analyzer is 1 MHz and the video bandwidth is 300 Hz for Average detection (AV) at frequency above 1GHz. 5.2.5 DEVIATION FROM TEST STANDARD No deviation FCC ID: HEDWA6101ACC Report No.: RF920217H0262Issued: Mar. 17, 2003 ADT No.: 920217H02 5.2.6 TEST SETUP For the actual test configuration, please refer to the related item – Photographs of the Test Configuration. 5.2.7 EUT OPERATING CONDITIONS Same as 4.1.6. FCC ID: HEDWA6101ACC Report No.: RF920217H0263Issued: Mar. 17, 2003 ADT No.: 920217H02 5.2.8 TEST RESULTS EUT WLAN Access Point 2220 MODEL WLAN Access Point 2220 FREQUENCY RANGE With Adapter, Below 1000MHz DETECTOR FUNCTION Quasi-Peak ENVIRONMENTAL CONDITIONS 25 deg. C, 60%RH, 976 hPa INPUT POWER (SYSTEM) 120Vac, 60Hz TESTED BY Eic Lee ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1125.0027.5 QP43.50-16.001.01 H22215.3012.20 2250.0037.8 QP46.00-8.201.22 H32124.6013.20 3352.0031.2 QP46.00-14.801.04 H1415.6015.60 4374.9928.1 QP46.00-17.901.04 H1411.9016.20 5400.0332.8 QP46.00-13.201.17 H015.8017.00 6500.0030.1 QP46.00-15.901.38 H2310.8019.30 7800.0633.1 QP46.00-12.901.41 H979.6023.50 8850.0731.2 QP46.00-14.801.43 H376.1025.10 91000.0042.8 QP54.00-11.201.11 H28816.1026.70 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1250.0136.2 QP46.00-9.801.23 V28823.0013.20 2300.0224.2 QP46.00-21.801.41 V3210.1014.10 3350.0325.2 QP46.00-20.801.66 V2529.7015.60 4352.0032.7 QP46.00-13.301.26 V5117.1015.60 5375.0127.4 QP46.00-18.601.46 V5111.2016.20 6400.0333.9 QP46.00-12.101.11 V34516.9017.00 7500.0331.1 QP46.00-14.901.17 V1711.8019.30 8600.0430.8 QP46.00-15.201.00 V299.9020.90 9800.0632.0 QP46.00-14.001.22 V08.5023.50 10850.0631.3 QP46.00-14.701.00 V936.2025.10 REMARKS:1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247 FCC ID: HEDWA6101ACC Report No.: RF920217H0264Issued: Mar. 17, 2003 ADT No.: 920217H02 EUT WLAN Access Point 2220 MODEL WLAN Access Point 2220 FREQUENCY RANGE With POE Below 1000MHz DETECTOR FUNCTION Quasi-Peak ENVIRONMENTAL CONDITIONS 25 deg. C, 60%RH, 976 hPa INPUT POWER (SYSTEM) 120Vac, 60Hz TESTED BYEic Lee ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 1250.0227.8 QP46.00-18.201.63 H014.8013.00 2416.0024.6 QP46.00-21.401.00 H256.9017.70 3440.0027.6 QP46.00-18.402.53 H2619.6018.00 4500.0127.4 QP46.00-18.601.46 H1008.1019.30 5704.0029.7 QP46.00-16.301.20 H1047.1022.60 6750.0227.5 QP46.00-18.501.27 H1023.7023.80 7768.0032.3 QP46.00-13.701.13 H1708.4023.90 8792.0028.2 QP46.00-17.801.17 H1044.4023.80 9800.0133.5 QP46.00-12.501.00 H1039.8023.70 10924.0026.7 QP46.00-19.301.74 H3190.9025.80 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 145.5028.2 QP40.00-11.801.53 V29617.3011.00 250.5529.0 QP40.00-11.001.47 V32620.808.30 3111.5630.9 QP43.50-12.601.00 V18819.7011.10 4125.0229.7 QP43.50-13.801.00 V4917.7012.00 5250.0131.4 QP46.00-14.601.00 V26218.4013.00 6352.0024.6 QP46.00-21.401.00 V3309.1015.50 7440.0027.6 QP46.00-18.401.00 V309.7018.00 8500.0131.3 QP46.00-14.702.32 V4712.0019.30 9528.0025.9 QP46.00-20.101.00 V886.3019.60 10800.0130.1 QP46.00-15.902.22 V1546.4023.70 REMARKS:1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247 FCC ID: HEDWA6101ACC Report No.: RF920217H0265Issued: Mar. 17, 2003 AD…

Text truncated - open the document above for the full version.

FCC ID: HEDWA6101ACC Report No.: RF920217H0281Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 5 FCC ID: HEDWA6101ACC Report No.: RF920217H0282Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 8 FCC ID: HEDWA6101ACC Report No.: RF920217H0283Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 9 FCC ID: HEDWA6101ACC Report No.: RF920217H0284Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 12 FCC ID: HEDWA6101ACC Report No.: RF920217H0285Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 1 FCC ID: HEDWA6101ACC Report No.: RF920217H0286Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 4 FCC ID: HEDWA6101ACC Report No.: RF920217H0287Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 5 FCC ID: HEDWA6101ACC Report No.: RF920217H0288Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 8 FCC ID: HEDWA6101ACC Report No.: RF920217H0289Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL9 FCC ID: HEDWA6101ACC Report No.: RF920217H0290Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 12 FCC ID: HEDWA6101ACC Report No.: RF920217H0291Issued: Mar. 17, 2003 ADT No.: 920217H02 EUT WLAN Access Point 2220 MODEL WLAN Access Point 2220 MODETurbo INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20eg. C, 60RH, 976 hPa TESTED BY Hank Chung CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) 26dBc Occupied Bandwidth (MHz) PASS/FAIL 1521015.4417.0047.61PASS 2525016.4824.0047.13PASS 3529015.3424.0049.37PASS 4576019.2330.0049.05PASS 5580017.8030.0049.69PASS NOTE: The 26dBc Occupied Bandwidth plot, please refer to the following pages. FCC ID: HEDWA6101ACC Report No.: RF920217H0292Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 1 FCC ID: HEDWA6101ACC Report No.: RF920217H0293Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 2 FCC ID: HEDWA6101ACC Report No.: RF920217H0294Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 3 FCC ID: HEDWA6101ACC Report No.: RF920217H0295Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 4 FCC ID: HEDWA6101ACC Report No.: RF920217H0296Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 5 FCC ID: HEDWA6101ACC Report No.: RF920217H0297Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 1 FCC ID: HEDWA6101ACC Report No.: RF920217H0298Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 2 FCC ID: HEDWA6101ACC Report No.: RF920217H0299Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 3 FCC ID: HEDWA6101ACC Report No.: RF920217H02100Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 4 FCC ID: HEDWA6101ACC Report No.: RF920217H02101Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 5 FCC ID: HEDWA6101ACC Report No.: RF920217H02102Issued: Mar. 17, 2003 ADT No.: 920217H02 5.4 PEAK POWER EXCURSION MEASUREMENT 5.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT Frequency BandLimit 5.15 – 5.25 GHz13dB 5.25 – 5.35 GHz13dB 5.725 – 5.825 GHz13dB 5.4.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049July 24, 2003 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: HEDWA6101ACC Report No.: RF920217H02103Issued: Mar. 17, 2003 ADT No.: 920217H02 5.4.3 TEST PROCEDURE 1. The transmitter output was connected to the spectrum analyzer. 2. Set the spectrum bandwidth span to view the entire spectrum. 3. Using peak detector and Max-hold function for Trace 1 (RB=1MHz, VB=3MHz) and 2 (RB=1MHz, VB=30KHz). 4. The largest difference between Trace 1 and Trace 2 in any 1MHz band on any frequency was recorded. 5.4.4 DEVIATION FROM TEST STANDARD No deviation 5.4.5 TEST SETUP 5.4.6 EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at specific channel frequencies individually. EUTSPECTRUM FCC ID: HEDWA6101ACC Report No.: RF920217H02104Issued: Mar. 17, 2003 ADT No.: 920217H02 5.4.7 TEST RESULTS EUT WLAN Access Point 2220 MODEL WLAN Access Point 2220 MODE Normal INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20eg. C, 60RH, 976 hPa TESTED BY Hank Chung CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER EXCURSION (dB) PEAK to AVERAGE EXCURSION LIMIT (dB) PASS/FAIL 1518010.7213PASS 4524010.6413PASS 5526010.3813PASS 8532011.0813PASS 9574510.7213PASS 12580510.8413PASS FCC ID: HEDWA6101ACC Report No.: RF920217H02105Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 1

FCC ID: HEDWA6101ACC Report No.: RF920217H02106Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 4 FCC ID: HEDWA6101ACC Report No.: RF920217H02107Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 5 FCC ID: HEDWA6101ACC Report No.: RF920217H02108Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 8 FCC ID: HEDWA6101ACC Report No.: RF920217H02109Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 9 FCC ID: HEDWA6101ACC Report No.: RF920217H02110Issued: Mar. 17, 2003 ADT No.: 920217H02 CHANNEL 12 FCC ID: HEDWA6101ACC R…
