HEDWG4005ACCIEEE 802.11g mini-PCI Card

Wireless Module COPYRIGHT Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to change specifications at any time without notice. Copyright © 2003 by SMC Networks, Inc. 38 Tesla Irvine, CA 92618 All rights reserved. Printed in Taiwan Trademarks: SMC is a registered trademark; and Barricade is a trademark of SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of their respective holders. Installation Guide for the RF Module This module has been authorized under FCC ID: HEDWG4005ACC under mobile module approval category. The integrator of this module has to be aware that this module can only be used in mobile host equipment such as Access Point or Router. The picture on left side is a wireless router which integrate this wireless module. The host equipment should provide an internal mini-pci interface for the main board of this module. Also the housing of the host equipment should provide a pair of antenna sockets for the installation of the diversity antennas. There are 3 pairs of antenna in this filing. The folded part of these antennas has to be fixed with the housing of the host equipment, which makes the end users impossible to remove the antenna unless destroy the housing. The photo of these antennas are shown below, also the folded part of each antenna type has been indicated. Folded Parts Folded Parts

FCC ID: HEDWG4005ACC ADT No.920218H04 Limited Modular Approval Request Letter Advance Data Technology Apr. 03, 2003 Dear Application Examiner, Accton Technology Corporation’s IEEE 802.11g miniPCI, FCC ID: HEDWG4005ACC, would like to have your authorization as a limited modular approval specific to the mobile device such as Notebook with antenna mounted around the LCD panel. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip ISL3880. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 2.8V DC powered. The mini-pci interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is MAX8860. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” Due to the modular be specified to Access Point with model name Alpha-1, so the EUT was tested in the full system configuration. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: HEDWG4005ACC ADT No.920218H04 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

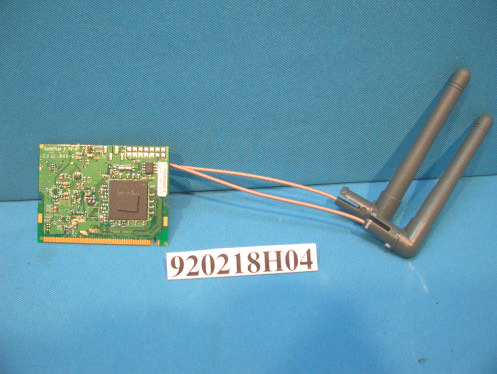

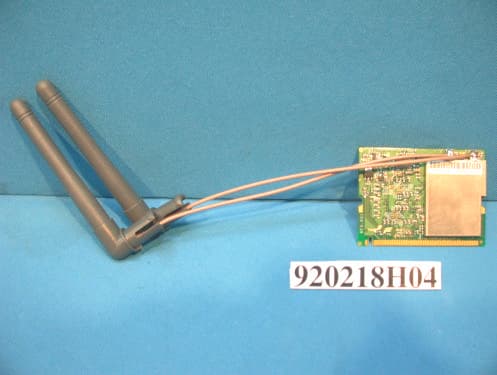

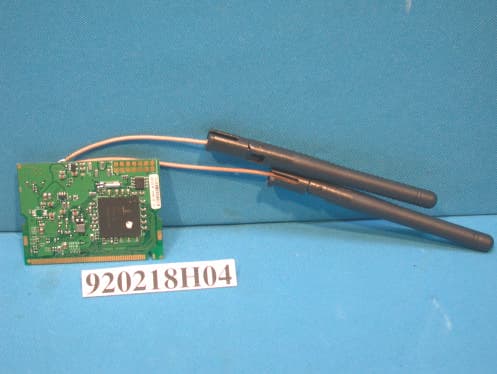

Page 1 CONSTRUCTION PHOTOS OF EUT With Antenna 1 Page 2 With Antenna 2 Page 3 With Antenna 3

(Fig. 1) FCC ID: FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

FCC ID: HEDWG4005ACC Report No.: RF920218H0427Issued: Mar. 20, 2003 ADT No.: 920218H04 4.2.8 TEST RESULTS (A) -OFDM EUT IEEE 802.11g miniPCI MODEL WN4401 MODE Channel 1 FREQUENCY RANGE Above 1000 MHz INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION Peak(PK) Average(AV) ENVIRONMENTAL CONDITIONS 19 deg. C, 76%RH, 979 hPa TESTED BYEric Lee ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 12388.0055.7 PK74.00-18.301.55 H2426.0029.80 12388.0037.8 AV54.00-16.201.55 H248.0029.80 2*2412.0093.1 PK1.59 H2963.2029.90 2*2412.0088.1 AV1.59 H2958.2029.90 32490.0037.1 PK74.00-36.901.43 H1117.0030.20 44824.0050.3 PK74.00-23.701.09 H1414.0036.20 57236.0059.6 PK74.00-14.401.02 H1017.9041.70 57236.0038.3 AV54.00-15.701.02 H10-3.4030.20 69648.0059.8 PK73.10-13.301.60 H16314.9044.90 69648.0045.5 AV68.10-22.601.60 H1630.6036.20 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 12387.0060.9 PK74.00-13.101.20 V12331.1029.80 12387.0048.3 AV54.00-5.701.20 V12318.5029.80 2*2412.00101.7 PK1.00 V4871.8029.90 2*2412.0093.0 AV1.00 V4863.1029.90 32499.0037.5 PK74.00-36.501.02 V17.3030.20 44824.0054.7 PK74.00-19.301.48 V22018.5036.20 44824.0036.4 AV54.00-17.601.48 V2200.1030.20 57236.0052.8 PK74.00-21.201.21 V23011.1041.70 57236.0041.3 AV54.00-12.701.21 V230-0.4036.20 69648.0064.6 PK81.70-17.101.20 V3019.7044.90 69648.0051.1 AV73.00-21.901.20 V306.2041.70 REMARKS:1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247 6. “ * “ : Fundamental frequency FCC ID: HEDWG4005ACC Report No.: RF920218H0428Issued: Mar. 20, 2003 ADT No.: 920218H04 EUT IEEE 802.11g miniPCI MODEL WN4401 MODE Channel 6 FREQUENCY RANGE Above 1000 MHz INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION Peak(PK) Average (AV) ENVIRONMENTAL CONDITIONS 19 deg. C, 76%RH, 979 hPa TESTED BYEric Lee ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 12376.0050.2 PK74.00-23.801.69 H13220.5029.70 2*2437.00104.2 PK1.52 H21074.2030.00 2*2437.0097.6 AV1.52 H21067.6029.70 32496.0048.2 PK74.00-25.801.54 H2418.0030.20 44874.0045.3 PK74.00-28.701.63 H218.9036.50 57311.0048.5 PK74.00-25.501.07 H546.7041.80 69748.0050.5 PK84.20-33.701.66 H1115.8044.60 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 12376.0055.9 PK74.00-18.101.00 V8126.2029.70 12376.0036.1 AV54.00-17.901.00 V816.4029.70 2*2437.00110.1 PK1.33 V6080.1030.00 2*2437.00102.7 AV1.33 V6072.7030.00 32499.0058.7 PK74.00-15.301.53 V2128.5030.20 32499.0035.9 AV54.00-18.101.53 V215.7030.20 44874.0054.0 PK74.00-20.001.70 V12017.5036.50 44874.0051.7 AV54.00-2.301.70 V12015.3036.50 57311.0053.6 PK74.00-20.401.61 V7011.9041.80 57311.0050.4 AV54.00-3.601.61 V708.7041.80 69748.0053.4 PK90.10-36.701.20 V898.8044.60 69748.0050.2 AV82.70-32.501.20 V895.6044.60 REMARKS:1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247 6. “ * “ : Fundamental frequency FCC ID: HEDWG4005ACC Report No.: RF920218H0429Issued: Mar. 20, 2003 ADT No.: 920218H04 EUT IEEE 802.11g miniPCI MODEL WN4401 MODE Channel 11 FREQUENCY RANGE Above 1000 MHz INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION Peak(PK) Average (AV) ENVIRONMENTAL CONDITIONS 19 deg. C, 76%RH, 979 hPa TESTED BYEric Lee ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 12366.0035.7 PK74.00-38.301.54 H1036.0029.70 22462.0082.8 PK74.008.801.07 H2552.7030.10 22462.0076.7 AV54.0022.701.07 H2546.6029.70 32490.0060.9 PK74.00-13.101.71 H11030.7030.20 32490.0036.1 AV54.00-17.901.71 H1105.9030.10 44924.0041.2 PK74.00-32.801.09 H244.5036.70 57386.0046.3 PK74.00-27.701.60 H34.5041.80 69848.0050.0 PK62.80-12.801.55 H415.6044.40 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 12377.0042.8 PK74.00-31.201.69 V2013.1029.70 22462.0094.9 PK74.0020.901.00 V5664.9030.10 22462.0088.1 AV54.0034.101.00 V5658.0029.70 32499.0067.7 PK74.00-6.301.17 V1237.5030.20 32499.0042.6 AV54.00-11.401.17 V1212.4030.10 44924.0055.5 PK74.00-18.501.54 V1218.8036.70 44924.0031.0 AV54.00-23.001.54 V12-5.6030.20 57386.0048.7 PK74.00-25.301.20 V1536.9041.80 69848.0054.2 PK74.90-20.701.19 V209.9044.40 69848.0050.5 AV68.10-17.601.19 V206.2036.70 REMARKS:1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247 6. “ * “ : Fundamental frequency FCC ID: HEDWG4005ACC Report No.: RF920218H0430Issued: Mar. 20, 2003 ADT No.: 920218H04 4.2.9 TEST RESULTS (B) EUT IEEE 802.11g miniPCI MODEL WN4401 MODE Channel 11 FREQUENCY RANGE30-1000 MHz INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTIONQuasi-Peak ENVIRONMENTAL CONDITIONS 20 deg. C, 84 % RH, 979 hPa TES…

Text truncated - open the document above for the full version.

FCC ID: HEDWG4005ACC Report No.: RF920218H0453Issued: Mar. 20, 2003 ADT No.: 920218H04 CH11 FCC ID: HEDWG4005ACC Report No.: RF920218H0454Issued: Mar. 20, 2003 ADT No.: 920218H04 4.3.8 TEST RESULTS(B)-DSSS EUTIEEE 802.11g miniPCIMODELWN4401 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20 deg. C, 60 %RH, 979 hPa TEST MODE Antenna 2 TESTED BY Hunk Chung CHANNEL CHANNEL FREQUENCY (MHz) 6 dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1241212.000.5PASS 6243711.520.5PASS 11246211.480.5PASS FCC ID: HEDWG4005ACC Report No.: RF920218H0455Issued: Mar. 20, 2003 ADT No.: 920218H04 CH1 FCC ID: HEDWG4005ACC Report No.: RF920218H0456Issued: Mar. 20, 2003 ADT No.: 920218H04 CH6 FCC ID: HEDWG4005ACC Report No.: RF920218H0457Issued: Mar. 20, 2003 ADT No.: 920218H04 CH11 FCC ID: HEDWG4005ACC Report No.: RF920218H0458Issued: Mar. 20, 2003 ADT No.: 920218H04 4.3.9 TEST RESULTS(B)-OFDM EUT IEEE 802.11g miniPCI MODEL WN4401 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20 deg. C, 60 %RH, 979 hPa TEST MODEAntenna 2 TESTED BY Hunk Chung CHANNEL CHANNEL FREQUENCY (MHz) 6 dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1241215.520.5PASS 6243715.240.5PASS 11246215.480.5PASS FCC ID: HEDWG4005ACC Report No.: RF920218H0459Issued: Mar. 20, 2003 ADT No.: 920218H04 CH1 FCC ID: HEDWG4005ACC Report No.: RF920218H0460Issued: Mar. 20, 2003 ADT No.: 920218H04 CH6 FCC ID: HEDWG4005ACC Report No.: RF920218H0461Issued: Mar. 20, 2003 ADT No.: 920218H04 CH11 FCC ID: HEDWG4005ACC Report No.: RF920218H0462Issued: Mar. 20, 2003 ADT No.: 920218H04 4.3.10 TEST RESULTS(C)-DSSS EUT IEEE 802.11g miniPCI MODEL WN4401 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20 deg. C, 60 %RH, 979 hPa TEST MODEAntenna 3 TESTED BY Hunk Chung CHANNEL CHANNEL FREQUENCY (MHz) 6 dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1241212.040.5PASS 6243711.080.5PASS 11246211.480.5PASS FCC ID: HEDWG4005ACC Report No.: RF920218H0463Issued: Mar. 20, 2003 ADT No.: 920218H04 CH1 FCC ID: HEDWG4005ACC Report No.: RF920218H0464Issued: Mar. 20, 2003 ADT No.: 920218H04 CH6 FCC ID: HEDWG4005ACC Report No.: RF920218H0465Issued: Mar. 20, 2003 ADT No.: 920218H04 CH11 FCC ID: HEDWG4005ACC Report No.: RF920218H0466Issued: Mar. 20, 2003 ADT No.: 920218H04 4.3.11 TEST RESULTS(C)-OFDM EUT IEEE 802.11g miniPCI MODEL WN4401 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20 deg. C, 60 %RH, 979 hPa TEST MODEAntenna 3 TESTED BY Hunk Chung CHANNEL CHANNEL FREQUENCY (MHz) 6 dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1241215.520.5PASS 6243715.240.5PASS 11246215.600.5PASS FCC ID: HEDWG4005ACC Report No.: RF920218H0467Issued: Mar. 20, 2003 ADT No.: 920218H04 CH1 FCC ID: HEDWG4005ACC Report No.: RF920218H0468Issued: Mar. 20, 2003 ADT No.: 920218H04 CH6 FCC ID: HEDWG4005ACC Report No.: RF920218H0469Issued: Mar. 20, 2003 ADT No.: 920218H04 CH11 FCC ID: HEDWG4005ACC Report No.: RF920218H0470Issued: Mar. 20, 2003 ADT No.: 920218H04 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until POWER METERE4416AGB41291118July 30, 2003 PEAK POWER SENSORE9327AUS40440722July 30, 2003 NOTE: 1. The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2. The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: HEDWG4005ACC Report No.: RF920218H0471Issued: Mar. 20, 2003 ADT No.: 920218H04 4.4.3 TEST PROCEDURES The transmitter output was connected to the peak power meter. 4.4.4 TEST SETUP 4.4.5 EUT OPERATING CONDITIONS Same as Item 4.3.5 EUTPEAK POWER METER FCC ID: HEDWG4005ACC Report No.: RF920218H0472Issued: Mar. 20, 2003 ADT No.: 920218H04 4.4.6 TEST RESULTS(A)-DSSS EUTIEEE 802.11g miniPCIMODELWN4401 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20 deg. C, 60 %RH, 979 hPa TEST MODE Antenna 1 TESTED BY Hank Chung CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241211.9730PASS 6243717.8430PASS 11246213.5530PASS 4.4.7 TEST RESULTS(A)-OFDM EUTIEEE 802.11g miniPCIMODELWN4401 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20 deg. C, 60 %RH, 979 hPa TEST MODE Antenna 1 TESTED BY Hank Chung CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 124126.3430PASS 6243718.0930PASS 1124625.2730PASS FCC ID: HEDWG4005ACC Report No.: RF920218H0473Issued: Mar. 20, 2003 ADT No.: 920218H04 4.4.8 TEST RESULTS(B)-DSSS EUTIEEE 802.11g miniPCIMODELWN4401 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20 deg. C, 60 %RH, 979 hPa TEST MODE Antenna 2 TESTED BY Hank Chung CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241215.0530PASS 6243717.8530PASS 11246215.3830PASS 4.4.9 TEST RESULTS(B)-OFDM EUTIEEE 802.11g miniPCIMODELWN4401 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20 deg. C, 60 %RH, 979 hPa TEST MODE Antenna 2 TESTED BY Hank Chung CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241210.4830PASS 6243718.0730PASS 1124625.4030PASS FCC ID: HEDWG4005ACC Report No.: RF920218H0474Issued: Mar. 20, 2003 ADT No.: 920218H04 4.4.10 TEST RESULTS(C)-DSSS EUTIEEE 802.11g miniPCIMODELWN4401 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20 deg. C, 60 %RH, 979 hPa TEST MODE Antenna 3 TESTED BY Hank Chung CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241213.5030PASS 6243717.8630PASS 11246214.9430PASS 4.4.11 TEST RESULTS(C)-OFDM EUTIEEE 802.11g miniPCIMODELWN4401 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20 deg. C, 60 %RH, 979 hPa TEST MODE Antenna 3 TESTED BY Hank Chung CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 124125.8330PASS 6243718.1030PASS 1124623.8030PASS F…

Text truncated - open the document above for the full version.

FCC ID: HEDWG4005ACC Report No.: RF920218H0479Issued: Mar. 20, 2003 ADT No.: 920218H04 CH6 FCC ID: HEDWG4005ACC Report No.: RF920218H0480Issued: Mar. 20, 2003 ADT No.: 920218H04 CH11 FCC ID: HEDWG4005ACC Report No.: RF920218H0481Issued: Mar. 20, 2003 ADT No.: 920218H04 4.5.7 TEST RESULTS(A)-OFDM EUTIEEE 802.11g miniPCIMODELWN4401 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20 deg. C, 60 %RH, 979 hPa TEST MODE Antenna 1 TESTED BY Hank Chung CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-20.468PASS 62437-9.298PASS 112462-20.988PASS FCC ID: HEDWG4005ACC Report No.: RF920218H0482Issued: Mar. 20, 2003 ADT No.: 920218H04 CH1 FCC ID: HEDWG4005ACC Report No.: RF920218H0483Issued: Mar. 20, 2003 ADT No.: 920218H04 CH6 FCC ID: HEDWG4005ACC Report No.: RF920218H0484Issued: Mar. 20, 2003 ADT No.: 920218H04 CH11 FCC ID: HEDWG4005ACC Report No.: RF920218H0485Issued: Mar. 20, 2003 ADT No.: 920218H04 4.5.8 TEST RESULTS(B)-DSSS EUTIEEE 802.11g miniPCIMODELWN4401 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20 deg. C, 60 %RH, 979 hPa TEST MODE Antenna 2 TESTED BY Hank Chung CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-8.868PASS 62437-6.138PASS 112462-8.668PASS FCC ID: HEDWG4005ACC Report No.: RF920218H0486Issued: Mar. 20, 2003 ADT No.: 920218H04 CH1 FCC ID: HEDWG4005ACC Report No.: RF920218H0487Issued: Mar. 20, 2003 ADT No.: 920218H04 CH6 FCC ID: HEDWG4005ACC Report No.: RF920218H0488Issued: Mar. 20, 2003 ADT No.: 920218H04 CH11 FCC ID: HEDWG4005ACC Report No.: RF920218H0489Issued: Mar. 20, 2003 ADT No.: 920218H04 4.5.9 TEST RESULTS(B)-OFDM EUTIEEE 802.11g miniPCIMODELWN4401 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20 deg. C, 60 %RH, 979 hPa TEST MODE Antenna 2 TESTED BY Hank Chung CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-15.928PASS 62437-9.268PASS 112462-21.618PASS FCC ID: HEDWG4005ACC Report No.: RF920218H0490Issued: Mar. 20, 2003 ADT No.: 920218H04 CH1 FCC ID: HEDWG4005ACC Report No.: RF920218H0491Issued: Mar. 20, 2003 ADT No.: 920218H04 CH6 FCC ID: HEDWG4005ACC Report No.: RF920218H0492Issued: Mar. 20, 2003 ADT No.: 920218H04 CH11 FCC ID: HEDWG4005ACC Report No.: RF920218H0493Issued: Mar. 20, 2003 ADT No.: 920218H04 4.5.10 TEST RESULTS(C)-DSSS EUTIEEE 802.11g miniPCIMODELWN4401 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20 deg. C, 60 %RH, 979 hPa TEST MODE Antenna 3 TESTED BY Hank Chung CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-10.448PASS 62437-6.048PASS 112462-9.658PASS FCC ID: HEDWG4005ACC Report No.: RF920218H0494Issued: Mar. 20, 2003 ADT No.: 920218H04 CH1 FCC ID: HEDWG4005ACC Report No.: RF920218H0495Issued: Mar. 20, 2003 ADT No.: 920218H04 CH6 FCC ID: HEDWG4005ACC Report No.: RF920218H0496Issued: Mar. 20, 2003 ADT No.: 920218H04 CH11 FCC ID: HEDWG4005ACC Report No.: RF920218H0497Issued: Mar. 20, 2003 ADT No.: 920218H04 4.5.11 TEST RESULTS(C)-OFDM EUTIEEE 802.11g miniPCIMODELWN4401 INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20 deg. C, 60 %RH, 979 hPa TEST MODE Antenna 3 TESTED BY Hank Chung CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-21.998PASS 62437-9.228PASS 112462-22.998PASS FCC ID: HEDWG4005ACC Report No.: RF920218H0498Issued: Mar. 20, 2003 ADT No.: 920218H04 CH1 FCC ID: HEDWG4005ACC Report No.: RF920218H0499Issued: Mar. 20, 2003 ADT No.: 920218H04 CH6 FCC ID: HEDWG4005ACC Report No.: RF920218H04100Issued: Mar. 20, 2003 ADT No.: 920218H04 CH11 FCC ID: HEDWG4005ACC Report No.: RF920218H04101Issued: Mar. 20, 2003 ADT No.: 920218H04 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP1093.4495.30Dec. 19, 2003 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. 4.6.4 EUT OPERATING CONDITION Same as Item 4.3.5 FCC ID: HEDWG4005ACC Report No.: RF920218H04102Issued: Mar. 20, 2003 ADT No.: 920218H04 4.6.5 TEST RESULTS (A)-DSSS u TEST MODE: Antenna 1 The spectrum plots are attached on the following 2 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE (1): The band edge emission plot on the following first page shows 55.24dB delta between carrier maximum power and local maximum emission in restrict band (2.3756GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.7 is 102.00dBuV/m, so the maximum field strength in restrict band is 102.00-55.24=46.76dBuV/m which is under 54 dBuV/m limit. NOTE (2): The band edge emission plot on the following second page shows 55.96dB delta between carrier maximum power and local maximum emission in restrict band (2.499GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.7 is 103.0dBuV/m, so the maximum field strength in restrict band is 103.0-55.96=47.04dBuV/m which is under 54 dBuV/m limit. FCC ID: HEDWG4005ACC Report No.: RF920218H04103Issued: Mar. 20, 2003 ADT No.: 920218H04 FCC ID: HEDWG4005ACC Report No.: RF920218H04104Issued: Mar. 20, 2003 ADT No.: 920218H04

FCC ID: HEDWG4005ACC Report No.: RF920218H04105Issued: Mar. 20, 2003 ADT No.: 920218H04 4.6.6 TEST RESULTS(A)-OFDM u TEST MODE: Antenna 1 The spectrum plots are attached on the following 2 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE (1): The band edge emission plot on the following first page shows 47.47dB delta between carrier maximum power and local maximum emission in restrict band (2.3758GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.8 is 93.0dBuV/m, so the maximum field strength in restrict band is 93.0-47.47=45.53dBuV/m which is under 54 dBuV/m limit. NOTE (2): The band edge emission plot on the following second page shows 46.43dB delta between carrier maximum power and local maximum emission in restrict band (2.498GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.8 is 88.1dBuV/m, so the maximum field strength in restrict band is 88.1-46.43=41.67dBuV/m which is under 54 dBuV/m limit. FCC ID: HEDWG4005ACC Report No.: RF920218H04106Issued: Mar. 20, 2003 ADT No.: 920218H04 FCC ID: HEDWG4005ACC Report No.: RF920218H04107Issued: Mar. 20, 2003 ADT No.: 920218H04 FCC ID: HEDWG4005ACC Report No.: RF920218H04108Issued: Mar. 20, 2003 ADT No.: 920218H04 4.6.7 TEST RESULTS (B)-DSSS u TEST MODE: Antenna 2 The spectrum plots are attached on the following 2 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE (1): The band edge emission plot on the following first page shows 56.20dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.10 is 102.0dBuV/m, so the maximum field strength in restrict band is 102.0-56.20=45.8dBuV/m which is under 54 dBuV/m limit. NOTE (2): The band edge emission plot on the following second page shows 56.36dB delta between carrier maximum power and local maximum emission in restrict band (2.4876GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.10 is 103.1dBuV/m, so the maximum field strength in restrict band is 103.1-56.36=46.74dBuV/m which is under 54 dBuV/m limit. FCC ID: HEDWG4005ACC Report No.: RF920218H04109Issued: Mar. 20, 2003 ADT No.: 920218H04 FCC ID: HEDWG4005ACC Report No.: RF920218H04110Issued: Mar. 20, 2003 ADT No.: 920218H04 FCC ID: HEDWG4005ACC Report No.: RF920218H04111Issued: Mar. 20, 2003 ADT No.: 920218H04 4.6.8 TEST RESULTS(B)-OFDM u TEST MODE: Antenna 2 The spectrum plots are attached on the following 2 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE (1): The band edge emission plot on the following first page shows 50.37dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.11 is 92.8dBuV/m, so the maximum field strength in restrict band is 92.8-50.37=42.43dBuV/m which is under 54 dBuV/m limit. NOTE (2): The band edge emission plot on the following second page shows 46.32dB delta between carrier maximum power and local maximum emission in restrict band (2.4984GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.11 is 88.1dBuV/m, so the maximum field strength in restrict band is 88.1-46.32=41.78dBuV/m which is under 54 dBuV/m limit. FCC ID: HEDWG4005ACC Report No.: RF920218H04112Issued: Mar. 20, 2003 ADT No.: 920218H04 FCC ID: HEDWG4005ACC Report No.: RF920218H04113Issued: Mar. 20, 2003 ADT No.: 920218H04 FCC ID: HEDWG4005ACC Report No.: RF920218H04114Issued: Mar. 20, 2003 ADT No.: 920218H04 4.6.9 TEST RESULTS (C)-DSSS u TEST MODE: Antenna 3 The spectrum plots are attached on the following 2 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE (1): The band edge emission plot on the following first page shows 55.97dB delta between carrier maximum power and local maximum emission in restrict band (2.375GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.13 is 101.9dBuV/m, so the maximum field strength in restrict band is 101.9-55.97=45.93dBuV/m which is under 54 dBuV/m limit. NOTE (2): The band edge emission plot on the following second page shows 56.48dB delta between carrier maximum power and local maximum emission in restrict band (2.4878GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.13 is 102.9dBuV/m, so the maximum field strength in restrict band is 102.9-56.48=46.42dBuV/m which is under 54 dBuV/m limit. FCC ID: HEDWG4005ACC Report No.: RF920218H04115Issued: Mar. 20, 2003 ADT No.: 920218H04 FCC ID: HEDWG4005ACC Report No.: RF920218H04116Issued: Mar. 20, 2003 ADT No.: 920218H04 FCC ID: HEDWG4005ACC Report No.: RF920218H04117Issued: Mar. 20, 2003 ADT No.: 920218H04 4.6.10 TEST RESULTS(C)-OFDM u TEST MODE: Antenna 3 The spectrum plots are attached on the following 2 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE (1): The band edge emission plot on the following first page shows 47.0dB delta between carrier maximum power and local maximum emission in restrict band (2.3754GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.14 is 93.1dBuV/m, so the maximum field strength in restrict band is 93.1-47.0=46.10dBuV/m which is under 54 dBuV/m limit. NOTE (2): The band edge emission plot on the following second page shows 45.24dB delta between carrier maximum power and local maximum emission in restrict band …

Text truncated - open the document above for the full version.

Report No.920218H04 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP1093.4495.30Dec. 19, 2003 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No.920218H04 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No.920218H04 TEST RESULTS (A)-DSSS TEST MODE: Antenna 1 The spectrum plots are attached on the following 6 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No…

Text truncated - open the document above for the full version.
