HEDWL463ACCUpgrade Kit - 802.11g

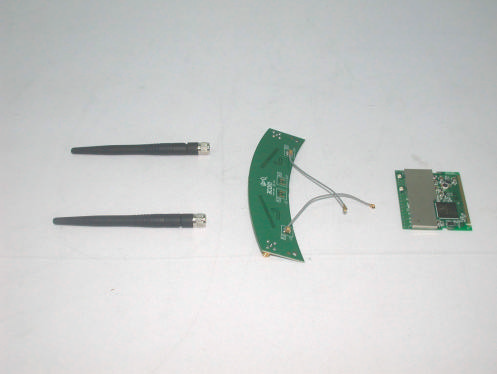

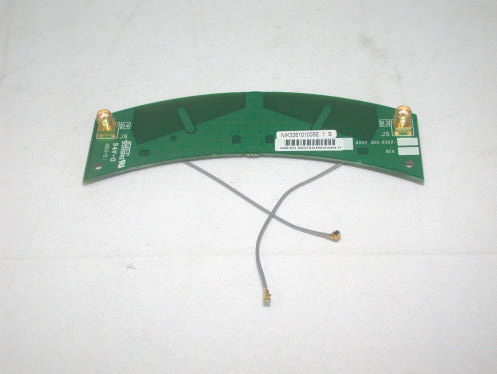

Installation Guide 802.11g mini-PCI Radio Module MODEL WL-463 The 3Com 802.11g mini-PCI Radio Module kit contains everything you need to install an additional radio and antenna into your 3Com Access Point. Kit Contents The upgrade kit contains these items: • one antenna module • one 802.11g mini-PCI Radio Module • two cables • two antennas 1Detach and disconnect the access point. If the access point is mounted on the wall, turn the unit counterclockwise to disengage it from the mounting plate. Disconnect the Ethernet cable. Place the access point face down on a static-free surface. WL-463 guide.fm Page 1 Tuesday, November 18, 2003 3:48 PM 2Remove the back cover. Using a cross-tip screwdriver, remove the four screws from the back cover. Remove the cover from the unit. Set the cover and screws aside. WL-463 guide.fm Page 2 Tuesday, November 18, 2003 3:48 PM 3Remove the antenna housing. Grasp the inside edge of the antenna housing and pull up to disengage the housing from the unit, as shown below. This part is no longer needed. 4Install the radio board. Holding the radio board at an angle, align the contact edge with the mini PCI connector on the unit. Make sure the keying notch on the contact edge lines up with the key on the connector, as shown in the detail below. Slide the board into the connector and press down gently until the two retainer clips snap into place. WL-463 guide.fm Page 3 Tuesday, November 18, 2003 3:48 PM 5Attach the cables to the antenna module. With the notched side of the square connector facing up (button side facing down), insert one cable connector into the B1 connection on the antenna module and push gently until it snaps into place. Attach the other cable connector to the B2 connection in the same manner. 6Attach the antenna module and connect the cables. 1Align the antenna module with the snaps and posts on the unit and press until the module snaps firmly into place. Make sure the cables are routed through the slots in the unit. 2Align the free end of one cable with one connector on the board. Press until the cable snaps into place. Repeat with the other cable and the other connector. (You can connect either cable to either connector; the order is not important.) 3After the cables are connected, press them down out of the way inside the housing. WL-463 guide.fm Page 4 Tuesday, November 18, 2003 3:48 PM 7Replace the back cover. Make sure that the cables are tucked away inside the housing so that they do not obstruct the cover. Align the back cover with the unit and settle the cover into place. Tighten the four screws. 8Attach the antennas. Being careful not to touch the antenna tips, screw the antennas onto the SMA connectors and hand tighten them. After network startup, you may need to adjust the antennas to fine tune radio coverage. 9Reinstall the access point. Reconnect the Ethernet cable and reattach the access point to the wall mounting plate. Adjust the antennas to improve the radio signal, if necessary. WL-463 guide.fm Page 5 Tuesday, November 18, 2003 3:48 PM Regulatory Compliance Information 3Com 802.11g Wireless LAN Access Point Upgrade Kit FCC Radio-Frequency Exposure Notice This device generates and radiates radio-frequency energy. In order to comply with FCC radio- frequency radiation exposure guidelines for an uncontrolled environment, this equipment has to be installed and operated while maintaining a minimum body to antenna distance of 1 meter. This product does not contain any user serviceable components. Any unauthorized product changes or modifications will invalidate 3Com’s warranty and all applicable regulatory certifications and approvals. This product must be installed by a professional technician/installer. FCC Part 15 Notice (Applicable to Use Within the USA) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from the one which the receiver is connected to. • Consult the dealer or an experienced radio/TV technician for help. The user may find the following booklet prepared by the Federal Communications Commission helpful: The Interference Handbook This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Stock No. 004- 000-00345-4. WL-463 guide.fm Page 6 Tuesday, November 18, 2003 3:48 PM Industry Canada Notice (Applicable to Use Within Canada) This device complies with Canadian RSS-210. To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtain…

Text truncated - open the document above for the full version.

FCC ID: HEDWL463ACC ADT No. 921008H03 Limited Modular Approval Request Letter Advance Data Technology Oct. 24, 2003 Dear Application Examiner, Accton Technology Corporation’s Upgrade Kit - 802.11g, FCC ID: HEDWL463ACC, would like to have your authorization as a modular approval specific to the mobile device such as 3Com Access Points WL-4XX series. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR5212. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 2.5V DC powered. The mini-pci interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is TK71725SCL. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCIMCIA adapter card. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: HEDWL463ACC ADT No. 921008H03 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: HEDWL463ACC LABEL LOCATION Label

15.0 mm 25.0 mm

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

FCC ID: HEDWL463ACC ADT No. 921008H03 Operational Description This device is a Upgrade Kit - 802.11g in the 2.4GHz band, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (Upgrade Kit - 802.11g) is powered by from host equipment. The antenna type used in this product is Detachable antenna with SMA connector. The other instruction, please have a look at the users manual.

FCC ID: HEDWL463ACC ADT No.: 921008H03 RF EXPOSURE REPORT REPORT NO.: RF921008H03 MODEL NO.: WL-463 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Lab Code: 200376-0 FCC ID: HEDWL463ACC ADT No.: 921008H03 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: HEDWL463ACC ADT No.: 921008H03 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device FCC ID: HEDWL463ACC ADT No.: 921008H03 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1dBi or 1.26 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: (For DSSS) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241241.4000.010371.0 6243769.6630.017451.0 11246233.6510.008431.0 (For OFDM) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241241.3050.010341.0 62437102.0940.025571.0 11246241.9760.010511.0 Turbo 6243752.9660.013271.0 This EUT could be build with an 11a AP (Model Name: 3CRWE870075A; Brand Name: 3Com, this AP will be sold as a dualband AP) and the maximun power density of 11a is 0.138 mW/cm 2 . Therefor, the maximun power density of the AP (11a and 11g) is 0.164 mW/cm 2 .

FCC ID: HEDWL463ACC Report No.: RF921008H031Issued: Oct. 24, 2003 ADT No.: 921008H03 FCC TEST REPORT REPORT NO.: RF921008H03 MODEL NO.: WL-463 RECEIVED: Oct. 08, 2003 TESTED: Oct. 14 to 21, 2003 APPLICANT: Accton Technology Corporation ADDRESS: No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 62 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: HEDWL463ACC Report No.: RF921008H032Issued: Oct. 24, 2003 ADT No.: 921008H03 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS............................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................7 3.4DESCRIPTION OF SUPPORT UNITS..................................................................8 4TEST TYPES AND RESULTS................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT.......................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..................................9 4.1.2TEST INSTRUMENTS.............................................................................................9 4.1.3TEST SETUP..........................................................................................................10 4.1.4EUT OPERATING CONDITIONS........................................................................11 4.1.5TEST RESULTS......................................................................................................12 4.2RADIATED EMISSION MEASUREMENT..........................................................14 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT......................................14 4.2.2TEST INSTRUMENTS...........................................................................................15 4.2.3TEST PROCEDURES...........................................................................................16 4.2.4TEST SETUP..........................................................................................................17 4.2.5EUT OPERATING CONDITIONS........................................................................17 4.2.6TEST RESULTS......................................................................................................18 4.2.7TEST RESULTS - DSSS.......................................................................................19 4.2.8TEST RESULTS -OFDM.......................................................................................22 4.36dB BANDWIDTH MEASUREMENT..................................................................26 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..............................................26 4.3.2TEST INSTRUMENTS...........................................................................................26 4.3.3TEST PROCEDURE..............................................................................................27 4.3.4TEST SETUP..........................................................................................................27 4.3.5EUT OPERATING CONDITIONS........................................................................27 4.3.6TEST RESULTS-DSSS.........................................................................................28 4.3.7TEST RESULTS-OFDM........................................................................................32 4.4MAXIMUM PEAK OUTPUT POWER..................................................................37 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............37 4.4.2TEST INSTRUMENTS...........................................................................................37 4.4.3TEST PROCEDURES...........................................................................................38 FCC ID: HEDWL463ACC Report No.: RF921008H033Issued: Oct. 24, 2003 ADT No.: 921008H03 4.4.4TEST SETUP..........................................................................................................38 4.4.5EUT OPERATING CONDITIONS........................................................................38 4.4.6TEST RESULTS- DSSS........................................................................................39 4.4.7TEST RESULTS- OFDM.......................................................................................39 4.5POWER SPECTRAL DENSITY MEASUREMENT...........................................40 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.......................40 4.5.2TEST INSTRUMENTS...........................................................................................40 4.5.3TEST PROCEDURE..............................................................................................41 4.5.4TEST SETUP..........................................................................................................41 4.5.5EUT OPERATING CONDITIONS........................................................................41 4.5.6TEST RESULTS-DSSS.........................................................................................42 4.5.7TEST RESULTS-OFDM…
