HEDWM1212MSDIO WLAN 802.11b/g Card

SDIO WLAN 802.11b/g Card Quick Installation Guide WM1212M E082006-CS-R02 150200027100E Introduction The SDIO WLAN 802.11b/g Card is an IEEE 802.11b/g wireless network card that provides Wi-Fi connectivity for mobile devices that have an SDIO slot, such as PDAs. The installation software is compatible with all Windows Moblie 5.0 and Pocket PC 2003 systems. Package Checklist — The SDIO WLAN 802.11b/g Card package includes these items: • One SDIO WLAN 802.11b/g Card • One Installation Software CD • This Quick Installation Guide Inform your dealer if there are any incorrect, missing or damaged items. Caution:This product is for handheld PDA devices only, use of this product with other devices may not be in compliance with US or Canada RF exposure limts. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. Getting Started After unpacking the package items, follow the steps in this guide to install the SDIO card software and configure your Wi-Fi network connection. Installing the Software To install the SDIO WLAN 802.11b/g Card software and driver, you need to first connect a USB cable to your mobile device from a PC and establish a connection using Microsoft ActiveSync ® software. Note:ActiveSync is a free software download for Windows ® , available from the Microsoft web site at http://www.microsoft.com/windowsmobile. Your mobile device may support data link connections other than a USB cable. Refer to your mobile device documentation for the PC connection options. When you have established an ActiveSync connection from your PC to your mobile device, the PC displays a window similar to that below. You are now ready to start installing the SDIO Card software. Note that you do not need to insert the SDIO WLAN 802.11b/g Card into your mobile device at this point. Follow these steps: 1.Insert the installation software CD into your PC’s CD drive. The following window displays. Select the installation software that is compatible with your mobile device system software; either Windows Mobile 5.0 or Windows Pocket PC 2003. (This example shows a Pocket PC 2003 installation, however a Windows Mobile 5.0 installation is almost identical.) (Continued on the other side of this guide.) Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instruction as documented in this manual. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware- limited to channels 1 through 11. Industry Canada Statement This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with IC RF exposure compliance requirements, please follow operation instruction as documented in this manual. (Continued from the other side of this guide.) 2.The Windows installation wizard starts. Click the Install button. 3.When a window displays to confirm the Wireless Tools software installation, click Yes. 4.Wait while the Wireless Tools software is installed. 5.When the Wireless Tools software installation is complete, the following message displays: Click OK. 6.When a window displays to confirm the driver software installation, click Yes.. 7.Wait while the driver software is installed, then click OK when the completed download message displays. Then click Finish to close the wizard. Software installation is now complete. Continue with the instructions on setting up the Wi-Fi network connection on your mobile device. Configuring the SDIO Card When the SDIO WLAN 802.11b/g Card software is installed on your mobile device, you need to insert the SDIO card into the slot t…

Text truncated - open the document above for the full version.

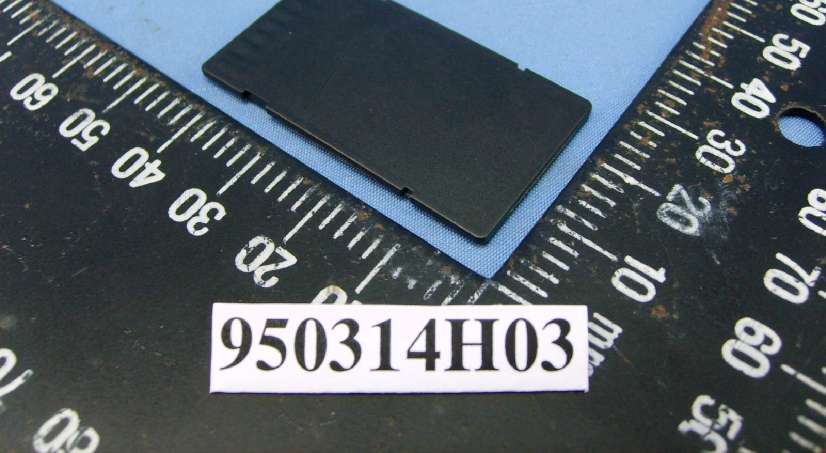

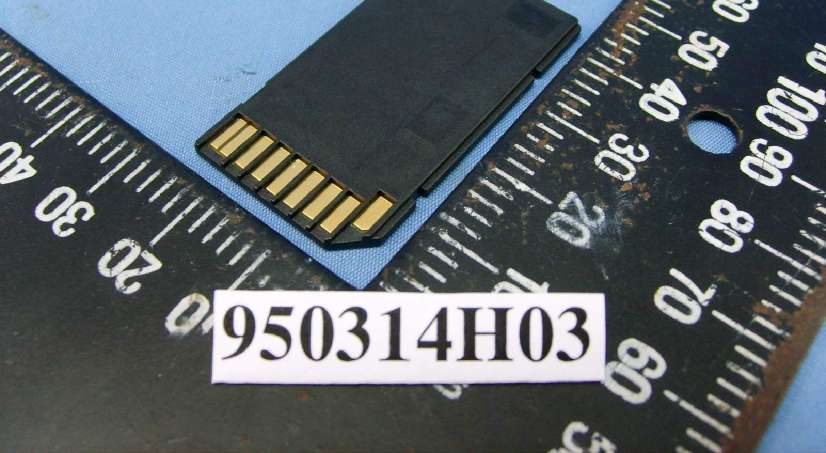

Page 1 CONSTRUCTION PHOTOS OF EUT Filter : TDK Page 4 Filter : Chilisin

FCC ID:HEDWM1212M IC:3857A-WM1212M

Page 2 Filter : TDK Page 3 Page 5 Filter : Chilisin Page 6

Report No.: SA950314H03 1 RF EXPOSURE REPORT REPORT NO.: SA950314H03 MODEL NO.: WM1212M FCC ID: HEDWM1212M ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:Accton Technology Corporation ADDRESS:No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA950314H03 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No.: SA950314H03 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Handheld Device Report No.: SA950314H03 4 6. Test Results 6.1 Antenna Gain The antenna used in this product is chip antenna without connector. The maximum gain of the antenna is 0 dBi. 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241212.5890.0031.0 6243713.1830.0031.0 11246212.3030.0021.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241235.4810.0071.0 6243733.8840.0071.0 11246232.3590.0061.0

Report No.: RF950314H031Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.:RF950314H03 MODEL NO.:WM1212M RECEIVED:March 15, 2006 TESTED:March 20 to 26, 2006 ISSUED: March 27, 2006 APPLICANT:Accton Technology Corporation ADDRESS:No.1, Creation Rd. III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 61 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 Report No.: RF950314H032Report Format Version 2.0.4 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL: ................ 8 3.4GENERAL DESCRIPTION OF APPLIED STANDARDS ............................. 10 3.5DESCRIPTION OF SUPPORT UNITS.........................................................11 3.6CONFIGURATION OF SYSTEM UNDER TEST ..........................................11 4TEST TYPES AND RESULTS..................................................................... 12 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 12 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................... 12 4.1.2TEST INSTRUMENTS ................................................................................ 12 4.1.3TEST PROCEDURES................................................................................. 13 4.1.4TEST SETUP .............................................................................................. 13 4.1.5EUT OPERATING CONDITIONS................................................................ 14 4.1.6TEST RESULTS.......................................................................................... 15 4.2RADIATED EMISSION MEASUREMENT ................................................... 17 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 17 4.2.2TEST INSTRUMENTS ................................................................................ 18 4.2.3TEST PROCEDURES................................................................................. 19 4.2.4TEST SETUP .............................................................................................. 20 4.2.5EUT OPERATING CONDITIONS................................................................ 20 4.2.6TEST RESULTS.......................................................................................... 21 4.2.7TEST RESULTS - DSSS............................................................................. 22 4.2.8TEST RESULTS - OFDM ............................................................................ 25 4.36dB BANDWIDTH MEASUREMENT .......................................................... 28 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT ....................................... 28 4.3.2TEST INSTRUMENTS ................................................................................ 28 4.3.3TEST PROCEDURE ................................................................................... 29 4.3.4TEST SETUP .............................................................................................. 29 4.3.5EUT OPERATING CONDITIONS................................................................ 29 4.3.6TEST RESULTS – DSSS ............................................................................ 30 4.3.7TEST RESULTS - OFDM............................................................................ 33 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 36 Report No.: RF950314H033Report Format Version 2.0.4 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 36 4.4.2TEST INSTRUMENTS ................................................................................ 36 4.4.3TEST PROCEDURES................................................................................. 37 4.4.4TEST SETUP .............................................................................................. 37 4.4.5EUT OPERATING CONDITIONS................................................................ 37 4.4.6TEST RESULTS – DSSS ............................................................................ 38 4.4.7TEST RESULTS – OFDM ........................................................................... 39 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 40 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 40 4.5.2TEST INSTRUMENTS ................................................................................ 40 4.5.3TEST PROCEDURE ................................................................................... 41 4.5.4TEST SETUP .............................................................................................. 41 4.5.5EUT OPERATING CONDITIONS................................................................ 41 4.5.6TEST RESULTS – DSSS ............................................................................ 42 4.5.7TEST RESULTS – OFDM ........................................................................... 45 4.6BAND EDGES MEASUREMEN…

Text truncated - open the document above for the full version.

Report No.: RF950314H0358Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF950314H0359Report Format Version 2.0.4 RADIATED EMISSION TEST
