HLERG768PURG768 Plus gun grip

RG768 Plus Gun Grip -RG768 Plus – User Manual Version 1.0 Revision History Date Change Description Version 20260305 Initial Version 1.0 i © 2026 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners About This Manual Preface Thank you for purchasing the Unitech product. This manual explains how to install, operate and maintain our product. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, such as photocopying, recording, or information storage and retrieval systems, without permission in writing from the manufacturer. The material in this manual is subject to change without notice. Regulatory Compliance Statements FCC Warning Statement This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference with radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference with radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/TV technician for help. 1. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. ii © 2026 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners 2. This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure requirements, avoid direct contact to the transmitting antenna during transmitting. 3. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. FCC Label Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. RF Radiation Exposure Statement For body contact during operation, this device has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 1.0 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Canadian Compliance Statement This device complies with Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. (i) the device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; (ii) for devices with detachable antenna(s), the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit; (iii) for devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits as appropriate; and (iv) where applicable, antenna type(s), antenna models(s), and worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in section 6.2.2.3 shall be clearly indicated. iii © 2026 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners Canada, avis d'Industry Canada (IC) Cet appareil est conforme avec Industrie Canada exemptes de licence RSS standard(s). Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement. (i) les dispositifs fonctionnant dans la bande de 5 150 à 5 250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux; (ii) ii.pour les dispositifs munis d’antennes amovibles, le gain maximal d’antenne permis pour les dispositifs utilisant les bandes de 5 250 à 5 350 MHz et de 5 470 à 5 725 MHz doit être conforme à la limite de la p.i.r.e; (iii) iii.pour les dispositifs munis d’antennes amovibles, le gain maximal d’antenne permis (pour les dispositifs utilisant la bande de 5 725 à 5 850 MHz) doit être conforme à la limite de la p.i.r.e. spécifiée, selon le cas; (iv) lorsqu’il y a lieu, les types d’antennes (s’il y en a plusieurs), les numéros de modèle de l’antenne et les pires angles d’inclinaison nécessaires pour rester conforme à l’exigence de la p.i.r.e. applicable au masque d’élévation, énonc…

Text truncated - open the document above for the full version.

Test Laboratory:BACL.SAR TestingLab Date: 06/24/2026 01_RFID_FCC Band ASK_Ch 2_Front Side_0mm DUT: RG768 Plus Communication System: UID 0, RFID (0); Frequency: 915.25 MHz;Duty Cycle: 1:1.06047 Medium: HSL 835 Medium parameters used: f = 915.25 MHz; σ = 0.956 S/m; ε r = 43.44; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN7520; ConvF(9.59, 9.15, 9.46) @ 915.25 MHz; Calibrated: 12/22/2025 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1561; Calibrated: 12/3/2025 - Phantom: ELI-Righr-ELI V8.0 (20deg probe tilt); Type: QD OVA 004 Ax; Serial: 2088 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Ch2/Area Scan (81x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 7.77 W/kg Ch2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 81.62 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 8.60 W/kg SAR(1 g) = 5.61 W/kg; SAR(10 g) = 3.62 W/kg Smallest distance from peaks to all points 3 dB below = 12.8 mm Ratio of SAR at M2 to SAR at M1 = 66.1% Maximum value of SAR (measured) = 7.62 W/kg Test Laboratory:BACL.SAR TestingLab Date: 06/24/2026 01-1_RFID_FCC Band ASK_Ch 1_Front Side_0mm DUT: RG768 Plus Communication System: UID 0, RFID (0); Frequency: 902.75 MHz;Duty Cycle: 1:1.06047 Medium: HSL 835 Medium parameters used: f = 902.75 MHz; σ = 0.953 S/m; ε r = 43.455; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN7520; ConvF(9.59, 9.15, 9.46) @ 902.75 MHz; Calibrated: 12/22/2025 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1561; Calibrated: 12/3/2025 - Phantom: ELI-Righr-ELI V8.0 (20deg probe tilt); Type: QD OVA 004 Ax; Serial: 2088 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Ch1/Area Scan (81x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 6.28 W/kg Ch1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 85.17 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 7.27 W/kg SAR(1 g) = 4.92 W/kg; SAR(10 g) = 3.22 W/kg Smallest distance from peaks to all points 3 dB below = 12.8 mm Ratio of SAR at M2 to SAR at M1 = 69.4% Maximum value of SAR (measured) = 6.26 W/kg Ch1/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 85.17 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 5.43 W/kg SAR(1 g) = 3.75 W/kg; SAR(10 g) = 2.74 W/kg Smallest distance from peaks to all points 3 dB below: Larger than measurement grid Ratio of SAR at M2 to SAR at M1 = 67.3% Maximum value of SAR (measured) = 4.80 W/kg Test Laboratory:BACL.SAR TestingLab Date: 06/24/2026 01-2_RFID_FCC Band ASK_Ch 3_Front Side_0mm DUT: RG768 Plus Communication System: UID 0, RFID (0); Frequency: 927.25 MHz;Duty Cycle: 1:1.06047 Medium: HSL 835 Medium parameters used: f = 927.25 MHz; σ = 0.959 S/m; ε r = 43.372; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN7520; ConvF(9.59, 9.15, 9.46) @ 927.25 MHz; Calibrated: 12/22/2025 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1561; Calibrated: 12/3/2025 - Phantom: ELI-Righr-ELI V8.0 (20deg probe tilt); Type: QD OVA 004 Ax; Serial: 2088 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Ch3/Area Scan (81x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 6.32 W/kg Ch3/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 72.30 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 7.18 W/kg SAR(1 g) = 4.68 W/kg; SAR(10 g) = 3.06 W/kg Smallest distance from peaks to all points 3 dB below = 12.8 mm Ratio of SAR at M2 to SAR at M1 = 65.6% Maximum value of SAR (measured) = 6.32 W/kg Ch3/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 72.30 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 5.04 W/kg SAR(1 g) = 3.44 W/kg; SAR(10 g) = 2.38 W/kg Smallest distance from peaks to all points 3 dB below = 17 mm Ratio of SAR at M2 to SAR at M1 = 69.7% Maximum value of SAR (measured) = 4.37 W/kg Test Laboratory:BACL.SAR TestingLab Date: 06/24/2026 02_RFID_FCC Band ASK_Ch 2_Front Side_45mm DUT: RG768 Plus Communication System: UID 0, RFID (0); Frequency: 915.25 MHz;Duty Cycle: 1:1.06047 Medium: HSL 835 Medium parameters used: f = 915.25 MHz; σ = 0.956 S/m; ε r = 43.44; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN7520; ConvF(9.59, 9.15, 9.46) @ 915.25 MHz; Calibrated: 12/22/2025 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1561; Calibrated: 12/3/2025 - Phantom: ELI-Righr-ELI V8.0 (20deg probe tilt); Type: QD OVA 004 Ax; Serial: 2088 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Ch2/Area Scan (81x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.26 W/kg Ch2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 37.48 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 1.41 W/kg SAR(1 g) = 1.02 W/kg; SAR(10 g) = 0.755 W/kg Smallest distance from peaks to all points 3 dB below: Larger than measurement grid Ratio of SAR at M2 to SAR at M1 = 71% Maximum value of SAR (measured) = 1.27 W/kg Test Laboratory:BACL.SAR TestingLab Date: 06/24/2026 03_RFID_FCC Band ASK_Ch 2_Left Side_0mm DUT: RG768 Plus Communication System: UID 0, RFID (0); Frequency: 915.25 MHz;Duty Cycle: 1:1.06047 Medium: HSL 835 Medium parameters used: f = 915.25 MHz; σ = 0.956 S/m; ε r = 43.44; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN7520; ConvF(9.59, 9.15, 9.46) @ 915.25 MHz; Calibrated: 12/22/2025 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1561; Calibrated: 12/3/2025 - Phantom: ELI-Righr-ELI V8.0 (20deg probe tilt); Type: QD OVA 004 Ax; Serial: 2088 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Ch2/Area Scan (61x121x1): Interpolated grid: dx=1…

Text truncated - open the document above for the full version.

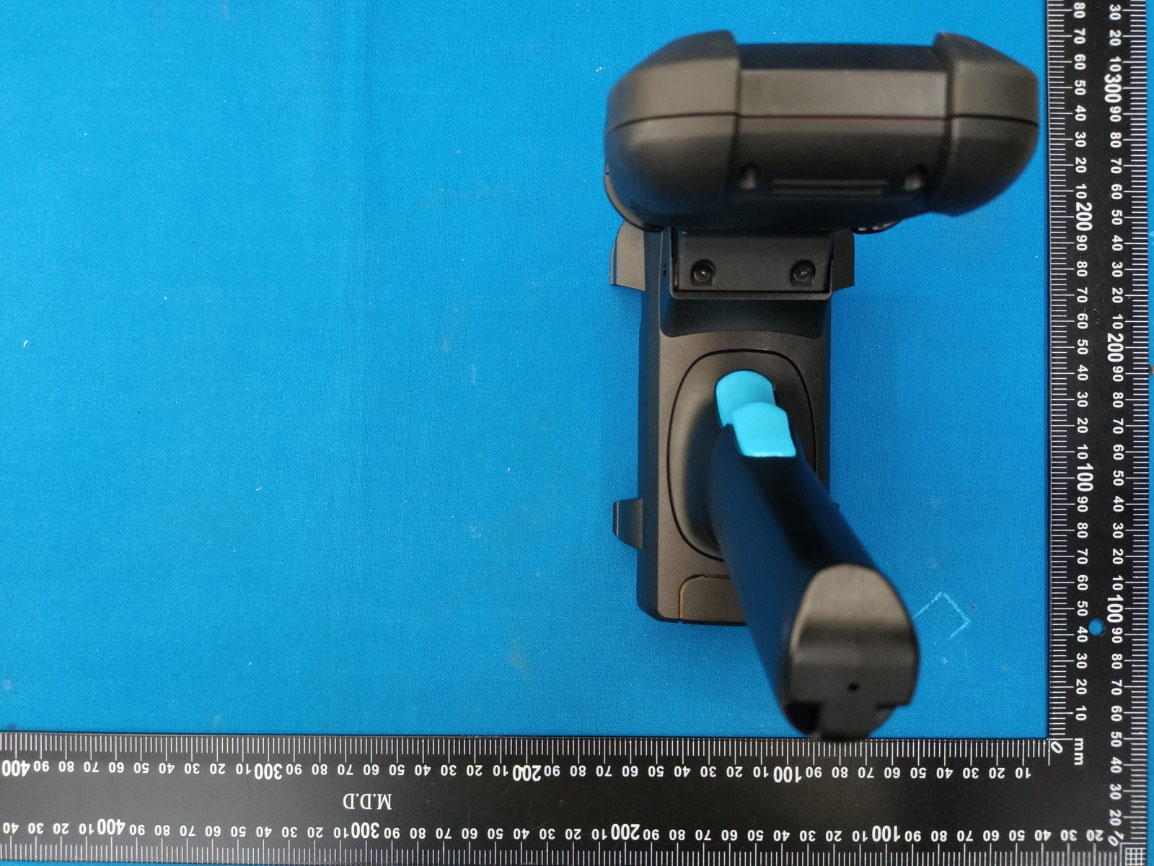

Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ260511023SA01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 1 of 6 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ260511023SA01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 2 of 6 SAR EUT Photo Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ260511023SA01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 3 of 6 Test peripherals Photo Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ260511023SA01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 4 of 6 SAR Hand-held Setup Photo Front Side_0mm Front Side_45mm 45mm Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ260511023SA01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 5 of 6 Left Side_0mm Right Side_0mm Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ260511023SA01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 6 of 6 Top_0mm Bottom_0mm

Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260511023 Page 1 of 4 EUT Setup Photographs Conduction： Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260511023 Page 2 of 4 Radiated Emission (Below 1GHz)： Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260511023 Page 3 of 4 Radiated Emission (1~18GHz)： Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260511023 Page 4 of 4 LOOP： ***** END *****

Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 1 of 45 FCC Part 15.247 TEST REPORT For unitech electronics co., ltd. 5F., No. 136, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City, Taiwan FCC ID: HLERG768PU Report Type: Original Report Product Type: RG768 Plus gun grip Report Producer : Coco Lin Report Number : RXZ260511023RF02 Report Date : 2026-07-15 Reviewed By: Andy Shih Prepared By: Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) 70, Lane 169, Sec. 2, Datong Road, Xizhi Dist., New Taipei City 22183, Taiwan, R.O.C. Tel: +886 (2) 2647 6898 Fax: +886 (2) 2647 6895 www.baclcorp.com.tw Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ260511023RF02 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 2 of 45 Revision History Revision No. Report Number Issue Date Description Author/ Revised by 0.0 RXZ260511023 RXZ260511023RF02 2026-07-15 Original Report Coco Lin Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ260511023RF02 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 3 of 45 TABLE OF CONTENTS 1 General Information ....................................................................................................... 5 1.1 Product Description for Equipment under Test (EUT) ......................................................... 5 1.2 Objective ............................................................................................................................... 6 1.3 Test Methodology .................................................................................................................. 6 1.4 Statement of Compliance ...................................................................................................... 6 1.5 Measurement Uncertainty ..................................................................................................... 7 1.6 Environmental Conditions ..................................................................................................... 7 1.7 Test Facility ........................................................................................................................... 7 2 System Test Configuration ............................................................................................. 8 2.1 Description of Test Configuration ......................................................................................... 8 2.2 Equipment Modifications ...................................................................................................... 8 2.3 EUT Exercise Software ......................................................................................................... 9 2.4 Support Equipment List and Details ...................................................................................... 9 2.5 External Cable List and Details ............................................................................................. 9 2.6 Test Mode .............................................................................................................................. 9 2.7 Block Diagram of Test Setup .............................................................................................. 10 2.8 Duty Cycle ........................................................................................................................... 12 3 Summary of Test Results .............................................................................................. 13 4 Test Equipment List and Details ................................................................................. 14 5 FCC §15.203 – Antenna Requirements ....................................................................... 15 5.1 Applicable Standard ............................................................................................................ 15 5.2 Antenna Information ........................................................................................................... 15 6 FCC §15.207(a) – AC Line Conducted Emissions ..................................................... 16 6.1 Applicable Standard ............................................................................................................ 16 6.2 EUT Setup ........................................................................................................................... 16 6.3 EMI Test Receiver Setup .................................................................................................... 17 6.4 Test Procedure ..................................................................................................................... 17 6.5 Corrected Factor & Margin Calculation .............................................................................. 17 6.6 Test Results ......................................................................................................................... 18 7 FCC §15.209, §15.205 , §15.247(d) – Spurious Emissions ......................................... 19 7.1 Applicable Standard ............................................................................................................ 19 7.2 EUT Setup ........................................................................................................................... 20 7.3 EMI Test Receiver & Spectrum Analyzer Setup................................................................. 21 7.4 Test Procedure ..................................................................................................................... 21 7.5 Corrected Factor & Margin Calculation .............................................................................. 22 7.6 Test Results .........................................…

Text truncated - open the document above for the full version.

UHF RFID Antenna RRUANT-P706514US-UT-US Page 1 Total 4 UHF RFID Antenna Model: RRUANT-P706514US-UT-US Size: 70×70×14mm UHF RFID Antenna RRUANT-P706514US-UT-US Page 2 Total 4 GENERAL DESCRIPTION RRUANT-P706514US-UT-US is designed with a high-frequency board as its substrate, featuring a four-helix design and a flat structure. It boasts low reflection loss, a small axial ratio, and high gain. With an ultra-wide microwave reception band of 902-928MHz and a center frequency of 915MHz, the antenna exhibits exceptional stability in design. It imposes no directional requirements for reading RFID tags and demonstrates significant advantages in simultaneously reading multiple tags. This product is widely applied in systems for identifying fixed points in production processes and product anti-counterfeiting detection. CHARACTERISTICS Absolute Maximum Ratings Electrical and Mechanical Specification ITEM SYMBOL VALUE UNIT Operating Temp T OPR -20 ~ +85°C Storage Temp T STR -45 ~ +90 °C ITEM VALUE Allow for Additional Error Frequency Range 902.0MHz—928MHz ±5.0MHz Center Frequency Point 915MHz ±2.0MHz Bandwidth 28MHzMin ±0.5MHz Standing wave ratio (SWR) 1.2Min ±0.2 Gain +3.6DBI±0.2 Characteristic Impedance 50Ohm ±0.5 Frequency Temperature Coefficient 20max -- RF Output Connector MMCX-JW，Cable length 50mm，RG178 -- Installation Method Screw Mounting -- Shock Rating IK08 -- UHF RFID Antenna RRUANT-P706514US-UT-US Page 3 Total 4 UHF RFID Antenna RRUANT-P706514US-UT-US Shenzhen RoyalRay Science and Technology Co., Ltd Tel: +86 755 25531562 25606619 25636705 Website: www.rr-rfid.com Fax: +86 755 25531562 Email: [email protected] [email protected] ADD: Suite FC, 4F, A1 Building, Xiufeng Industrial Park,NO.2 Xiufeng Road, Longgang District, Shenzhen, P.R.C. Page 4 Total 4 MECHANICAL DATA (UNIT: mm) U nstateddimension tolerance ±0.2 Remark: 1. Specifications are subject to change, please pay attention to our latest version. 2. Shenzhen RoyalRay Science and Technology Co., Ltd. reserves the right to the final interpretation of the above terms.

Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 1 of 36 FCC SAR EVALUATION REPORT For FCC ID：HLERG768PU Model：RG768 Plus gun grip Report Type：Original Report Product Name：RG768 Plus gun grip Report Number：RXZ260511023SA01 Report Date：2026-07-07 Prepared By：Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) 70, Lane 169, Sec. 2, Datong Road, Xizhi Dist., New Taipei City 221, Taiwan, R.O.C. Tel：+886 (2)2647 6898 Fax：+886 (2)2647 6895 www.bacl.com.tw Facilities：The test site used by Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) to collect test data is located on 70, Lane 169, Sec. 2, Datong Road, Xizhi Dist., New Taipei City 221, Taiwan, R.O.C. Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ260511023SA01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 2 of 36 Statement of Compliance Applicant (Certification Holder) unitech electronics co., ltd. 5F., No. 136, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City, Taiwan Brand (Trade) Name unitech Product (Equipment) Name RG768 Plus gun grip Model Name RG768 Plus Series Model Name N/A Model Discrepancy N/A Measurement Procedures and Standards Used: ☒ IEC/IEEE62209-1528:2020 ☒ FCC 47 CFR part 2.1093 ☒ KDB 447498 D04 Interim General RF Exposure Guidance v01 ☒ KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 ☒ KDB 248227 D01 802.11 Wi-Fi SAR v02r02 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) is accredited to ISO 17025 by Taiwan Accreditation Foundation (TAF code: 3732) and the FCC designation No.TW3732 under the Mutual Recognition Agreement (MRA) in FCC Test. The measurement results in this report were performed at Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. The determination of the test results does not require consideration of the uncertainty of the measurement, unless the assessment is required by customer agreement, regulation or standard document specification. Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) is not responsible for the authenticity of the information provided by the applicant that affects the test results. Report Issued Date：2026-07-07 Reviewed By：Anson Lu Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ260511023SA01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 3 of 36 Revision History Revision No. Report Number Issue Date Description Author/ Revised by 0.0 RXZ260511023 RXZ260511023SA01 2026.07.07 Original Report Anson Lu Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ260511023SA01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 4 of 36 TABLE OF CONTENTS EUT RESULTS ............................................................................................................................................. 5 EUT DESCRIPTION .................................................................................................................................... 6 REFERENCE, STANDARDS, AND GUIDELINES ................................................................................. 7 DESCRIPTION OF TEST SYSTEM .......................................................................................................... 8 Recommended Tissue Dielectric Parameters for Head and Body .......................................................... 12 EQUIPMENT LIST AND CALIBRATION ............................................................................................. 14 SAR MEASUREMENT SYSTEM VERIFICATION ............................................................................. 15 EUT TEST STRATEGY AND METHODOLOGY ................................................................................. 19 CONDUCTED OUTPUT POWER MEASUREMENT .......................................................................... 21 STANDALONE SAR TEST EXCLUSION CONSIDERATIONS ......................................................... 23 SAR MEASUREMENT RESULTS .......................................................................................................... 26 SAR correction for deviations of complex permittivity from targets ..................................................... 28 SAR SIMULTANEOUS TRANSMISSION DESCRIPTION ................................................................. 30 APPENDIX A MEASUREMENT UNCERTAINTY............................................................................... 31 APPENDIX B EUT TEST POSITION PHOTOS .................................................................................... 33 APPENDIX C SAR PLOTS OF SAR MEASUREMENT ....................................................................... 34 APPENDIX D PROBE & DAE CALIBRATION CERTIFICATES ..................................................... 35 APPENDIX E DIPOLE CALIBRATION CERTIFICATES.................................................................. 36 Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) No.: RXZ260511023SA01 Note: It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Page 5 of 36 EUT RESULTS Attestation of Test Results for Hand-held SAR Frequency Band Maximum 1g SAR Level(s) Reported(W/kg) Limit(W/kg) Position Maximum 10g SAR(W/kg) RFID Hand-held SAR 3.944 4.0 Note: This wireless device has been shown to be capable o…

Text truncated - open the document above for the full version.

Dipole Period Check QB-EN-107 Version 2.1 Justification for Extended SAR Dipole Calibrations Usage of SAR dipoles calibrated less than 3 years ago but more than 1 year ago were confirmed in maintaining return loss (< ‐20 dB, within 20% of prior calibration) and impedance (within 5 ohm from prior calibration) requirements per extended calibrations in RSS‐102.SAR.MEAS Issue 2 and KDB 865664 D01： Acceptance date: 2025/12/16 Dipole_D835V2_SN：454 Head Liquid Date of Measurement Return Loss (dB) △% Impedance (Ω) △Ω 2023/11/21 ‐35.656 ‐‐‐ 49.249 ‐‐‐ 2025/12/16 ‐36.955 3.643% 48.872 0.377Ω Return Loss Impedance Equipment’s List & Calibration Information Equipment Model S/N Calibration Date Calibration Due Date Network Analyzer E5063A MY54402093 2024/12/27 2025/12/26 Twin ELI Twin ELI V8.0 2088 N/A N/A Simulated Tissue 0.6G~6GHz Head TS‐6GHz‐H N/A N/A N/A 品管人員: ______________ 技術主管:______________ 驗收人員: ______________ Confirmed Reviewer Engineer

unitech unitech electronics co., ltd. To: Federal Communications Commission Date: 28 July 2026 7435 Oakland Mills Road Columbia, MD 21046 USA Attestation Section 2.911(d)(5)(i) and Section 2.911(d)(5)(ii) (KDB 986446 D01 Covered Equipment) Section 2.911(d)(5)(i) unitech electronics co., ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Section 2.911(d)(5)(ii) unitech electronics co., ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Type of Equip…

Text truncated - open the document above for the full version.
