HSW-2492WIT2492

Murata Electronics North America

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Mar 26, 2007
Application Purpose: Original Equipment
Date of Application: Mar 26, 2007
Equipment Note: WIT2492
Frequency Range: 2402.60000000 - 2480.00000000
Company: Murata Electronics North America
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.247 Transceiver Certification Digital Transmission System with Frequency Hopping Spread Spectrum Test Report FCC ID: HSW-2492 FCC Rule Part: 15.247 ACS Report Number: 07-0052-15C Manufacturer: Cirronet Model: WIT2492 Integration Guide WIT2492 2.4GHz Spread Spectrum Wireless Industrial Transceiver Preliminary Integration Guide 3079 Premiere Pkwy Ste 140 Duluth, Georgia 30097 www.cirronet.com +1 (678) 684-2000 Important Regulatory Information Cirronet Product FCC ID: HSW-2492 IC 4492A-2492 FCC s MPE Requirements Information to user/installer regarding FCC s Maximum Permissible Exposure (MPE) limits. Notice to users/installers using the following fixed antennas, with Cirronet RF products: Cushcraft 15dBi Yagi, Mobile Mark 14dBi Corner Reflector, Mobile Mark 9dBi Corner Reflector The field strength radiated by any one of these antennas, when connected to Cirronet RF products, may exceed FCC mandated RF exposure limits. FCC rules require professional installation of these antennas in such a way that the general public will not be closer than 2 m from the radiating aperture of any of these antennas. End users of these systems must also be informed that RF exposure limits may be exceeded if personnel come closer than 2 m to the apertures of any of these antennas. Notice to users/installers using the following mobile antennas, with Cirronet RF products: Mobile Mark 9dBi omni-directional, MaxRad 5dBi whip, Cirronet Patch antenna, Ace 2dBi dipole, Mobile Mark 2dBi Stub The field strength radiated by any one of these antennas, when connected to Cirronet RF products, may exceed FCC mandated RF exposure limits. FCC rules require professional installation of these antennas in such a way that the general public will not be closer than 20 cm from the radiating aperture of any of these antennas. End users of these systems must also be informed that RF exposure limits may be exceeded if personnel come closer than 20 cm to the apertures of any of these antennas. Note: This unit has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their expense. Declaration of Conformity Warning! The RLAN transceiver within this device uses a band of frequencies that are not completely harmonized within the European Community. Before using, please read the European Operation Section of the Products User’s Guide for limitations. The WIT2492 to which this declaration relates is in conformity with the essential requirements of the R&TTE directive 1999/5/EC and complies with the following standards and/or other normative documents: For Interfaces For RLAN Transceiver EN 55022 EN 55024 EN 300 328 Use Within the European Union The WIT2492 is intended for use within the European Community States and in the following non-European Union States: Norway & Switzerland Use of the WIT2492 in France When used in France, the WIT2492 can only be operated with the France hopping pattern selected. This is accomplished by setting the pe parameter to 1. Refer to European Union Settings in this manual for details. Canadian Department of Communications Industry Canada (IC) Notice Canadian Department of Communications Industry Canada (IC) Notice This apparatus complies with Health Canada’s Safety Code 6 / IC RSS 102. "To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors may be subject to licensing." The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. ICES-003 This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada. Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par Industrie Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. This device has been designed to operate with the antennas listed above, and having a maximum gain of [15] dB. Antennas not included in this list or having a gain greater than [15] dB are strictly prohibited for use with this device. The required antenna impedance is [50] ohms. Warning! Changes or modifications to this device not expressly approved by Cirronet could void the user’s authority to operate the equipment. TABLE OF CONTENTS 1. INTRODUCTION ......................................................................................................................1 1.1. Why Spread Spectrum? ........................................................................................................1 1.2. Frequency Hopping vs. Direct Sequence..............................................................................2 2. RADIO OPERATION ................................................................................................................5 2.1. Synchronization and Registration ........................................................................................5 2.2. Dat…

Text truncated - open the document above for the full version.

Users Manual

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.247 Transceiver Certification Digital Transmission System with Frequency Hopping Spread Spectrum Test Report FCC ID: HSW-2492 FCC Rule Part: 15.247 ACS Report Number: 07-0052-15C Manufacturer: Cirronet Model: WIT2492 Integration Guide WIT2492 2.4 GHz Spread Spectrum Wireless Industrial Transceiver Preliminary Integration Guide 3079 Premiere Pkwy Ste 140 Duluth, Georgia 30097 www.cirronet.com +1 (678) 684-2000 Important Regulatory Information Cirronet Product FCC ID: HSW-2492 IC 4492A-2492 FCC s MPE Requirements Information to user/installer regarding FCC s Maximum Permissible Exposure (MPE) limits. Notice to users/installers using the following fixed antennas, with Cirronet RF products: Cushcraft 15dBi Yagi, Mobile Mark 14dBi Corner Reflector, Mobile Mark 9dBi Corner Reflector The field strength radiated by any one of these antennas, when connected to Cirronet RF products, may exceed FCC mandated RF exposure limits. FCC rules require professional installation of these antennas in such a way that the general public will not be closer than 2 m from the radiating aperture of any of these antennas. End users of these systems must also be informed that RF exposure limits may be exceeded if personnel come closer than 2 m to the apertures of any of these antennas. Notice to users/installers using the following mobile antennas, with Cirronet RF products: Mobile Mark 9dBi omni-directional, MaxRad 5dBi whip, Cirronet Patch antenna, Ace 2dBi dipole, Mobile Mark 2dBi Stub The field strength radiated by any one of these antennas, when connected to Cirronet RF products, may exceed FCC mandated RF exposure limits. FCC rules require professional installation of these antennas in such a way that the general public will not be closer than 20 cm from the radiating aperture of any of these antennas. End users of these systems must also be informed that RF exposure limits may be exceeded if personnel come closer than 20 cm to the apertures of any of these antennas. Notice to users/installers using the following Portable antennas, with Cirronet RF products: Ace 2 dBi dipole Cirronet 2 dBi patch antenna (PA2410) Cirronet 6 dBi patch antenna (PA2400) Cirronet 5 dBi whip antenna (Omni245RCBL) The field strength radiated by any one of these antennas, when connected to Cirronet’s WIT2492 product, is below FCC mandated RF exposure limits for distances less than 2.5 cm or next to the body. Note: This unit has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their expense. Declaration of Conformity Warning! The RLAN transceiver within this device uses a band of frequencies that are not completely harmonized within the European Community. Before using, please read the European Operation Section of the Products User’s Guide for limitations. The WIT2492 to which this declaration relates is in conformity with the essential requirements of the R&TTE directive 1999/5/EC and complies with the following standards and/or other normative documents: For Interfaces For RLAN Transceiver EN 55022 EN 55024 EN 300 328 Use Within the European Union The WIT2492 is intended for use within the European Community States and in the following non-European Union States: Norway & Switzerland Use of the WIT2492 in France When used in France, the WIT2492 can only be operated with the France hopping pattern selected. This is accomplished by setting the pe parameter to 1. Refer to European Union Settings in this manual for details. Canadian Department of Communications Industry Canada (IC) Notice Canadian Department of Communications Industry Canada (IC) Notice This apparatus complies with Health Canada’s Safety Code 6 / IC RSS 102. "To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors may be subject to licensing." The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. ICES-003 This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada. Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par Industrie Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. This device has been designed to operate with the antennas listed above, and having a maximum gain of [15] dB. Antennas not included in this list or having a gain greater than [15] dB are strictly prohibited for use with this device. The required antenna impedance is [50] ohms. Warning! Changes or modifications to this device not expressly approved by Cirronet could void the user’s authority to operate the equipment. TABLE OF CONTENTS 1. INTRODUCTION...................................................................................................................... 1 1.1. Why Spread Spectrum?........................................................................…

Text truncated - open the document above for the full version.

Attestation Statements

April 9 th , 2007 Kirby Munroe Advanced Compliance Solutions, Inc. 5015 B.U. Bowman Drive Buford, Georgia 30518 USA Kirby, Cirronet requests that our recent FCC Grant – HSW-2492 – be amended to include Portable operation. The WIT2492 radio certified under that ID was designed to be used in a wireless microphone transmitter that is worn on the hip of the user. As a result, the WIT2492 transmitter will be operating within 2.5 cm of a human body and requires a ‘portable’ designation. Per instructions from our TCB, in order to meet the more stringent FCC MPE requirements for portable operation, we are providing: • Information describing the radio operating conditions (Appendix 1). • Detailed calculations showing the maximum attainable transmit duty cycle and average power produced by the device (Appendices 2 and 3). • Updated verbiage in the user’s manual to satisfy RF exposure compliance with the new portable designation. Any questions or comments regarding this request should be sent to Mark Tucker, VP of Engineering. Regards, Mark Tucker VP of Engineering Cirronet

Cover Letter(s)

WIT-2492 Product EMC Information CONFIDENTIALITY REQUEST Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: August 22, 2003 Gentlemen: Cirronet Inc respectfully requests confidentiality of certain materials provided with the submission of the WIT2492 under FCC ID: HSW-2492 in accordance with FCC Regulations 0.459. The confidentiality request applies to the schematics, parts list, theory of operation, and block diagrams contained in Exhibits: 07-0052 – Schematics.pdf 07-0052 – System Block Diagram.pdf 07-0052 – Parts List.pdf 07-0052 – Theory of Operation.pdf The WIT2492 has been developed at considerable effort and expense by Cirronet. These items are considered as Trade Secrets and therefore public access to the proprietary material could possible result in duplication of equipment that could severely damage the company's business advantage. I appreciate your assistance in this matter. Sincerely, Al Patrick Al Patrick Sr. Compliance Engineer Cirronet Inc. 3079 Premiere Parkway, Suite 140 Duluth, GA 30097 USA Tel: 678 684 2000 Fax: 678 684 2001 [email protected] www.cirronet.com

Cover Letter(s)

Tuesday, February 13, 2007 Dear Application Examiner Regarding Part 15 Unlicensed Modular Transmitter Approval, the following requirements called out in FCC Public Notice DA 00-1407 are observed: 1. The WIT2492 has its own RF shielding. 2. The WIT2492 modular transmitter has buffered modulation/data inputs to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over- modulation. 3. The WIT2492 employs on board power supply regulation. 4. The WIT2492 employs a MMCX connector. Professional installation is required. 5. The WIT2492 was tested in a stand-alone configuration. 6. The WIT2492 has a label with the FCC ID: HSW-2492 7. The WIT2492 complies with FCC DTS for Frequency Hopping Spread Spectrum Operation. An Integration Guide is provided for every module sold. This guide instructs the user in the proper operation of the device. The text in the guide specifies FCC Part 15 compliance: 8. The use of the WIT2492 in any application where the antenna is 20 cm or less distance to the body is not allowed. This is specified in the Integration Guide previous to the Table of Contents. The text follows: Maximum Permissible Exposure (MPE) Limits • Information to user/installer regarding FCC s Maximum Permissible Exposure (MPE) limits. • Notice to users/installers using the following fixed antenna, with Cirronet products containing the RF module WIT2492 The field strength radiated by this antenna, when connected to the WIT2492 Cirronet RF module, may exceed FCC mandated RF exposure limits. FCC rules require installation of these antennas in such a way that the general public will not be closer than 20 cm from the radiating aperture of any of these antennas. End users of these systems must also be informed that RF exposure limits may be exceeded if personnel come closer than 20 cm to the apertures of the unit. Al Patrick Sr. Compliance Engineer Cirronet Inc. [email protected]

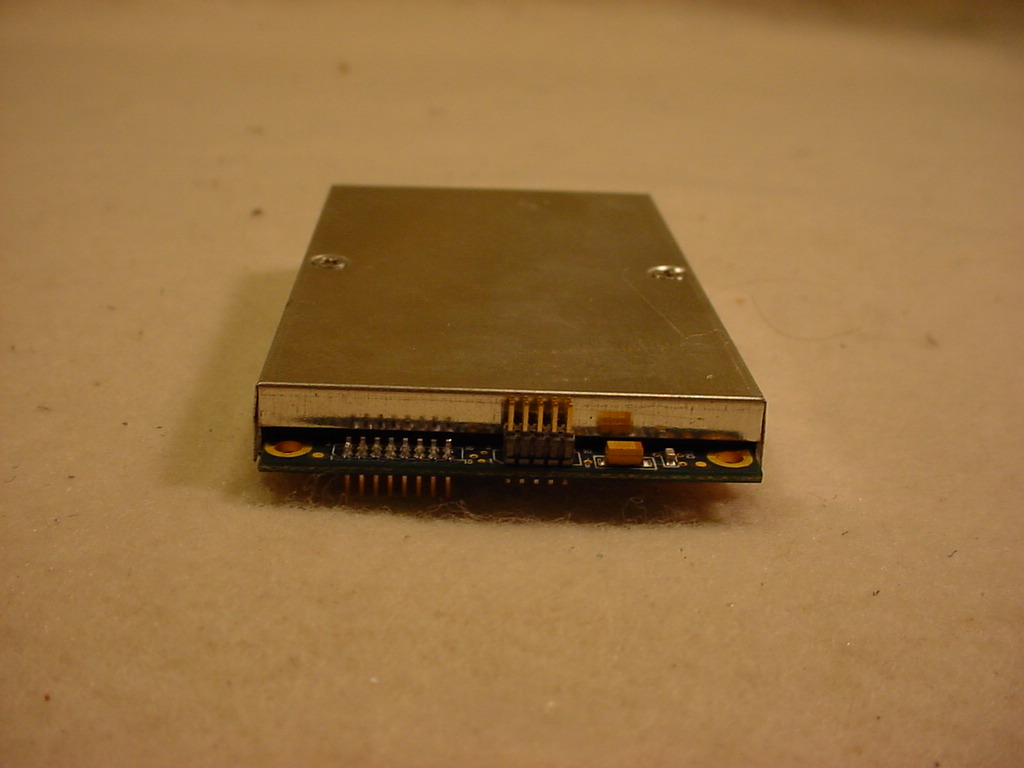

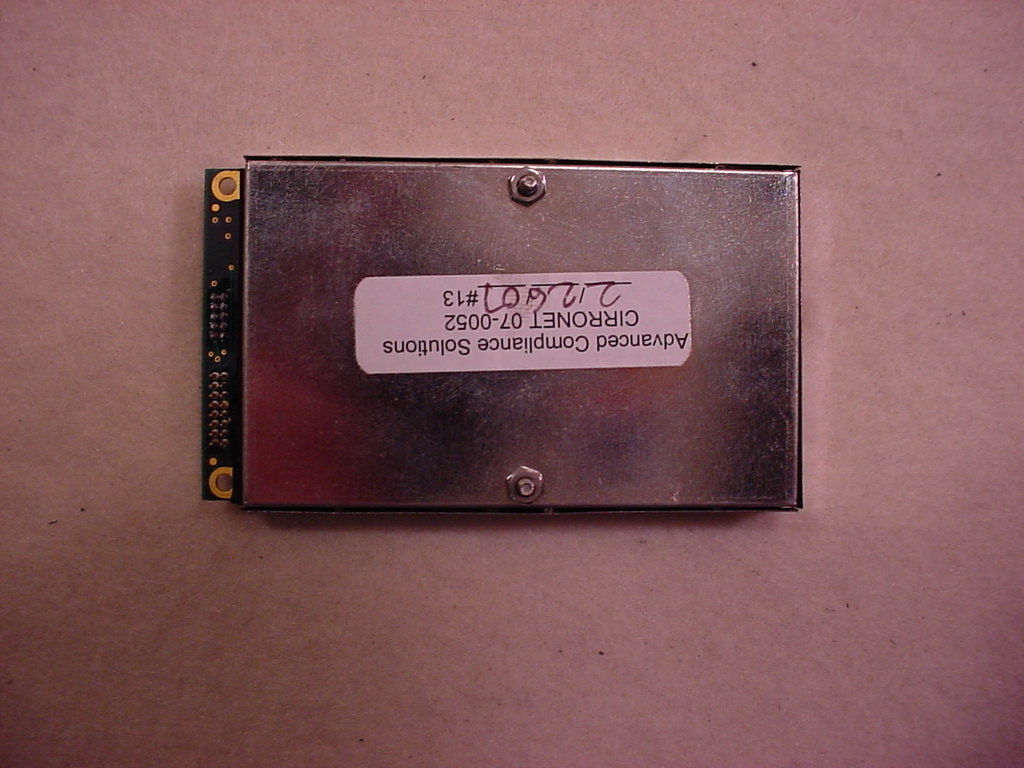

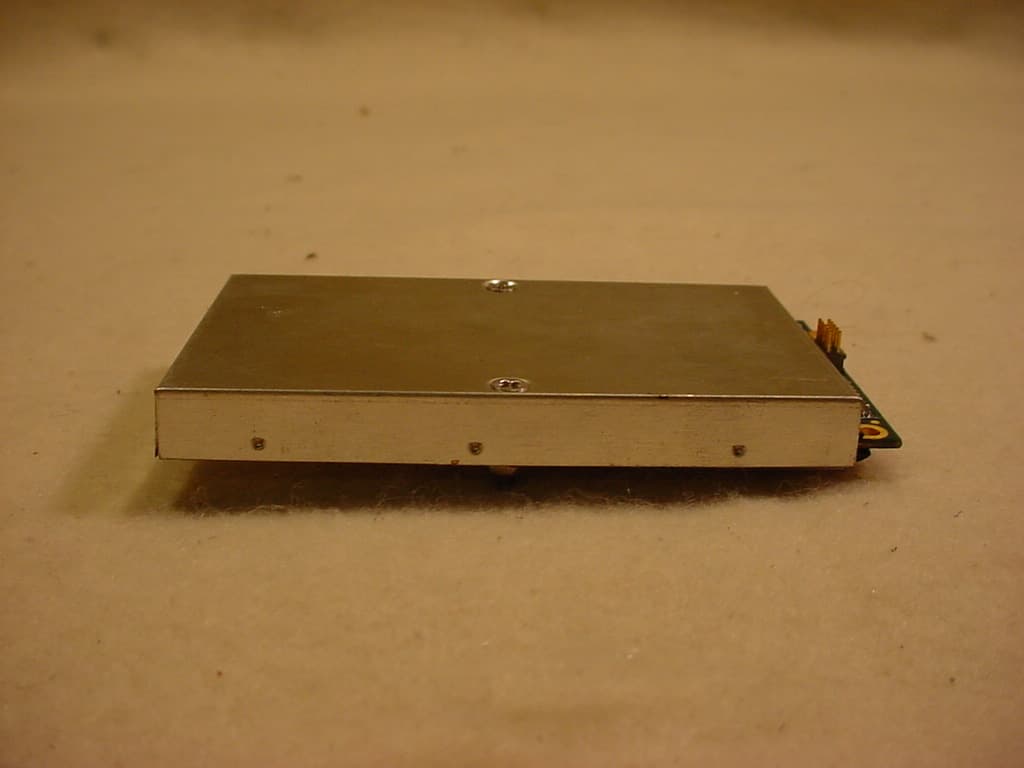

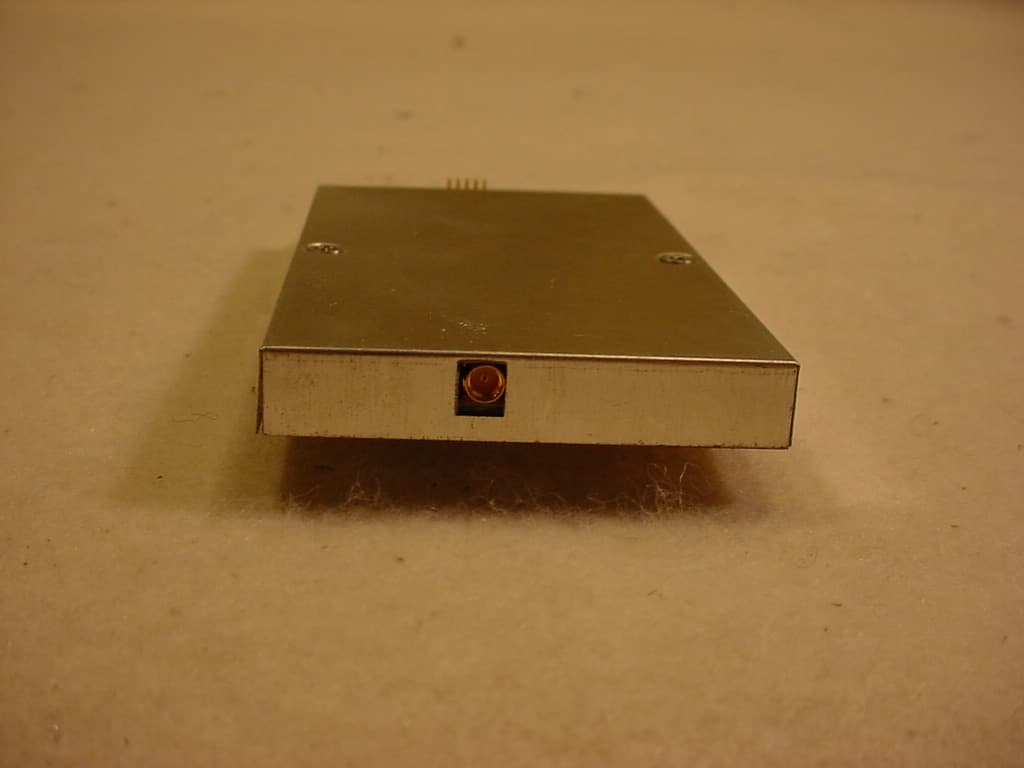

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.247 Transceiver Certification Digital Transmission System with Frequency Hopping Spread Spectrum Test Report FCC ID: HSW-2492 FCC Rule Part: 15.247 ACS Report Number: 07-0052-15C Manufacturer: Cirronet Model: WIT2492 Test Begin Date: February 14, 2007 Test End Date: March 2, 2007 Report Issue Date: March 22, 2007 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612-0 This report is not be used to claim certification, approval, or endorsement by NVLAP, NIST or any government agency. Prepared by: Reviewed by: J. Kirby Munroe Manager Wireless Certifications ACS, Inc. R. Sam Wismer Engineering Manager ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 28 pages 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Table of Contents 1.0 General 3 1.1 Purpose 3 1.2 Product Description 3 1.2.1 General 3 1.2.2 Intended Use 3 1.3 Test Methodology and Considerations 3 1.4 Antenna List 3 2.0 Test Facilities 4 2.1 Location 4 2.2 Laboratory Accreditations/Recognitions/Certifications 4 2.3 Radiated Emissions Test Site Description 5 2.3.1 Semi-Anechoic Chamber Test Site 5 2.3.2 Open Area Tests Site (OATS) 6 2.4 Conducted Emissions Test Site Description 7 3.0 Applicable Standards and References 7 4.0 List of Test Equipment 8 5.0 Support Equipment 9 6.0 EUT Setup Block Diagram 9 7.0 Summary of Tests 10 7.1 Section 15.203 - Antenna Requirement 10 7.2 Section 15.207 - Power Line Conducted Emissions 10 7.2.1 Test Methodology 10 7.2.2 Test Results 10 7.3 Section 15.109 - Radiated Emissions (Unintentional Radiation) 11 7.3.1 Test Methodology 11 7.3.2 Test Results 11 7.4 Section 15.247(a)(2) – 6 dB Bandwidth 12 7.4.1 Test Methodology 12 7.4.1 Test Results 12 7.5 Section 15.247(b) – Peak Output Power 14 7.5.1 Test Methodology 14 7.5.2 Test Results 14 7.6 Section 15.247(c) – Band-Edge Compliance and Spurious Emissions 16 7.6.1 Section 15.247 (c) – Band-Edge Compliance 16 7.6.1.1 Test Methodology 16 7.6.1.2 Test Results 16 7.6.2 Section 15.247(c) – Conducted Spurious Emissions 21 7.6.2.1 Test Methodology 21 7.6.2.2 Test Results 21 7.6.3 Section 15.247(c) – Radiated Spurious Emissions 24 7.6.3.1 Test Methodology 24 7.6.3.2 Duty Cycle Correction 24 7.6.3.3 Test Results 24 7.6.3.4 Sample Calculation 26 7.7 Section 15.247(d) – Power Spectral Density 27 7.7.1 Test Methodology 27 7.7.2 Test Results 27 8.0 CONCLUSION 28 Additional Exhibits Included In Filing Internal Photographs External Photographs Test Setup Photographs Product Labeling RF Exposure – MPE Calculations Installation/Users Guide Theory of Operation BOM (Parts List) System Block Diagram Schematics Model: WIT2492 FCC ID: HSW-2492 ACS Report: 07-0052-15C Advanced Compliance Solutions Page 3 1.0 GENERAL 1.1 Purpose The purpose of this report is to demonstrate compliance with Part 15, Subpart C of the FCC’s Code of Federal Regulations. 1.2 Product Description 1.2.1 General The WIT2492 radio transceiver provides reliable wireless connectivity for either point to point or multipoint applications. Frequency hopping spread spectrum technology ensures maximum resistance to noise and multipath fading and robustness in the presence of interfering signals, while operation in the 2.4GHz ISM band allows license free use and worldwide compliance. A simple serial interface supports asynchronous data up to 230400 bps. An on board 3 KB buffer and an error correcting over the air protocol provide smooth data flow and simplify the task of integration with existing applications. Manufacturer Information: Cirronet 3079 Premiere Parkway, Suite 140 Duluth, GA 30097 Detailed photographs of the EUT are filed separately with this filing. 1.2.2 Intended Use The WIT2492 radio transceiver provides reliable wireless connectivity for either point to point or multipoint applications. 1.3 Test Methodology and Considerations The Cirronet WIT2492 is a transmission systems that employs both frequency hopping (or channel changing) techniques using digitally modulated channels. Based on the FCC interpretation on devices which employ both techniques, the WIT2492 demonstrated compliance with the DTS standards of Part 15.247 only. According to the FCC interpretation, there is no need to demonstrate compliance with both the FHSS standards and the DTS standards. Because the WIT2492 utilizes antennas of multiple types and gains, the highest gain antenna for each type was tested. This device allows for the use of all antennas listed below without any reduction in output power as required by 15.247(b)(4). 1.4 Antenna List * Antennas of the highest gain of each type. Description Gain Part Number Coupling 15dB Yagi Directional* 15dBi YAGI2415 N 14dB Corner Reflector* 14dBi CORNER2414 N 9dB Omni-directional / Dipole* 9dBi OMNI249 N 9dB Corner Reflector 9dBi CORNER249 N 12dB Cironnet Patch* 12dBi A-4201-0497 MMCX 6dB Cironnet Patch 6dBi PA2400 MMCX 5dB Mobile Mount* 5dBi MAG245 N 2dB Cirronet Patch 2dBi PA2410 MMCX 2dB Rugged Mobile Mount 2dBi RBM242 N Dipole 2dBi RWA249R Reverse SMA Model: WIT2492 FCC ID: HSW-2492 ACS Report: 07-0052-15C Advanced Compliance Solutions Page 4 2.0 TEST FACILITIES 2.1 Location The radiated and conducted emissions test sites are located at the following address: Advanced Compliance Solutions 5015 B.U. Bowman Drive Buford, GA 30518 Phone: (770) 831-8048 Fax: (770) 831-8598 2.2 Laboratory Accreditations/Recognitions/Certifications The Semi-Anechoic Chamber Test Site, Open Area Test Site (OATS) and Conducted Emissions Site have been fully described, submitted to, and accepted by the FCC, Industry Canada and the Japanese Voluntary Control Council for Interference by information technology equipment. In addition, ACS is compliant to ISO 17025 as certifi…

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

Mark Tucker(Director of Hardware Engineering)

[email protected]678 684-2009Fax: 678 684-2001

Test Firm

Advanced Compliance Solutions, Inc.Sam Wismer

[email protected]770-831-8048Fax: 770-831-8598

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	60.00 mW

Modular Type

Limited Single Modular Approval

Confidentiality

Long Term

Grant Notes

Limited Modular Approval. Professional installation is required. Power output listed is conducted. This device must transmit with a source-based time-averaging duty factor not exceeding 5.6 %. Grantee must coordinate with OEM integrators to ensure the end-users of products operating with this module are provided with operating instructions to satisfy RF exposure compliance. OEM integrators must be provided with antenna installation instructions to satisfy professional installation. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. For use in RF exposure portable conditions, the antenna(s) used for this transmitter must not exceed a gain of 6dBi. For use in RF exposure mobile or fixed conditions, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons.
