HSW-HN1510Data Transceiver

FCC ID: HSW-HN1510 The following statement will be placed in the front of the users manual: Notice to users/installers using the 24 dBi parabolic dish antenna in conjunction with the HN1510 module. FCC rules limit the use of this antenna, when connected to the HN1510 module, to point-to-point applications only. It is the responsibility of the installer to ensure that the system is prohibited from being used in point-to-multipoint applications, omnidirectional applications, and applications where there are multiple co-located intentional radiators transmitting the same information. Any other mode of operation using this antenna is forbidden. In order to meet FCC’s MPE requirements, Cirronet Corporation will add the following statements to the users manual Information to user/installer regarding FCC’s Maximum Permissible Exposure (MPE) limits. Notice to HN1510 users/installers using the following fixed antennas: Andrews 24dBi parabolic dish, Andrews 18dBi parabolic dish, Mobile Mark 9dBi Corner Reflector, Mobile Mark 14dBi Corner Reflector, Cushcraft 15dBi Yagi The field strength radiated by any one of these antennas, when connected to a transmitting HN1510 module, may exceed FCC mandated RF exposure limits. FCC rules require professional installation of these antennas in such a way that the general public will not be closer than 2 m from the radiating aperture of any of these antennas. End users of these systems must also be informed that RF exposure limits may be exceeded if personnel come closer than 2 m to the apertures of any of these antennas. Notice to HN1510 users/installers using the following mobile antennas: Mobile Mark 12dBi omnidirectional, Mobile Mark 9dBi omnidirectional, Cirronet 6dBi patch, Ace 2dBi dipole, Mobile Mark 2dBi Stub, MaxRad 5dBi whip The field strength radiated by any one of these antennas, when connected to a transmitting HN1510 module, may exceed FCC mandated RF exposure limits. FCC rules require professional installation of these antennas in such a way that the general public will not be closer than 20 cm from the radiating aperture of any of these antennas. End users of these systems must also be informed that RF exposure limits may be exceeded if personnel come closer than 20 cm to the apertures of any of these antennas.

FCC ID: HSW-HN1010 Cirronet Inc. will place the following statement in the front of each user/installers manual: Important Regulatory Information Cirronet Product FCCID: HSW-XXXX Fill in FCC ID number Note: This unit has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their expense. FCC ID: HSW-HN1010 In order to meet FCC s MPE requirements, Cirronet Corporation will add the following statements to the each users manual. It may be on the second page. Notice to users/installers using the 24 dBi parabolic dish antenna in conjunction with all Cirronet RF products. FCC rules limit the use of this antenna, when connected to Cirronet RF products for point-to-point applications only. It is the responsibility of the installer to ensure that the system is prohibited from being used in point-to-multipoint applications, omni- directional applications, and applications where there are multiple co-located intentional radiators transmitting the same information. Any other mode of operation using this antenna is forbidden. Information to user/installer regarding FCC s Maximum Permissible Exposure (MPE) limits. Notice to users/installers using the following fixed antennas, with Cirronet RF products: Andrews 24dBi parabolic dish, Andrews 18dBi parabolic dish, Cushcraft 15dBi Yagi, Mobile Mark 14dBi Corner Reflector, Mobile Mark 9dBi Corner Reflector The field strength radiated by any one of these antennas, when connected to Cirronet RF products, may exceed FCC mandated RF exposure limits. FCC rules require professional installation of these antennas in such a way that the general public will not be closer than 2 m from the radiating aperture of any of these antennas. End users of these systems must also be informed that RF exposure limits may be exceeded if personnel come closer than 2 m to the apertures of any of these antennas. Notice to users/installers using the following mobile antennas, with Cirronet RF products: Mobile Mark 12dBi omni-directional, Mobile Mark 9dBi omni-directional, MaxRad 5dBi whip, Cirronet Patch antenna, Ace 2dBi dipole, Mobile Mark 2dBi Stub The field strength radiated by any one of these antennas, when connected to Cirronet RF products, may exceed FCC mandated RF exposure limits. FCC rules require professional installation of these antennas in such a way that the general public will not be closer than 20 cm from the radiating aperture of any of these antennas. End users of these systems must also be informed that RF exposure limits may be exceeded if personnel come closer than 20 cm to the apertures of any of these antennas.

HN-1010/HN-1510 Outdoor/Indoor Units User’s Guide 5375 Oakbrook Parkway Norcross, Georgia 30093 www.cirronet.com +1 678 684-2000 ii Important Regulatory Information FCC ID, HSW-HN-1010 and FCC ID, HSW-HN-1510 Maximum Permissible Exposure (MPE) Limits • Notice to users/installers using the 24 dBi parabolic dish antenna in conjunction with all Cirronet RF products. FCC rules limit the use of this antenna, when connected to Cirronet RF products for point-to-point applications only. It is the responsibility of the installer to ensure that the system is prohibited from being used in point-to-multipoint applications, omni-directional applications, and applications where there are multiple co-located intentional radiators transmitting the same information. Any other mode of operation using this antenna is forbidden. • Information to user/installer regarding FCC s Maximum Permissible Exposure (MPE) limits. • Notice to users/installers using the following fixed antennas, with Cirronet RF products: Andrews 24dBi parabolic dish, Andrews 18dBi parabolic dish, Cushcraft 15dBi Yagi, Mobile Mark 14dBi Corner Reflector, Mobile Mark 9dBi Corner Reflector The field strength radiated by any one of these antennas, when connected to Cirronet RF Note: This unit has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their own expense. Commensurate with EIRP limits specified in FCC Rules 15.247b, this device may not be used with antennas that exceed 36dB of gain in point-to-point applications or 16dB of gain in multi-point applications. iii M-2410-0003 Rev. B products, may exceed FCC mandated RF exposure limits. FCC rules require professional installation of these antennas in such a way that the general public will not be closer than 2 m from the radiating aperture of any of these antennas. End users of these systems must also be informed that RF exposure limits may be exceeded if personnel come closer than 2 m to the apertures of any of these antennas. • Notice to users/installers using the following mobile antennas, with Cirronet RF products: Mobile Mark 12dBi omni-directional, Mobile Mark 9dBi omni-directional, MaxRad 5dBi whip, Cirronet Patch antenna, Ace 2dBi dipole, Mobile Mark 2dBi Stub The field strength radiated by any one of these antennas, when connected to Cirronet RF products, may exceed FCC mandated RF exposure limits. FCC rules require professional installation of these antennas in such a way that the general public will not be closer than 20 cm from the radiating aperture of any of these antennas. End users of these systems must also be informed that RF exposure limits may be exceeded if personnel come closer than 20 cm to the apertures of any of these antennas. European Community Notice This device complies with ETS 300.328 of the European Community. Operation is subject to the following conditions: • This device may not cause interference. • This device must accept interference, including undesired interference that may impede the operation of this device. End of Regulatory Information Repairs Cirronet does not recommend field repairs of the radio equipment. Surface Mount Technology (SMT) has been used in the production of the transceiver module, which requires specialized training and equipment for proper servicing. The equipment should be returned to the factory for any repair. Steps have been taken to insure the accuracy of the contents of this manual. Nevertheless, Cirronet Incorporated cannot guarantee the accuracy of this manual. Copyright 2001 Cirronet™ Incorporated WaveBolt is a trademark of Cirronet Incorporated. Windows is a registered trademark of Microsoft Corporation. ii Table of Contents FCC ID HSW-2410M ............................................Error! Bookmark not defined. C OPYRIGHT 2001 CIRRONET™ INCORPORATED....ERROR! BOOKMARK NOT DEFINED. Maximum Permissible Exposue (MPE) Limits ......Error! Bookmark not defined. FCC NOTICE, U.S.A. ..........................................ERROR! BOOKMARK NOT DEFINED. E UROPEAN COMMUNITY NOTICE...........................ERROR! BOOKMARK NOT DEFINED. REPAIRS.............................................................ERROR! BOOKMARK NOT DEFINED. Table of Contents................................................................................................. iii Overview ...............................................................................................................1 I NTRODUCTION.....................................................................................................1 H OPNET PRODUCTS.............................................................................................1 External Antenna ...........................................................................................1 Built-In Antenna .............................................................................................1 Accessories ...................................................................................................1 DESIGN FEATURES...............................................................................................1 GLOSSARY OF TERMS...........................................................................................2 About HopNet Products ........................................................................................5 INTRODUCTION.....................................................................................................5 OP…

Text truncated - open the document above for the full version.

FCC ID: HSW-HN1510

FCC ID: HSW-HN1510

From: Joe Dichoso [email protected] FCC Application Processing Branch Re: FCC ID HSW-HN1510 Applicant: Cirronet Correspondence Reference Number: 23623 731 Confirmation Number: EA967554 For Questions 1 – 4, see theory of operation from original radio specifications uploaded. If this does not address all issues, please let us know. 1) The transmitter cannot coordinate its hopping sequence with the hopping sequence of other transmitters, or vice versa, for the purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Provide a description on how the device complies with this rule. 2) The system shall hop to channel frequencies that are selected at the system hopping rate from a pseudorandomly ordered list of hopping frequencies. Indicate how the pseudorandom hopping sequence is derived. Provide a list of channel frequencies and a sample of a few sequences. 3) Each frequency must be used equally on the average by each transmitter. Each new transmission cannot start on the same point in a sequence(except for voice systems.) Some transmissions may need only a few frequency hops to be completed and If the transmission started on the same frequency each time, this frequency would be used more than the others if many short transmissions were sent. Therefore, Describe where the next transmission starts when a sequence is not completed in a previous message. 4) Section 15.247(a)1 indicates that the system receivers shall have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitted signals. Please explain how the device complies with this rule when a packet is repeated or when multiple packets are sent. What is the receiver input bandwidth? How does the receiver shift frequencies and determine which frequency to shift to in order to synchronize with this transmitter? 5) Which antennas will be for fixed operation? Which antennas will be for mobile operation? The technical description indicates for indoor use. Clarify which antennas will be for indoor use. See new manual provided (pages 2 & 3) 6) Provide a complete manual with warnings. See new manual provided.

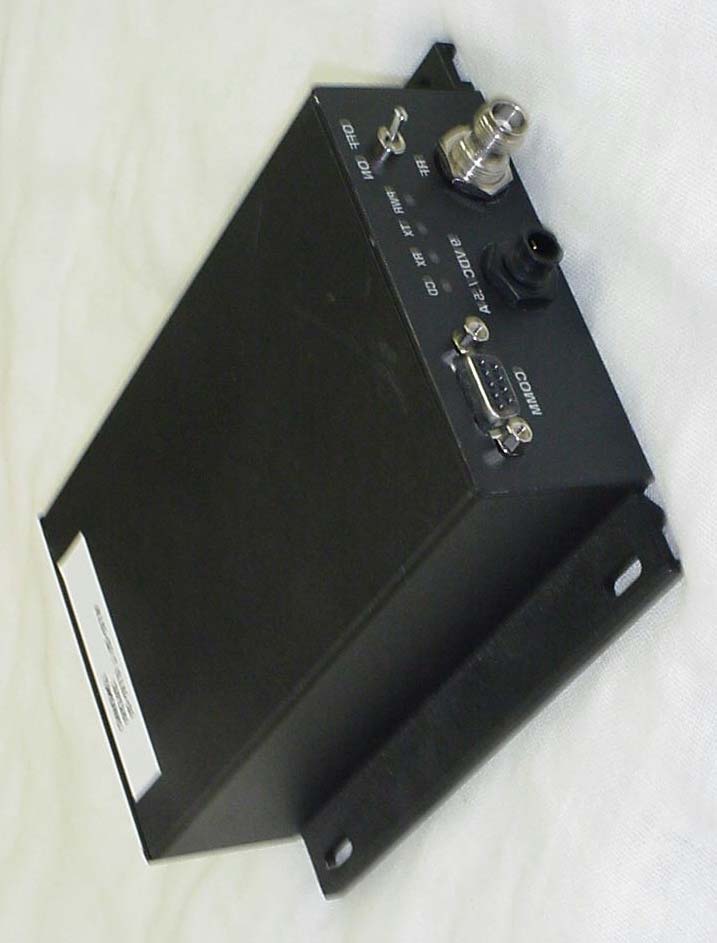

FCC ID: HSW-HN1510 Photo 1.EUT, Front View FCC ID: HSW-HN1510 Photo 2.EUT, Rear View FCC ID: HSW-HN1510 Photo 3.EUT, View Showing Connectors

FCC ID: HSW-HN1510 SECTION 3 LABELING INFORMATION FCC ID: HSW-HN1510

FCC ID: HSW-HN1510 Photo 4.EUT, Top View of PCB FCC ID: HSW-HN1510 Photo 5.EUT, Bottom View of PCB FCC ID: HSW-HN1510 Photo 6.Modular Transceiver, 3 Dimensional Front View FCC ID: HSW-HN1510 Photo 7.Modular Transceiver, 3 Dimensional Rear View FCC ID: HSW-HN1510 Photo 8.Modular Transceiver, Top View with Cover Opened FCC ID: HSW-HN1510 Photo 9.Modular Transceiver, Top View of Board FCC ID: HSW-HN1510 Photo 10.Modular Transceiver, Bottom View of Board

FCC ID: HSW-HN1510 SECTION 8 RF EXPOSURE INFORMATION FCC ID: HSW-HN1510 5.1 RF Safety Requirements to 2.1091 for Mobile Transmitters The unit under evaluation has various external antennas. Cirronet Corporation calculated the MPE emission values for a HN1510 with each of the antennas. The maximum power density occurs when using the 24 dBi dish for fixed applications and with the 12 dBi omnidirectional for mobile applications. They used the formula shown in OET Bulletin 65 and calculated the minimum distance between antenna and unsuspecting user as 26.0 cm for fixed applications and 6.5 cm for mobile applications. Cirronet Corporation will sell the HN1510 with one of the following antennas: Previously Approved Antennas as Listed in Original Submittal MANUFACTURERTYPE OF ANTENNAMODELGAIN dB ACE DipoleACE-2400NF 2 dBi Cushcraft Yagi PC2415-RTNF15 dBi Mobile Mark Omni-Directional OD6-2400-RTNC6 dBi Mobile Mark Omni-Directional OD12-2400PTA-RTNC12 dBi Mobile Mark Corner Reflector SCR14-2400PTA-RTNC14 dBi Mobile Mark Patch P7-2400RTNC7 dBi Cirronet Corporation. Patch PA2410Appx. 3 dBi New Additional Antennas Covered by Permissive Change Application MANUFACTURERTYPE OF ANTENNAMODELGAIN dB Mobile Mark Vehicle MountRM3-2400-RTNC 2.5 dBi Mobile Mark Corner ReflectorSCR9-2400-RN 9 dBi MaxRad Whip MUF24005-RTNC5 dBi Andrews Parabolic Dish 26T-2400 A24 dBi Andrews Parabolic Dish 18T-2400 A18 dBi FCC ID: HSW-HN1510 5.1 RF Safety Requirements to 2.1091 for Mobile Transmitters – Cont. Power Output The EUT’s maximum expected output power as shown in the original grant of certification (FCC ID: HSW-2410M) was Frequency of Fundamental (MHz) Measurement (dBm)* Measurement (Watt)* FCC Limit* (Watt) 2401.916.20.0411.0 2440.016.80.0471.0 2483.516.80.0471.0 * Measurement includes 0.3 dB for cable loss The maximum EIRP expected for fixed installations is with the +24 dBi gain parabolic dish antenna. This would yield and maximum EIRP of 16.8 dBm + 24 dBi = +40.8 dBm. The maximum EIRP expected for mobile installations is with the +12 dBi gain omnidirectional antenna. This would yield and maximum EIRP of 16.8 dBm + 12 dBi = +28.8 dBm. FCC ID: HSW-HN1510 5.1 RF Safety Requirements to 2.1091 for Mobile Transmitters – Cont. Source Based Time Averaging Additionally, source based time averaging may be applied as the worse case transmit duty cycle is given as follows: Worst Case Transmit Duty Cycle for HN1510 This factor was calculated by first determining the worst case scenario for system operation - worst case being defined as the scenario when the HN1510 would be transmitting the longest period during a dwell. This worst case operating scenario is as follows: 1)point-to-point operation (only two units communicating with one another) 2)data flow is almost completely unidirectional (that is, one radio is relaying a large amount of data to the other radio with only synchronization data being passed back the other direction) 3)The amount of data being fed to the sending radio is exactly portioned out to fit the maximum packet size allowable (280 bytes). The radio cannot send more than 280 bytes on a single channel – additional data must be sent on the next hop. For this example, a remote unit is transferring a large data file to a base unit. The maximum transmit time by Remote on a single channel would be: = 280 bytes * 8 bits/byte * (1/460.8 Kbps) = 4.86 ms The minimum hop duration for this scenario would be 6.94 ms. This transmit pattern would continue on each channel and is considered repetitive. Therefore, for purposes of MPE, the transmission duty cycle correction factor is then calculated as: Duty cycle = (on time)/(total time) = 4.86/6.94 = 70.0 % This yields for a duty cycle correction of 10 log (0.70) = -1.5 dB. Therefore the maximum EIRP for fixed installations may be expected to be +40.8 dBm – 1.5 dB = +39.3 dBm Antilog(39.3 dBm/10) = 8511.4 mW The maximum EIRP for mobile installations may be expected to be +28.8 dBm – 1.5 dB = +27.3 dBm Antilog(27.3 dBm/10) = 537.0 mW 5.1 RF Safety Requirements to 2.1091 for Mobile Transmitters – Cont. FCC ID: HSW-HN1510 MPE Calculations The limits for this unit (uncontrolled exposure) are 1.0 mW/cm 2 . Taking the RF Denisty Field Equation: S = (EIRP in mW)/(4πR 2 ) and solving for Distance R R = SQRT ((EIRP in mW)/(S4π)) Solving the above equation yields R (cm) = SQRT (8511.4(mw)/(1.0(mW/cm 2 )*4*π)) = 26.0 cm for fixed installations R (cm) = SQRT (537.0(mw)/(1.0(mW/cm 2 )*4*π)) = 6.5 cm for mobile installations Since the EUT is designed for mobile and fixed applications (where the expected separation distance between antenna and humans is greater than 20 cm or 2 m respectively), all manual instructions have specified 20 cm or 2 meters as appropriate for the types of antenna being used the minimum exposure distance.

February 21, 2001 Mr. Mark Tucker Vice President of Engineering Digital Wireless 5375 Oakbrook Parkway Norcross, GA 30093 Dear Mr. Tucker: In our opinion, the Digital Wireless Corporation HN-1510 meets FCC Part 15, Class A Verification requirements when tested in the configuration described in our enclosed test report. Please sign the signature page of the report and keep it in your files as proof that the product has been tested. Also enclosed for your information, are instructions on Part 15 labeling requirements. If you have any questions, please don't hesitate to call. Thank you for your business. Sincerely, Timothy R. Johnson Engineering Manager NARTE Certified EMC Engineer No. EMC-002205-NE Part 15, Class A Verification Test Report of the Digital Wireless Corporation HN-1510 Issue Date: February 21, 2001 UST Project No: 00-0600 Total Number of Pages Contained Within This Report: 15 I certify that I am authorized to sign for the manufacturer and that all of the statements in this report and in the Exhibits attached hereto are true and correct to the best of my knowledge and belief: UNITED STATES TECHNOLOGIES, INC. (AGENT RESPONSIBLE FOR TEST): By: Name: Timothy R. Johnson Title: Engineering Manager NARTE Certified EMC Engineer No. EMC-002205-NE Date: February 21, 2001 Digital Wireless Corporation 5375 Oakbrook Parkway Norcross, GA 30093 By: Name: Title: Date: This report shall not be reproduced except in full. This report may be copied in part only with the prior written approval of U.S. Technologies. The results contained in this report are subject to the adequacy and representative character of the sample provided. ii. FCC CLASS A LABELING INFORMATION MANUAL (a) For a Class A digital device or peripheral, the user instructions must include the following or similar statement, placed in a prominent location in the text of the manual: NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is oper- ated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. 15.21 INFORMATION TO USER The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27 SPECIAL ACCESSORIES Accessory items that can be readily obtained from multiple retail outlets are not considered to be special accessories and are not required to be marketed with the equipment. The manual included with the equipment must specify what additional components or accessories are required to be used in order to ensure compliance (i.e. shielded cables), and it is the responsibility of the user to provide and use those components and accessories. 15.19 LABELING REQUIREMENTS This device shall bear the following statement in a conspicuous location on the device: LABEL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. iii. NOTICE TO CUSTOMERS SELLING DIGITAL DEVICES IN CANADA CANADIAN MANDATORY EMI REGULATION As of January 31, 1989, Canada has implemented mandatory EMI regulations which apply to every digital apparatus manufactured or imported into Canada as of January 31, 1989. The technical requirements of the Canadian regulations are equivalent to the US FCC Part 15, and Canada will accept tests performed using the ANSI C63.4 procedure. Equipment compliant with FCC Part 15 is also compliant with the Canadian regulation. Canada still requires their specific labeling to be placed on equipment. The device shall bear the following statement in a conspicuous location: "This (Class A/Class B)* digital apparatus complies with Canadian ICES-003." "Cet appareil numérique (de la classe A/de la classe B)* est conforme à la norme NMB-003 Canada." It is recommended that the label be written in both French and English, especially in French speaking areas of Canada. Where because of insufficient space or other restrictions it is not feasible to affix a label to the apparatus, the labeling may be in the form of a statement included in the user's manual, but the following information should still be applied to the label: “ICES-003/(A/B)*” *Indicate only the class of digital apparatus which is appropriate for the specific application. NOTICE FOR PRODUCTS WHICH CONTAIN A PREVIOUSLY APPROVED MODULAR TRANSMITTER/TRANSCEIVER In some cases, Industry Canada may require additional information regarding your approved transmitter/transceiver. If your company requires assistance with submittal of any information, please contact U.S. Tech at (770)740-0717. iv. U.S. Technologies, Inc.Test Report, Part 15A Verification Rev: 122100 Report Number: 00-0600Issue Date: April 16, 2002 Customer: Digital Wireless Model: HN-1510 Page 1 of 11 EXHIBIT A EVALUATION REPORT A. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT): The Equipment Under Test (EUT) is the Digital Wireless Corporation HN-1510. The transceiver was modularly approved, and only the receiver test was needed for Class A Part 15 Verification at this time. The HN-1510 is an industrial wireless modem housed in an environmentally rugged enclosure. The circuitry inside the modem includes a modularly approved WIT2410 frequency hopping transceiver (HSW-2410M), interfac…

Text truncated - open the document above for the full version.

Digital Wireless Corporation FCC Part 15, Certification Application WIT2410 July 12, 1999 MEASUREMENT/TECHNICAL REPORT COMPANY NAME:Digital Wireless Corporation MODEL:WIT2410 FCC ID:HSW-2410M DATE:July 12, 1999 This report concerns (check one): Original grant X Class II change_____ Equipment type: Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? yes_____ No X If yes, defer until:_________________ date N.A. agrees to notify the Commission by N.A. date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: United States Technologies, Inc. 3505 Francis Circle Alpharetta, GA 30004 Phone Number: (770) 740-0717 Fax Number: (770) 740-1508 FCC ID: HSW-2410M FCC ID: HSW-2410M TABLE OF CONTENTS LETTER OF CONFIDENTIALITY SECTION 1 GENERAL INFORMATION 1.1 Product Description 1.2 Related Submittal(s) SECTION 2 TESTS AND MEASUREMENTS 2.1 Configuration of Tested EUT 2.2 Test Facility 2.3 Test Equipment 2.4 Modifications 2.5 Test Procedure and Results 2.6 Antenna Description 2.7 Peak Power (Antenna Conducted at Antenna Terminal) 2.8 Antenna Conducted Spurious Emissions 2.9 Peak Radiated Spurious Emissions 2.10 Average Radiated Spurious Emissions 2.11 Minimum 20 dB Bandwidth 2.12 Number of Hopping Channels 2.13 Average Time of Occupancy per Channel 2.14 Power Line Conducted Emissions for Transmitter 2.15 Radiated Emissions for Digital Device & Receiver (if Applicable) 2.16 Power Line Conducted for Digital Device & Receiver (if Applicable) SECTION 3 LABELING INFORMATION SECTION 4 BLOCK DIAGRAM(S)/ SCHEMATIC(S) SECTION 5 PHOTOGRAPHS SECTION 6 THEORY OF OPERATION SECTION 7 USER'S MANUAL FCC ID: HSW-2410M LIST OF FIGURES AND TABLES FIGURES 1)Test Configuration 2) Photograph(s) for Spurious and Conducted Emissions 3) Peak Output Power 4) Conducted Spurious Emissions 5) Peak Radiated Spurious Emissions 6) 20 dB Bandwidth 7) Number of Hopping Channels TABLES 1)EUT and Peripherals 2) Test Instruments 3) Peak Power Output 4) Peak Radiated Spurious Emissions 5) Average Radiated Spurious Emissions 6) 20 dB Bandwidth 7) Number of Hopping Channels 8) Conducted Emissions 9) Radiated Emissions for Digital Device and Receiver FCC ID: HSW-2410M SECTION 1 GENERAL INFORMATION FCC ID: HSW-2410M GENERAL INFORMATION 1.1Product Description The Equipment Under Test (EUT) is a Digital Wireless Corporation, Model WIT2410 modular 2.4 GHz spread spectrum transceiver. The EUT will be used with one of seven different antennas. FCC ID: HSW-2410M 1.2Related Submittal(s)/Grant(s) The EUT will be used to send/receive data. The transceiver presented in this report will be used with other like transceivers: The EUT is subject to the following authorizations: a) Certification as a transceiver (modular approval) b) Verification as a digital device The information contained in this report is presented for the certification & verification authorization(s) for the EUT. The manufacturer desires to seek a modular approval on this device. FCC ID: HSW-2410M SECTION 2 TESTS AND MEASUREMENTS FCC ID: HSW-2410M TEST AND MEASUREMENTS 2.1 Configuration of Tested System The sample was tested per ANSI C63.4, Methods of Measurement from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (1992). Conducted and radiated emissions data were taken with the test receiver or spectrum analyzer's resolution bandwidth adjusted to 9 kHz and 120 kHz, respectively. All measurements are peak unless stated otherwise. The video filter associated with the spectrum analyzer was off throughout the evaluation process. Interconnecting cables were manipulated as necessary to maximize emissions. Interconnecting cables were manipulated as necessary to maximize emissions. A block diagram of the tested system is shown in Figure 1. Test configuration photographs for spurious and fundamental emissions are shown in Figure 2. The sample used for testing was received by U.S. Technologies on April 23 in good condition. 2.2 Test Facility Testing was performed at US Tech's measurement facility at 3505 Francis Circle, Alpharetta, GA. This site has been fully described and submitted to the FCC, and accepted in their letter marked 31040/SIT. Additionally this site has also been fully described and submitted to Industry Canada (IC), and has been approved under file number IC2982. 2.3 Test Equipment Table 2 describes test equipment used to evaluate this product. 2.4 Modifications No modifications were made by US Tech, to bring the EUT into compliance with FCC Part 15, Class B Limits for the transmitter portion of the EUT or the Class B Digital Device Requirements. FCC ID: HSW-2410M FIGURE 1 TEST CONFIGURATION EUT Antenna Controller AC Adapter Lap Top Computer 6’S 2 M U 120 VAC 60 Hz 2’ U Varied from 7” S to 4’ S 6’ U 1…
