HSWZ2430ZMN2430 ZigBee Module

Murata Electronics North America
ZMN2430 ZigBee Module - FCC ID HSWZ2430 - Murata Electronics North America
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Mar 06, 2008
Application Purpose
Original Equipment
Date of Application
Mar 05, 2008
Equipment Note
ZMN2430 ZigBee Module
Frequency Range
2405.00000000 - 2475.00000000
Company
Murata Electronics North America
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗
↗

External Photos

↗

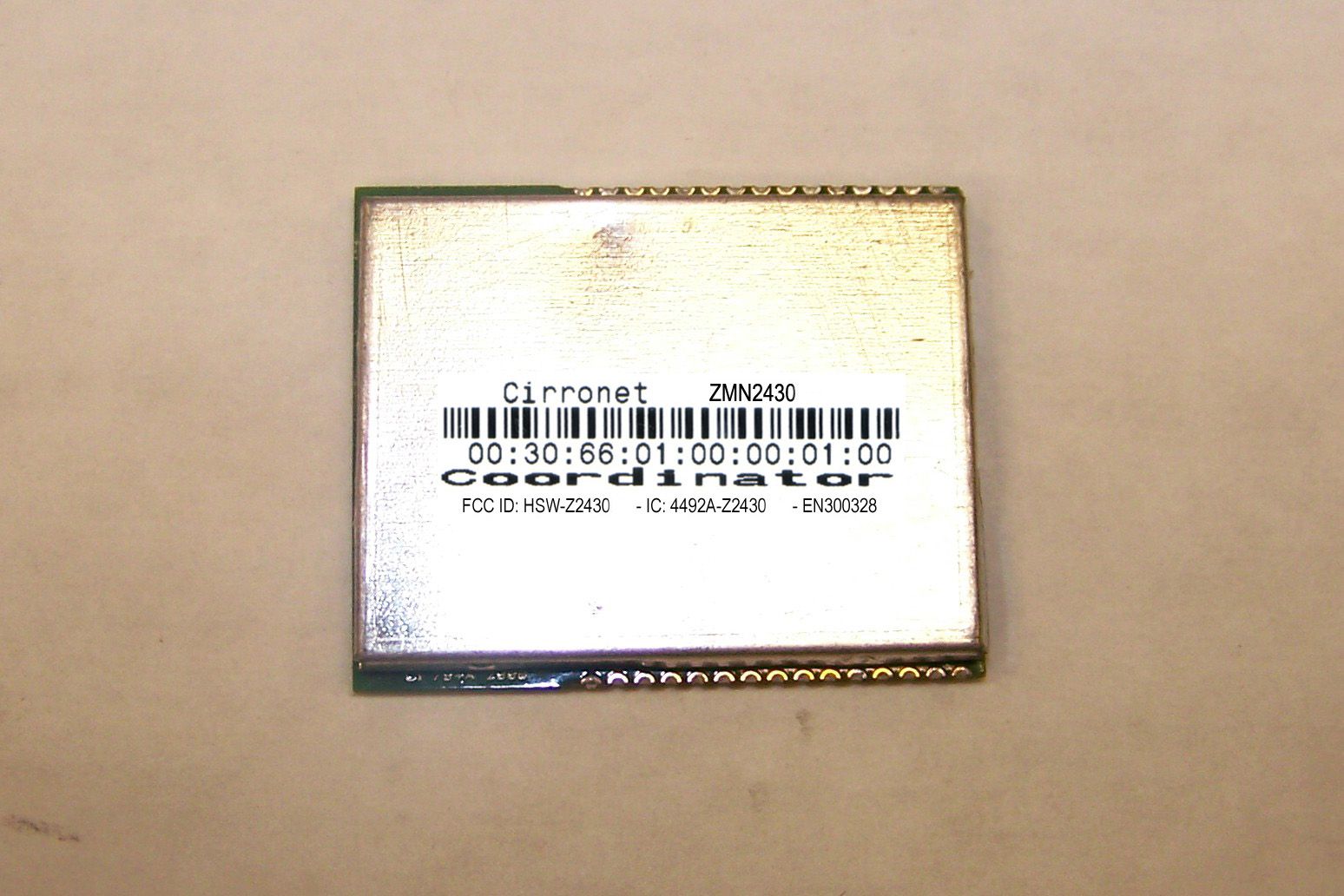

ID Label/Location Info

↗
↗

Internal Photos

↗

Test Report

↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

US Tech FCC ID: HSW-Z2430 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 78 of 82 7 User's Manual ZMN2430 Series Radio Module ZMN2430 Manual Preliminary Cirronet, Inc. US Tech FCC ID: HSW-Z2430 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 79 of 82 Important Regulatory Information Cirronet Zigbee High Power - FCC ID: HSW-Z2430 IC: 4492A-Z2430 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. FCC User Information “NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.” Warning: Changes or modifications to this device not expressly approved by Cirronet Inc. could void the user’s authority to operate the equipment. RF Exposure In accordance with FCC requirements of human exposure to radiofrequency fields, the radiating element shall be installed such that a minimum separation distance of 20cm shall be maintained from the user and/or general population. Industry Canada This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareillage numérique de la classe B répond à toutes les exigences de l'interférence canadienne causant des règlements d'équipement. L'opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer l'interférence nocive, et (2) ce dispositif doit accepter n'importe quelle interférence reçue, y compris l'interférence qui peut causer l'opération peu désirée. US Tech FCC ID: HSW-Z2430 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 82 of 82 ZMN2430 Frequency Selection The ZMN2430 is not frequency agile during run-time, but it can select an unoccupied portion of the spectrum at startup. The ZMN-2400 series uses a set of channels as defined by the IEEE 802.15.4 / ZigBee standards which span a range from 2405 to 2480 MHz with 5 MHz spacing between channels: Center Frequency (MHz) Nominal Occupied BW ZigBee Channel Designator 2405 2402.5-2407.5 11 2410 2407.5-2412.5 12 2415 2412.5-2417.5 13 2420 2417.5-2422.5 14 2425 (default) 2422.5-2427.5 15 2430 2427.5-2432.5 16 2435 2432.5-2437.5 17 2440 2437.5-2442.5 18 2445 2442.5-2447.5 19 2450 2447.5-2452.5 20 2455 2452.5-2457.5 21 2460 2457.5-2462.5 22 2465 2462.5-2467.5 23 2470 2467.5-2472.5 24 2475 2472.5-2477.5 25 2480 NOT USED 2477.5-2482.5 26 The channel mask is the name used to describe the list of frequency channels that a ZMN-2400 can use. The default channel mask for client radios allows them to operate on any frequency from 2405 to 2475 (channel 2480 is reserved for manufacturing test purposes and therefore not included).

Cover Letter(s)

APPLICATION FOR EQUIPMENT AUTHORIZATION AmericanTCB, Inc. 6731 Whittier Avenue McLean, VA 22101 Ph: (703) 847-4700 FAX: (703) 847-6888 [email protected] SECTION I - ALL ITEMS IN THIS SECTION MUST BE COMPLETED 1. Applicant’s complete, legal business name Cirronet, Inc. 2. Applicant’s mailing address (Line 1) 3079 Premiere Parkway FRN Number 0005796396 Applicant’s mailing address (Line 2) (if required) Engineer: City Duluth Examiner: State or Country (if foreign address) ZIP/Postal Code 3. FCC ID: (b) Equipment Product Code Georgia 30097 (a) Grantee Code (14 characters maximum) H S W Z2430 4. Name, Title and Mail Stop, if any, of person at the applicant’s address to receive grant, or for contact: (See instructions) Mark Tucker, VP, Engineering 5. (a) Telephone No. (Area/Country/City Code, No. and Ext.) (b) FAX No. (Area/Country/City Code and No.) 1-678-684-2000 1-678-684-2001 (c) Internet e-mail address: [email protected] SECTION II – CONTACT INFORMATION 1.(a) Instead of Applicant, original Grant shall be mailed to: Firm Name, US Tech Number,street, 3505 Francis Circle City, Alpharetta State/Country, Georgia, USA ZIP/Postal Code 30004 (b) Name, Title and Mail Stop, if any, of person at above address to receive Grant: Sandi McEnery, Manager 2.(a) Technical contact: (b) Telephone No. (Area/Country/City code, No. and Ext.) Firm Name, US Tech (770) 740-0717 Contact person, Stephen Sawyer Number, street, 3505 Francis Circle City, Alpharetta (c) FAX No. (Area/Country/City code, and No.) State/Country Georgia (770) 740-1508 ZIP/Postal code 30004 (d) Internet e-mail address: [email protected] (e) NonTechnical contact: (f) Telephone No. (Area/Country/City code, No. and Ext.) Firm Name, US Tech Same as above Contact person, Stephen Sawyer Number, street, Same City, Same (g) FAX No. (Area/Country/City code, and No.) State/Country Same Same as above ZIP/Postal code Same (h) Internet e-mail address: same APPLICATION FOR EQUIPMENT AUTHORIZATION AmericanTCB, Inc. 6731 Whittier Avenue McLean, VA 22101 Ph: (703) 847-4700 FAX: (703) 847-6888 [email protected] SECTION III –EQUIPMENT AUTHORIZATION SUMMARY 1. Confidentiality Does this application include a request for confidentiality for a portion(s) of the data contained in this application pursuant to 47 CFR 0.459 of the Commission's Rules? X Yes o No 2. Defer Does the applicant desire the Commission to defer grant of this application pursuant to 47 CFR 0.457(d)(1)(ii)? (See instructions) NOT APPLICABLE 3. Type of equipment authorization requested: X Certification 4.(a) Equipment Code and description: (b) Equipment will be operated under FCC Rule Part(s): D S S Spread Spectrum Transmitter CFR Part 15, Subparts B & C Wireless LAN 5. Application is for (Check one box only) X 1. Original equipment o 2. Change in identification of presently authorized equipment o3. Class II permissive change or modified of presently authorized equipment Original FCC ID Grant date 6. Equipment Specifications: (a) Frequency range in MHz (b) Rated RF power output in watts (c) Frequency tolerance %, Hz, ppm (d) Emission designator (See 47 CFR §2.201 and § 2.202) (e) Microprocessor model number 2405 – 2475 0.000615 N/A N/A 7. Is the equipment in this application: (a) a composite device subject to more than one type of equipment authorization? o Yes XNo (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? o Yes X No 8. (a) Additional type of equipment authorization required: o Certification o Notification (b) The related application checked in item 7.(a) (Check one box only) o has been filed at the same time as this application under the FCC ID listed below o has been granted under the FCC ID below o is in the process of being filed under the FCC ID listed below o is pending with the FCC under the FCC ID listed below FCC ID: HSWZ2430 9.(a) Name of test firm on file with the FCC, if different from applicant or contact person: United States Technologies Inc. (b) Mailing address,: (c) Telephone No. (Area/Country/City code, No. and E Number, street, 3505 Francis Circle 770-740-0717 City, Alpharetta, State/Country GA USA (d) FAX No. (Area/Country/City code, and No.) ZIP/Postal code 30004 770-740-1508 (e) Internet e-mail address: [email protected] APPLICATION FOR EQUIPMENT AUTHORIZATION AmericanTCB, Inc. 6731 Whittier Avenue McLean, VA 22101 Ph: (703) 847-4700 FAX: (703) 847-6888 [email protected] SECTION IV - Read each certification carefully before answering and signing this application. WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND/OR IMPRISONMENT(U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTRUCTION PERMIT (U.S. CODE, TITLE 47, SECTION 312(a)(1)), AND/OR FORFEITURE (U.S. CODE, TITLE 47, SECTION 503). 1. SECTION 5301 (ANTI-DRUG ABUSE) CERTIFICATION: The applicant must certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a “party” for these purposes. Does the applicant or authorized agent so certify? X Yes o No 2.(a) APPLICANT/AGENT CERTIFICATION: I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. In accepting a Grant of Equipment Authorization issued by the FCC as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of t…

Text truncated - open the document above for the full version.

Cover Letter(s)

US Tech FCC ID: HSW-Z2430 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 7 of 82 AGENCY AGREEMENT Federal Communications Commission P.O. Box 429 Columbia, MD 21045 Date: January 9, 2008 Gentlemen: I hereby appoint US Tech to act as our agent in the preparation of an application for equipment authorization of ZMN2430HP, FCC ID: HSW-Z2430 under Part 15 of the FCC Rules and Regulations. I certify that the Exhibits properly describe the device or system for which authorization is sought, that the information described in the User's Manual will be provided with each item manufactured or distributed by the applicant, and that the labels described by Section 4 will be affixed to each item manufactured or distributed by the applicant. I further certify that appropriate arrangements have been made to assure that production units of this equipment bearing the name and FCC Identifier listed in this application will continue to comply with the Commission's requirements. I further certify by signature below that no party (per 47 CFR 1.2002(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Al Patrick, Date: January 9, 2008 Sr. Compliance Engineer Al Patrick Cirronet Inc. [email protected] 3079 Premiere Parkway Duluth, GA 30097 678 684 2000 ext. 138

Cover Letter(s)

US Tech FCC ID: HSW-Z2430 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 8 of 82 CONFIDENTIALITY REQUEST Federal Communications Commission Date: 1-9-08 Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: Cirronet respectfully requests confidentiality of certain materials provided with the submission of the ZigBee Module under FCC ID: HSW-Z2430 in accordance with FCC Regulations 0.459. The confidentiality request applies to the (1) schematic diagrams, (2) detailed block diagrams, (3) detailed operational descriptions, and (4) parts lists, that may be cont’dained in this filing. The ZigBee Module has been developed at considerable effort and expense by Cirronet. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in unfair duplication of equipment that could severely damage the company's business advantage. I appreciate your assistance in this matter. Sincerely, Al Patrick Al Patrick Sr. Compliance Engineer Cirronet Inc. 3079 Premiere Parkway, Suite 140 Duluth, GA 30097 USA TEL: 678 684 2000 FAX: 678 684 2001 www.cirronet.com [email protected]

Cover Letter(s)

. Worst Case Transmit Duty Cycle for ZMN2430 The duty cycle de-rating factor used in the calculation of average radiated limits (per 15.209) is described below. This factor was calculated by first determining the worst case scenario for system operation. The worst case operating scenario is as follows: Maximum transmit time/on equals 0.5ms over a 100 ms period. The transmission duty cycle correction factor is then calculated as: 20 log10 (0.5ms/100ms)= -46.02dB I hereby declare that the above statement is true and accurate. Mark E. Tucker VP of Engineering Cirronet Inc. September 6, 2007

Cover Letter(s)

Page 1 of 2 © Cirronet 2008 Cirronet, Inc. Tel: 678 684 2000 3079 Premiere Parkway Fax: 678 684 2001 Duluth, Georgia 30097 USA Date: 8/16/2007 Reference: FCC DA 00-1407 PART 15 UNLICENSED MODULAR TRANSMITTER APPROVAL Cirronet ZMN2430 ZigBee Module FCC ID: Z2430 Per FCC DA 00-1407, Cirronet’s ZigBee modules are compliance with the requirements listed below. 1. The modular transmitter must have its own RF shielding. Cirroent’s ZigBee Module has shielding as required. 2. The modular transmitter must have buffered modulation/data inputs. Cirroent’s ZigBee Module has buffered modulation and data inputs. 3. The modular transmitter must have its own power supply regulation. Cirronet’s ZigBee Module has its own internal regulator. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). Cirronet’s ZigBee Module output is through a set of connections which are like a ball grid array and once soldered to a PC board the connects are not accessible. Without a support PC board the module is unusable. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. Cirronet’s ZigBee Module was tested on a support PC board designed to meet the requirements of modular approval. Complete open. 6. The modular transmitter must be labeled with its own FCC ID number Cirronet’s ZigBee Module is design as a OEM module. The ZigBee Page 2 of 2 © Cirronet 2008 Module will be labeled and instructions given to the OEM customer for FCC label requirements. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter. An Integration Guide is provided with FCC compliance information. 8. The modular transmitter must comply with any applicable RF exposure requirements. An Integration Guide is also provides FCC MPE warnings per antenna types that are used. Al Patrick Sr. Compliance Engineer Cirronet Inc. 3079 Premiere Parkway, Suite 140 Duluth, GA 30097 USA TEL: 678 684 2000 FAX: 678 684 2001 www.cirronet.com [email protected]

External Photos

US Tech FCC ID: HSW-Z2430 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 74 of 82 Photo 1. Top of EUT, with shield

Internal Photos

US Tech FCC ID: HSW-Z2430 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 75 of 82 Photo 2. Top of EUT, shield removed US Tech FCC ID: HSW-Z2430 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 76 of 82 Photo 3. Bottom of EUT, shield removed

Test Report

Page 1 of 83 Application For Cirronet Corporation FCC Part 15, Subparts B and C, Certification ZMN2430 ZigBee Module FCC ID: HSW - Z2430 UST Project: 08-0007 Issue Date: January 31, 2008 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com Page 2 of 83 I certify that I am authorized to sign for the manufacturer and that all of the statements in this report and in the Exhibits attached hereto are true and correct to the best of my knowledge and belief: US TECH (AGENT RESPONSIBLE FOR TEST): By: Name: Alan Ghasiani Title: Operations & Engineering Date: January 31, 2008 Cirronet Corporation 3079 Premiere Parkway Duluth, GA 30097 By: Name: Title: Date: This report shall not be reproduced except in full. This report may be copied in part only with the prior written approval of US Tech. The results cont’dained in this report are subject to the adequacy and representative character of the sample provided. 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com US Tech FCC ID: HSW-Z2430 Test Report Number: 08-0007 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 3 of 83 MEASUREMENT TECHNICAL REPORT COMPANY NAME: Cirronet Corporation MODEL: ZMN2430 FCC ID: HSW- Z2430 DATE: January 31, 2008 This report concerns (check one): Original grant X Class II change_____ Equipment type: 2.4 GHz Zigbee Radio Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? yes_____ No X If yes, defer until:_________________ date N.A. agrees to notify the Commission by N.A. date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: US Tech 3505 Francis Circle Alpharetta, GA 30004 Phone Number: (770) 740-0717 Fax Number: (770) 740-1508 US Tech FCC ID: HSW-Z2430 Test Report Number: 08-0007 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 4 of 83 Table of Contents Paragraph Title Page Agency Agreement 7 Confidentiality 8 1 General Information 9 1.1 Product Description 9 1.2 Related Submittal(s) 9 2 Tests and Measurements 10 2.1 Configuration of Tested EUT 10 2.2 Test Facility 10 2.3 Test Equipment 10 2.4 Modifications 10 2.5 Antenna Description (CFR 15.203) 21 2.6 Peak Power within the band 2400 MHz to 2483.5 MHz 22 (CFR 15.247(b)(3)) 2.7 Radiated Spurious Emissions (CFR 15.247 (b)(3)) 27 2.8 Peak Radiated Spurious Emissions and Average Radiated 34 Spurious Emissions (CFR 15.247 (d)) 2.9 Band Edge Requirements (CFR15.247 (d)) 53 2.10 Minimum 6 dB Bandwidth (CFR 15.247(a)(2) 56 2.11 Worst Case transmit Duty Cycle 61 2.12 Power Line Conducted for Digital Device & Receiver (CFR 15.107) 62 2.13 Power Line Conducted Emissions for Transmitter (CFR 15.207) 63 2.14 Radiated Emissions for Digital Device & Receiver 65 (CFR 15.109) 2.15 Peak Power Spectral Density (CFR 15.247 (e)) 67 2.16 Maximum Public Exposure to RF Radiation (MPE) (CFR 15.247 (i)) 68 3 Labeling Information 71 4 Block Diagram(S)/ Schematic(S) 72 5 Photographs 73 6 Theory of Operation 77 7 User's Manual 78 US Tech FCC ID: HSW-Z2430 Test Report Number: 08-0007 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 5 of 83 List of Figures Figures Title Page 1 Test Configuration 11 2 Photograph(s) for Spurious Emissions Corner Antenna (Front) 14 3 Photograph of Spurious Emissions Corner Antenna (Rear View) 15 4 Photograph of Spurious Emissions Omni Antenna (Front View) 16 5 Photograph of Spurious Emissions Omni Antenna (Rear View) 17 6 Photograph of Spurious Emissions Patch (Front View) 18 7 Photograph of Spurious Emissions Patch (Rear View) 19 8 Photograph of Conducted Emissions 20 9 Peak Power per CFR 15.247(b) Low Channel 24 10 Peak Power CFR 15.247( b) Mid Channel 25 11 Peak Power, CFR 15.247( b) High Channel 26 12 Antenna Conducted Spurious Emissions-CFR 15.247(c) Low 27 13 Antenna Conducted Spurious Emissions- CFR 15.247(c) Low 29 Cont’d 14 Antenna Conducted Spurious Emissions- CFR 15.247(c) Mid 30 15 Antenna Conducted Spurious Emissions- CFR 15.247(c) Mid 31 Cont’d 16 Antenna Conducted Spurious Emissions – CFR 15.247(c) High 32 17 Antenna Conducted Spurious Emissions - CFR 15.247(c) High 33 Cont’d 18 Peak Radiated Spurious Emissions, 15.247(c) Fundamental 37 Low Corner Antenna 19 Peak Radiated Spurious Emissions 15.247(c) Fundamental 38 Mid Corner Antenna 20 Peak Radiated Spurious Emissions 15.247(c) Fundamental High 39 Corner Antenna 21 Peak Radiated Spurious Emissions 15.247(c) Representative 40 Harmonic Plot Corner Antenna 22 Peak Radiated Spurious Emissions, 15.247(c). Fundamental Low 43 Omni Antenna 23 Peak Radiated Spurious Emissions, 15.247(c). Fundamental Mid 44 Omni Antenna 24 Peak Radiated Spurious Emissions, 15.247(c). Fundamental High 45 Omni Antenna 25 Peak Radiated Spurious Emissions, 15.247(c). Representative 46 Harmonic Plot Omni Antenna 26 Peak Radiated Spurious Emissions, 15.247(c). Fundamental Low 49 Patch Antenna. 27 Peak Radiated Spurious Emissions 15.247(c). Fundamental Mid 50 Patch Antenna 28 Peak Radiated Spurious Emissions 15.247(c). Fundamental High 51 Patch Antenna. US Tech FCC ID: HSW-Z2430 Test Report Number: 08-0007 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 6 of 83 List of Figures Figures Title Page 29 Peak Radiated Spurious Emissions 15.247(c). Representative 52 Harmonic, Patch Antenna. 30 Band Edge Compliance Antenna Conducted, High Channel 54 31 Band Edge Compliance Antenna Conducted, Low Channel 55 32 Six dB Bandwidth per FCC Section 15.247(a)(1)(ii) Low 58 33 Six dB Bandwidth per FCC Section 15.247(a)(1)(ii) Mid 59 34 Six dB Bandwidth per FCC Section 15.247(a)(1)(ii) High 60 35 Peak Power Spectral Density (15.247(e)) Low Channel 68 36 Peak Power Spectral Density (15.247(e)) Mid Channel 69 37 Peak Power Spectral Density (15.247(e)) High Channel 70 List Of Tables 1 EUT and Peripherals 11 2 Test Instruments 13 3 Antennas Allowed 21 4…

Text truncated - open the document above for the full version.

Test Report

US Tech FCC ID: HSW-Z2430 Test Report Number: 08-0007 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 27 of 83 2 Tests and Measurements (Cont’d) 2.7 Antenna Conducted Spurious Emissions (CFR 15.247(b)(3)), ((IC RSS 210, A2.9(a))) Antenna conducted spurious emissions in the frequency range of 30 MHz – 25000 MHz were measured per FCC KDB Publication 558074 as a conducted test with a spectrum analyzer by connecting the spectrum analyzer directly, via a short cable, to the antenna output terminals. The spectrum analyzer was set for a 50 Ω impedance with the RBW = 120 kHz & VBW = 300 kHz. All antenna conducted spurious emissions were measured as greater than 20 dB down from the fundamental. The results of antenna conducted spurious emissions are given in Figure 12 through 17. Figures 12 through 17 are actually 4.23 dB larger than the graphs show because of cable loss. US Tech FCC ID: HSW-Z2430 Test Report Number: 08-0007 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 28 of 83 2 Test and Measurements (Cont’d) Figure 12 Antenna Conducted Spurious Emissions-CFR 15.247(b) Low US Tech FCC ID: HSW-Z2430 Test Report Number: 08-0007 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 29 of 83 2 Test and Measurements (Cont’d) Figure 13 Antenna Conducted Spurious Emissions- CFR 15.247(b), Low (Cont’d) . US Tech FCC ID: HSW-Z2430 Test Report Number: 08-0007 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 30 of 83 2 Test and Measurements (Cont’d) Figure 14 Antenna Conducted Spurious Emissions- CFR 15.247(b), Mid US Tech FCC ID: HSW-Z2430 Test Report Number: 08-0007 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 31 of 83 2 Test and Measurements (Cont’d) Figure 15 Antenna Conducted Spurious Emissions- CFR 15.247(b), Mid (Cont’d) Note: Signal shown represents Fundamental Frequency. US Tech FCC ID: HSW-Z2430 Test Report Number: 08-0007 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 32 of 83 2 Test and Measurements (Cont’d) Figure 16 Antenna Conducted Spurious Emissions – CFR 15.247(b), High US Tech FCC ID: HSW-Z2430 Test Report Number: 08-0007 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 33 of 83 2 Test and Measurements (Cont’d) Figure 17 Antenna Conducted Spurious Emissions- CFR 15.247(b), High (Cont’d) US Tech FCC ID: HSW-Z2430 Test Report Number: 08-0007 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 34 of 83 2 Test and Measurements (Cont’d) 2.8 Peak Radiated Spurious Emissions and Average Radiated Spurious Emissions (CFR 15.247(d)) (IC RSS 210, A2.9 (a)) The EUT, a Direct Sequence Spread Spectrum transmitter, was placed into a continuous transmit mode of operation and tested per FCC KDB Publication 558074. A scan was performed on the EUT (see Figures 12 through 17) to determine spurious signals that were caused by the transmitter. Significant emissions that fell within restricted bands were then measured on an OATS site. Radiated measurements below 1 GHz were tested with a RBW = 120 kHz. Radiated measurements above 1 GHz were measured using a RBW = VBW = 1 MHz. The results of peak radiated spurious emissions falling within restricted bands are given in Tables 5 and 6 and Figures 18 through 24. US Tech FCC ID: HSW-Z2430 Test Report Number: 08-0007 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 35 of 83 2 Test and Measurements (Cont’d) 2.8 Peak Radiated Spurious Emissions and Average Radiated Spurious Emissions (CFR 15.247(d)) (IC RSS 210, A2.9(a)) Test Date: January 21, 2008 UST Project: 08-0007 Customer: Cirronet, Inc. Model: ZMN2430 Table 5. Peak Radiated Spurious Emissions - Corner Antenna Radiated Spurious Emissions Test: FCC Part 15 Corner Reflector Antenna Client: Cirronet Corporation Test By: DA Project: 08-0007 Class: B Model: ZMN2430 Frequency Test Data AF Test Data AF+CA- AMP Results Limits Distance / Margin PK = n (MHz) (dBm) Table (dBuV) (dB) (uV/m) (uV/m) Polarity (dB) / QP LOW 2405.06 -39.5 1HN3mV 67.5 31.9 93422.5 50000.0 (2) 3m./VERT 14.6 PK *4810.16 -61.0 1HN3mV 46.0 5.2 363.2 5000.0 (1) 3m./VERT 22.8 PK 7223.96 -56.2 1HN3mV 50.8 9.6 1043.7 5000.0 3m./VERT 13.6 PK 9620.2 -62.1 1HN3mH 44.9 13.3 807.3 5000.0 3m./HORZ 15.8 PK *12025.44 -61.5 1HN3mV 45.5 17.3 1380.1 5000.0 (1) 3m./VERT 11.2 PK MID 2440.12 -39.4 1HN3mV 67.6 32.0 95157.3 50000.0 (2) 3m./VERT 14.4 PK *4879.71 -62.8 1HN3mV 44.2 5.5 303.3 5000.0 (1) 3m./VERT 24.3 PK *7320.35 -61.8 1HN3mH 45.2 10.2 583.2 5000.0 (1) 3m./HORZ 18.7 PK 9763.34 -62.4 1HN3mH 44.6 13.5 799.7 5000.0 3m./HORZ 15.9 PK *12199.46 -61.2 1HN3mV 45.8 17.6 1478.9 5000.0 (1) 3m./VERT 10.6 PK HIGH 2474.82 -39.3 1HN3mV 67.7 32.0 96917.5 50000.0 (2) 3m./VERT 14.3 PK *4950.27 -62.9 1HN3mV 44.1 5.7 308.1 5000.0 (1) 3m./VERT 24.2 PK *7419.78 -62.8 1HN3mH 44.2 10.4 536.1 5000.0 (1) 3m./HORZ 19.4 PK 9898.65 -61.8 1HN3mV 45.2 13.5 855.0 5000.0 3m./VERT 15.3 PK *12382.86 -61.7 1HN3mH 45.3 18.1 1480.1 5000.0 (1) 3m./HORZ 10.6 PK * - Falls within restricted bands of CFR 15.205 Data corrected by 0.1 dB for loss of high pass filter, except at fundamental (1) Limits of 15.209 modified by 15.35 (2) Limit per 15.249 ** Conversion from 1 meter to 3 meters = -9.54 dB SAMPLE CALCULATION: RESULTS: At 4810.16 MHz, = Antilog ((-61.0 + 5.2 + 107)/20) = 363.2 (uV/m @ 3m) CONVERSION FROM dBm TO dBuV = 107 dB Tester Signature: Name: Daniel Aparaschivei US Tech FCC ID: HSW-Z2430 Test Report Number: 08-0007 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 36 of 83 2 Test and Measurements (Cont’d) 2.8 Peak Radiated Spurious Emissions and Average Radiated Spurious Emissions (CFR 15.247(d)) (IC RSS 210, A2.9(a)) Test Date: January 21, 2008 UST Project: 08-0007 Customer: Cirronet, Inc. Model:…

Text truncated - open the document above for the full version.

Test Setup Photos

US Tech FCC ID: HSW-Z2430 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 14 of 82 2 Test and Measurements (Cont’d) Test Date: January 22, 2008 UST Project: 08-0007 Customer: Cirronet Corporation Model: ZMN2430 Figure 2 Photograph(s) for Spurious Emissions Corner Antenna (Front) US Tech FCC ID: HSW-Z2430 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 15 of 82 2 Test and Measurements (Cont’d) Test Date: January 22, 2008 UST Project: 08-0007 Customer: Cirronet Corporation Model: ZMN2430 Figure 3 Photograph of Spurious Emissions Corner Antenna (Rear View) US Tech FCC ID: HSW-Z2430 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 16 of 82 2 Test and Measurements (Cont’d) Test Date: January 22, 2008 UST Project: 08-0007 Customer: Cirronet Corporation Model: ZMN2430 Figure 4. Photograph of Spurious Emissions Omni Antenna (Front View) US Tech FCC ID: HSW-Z2430 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 17 of 82 2 Test and Measurements (Cont’d) Test Date: January 22, 2008 UST Project: 08-0007 Customer: Cirronet Corporation Model: ZMN2430 Figure 5. Photograph of Spurious Emissions Omni Antenna (Rear View) US Tech FCC ID: HSW-Z2430 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 18 of 82 2 Test and Measurements (Cont’d) Test Date: January 22, 2008 UST Project: 08-0007 Customer: Cirronet Corporation Model: ZMN2430 Figure 6. Photograph of Spurious Emissions Patch (Front View) US Tech FCC ID: HSW-Z2430 Test Specification: CFR 15, Subpart B and C Customer: Cirronet, Inc. Model: ZMN2430 Page 19 of 82 2 Test and Measurements (Cont’d) Test Date: January 22, 2008 UST Project: 08-0007…
