HUFWP02001Wireless Print Server

Trademarks NetWare is a registered trademark of Novell Inc and Windows 95/98/Me and Windows NT/2000 are registered trademarks of Microsoft Corp. All other brands and product names are trademarks of their respective companies. Copyright No part of this publication may be reproduced in any form or by any means or used to make any derivative (such as translation, transformation or adaptation) without the express written consent of the manufacturer as stipulated by the United States Copyright Act of 1976. FCC Compliance Notice: Radio Frequency Notice This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, Introduction there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1). Reorient or relocate the receiving antenna, (2). Increase the separation between the equipment and receiver, (3). Connect the equipment into an outlet on a circuit different from that to which the receiver is connected, (4). Consult the dealer or an experienced radio/TV technician for help. Important Note: FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Part No. #ZD01Z719A Table of Contents COPYRIGHT..................................................................................I 1. INTRODUCTION....................................................................1 PRODUCT OVERVIEW.................................................................1 HARDWARE INSTALLATION.........................................................4 2. PRINT SERVER INSTALLATION......................................1 PREPARATION............................................................................1 SUPPORTED NETWORKS...........................................................1 CONFIGURATION SOLUTION TABLE............................................2 3.THE PSADMIN UTILITY FOR WINDOWS-BASED........1 INSTALLING THE PSADMIN.........................................................1 USING PSADMIN........................................................................2 WIZARD......................................................................................4 MANUAL SETUP..........................................................................8 PROPERTIES –TCP/IP OPTIONS............................................10 UPGRADE.................................................................................13 RESET.......................................................................................14 REFRESH..................................................................................14 MULTIPLE PRINT QUEUES CONFIGURATION............................15 UNINSTALLING THE PSADMIN ON WINDOWS PC...................16 4.INTERNET PRINTER CONNECTION AND HP WEB JETADMIN....................................................................................1 IPP OVERVIEW..........................................................................1 HP WEB JETADMIN OVERVIEW...............................................6 SYSTEM REQUIREMENTS...........................................................6 INSTALLING HP WEB JETADMIN...............................................7 CONFIRMING INSTALLATION AND SUPPLY ACCESS..................7 CONFIGURING AND MODIFYING A DEVICE.................................8 REMOVING HP WEB JETADMIN UTILITY...................................8 5. CONFIGURATION FROM EMBEDDED WEB SERVER ........................................................................................................1 OVERVIEW..................................................................................1 USING EMBEDDED WEB SERVER.............................................2 STATUS MENU............................................................................3 SETUP MENU............................................................................15 INSTALLING PRINT SERVER ON NETWARE 4.X/5.X................21 SETTING UP A MACINTOSH COMPUTER..................................31 WIRELESS MENU.....................................................................33 6. NETWORK PRINT MONITOR............................................1 PREPARATION............................................................................1 WIN 95/98/ME INSTALLATION PROCEDURE.............................5 UNINSTALLING NETWORK PRINT PORT ON WINDOWS 95/98/ME ..................................................................................................12 7. TCP/IP LPR PORT PRINTING INSTALLATION............1 BASIC TCP/IP INSTALLATION OVERVIEW................................1 ASSIGNING AN IP ADDRESS......................................................1 DHCP........................................................................................2 WINDOWS NT LPR PORT PRINTING INSTALLATION....…

Text truncated - open the document above for the full version.

Inform Letter Dear Customer, According to FCC’s regulation, the following Declaration of Conformity has to be made by a company located in USA. They are: This device has been confirmed to be in compliance with the requirements of ANSI C63.4 & FCC part 15 regulations. The test result has been shown in the ADT test report with number RF910313R05. And this compliance is subject to the following two conditions: (1) This device may not cause harmful interference and, (2) This device must accept any interference received, including interference that may cause undesired operation. This declaration can be a separate sheet and be sure that the following message will be also included in this declaration: 1) Product name, model name and trade name. 2) Company name, and address of the one who is responsible for this declaration. 3) Name, title, telephone and fax number as well as the signature of the contact person. Thanks for your attention.

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 10

FCC ID Label Location

FCC ID Label Location

Page 3 Page 4 Page 5

Page 6 Page 7

Page 8 Page 9

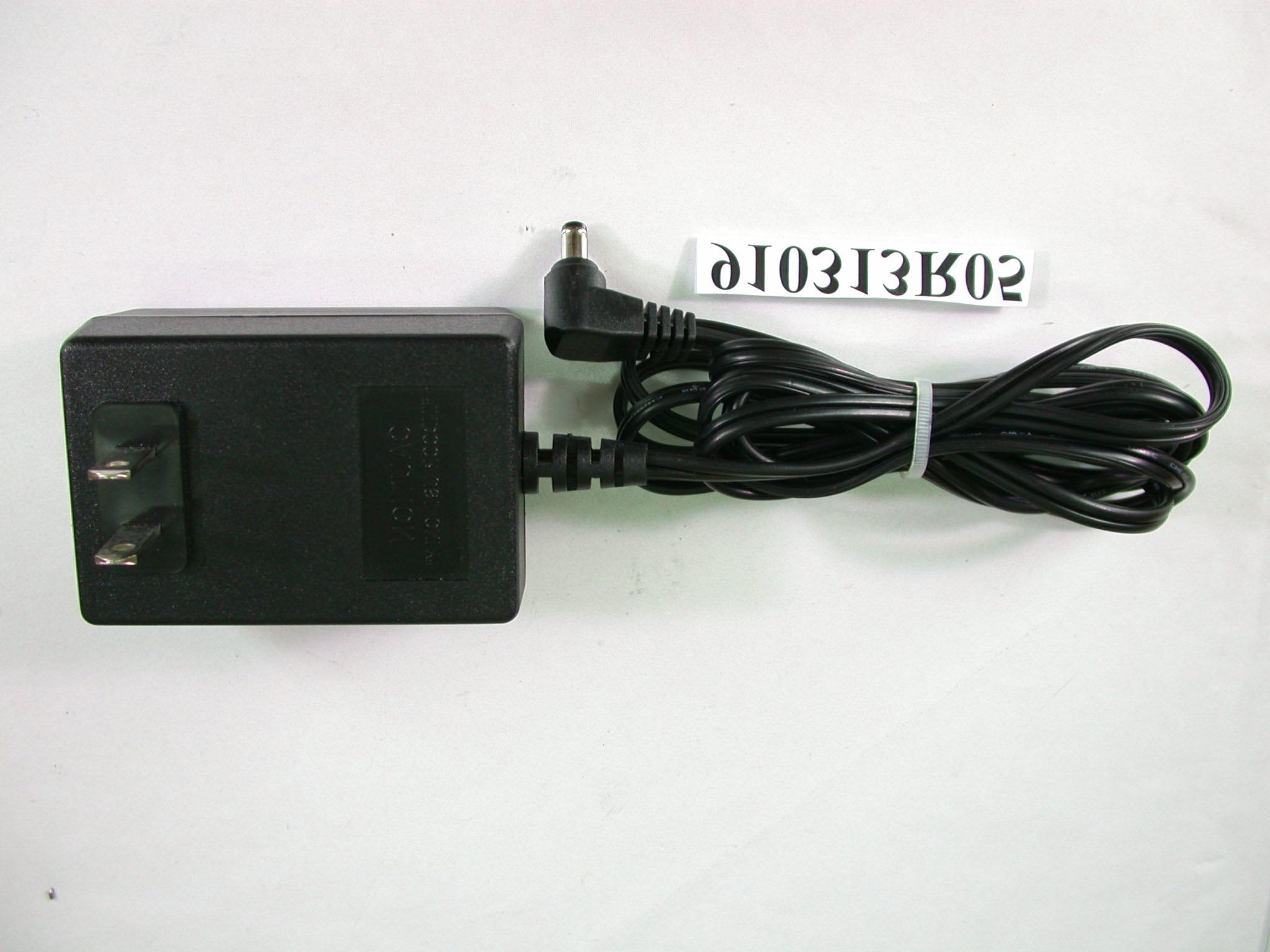

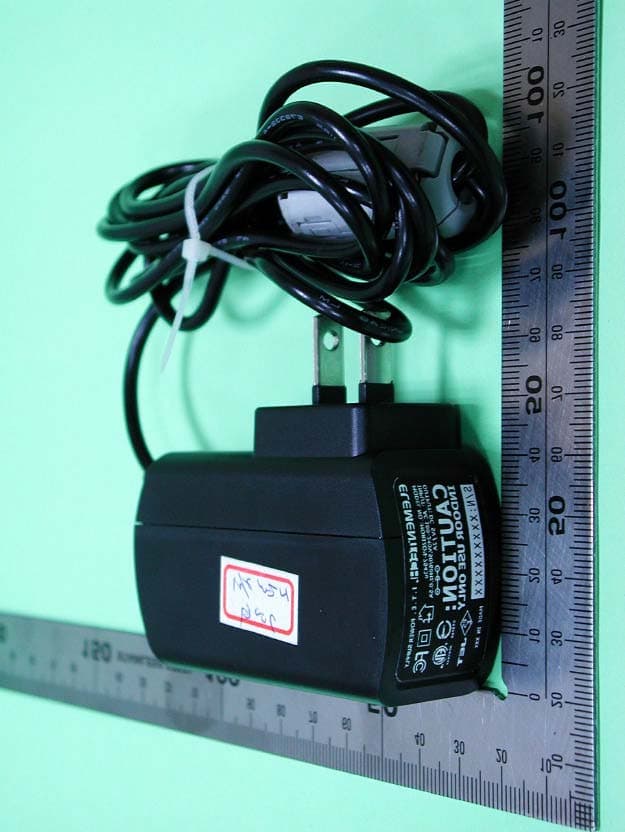

FCC ID: HUFWP02001 ADT No.910313R05 Operational Description The transmitter of the EUT (Wireless Print Server) is powered by power adapter. The antenna is Dipole antenna. The antenna connector is Reversed SMA connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

ADT No: 910313R05 1 FCC TEST REPORT REPORT NO.: RF910313R05 MODEL NO.: PA310W ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:Zero One Technology Co. Ltd ADDRESS:5F, No.5, Aly 22, Lane 513, Rei-Kuang Rd, Nei-Hu, Taipei, 114, Taiwan, R.O.C ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 ADT No: 910313R05 2 RF Exposure Measurement 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz ADT No: 910313R05 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5 Climate Condition The temperature and related humidity: 18 deg. C and 67 % RH 6. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. ADT No: 910313R05 4 7 Test Results 7.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1dBi or 1.26 (numeric). 7.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 124126.640.82 624377.130.85 1124625.920.77 The minimum allowable distance is very close to the enclosure of the antenna. So, the user has no need to worry about the harmfulness of radiation. But it is recommended to always keep, at least, 20 cm separation distance with the antenna.

FCC ID: HUFWP02001 Report No.: RF910313R05 1 Issued: May 30, 2002 FCC TEST REPORT REPORT NO.: RF910313R05 MODEL NO.: PA310W RECEIVED: March 13, 2002 TESTED: April 10 ~ April 29, 2002 APPLICANT:Zero One Technology Co. Ltd ADDRESS: 5F, No.5, Aly 22, Lane 513, Rei-Kuang Rd, Nei-Hu, Taipei, 114, Taiwan, R.O.C ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 4 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: HUFWP02001 Report No.: RF910313R05 2 Issued: May 30, 2002 Table of Contents 1CERTIFICATION........................................................................................... 4 2SUMMARY OF TEST RESULTS .................................................................. 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT ............................................................. 6 3.2DESCRIPTION OF TEST MODES ............................................................... 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS .............................. 7 3.4DESCRIPTION OF SUPPORT UNITS ......................................................... 8 4TEST TYPES AND RESULTS ...................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................................................... 9 4.1.2TEST INSTRUMENTS ...........................................................................................................9 4.1.3TEST PROCEDURES .......................................................................................................... 10 4.1.4TEST SETUP ....................................................................................................................... 10 4.1.5EUT OPERATING CONDITIONS......................................................................................... 11 4.1.6TEST RESULTS ................................................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ......................................................... 18 4.2.2TEST INSTRUMENTS ......................................................................................................... 19 4.2.3TEST PROCEDURES .......................................................................................................... 20 4.2.4TEST SETUP ....................................................................................................................... 21 4.2.5EUT OPERATING CONDITIONS......................................................................................... 21 4.2.6TEST RESULTS ................................................................................................................... 22 4.36dB BANDWIDTH MEASUREMENT .......................................................... 27 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................................ 27 4.3.2TEST INSTRUMENTS ......................................................................................................... 27 4.3.3TEST PROCEDURE ............................................................................................................28 4.3.4TEST SETUP ....................................................................................................................... 28 4.3.5EUT OPERATING CONDITIONS......................................................................................... 28 4.3.6TEST RESULTS ................................................................................................................... 29 4.4MAXIMUM PEAK OUTPUT POWER.......................................................... 33 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ................................... 33 4.4.2INSTRUMENTS.................................................................................................................... 33 4.4.3TEST PROCEDURES .......................................................................................................... 34 4.4.4TEST SETUP ....................................................................................................................... 34 4.4.5EUT OPERATING CONDITIONS......................................................................................... 34 4.4.6TEST RESULTS ................................................................................................................... 35 4.5POWER SPECTRAL DENSITY MEASUREMENT ..................................... 36 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ........................................... 36 4.5.2TEST INSTRUMENTS ......................................................................................................... 36 4.5.3TEST PROCEDURE ............................................................................................................37 4.5.4TEST SETUP ....................................................................................................................... 37 4.5.5EUT OPERATING CONDITION ........................................................................................... 37 4.5.6TEST RESULTS ................................................................................................................... 38 4.6BAND EDGES MEASUREMENT ..............................................…

Text truncated - open the document above for the full version.

FCC ID: HUFWP02001 Report No.: RF910313R05 47 Issued: May 30, 2002 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: HUFWP02001 Report No.: RF910313R05 48 Issued: May 30, 2002 RADIATED EMISSION TEST
