HV4DTF521LCD TABLET

So that the DTF-521 may be Used Safely.. . Regarding the power plug and power adapter. -Please remove dust from the power plug regularly. The addition of moisture, etc. to accumulated dust may lead to fire. -Please do not use any power adapters other than those included with the product. Ignoring this warning may result in fire or product failure. -Please do not damage or forcibly bend or bundle the power adapter cord. Also, please do not place heavy objects on it or expose it to excessive heat. Ignoring this warning may result in fire, electric shock or product failure. -In the unlikely case that the power adapter should produce smoke or a strange odor, please disconnect it from the wall outlet and return it to either the store where you purchased it or to the Wacom Customer Support Center for repair service. -Please do not connect or disconnect the power adapter with wet hands. Ignoring this warning may result in electric shock or malfunction. -Please do not open or otherwise change the power adapter. Ignoring this warning may result in fire or electric shock. In order to prevent this, when in such locations, always disconnect the productʼ s USB connector from your computer and turn off the switch. Do not open the back cover. Inside this product there are several high-voltage parts. Persons other than professional service personnel should never open the back cover of this product. Unauthorized opening of the back cover may lead to fire or electric shock. When this product ceases to operate normally due to being dropped or a similar cause, remove the power source cable from the electrical outlet. Leaving the power cable connected may result in fire or electric shock. This product may cause other electronic devices to malfunction, or other devices may cause this product to malfunction. Turn this product off in places where the use of electronic equipment is prohibited. In airports, hospital intensive care units and other such places where the use of electronic equipment is prohibited, this product may adversely affect the operation of other electrical devices. The following symbols appear throughout this user guide in order to ensure safe use of the DTF-521 (hereafter referred to as “DTF-521,” “the product” or “this product”). Please read these items carefully and always heed the Warning and Caution items when using your DTF-521. This symbol indicates an item that, if ignored when handling the product, could lead to the loss of life or serious injury. Warning This symbol indicates an item that, if ignored when handling the product, could lead to injury or damage to personal property. Caution Meanings of Symbols: Indicates that it is important to be careful when taking the action or actions noted. Indicates that the action or actions noted are to be avoided. Indicates it is important to take the action or actions noted. Warning Do not use the product in a facility control system that requires an extremely high level of reliability. User's Guide of time, disconnect the power adapter from the electrical outlet. Do not use this product in a dusty environment. Dust can cause damage to the product. Do not block the ventilation holes on the backside of the product. Blocking these holes may cause internal overheating and subsequent damage. Do not pick up the product by its stand. If excessive force is used in handling the stand, its open and close function may become damaged. When picking up the product, always pick it up by the body. When connecting the power plug When plugging the power adapter into an electrical outlet, also connect a grounded wire. When not using this product for a long period of time For safety reasons, when you will not be using the product for a considerable length Do not use organic solvents to clean this product. When cleaning the product, never use such organic solvents as alcohol. Such solvents may cause discoloration and deterioration in quality. When cleaning this product, always disconnect the USB connector. When cleaning the product, always disconnect the USB connector from the USB port of the computer. Failure to do so may result in electric shock. While this product is in use, avoid placing any metal objects on it. Do not place any metal objects on the product while you are using it. This may result in malfunction or product failure. Do not touch any liquids that may be leaking from this product. The liquid contained in the product is an irritant. In the unlikely case that such liquid should leak, never touch it with bare hands. In case of contact with skin, mouth or eyes, rinse immediately with running water and continue rinsing for 15 minutes or longer. Also consult a physician. Do not use excessive force with the cable. Please do not step on, or place heavy objects on any of the productʼs cables. Also, do not apply excessive force to the base of the cable or repeatedly bend and stretch it, as this may cause it to break or malfunction. Do not place the product in either very hot or very cold places. Do not place the product in very hot (35 degrees centigrade or more) or very cold (5 degrees centigrade or less) locations. Also, avoid placing it in locations with severe temperature fluctuations as this may adversely affect the product and cause product failure. Do not disassemble the product. Do not disassemble or modify the product, as these actions may lead to fire, excessive generation of heat, electrical shock or injury. The guarantee on the product will become null and void if the product is ever disassembled. Caution So that the DTF-521 may be Used Safely Do not let the product get wet. Please do not place containers such as cups and vases containing water near the product. Coming in contact with water or other liquids may cause product failure. Regarding the Grip Pen -Do not strike hard objects with the metal Grip Pen. Doing so may cause damage to the product. -Be careful to not allow small children to put either the pen or the spare nib into their mouths…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA D-SUB Connec tor GM5221 SCALER CHIP RGB video input CN1 CN2 RGB LMH6 638 Buffer Ou tput IC1 EDID 24C02 IC4 EEPROM 24LC16 NTSC/PAL VIDEO DECODER TW9905 U3 Data and clock J2 Video input 15' CPT Panel LVDS DATA POWER SUPPLY GL850 2.0 USB-Hub U4 Up-stream port CN4 Tablet sensor control board USB down-stream port CN8 Hor. & Ver. sync. USB-Audio decoder and AMP. USB down-stream port CN6 Speaker Speaker USB Downstream port for extern CN5 U1 U1,U2 &U3 Function Control KEY DTF-5211 Block Diagram B 11Thursday, December 02, 2004 Title SizeDocument NumberRev Date:Sheetof

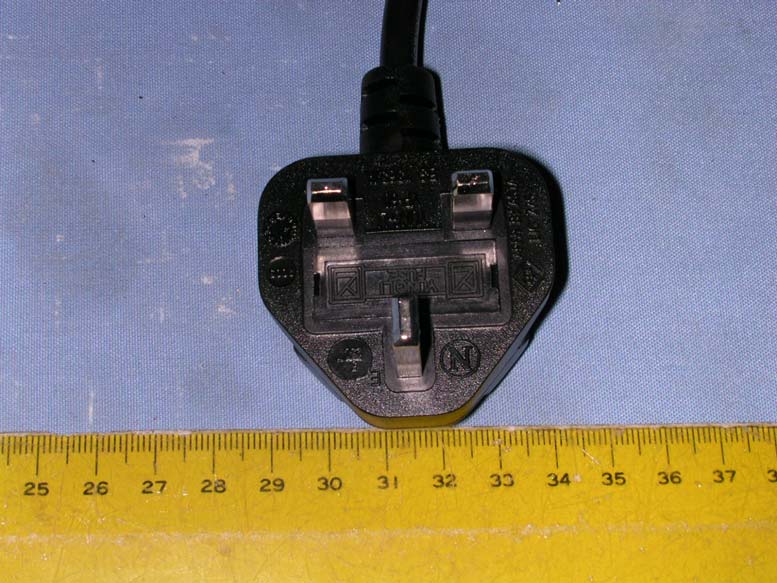

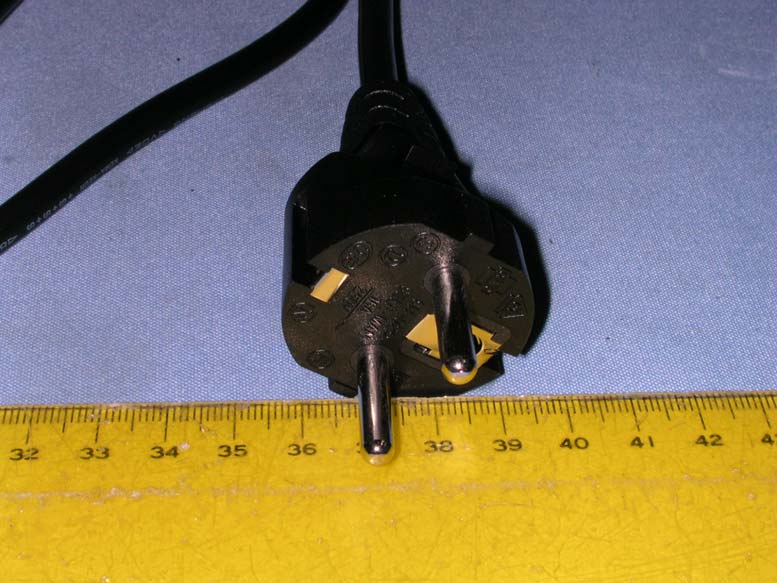

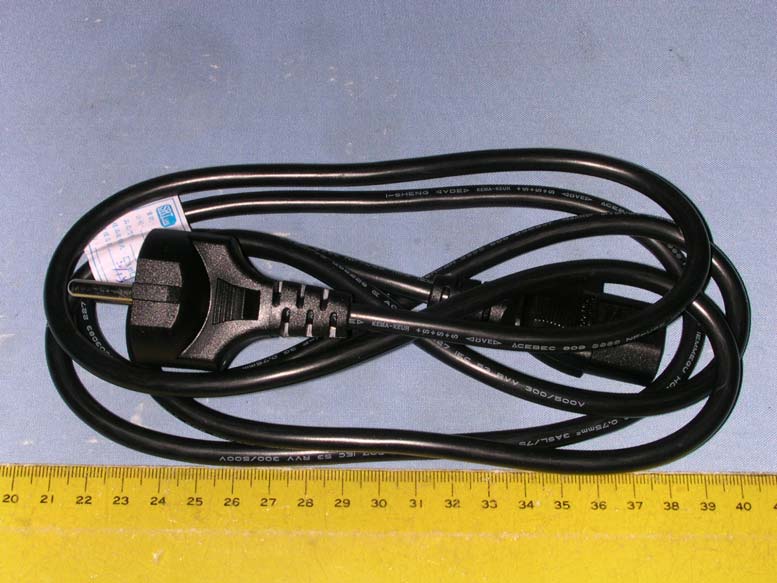

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 27 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 27 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 17 of 27 PHOTOS OF EUT-ADAPTOR1 (Model No:LSE0107A1240) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 18 of 27 PHOTOS OF EUT-ADAPTOR1 (Model No:LSE0107A1240) LABEL Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 19 of 27 PHOTOS OF EUT-ADAPTOR2 (Model No:HASU11FB40) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 20 of 27 PHOTOS OF EUT-ADAPTOR2 (Model No:HASU11FB40) LABEL Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 21 of 27 PHOTOS OF EUT-POWER CABLE-1 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 22 of 27 PHOTOS OF EUT-POWER CABLE-2 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 23 of 27 PHOTOS OF EUT-POWER CABLE-3 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 24 of 27 PHOTOS OF EUT-USB CABLE Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 25 of 27 PHOTOS OF EUT-VGA CABLE Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 26 of 27 PHOTOS OF EUT-STAND Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 27 of 27 PHOTOS OF EUT-PEN

Sample of FCC ID Label

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 3 of 27 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 4 of 27 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 5 of 27 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 6 of 27 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 7 of 27 PHOTOS OF EUT-LCD Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 8 of 27 PHOTOS OF EUT-DOWN KEY Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 9 of 27 PHOTOS OF EUT-INVERTER Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 10 of 27 PHOTOS OF EUT-LCD PCB Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 11 of 27 PHOTOS OF EUT-OSD KEY Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 12 of 27 PHOTOS OF EUT-POWER KEY Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 13 of 27 PHOTOS OF EUT-UP KEY Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 14 of 27 PHOTOS OF EUT-MB Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 15 of 27 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 16 of 27 PHOTOS OF EUT-USB

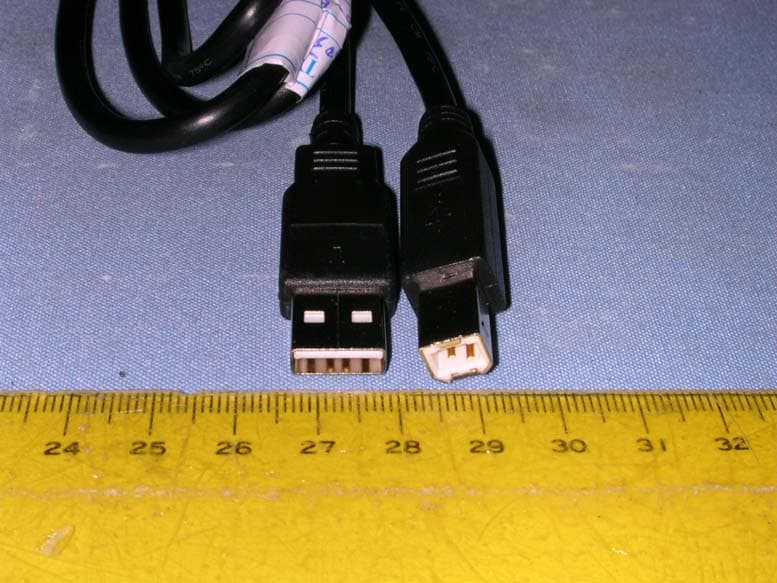

FCC ID: HV4DTF521 Operational Description of the equipment The Wacom DTF-521 Interactive Pen Display combines an LCD monitor with a Wacom tablet. This gives you a direct point-and-draw-on-screen interface that can be used with a personal Computer (PC) or Macintosh computer. DTF-521’s basic components include a Wacom tablet internally mounted behind a 15.0” diagonal TFT color LCD monitor, and Wacom’s pen. PRODUCT LCD TABLET BRAND NAME WACOM Co., Ltd. MODEL NO. DTF-521X (The “X” in the model number could be defined as A~Z, 0~9 or blank for marketing differentiation) POWER SUPPLY DC from two external power adapters: 1. ADP1 Brand: LS Model No.: LSE0107A1240 Input: 100-240V, 50/60Hz, 1A Output: 12V, 3.33A Cable: 0.6m unshielded power cable with one ferrite core 2. ADP2 Brand: HJC Model No.: HASU11FB40 Input: 100-240V, 50/60Hz, 1.5A Output: 12V, 3.30A Cable: 0.6m unshielded power cable with one ferrite core CABLE 2.0m shielded USB cable, 2.0m shielded AV cable, 2.0m shielded VGA cable with two ferrite cores, 1.8m unshielded power cord FREQUENCY 599.75KHz NUMBER OF CHANNEL 1 ANTENNA TYPE Loop Antenna TYPE Production Type

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06021303 Report No.: FCCA06021303 FCC ID: HV4DTF521 Page:2 of 23 Date: Mar. 31, 2006 Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT ................................................ 3 1.1 DOCUMENT POLICY ........................................................................................ 3 1.2 TEST STATEMENT ............................................................................................ 3 1.3 EUT MODIFICATION ......................................................................................... 3 2. DESCRIPTION OF EUT AND TEST MODE....................................................... 4 2.1 GENERAL DESCRIPTION OF EUT................................................................... 4 2.2 DESCRIPTION OF EUT INTERNAL DEVICE.................................................... 5 2.3 DESCRIPTION OF TEST MODE ....................................................................... 6 2.4 DESCRIPTION OF SUPPORT UNIT ................................................................. 6 3. DESCRIPTION OF APPLIED STANDARDS ...................................................... 6 4. CONDUCTED EMISSION TEST ........................................................................ 7 4.1 CONDUCTED EMISSION LIMIT........................................................................ 7 4.2 TEST EQUIPMENT............................................................................................ 7 4.3 TEST SETUP..................................................................................................... 8 4.4 TEST PROCEDURE .......................................................................................... 8 4.5 EUT OPERATING CONDITION ......................................................................... 8 4.6 TEST RESULT ................................................................................................... 9 5. RADIATED EMISSION TEST ............................................................................11 5.1 RADIATED EMISSION LIMIT............................................................................11 5.2 TEST EQUIPMENT...........................................................................................12 5.3 TEST SET-UP ...................................................................................................13 5.4 TEST PROCEDURE .........................................................................................15 5.5 EUT OPERATING CONDITION ........................................................................15 5.6 RADIATED EMISSION TEST RESULT .............................................................16 6. PHOTOS OF TESTING .................................................................................... 20 7. TERMS OF ABRIVATION ................................................................................. 23 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06021303 Report No.: FCCA06021303 FCC ID: HV4DTF521 Page:3 of 23 Date: Mar. 31, 2006 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. - The report must not be used by the applicant to claim that the product is endorsed by NVLAP, TÜV, NEMKO and SRT. - The NVLAP logo applies only to the applicable standards specified in this report. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. - AC power source, 120 Vac/60 Hz, was used during the test. 1.3 EUT MODIFICATION - No modification in SRT Lab. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06021303 Report No.: FCCA06021303 FCC ID: HV4DTF521 Page:4 of 23 Date: Mar. 31, 2006 2. DESCRIPTION OF EUT AND TEST MODE 2.1 GENERAL DESCRIPTION OF EUT PRODUCT LCD TABLET BRAND NAME WACOM Co., Ltd. MODEL NO. DTF-521X (The “X” in the model number could be defined as A~Z, 0~9 or blank for marketing differentiation) POWER SUPPLY DC from two external power adapters: 1. ADP1 Brand: LS Model No.: LSE0107A1240 Input: 100-240V, 50/60Hz, 1A Output: 12V, 3.33A Cable: 0.6m unshielded power cable with one ferrite core 2. ADP2 Brand: HJC Model No.: HASU11FB40 Input: 100-240V, 50/60Hz, 1.5A Output: 12V, 3.30A Cable: 0.6m unshielded power cable with one ferrite core CABLE 2.0m shielded USB cable, 2.0m shielded AV cable, 2.0m shielded VGA cable with two ferrite cores, 1.8m unshielded power cord FREQUENCY 599.75KHz NUMBER OF CHANNEL 1 ANTENNA TYPE Loop Antenna TYPE Production Type NOTE: The “X” in the model number could be A~Z, 0~9 or blank. They are identical in all aspects except for the marketing area. For more detailed information, please refer to the EUT’s specification or user’s manual provided by manufacturer. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06021303 Report No.: FCCA06021303 FCC ID: HV4DTF521 Page:5 of 23 Date: Mar. 31, 2006 2.2 DESCRIPTION OF EUT INTERNAL DEVICE DEVICE BRAND / MAKERMODEL # FCC ID/DOC REMARK PANEL CPT CLAA150XP 01 N/A NOTE : 1. The highest clock is 27MHz. 2. Frequency range to be measured. Radiated emission is 30 MHz to 1 GHz. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06021303 Report No.: FCCA06021303 FCC ID: HV4DTF521 Page:6 of 23 Date: Mar. 31, 2006 2.3 DESCRIPTION OF TEST MODE The EUT was tested for emission measurement under the following situations: Mode Frequency Mode 1 599.75KHz with ADP1 Mode 2 599.75KHz with ADP2 NOTE: ADP1: BRAND : LI SHIN INTERNA…

Text truncated - open the document above for the full version.

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06021303 Report No.: FCCA06021303 FCC ID: HV4DTF521 Page:20 of 23 Date: Mar. 31, 2006 6. PHOTOS OF TESTING - Conducted test Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06021303 Report No.: FCCA06021303 FCC ID: HV4DTF521 Page:21 of 23 Date: Mar. 31, 2006 - Radiated test (9KHz ~ 30MHz) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06021303 Report No.: FCCA06021303 FCC ID: HV4DTF521 Page:22 of 23 Date: Mar. 31, 2006 Radiated test (9KHz ~ 30MHz)
