Professional Hybrid Creative Tablet Quick start guide Schnellstartanleitung Snelgids Guide de mise en route Guida rapida Guía de arranque rápido Руководство по быстрому запуску Podręcznik szybkiej instalacji EN DE NL FR IT ES RU PL Asterix_QSG_WEG.indb 16/19/2013 10:49:23 AM Welcome Thank you for buying a Cintiq Companion Hybrid. You hold in your hands a unique tool that will let you create both in the studio and when mobile. It is a fully functional Cintiq pen display when attached to a PC or Mac and when untethered is a capable Android tablet designed specifically for creative work. Before using your new Cintiq please read this Quick start guide. It is very important that you follow the setup instructions so that your Cintiq will function properly. After installation you can find many resources on how to use your new Cintiq. When in mobile mode look on your Cintiq for the Wacom Mobile Center app which has links to tutorials and support. At the conclusion of the setup you will be asked to register your new Cintiq with Wacom. We strongly encourage you to do so in order to take advantage of all the available Wacom resources. Sincerely The Wacom Team Asterix_QSG_WEG.indb 26/19/2013 10:49:23 AM 1 EN Supplied accessories 3-in-1 cablePower adapterPlug StandQuick start guideCloth PenPen caseColor ringsPen nibsNib removal tool Asterix_QSG_WEG.indb 16/19/2013 10:49:24 AM 2 EN Getting to know the Cintiq See the User's Manual for details. 1 2 3 4 5 10 13 8 7 9 6 12 11 14 15 16 17 18 1. Home button 2. Rocker Ring 3. ExpressKeys 4. Light sensor 5. Front camera 6. Grip pad 7. Speaker 8. Stand slots 9. Rear camera 10. Power button 11. Microphone 12. Headphone jack 13. USB port 14. 3-in-1 connector 15. Micro HDMI port (video out) 16. MicroSD card slot 17. Microphone 18. Battery status LED Asterix_QSG_WEG.indb 26/19/2013 10:49:24 AM 3 EN Using the stand 22 ̊35 ̊50 ̊ 22 ̊ 35 ̊ 50 ̊ 3 2 1 Asterix_QSG_WEG.indb 36/19/2013 10:49:24 AM 4 EN Setting up the Cintiq for the first time 1. For full setup make sure you have access to a wifi network. 2. Connect the 3 in 1 cable as shown. 3. Turn on the Cintiq by pressing the power button for 2 seconds. 4. Follow on-screen instructions to first setup mobile mode. When prompted, calibrate pen to screen cursor. Click on the cross hairs and test the calibration before accepting it. Calibration must be done separately in mobile and desktop modes. 3-in-1 cable power adapter plug Make sure the Cintiq is connected to AC power before beginning setup. Asterix_QSG_WEG.indb 46/19/2013 10:49:24 AM 5 EN Setting up the Cintiq for Desktop mode 1. After Mobile Mode setup, the Cintiq will automatically switch into Desktop mode. 2. A virtual CD, “ Install_CCH ” , will appear. Open the virtual CD and click on “Startup” (Windows) or “Install Tablet ” (Macintosh). Follow the instructions to install the driver and software. If nothing is displayed 1. Disconnect 3-in-1 cable to switch back to Mobile Mode. 2. Launch “Wacom Center” from the Android programs screen. 3. Select “Desktop Driver Installation”, check the checkbox for “Show virtual Desktop Driver CD”. 4. Reconnect the 3-in-1 cable to switch to Desktop Mode, and look for “Install_CCH”. 3. Double click the “ Install tablet ” , and follow on-screen instructions. Asterix_QSG_WEG.indb 56/19/2013 10:49:24 AM 6 EN Using the pen with Cintiq Move the pen slightly above the display, without touching the surface, to position the display cursor. Tap the display once with the pen tip to select. Choose a color ring to distinguish your pen. For best performance wipe off the display regularly with the cleaning cloth. Asterix_QSG_WEG.indb 66/19/2013 10:49:25 AM 7 EN More information in the Wacom Center The Wacom Center is a software utility available in both Mobile and Desktop Modes. It provides quick access to: • Frequently used Cintiq settings • User manual help with information on customizing your Cintiq, changing pen nibs, tips and tricks and troubleshooting • Pen calibration. Wacom recommends to re-calibrate after significantly changing your working position or viewing angle • Important Product Information such as specifications, warranties, licensing and care of your Cintiq • Software updates • Access to Wacom support Registering Your Cintiq Please register your Cintiq at the end of the setup process or in the Wacom Center. Support options Please check the back of this guide for the Technical Support contact information for your country. Wacom Mobile Center is available when your Cintiq is in Mobile Mode and running the Android OS Wacom Desktop Center is available in Desktop Mode when your Cintiq is connected to your PC or Mac with the HDMI and USB cables Asterix_QSG_WEG.indb 76/19/2013 10:49:25 AM Willkommen Vielen Dank, dass Sie sich für ein Cintiq Companion Hybrid entschieden haben. Sie halten ein einzigartiges Werkzeug in Ihren Händen, mit dem Sie sowohl im Studio als auch unterwegs kreativ sein können. Schließen Sie es an Ihren PC oder Mac an, um es als voll funktionsfähiges Cintiq Stift-Display zu verwenden. Oder nutzen Sie es unterwegs als leistungsfähiges Android-Tablett, das speziell für kreative Arbeiten entwickelt wurde. Bitte lesen Sie diese Schnellstartanleitung vor dem ersten Gebrauch Ihres neuen Cintiq. Damit Ihr Cintiq einwandfrei funktioniert, beachten Sie beim Einrichten bitte unbedingt die folgenden Anweisungen. Nach der Installation stehen Ihnen zahlreiche Zusatzinformationen zur Nutzung Ihres neuen Cintiq zur Verfügung. Suchen Sie im mobilen Modus auf Ihrem Cintiq nach der Wacom Mobile Center-App, die Links zu Lernprogrammen und Support enthält. Wenn Sie mit dem Einrichten fertig sind, werden Sie gebeten, Ihr neues Cintiq bei Wacom zu registrieren. Wir möchten Sie darin bestärken, die Registrierung durchzuführen, damit Sie alle verfügbaren Wacom Ressourcen voll nutzen können. Mit freundlichen Grüßen Das Wacom Team Asterix_QSG_WEG.indb 86/19/2013 10:49:25 AM 1 DE Mitgeliefertes Zubehör 3-in-1-KabelNetzadapterStecker Aufstel…

Text truncated - open the document above for the full version.

Bienvenido Gracias por adquirir un Cintiq Companion Hybrid. Tiene en sus manos una exclusiva herramienta que le permitirá crear tanto en el estudio como en un dispositivo móvil. Es un monitor interactivo Cintiq completamente funcional cuando se conecta a un PC o Mac y, cuando se utiliza de forma independiente, es una tablet Android potente diseñada específicamente para el trabajo creativo. Antes de utilizar su nuevo Cintiq, lea esta Guía de arranque rápido. Es muy importante que siga las instrucciones de instalación para que el Cintiq funcione correctamente. Tras la instalación, encontrará numerosos recursos para aprender a utilizar su nuevo Cintiq. En modo móvil, busque en su Cintiq la aplicación Wacom Mobile Center, que cuenta con enlaces a tutoriales y asistencia. A la conclusión de la configuración, se le solicitará que registre su nuevo Cintiq con Wacom. Le recomendamos encarecidamente que lo haga para poder sacar partido a todos los recursos disponibles de Wacom. Atentamente, El equipo Wacom Asterix_QSG_WEG.indb 86/19/2013 10:49:34 AM 1 ES Accesorios incluidos Cable 3 en 1Adaptador de corrienteEnchufe SoporteGuía de arranque rápido Paño LápizEstuche del lápizAnillas de colores Puntas del lápiz Herramienta de extracción de puntas Asterix_QSG_WEG.indb 16/19/2013 10:49:34 AM 2 Aspectos básicos del Cintiq Para obtener más información, consulte el Manual del usuario. 1 2 3 4 5 10 13 8 7 9 6 12 11 14 15 16 17 18 1. Home Button 2. Rocker Ring 3. ExpressKeys 4. Sensor de luz 5. Cámara delantera 6. Superficie de agarre 7. Altavoz 8. Ranuras para el soporte 9. Cámara trasera 10. Botón de encendido 11. Micrófono 12. Toma para auriculares 13. Puerto USB 14. Conector 3 en 1 15. Puerto micro HDMI (salida de vídeo) 16. Ranura para tarjeta MicroSD 17. Micrófono 18. LED de estado de la batería Asterix_QSG_WEG.indb 26/19/2013 10:49:34 AM 3 ES Uso del soporte 22 ̊35 ̊50 ̊ 22 ̊ 35 ̊ 50 ̊ 3 2 1 Asterix_QSG_WEG.indb 36/19/2013 10:49:35 AM 4 Configuración del Cintiq por primera vez 1. Para realizar la configuración por completo, asegúrese de disponer de acceso a una red Wi-Fi. 2. Conecte el cable 3 en 1 como se muestra. 3. Encienda el Cintiq pulsando el botón de encendido durante 2 segundos. 4. Siga las instrucciones en pantalla para configurar por primera vez el modo móvil. Cuando se le solicite, calibre el lápiz con el cursor de la pantalla. Haga clic en las cruces y compruebe la calibración antes de aceptarla. La calibración se debe realizar por separado en el modo móvil y el modo estacionario. cable 3 en 1 adaptador de corriente enchufe Asegúrese de que el Cintiq está conectado a la corriente alterna antes de comenzar la configuración. Asterix_QSG_WEG.indb 46/19/2013 10:49:35 AM 5 ES Configuración del Cintiq para el modo estacionario 1. Tras realizar la configuración del modo móvil, el Cintiq cambiará automáticamente al modo estacionario. 2. Aparecerá un CD virtual, “Install_CCH ” . Abra el CD virtual y haga clic en “Inicio” (Windows) o “Instalar tablet ” (Macintosh). Siga las instrucciones para instalar el controlador y el software. Si no aparece nada 1. Desconecte el cable 3 en 1 para volver al modo móvil. 2. Inicie “Wacom Center” desde la pantalla de programas de Android. 3. Seleccione “Instalación de controlador de escritorio” y marque la casilla de “Mostrar CD de controlador de escritorio virtual”. 4. Vuelva a conectar el cable 3 en 1 para cambiar al modo estacionario y busque “Install_CCH”. 3. Haga doble clic en “Instalar tablet ” y siga las instrucciones en pantalla. Asterix_QSG_WEG.indb 56/19/2013 10:49:35 AM 6 Uso del lápiz con Cintiq Mueva el lápiz ligeramente sobre la pantalla, sin tocar la superficie, para situar el cursor de la pantalla. Dé un ligero golpe en la pantalla con la punta del lápiz para seleccionar. Elija una anilla de color para distinguir su lápiz. Para un funcionamiento óptimo, limpie la pantalla periódicamente con el paño. Asterix_QSG_WEG.indb 66/19/2013 10:49:35 AM 7 ES Más información en Wacom Center Wacom Center es una utilidad de software disponible tanto en el modo estacionario como en el modo móvil. Proporciona un acceso rápido a: • Los ajustes del Cintiq más frecuentes • La ayuda del manual del usuario con información sobre la personalización del Cintiq, el cambio de las puntas del lápiz, trucos y consejos, y resolución de problemas. • La calibración del lápiz. Wacom recomienda volver a calibrarlo tras cambiar de forma significativa a posición de trabajo o el ángulo de visualización • Información importante sobre el producto como especificaciones, garantías, licencias y cuidado del Cintiq • Actualizaciones de software • Acceso a asistencia de Wacom Registro del Cintiq Registre su Cintiq al final del proceso de configuración o en Wacom Center. Opciones de asistencia Consulte la contraportada de esta guía para consultar la información de contacto del Servicio técnico de su país. Wacom Mobile Center está disponible cuando el Cintiq está en modo móvil y ejecuta el sistema operativo Android Wacom Desktop Center está disponible en modo estacionario cuando el Cintiq está conectado a un PC o Mac con los cables HDMI y USB Asterix_QSG_WEG.indb 76/19/2013 10:49:36 AM Здравствуйте! Благодарим за приобретение устройства Cintiq Companion Hybrid. Перед вами уникальный инструмент для воплощения ваших творческих идей, где бы вы ни находились: на рабочем месте или в пути. Это устройство, созданное специально для решения творческих задач, работает как полнофункциональный перьевой дисплей при подключении к ПК или Mac, а также как производительный планшетный компьютер под управлением операционной системы Android, если отключено от компьютера. Перед началом работы с новым устройством Cintiq ознакомьтесь с данным Руководством по быстрому запуску. Необходимо внимательно следовать инструкциям по настройке для обеспечения правильного функционирования устройства Cintiq. После завершения установки вы сможете воспользоваться различными информационными ресурсами для знакомства с устройством Cin…

Text truncated - open the document above for the full version.

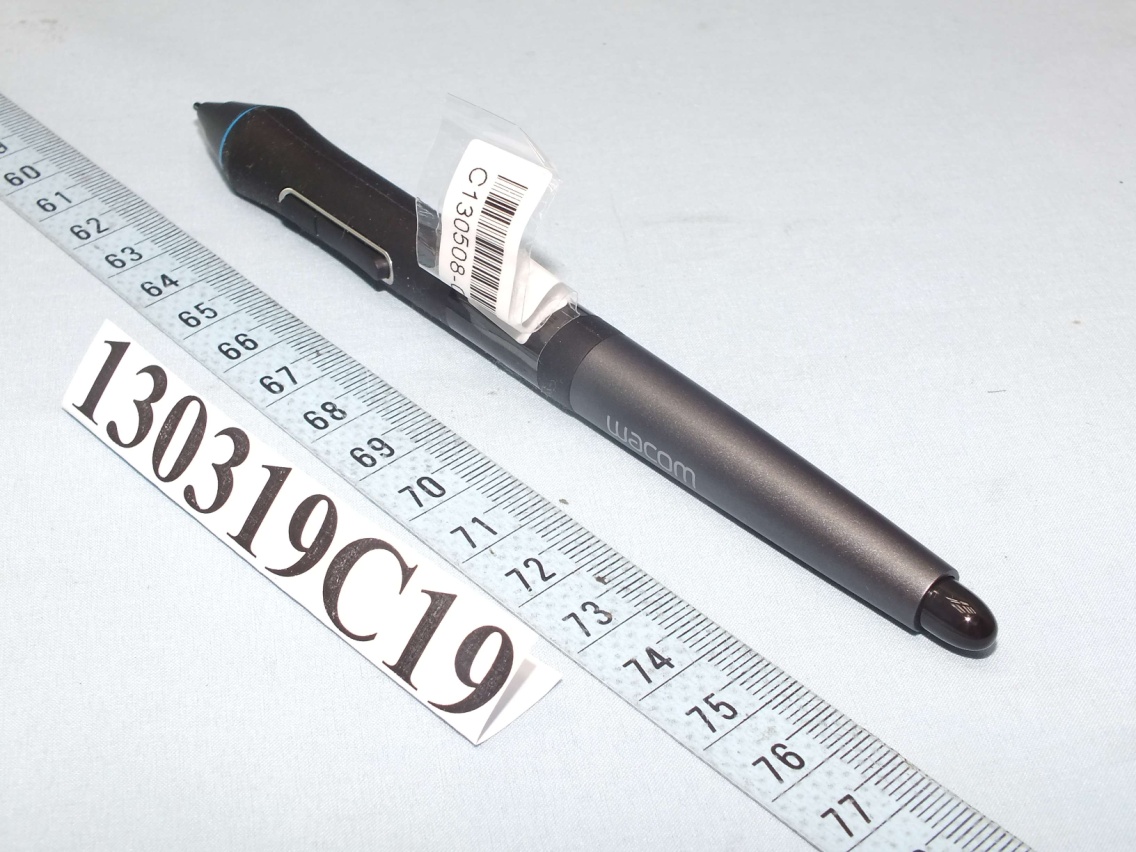

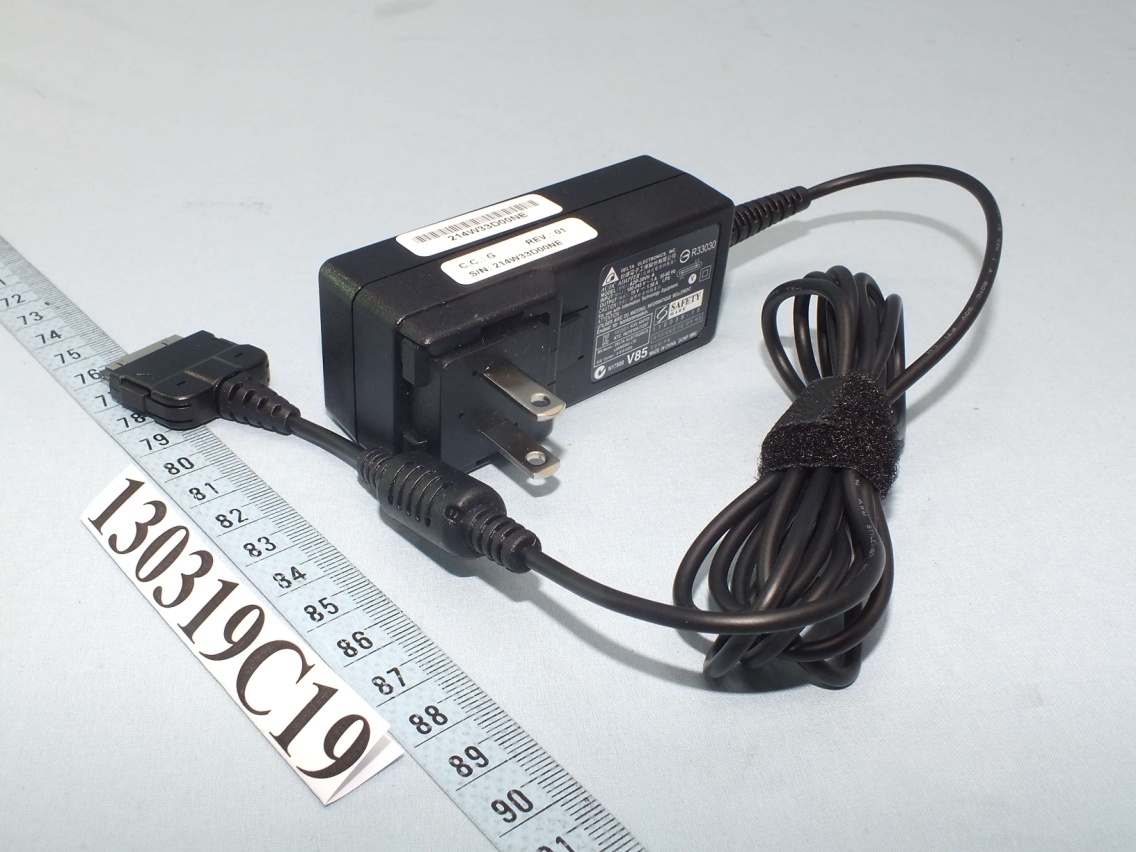

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5

Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12

Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 23 Report No. : SA130319C19 Issued Date : Jul. 25, 2013 Revision : R01 FCC SAR Test Report Report No. : SA130319C19 Applicant : Wacom Co., Ltd. Address : 2-510-1, Toyonodai, Kazo-shi, Saitama, 349-1148 Japan Product : Graphics tablet computer FCC ID : HV4DTHA1300 Brand : Wacom Model No. : DTH-A1300 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1991 / IEEE 1528:2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) KDB 248227 D01 v01r02 / KDB 447498 D01 v05 / KDB 616217 D04 v01 Date of Testing : Jun. 05, 2013 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch - Taiwan HwaYa Lab, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Evonne Liu / Specialist Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 23 Report No. : SA130319C19 Issued Date : Jul. 25, 2013 Revision : R01 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ................................................................................................................ 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 12 3.4 SAR Measurement Procedure ................................................................................................................................... 13 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 13 3.4.2 Volume Scan Procedure................................................................................................................................... 13 3.4.3 Power Drift Monitoring ...................................................................................................................................... 14 3.4.4 Spatial Peak SAR Evaluation ........................................................................................................................... 14 3.4.5 SAR Averaged Methods .........................................…

Text truncated - open the document above for the full version.

Report No.: RF130319C19-2 1 of 25 Report Format Version 5.0.0 Reference No.: 130319C18, 130319C19, 130612C05 FCC TEST REPORT REPORT NO. :RF130319C19-2 MODEL NO. : DTH-A1300 FCC ID : HV4DTHA1300 RECEIVED : Mar. 19, 2013 TESTED :Jul. 11 ~ Jul. 17, 2013 ISSUED :Jul. 17, 2013 APPLICANT : Wacom Co., Ltd ADDRESS : 2-510-1, Toyonodai, Kazo-shi, Saitama, 349-1148 Japan ISSUED BY : Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS : No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C ) TEST LOCATION : No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF130319C19-2 2 of 25 Report Format Version 5.0.0 Reference No.: 130319C18, 130319C19, 130612C05 Table of Contents RELEASE CONTROL RECORD ............................................................................................ 3 1. CERTIFICATION ........................................................................................................ 4 2. SUMMARY OF TEST RESULTS ................................................................................ 5 2.1 MEASUREMENT UNCERTAINTY ............................................................................. 5 3. GENERAL INFORMATION ......................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT ........................................................................... 6 3.2 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 7 3.3 DESCRIPTION OF SUPPORT UNITS ....................................................................... 7 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST ........................................................ 7 4. TEST TYPES AND RESULTS .................................................................................... 8 4.1 RADIATED EMISSION MEASUREMENT .................................................................. 8 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT ................................................ 8 4.1.2 TEST INSTRUMENTS ............................................................................................... 9 4.1.3 TEST PROCEDURES .............................................................................................. 10 4.1.4 DEVIATION FROM TEST STANDARD .................................................................... 10 4.1.5 TEST SETUP ........................................................................................................... 11 4.1.6 EUT OPERATING CONDITIONS ............................................................................. 11 4.1.7 TEST RESULTS ....................................................................................................... 12 4.2 CONDUCTED EMISSION MEASUREMENT ........................................................... 16 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................... 16 4.2.2 TEST INSTRUMENTS ............................................................................................. 16 4.2.3 TEST PROCEDURES .............................................................................................. 17 4.2.4 DEVIATION FROM TEST STANDARD .................................................................... 17 4.2.5 TEST SETUP ........................................................................................................... 17 4.2.6 EUT OPERATING CONDITIONS ............................................................................. 17 4.2.7 TEST RESULTS ....................................................................................................... 18 4.3 20DB BANDWIDTH MEASUREMENT ..................................................................... 20 4.3.1 LIMITS OF 20DB BANDWIDTH MEASUREMENT .................................................. 20 4.3.2 TEST INSTRUMENTS ............................................................................................. 20 4.3.3 TEST PROCEDURE ................................................................................................ 20 4.3.4 DEVIATION FROM TEST STANDARD .................................................................... 20 4.3.5 TEST SETUP ........................................................................................................... 20 4.3.6 EUT OPERATING CONDITIONS ................…
