HV4DTK2400LCD TABLET

Important Product Information Contents Contents 1 1 Precautions Product Specifications Disposal and Recycling Information Regulatory Statement License and Warranties Contents Contents 2 2 Cintiq ® 24HD (DTK-2400) Important Product Information Version 1.0 F2411 Copyright © Wacom Co., Ltd., 2011 All rights reserved. No part of this manual may be reproduced except for your express personal use. Wacom reserves the right to revise this publication without obligation to provide notification of such changes. Wacom does its best to provide current and accurate information in this manual. However, Wacom reserves the right to change any specifications and product configurations at its discretion, without prior notice and without obligation to include such changes in this manual. The above year indicates when this manual was prepared. However, the date of release to the users of the "manual" is simultaneous with the introduction into the market of the applicable Wacom product. Wacom and Cintiq are registered trademarks of Wacom Co., Ltd. Contents Contents 3 3 CONTENTS Precautions 4 Precautions on use and handling 4 Physical location 4 Environment 4 Usage 5 Handling 6 Product Specifications 10 General specifications 10 Display 11 Pen tablet 12 Power adapter 12 Grip Pen KP-501E-01 12 Disposal and Recycling Information 13 EU RoHS 13 Tu r k e y R o H S 1 3 EU disposal information (WEEE) 13 LAMP(S)13 Regulatory Statement 14 FCC notice 14 Industry Canada (Canada only) 14 CE declaration 15 License and Warranties 16 Tablet driver software end user license agreement 16 Tablet driver software end user license agreement 21 Limited warranty (U.S.A and Canada) 26 Limited warranty (Central America, South America and the Caribbean) 28 Limited warranty (Europe, Africa and Middle East) 30 Contents Contents 4 4 PRECAUTIONS PRECAUTIONS ON USE AND HANDLING To ensure the safe operation of your Cintiq 24HD, be sure to follow all instructions, cautions, and warnings found within this manual. Failure to do so could cause damage to Cintiq 24HD, damage to your computer or loss of data. Failure to do so could also void your warranty, in which case Wacom shall have no responsibility to repair or replace the product. PHYSICAL LOCATION WARNING The Cintiq 24HD interactive pen display was designed and tested for use in normal office environments, but may also be used in climate controlled environments that fall within the environmental conditions listed below. This product has not been tested for use in specialized medical or military applications and operating environments. In addition, this interactive pen display is neither waterproofed nor explosion resistant. It serves and can be used solely as a passive display and input device. In all applications for which it was not designed, no information on the products performance, durability or potential issues can be supplied as it has not undergone testing for these uses. The use of this interactive pen display in applications and environments other than a normal office environment is at the user's own risk. ENVIRONMENT CAUTION Temperature and humidity •Operating temperature and humidity: 5° to 35°C, 20 to 80 % RH •Storage temperature and humidity: -10° to 60°C, 20 to 90 % RH Do not use or store Cintiq where: •Temperature changes are severe or exceed specifications (e.g. outdoors or inside a vehicle). •The pen display, the Grip Pen, and the Cintiq stand are exposed to direct sunlight or heat from an appliance, or are exposed to water or any other kind of liquid. Do not use Cintiq in a dusty environment; this may damage the unit. Contents Contents 5 5 USAGE WARNING Only use a power adapter specified for use with your Cintiq. If a different type of power adapter is used, Cintiq will not work properly or may be damaged. Using a different type of power adapter also has the potential to result in fire. Use of a different power adapter will void your warranty. Regularly remove dust build-up from the power plug. The addition of moisture, etc., to accumulated dust may create a fire hazard. Do not damage, forcibly bend, or bundle the power cord. Do not place heavy objects on the cord or expose it to excessive heat. Ignoring this warning may result in fire, electrical shock, or product failure. Do not connect or disconnect the power adapter with wet hands. Ignoring this warning may result lin electrical shock or product malfunction. Do not insert foreign material into the USB port, video connector ports, or any other opening of this product. If a metal object or foreign material is inserted into a port or other opening of this product it may cause product malfunction, fire, or electrical shock. CAUTION Use a grounded power source when applying power to Cintiq. Do not connect or disconnect the video or power cables while Cintiq or your computer are turned on; this may damage the display or computer video card. In this case, Wacom shall have no responsibility to repair or replace the product. This product is for use with a DisplayPort, DVI, or VGA video card. Using an inappropriate video card may damage Cintiq. Do not block the rear panel ventilation holes; this may overheat and damage the unit. When not using Cintiq for long periods of time, unplug the power adapter from the AC outlet. Contents Contents 6 6 HANDLING WARNING High Voltage. Do not open or disassemble the Cintiq interactive pen display. There is a risk of electrical shock when the casing is open. This will also void your warranty and Wacom shall have no responsibility to repair or replace the product. Request assistance from another person or persons when lifting or moving this product. Physical damage or personal injury may result from a single person attempting to carry this product. Move this product in the following manner: - Before moving Cintiq, adjust the pen display height and incline so the display stand support arms are locked upright, with Cintiq positioned horizontally. Place all cables on top of the stand base and e…

Text truncated - open the document above for the full version.

Installation Guide & Hardware Manual⇎丶ಪ⠞ᖆᲹ㘂ᖆ➒♞⇎ᬯ⇆ᅝ㺱ᣛफঞ⹀储᠟ݞᅝ㺙ᣛफϢ⹀ӊ᠟ݠDTK-2400 1URTG[AVKVNGEQNQTKPFF  Notice for this product Install the driver software for correct pen and this product.The following Help and Support information provides information about this product. Help and Support information Description User's Manual PDFdocument The User's Manual is downloaded to your computer when the driver software is installed.Refer to the User's Manual to learn the useful information such as changing cables, using a VESA mount, troubleshooting and so on. Important product information PDFdocument The Important product information is included in the installation CD. It contains precautions, product specifications, and other important information. Quick Start Guide(This document) Printeddocument The Quick Start Guide provides a general overview of this product, including information such as how to use the product, and how to connect it to a PC. •• 1URTG[AVKVNGEQNQTKPFF  1 Welcome messageDear Customer,Thank you for buying this product pen display. Many customers tell us that this product is critical to helping them be both more productive and more creative. For them, this product has become an essential part of their workflow. We appreciate the trust you place in us and our responsibility to provide you with t he best creative tools possible. To bring this latest product to market we have spent many hours talking to customers and incorporating your feedback. For examp le we have increased the size, resolution and color gamut over the earlier product models. We also noticed that many of you work many hours a day, often struggling to meet a deadline while juggling numerous projects. S ome of you experience aches and pains as a result. Consequently we have designed the ergonomics of this product for unparalleled flexibilit y on how it can be positioned on your desk. It has been one of our major goals that the product you are about to use will be comfortable an d easy to use. There are many other enhancements and improvements in this latest product. We encourage you to read this Quick Start Guide and at least scan the manual which will help you get the most out of your purchase.We wish you the best of success in your creative endeavors. SincerelyThis product Development Team 1URTG[AVKVNGEQNQTKPFF  2 Supplied accessories Accessories not supplied with all models. Check the contents listed on the product packaging.See the User's Manual to replace pen nib and personalize your pen.See the User's Manual for information on attaching the VESA Mount. 1URTG[AVKVNGEQNQTKPFF  3 Connecting this product 1 Turn off your computer. 2 Connect the DVI-D cable or DisplayPort cable to the corresponding connector on your computer. Note that the DisplayPort cable i s shipped inside the stand. See the following page for instructions. Connections can also be made with the included DVI-I to VGA cable. See the User's Manual for more information. 1URTG[AVKVNGEQNQTKPFF  4 When using the DisplayPort cable, remove from the stand as shown. 3 Plug the USB connector into an available USB port on your computer or a USB hub attached to your computer. 1URTG[AVKVNGEQNQTKPFF  5 4 Plug the power cable into the power adapter and then into an AC outlet. 1URTG[AVKVNGEQNQTKPFF  6 5 Turn on this product. The power LED will change from orange to blue. 6 Turn on your computer. If a DVI-I to VGA cable is connected, configure the color resolution and size settings while looking at the display.Then, open the menu screen, and select [Screen Setting] > [Auto Adjust].For information on how to open the menu screen, see the User's Manual. 1URTG[AVKVNGEQNQTKPFF  7 Installing the tablet driverSave your work and close all open applications. 1 Insert this product installation CD. If the software installer menu is not automatically displayed, double-click on the Install icon located on the CD. 2 In the displayed dialog, click Install Tablet and follow the prompts. The User's Manual is downloaded to your computer when the driver software is installed.Click the Important Product Information menu in the dialog to view the Important Product Information guide for this product.It includes product safety precautions, specifications, and other important information. 1URTG[AVKVNGEQNQTKPFF  8 Calibrating this productFor optimum performance, you must calibrate this product to align the screen cursor with the position of the pen on the display screen. This is required to compensate for the viewing angle, and to adjust for parallax. Set this product in its working position, then follow the procedure below. 1 Open the pen tablet's control panel.See page 18. 2 Click the [Position Adjustment] tab. 3 Click [Calibrate...]. 1URTG[AVKVNGEQNQTKPFF  9 4 In the order of (1) > (2) > (3) > (4) from the top-left, click the center of the cross marks on the screen with the pen. The position adjustment is completed when the cross marks disappear.When using Windows, click [OK] (or [Save]) and close the control panel after saving the adjustment contents. •• 1URTG[AVKVNGEQNQTKPFF  10 Changing the angle of this productUse the lever to tilt the display forward.Use the lever to tilt the display backwards. The angle of the display can be changed with either the upper or lower lever. 1URTG[AVKVNGEQNQTKPFF  11 Adjusting this product to a comfortable positionThis product can be used nearly flat on your work surface.This product can be lowered off the edge of a desk or table and used above your lap for intensive creative work. See page 14for details. 1URTG[AVKVNGEQNQTKPFF  12 Flip down feet on bottom edge to allow keyboard placement beneath.This product can be used ve…

Text truncated - open the document above for the full version.

For the following information Ref. File No.: C1M1107029 Product ： LCD TABLET Model Number ： DTK-2400 Brand Name ： Wa c o m Applicant ： Wa c o m Co ., L t d . Manufacturer #1 ： Qisda Optronics (Suzhou) Co., Ltd. Manufacturer #2 ： Qisda Corporation Standards ： FCC 47 CFR Part 15 Subpart B/Oct. 2010 and CISPR 22/1997 (Class B Limit) and ICES-003 Qisda Ref. No ： JS-12502 We hereby certify that the above product has been tested by us and complied with the FCC official limits. These products might be marketed at the US accordance to FCC Rule based on the standard 47 CFR Part 2 and Part 15 Class B Equipment Regulations. The test was performed accordance to the procedures from ANSI C63.4-2009. The test data & results are issued on the test report no. EM-F1000675. Signature _________________________ Ben Cheng/Manager Date: Jul. 27, 2011 Test Laboratory: AUDIX Technology Corporation, EMC Department NVLAP Lab Code: 200077-0 FCC OET Designation: TW1004 Web Site: www.audixtech.com The statement is based on a single evaluation of one sample of the above-mentioned products. It does not imply an assessment of the whole production and does permit the use of the test lab logo. NVLAP Lab Code 200077-0

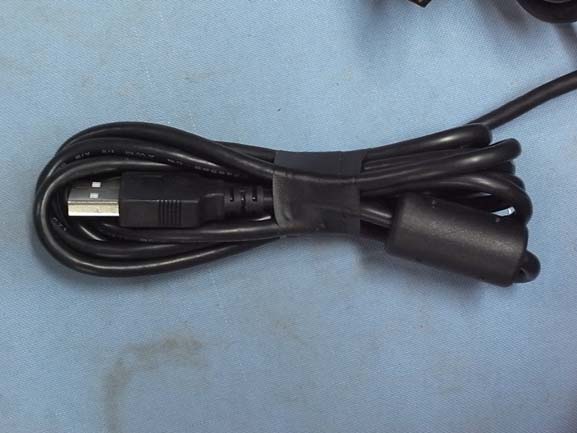

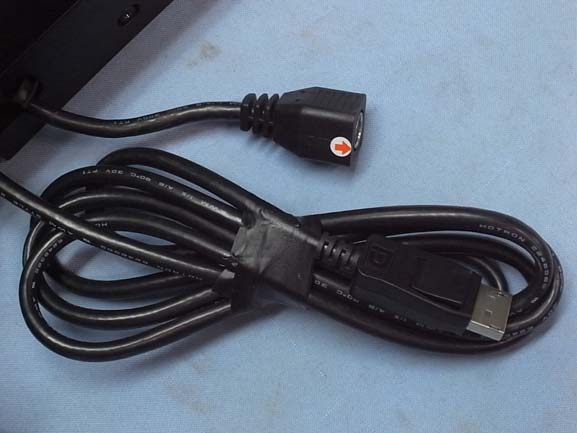

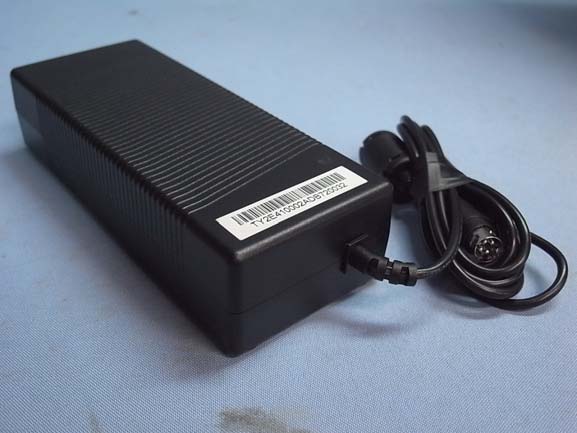

Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 EUT External Photos Figure 1 General Appearance (Front View) Figure 2 General Appearance (Back View) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 3 General Appearance (Front & Side View) Figure 4 General Appearance (Back & Side View) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 5 General Appearance (Back View, I/O Ports) Figure 6 General Appearance (Back View, I/O Ports) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 7 General Appearance (Side View, Button) Figure 8 General Appearance (Side View, I/O Ports) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 9 General Appearance (Bottom View) Figure 10 Internal View (Removed Cover, Data Cable) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 11 DVI Cable Figure 12 DP Cable & DC Cable Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 13 USB Cable Figure 14 DVI→D-Sub Cable Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 15 AC Adapter (General Appearance, Front & Side View) Figure 16 AC Adapter (General Appearance, Back & Side View) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 17 AC Adapter (General Appearance/Label View) Figure 18 Pen (General Appearance)

Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 FCC ID Label Location z Label Placement Location z FCC Label Format FCC Label Placement Location

Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 EUT Internal Photos Figure 19 Internal View (Removed Back Cover) Figure 20 Internal View (Removed Shielded Cover) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 21 Internal View (Removed Shielded Cover and PCB’s) Figure 22 Internal View (Main Board, Front View) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 23 Internal View (Main Board, Back View) Figure 24 Internal View (Control Board, Front View) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 25 Internal View (Control Board, Back View) Figure 26 Internal View (Converter Board, Front View) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 27 Internal View (Converter Board, Back View) Figure 28 Internal View (Power Board, Front View) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 29 Internal View (Power Board, Back View) Figure 30 Internal View (Removed Shielded Cover and PCB’s) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 31 Internal View (Control Board, Front View) Figure 32 Internal View (Control Board, Back View) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 33 Internal View (Inverter Board, Front View) Figure 34 Internal View (Inverter Board, Back View) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 35 Internal View (LVDS Board, Front View) Figure 36 Internal View (LVDS Board, Back View) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 37 Internal View (Removed PCB’s) Figure 38 Internal View (Function Control Board, Front View) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 39 Internal View (Function Control Board, Back View) Figure 40 Internal View (Function Control Board, Front View) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 41 Internal View (Function Control Board, Back View) Figure 42 Internal View (Power Switch Board, Front View) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 43 Internal View (Power Switch Board, Back View) Figure 44 Internal View (USB Board, Front View) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 45 Internal View (USB Board, Back View) Figure 46 Internal View (OSD Board, Front View) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 47 Internal View (OSD Board, Back View) Figure 48 Internal View (Sensor Board, Front View) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 49 Internal View (Sensor Board, Back View) Figure 50 Internal View (Touch Board) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 51 Internal View (Removed Touch Board, Back View) Figure 52 Internal View (Touch Board, Front View) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 53 Pen, Internal View (Removed Cover) Figure 54 Pen, Internal View (Main Board, Front View) Wacom Co., Ltd. LCD TABLET FCC ID. : HV4DTK2400 Figure 55 Pen, Internal View (Main Board, Back View)

FCC ID. HV4DTK2400 Page 19 of 21 AUDIX Technology Corporation Report No. EM-F1000663 4. PHOTOGRAPHS 4.1. Photos of Conducted Disturbance Measurement FRONT VIEW OF CONDUCTED MEASUREMENT BACK VIEW OF CONDUCTED MEASUREMENT FCC ID. HV4DTK2400 Page 20 of 21 AUDIX Technology Corporation Report No. EM-F1000663 4.2. Photos of Radiated Measurement at Semi-Anechoic Chamber 4.2.1. Frequency 9kHz-30MHz FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID. HV4DTK2400 Page 21 of 21 AUDIX Technology Corporation Report No. EM-F1000663 4.2.2. Frequency 30MHz-1000MHz FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT
