HV4DTU1141LCD Tablet

EN REGULATORY STATEMENT FCC notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. You can determine whether the equipment is causing interference by disconnecting it from your computer. If the interference stops, it was probably caused by the equipment. If the equipment does cause interference to radio or television reception, you may be able to correct the interference by using one or more of the following measures: • Rotate the television or radio antenna until the interference stops. • Move the equipment farther away from the television or radio. • Plug the equipment and computer into an outlet that is on a different circuit from the television or radio. If necessary, consult your Wacom dealer or an experienced radio/television technician for help. Changes or modifi cations to this product not authorized by Wacom could void the FCC Certifi cation and negate your authority to operate the product. INDUSTRY CANADA CAN ICES-3 (B)/NMB-3(B) This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Radiation Exposure Statement: The product comply with the Canada portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this guide. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. EU CONFORMITY INFORMATION The product complies with European EMC, ErP and RoHS Directive. See : www.wacom.eu/certifi cates As a member company of the International Energy Star Program, we judge that this product conforms to the standard of the International Energy Star Program. ENVIRONMENTAL COMPLIANCE WEEE Reuse, recycling, and recovery. You are urged to recycle this product when replacing it with a newer product or when it has outlived its useful life by bringing it to an appropriate collection point for recyclable materials in your community or region. By doing this, you can help improve the environment of your community as well as minimize the potential negative effects created should any hazardous substance that may possibly be present within waste material reach the environment during the disposal process. Within the European Union, users are required not to dispose of Waste Electrical and Electronic Equipment (WEEE) as unsorted municipal waste, according to the WEEE Directive or the corresponding local laws of the Member States. Products for which this is applicable will be marked with the WEEE symbol shown at the beginning of this note unless this is not feasible because of the size or the function of the product. Wacom products are subject to the Directive WEEE and therefore you should always collect them separately and bring them to the appropriate collection point in your community or region. DTU-1141 DE RECHTLICHE HINWEISE EU-KONFORMITÄTSINFORMATION Das Produkt erfüllt die Anforderungen der europäischen Richtlinien EMV, ErP sowie RoHS. Siehe: www.wacom.eu/certifi cates EINHALTUNG VON UMWELTSTANDARDS WEEE-RICHTLINIE Wiederverwendung, Recycling und Reparatur. Wenn Sie das Gerät durch ein neueres ersetzen oder die Nutzungsdauer des Geräts abgelaufen ist, sollten Sie das Produkt bei einer Recycling- Sammelstelle in Ihrer Nähe abgeben. Sie leisten dadurch einen aktiven Beitrag zum Umweltschutz in Ihrer Gemeinde und tragen dazu bei, dass keinerlei in dem Gerät vorhandene Schadstoffe bei der Entsorgung in die Umwelt gelangen. Gemäß der WEEE-Richtlinie und laut Vorschriften in den einzelnen Mitgliedsstaaten ist die Entsorgung von Elektro- und Elektronikschrott im normalen Hausmüll untersagt. Produkte, auf die diese Richtlinie zutreffen, sind mit dem Symbol zur Kennzeichnung von Elektro- und Elektronikgeräten am Anfang dieses Hinweises versehen, es sei denn, diese Kennzeichnung ist aufgrund des Formats oder der Funktion des Produkts nicht möglich. Produkte von Wacom unterliegen der WEEE-Richtlinie. Die Geräte sollten daher stets getrennt gesammelt und der entsprechenden Entsorgungsstelle in Ihrer Region oder Gemeinde zugeführt werden. NL WETTELIJ KE VERKLARING INFORMATIE OVER DE EU-CONFORMITEIT Het product voldoet aan de voorschriften van de europese EMC-, ErP- alsook de europese RoHS-richtlij nen. Zie: www.wacom.eu/certifi cates MILIEURICHTLIJ N WEEE Het tablet hergebruiken, recyclen en opslaan. U wordt verzocht dit product te recyclen wanneer u het vervangt door een nieuwer product of wanneer het product het einde van zij n levensduur heeft bereikt. Breng het naar een recyclingpunt in uw buurt. Op die manier levert u uw bij drage aan een schonere omgevi…

Text truncated - open the document above for the full version.

Important Product Information Contents Contents 1 1 Precautions Product Specifications License and Warranties DTU-1141 Contents Contents 2 2 DTU-1141 Important Product Information Version 1.0 A0115 Copyright © Wacom Co., Ltd., 2015 All rights reserved. No part of this manual may be reproduced except for your express personal use. Wacom reserves the right to revise this publication without obligation to provide notification of such changes. Wacom does its best to provide current and accurate information in this manual. However, Wacom reserves the right to change any specifications and product configurations at its discretion, without prior notice and without obligation to include such changes in this manual. The above year indicates when this manual was prepared. However, the date of release to the users of the "manual" is simultaneous with the introduction into the market of the applicable Wacom product. © 2015 Wacom Co., Ltd. All rights reserved. Wacom and its respective logos are trademarks and/or registered trademarks of Wacom Co., Ltd. All other company names and product names are trademarks and/or registered trademarks of their respective owners Contents Contents 3 3 CONTENTS Precautions 4 Precautions on use and handling 4 Physical location 4 Environment 4 Usage 5 Handling 6 Product Specifications 10 General Specifications 10 Display 11 Pen Tablet 12 Pen 12 License and Warranties 13 Tablet driver software end user license agreement (Worldwide except for Europe, Africa and Middle East) 13 Tablet driver software end user license agreement (Europe, Middle East and Africa) 18 Limited warranty (U.S.A. and Canada) 23 Limited warranty (Central America, South America and the Caribbean) 25 Limited warranty (Europe, Africa and Middle East) 27 Limited warranty (Asia Pacific Region) 29 Contents Contents 4 4 PRECAUTIONS PRECAUTIONS ON USE AND HANDLING To ensure the safe operation of the product, be sure to follow all instructions, cautions, and warnings found within this manual. Failure to do so could cause damage to the product, damage to your computer, or loss of data. Failure to do so could also void your warranty, in which case Wacom shall have no responsibility to repair or replace the product. PHYSICAL LOCATION WARNING The product should be used in normal office environments. It may be used also as a center console in climate controlled environments. The product was tested by Wacom for usage in a normal office environment only, and there was no testing for compatibility in medical and military application areas. The interactive pen display is neither waterproofed nor explosion resistant. It serves and can be used solely as a passive display and input device. In all applications that are not designated for its sole usage, no testing has been done on the functionality and possible malfunctions of the interactive pen display. The adoption of the interactive pen display in application areas other than normal office environments is at the user’s risk. ENVIRONMENT CAUTION Do not use or store the product where: •Temperature changes are severe or exceed specifications (e.g. outdoors or inside a vehicle). •The pen display or the pen are exposed to direct sunlight or heat from an appliance, or are exposed to water or any other kind of liquid. Do not use the product in a dusty environment; this may damage it. Contents Contents 5 5 USAGE WARNING Only use a USB cable specified for use with the product. If a different type of USB cable is used, the product will not work properly or may be damaged. Using a different type of USB cable also has the potential to result in fire. Use of a different USB cable will void your warranty. Do not damage, forcibly bend, or bundle the USB cable. Do not place heavy objects on the cord or expose it to excessive heat. Ignoring this warning may result in fire, electrical shock, or product failure. Do not connect or disconnect the USB cable with wet hands. Ignoring this warning may result in electrical shock or product malfunction. Do not insert a metal object or any foreign material into the USB port, video connector ports, or any other opening on the product. Doing so may cause product malfunction, fire, or electrical shock. CAUTION Provide adequate ventilation to the product. Poor ventilation may cause it to overheat or malfunction, and shorten the life of the product. To protect the health of your eyes when using the product: •Use the product only in a well-lit room, and do not sit too close to the display screen. •Take regular breaks when using the product for extended periods of time. Contents Contents 6 6 Take care of the LCD display. Do not push down forcibly with the pen on the LCD display. Pushing down forcibly on the display may cause ripple-like striped patterns to temporarily appear on the display. The ripples disappear when you stop pushing down with the pen. The following conditions are characteristics of LCD displays and do not indicate damage or malfunction to the product. •Depending on the displayed contents, uneven brightness may be produced. •Depending on the displayed contents, a small portion of lit and unlit lines, or red or blue dots may be visible. •When displaying objects with delicate patterns, flicker or striped patterns may be produced. •After displaying the same still image for an extended period of time, a residual image may be produced. (Residual images will gradually disappear over time.) •Changes to the condition of the back light over the period of using the display will gradually affect the condition of the display. •Depending on the angle from which the display is viewed, the colors and hues may appear changed. HANDLING WARNING High Voltage. Do not open or disassemble the product. There is a risk of electrical shock when the casing is open. Opening the case will void your warranty and Wacom shall have no responsibility to repair or replace the product. Ensure that cabling or other objects do not get entangled in the moving parts of the …

Text truncated - open the document above for the full version.

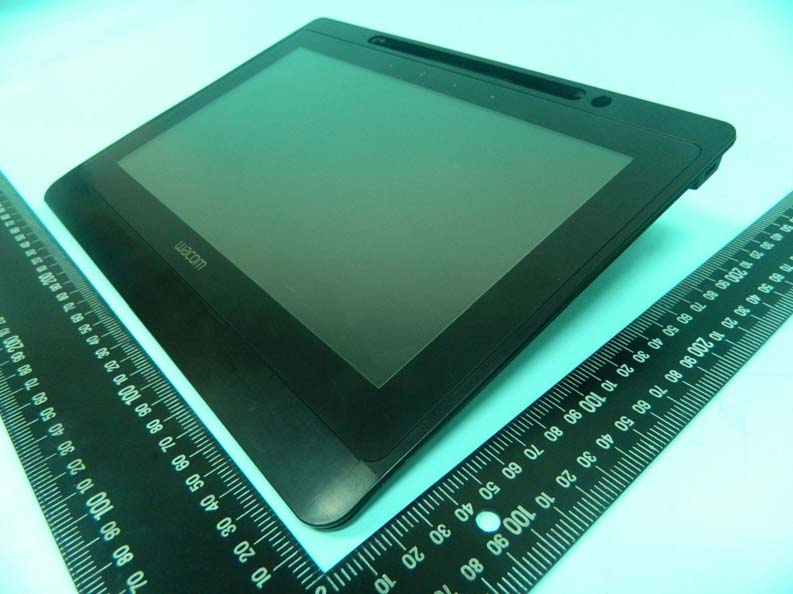

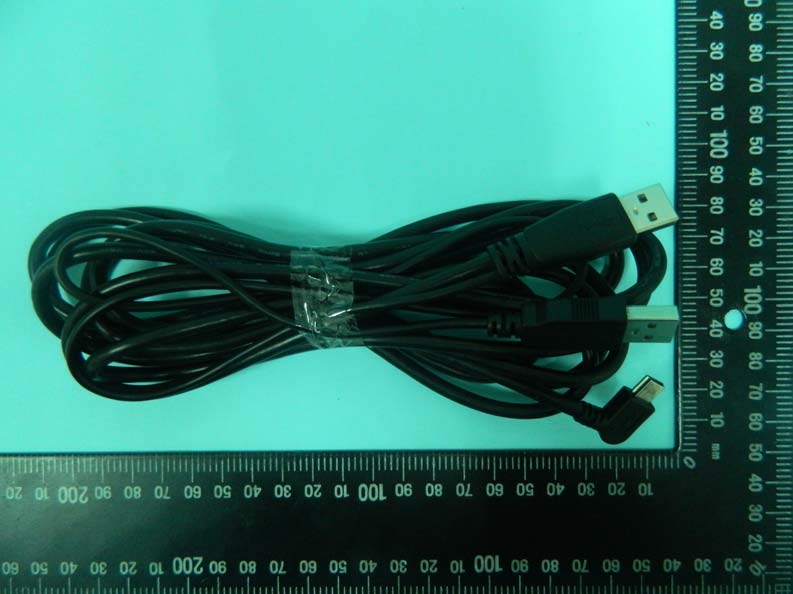

Report No. : EP4D2609 SPORTON International Inc. Page Number : B1 of B17 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT Report No. : EP4D2609 SPORTON International Inc. Page Number : B2 of B17 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4D2609 SPORTON International Inc. Page Number : B16 of B17 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

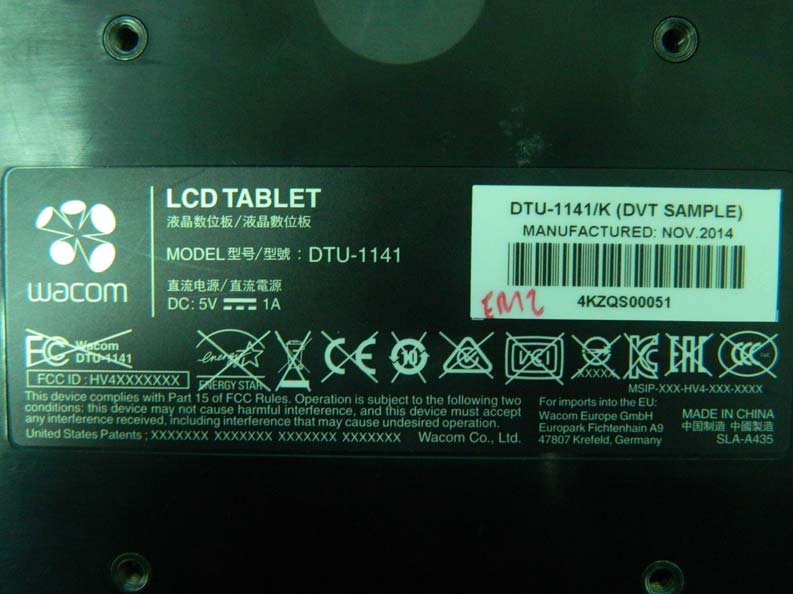

1 F E D 324 C B A 13 24 56 F E D 567 C B 8 A 番号変更指示書年.月.日確認 担当変更内容 材質 確認検図設計 処理 製図 個数 尺度 品種 型番 備考 図面番号頁 SAMPLE R 2 39 109 United States Patents ; 5691513 6798284 8304671 This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: this device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. DTU-1141 MODEL Wacom Co., Ltd. SLA-A435 DC: 5V1A 直流电源直流電源 Wacom DTU-1141 FCC ID : HV4DTU1141 IC : 6888A-DTU1141 CAN ICES-3(B)/NMB-3(B) For imports into the EU: Wacom Europe GmbH Europark Fichtenhain A9 47807 Krefeld, Germany Back of DTU-1141 Top Spec label located here Bottom

Report No. : EP4D2609 SPORTON International Inc. Page Number : B3 of B17 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4D2609 SPORTON International Inc. Page Number : B4 of B17 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4D2609 SPORTON International Inc. Page Number : B5 of B17 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4D2609 SPORTON International Inc. Page Number : B6 of B17 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4D2609 SPORTON International Inc. Page Number : B7 of B17 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4D2609 SPORTON International Inc. Page Number : B8 of B17 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4D2609 SPORTON International Inc. Page Number : B9 of B17 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4D2609 SPORTON International Inc. Page Number : B10 of B17 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4D2609 SPORTON International Inc. Page Number : B11 of B17 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4D2609 SPORTON International Inc. Page Number : B12 of B17 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4D2609 SPORTON International Inc. Page Number : B13 of B17 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4D2609 SPORTON International Inc. Page Number : B14 of B17 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4D2609 SPORTON International Inc. Page Number : B15 of B17 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP4D2609 SPORTON International Inc. Page Number : B16 of B17 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

FCC Test Report Report No. : FR4D2609 SPORTON INTERNATIONAL INC. Page No. : 1 of 27 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : LCD Tablet Brand Name : Wacom Model No. : DTU-1141 FCC ID : HV4DTU1141 Standard : 47 CFR FCC Part 15.209 Operating Band : 531.25kHz～593.75kHz FCC Classification : DCD Applicant Manufacturer : Wacom Co., Ltd. 2-510-1, Toyonodai, Kazo-shi, Saitama 349-1148 Japan The product sample received on Dec. 26, 2014 and completely tested on Jan. 20, 2015. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Vic Hsiao / Supervisor FCC Test Report Report No. : FR4D2609 SPORTON INTERNATIONAL INC. Page No. : 2 of 27 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Accessory and Support Equipment ........................................................................................................ 7 1.3 Testing Applied Standards ..................................................................................................................... 8 1.4 Testing Location Information .................................................................................................................. 8 1.5 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION OF EUT ...................................................................................................... 10 2.1 The Worst Case Modulation Configuration .......................................................................................... 10 2.2 Test Channel Frequencies Configuration ............................................................................................. 10 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 Transmitter Radiated Emissions .......................................................................................................... 17 3.3 Emission Bandwidth ............................................................................................................................. 24 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 26 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR4D2609 SPORTON INTERNATIONAL INC. Page No. : 3 of 27 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 3.1 15.207 AC Power-line Conducted Emissions [dBuV]:0.1500MHz 30.33 (Margin 25.67dB) - AV 50.92 (Margin 15.08dB) - QP FCC 15.207 Complied 3.2 15.209 Transmitter Radiated Emissions [dBuV/m at 3m]:720.64MHz 34.08 (Margin 11.92dB) - QP FCC 15.209 Complied 3.3 - Emission Bandwidth 20dB Bandwidth: 80.17 [kHz] N/A Complied FCC Test Report Report No. : FR4D2609 SPORTON INTERNATIONAL INC. Page No. : 4 of 27 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR4D2609 Rev. 01 Initial issue of report Jan. 27, 2015 FCC Test Report Report No. : FR4D2609 SPORTON INTERNATIONAL INC. Page No. : 5 of 27 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range 531.25kHz～593.75kHz Modulation Ch. Frequency (kHz) Channel Number Field Strength (dBuV/m) ASK 531.25/562.50/593.75 3 56.71 Note 1: Field strength performed peak level at 1m. 1.1.2 Antenna Information Antenna Category Equipment placed on the market without antennas Integral antenna (antenna permanently attached) External antenna (dedicated antennas) FCC Test Report Report No. : FR4D2609 SPORTON INTERNATIONAL INC. Page No. : 6 of 27 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Type of EUT Identify EUT EUT Serial Number N/A Presentation of Equipment Production ; Pre-Production ; Prototype Type of EUT Stand-alone Combined (EUT where the radio part is fully integrated within another device) Combined Equipment - Brand Name / Model No.: Mounted radio (EUT intended for a limited host system) Host System : Brand Name / Model No.: FCC ID : Other: 1.1.4 Test Signal Duty Cycle Operated Mode for Worst Duty Cycle Operated normally mode for worst duty cycle Operated test mode for worst duty cycle Test Signal Duty Cycle (x) 100.00% 1.1.5 EUT Operational Condition Supply Voltage AC mains DC Type of DC Source From Battery External DC adapter From system FCC Test Report Report No. : FR4D2609 SPORTON INTERNATIONAL INC. Page No. : 7 of 27 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.2 Accessory and Support Equipment Accessories Information USB Cable Brand Name Wacom Mode…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR4D2609 SPORTON INTERNATIONAL INC. Page No. : A1 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR4D2609 SPORTON INTERNATIONAL INC. Page No. : A2 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC Test Report Report No. : FR4D2609 SPORTON INTERNATIONAL INC. Page No. : A3 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC Test Report Report No. : FR4D2609 SPORTON INTERNATIONAL INC. Page No. : A4 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR4D2609 SPORTON INTERNATIONAL INC. Page No. : A5 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW
