HV4PL80018" LCD Pen Tablet System

1 INTERACTIVE PEN DISPLAY INSTALLATION GUIDE AND USER’S MANUAL 2 Introduction and Overview The Wacom ® Cintiq ™ 18SX Interactive Pen Display combines an LCD display with a Wacom tablet. This gives you a direct point-and-draw-on-screen interface that can be used with a Personal Com- puter (PC), Macintosh ® computer, or SGI ™ or Sun ® workstation. Cintiq’s basic components include a Wacom tablet internally mounted behind an 18.1” diagonal TFT color LCD display, and Wacom’s Grip Pen. Your Cintiq Interactive Pen Display offers a number of significant advantages over a standard display:
Integrated input and display
Pressure-sensitive drawing directly on the display screen
Reduced power consumption and heat generation
Requires less work space
Flicker free and easier on the eyes. Cintiq comes with a modular display stand, which allows you to easily rotate the Interactive Pen Display unit to any orientation, and to adjust the incline of the working surface to any angle between 13 and 70 degrees. You can also lock Cintiq in either a landscape or portrait orientation. If you prefer to use Cintiq on your lap, simply lift the display unit out of the stand. Please refer to Working with Cintiq on page 32 for more information. The workspace, and how you interact with it, was an important consideration in the design and development of Cintiq. Regardless of how you prefer to work with the Interactive Pen Display, you will find that Cintiq is ideally suited to a variety of diverse professional fields and applications. Cintiq is especially useful in the fields of animation, graphics design, 3D modeling, and video and film post-production. Some additional areas of use include architectural design, AV presentations, industrial design, medical imaging, textile design, and any others where direct manipulation of the screen image is useful. This manual describes how to install the Cintiq hardware and software. It also describes how to use Cintiq, the Grip Pen, and the modular display stand. The Interactive Pen Display and the Cintiq stand are packed separately. Refer to Unpacking Cintiq on page 12 before removing Cintiq or the stand from the box. Please follow all instructions carefully. 3 Note that the computer treats the two parts of Cintiq (the LCD display and the Wacom tablet) as separate pieces of hardware. Therefore, the installation process is completed in two stages:
First, you will install the LCD display portion of Cintiq.
In the second stage you will install Cintiq’s tablet functionality. Both stages require hardware and software installations. Please follow all instructions carefully. You can find information on using the Wacom Tablet Control Panel for customizing your tablet and pen settings in the online Help, located under the Help menu in the Wacom Tablet Control Panel. See Learning More About Cintiq on page 37. The following are not included with this product:
Information about your specific computer hardware
Information about your operating system
Information about application software. Please refer also to your computer hardware, operating system, or software application manuals. To use the pressure-sensitivity of the Grip Pen with your favorite drawing application, refer to instructions in that application’s manuals. 4 Precautions on Use and Handling Be sure to follow all instructions, cautions, and warnings found within this manual. Failure to do so could void your warranty, in which case Wacom shall have no responsibility to repair or replace the product. P H Y S I C A L L O C A T I O N
Do not use the Cintiq Interactive Pen Display in a facility control system that requires extremely high reliability; it may cause other electronic devices to malfunc- tion, or other devices may cause the Interactive Pen Display to malfunction. Where use is prohibited, power off Cintiq to prevent the possibility of it causing other electronic devices to malfunction. Wacom does not accept any liability for direct or consequential damages. For details, please refer to your Warranty, located at the end of this manual. E N V I R O N M E N T
Temperature and Humidity – Operating temperature and humidity 5 ̊ to 35 ̊C, 20 to 80% RH – Storage temperature and humidity-10 ̊ to 60 ̊C, 20 to 90% RH
Do not use or store Cintiq where temperature changes are severe or exceed specifica- tions (e.g., outdoors or inside a vehicle). Do not use or store Cintiq where the Interactive Pen Display, the Grip Pen, and the Cintiq stand are exposed to direct sunlight or heat from an appliance, or are exposed to water or any other kind of liquid.
Do not use Cintiq in a dusty environment; this may damage the unit. U S A G E
Only use the power supply that came with Cintiq. If a different type of power supply is used, Cintiq will not work properly or may be damaged. Using a different type of power supply also has the potential to result in fire. Use of a different power supply will void your warranty.
Be sure to use a grounded power source when applying power to Cintiq.
Do not connect or disconnect the video or power cables while Cintiq or your computer are turned on; this may damage the LCD display or computer video card. In this case, Wacom shall have no responsibility to repair or replace the product.
This product is for use with a DVI or VGA video card; using an inappropriate video card may damage Cintiq.
Do not block the rear panel ventilation holes; this may overheat and damage the unit.
When not using Cintiq for long periods of time, unplug the power supply cable from the AC outlet. WARNING CAUTION CAUTION CAUTION CAUTION CAUTION CAUTION WARNING 5 H A N D L I N G
High Voltage. Do not open or disassemble the Cintiq Interactive Pen Display. There is a risk of electrical shock when the casing is open. This will also void your warranty and Wacom shall have no responsibility to repair or replace the product.
Do not operate the display stand incline adjustment levers when Cintiq is not mounted on the stand, and do not …

Text truncated - open the document above for the full version.

DC18V (No battery, no oscillator) DVI CONNECTOR or ANALOG CONNECTOR Digital Video Signal (TMDS) or Analog Video Signal Gm5020 X'tal + 5V ± 6V ±11V 740V DC/DC CONVERTER 250kHz BACK LIGHT INVERTER 50.0kHz DC/DC CONVERTER +3.3V + 5V AC ADAPTER CONNECTOR LCD UNIT BACK LIGHT SENSOR STYLUS ANALOG IC W 6004 562.50kHz 531.25kHz 593.75kHz CPU W 7003F CPU < PL800 Block Diagram > USB CONNECTOR or SERIAL CONNECTOR Flash memory X’ tal 16MHz X’ tal 6MHz AC ADAPTER INPUT:AC100240V 5060Hz SENSOR I/F 24MHz X'tal CPU 11.0592MHz

(Fig. 1) FCC ID: HV4PL800 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

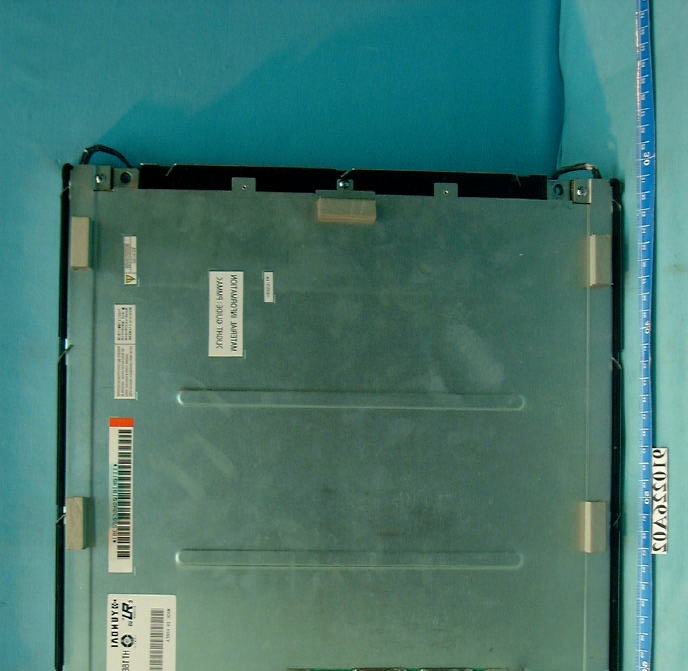

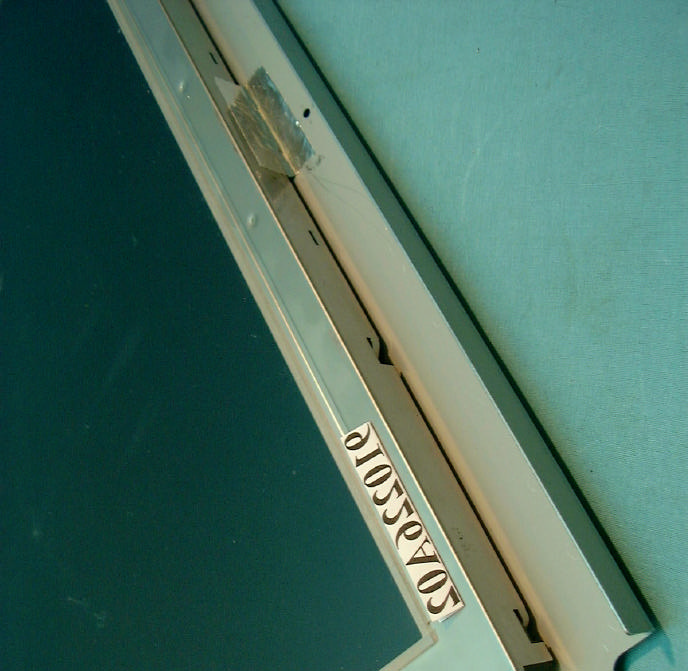

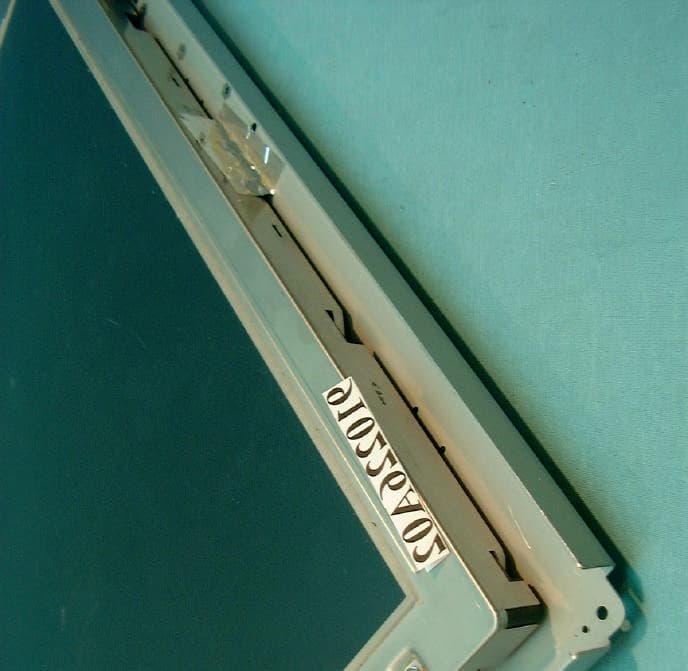

(Photo 4) FCC ID: HV4PL800 (Photo 5) FCC ID: HV4PL800 2 (Photo 6) FCC ID: HV4PL800 3 (Photo 7) FCC ID: HV4PL800 (Photo 8) FCC ID: HV4PL800 (Photo 9) FCC ID: HV4PL800 (Photo 10) FCC ID: HV4PL800

(Photo 11) FCC ID: HV4PL800 (Photo 12) FCC ID: HV4PL800 4 4 (Photo 13) FCC ID: HV4PL800 (Photo 14) FCC ID: HV4PL800 5 (Photo 15) FCC ID: HV4PL800 6 4 (Photo 16) FCC ID: HV4PL800 (Photo 17) FCC ID: HV4PL800

(Photo 18) FCC ID: HV4PL800 (Photo 19) FCC ID: HV4PL800 (Photo 20) FCC ID: HV4PL800 (Photo 21) FCC ID: HV4PL800 (Photo 22) FCC ID: HV4PL800 (Photo 23) FCC ID: HV4PL800 (Photo 24) FCC ID: HV4PL800

(Photo 25) FCC ID: HV4PL800 (Photo 26) FCC ID: HV4PL800 (Photo 27) FCC ID: HV4PL800 (Photo 28) FCC ID: HV4PL800 7 (Photo 29) FCC ID: HV4PL800 (Photo 30) FCC ID: HV4PL800 (Photo 31) FCC ID: HV4PL800

FCC ID: HV4PL800 Report No.: F910226A021Issued: March 5, 2002 FCC TEST REPORT REPORT NO.: F910226A02 MODEL NO.: PL-800 RECEIVED: Feb. 26, 2002 TESTED: Feb. 28, 2002 APPLICANT:GBM Ray System Technology Inc. ADDRESS:3F-7, No. 102, Chung Shan Rd., Sec. 3, Chung Ho City, Taipei Hsien, Taiwan, R. O. C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 30 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: HV4PL800 Report No.: F910226A022Issued: March 5, 2002 Table of Contents 1CERTIFICATION............................................................................................. 3 2SUMMARY OF TEST RESULTS .................................................................... 4 3GENERAL INFORMATION ............................................................................. 5 3.1GENERAL DESCRIPTION OF EUT ................................................................5 3.2DESCRIPTION OF TEST MODES ..................................................................5 3.3DESCRIPTION OF SUPPORT UNITS ............................................................6 4EMISSION TEST ............................................................................................ 7 4.1CONDUCTED EMISSION MEASUREMENT...................................................7 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ................................7 4.1.2 TEST INSTRUMENTS.....................................................................................7 4.1.3 TEST PROCEDURE........................................................................................8 4.1.4 DEVIATION FROM TEST STANDARD............................................................8 4.1.5 TEST SETUP...................................................................................................8 4.1.6 EUT OPERATING CONDITIONS ....................................................................9 4.1.7 TEST RESULTS (A).......................................................................................10 4.1.8 TEST RESULTS (B).......................................................................................12 4.2RADIATED EMISSION MEASUREMENT......................................................14 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ...................................14 4.2.2 TEST INSTRUMENTS...................................................................................15 4.2.3 TEST PROCEDURE......................................................................................16 4.2.4 DEVIATION FROM TEST STANDARD..........................................................16 4.2.5 TEST SETUP.................................................................................................17 4.2.6 EUT OPERATING CONDITIONS ..................................................................17 4.2.7 TEST RESULTS (A).......................................................................................18 4.2.8 TEST RESULTS (B).......................................................................................22 5PHOTOGRAPHS OF THE TEST CONFIGURATION ................................... 26 6APPENDIX - INFORMATION ON THE TESTING LABORATORIES ............ 30 FCC ID: HV4PL800 Report No.: F910226A023Issued: March 5, 2002 1 CERTIFICATION PRODUCT:18” LCD Pen Tablet System BRAND NAME:WACOM MODEL NO.:PL-800 TEST ITEM:ENGINEERING SAMPLE APPLICANT:GBM Ray System Technology, Inc. STANDARDS:FCC Part 15, Subpart B, Class B CISPR 22: 1997, Class B ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on Feb. 28, 2002. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: HV4PL800 Report No.: F910226A024Issued: March 5, 2002 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: StandardTest TypeResultRemarks Conducted TestPASS Meets Class B Limit Minimum passing margin is –19.09 dB at 22.568 MHz FCC Part 15, Subpart B, Class B CISPR 22: 1997, Class B Radiated TestPASS Meets Class B Limit Minimum passing margin is –2.10 dB at 209.48 MHz NOTE: For conducted emission test, the test limit used is according to FCC Part 15.107. In this part, conducted emission test for telecom port is not mentioned and therefore this item is not tested. FCC ID: HV4PL800 Report No.: F910226A025Issued: March 5, 2002 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT18” LCD Pen Tablet System MODEL NO.PL-800 POWER SUPPLY Power adapter Brand: LIEN ELECTRONICS Model: LE-2006B I/P: 100-240V, 50/60Hz, 1.5A O/P: 18V, 4A, 72W max. Power Cord: Non-shielded AC (1.8m, 3-pin) Non-shielded DC (1.5m) with a ferrite core DATA CABLE Shielded 2.0m with VGA, USB & RS232 inputs (two ferrite cores) NOTE: The EUT is an 18” LCD Pen Tablet System with resolution up to 1024x768. The EUT has touch-screen function. For a more detailed features description, please refer to the manufacturer's specifications or the User's Manual. 3.2 DESCRIPTION OF TEST MODES The EUT was pre-tested with two types of VGA input with resolution and horizontal synchronization speed modes as follows: MODEPORTPRE-TESTFINAL TEST 1280X1024 (75Hz/80kHz) 1024x768 (75Hz/60kHz)MODE 1D-Sub 640x480 (60Hz/31.5kHz) 1280X1024 (75Hz/80kHz) 1280X1024 (75Hz/80kHz) 1024x768 (75Hz/60kHz)MODE 2DVI 640x480 (60Hz/31.5kHz) 1280X1024 (75H…

Text truncated - open the document above for the full version.

FCC ID: HV4PL800 Report No.: F910226A0226Issued: March 5, 2002 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (Mode 1) FCC ID: HV4PL800 Report No.: F910226A0227Issued: March 5, 2002 CONDUCTED EMISSION TEST (Mode 2) FCC ID: HV4PL800 Report No.: F910226A0228Issued: March 5, 2002 RADIATED EMISSION TEST (Mode 1) FCC ID: HV4PL800 Report No.: F910226A0229Issued: March 5, 2002 RADIATED EMISSION TEST (Mode 2)
