HWFH410WWireless Handy Scanner

For smartphones, tablets, and computers Wireless Handy Scanner All trademarks are the property of their respective owners and all rights are acknowledged. Images and screenshots used in this User Guide may vary according to the devices used and its operating system. Images and screenshots shown inside are example only. Compatible with Apple iOS, Mac OS X, Android OS, and Windows PC/Phone V1.5 Wi-Fi ® 802.11g/n supported Works with Scanner App iScanAir Go User Guide 2 Safety and Precautions Discarded electrical and electronic appliance are recyclable and should separate from the household waste. Please actively support in conserving resources and protecting the environment by returning this appliance to the collection centers (if available). • Never store the unit in hot, or very cold, or humid or dusty places. • For an extended storage period, we recommend storing the unit in a cool and dry place. • To help keep the scanning area clean, store the unit in a proper case when not in use. • If the unit is left in extreme cold or hot conditions, allow to adjust to normal room temperatures before use. • Only use accessories included with the unit. • When left unused for a long period of time, the unit should be disconnected from the power supply. • Always handle the unit with care. Avoid dropping and strong impact. • Keep the lens and roller clean and free from scratches. • Do not scan sharp objects or hard abrasive surfaces to avoid damage to the lens and other parts. • Do not scan objects with glue, grease, correction fluid, or wet ink on it which can cause malfunctions. • Operate the unit on a level, well-grounded work surface, and free of excessive vibration. • Don’t open the unit. Risk of electric shock. • Use only a soft damp cloth to clean the exterior areas of the unit. • Do not leave the unit within the reach of children. 3 Safety and Precautions .......................................................................................................2 Contents .........................................................................................................................3 Supported Devices ............................................................................................................4 Unpack...........................................................................................................................5 Scanner Parts ..................................................................................................................6 LED Messages ..................................................................................................................7 Insert AAA Batteries ...........................................................................................................8 Set the Resolution .............................................................................................................9 Set the Scanner Mode .......................................................................................................10 Install the iScanAir Go app (Wi-Fi Mode) ................................................................................11 Connect to Wireless Network (Wi-Fi Mode) .............................................................................12 Scan, Save, and Share (Wi-Fi Mode) .....................................................................................13 Scan the Object ...........................................................................................................................................................................13 Save the Image ............................................................................................................................................................................14 Share the Image ..........................................................................................................................................................................14 Use as the Standalone Scanner (MicroSD Mode) ......................................................................15 Browse and Transfer Images .......................................................................................................................................................15 Clean Lens and Rollers .....................................................................................................16 Calibrate .....................................................................................................................17 Calibrate in the Wi-Fi Mode ........................................................................................................................................................17 Calibrate in the MicroSD Mode ...................................................................................................................................................18 Helpful Hints ..................................................................................................................19 Specifications ................................................................................................................20 Contents 4 Supported Devices The Scanner is compatible with following devices in the Wi-Fi mode: iPad (4th generation), iPad (3rd generation), iPad 2, iPad, iPad mini with iOS 5.0 or later. iPhone 5, iPhone 4S, iPhone 4, iPod touch with iOS 5.0 or later. Android mobile devices (smartphones and tablets) with OS 2.3.3 or later. Mac computers with OS X 10.7 or later. Windows PC devices (tablets, and computers) with Windows 8, Windows 8 Pro, or Windows RT. Windows Phone 8. 5 Unpack Make sure following items are included. ScannerUSB Cable (See p.15) Calibration Sheet (See p.17) AAA battery x 4 (See p.8) Cleaning Cloth (See p.16) User GuideCarrying Bag 6 Scanner Parts POWER/SCAN Button MicroSD Card Slot Mini USB Port Battery Cover SQ/HQ Switch Wi-Fi/MicroSD Switch Guide Scanning LED Wi-Fi LED Power LED Guide Rollers Scanning Lens 7 LED Messages SymbolLE…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: Mustek Systems Inc. No.25, R&D Road II, Science-Based Industrial Park,. City: Hsin-Chu, Country: Taiwan, R.O.C  . Declare that: Name Representative of agent: Gene Chang(1) Agent Company name: QuieTek Corporation Address: 2F, No. 345, Xinhu 2nd Rd., Neihu District, City: Taipei City 114, Country: Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: Wireless Handy Scanner Type designation: H410W Trademark: Mustek on our behalf. Date: 2013/05/14 City: Hsin-Chu Name: Miller Hsieh  .. (2) Function: Manager......................... Signature:  . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 Company Name: Mustek Systems Inc. Address :No.25, R&D Road II, Science-Based Industrial Park, City: Hsin-Chu, Country: Taiwan, R.O.C. To: Telefication B.V.,Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject:Request for confidentiality FCC ID: HWFH410W Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicanthereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date:2013/05/14 Name and signature of applicant: Miller Hsieh Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) Equipment:Wireless Handy Scanner Trademark(s) and Model(s):Mustek/ H410W Manufacturer:(1) Mustek Systems Inc. (2) MUSTEK ELECTRONICS CO., LTD FCC ID in case other parts of this equipment are subject to certification: HWFH410W This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number:Issue date: 134421R-RFUSP37V02 2013/05/14 Company name: Mustek Systems Inc. Name/Title (legal representative): Miller Hsieh Address: No.25, R&D Road II, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Phone: 886-3-577-9373 Fax: 886-3 -578-4139 E-mail: [email protected] Date: 2015/05/13 Signature: Technical Laboratory Quietek Corporation FCC Registration Number: 92195 Name Representative of agent:Gene Chang Agent Company name: QuieTek Corporation Address: 2F,No. 345, Xinhu 2 nd Rd., Neihu District, City: Taipei City 114, Country: Taiwan, R.O.C. FCC

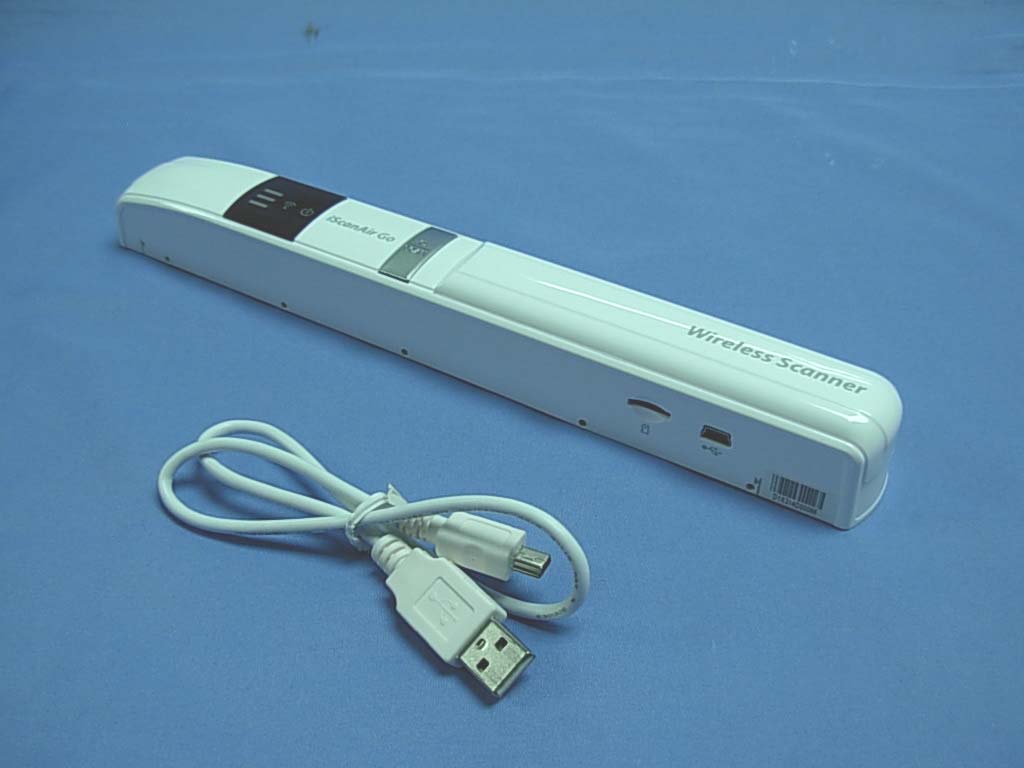

Report No： 134421R-RFUSP42V01 Page: 85 of 96 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

H410W iScanAir Go Model NO: H410W Battery: 4 x 1.5V/AAA Made in CHina 80-345-04120 RATING LABEL,H410W,NB

FCC ID.: HWFH410W FCC ID AND DoC Label

Report No： 134421R-RFUSP42V01 Page: 86 of 96 (3) EUT Photo (4) EUT Photo Report No： 134421R-RFUSP42V01 Page: 87 of 96 (5) EUT Photo (6) EUT Photo Report No： 134421R-RFUSP42V01 Page: 88 of 96 (7) EUT Photo (8) EUT Photo Report No： 134421R-RFUSP42V01 Page: 89 of 96 (9) EUT Photo (10) EUT Photo Report No： 134421R-RFUSP42V01 Page: 90 of 96 (11) EUT Photo (MB) Report No： 134421R-RFUSP42V01 Page: 91 of 96 (12) EUT Photo (13) EUT Photo Report No： 134421R-RFUSP42V01 Page: 92 of 96 (14) EUT Photo (Antenna) (15) EUT Photo Report No： 134421R-RFUSP42V01 Page: 93 of 96 (16) EUT Photo (17) EUT Photo Report No： 134421R-RFUSP42V01 Page: 94 of 96 (18) EUT Photo (19) EUT Photo Report No： 134421R-RFUSP42V01 Page: 95 of 96 (20) EUT Photo (21) EUT Photo Report No： 134421R-RFUSP42V01 Page: 96 of 96 (22) EUT Photo

Report No：134421R-HPUSP09V01 Page: 1 of 22 FCC SAR Test Report Product Name：Wireless Handy Scanner Model No. ： H410W Applicant ：Mustek Systems Inc. Address ：No.25, R&D Road II, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Date of Receipt ：2013/04/22 Issued Date ：2013/05/07 Report No. ：134421R-HPUSP09V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Report No：134421R-HPUSP09V01 Page: 2 of 22 Test Report Certification Issued Date: 2013/05/07 Report No.: 134421R-HPUSP09V01 Product Name ： Wireless Handy Scanner Applicant ： Mustek Systems Inc. Address ： No.25, R&D Road II, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Manufacturer ： (1) Mustek Systems Inc. (2) MUSTEK ELECTRONICS CO., LTD Model No. ： H410W Trade Name ： Mustek Applicable Standard： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Measurement procedures ： KDB 447498 , KDB 248227, KDB 616217,KDB 865664 Test Result ： Max. SAR Measurement (1g) 0.339 W/kg Application Type ： Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Documented By ： (Adm. Assistant / April Chen) Tested By ： (Engineer / Wen Lee) Approved By ： (Manager / Vincent Lin) Report No：134421R-HPUSP09V01 Page: 3 of 22 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Antenna List ................................................................................................................... 5 1.3 Maximum output power and tolerance allowed for production units ............................ 5 1.4 Test Environment ...........................................................................................................6 2. SAR Measurement System .................................................................. 7 2.1 DASY5 System Description .......................................................................................... 7 2.1.1 Applications ................................................................................................................ 8 2.1.2 Area Scans................................................................................................................... 8 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 8 2.1.4 Uncertainty of Inter-/Extrapolation and Averaging .................................................... 8 2.2 DASY5 E-Field Probe ................................................................................................... 9 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 10 2.4 DATA Acquisition Electronics (DAE) and Measurement Server ............................... 10 2.5 Robot ............................................................................................................................ 11 2.6 Light Beam Unit........................................................................................................... 11 2.7 Device Holder ..............................................................................................................12 2.8 SAM Twin Phantom .................................................................................................... 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure ........................................................... 15 4.1 SAR System Check ...................................................................................................... 15 4.1.1 Dipoles ...................................................................................................................... 15 4.1.2 System Check Result ................................................................................................ 15 4.2 SAR Measurement Procedure ...................................................................................... 16 5. SAR Exposure Limits ......................................................................... 17 6. Test Equipment List............................................................................ 18 7. Measurement Uncertainty .................................................................. 19 8. Conducted Power Measurement ....................................................... 20 9. Test Results......................................................................................... 21 9.1 SAR Test Results Summary ......................................................................................... 21 Appendix ............................................................................................................................ 22 Report No：134421R-HPUSP09V01 Page: 4 of 22 Appendix A. SAR System Check Data Appendix B. SAR measurement Data Appendix C. Test Setup Photographs & EUT Photographs Appendix D. Probe Calibration Data Appendix E. Dipole Calibration Data Report No：134421R-HPUSP09V01 Page: 5 of 22 1. General Information 1.1 EUT Description Product Name Wireless Handy Scanner Trade Name Mustek Model No. H410W TX Frequency 2412MHz~2462MHz Type of Modu…

Text truncated - open the document above for the full version.

Report No： 134421R-RFUSP42V01 Page: 41 of 96 3.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No： 134421R-RFUSP42V01 Page: 42 of 96 Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Horn)
