HWFS400WScanner

For mobile devices, and computers Wireless ScannerWireless Scanner U s e r G u i d e Works withScanner App iScan Air All trademarks are the property of their respective owners and all rights are acknowledged. Compatible with iOS, Mac OS X, Android OS, and Windows 8 POWER A8 A6 A4 POWER A8 A6 A4 V1.3 Wi-Fi ® 802.11g/n Supported S400W 2 Safety and Precautions Discarded electrical and electronic appliance are recyclable and should separate from the household waste. Please actively support in conserving resources and protecting the environment by returning this appliance to the collection centers (if available). • Never store the unit in hot, or very cold, or humid or dusty places. • For an extended storage period, we recommend storing the unit in a cool and dry place. • To help keep the scanning area clean, store the unit in a proper case when not in use. • If the unit is left in extreme cold or hot conditions, allow to adjust to normal room temperatures before use. • Only use accessories included with the unit. • When left unused for a long period of time, the unit should be disconnected from the power supply. • Always handle the unit with care. Avoid dropping and strong impact. • Keep the lens and roller clean and free from scratches. • Do not scan sharp objects or hard abrasive surfaces to avoid damage to the lens and other parts • Operate the unit on a level, well-grounded work surface, and free of excessive vibration. • Don’t open the unit. Risk of electric shock. • Use only a soft damp cloth to clean the exterior areas of the unit. • Do not leave the unit within the reach of children. 3 Safety and Precautions ........................................... 2 Contents .................................................................... 3 Supported Devices ................................................. 4 Unpack ....................................................................... 5 Scanner Parts ........................................................... 6 Charge the Battery ................................................... 7 Download and Install iScan Air .............................. 8 From iPad, iPhone, and iPod touch ......................................8 From Android mobile devices ...............................................9 From Mac computers ............................................................9 From Windows 8 devices ....................................................10 Connect via Wi-Fi Network ................................... 11 Scan and Save ........................................................ 13 From iPad, iPhone, and iPod touch ....................................13 From Android mobile devices .............................................14 From Mac computers ..........................................................15 From Windows 8 devices ....................................................16 Use the Photo Sleeve ............................................ 17 Calibrate .................................................................. 18 From iPad, iPhone, and iPod touch ....................................18 Contents From Android mobile devices .............................................19 From Mac computers ..........................................................20 From Windows 8 devices ....................................................21 Clean Rollers ...........................................................22 From iPad, iPhone, and iPod touch ....................................22 From Android mobile devices .............................................23 From Mac computers ..........................................................24 From Windows 8 devices ....................................................25 Clean Lens ............................................................. 26 Helpful Hints ...........................................................27 Specifications .........................................................28 4 Supported Devices Wireless Scanner is compatible with following devices: iPad (3rd generation), iPad 2, iPad, iPad mini with iOS 5.0 or later. iPhone 5, iPhone 4S, iPhone 4, iPod touch with iOS 5.0 or later. Android mobile devices (including tablets and smartphones) with OS 4.0 or later. Mac computers with OS X 10.7 or later. Windows 8 devices (including computers, tablets and smartphones). 5 Unpack Make sure following items are included. POWER A8 A6 A4 POWER A8 A6 A4 Wireless ScannerUSB CableCalibration CardCleaning Board Cleaning StripPhoto SleeveUser Guide 6 RESET POWER A8 A6 A4 POWER A8 A6 A4 Scanner Parts Feed Slot Exit Slot Reset Pin-hole (System Shutdown) Mini USB Port (Charge Only) Paper Guide Power LED Indicator POWER Button Wi-Fi LED Indicator 7 NOTE: USB power adapter not included. Use the USB power adapter provided with your mobile device to connect a power socket. Charge the Battery Wireless Scanner has a built-in rechargeable battery to provide power, make sure it has been fully charged before use. 1. Press POWER button to turn Off the Scanner. * The Power LED indicator shall turn off. 2. Connect the USB cable to the Scanner at small end and to a computer ( A ) or to USB power adapter ( B ) at the other end. * The Power LED indicator shall emit red light to indicate the battery is charging. 3. Once the battery is fully charged, the Power LED shall turn off, then disconnect the USB cable from the Scanner. E: USBpower A B • Charge the Scanner for approximately 4 hours or until the Power LED indicator turns off. • When a low battery alerts (a green Power LED blinks), charge the Scanner immediately. • Scanner will not charge while operating. Ensure Scanner’s power is off when charging battery. • The rechargeable battery is consumable. The battery capacity will decreased gradually. NOTESNOTES 8 Download and Install iScan Air Wireless Scanner includes free iScan Air apps to work on iPad, iPhone, iPod touch, Android mobile devices, Windows 8 devices, and Mac computers. You need to download and i…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: Mustek Systems Inc. No.25, R&D Road II, Science-Based Industrial Park,. City: Hsin-Chu, Country: Taiwan, R.O.C  . Declare that: Name Representative of agent: Gene Chang(1) Agent Company name: QuieTek Corporation Address: 2F, No. 345, Xinhu 2nd Rd., Neihu District, City: Taipei City 114, Country: Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: Wireless Scanner Type designation: S400W Trademark: Mustek on our behalf. Date: 2012/12/17 City: Hsin-Chu Name: Miller Hsieh  .. (2) Function: Manager......................... Signature:  . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

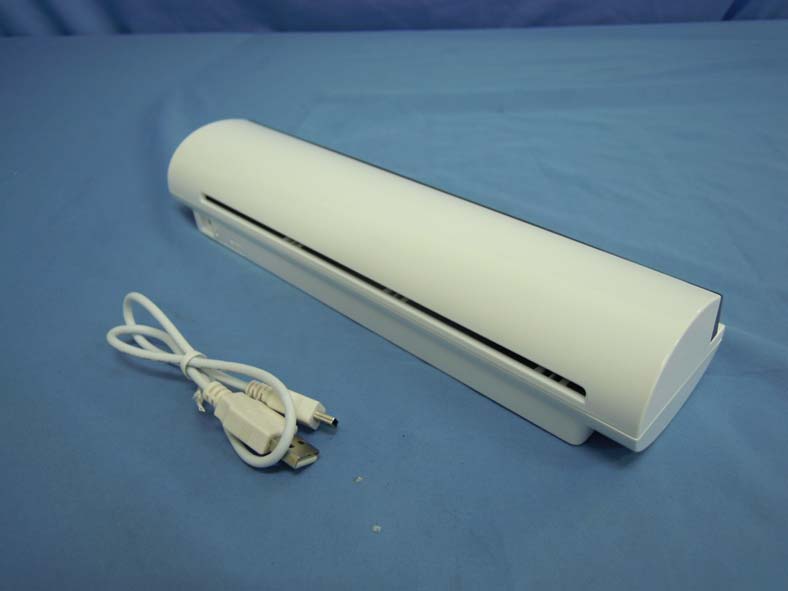

Report No： 12B374R-RFUSP42V01 Page: 92 of 105 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

FCC ID.: HWFS400W FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Scanner Model No.: S400W F F C C C C I I D D : : HWFS400W S/N: Made in Taiwan Trade name: Mustek Model number.: S400W

FCC ID.: HWFS400W FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Scanner Model No.: S400W F F C C C C I I D D : : HWFS400W S/N: Made in Taiwan Trade name: Mustek Model number.: S400W

Report No： 12B374R-RFUSP42V01 Page: 93 of 105 (3) EUT Photo (4) EUT Photo Report No： 12B374R-RFUSP42V01 Page: 94 of 105 (5) EUT Photo (6) EUT Photo Report No： 12B374R-RFUSP42V01 Page: 95 of 105 (7) EUT Photo (8) EUT Photo Report No： 12B374R-RFUSP42V01 Page: 96 of 105 (9) EUT Photo (10) EUT Photo Report No： 12B374R-RFUSP42V01 Page: 97 of 105 (11) EUT Photo (12) EUT Photo Report No： 12B374R-RFUSP42V01 Page: 98 of 105 (13) EUT Photo (Ant.) (14) EUT Photo Report No： 12B374R-RFUSP42V01 Page: 99 of 105 (15) EUT Photo (16) EUT Photo Report No： 12B374R-RFUSP42V01 Page: 100 of 105 (17) EUT Photo (18) EUT Photo Report No： 12B374R-RFUSP42V01 Page: 101 of 105 (19) EUT Photo (20) EUT Photo Report No： 12B374R-RFUSP42V01 Page: 102 of 105 (21) EUT Photo (22) EUT Photo Report No： 12B374R-RFUSP42V01 Page: 103 of 105 (23) EUT Photo (24) EUT Photo Report No： 12B374R-RFUSP42V01 Page: 104 of 105 (25) EUT Photo (26) EUT Photo Report No： 12B374R-RFUSP42V01 Page: 105 of 105 (27) EUT Photo (MB)

Report No. 12B374R-RF-US-Exp Page: 1 of 3 RF Exposure Evaluation declaration Product Name ：Wireless Scanner Model No. ：S400W FCC ID. ：HWFS400W Applicant : Mustek Systems Inc. Address : No.25, R&D Road II, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Date of Report : 2012/12/13 Report No. : 12B374R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 12B374R-RF-US-Exp Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 12B374R-RF-US-Exp Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product Wireless Scanner Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.23dBi or 1.67 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 32.4340 0.01078 6 2437 33.1894 0.01103 11 2462 33.1894 0.01103 IEEE 802.11n (20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 29.5801 0.00983 6 2437 32.1366 0.01068 11 2462 32.8095 0.01091 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Report No： 12B374R-RFUSP42V01 Page: 1 of 105 Test Report Product Name：Wireless Scanner Model No. ：S400W FCC ID. ：HWFS400W Applicant： Mustek Systems Inc. Address ： No.25, R&D Road II, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Date of Report ：2012/12/13 Report No. ：12B374R-RFUSP42V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 12B374R-RFUSP42V01 Page: 2 of 105 Test Report Certification Date of Report : 2012/12/13 Report No. : 12B374R-RFUSP42V01 Product Name ： Wireless Scanner Applicant ： Mustek Systems Inc. Address ： No.25, R&D Road II, Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Manufacturer ： (1) Mustek Systems Inc. (2) MUSTEK ELECTRONICS CO., LTD. Model No. ： S400W FCC ID. ： HWFS400W EUT Test Voltage : DC 3.7V (Power by Battery) Trade Name ： Mustek Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2011 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Carol Tsai / Engineering Adm. Specialist ) Reviewed By : ( Quale Tang / Engineer ) Approved By : ( Roy Wang / Manager ) Report No： 12B374R-RFUSP42V01 Page: 3 of 105 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 1313 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No： 12B374R-RFUSP42V01 Page: 4 of 105 TABLE OF CONTENTS Description Page 1. General Information........................................................................................................ 6 1.1. EUT Description ............................................................................................................. 6 1.2. Operational Description ................................................................................................ 10 1.3. Test Mode ..................................................................................................................... 11 1.4. Tested System Details .................................................................................................. 12 1.5. Configuration of tested System .................................................................................... 13 1.6. EUT Exercise Software ................................................................................................ 14 1.7. Test Facility...................................................................................................................15 2. Conducted Emission .................................................................................................... 16 2.1. Test Equipment............................................................................................................. 16 2.2. Test Setup .................................................................................................................... 16 2.3. Limits ............................................................................................................................ 17 2.4. Test Procedure ............................................................................................................. 17 2.5. Test Specification.......................................................................................................... 17 2.6. Uncertainty ................................................................................................................... 17 2.7. Test Result....................................................................................................................18 2.8. Test Photo .................................................................................................................... 20 3. Peak Power Output ...................................................................................................... 21 3.1. Test Equipment............................................................................................................. 21 3.2. Test Setup .................................................................................................................... 21 3.3. Test procedures ............................................................................................................ 21 3.4. Limits ............................................................................................................................ 21 3.5. Test Specification.......................................................................................................... 21 3.6. Uncertainty ................................................................................................................... 21 3.7. Test Result...............................................................................................................…

Text truncated - open the document above for the full version.

Report No： 12B374R-RFUSP42V01 Page: 20 of 105 2.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit Description： Back View of Conducted Emission Test Setup Report No： 12B374R-RFUSP42V01 Page: 48 of 105 4.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No： 12B374R-RFUSP42V01 Page: 49 of 105 Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Horn)
