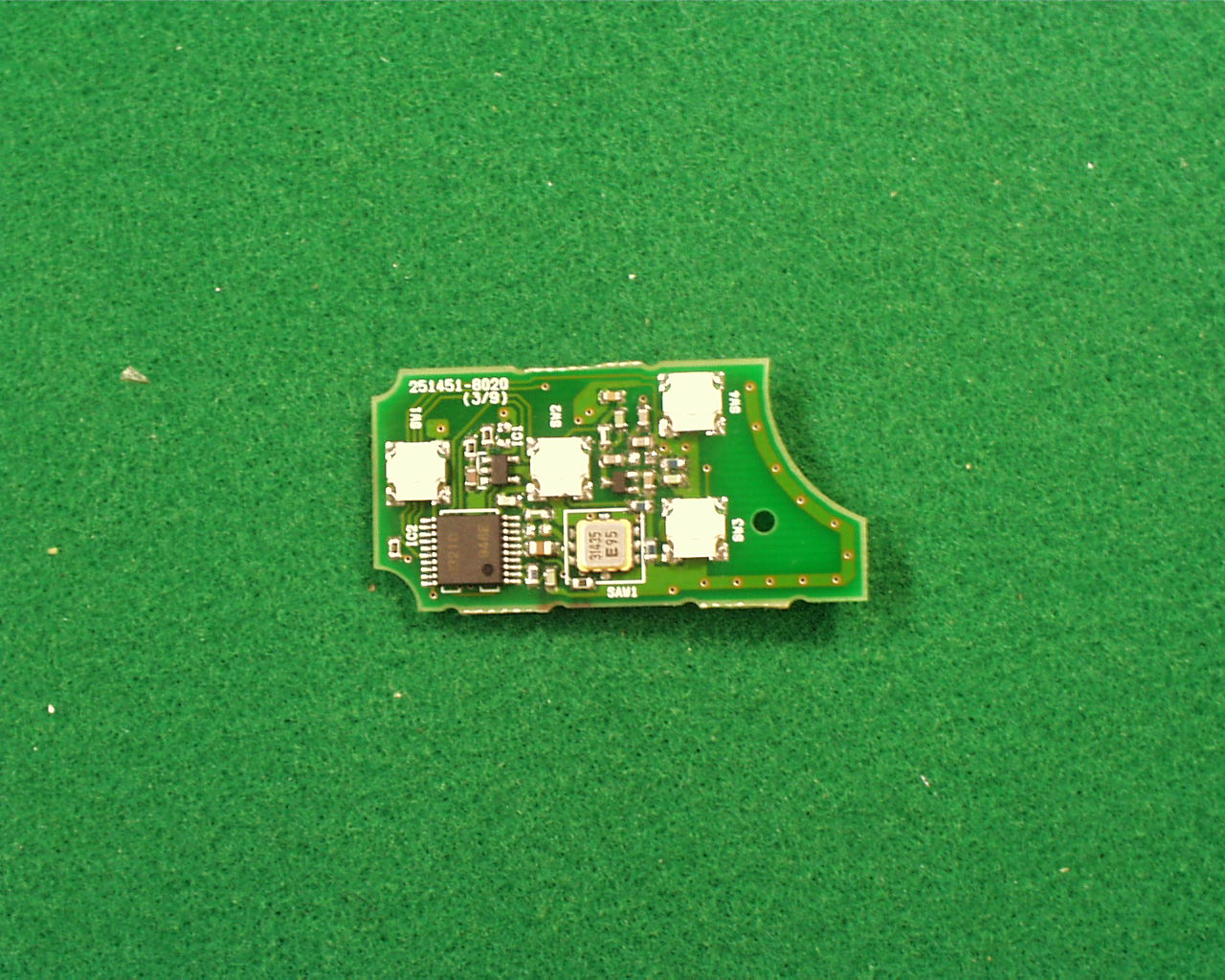

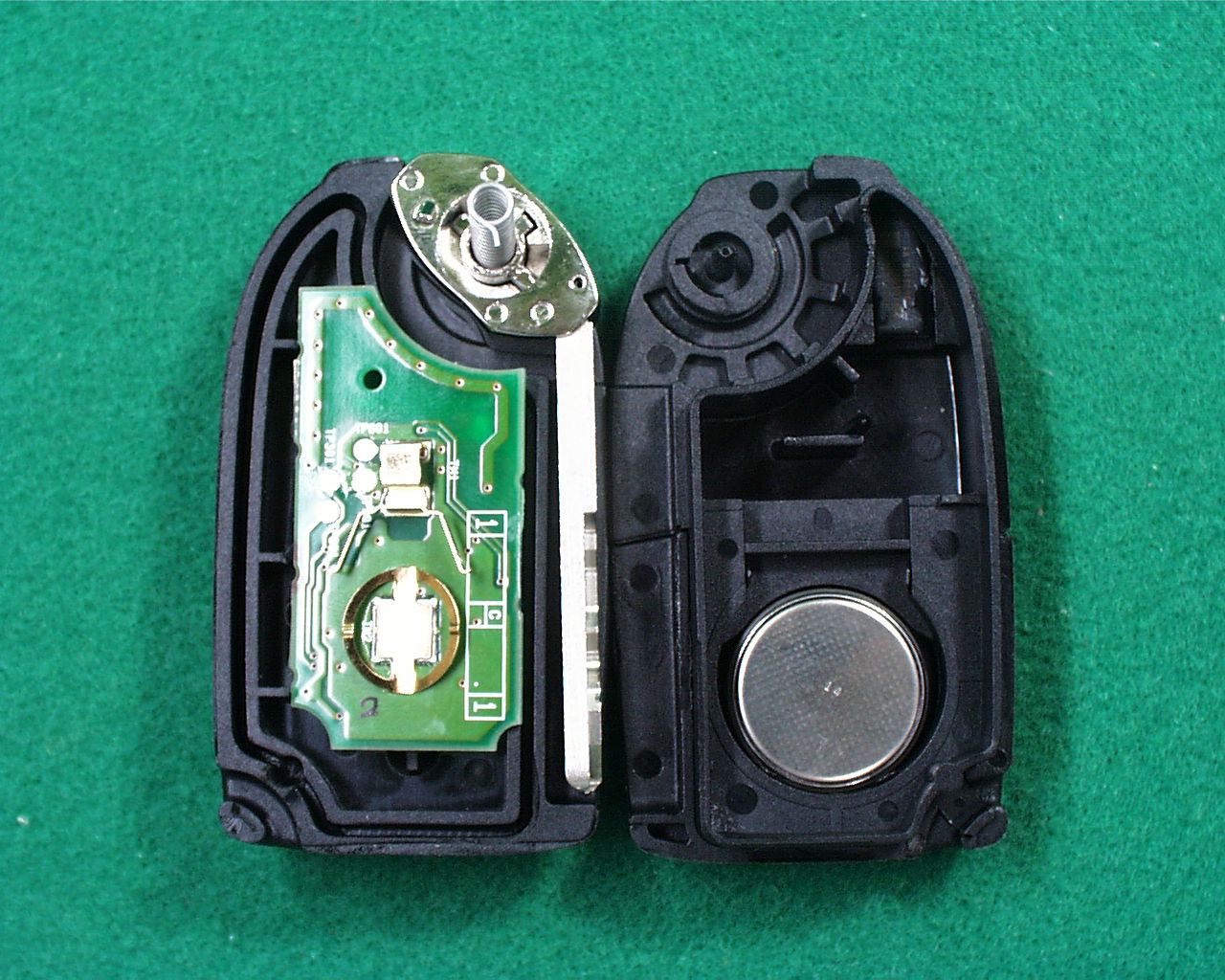

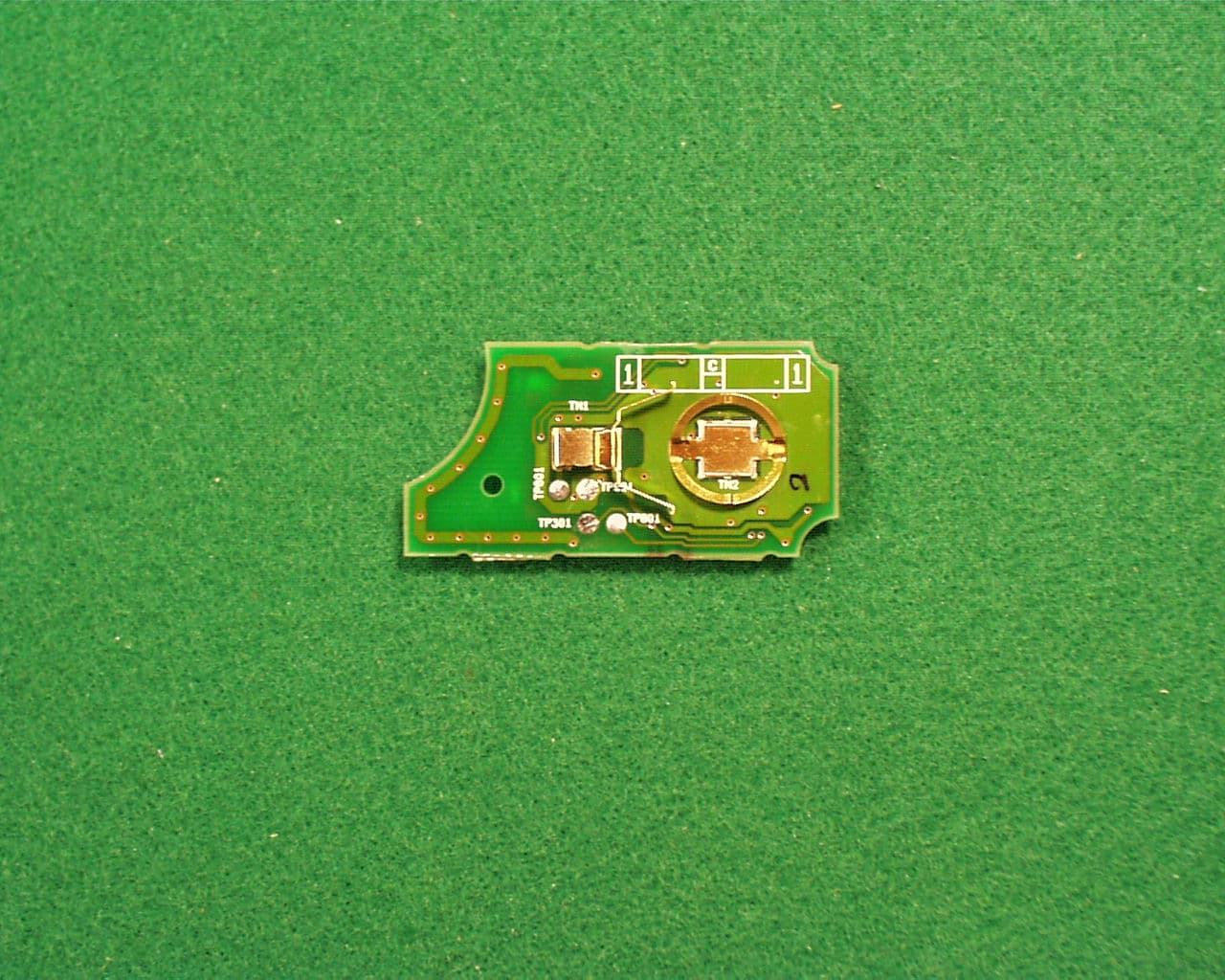

HYQ12BBMKeyless Entry Transmitter

Locking/Unlocking the doors INSTRUCTIONS When you push the ‘Lock’ button on the key, all the doors can be locked from outside the vehicle. Make sure all the doors are locked when you leave the vehicle. When you push the ‘Unlock’ button on the key, all the doors can be unlocked from outside the vehicle. (If applicable) When you push the ‘Trunk’ button on the key, the car trunk can be locked/unlocked from outside the vehicle. (If applicable) When you push the ‘Panic’ button on the key, alarms can be operated/unoperated from outside the vehicle. NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

A- PEX INTERNATIONAL CO., LTD. •HEAD OFFICE •4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan TEL:0596-24-6717/FAX:0596-24-8020 Date:5 December, 2001 Re: Denso Corporation FCC ID: HYQ12BBM Dear Mr. Timothy Johnson, Please find the following replies to your comments dated November 30, 2001; 1) I have uploaded in the filing again. 2) Alre ad y so lve d. 3) Waiting for your advice. 4) We measured the noise at each position of all three axes X, Y and Z to compare the level, and then we found that the maximum noise occurred at the position showed in the photograph of the test report. We added comments about that i nto page 5 and 10. 5) The relative measurements were performed on the fundamental and spurious emissions with each condition of key folded and key set up. The key set-up condition was worse case under both fundamental and spurious emissions, we, therefore, tested while the key was set up. We commented that in the test report, page 5. 6) Please check the attached file which is from DENSO. 7) The result of the measurement >1GHz from PK detector, PBW: 1MHz, VBW: 1 MHz, had satisfied the average limit, so the average measurement was not necessary. We corrected the data, and we deleted the data measured by average detectors. 8) We have revised it. Kanako Sanda A-Pex Int ernational Co., Ltd.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 30, 2001 RE: Denso Corporation FCC ID: HYQ12BBM After a review of the submitted information, I have a few comments on the above referenced Application. 1) All files uploaded for the block diagram exhibit were empty. Please resubmit these exhibits. 2) Please upload Exhibits for the Operational Description, Labeling Information, and Users Manual. 3) The schematic contains several parts that reference a component listing which was not provided. Please provide this. 4) Portable devices should be tested while positioned in each of all 3 axis. No information was presented in the photographs or test report regarding this issue. Please comment. 5) The test report stated that the key folding condition (key folded vs. key set up) was investigated and the worse case position (key set up) was used. We have seen devices where the worse case for the fundamental may be one condition, while for the spurious emissions may be worse under a different condition. Please confirm if the key condition was investigated for both the fundamental and spurious emissions and that the worse case for both the fundamental and spurious was the same condition. 6) Please provide information to show compliance with 15.231 (a)(1). 7) Due to the type of emissions created, many of these types of devices can not be measured using average detectors (> 1 GHz), but must instead be corrected mathematically by a duty cycle. Please comment on the use of the 10 Hz VBW for average measurements. 8) FYI, It appears that the measurements uncertainty boxes are not correctly checked in the test report. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

1 7. Marking location and layout (Unit:mm) Note. Compliance statement of marking will not be changed. But marking layout and size maybe changed. LOCK UN LOCK Marking location (43.5) (69.0) (21.5)(39.0)

1 3.Outline of the system 3.1 Description of the system operation This system is mainly used for locking or unlocking the doors of the vehicle. The transmitter sends a radio wave signal while the button is pushed. The receiver becomes active in response to the signal from the transmitter. 3.2 Transmitter The transmitter sends a signal using radio frequency. The transmitter emits the radio frequency while the button is depressed. If the button is depressed continuously, then the transmitter will only send a signal for a predetermined constant time (For example 5 seconds. This is an auto-power-off feature)

Transmission time chart of 12BBM (Mass production) 1) Switch ON time :T < 560 ms The transmitter sends the data till 560ms from the switch ON. 2) 560 ms ? T < 5s The transmitter sends the data while the switch is pressed. 3) 5s ? T When the switch is pressed for more than 5s, the transmitter stops sending the sdata in 5s (not included) from switch ON. (Auto-power off function) T 560ms Switch Data Transmitting Duration data ON OFF ON OFF T Switch Data Transmitting Duration ON OFF ON OFF T Switch Data Transmitting Duration ON OFF ON OFF 5s (not included)

Test report Our reference : 22AE0084-YW-1 Page: 2 of 11 Issued date: September 7, 2001 Revised date : December 6, 2001 FCC ID: HYQ12BBM Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 Table of Contents Page 1 GENERAL INFORMATION3 1.1 Product Description4 1.2 Test Specification 4 1.3 Methods & Procedures 4 1.4 Test Location4 2 SYSTEM TEST CONFIGURATION5 2. 1 Operation Environment 5 2.2 Justification5 2. 3 EUT Exercise Software5 2.4 Test Procedure5 Figure 2.1 Configuration of Tested System6 3 RADIATED EMISSION DATA7 3.1 Field Strength Calculation7 2.2 –20dB Bandwidth7 3.3 Measurement Uncertainty8 4 TEST EQUIPMENT USED9 5 MEASUREMENT PHOTOS10 Figure 5.1 Radiated Measurement Photos 10 APPENDIX 11 A:Test Data A1 – A3 Test report Our reference : 22AE0084-YW-1 Page: 3 of 11 Issued date: September 7, 2001 Revised date : December 6, 2001 FCC ID: HYQ12BBM Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1 GENERAL INFORMATION APPLICANT: DENSO CORPORATION ADDRESS: 1-1 Showa-cho, Kariya-shi, Aichi-ken : 448-8661 Japan Telephone Number: +81-566-25-5922 Facsimile Number: +81-566-25-4548 REGULATION(S): FCC Part 15 Subpart C Section 15.231 MODEL NUMBER: 12BBM FCC ID: HYQ12BBM SERIAL NUMBER: Sample No.10 CONDITION OF EUT: Engineering Prototype KIND OF EQUIPMENT: Keyless Entry System (Transmitter) TESTED DATE: August 31, 2001 RECEIPT DATE OF SAMPLE : August 31, 2001 REPORT FILE NUMBER: 22AE0084-YW-1 TEST SITE: A-PEX Yokowa No.3 Open Test Site Test report Our reference : 22AE0084-YW-1 Page: 4 of 11 Issued date: September 7, 2001 Revised date : December 6, 2001 FCC ID: HYQ12BBM Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 1.1 Product Description Model: 12BBM(referred to as the EUT in this report) is a Keyless Entry System (Transmitter). The specification is as following : Carrier Frequency : 314.35 MHz Modulation: FSK Other Clock Frequency: 1MHz Information antenna: P.C.B pattern antenna Operation Voltage: Lithium Battery DC 3.0V(CR2025) 1.2 Test Specification Test Specification: FCC Part 15 Subpart C Title: FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 – 40.70 MHz and above 70MHz 1.3Methods & Procedures No.ItemTest ProcedureSpecificationRemarks 1 Electric Field Strength of Fundamental Emission ANSI C63.4:1992 Section 15.231 3m 2 Electric Field Strength of Spurious Emission ANSI C63.4:1992 Section 15.205 Section 15.209 Section 15.231 3m 3-20dB BandwidthANSI C63.4:1992 Section 15.2313m 1.4 Test Location A-PEX International Co.,Ltd. Yokowa No.3 test site 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 Japan Telephone number: +81-596-39-1485 Facsimile number: +81-596-39-0232 This site has been fully described in a report submitted to FCC office, and listed on September 12, 2000 (Registration number: 90412). *NVLAP Lab. code : 200109-0 Test report Our reference : 22AE0084-YW-1 Page: 5 of 11 Issued date: September 7, 2001 Revised date : December 6, 2001 FCC ID: HYQ12BBM Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 2 SYSTEM TEST CONFIGURATION 2.1 Operation Environment Temperature: See data Humidity: See data 2.2 Justification The system was configured in typical fashion (as a customer would normally use it) for testing. 2.3 EUT Exercise Software The EUT exercise program used during radiated testing was designed to exercise the various system components in a manner similar to typical use. The sequence is used: Operation Mode : Transmitting 2.4 Test Procedure Tabletop Equipment Radiated Emissions EUT was placed on a platform of nominal size, 1m by 1m, raised 80cm above the conducting ground plane. Test was made with the antenna positioned in both the horizontal and vertical planes of polarization. The measurement antenna was varied in height above the conducting ground plane to obtain the maximum signal strength. The measurement distance was 3m. Preliminary Radiated Emissions Tests were performed before Final Radiated Emissions Measurements as follows; -The noise was measured at each position of all three axes X, Y and Z to compare the level, and the maximum noise occurred at the position showed in the photograph. -The relative measurements were performed on the fundamental and the spurious emissions with each condition of the key folded and the key set up. The key set-up condition was worse case under both the fundamental and the spurious emissions, we, therefore, tested while the key was set up. See the photograph. Test report Our reference : 22AE0084-YW-1 Page: 6 of 11 Issued date: September 7, 2001 Revised date : December 6, 2001 FCC ID: HYQ12BBM Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 Figure2.1 Configuration of Tested System Front View (1):EUT Top View (1):EUT *Test data was taken under worse case conditions. No.ItemModel numberSerial numberManufacturerFCC ID 1Keyless Entry System (Transmitter) 12BBM Sample No.10DENSO CORPORATION HYQ12BBM Test report Our reference : 22AE0084-YW-1 Page: 7 of 11 Issued date: September 7, 2001 Revised date : December 6, 2001 FCC ID: HYQ12BBM Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 3 RADIATED EMISSION DATA The initial step in collecting radiated data was a spectrum analyzer peak scan of the measurement range (30MHz-3200MHz). No Ant Pol Freq [MHz] Reading [dBuV] Antena Facter [dB] Cable Loss [dB] ATT [dB] AMP Gain [dB] Result [dBuV/m] Limit [dBuV/m] Margin [dB] Remark 1 H 314.36 77.3 14.4 3.6 5.8 27.6 73.5 75…

Text truncated - open the document above for the full version.

Test report Our reference : 22AE0084-YW-1 Page: 10 of 11 Issued date: September 7, 2001 FCC ID: HYQ12BBM Testing Laboratory A-pex International Co., Ltd. Telephone:+81 596 39 1485 108 Yokowa-cho, Ise-shi Mie-ken 516-1106 JAPANFacsimile:+81 596 39 0232 5 RADIATED MEASUREMENT PHOTOS 5.1 Radiated Measurement Photos
